Windows双网卡配置——同时访问内外网

外网web服务器一台

内网主机两台，一台作为普通PC，一台添加双网卡：内网：192.168.46.10/24   外网：10.10.10.20/24

目的：通过添加静态路由，使双网卡主机能够同时访问内网与外网

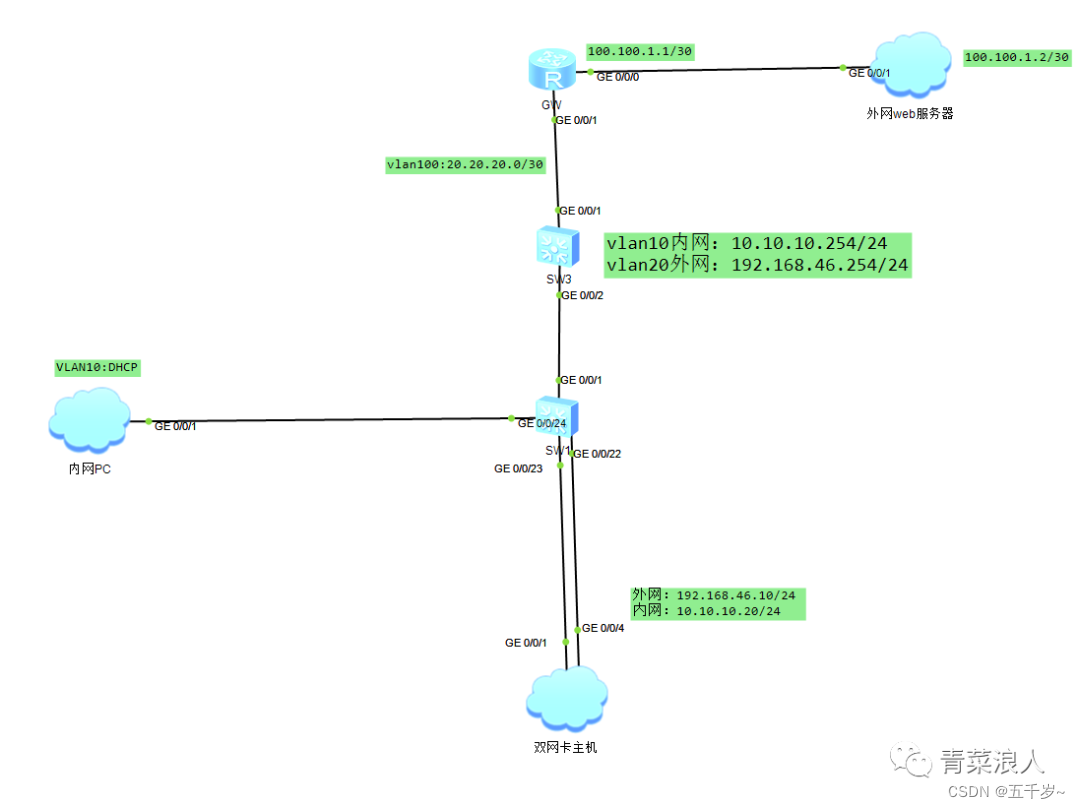

根据拓扑配置对应的IP地址

外网web服务器

nmcli connection modify ens33 ipv4.method manual ipv4.addresses 100.100.1.2/30 ipv4.gateway ''

GW：

#
interface GigabitEthernet0/0/0
ip address 100.100.1.1 255.255.255.252
nat outbound 2000
#
interface GigabitEthernet0/0/1
ip address 20.20.20.1 255.255.255.252
#
acl number 2000
rule 5 permit source 192.168.46.0 0.0.0.255
#
ip route-static 0.0.0.0 0.0.0.0 100.100.1.2
#配置回程路由
ip route-static 192.168.46.0 255.255.255.0 20.20.20.2

SW3:

#
ip pool vlan20
gateway-list 192.168.46.254
network 192.168.46.0 mask 255.255.255.0
#
ip pool vlan10
gateway-list 10.10.10.254
network 10.10.10.0 mask 255.255.255.0
#
interface Vlanif10
ip address 10.10.10.254 255.255.255.0
#
interface Vlanif20
ip address 192.168.46.254 255.255.255.0
#
interface Vlanif100
ip address 20.20.20.2 255.255.255.252
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
port link-type access
port default vlan 100
#
interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan 10 20
#
ip route-static 0.0.0.0 0.0.0.0 20.20.20.1

sw1:

interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 10 20
#
interface GigabitEthernet0/0/22
port link-type access
port default vlan 20
#
interface GigabitEthernet0/0/23
port link-type access
port default vlan 10
#
interface GigabitEthernet0/0/24
port link-type access
port default vlan 10
#

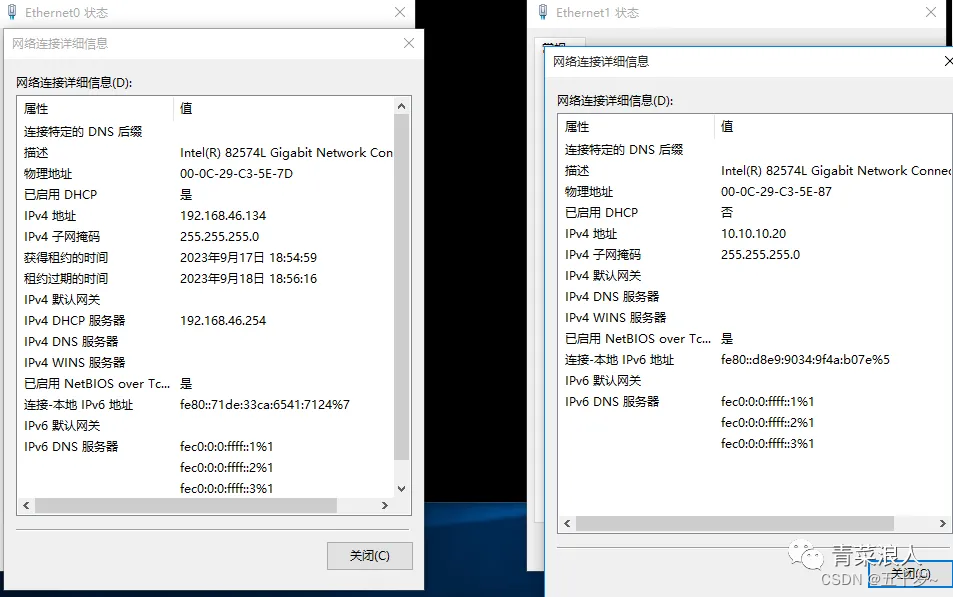

双网卡PC配置（内网其他PC均为自动获取IP）:

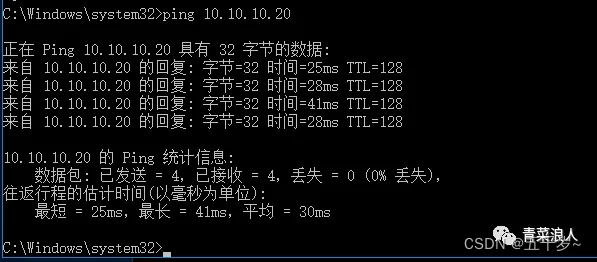

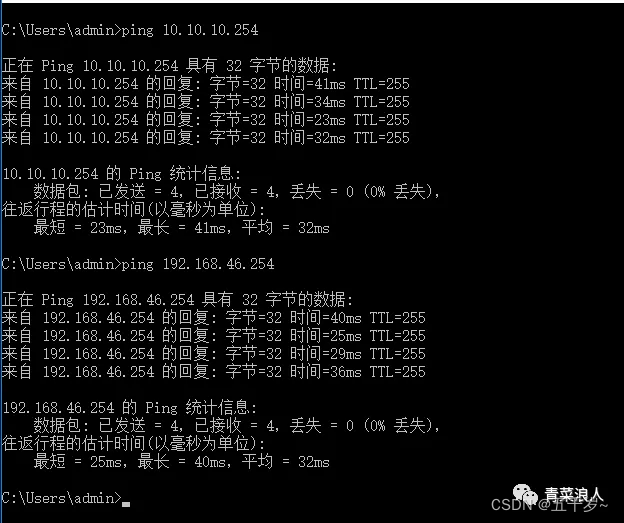

测试到网络连通性

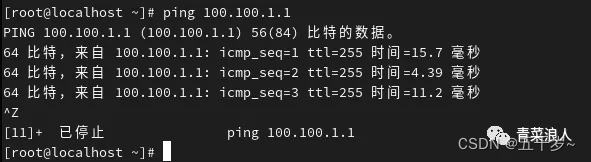

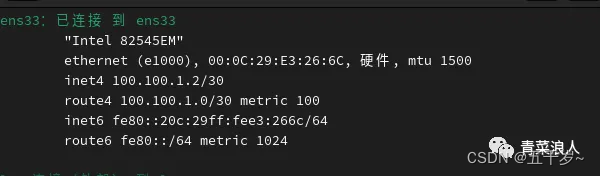

外网web服务器：

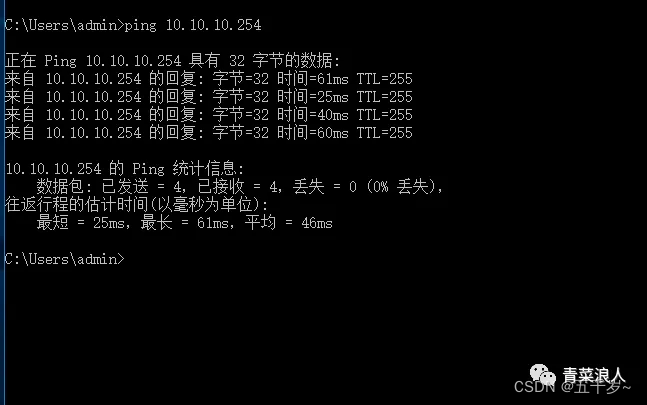

内网PC：

双网卡主机：

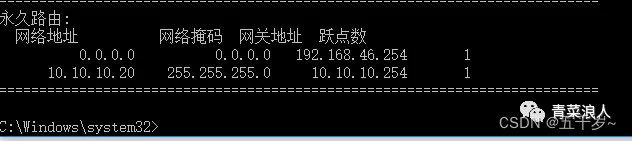

在双网卡主机上配置Windows路由策略，使其能够同时访问外网与内网

#外网路由
route add 0.0.0.0 mask 0.0.0.0 192.168.46.254
#内网路由
route add 10.10.10.20 mask 255.255.255.0 10.10.10.254

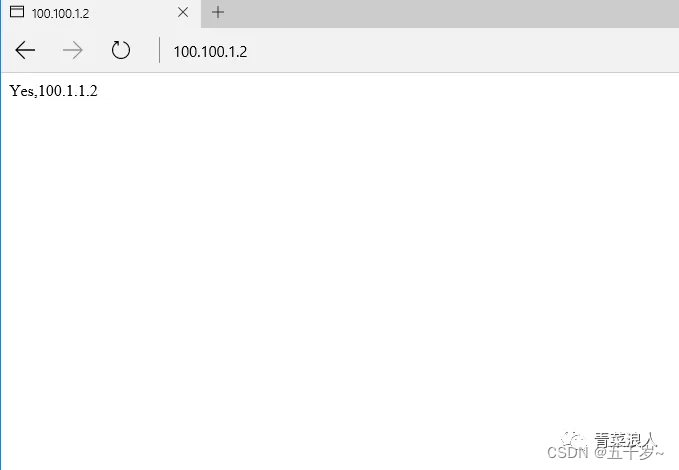

访问外网web服务器，状态正常

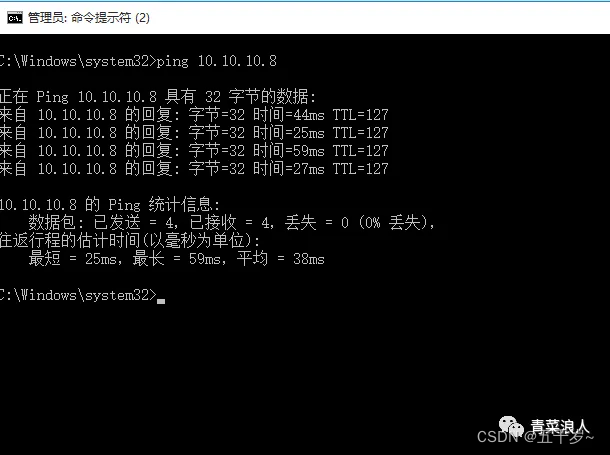

测试与内网其他主机通讯
