Version History
版本历史
| Version 版本 | Date 日期 | Author 作者 | Description 说明 |
| 1.6 1.6 | 2015-10-08 2015-10-08 | Robert de Leeuw 罗伯特·德·李 IHomer IHomer Reinier Lamers 雷尼尔·拉默斯 The New Motion 新运动 Brendan McMahon 布兰登·麦克马洪 ESB ecars ESB汽车 Lambert Muhlenberg 朗伯特·穆伦伯格 Alfen 阿尔芬 Patrick Rademakers 帕特里克·拉德梅克斯 IHomer IHomer Sergiu Tcaciuc Sergiu Tcaciuc smartlab 智能实验室 Klaas van Zuuren 克拉斯·范·祖伦 ElaadNL ElaadNL | 1.6 Final Release. 1.6最终发布。 For changes relative to 1.5, see appendixNew in OCPP 1.6. 有关1.5的更改，请参阅附录New in OCPP 1.6。 |
| Version 版本 | Date 日期 | Author 作者 | Description 说明 |
| 1.5 1.5 | 2012-06-01 2012-06-01 | Franc Buve 弗兰克·布夫 | Specification ready for release. Includes: 规范已准备好发布。包括： CR-01 CR-01 Authentication/author ization lists 身份验证/作者列表 CR-02 Interval meter readings CR-02间隔计读数 CR-03 Charge point reservation CR-03充电点预订 CR-04 Generic data transfer CR-04通用数据传输 CR-05 More detailed status notifications CR-05更详细的状态通知 CR-06 Query configuration parameters CR-06查询配置参数 CR-07 Timestamp in BootNotification 启动通知中的CR-07时间戳 mandatory 强制性的 CR-08 Response to CR-08回应 with status other than Accepted is not clearly defined 未明确定义接受状态以外的状态 CR-09 Increase size of firmwareVersion in BootNotification CR-09增加BootNotification中firmwareVersion的大小 |
| 1.2 1.2 | 2011-02-21 2011-02-21 | Franc Buve 弗兰克·布夫 |
| Version 版本 | Date 日期 | Author 作者 | Description 说明 |
| 1.0 1 | 2010-10-19 2010-10-19 | Franc Buve 弗兰克·布夫 | Final version 最终版本 approved by e-laad.nl. Identical to version 由e-laad.nl批准。与版本相同 0.12. 0.12. |
1. Scope
1.范围
This document defines the protocol used between aCharge PointandCentral System. If the protocol requires a certain action or response from one side or the other, then this will be stated in this document.
本文档定义了充电桩和中央系统之间使用的协议。如果协议要求一方或另一方采取某种行动或作出回应，则将在本文件中予以说明。
The specification does not define the communication technology. Any technology will do, as long as it supports TCP/IP connectivity.
该规范没有定义通信技术。任何技术都可以，只要它支持TCP/IP连接。
2. Terminology and Conventions
2.术语和惯例
2.1. Conventions
2.1. 习俗
The key words “MUST”, “MUST NOT”, “REQUIRED”, “SHALL”, “SHALL NOT”, “SHOULD”, “SHOULD NOT”, “RECOMMENDED”, “MAY”, and “OPTIONAL” in this document are to be interpreted as described in [RFC2119]], subject to the following additional clarification clause:
本文档中的关键字“必须”、“不得”、“必需”、“应”、“不应”、《应该》、《不应该》、“推荐”、“可能”和“可选”应按照[RFC2119]]中的描述进行解释，但须遵守以下附加澄清条款：
The phrase “valid reasons in particular circumstances” relating to the usage of the terms “SHOULD”, “SHOULD NOT”, “RECOMMENDED”, and “NOT RECOMMENDED” is to be taken to mean technically valid reasons, such as the absence of necessary hardware to support a function from a charge point design: for the purposes of this specification it specifically excludes decisions made on commercial, or other non-technical grounds, such as cost of implementation, or likelihood of use.
与“应该”、“不应该”、《建议》和《不建议》等术语的使用有关的“特定情况下的有效理由”一词应被视为技术上有效的理由，例如缺乏支持充电点设计功能的必要硬件：就本规范而言，它明确排除了基于商业或其他非技术原因（如实施成本或使用可能性）做出的决定。
All sections and appendixes, except “Scope” and “Terminology and Conventions”, are normative, unless they are explicitly indicated to be informative.
除“范围”和“术语和惯例”外，所有章节和附录都是规范性的，除非明确指出是信息性的。
2.2. Definitions
2.2. 定义
This section contains the terminology that is used throughout this document.
本节包含本文档中使用的术语。
| Central System 中央系统 | Charge Point Management System: the central system that manages 充电桩管理系统：管理充电桩的中央系统 Charge Points and has the information for authorizing users for using its Charge Points. 充电点，并具有授权用户使用其充电点的信息。 |
| CiString CiString | Case Insensitive String. Only printable ASCII allowed. 不区分大小写的字符串。只允许使用可打印的ASCII码。 |
| Charge Point 充电桩 | The Charge Point is the physical system where an electric vehicle can be charged. A Charge Point has one or more connectors. 充电桩是电动汽车可以充电的物理系统。充电桩有一个或多个连接器。 |
| Charging Profile 充电配置文件 | Generic Charging Profile, used for different types of Profiles. Contains 通用充电配置文件，用于不同类型的配置文件。包含 information about the Profile and holds theCharging Schedule. In future versions of OCPP it might hold more than 1Charging Schedule. 有关配置文件的信息，并保存Charging Schedule。在OCPP的未来版本中，它可能会容纳超过1个Charging Schedule。 |
| Charging Schedule 收费时间表 | Part of a Charging Profile. Defines a block of charging Power or Current limits. Can contain a start time and length. 充电配置文件的一部分。定义充电功率或电流限制块。可以包含开始时间和长度。 |
| Charging Session 充电会话 | Part of a transaction during which the EV is allowed to request energy 允许电动汽车请求能源的交易的一部分 |
| Composite Charging Schedule 综合收费计划 | The charging schedule as calculated by the Charge Point. It is the result of the calculation of all active schedules and possible local limits present in the Charge Point. Also IEC 15118 limits might be taken into account. 充电桩计算的充电时间表。它是计算充电桩中所有活动时间表和可能的局部限制的结果。还可以考虑IEC 15118的限制。 |
| Connector 连接器 | The term “Connector”, as used in this specification, refers to an 本规范中使用的术语“连接器”是指 independently operated and managed electrical outlet on a Charge Point. This usually corresponds to a single physical connector, but in some 充电桩上独立操作和管理的电源插座。这通常对应于一个物理连接器，但在某些情况下 cases a single outlet may have multiple physical socket types and/or tethered cable/connector arrangements to facilitate different vehicle types (e.g. four-wheeled EVs and electric scooters). 单个插座可以具有多种物理插座类型和/或系留电缆/连接器布置，以方便不同的车辆类型（例如四轮电动汽车和电动踏板车）。 |
| Control Pilot signal 控制导频信号 | signal used by a Charge Point to inform EV of maximum Charging power or current limit, as defined by[IEC61851-1]. 充电点用于通知电动汽车最大充电功率或电流限制的信号，如所定义[IEC61851-1]。 |
| Energy Transfer Period 能量转移期 | Time during which an EV chooses to take offered energy, or return it. Multiple Energy Transfer Periods are possible during a Transaction. 电动汽车选择获取或归还所提供能量的时间。交易期间可能有多个能量转移期。 |
| Local Controller 本地控制器 | Optional device in a smart charging infrastructure. Located on the 智能充电基础设施中的可选设备。位于 premises with a number of Charge Points connected to it. Sits between the Charge Points and Central System. Understands and speaks OCPP 带有多个充电点的场所。位于充电点和中央系统之间。理解并讲OCPP messages. Controls the Power or Current in other Charge Point by using OCPP smart charging messages. Can be a Charge Point itself. 信息。使用OCPP智能充电消息控制其他充电点的功率或电流。它本身可以是充电桩。 |
| OCPP-J OCPP-J | OCPP via JSON over WebSocket 通过WebSocket上的JSON进行OCPP |
| OCPP-S OCPP-S | OCPP via SOAP 通过SOAP访问OCPP |
| Phase Rotation 相位旋转 | Defines the wiring order of the phases between the energy meter (or if absent, the grid connection), and the Charge Point connector. 定义电能表（或如果没有，则定义电网连接）和充电桩连接器之间的相位接线顺序。 |
| Transaction 交易 | The part of the charging process that starts when all relevant 当所有相关因素都发生时，充电过程开始的部分 preconditions (e.g. authorization, plug inserted) are met, and ends at the moment when the Charge Point irrevocably leaves this state. 前提条件（如授权、插入插头）得到满足，并在充电桩不可撤销地离开此状态时结束。 |
| String 字符串 | Case Sensitive String. Only printable ASCII allowed. All strings in 区分大小写的字符串。只允许打印ASCII码。所有字符串 messages and enumerations are case sensitive, unless explicitly stated otherwise. 除非另有明确说明，否则消息和枚举区分大小写。 |
2.3. Abbreviations
2.3. 缩写
| CSL CSL | Comma Separated List 逗号分隔列表 |
| CPO CPO | Charge Point Operator 充电桩操作员 |
| DNS 域名服务器 | Domain Name System 域名系统 |
| DST DST | Daylight Saving Time 夏令时 |
| EV EV | Electrical Vehicle 电动汽车 |
| EVSE EVSE | Electric Vehicle Supply Equipment[IEC61851-1] 电动汽车供电设备[IEC61851-1] |
| FTP(S) FTP | File Transport Protocol (Secure) 文件传输协议（安全） |
| HTTP(S) HTTP | HyperText Transport Protocol (Secure) 超文本传输协议（安全） |
| ICCID ICCID | Integrated Circuit Card Identifier 集成电路卡标识符 |
| IMSI IMSI | International Mobile Subscription Identity 国际移动订阅身份 |
| JSON JSON | Java Simple Object Notation Java简单对象表示法 |
| NAT NAT | Native Address Translation 本地地址转换 |
| PDU PDU | Protocol Data Unit 协议数据单元 |
| SC 联合国安全理事会 | Smart Charging 智能充电 |
| SOAP 肥皂 | Simple Object Access Protocol 简单对象访问协议 |
| URL 统一资源定位地址 | Uniform Resource Locator 统一资源定位器 |
| RST RST | 3 phase power connection, Standard Reference Phasing 三相电源连接，标准参考相位 |
| RTS 实时战略 | 3 phase power connection, Reversed Reference Phasing 三相电源连接，反向参考相位 |
| SRT SRT | 3 phase power connection, Reversed 240 degree rotation 3相电源连接，反向240度旋转 |
| STR STR | 3 phase power connection, Standard 120 degree rotation 3相电源连接，标准120度旋转 |
| TRS TRS | 3 phase power connection, Standard 240 degree rotation 三相电源连接，标准240度旋转 |
| TSR TSR | 3 phase power connection, Reversed 120 degree rotation 3相电源连接，反向120度旋转 |
| UTC UTC | Coordinated Universal Time 协调世界时 |
2.4. References
2.4. 工具书类
| [IEC61851-1] [IEC61851-1] | “IEC 61851-1 2010: Electric vehicle conductive charging system - Part 1: General requirements”IEC 61851-1:2010 | IEC “IEC 61851-1 2010：电动汽车传导充电系统-第1部分：一般要求”IEC 61851-1:2010 | IEC |
| [OCPP1.5] [OCPP1.5] | “OCPP 1.5: Open Charge Proint Protocol 1.5” “OCPP 1.5：开放式收费项目协议1.5” |
| [OCPP_1.6CT] [OCPP_1.6CT] | “OCPP 1.6 Compliance testing”Download OCPP - Open Charge Alliance “OCPP 1.6合规性测试”Download OCPP - Open Charge Alliance |
| [OCPP_IMP_J] [OCPP_IMP_J] | “OCPP JSON Specification”Download OCPP - Open Charge Alliance “OCPP JSON规范”Download OCPP - Open Charge Alliance |
| [OCPP_IMP_S] [OCPP_IMP_S] | “OCPP SOAP Specification”Download OCPP - Open Charge Alliance “OCPP SOAP规范”Download OCPP - Open Charge Alliance |
| [RFC2119] [RFC2119] | “Key words for use in RFCs to Indicate Requirement Levels” . S. Bradner. March “RFC中用于指示需求级别的关键字”。S.Bradner。三月 |
3.导言
This is the specification for OCPP version 1.6.
这是OCPP 1.6版本的规范。
OCPP is a standard open protocol for communication between Charge Points and a Central System and is designed to accommodate any type of charging technique.
OCPP是充电点和中央系统之间通信的标准开放协议，旨在适应任何类型的充电技术。
OCPP 1.6 introduces new features to accommodate the market: Smart Charging, OCPP using JSON over Websockets, better diagnostics possibilities (Reason), more Charge PointStatuses andTriggerMessage. OCPP 1.6 is based on OCPP 1.5, with some new features and a lot of textual improvements, clarifications and fixes for all known ambiguities. Due to improvements and new features, OCPP 1.6 is not backward compatible with OCPP 1.5.
OCPP 1.6引入了新功能以适应市场：智能充电、使用JSON over Websockets的OCPP、更好的诊断可能性（Reason）、更多的充电桩Statuses和TriggerMessage。OCPP 1.6基于OCPP 1.5，具有一些新功能，并对所有已知的歧义进行了大量的文本改进、澄清和修复。由于改进和新功能，OCPP 1.6与OCPP 1.5不向后兼容。
For a full list of changes, see:New in OCPP 1.6.
有关更改的完整列表，请参阅：New in OCPP 1.6。
Some basic concepts are explained in the sections below in this introductory chapter. The chapters:Operations Initiated by Charge Point and Operations Initiated by Central System describe the operations supported by the protocol. The exact messages and their parameters are detailed in the chapter:Messages and data types are described in chapter:Types. Defined configuration keys are described in the chapter:Standard Configuration Key Names & Values.
本介绍性章节的以下部分解释了一些基本概念。章节：Operations Initiated by Charge Point并Operations Initiated by Central System描述协议支持的操作。第章详细介绍了确切的消息及其参数，第章描述了数据类型Types。Messages定义的配置键在以下章节中进行了描述：Standard Configuration Key Names & Values。
3.1. Document structure
3.1. 文档结构
With the introduction of OCPP 1.6, there are two different flavours of OCPP; next to the SOAP based implementations, there is the possibility to use the much more compact JSON alternative. To avoid confusion in communication on the type of implementation we recommend using the distinct suffixes -J and -S to indicate JSON or SOAP. In generic terms this would be OCPP-J for JSON and OCPP-S for SOAP.
随着OCPP 1.6的推出，OCPP有两种不同的口味；除了基于SOAP的实现之外，还可以使用更紧凑的JSON替代方案。为了避免在通信中混淆实现类型，我们建议使用不同的后缀-J和-S来表示JSON或SOAP。一般来说，这将是JSON的OCPP-J和SOAP的OCPP-S。
To support the different flavours, the OCPP standard is divided in multiple documents. The base document (the one you are reading now) contains the technical protocol specification. The technical protocol specification must be used with one of the transport protocol specifications. theOCPP SOAP Specification contains the implementation specification needed to make a OCPP-S implementation. For OCPP-J, theOCPP JSON Specification must be used.
为了支持不同的口味，OCPP标准被分为多个文档。基础文档（您现在正在阅读的文档）包含技术协议规范。技术协议规范必须与传输协议规范之一一起使用。包含进行OCPP-S实现所需的实现规范。对于OCPP-J，必须使用。
For improved interoperabillity between the Central Systems and Charge Points, it is adviced to meet the requirements stated in theOCPP 1.6 Compliance testing documentation.
为了提高中央系统和充电点之间的互操作性，建议满足文件中规定的要求。
3.2. Feature Profiles
3.2. 功能配置文件
This section is informative.
本节内容丰富。
In OCPP 1.6 features and associated messages are grouped inprofiles. Depending on the required functionality, implementers can choose to implement one or more of the following profiles.
在OCPP 1.6中，功能和相关消息在配置文件中分组。根据所需的功能，实现者可以选择实现以下一个或多个配置文件。
| Profile name 配置文件名称 | Description 说明 |
| Core 核心 | Basic Charge Point functionality comparable with OCPP 1.5[OCPP1.5] without support for firmware updates, local authorization list management and reservations. 基本充电桩功能与OCPP 1.5[OCPP1.5]相当，不支持固件更新、本地授权列表管理和预订。 |
| Firmware Management 固件管理 | Support for firmware update management and diagnostic log file download. 支持固件更新管理和诊断日志文件下载。 |
| Local Auth List Management 本地身份验证列表管理 | Features to manage the local authorization list in Charge Points. 管理充电桩中本地授权列表的功能。 |
| Reservation 预订 | Support for reservation of a Charge Point. 支持预订充电桩。 |
| Smart Charging 智能充电 | Support for basic Smart Charging, for instance using control pilot. 支持基本的智能充电，例如使用控制飞行员。 |
| Remote Trigger 远程触发器 | Support for remote triggering of Charge Point initiated messages 支持远程触发充电桩发起的消息 |
These profiles can be used by a customer to determine if a OCPP 1.6 product has the required functionality for their business case. Compliance testing will test per profile if a product is compliant with the OCPP 1.6 specification.
客户可以使用这些配置文件来确定OCPP 1.6产品是否具有其业务案例所需的功能。如果产品符合OCPP 1.6规范，合规性测试将根据配置文件进行测试。
Implementation of the Core profile is required. Other profiles are optional.
需要实施核心配置文件。其他配置文件是可选的。
When the profilesCore,Firmware Management,Local Auth List ManagementandReservationare implemented, all functions originating from OCPP 1.5[OCPP1.5] are covered.
当实施配置文件核心、固件管理、本地授权列表管理和保留时，涵盖了源自OCPP 1.5[OCPP1.5]的所有功能。
The grouping of all messages in their profiles can be found in the table below.
下表列出了配置文件中所有消息的分组。
| Message 留言 | Core 核心 | Firmware 固件 Managemen 管理人员 t t | Local Auth 本地身份验证 List 列表 Managemen 管理人员 t t | Reservation 预订 | Smart schlau Charging 充电 | Remote Trigger 远程触发器 |
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 |
| Message 留言 | Core 核心 | Firmware 固件 Managemen 管理人员 t t | Local Auth 本地身份验证 List 列表 Managemen 管理人员 t t | Reservation 预订 | Smart schlau Charging 充电 | Remote Trigger 远程触发器 |
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 |
| Message 留言 | Core 核心 | Firmware 固件 Managemen 管理人员 t t | Local Auth 本地身份验证 List 列表 Managemen 管理人员 t t | Reservation 预订 | Smart schlau Charging 充电 | Remote Trigger 远程触发器 |
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 | ||||||
| X 十、 |
The support for the specific charging profiles is reported by theSupportedFeatureProfiles configuration key.
配置键报告了对特定充电配置文件的支持。
3.3. General views of operation
3.3. 运营概况
This section is informative.
本节内容丰富。
The following figures describe the general views of the operations between Charge Point and Central System for two cases:
下图描述了两种情况下充电桩和中央系统之间操作的一般视图：
1. a Charge Point requesting authentication of a card and sending charge transaction status,
1.收费点请求卡的认证并发送收费交易状态，
2. Central System requesting a Charge Point to update its firmware.
2.中央系统请求充电桩更新其固件。
The arrow labels in the following figures indicate the PDUs exchanged during the invocations of the operations. These PDUs are defined in detail in theMessages section.
下图中的箭头标签表示在操作调用期间交换的PDU。这些PDU在本Messages节中有详细定义。

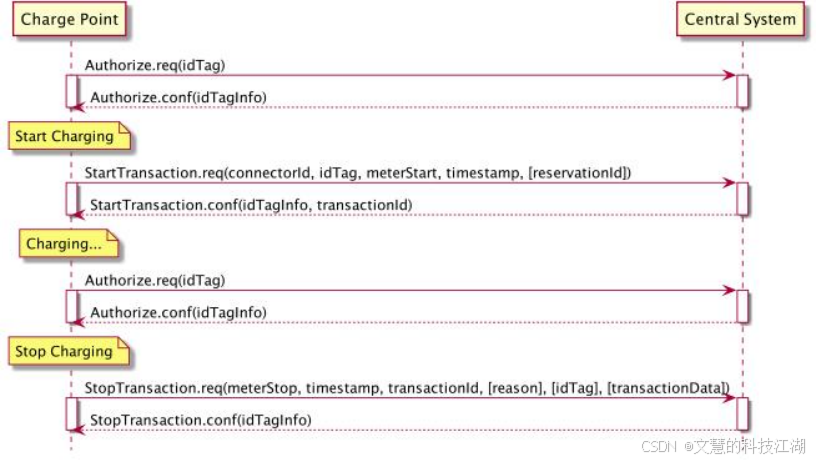

Figure 1. Sequence Diagram: Example of starting and stopping a transaction
图1。序列图：启动和停止事务的示例
When a Charge Point needs to charge an electric vehicle, it needs to authenticate the user first before the charging can be started. If the user is authorized the Charge Point informs the Central System that it has started with charging.
当充电桩需要为电动汽车充电时，它需要先对用户进行身份验证，然后才能开始充电。如果用户获得授权，充电桩会通知中央系统它已开始充电。
When a user wishes to unplug the electric vehicle from the Charge Point, the Charge Point needs to verify that the user is either the one that initiated the charging or that the user is in the same group and thus allowed to terminate the charging. Once authorized, the Charge Point informs the Central System that the charging has been stopped.
当用户希望将电动汽车从充电桩拔下时，充电桩需要验证用户是发起充电的人，还是用户属于同一组，从而允许终止充电。一旦获得授权，充电桩会通知中央系统充电已停止。
NOTE
注：
A Charge Point MUST NOT send anAuthorize.req before stopping a transaction if the presented idTag is the same as the idTag presented to start the transaction.
如果提供的idTag与开始交易时提供的idTag相同，则充电桩在停止交易之前不得发送。

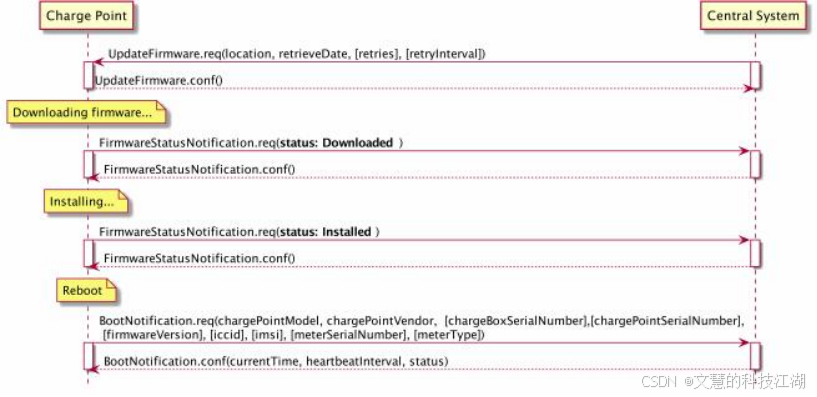

Figure 2. Sequence Diagram: Example of a firmware update
图2:序列图：固件更新示例
When a Charge Point needs to be updated with new firmware, the Central System informs the Charge Point of the time at which the Charge Point can start downloading the new firmware. The Charge Point SHALL notify the Central System after each step as it downloads and installs the new firmware.
当充电桩需要用新固件更新时，中央系统会通知充电桩可以开始下载新固件的时间。充电桩应在下载和安装新固件的每个步骤后通知中央系统。
3.4. Local Authorization & Offline Behavior
3.4. 本地授权和离线行为
This section is normative.
本节是规范性的。
In the event of unavailability of the communications or even of the Central System, the Charge Point is designed to operate stand-alone. In that situation, the Charge Point is said to beoffline.
如果通信甚至中央系统不可用，充电桩设计为独立运行。在这种情况下，充电桩被称为离线。
To improve the experience for users, a Charge Point MAY support local authorization of identifiers, using anAuthorization Cache and/or aLocal Authorization List.
为了改善用户体验，充电桩可以使用和/或支持标识符的本地授权Local Authorization List。
This allows (a) authorization of a user whenoffline, and (b) faster (apparent) authorization response time when communication between Charge Point and Central System is slow.
这允许（a）离线时对用户进行授权，以及（b）当充电桩和中央系统之间的通信缓慢时，更快（明显）的授权响应时间。
TheLocalAuthorizeOffline configuration key controls whether a Charge Point will authorize a user whenoffline using the Authorization Cache and/or the Local Authorization List.
配置键控制充电桩在离线时是否使用授权缓存和/或本地授权列表授权用户。
TheLocalPreAuthorize configuration key controls whether a Charge Point will use the Authorization Cache and/or the Local Authorization List to start a transaction without waiting for an authorization response from the Central System.
配置键控制充电桩是否将使用授权缓存和/或本地授权列表来启动交易，而无需等待来自中央系统的授权响应。
A Charge Point MAY support the (automatic) authorization of any presented identifier whenoffline, to avoid refusal of charging to bona-fide users that cannot be explicitly authorized by Local Authorization List/Authorization Cache entries. This functionality is explained in more detail inUnknown Offline Authorization.
充电桩可以在离线时支持对任何呈现的标识符进行（自动）授权，以避免拒绝向无法通过本地授权列表/授权缓存条目明确授权的善意用户收费。此功能在中Unknown Offline有更详细的解释Authorization。
3.4.1. Authorization Cache
3.4.1. 授权缓存
A Charge Point MAY implement an Authorization Cache that autonomously maintains a record of previously presented identifiers that have been successfully authorized by the Central System. (Successfully meaning: a response received on a message containing an idTag)
充电桩可以实现授权缓存，该缓存自主维护先前已被中央系统成功授权的标识符的记录。（成功意味着：在包含idTag的消息上收到的响应）
If implemented, the Authorization Cache SHOULD conform to the following semantics:
如果实现，授权缓存应符合以下语义：
• The Cache contains all the latest received identifiers (i.e. valid and NOT-valid).
•缓存包含所有最新接收到的标识符（即有效和无效）。
• The Cache is updated using all receivedIdTagInfo (fromAuthorize.conf, StartTransaction.conf andStopTransaction.conf)
•使用所有接收到IdTagInfo的（来自Authorize.conf,StartTransaction.conf和StopTransaction.conf）数据更新缓存
• When the validity of a Cache entry expires, it SHALL be changed to expired in the Cache.
•当缓存条目的有效期到期时，应在缓存中将其更改为已过期。
• When anIdTagInfo is received for an identifier in the Cache, it SHALL be updated.
•当收到缓存中某个IdTagInfo标识符的请求时，应进行更新。
• If new identifier authorization data is received and the Authorization Cache is full, the Charge Point SHALL remove any NOT-valid entries, and then, if necessary, the oldest valid entries to make
•如果收到新的标识符授权数据，并且授权缓存已满，充电桩应删除任何无效条目，然后在必要时删除最旧的有效条目
space for the new entry.
新条目的空间。
• Cache values SHOULD be stored in non-volatile memory, and SHOULD be persisted across reboots and power outages.
•缓存值应存储在非易失性存储器中，并应在重新启动和断电时保持不变。
• When an identifier is presented that is stored in the cache as NOT-valid, and the Charge Point isonline: anAuthorize.req SHOULD be sent to the central System to check the current state of the identifier.
•当缓存中存储的标识符显示为无效，且充电桩在线时：应向中央系统发送一个Authorize.req，以检查标识符的当前状态。
Operation of the Authorization Cache, when present, is reported (and controlled, where possible) by theAuthorizationCacheEnabled configuration key.
授权缓存的操作（如果存在）由配置密钥报告（并在可能的情况下进行控制）。
3.4.2. Local Authorization List
3.4.2. 本地授权列表
The Local Authorization List is a list of identifiers that can be synchronized with the Central System.
本地授权列表是可以与中央系统同步的标识符列表。
The list contains the authorization status of all (or a selection of) identifiers and the authorization status/expiration date.
该列表包含所有（或部分）标识符的授权状态和授权状态/到期日期。
Identifiers in the Local Authorization list can be marked asvalid,expired,(temporarily) blocked, orblacklisted, corresponding to IdTagInfo statusvaluesAccepted/ConcurrentTx,Expired,Blocked, andInvalid, respectively.
本地授权列表中的标识符可以标记为有效、过期、（暂时）被阻止或被列入黑名单，分别对应于IdTagInfo状态值Accepted/ConcurrentTx、expired、blocked和Invalid。
These values may be used to provide more fine grained information to users (e.g. by display message) during local authorization.
这些值可用于在本地授权期间向用户提供更细粒度的信息（例如通过显示消息）。
The Local Authorization List SHOULD be maintained by the Charge Point in non-volatile memory, and SHOULD be persisted across reboots and power outages.
本地授权列表应由充电桩在非易失性存储器中维护，并应在重启和断电时保持不变。
A Charge Point that supports Local Authorization List SHOULD implement the configuration key:LocalAuthListMaxLength This gives the Central System a way to known the the maximum possible
支持本地授权列表的充电桩应实现配置密钥：LocalAuthListMaxLength这为中央系统提供了一种了解最大可能配置密钥的方法
number of Local Authorization List elements in a Charge Point
充电桩中本地授权列表元素的数量
The Charge Point indicates whether the Local Authorization List is supported by the presence or absence of theLocalAuthListManagementelement in the value of the SupportedFeatureProfiles configuration key. Whether the Local Authorization List is enabled is reported and controlled by theLocalAuthListEnabled configuration key.
充电桩指示配置密钥的值中是否存在LocalAuthListManagement元素来支持本地授权列表。本地授权列表是否启用由配置密钥报告和控制。

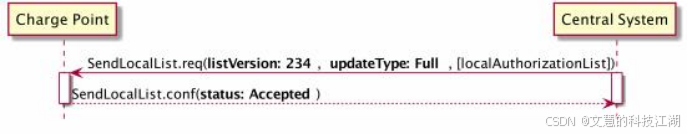

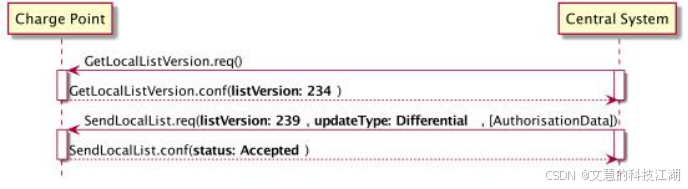

The Central System can synchronize this list by either (1) sending a complete list of identifiers to replace the Local Authorization List or (2) by sending a list of changes (add, update, delete) to apply to the Local Authorization List. The operations to support this areGet Local List Version andSend Local List.
中央系统可以通过以下方式同步此列表：（1）发送完整的标识符列表以替换本地授权列表，或（2）发送更改列表（添加、更新、删除）以应用于本地授权列表。支持这一点的行动是Get Local List Version和Send LocalList。
Figure 3. Sequence Diagram: Example of a full local authorization list update
图3。序列图：完整本地授权列表更新示例
Figure 4. Sequence Diagram: Example of a differential local authorization list update
图4。序列图：差异本地授权列表更新示例
The Charge Point SHALL NOT modify the contents of the Authorization List by any other means than upon a the receipt of a SendLocalList PDU from the Central System.
充电桩不得通过任何其他方式修改授权列表的内容，除非从中央系统收到SendLocalList PDU。
Conflicts between the local authorization list and the validity reported in, for instance, aStartTransaction.conf message might occur. When this happens the Charge Point SHALL inform the Central System by sending aStatusNotification with ConnectorId set to 0, and ErrorCode set to 'LocalListConflict'.
3.4.3. Relation between Authorization Cache and Local Authorization List
3.4.3. 授权缓存与本地授权列表的关系
The Authorization Cache and Local Authorization List are distinct logical data structures. Identifiers known in the Local Authorization List SHALL NOT be added to the Authorization Cache.
授权缓存和本地授权列表是不同的逻辑数据结构。本地授权列表中已知的标识符不得添加到授权缓存中。
Where both Authorization Cache and Local Authorization List are supported, a Charge Point SHALL treat Local Authorization List entries as having priority over Authorization Cache entries for the same identifiers.
如果同时支持授权缓存和本地授权列表，充电桩应将本地授权列表条目视为对相同标识符具有比授权缓存条目更高的优先级。
3.4.4. Unknown Offline Authorization
3.4.4. 未知离线授权
Whenoffline, a Charge Point MAY allow automatic authorization of any "unknown" identifiers that cannot be explicitly authorized by Local Authorization List or Authorization Cache entries. Identifiers that are present in a Local Authorization List that have a status other than “Accepted” (Invalid, Blocked, Expired) MUST be rejected. Identifiers that were valid but are apparently expired due to passage of time MUST also be rejected.
离线时，充电桩可能允许自动授权任何无法通过本地授权列表或授权缓存条目明确授权的“未知”标识符。必须拒绝本地授权列表中状态不是“已接受”（无效、已阻止、已过期）的标识符。有效但因时间推移而明显过期的标识符也必须被拒绝。
Operation of the Unknown Offline Authorization capability, when supported, is reported (and controlled, where possible) by theAllowOfflineTxForUnknownId configuration key.
在支持的情况下，未知脱机授权功能的操作由配置密钥报告（并在可能的情况下进行控制）。
When connection the the Central Server is restored, the Charge Point SHALL send aStart Transaction request for any transaction that was authorizedoffline, as required bytransaction-related message handling. When the authorization status in theStartTransaction.conf is not Accepted, and the transaction is still ongoing, the Charge Point SHOULD:
当中央服务器的连接恢复时，充电桩应按照要求发送离线授权的任何交易请求handling。当中的StartTransaction.conf授权状态为未接受，且交易仍在进行时，充电桩应：
• when StopTransactionOnInvalidId is set to true: stop the transaction normally as stated inStop Transaction. TheReason field in theStop Transaction request should be set toDeAuthorized. If the Charge Point has the possibility to lock the Charging Cable, it SHOULD keep the Charging Cable locked until the owner presents his identifier.
•何时StopTransactionOnInvalidId设置为true：按照中Stop所述正常停止交易Transaction。请求中的字段应设置为DeAuthorized。如果充电桩有可能锁定充电电缆，则应保持充电电缆锁定，直到所有者出示其标识符。
• when StopTransactionOnInvalidId is set tofalse: only stop energy delivery to the vehicle.
•何时StopTransactionOnInvalidId设置为false：仅停止向车辆输送能量。
In the case of an invalid identifier, an operator MAY choose to charge the EV with a minimum amount of energy so the EV is able to drive away. This amount is controlled by the optional configuration key:MaxEnergyOnInvalidId.
在标识符无效的情况下，操作员可以选择用最少的能量给电动汽车充电，这样电动汽车就可以开走了。此金额由可选配置键控制：MaxEnergyOnInvalidId。
3.5. Transaction in relation to Energy Transfer Period
3.5. 与能量转移期有关的交易
This section is informative.
本节内容丰富。
The Energy Transfer Period is a period of time during wich energy is transferred between the EV and the EVSE. There MAY be multiple Energy Transfer Periods during aTransaction.
这Energy Transfer Period是电动汽车和电动汽车供电设备之间传递能量的一段时间。在一个过程中可能有多个能量转移期Transaction。
Multiple Energy Transfer Periods can be separated by either:
多个能量转移期可以通过以下方式分隔：
• an EVSE-initiated supense of transfer during which de EVSE does not offer energy transfer
•电动汽车供电设备启动了传输限制，在此期间电动汽车供电系统不提供能量传输
• an EV-initiated suspense of transfer during which the EV remains electrically connected to the EVSE
•电动汽车启动的转移暂停，在此期间电动汽车保持与电动汽车供电设备的电气连接
• an EV-initiated suspense of transfer during which the EV is not electrically connected to the EVSE.
•电动汽车启动的转移暂停，在此期间电动汽车未与电动汽车供电设备电连接。
A Central System MAY deduce the start and end of an Energy Transfer Period from the MeterValues that are sent during the Transaction.
中央系统可以从交易期间发送的MeterValues中推断出能量传输期的开始和结束。
内容较多，完整版本私信我。
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
