前提
需要拥有管理员账号或获得开发者权限
准备
钉钉方面

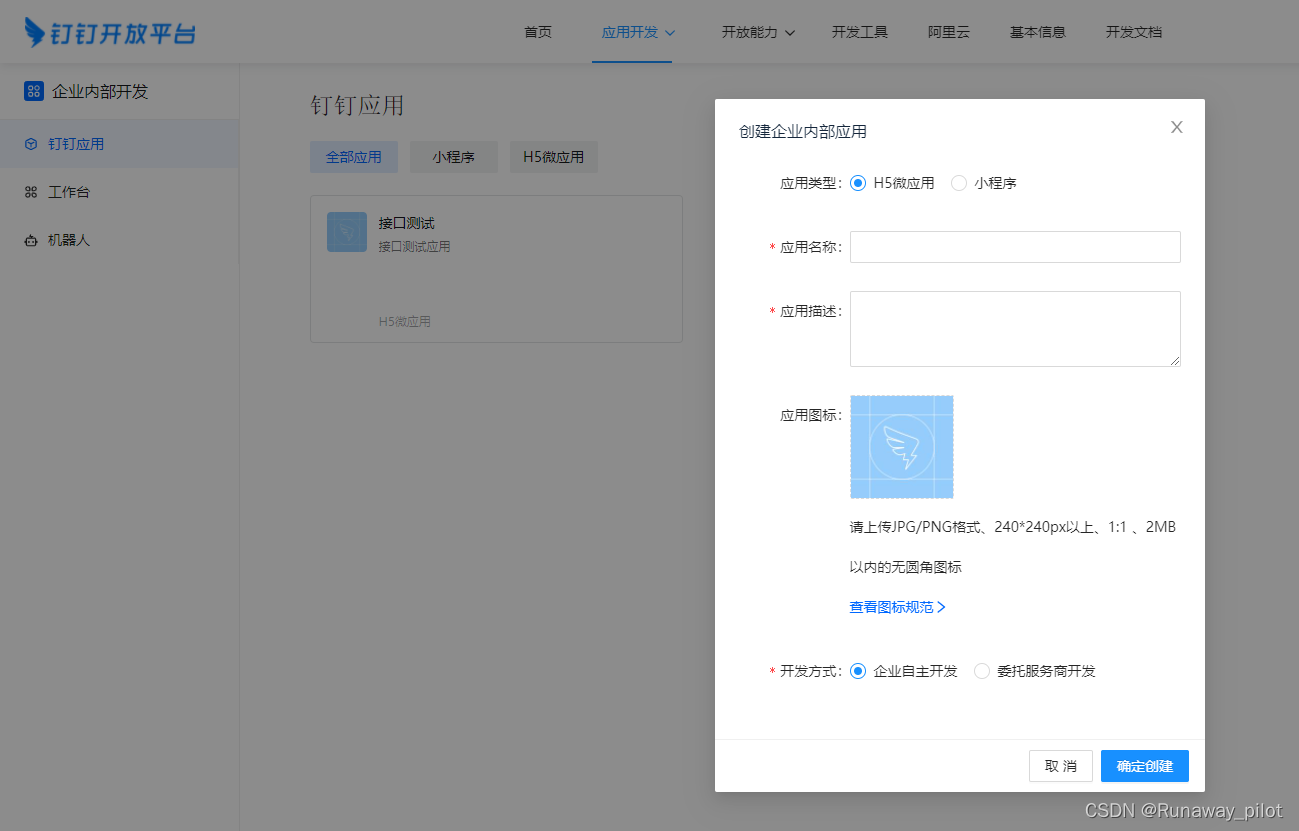

1. 创建钉钉应用
钉钉开放平台——应用开发——钉钉应用——创建应用

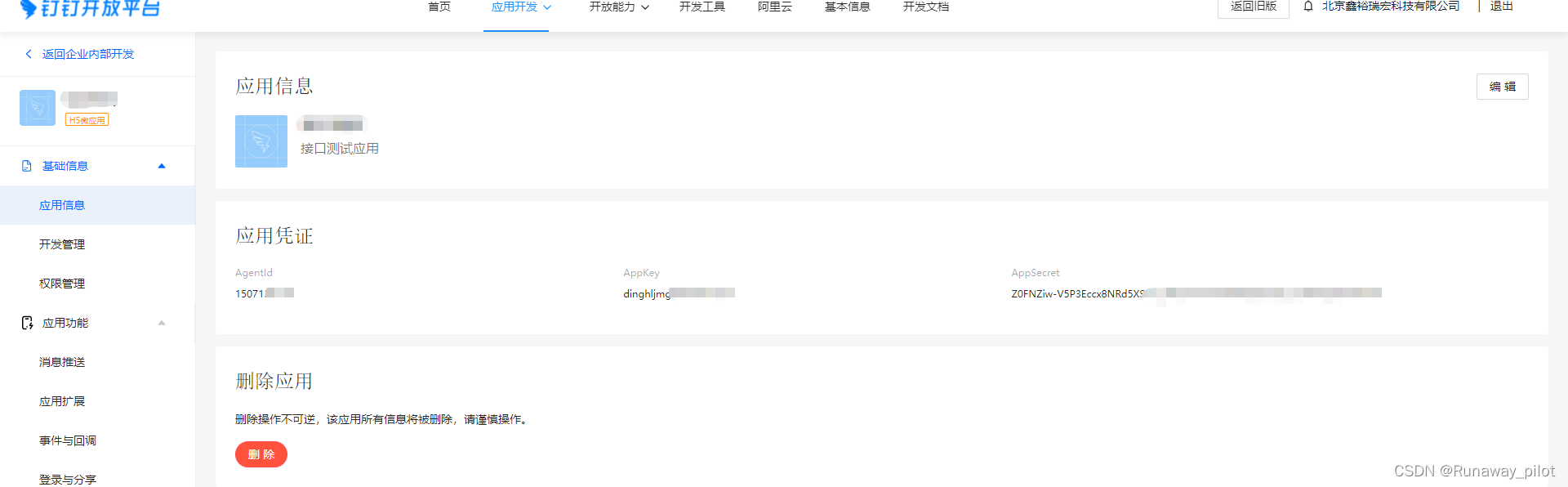

2. 记录应用凭证
记录应用的AgentId、AppKey、AppSecret

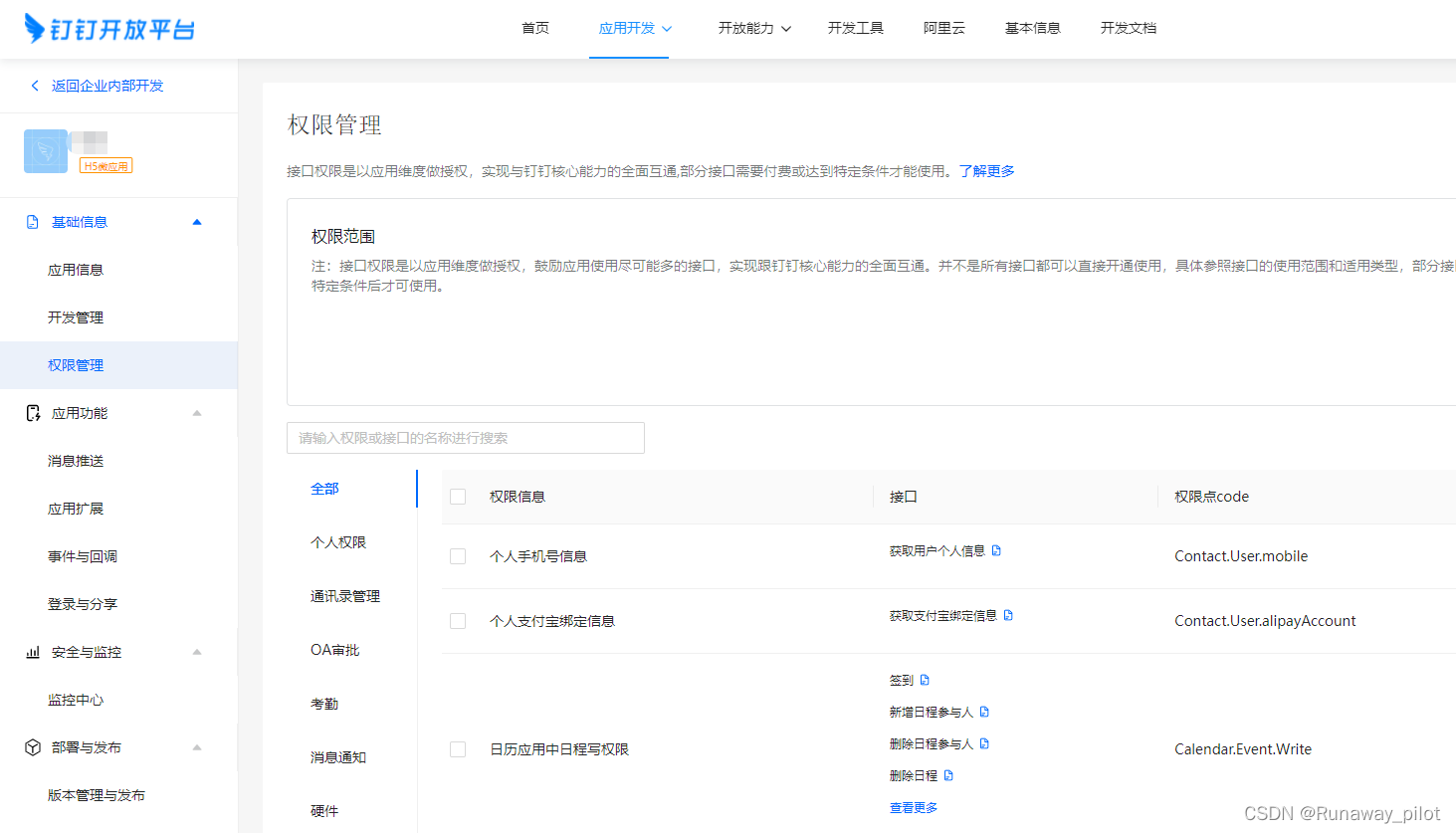

3. 打开应用权限
打开需要获取数据的接口权限
开发环境方面
1.安装依赖库
dingtalk-sdk 消息加解密同时兼容 cryptography 和 PyCrypto, 优先使用 cryptography 库。 需先自行安装 cryptography 或者 PyCrypto 库:
# 安装 cryptography
pip install cryptography>=0.8.2
# 或者安装 PyCrypto
pip install pycrypto>=2.6.12.安装 dingtalk-sdk
pip install dingtalk-sdk
# with cryptography
pip install dingtalk-sdk[cryptography]
# with pycrypto
pip install dingtalk-sdk[pycrypto]升级 dingtalk-sdk 到新版本
pip install -U dingtalk-sdkding_talk-sdk 使用文档
https://dingtalk-sdk.readthedocs.io/zh_CN/latest/index.html
基础接口
1. 获得access_token
dingtalk-sdk方法
from dingtalk import SecretClient, AppKeyClient
client = SecretClient('corp_id', 'secret') # 旧 access_token 获取方式
client = AppKeyClient('corp_id', 'app_key', 'app_secret') # 新 access_token 获取方式自建接口方法
# 获得access_token
def access_token():
response = requests.get(
"https://oapi.dingtalk.com/gettoken?appkey=%s&appsecret=%s" % (AppKey, AppSecret))
if response.status_code == 200:
str_res = response.text
token = (json.loads(str_res)).get('access_token')
return token2. 获得部门列表
dingtalk-sdk方法
departments = client.department.list()自建接口方法
# 获得部门列表
def get_department_list(dept_id=1):
"""
查询部门列表
:param dept_id: 部门id，默认为1（根部门），可输入任意部门id
"""
post_url = "https://oapi.dingtalk.com/topapi/v2/department/listsub?access_token=%s" % (access_token())
data = {
"dept_id": dept_id,
}
response = requests.post(post_url, data)
str_res = response.text
result = (json.loads(str_res)).get('result')
return result注意，无论是 dingtalk-sdk 方法还是自建接口方法，都只能获取一层部门的列表，比如总公司下面有市场部和技术部，市场部下面有研究部和发展部，技术部下面有研究部和开发部，当我们调用接口的时候，只能获取到市场部和技术部，无法获取下面的子部门。想全部获取则需要做循环。
3. 获得部门员工
dingtalk-sdk方法
from dingtalk.client.api import User
object = User(client=client) # 传入上文的token，实例化对象
data = object.listbypage(department_id, offset=0, size=100, order='custom',
lang='zh_CN')自建接口方法
我懒得分别调用每个部门，直接找了个获取全部在职员工的接口，写成了生成器，在外面直接遍历获取就行
# 获得在职员工列表
def get_user_list():
post_url = "https://oapi.dingtalk.com/topapi/smartwork/hrm/employee/queryonjob?access_token=%s" % (access_token())
# 初始化offset
offset = 0
while True:
# 请求参数
data = {
"status_list": "2,3,5,-1",
"offset": offset,
"size": 50
}
# 发送post请求
response = requests.post(post_url, data)
str_res = response.text
# json解析
result = (json.loads(str_res)).get('result')
# 返回当前页列表
yield result["data_list"]
try:
# 下一页（下50条）
offset = result["next_cursor"]
continue
# 退出条件
except KeyError:
break4. 获得用户详情
dingtalk-sdk方法
from dingtalk.client.api import User
object = User(client=client) # 传入上文的token，实例化对象
data = object.get(userid, lang='zh_CN')自建接口方法
# 获得员工详情（user_id）
def get_user_info(user_id):
"""
:param user_id:
:return :
"""
post_url = "https://oapi.dingtalk.com/topapi/v2/user/get?access_token=%s" % (access_token())
data = {
"userid": user_id,
}
response = requests.post(post_url, data)
str_res = response.text
result = (json.loads(str_res)).get('result')
return result["name"], result["mobile"], result["userid"]考勤统计接口
SDK方法已经没有啦~开始手撸~~~
1. 获取考勤报表列名称
我这里是把我需要的列的名称和id返回了，各位各取所需哈
def get_attcolumns():
post_url = "https://oapi.dingtalk.com/topapi/attendance/getattcolumns?access_token=%s" % (access_token())
response = requests.post(post_url)
str_res = response.text
result = (json.loads(str_res)).get('result')
name_list = ["应出勤天数", "出勤天数", "休息天数", "迟到次数", "迟到时长", "早退次数", "早退时长", "上班缺卡次数", "下班缺卡次数", "补卡次数", "旷工天数",
"加班-审批单统计", "加班总时长", "休息日加班", "工作日加班", "节假日加班"]
response_data = {}
for i in result["columns"]:
try:
print(i["name"] + ":" + str(i["id"]))
except:
print(i["name"] + ":NONE")
if i["name"] in name_list:
response_data[i["name"]] = i["id"]
print(response_data)
return response_data2. 获取考勤报表列值
各取所需各取所需
def get_columnval(userid: str, name: str, column_id: str, from_date: str, to_date: str):
"""
from_date和to_date格式为:'2022-01-01 00:00:00'这样式的
column_id为列名称id
"""
post_url = "https://oapi.dingtalk.com/topapi/attendance/getcolumnval?access_token=%s" % (access_token())
data = {
"userid": userid,
"column_id_list": column_id,
"from_date": from_date,
"to_date": to_date
}
response = requests.post(post_url, data)
str_res = response.text
num = 0
try:
result = (json.loads(str_res)).get('result').get("column_vals")
for value in result[0]["column_vals"]:
num += int(float(value["value"]))
except:
pass
return {name: num}3. 获取员工考勤详情
这个接口有个问题，它两个时间的间隔不能超过七天..我就顺手也给时间搞定了。
还有个小建议，当你在外面调用接口的时候，肯定会有同时获取好多人考勤详情的情况，可以在调用的时候使用多线程，然后一次只传一个人的userid，效率会很高，不会搞线程的可以找我哈
# 查询员工考勤情况
def attendance_information(workDateFrom, workDateTo, userIdList):
"""
查询员工考勤情况
:param workDateFrom: 查询开始时间 格式："2022-03-10 00:00:00"
:param workDateTo: 查询结束时间 格式："2022-03-10 00:00:00"
:param userIdList: 员工id列表
:return: 员工考勤情况 type：dict
"""
num1 = int(time.mktime(time.strptime(workDateFrom, "%Y-%m-%d %H:%M:%S")))
num2 = int(time.mktime(time.strptime(workDateTo, "%Y-%m-%d %H:%M:%S")))
if num2 - num1 >= 604800:
# 604800为七天的秒数
response_data = []
while True:
if num1 >= num2:
break
if num2 - num1 < 604800:
end_num = num2
else:
end_num = num1 + 604799
startTime = time.strftime("%Y-%m-%d %H:%M:%S", time.localtime(num1))
endTime = time.strftime("%Y-%m-%d %H:%M:%S", time.localtime(end_num))
data = attendance_info(startTime, endTime, userIdList)
response_data += data
num1 = end_num + 1
else:
response_data = attendance_info(workDateFrom, workDateTo, userIdList)
return response_data
# 获取员工打卡结果
def attendance_info(workDateFrom, workDateTo, userIdList):
post_url = "https://oapi.dingtalk.com/attendance/list?access_token=%s" % (access_token())
data = {
"workDateFrom": workDateFrom,
"workDateTo": workDateTo,
"userIdList": userIdList,
"offset": 0,
"limit": 50
}
response = requests.post(post_url, json.dumps(data))
str_res = response.text
recordresult = (json.loads(str_res)).get('recordresult')
return recordresult4. 审批接口（请假、加班等）
总共分为两个步骤：
1. 获取审批实例ID列表
2. 获取审批实例详情
在调用第一个接口的时候，需要传入一个process_code参数，这个参数要在钉钉管理后台的审批模板编辑页面的URL中获取，这需要拿到OA审批的权限：

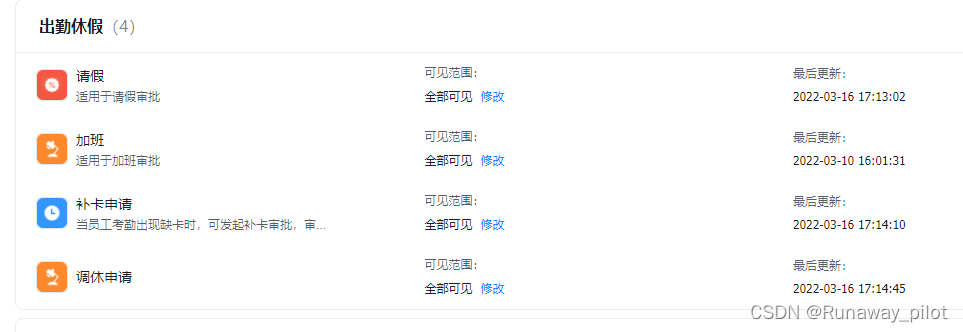

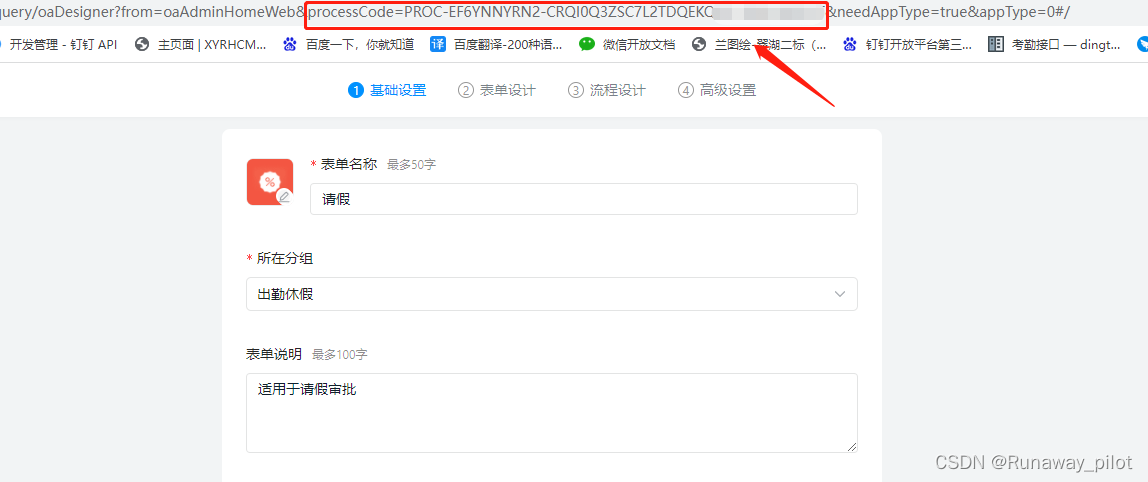

比如这个请假，点击最右侧的编辑，进入页面后，process_code就在上面这个位置，记录下来
有了这个code，就可以写接口调用了，这边我封装了一个类：
"""
请假processCode=PROC-EF6YNNYRN2-CRQI0Q3ZSC7L2TDQEKQO1-25SLJQZI-ST
加班processCode=PROC-EF6YNNYRN2-CRQI0Q3ZSC7L2TDQEKQO1-XZRLJQZI-GT
补卡processCode=PROC-EF6YNNYRN2-CRQI0Q3ZSC7L2TDQEKQO1-V2SLJQZI-NT
"""
# 获取审批信息
class ProcessInstance:
def __init__(self, process_code: str, start_time: int, end_time: int, userid: str):
self.process_code = process_code
self.start_time = start_time
self.end_time = end_time
self.userid = userid
# 获取审批实例id列表
def processinstance_list(self):
post_url = "https://oapi.dingtalk.com/topapi/processinstance/listids?access_token=%s" % (access_token())
data = {
"process_code": self.process_code,
"start_time": self.start_time - 2678400000,
"end_time": self.end_time + 2678400000,
"userid_list": self.userid,
"size": 20,
"cursor": 0,
}
response = requests.post(post_url, data)
str_res = response.text
result = (json.loads(str_res)).get('result').get("list")
return result
# 获取审批实例详情
def getprocessinstance_details(self):
lists = self.processinstance_list()
response_list = []
for i in lists:
post_url = "https://oapi.dingtalk.com/topapi/processinstance/get?access_token=%s" % (access_token())
data = {
"process_instance_id": i,
}
response = requests.post(post_url, data)
str_res = response.text
result = (json.loads(str_res)).get('process_instance')
status = self.status_CN(result.get("status"))
form_component_values = result.get("form_component_values")
types = [x.get('value') for x in form_component_values if x.get("component_type") == "DDSelectField"][0]
s_times = [(json.loads(x.get('value')))
for x in form_component_values if x.get("component_type") == "DDDateRangeField"][0][0]
if self.start_time <= self.date_to_UNIX(s_times) <= self.end_time:
e_times = [(json.loads(x.get('value')))
for x in form_component_values if x.get("component_type") == "DDDateRangeField"][0][1]
days = [(json.loads(x.get('value')))
for x in form_component_values if x.get("component_type") == "DDDateRangeField"][0][2]
text = [x.get('value') for x in form_component_values if x.get("component_type") == "TextareaField"][0]
response_list.append(
{"status": status, "types": types, "s_times": s_times, "e_times": e_times, "days": days,
"text": text})
print(response_list)
return response_list
# 获取天数
def getprocessinstance_days(self):
lists = self.processinstance_list()
days = 0
for i in lists:
post_url = "https://oapi.dingtalk.com/topapi/processinstance/get?access_token=%s" % (access_token())
data = {
"process_instance_id": i,
}
response = requests.post(post_url, data)
str_res = response.text
try:
form_component_values = (json.loads(str_res)).get('process_instance').get("form_component_values")
num = self.date_to_UNIX([(json.loads(x.get('value')))
for x in form_component_values if
x.get("component_type") == "DDDateRangeField"][
0][0])
if self.start_time <= num <= self.end_time:
days += float([(json.loads(x.get('value')))
for x in form_component_values if x.get("component_type") == "DDDateRangeField"][0][
2])
except AttributeError:
pass
return days
@staticmethod
def date_to_UNIX(date: str):
return int(time.mktime(time.strptime(date, "%Y-%m-%d"))) * 1000
@staticmethod
def status_CN(status: str):
if status == "NEW":
return "新创建"
elif status == "RUNNING":
return "审批中"
elif status == "COMPLETED":
return "已完成"
elif status == "CANCELED":
return "已取消"因为审批单发起的时间可能与审批单实际的时间不符，比如我明天要请假，我今天发起了请假审批，那我们传入明天的时间就会导致查不到这条审批，于是我就把传入的时间扩大了31天，等查到这个人在这个时间段内发起的审批单后，再根据审批单实际的时间把不符合查询时间筛选出去，这样就能最大程度的保证不遗漏。但是这样也有一个缺点，就是代码处理的时间变长了。

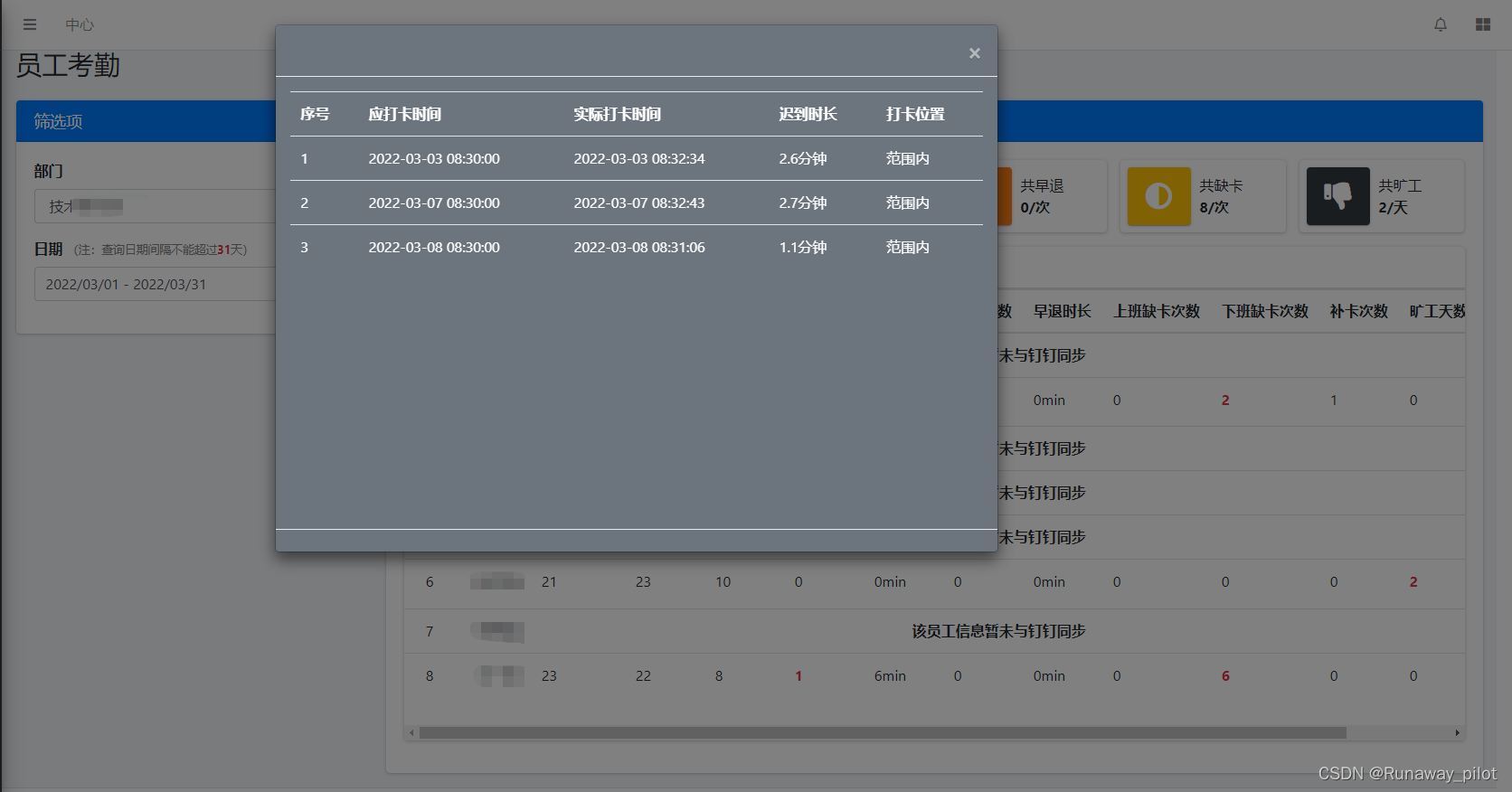

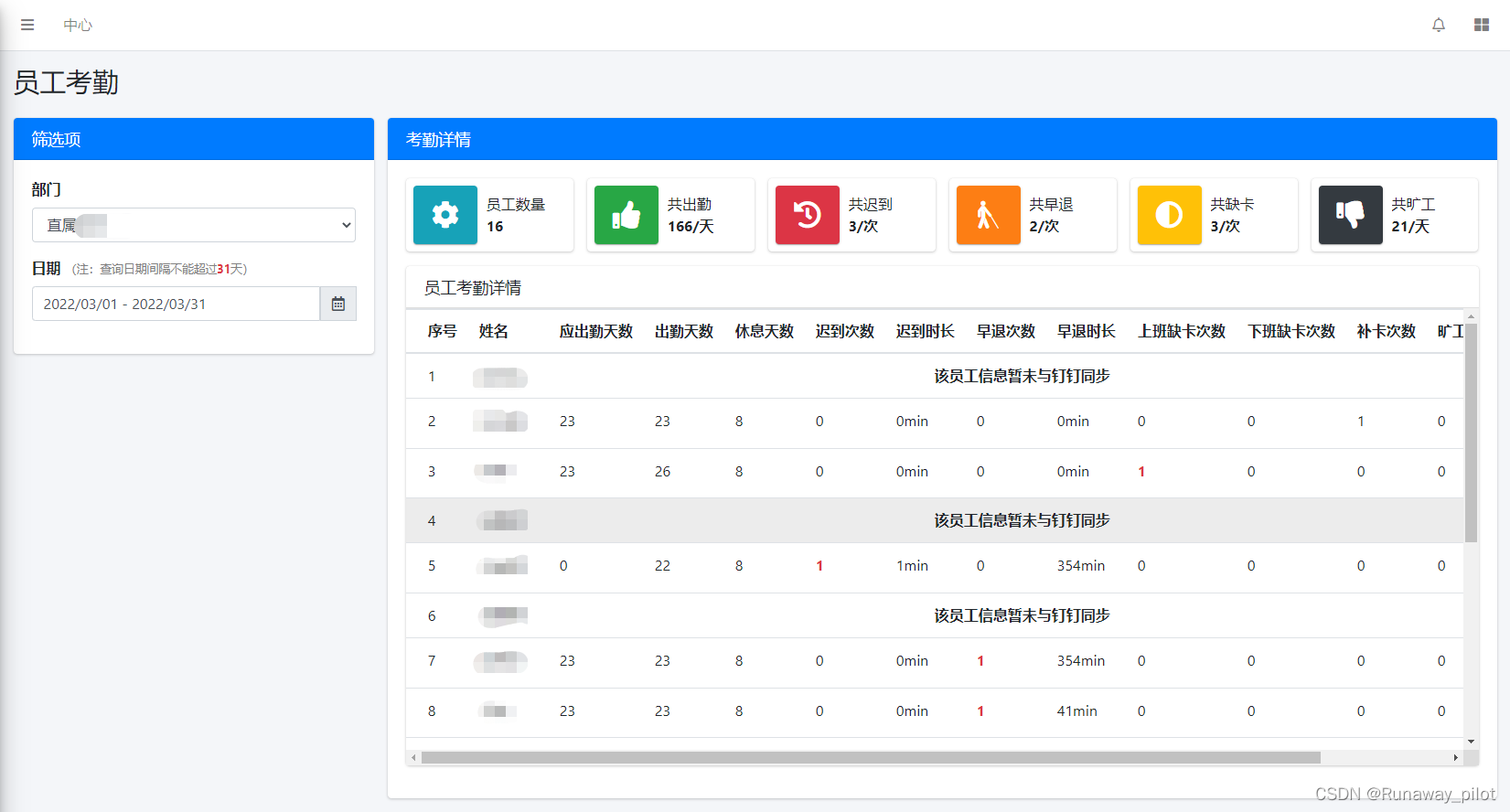

目前我用到的接口就是这些，然后就把数据处理成自己想要的样子，再放到前端页面上显示就可以啦。如果以后用到别的借口，还会继续在这个文章更新。可以简单看一下目前实现的效果
