第三次作业

1、要求
1、配置网络：为网卡添加一个本网段IPV4地址，x.x.x.123

2、配置yum本地仓库，并完成traceroute命令的安装

3、用至少两种方法查看sshd服务的进程号

4、添加一块10G大小的磁盘，将该磁盘分为两个主分区，大小为1G、2G。将剩余的空间全部划分为扩展分区。划分一个逻辑分区，大小为3G。（主分区文件系统类型为ext4，逻辑分区文件系统类型为xfs）

2、具体操作
1、配置网络：为网卡添加一个本网段IPV4地址，x.x.x.123

[root@localhost ~]#nmcli connection modify 'Profile 1' ipv4.method manual ipv4.addresses 192.168.121.123 autoconnect yes



2、配置yum本地仓库，并完成traceroute命令的安装

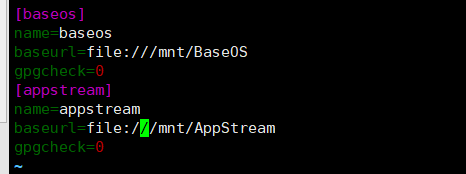

[root@localhost yum.repos.d]# vim yum.repo

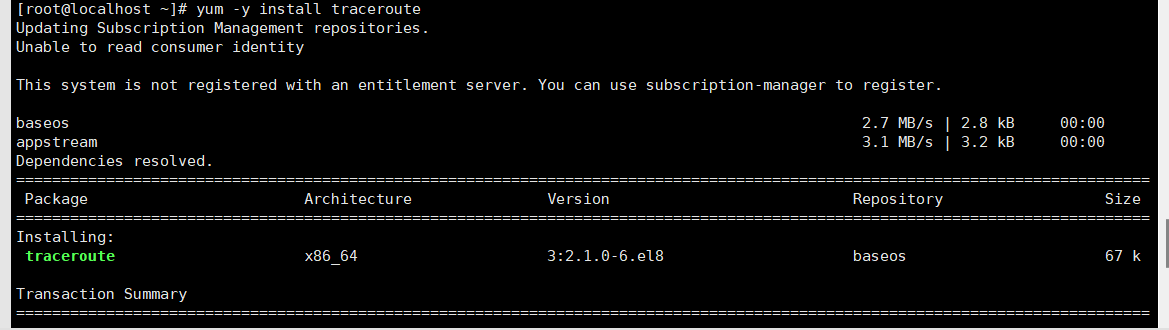

traceroute命令的安装

[root@localhost ~]# mount /dev/sr0 /mnt
[root@localhost ~]# yum -y install traceroute



3、用至少两种方法查看sshd服务的进程号

1）

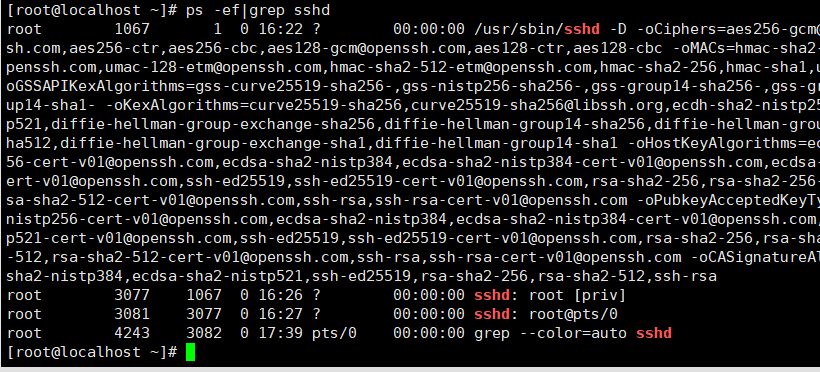

[root@localhost ~]# ps -aux|grep sshd
使用ps -ef打开所有的进程，再用grep sshd：过滤出含有“sshd”字符的进程

2）使用top命令进行查找



4、添加一块10G大小的磁盘，将该磁盘分为两个主分区，大小为1G、2G。将剩余的空间全部划分为扩展分区。划分一个逻辑分区，大小为3G。（主分区文件系统类型为ext4，逻辑分区文件系统类型为xfs）

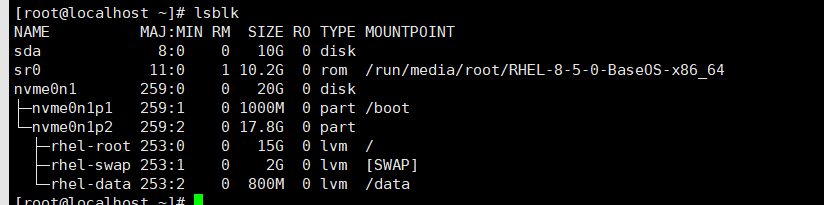

查看磁盘信息

添加成功后会增加一个sda的名称

将该磁盘分为两个主分区，大小为1G、2G,将剩余的空间全部划分为扩展分区,主分区文件系统类型为ext4

[root@localhost ~]# fdisk /dev/sda

Welcome to fdisk (util-linux 2.32.1).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.

Device does not contain a recognized partition table.
Created a new DOS disklabel with disk identifier 0xf8f70ec6.

Command (m for help): n   //#输入n创建新分区
Partition type
   p   primary (0 primary, 0 extended, 4 free)
   e   extended (container for logical partitions)
Select (default p): p    //#输入p创建主分区
Partition number (1-4, default 1): 1
First sector (2048-20971519, default 2048):
Last sector, +sectors or +size{K,M,G,T,P} (2048-20971519, default 20971519): +1G

Created a new partition 1 of type 'Linux' and of size 1 GiB.

Command (m for help): n
Partition type
   p   primary (1 primary, 0 extended, 3 free)
   e   extended (container for logical partitions)
Select (default p): p
Partition number (2-4, default 2): 2
First sector (2099200-20971519, default 2099200):
Last sector, +sectors or +size{K,M,G,T,P} (2099200-20971519, default 20971519): +2G

Created a new partition 2 of type 'Linux' and of size 2 GiB.

Command (m for help): n   //#输入n创建新分区
Partition type
   p   primary (0 primary, 0 extended, 4 free)
   e   extended (container for logical partitions)
Select (default p): e     //输入e创建扩展分区
Partition number (1-4, default 1): 1
First sector (2048-20971519, default 2048):
Last sector, +sectors or +size{K,M,G,T,P} (2048-20971519, default 20971519): +4G

Created a new partition 1 of type 'Extended' and of size 4 GiB.



[root@localhost dev]# mkfs -t ext4 /dev/sda1  //更改系统类型为ext4

 划分一个逻辑分区，大小为3G，修改逻辑分区文件系

[root@localhost ~]# pvcreate /dev/sda3
WARNING: dos signature detected on /dev/sda3 at offset 510. Wipe it? [y/n]: y
  Wiping dos signature on /dev/sda3.
  Physical volume "/dev/sda3" successfully created.
[root@localhost ~]# vgcreate dbvg /dev/sda3
  Volume group "dbvg" successfully created
[root@localhost ~]# vgchange -a y dbvg
  0 logical volume(s) in volume group "dbvg" now active
[root@localhost ~]# lvcreate -L 3G -n myvg1 dbvg
  Logical volume "myvg1" created.
[root@localhost ~]# mkfs.xfs /dev/sda3

统类型为xfs
