flink作业提交的困惑
wsl启动JobManager和TaskManager
-
终于讲到第二章的内容。第3章~第6章都是关于
flink的算子的实现和使用源码。而从本章开始，会真正开始分析一下flink的runtime的源码。 -
通过

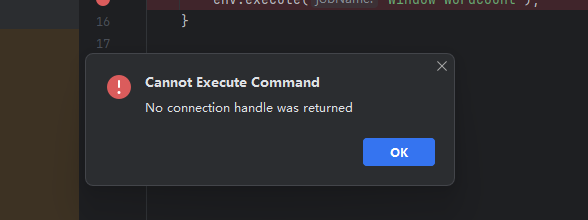

idea连接wsl的flink项目，并启动JobManager和TaskManager。如果有问题。按3进行操作。
-
在使用 VSCode 连接 WSL 时，进入用户的家目录，路径通常是
/root/.cache/JetBrains。接着执行如下命令：mv RemoteDev/ RemoteDevBak/然后重新连接并让系统重新下载配置。连接成功后，再删除
RemoteDevBak/目录即可。至于为什么不直接
rm -rf，这是一个良好的操作习惯。在生产环境中，绝不能轻易执行rm -rf删除操作，因为一旦误删，后果难以挽回。很多正式环境都会限制或禁用rm -rf，改为通过“移动到指定清理目录 + 定时清理脚本”的方式来安全删除，给系统操作留有挽回的空间。 -
启动完成后，
url输入wsl的ip地址+8081端口号。wsl默认是按NAT方式上网。wsl执行ipconfig获取ip地址，就可以了。
本地客户端提交作业到集群
-
编写以下客户端作业代码
- 启动远程服务器时，
ip地址应填写你的 WSL 所在机器的真实 IP 地址，而不是本地回环地址127.0.0.1。比如，env.socketTextStream("172.21.240.1", 9999).print();中的172.21.240.1就是 WSL 的局域网 IP。 - 这是因为，原先本地测试时可以用
127.0.0.1，但在集群或多机环境中，需要指定真实的网络地址，以保证外部节点能够连接。 - 同时，你需要在对应机器上用
nc -l -p 9999启动监听指定端口的服务端，才能让 Flink 通过网络读取数据流。 - 如果你对网络基础不熟悉，建议后续学习路由（route）、网络地址转换（NAT）、IP 地址和端口、TCP 协议等知识，这对理解集群通信非常有帮助。
- 启动远程服务器时，
-
该作业会连接到端口
9999上的客户端，并打印接收到的数据。打印的内容通常以换行符分隔。关于这部分内容，之前在socketStream相关分析中已经讲过。
package org.example;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
public class Main {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.createRemoteEnvironment("172.21.247.115", 8081);
env.socketTextStream("172.21.240.1", 9999).print();
env.execute("printSocket");
}
}
-
vscode上使用ifconfig和ip route说明eth0表示当前机器的第一个网络接口（网卡0），
inet后面跟的是该网卡的 IPv4 地址，即该网卡绑定的 IP。ip route命令显示路由表，
其中default via 172.21.240.1表示默认路由的下一跳是172.21.240.1，
也就是说，这个地址是网关（路由器），负责转发数据包。
在NAT模式下，这个网关通常就是当前主机本身。- 你也可以用
wsl上的ip地址，不用windows主机的IP地址。因为Ubuntu有现成的nc -l -p 9999命令
root@admin-1:~/flink# ifconfig eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 172.21.247.115 netmask 255.255.240.0 broadcast 172.21.255.255 inet6 fe80::215:5dff:fe31:3246 prefixlen 64 scopeid 0x20<link> ether 00:15:5d:31:32:46 txqueuelen 1000 (Ethernet) RX packets 1330 bytes 780321 (780.3 KB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 1006 bytes 240370 (240.3 KB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536 inet 127.0.0.1 netmask 255.0.0.0 inet6 ::1 prefixlen 128 scopeid 0x10<host> loop txqueuelen 1000 (Local Loopback) RX packets 7789 bytes 18340956 (18.3 MB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 7789 bytes 18340956 (18.3 MB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 root@admin-1:~/flink# ip route default via 172.21.240.1 dev eth0 proto kernel 172.21.240.0/20 dev eth0 proto kernel scope link src 172.21.247.115 -

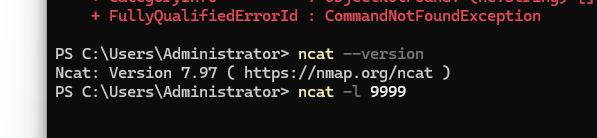

本地
powershell启动ncat -l 9999。效果如下
-

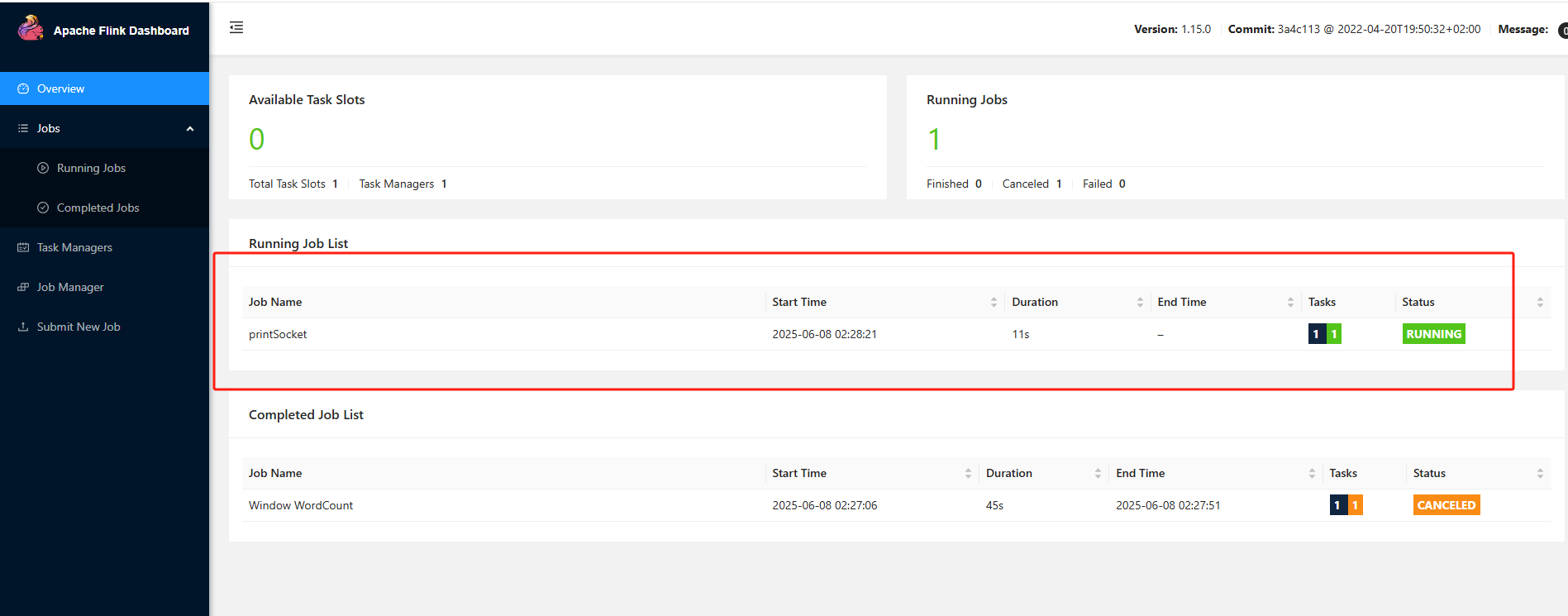

启动本地客户端。可以看到
web页面有了对应的任务名称
-

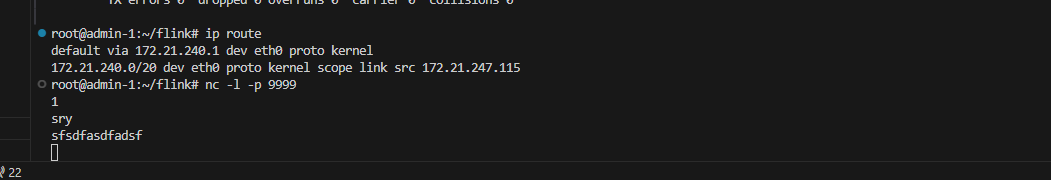

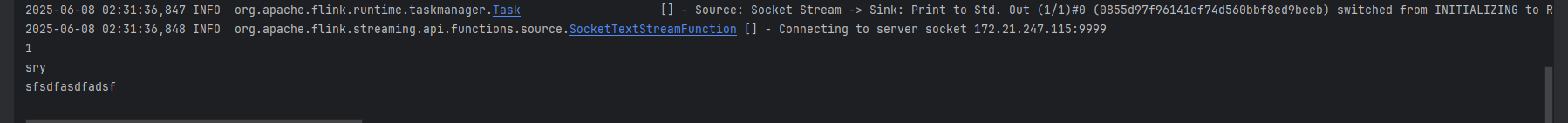

在
tcp服务器上随便输点内容：
- 如果你也能达到这个效果，恭喜你。接下来可以步入
runtime的学习了。
本地客户端提交的错误作业
-
接下来，做个有趣的实验。我在原来作业的基础上，加一个简单的
map操作。该操作用lambda表达式描述。package org.example; import org.apache.flink.api.java.tuple.Tuple2; import org.apache.flink.streaming.api.datastream.DataStream; import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment; public class Main { public static void main(String[] args) throws Exception { StreamExecutionEnvironment env = StreamExecutionEnvironment.createRemoteEnvironment("172.21.247.115", 8081); env.socketTextStream("172.21.247.115", 9999).map(x -> x).print(); env.execute("printSocket11111"); } } -

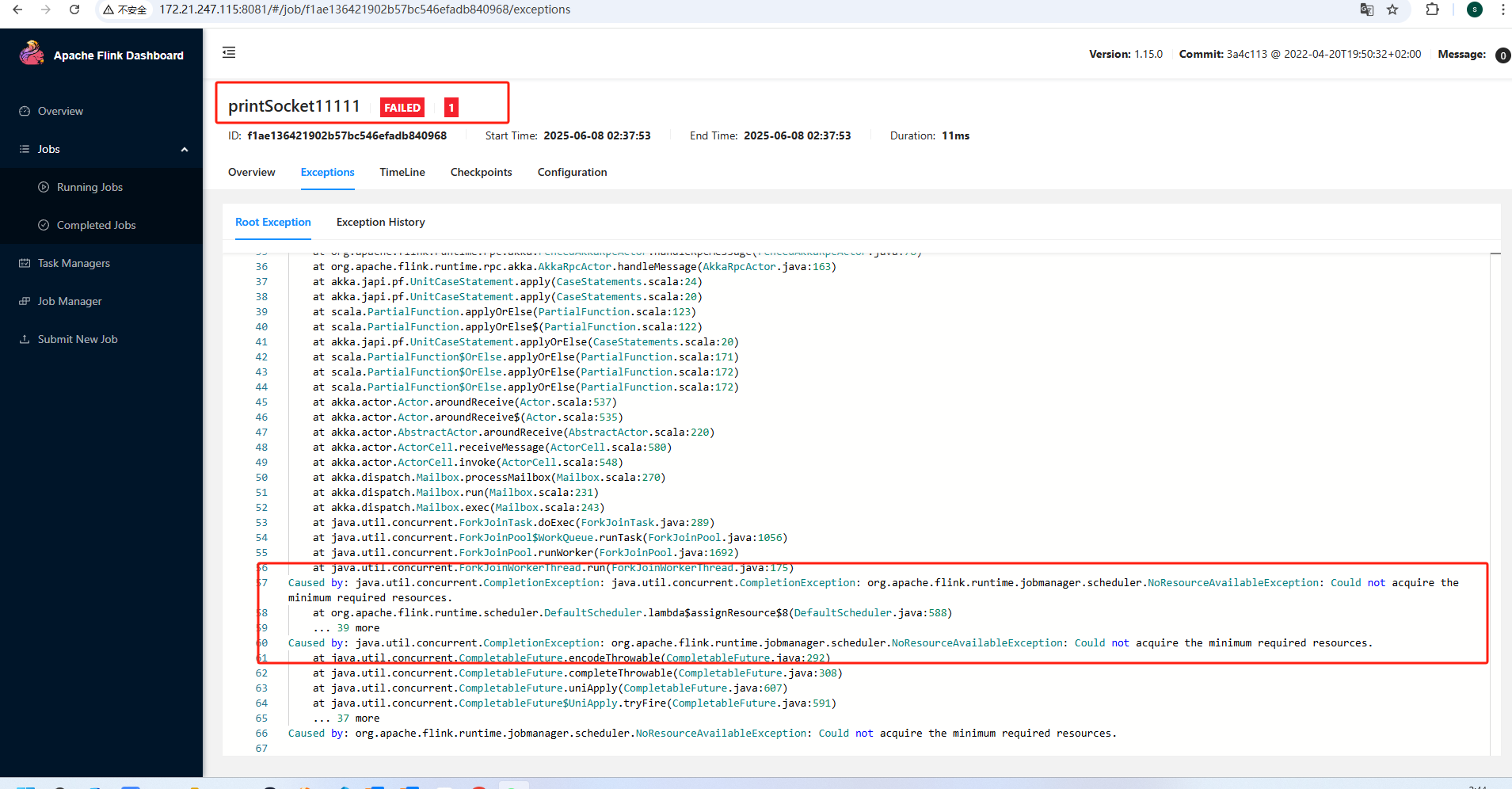

你会发现客户端直接报错，一堆的
exception。同时，集群上也有了对应的exception。大概内容是：Exception in thread "main" org.apache.flink.client.program.ProgramInvocationException: Job failed (JobID: ed1a54b646bd546857b7096b784b8839) at org.apache.flink.client.deployment.ClusterClientJobClientAdapter.lambda$null$6(ClusterClientJobClientAdapter.java:130) at java.util.concurrent.CompletableFuture.uniApply(CompletableFuture.java:616) at java.util.concurrent.CompletableFuture$UniApply.tryFire(CompletableFuture.java:591) at java.util.concurrent.CompletableFuture.postComplete(CompletableFuture.java:488) at java.util.concurrent.CompletableFuture.complete(CompletableFuture.java:1975) at org.apache.flink.util.concurrent.FutureUtils.lambda$retryOperationWithDelay$9(FutureUtils.java:403) at java.util.concurrent.CompletableFuture.uniWhenComplete(CompletableFuture.java:774) at java.util.concurrent.CompletableFuture$UniWhenComplete.tryFire(CompletableFuture.java:750) at java.util.concurrent.CompletableFuture.postComplete(CompletableFuture.java:488) at java.util.concurrent.CompletableFuture.complete(CompletableFuture.java:1975) at org.apache.flink.client.program.rest.RestClusterClient.lambda$pollResourceAsync$26(RestClusterClient.java:708) at java.util.concurrent.CompletableFuture.uniWhenComplete(CompletableFuture.java:774) at java.util.concurrent.CompletableFuture$UniWhenComplete.tryFire(CompletableFuture.java:750) at java.util.concurrent.CompletableFuture.postComplete(CompletableFuture.java:488) at java.util.concurrent.CompletableFuture.complete(CompletableFuture.java:1975) at org.apache.flink.util.concurrent.FutureUtils.lambda$retryOperationWithDelay$9(FutureUtils.java:403) at java.util.concurrent.CompletableFuture.uniWhenComplete(CompletableFuture.java:774) at java.util.concurrent.CompletableFuture$UniWhenComplete.tryFire(CompletableFuture.java:750) at java.util.concurrent.CompletableFuture.postComplete(CompletableFuture.java:488) at java.util.concurrent.CompletableFuture.postFire(CompletableFuture.java:575) at java.util.concurrent.CompletableFuture$UniCompose.tryFire(CompletableFuture.java:943) at java.util.concurrent.CompletableFuture$Completion.run(CompletableFuture.java:456) at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) at java.lang.Thread.run(Thread.java:750) Caused by: org.apache.flink.runtime.client.JobExecutionException: Job execution failed. at org.apache.flink.runtime.jobmaster.JobResult.toJobExecutionResult(JobResult.java:144) at org.apache.flink.client.deployment.ClusterClientJobClientAdapter.lambda$null$6(ClusterClientJobClientAdapter.java:128) ... 24 more Caused by: org.apache.flink.runtime.JobException: Recovery is suppressed by NoRestartBackoffTimeStrategy at org.apache.flink.runtime.executiongraph.failover.flip1.ExecutionFailureHandler.handleFailure(ExecutionFailureHandler.java:138) at org.apache.flink.runtime.executiongraph.failover.flip1.ExecutionFailureHandler.getFailureHandlingResult(ExecutionFailureHandler.java:82) at org.apache.flink.runtime.scheduler.DefaultScheduler.handleTaskFailure(DefaultScheduler.java:301) at org.apache.flink.runtime.scheduler.DefaultScheduler.maybeHandleTaskFailure(DefaultScheduler.java:291) at org.apache.flink.runtime.scheduler.DefaultScheduler.updateTaskExecutionStateInternal(DefaultScheduler.java:282) at org.apache.flink.runtime.scheduler.SchedulerBase.updateTaskExecutionState(SchedulerBase.java:739) at org.apache.flink.runtime.scheduler.SchedulerNG.updateTaskExecutionState(SchedulerNG.java:78) at org.apache.flink.runtime.jobmaster.JobMaster.updateTaskExecutionState(JobMaster.java:443) at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method) at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62) at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) at java.lang.reflect.Method.invoke(Method.java:498) at org.apache.flink.runtime.rpc.akka.AkkaRpcActor.lambda$handleRpcInvocation$1(AkkaRpcActor.java:304) at org.apache.flink.runtime.concurrent.akka.ClassLoadingUtils.runWithContextClassLoader(ClassLoadingUtils.java:83) at org.apache.flink.runtime.rpc.akka.AkkaRpcActor.handleRpcInvocation(AkkaRpcActor.java:302) at org.apache.flink.runtime.rpc.akka.AkkaRpcActor.handleRpcMessage(AkkaRpcActor.java:217) at org.apache.flink.runtime.rpc.akka.FencedAkkaRpcActor.handleRpcMessage(FencedAkkaRpcActor.java:78) at org.apache.flink.runtime.rpc.akka.AkkaRpcActor.handleMessage(AkkaRpcActor.java:163) at akka.japi.pf.UnitCaseStatement.apply(CaseStatements.scala:24) at akka.japi.pf.UnitCaseStatement.apply(CaseStatements.scala:20) at scala.PartialFunction.applyOrElse(PartialFunction.scala:123) at scala.PartialFunction.applyOrElse$(PartialFunction.scala:122) at akka.japi.pf.UnitCaseStatement.applyOrElse(CaseStatements.scala:20) at scala.PartialFunction$OrElse.applyOrElse(PartialFunction.scala:171) at scala.PartialFunction$OrElse.applyOrElse(PartialFunction.scala:172) at scala.PartialFunction$OrElse.applyOrElse(PartialFunction.scala:172) at akka.actor.Actor.aroundReceive(Actor.scala:537) at akka.actor.Actor.aroundReceive$(Actor.scala:535) at akka.actor.AbstractActor.aroundReceive(AbstractActor.scala:220) at akka.actor.ActorCell.receiveMessage(ActorCell.scala:580) at akka.actor.ActorCell.invoke(ActorCell.scala:548) at akka.dispatch.Mailbox.processMailbox(Mailbox.scala:270) at akka.dispatch.Mailbox.run(Mailbox.scala:231) at akka.dispatch.Mailbox.exec(Mailbox.scala:243) at java.util.concurrent.ForkJoinTask.doExec(ForkJoinTask.java:289) at java.util.concurrent.ForkJoinPool$WorkQueue.runTask(ForkJoinPool.java:1056) at java.util.concurrent.ForkJoinPool.runWorker(ForkJoinPool.java:1692) at java.util.concurrent.ForkJoinWorkerThread.run(ForkJoinWorkerThread.java:175) Caused by: org.apache.flink.streaming.runtime.tasks.StreamTaskException: Cannot instantiate user function. at org.apache.flink.streaming.api.graph.StreamConfig.getStreamOperatorFactory(StreamConfig.java:340) at org.apache.flink.streaming.runtime.tasks.OperatorChain.createOperator(OperatorChain.java:744) at org.apache.flink.streaming.runtime.tasks.OperatorChain.createOperatorChain(OperatorChain.java:717) at org.apache.flink.streaming.runtime.tasks.OperatorChain.createOutputCollector(OperatorChain.java:657) at org.apache.flink.streaming.runtime.tasks.OperatorChain.<init>(OperatorChain.java:190) at org.apache.flink.streaming.runtime.tasks.RegularOperatorChain.<init>(RegularOperatorChain.java:60) at org.apache.flink.streaming.runtime.tasks.StreamTask.restoreInternal(StreamTask.java:655) at org.apache.flink.streaming.runtime.tasks.StreamTask.restore(StreamTask.java:643) at org.apache.flink.runtime.taskmanager.Task.runWithSystemExitMonitoring(Task.java:948) at org.apache.flink.runtime.taskmanager.Task.restoreAndInvoke(Task.java:917) at org.apache.flink.runtime.taskmanager.Task.doRun(Task.java:741) at org.apache.flink.runtime.taskmanager.Task.run(Task.java:563) at java.lang.Thread.run(Thread.java:750) Caused by: java.lang.ClassCastException: cannot assign instance of java.lang.invoke.SerializedLambda to field org.apache.flink.streaming.api.operators.AbstractUdfStreamOperator.userFunction of type org.apache.flink.api.common.functions.Function in instance of org.apache.flink.streaming.api.operators.StreamMap at java.io.ObjectStreamClass$FieldReflector.setObjFieldValues(ObjectStreamClass.java:2301) at java.io.ObjectStreamClass.setObjFieldValues(ObjectStreamClass.java:1431) at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2437) at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2355) at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2213) at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1669) at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2431) at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2355) at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2213) at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1669) at java.io.ObjectInputStream.readObject(ObjectInputStream.java:503) at java.io.ObjectInputStream.readObject(ObjectInputStream.java:461) at org.apache.flink.util.InstantiationUtil.deserializeObject(InstantiationUtil.java:617) at org.apache.flink.util.InstantiationUtil.deserializeObject(InstantiationUtil.java:602) at org.apache.flink.util.InstantiationUtil.deserializeObject(InstantiationUtil.java:589) at org.apache.flink.util.InstantiationUtil.readObjectFromConfig(InstantiationUtil.java:543) at org.apache.flink.streaming.api.graph.StreamConfig.getStreamOperatorFactory(StreamConfig.java:324) ... 12 more -
报错核心信息如下：
Caused by: java.lang.ClassCastException: cannot assign instance of java.lang.invoke.SerializedLambda to field org.apache.flink.streaming.api.operators.AbstractUdfStreamOperator.userFunction of type org.apache.flink.api.common.functions.Function in instance of org.apache.flink.streaming.api.operators.StreamMap这个异常本质上是因为对象序列化失败所导致的。具体来说，是由于使用了
Lambda表达式，Flink会将该Lambda编译成一个匿名类，而这个类并未被打包上传至集群运行环境中，导致反序列化时出现ClassCastException。在日常开发中，这类问题非常常见，尤其是在函数式编程大量使用的场景下。例如：序列化失败、类转换错误（如
ClassCastException）等，往往都是因为类在集群端不可识别，或者类加载器找不到对应定义。在接下来的源码分析过程中，我们也将深入理解这类问题的根源，以及
Flink是如何设计用户函数序列化与反序列化机制的，从而更稳健地进行分布式计算开发。
