三层交换机 vlan实验

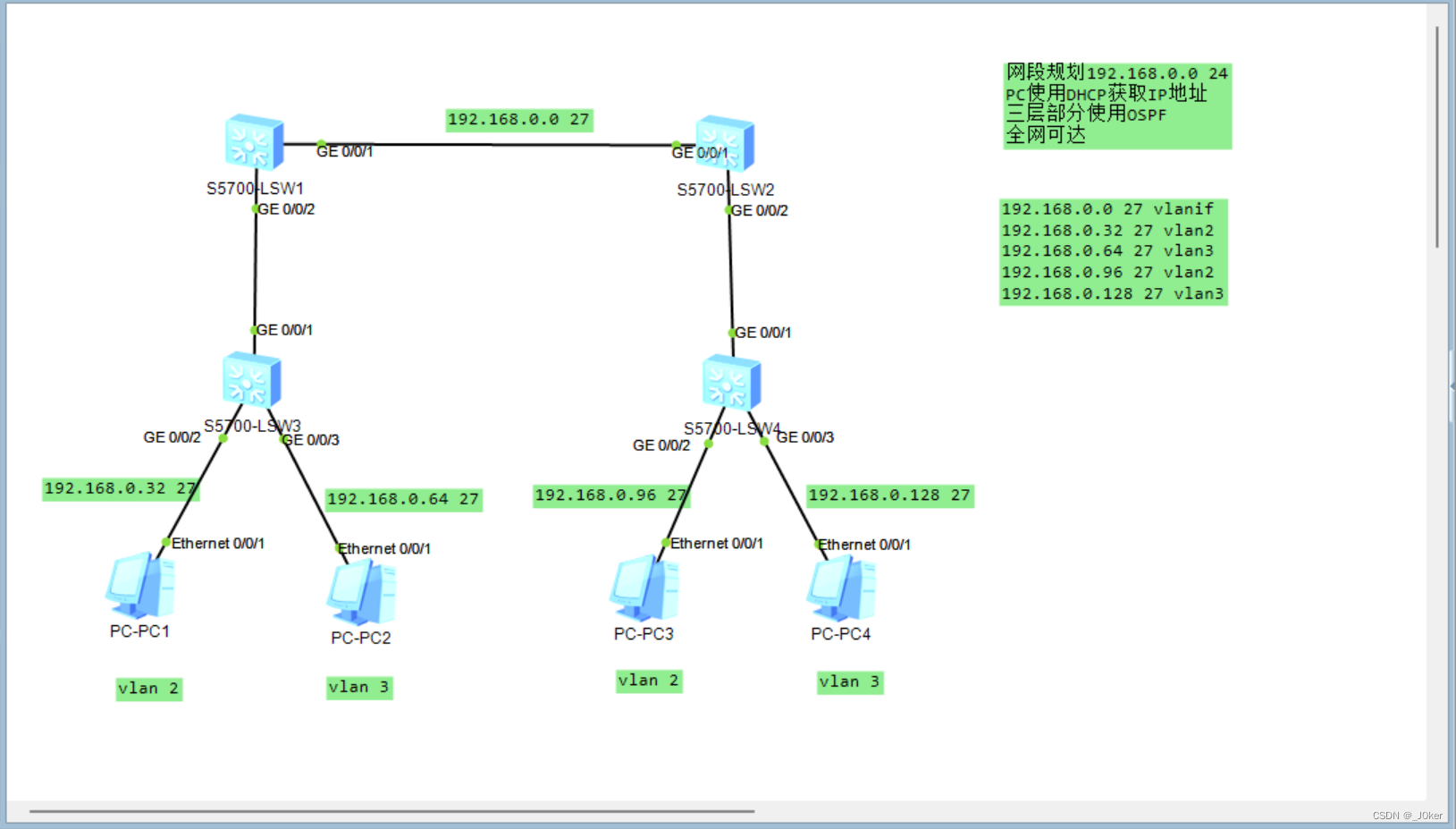

1.括扑图

2.在二层交换机上创建VLAN

因为sw3与sw4是对称的，所以sw3与sw4所敲的代码一致

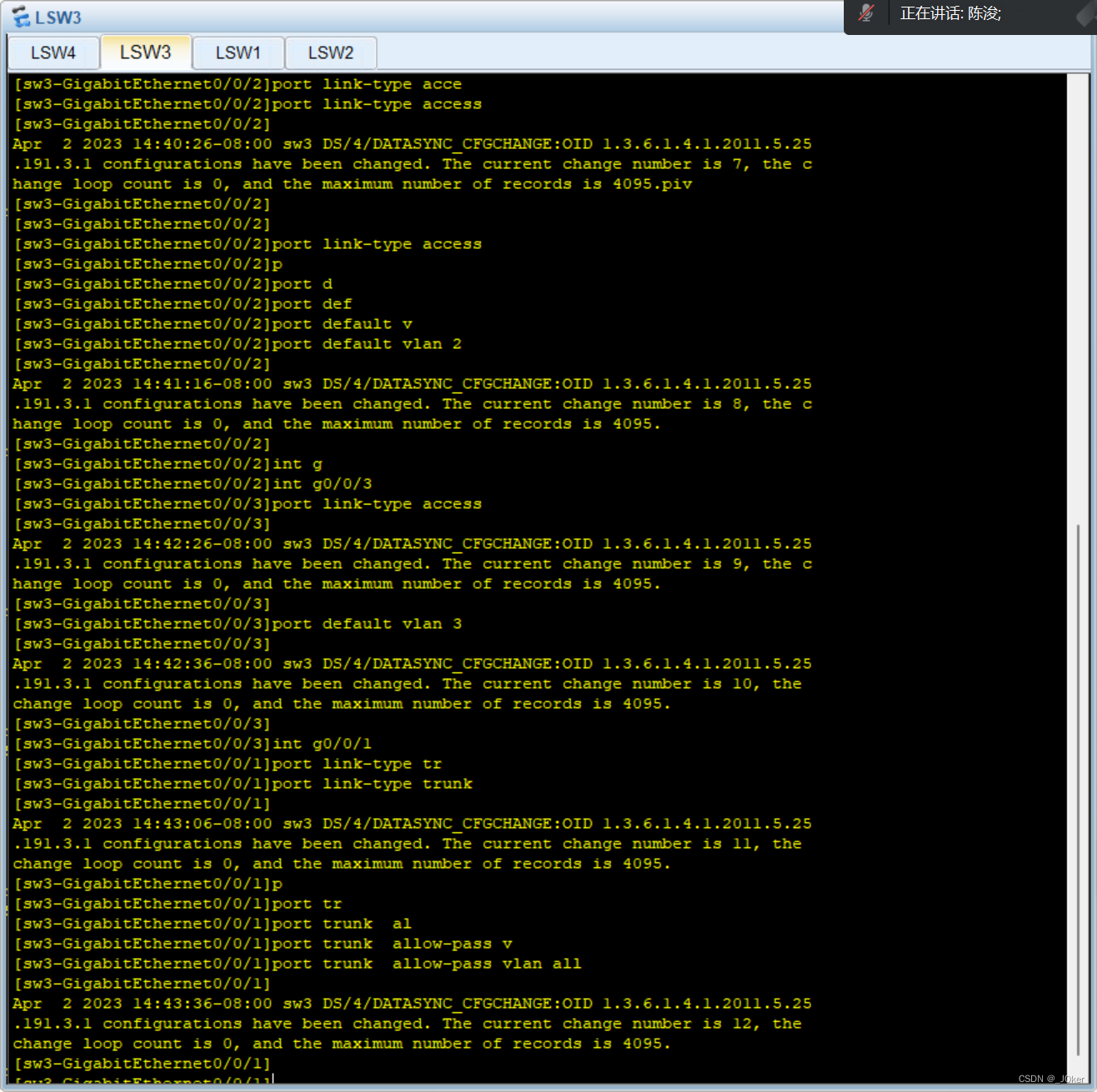

sw3：

[sw3]vlan batch 2 3
[sw3-GigabitEthernet0/0/2]port link-type access
[sw3-GigabitEthernet0/0/2]port default vlan 2
[sw3-GigabitEthernet0/0/3]port link-type access
[sw3-GigabitEthernet0/0/3]port default vlan 3
[sw3-GigabitEthernet0/0/1]port link-type trunk
[sw3-GigabitEthernet0/0/1]port trunk allow-pass vlan all

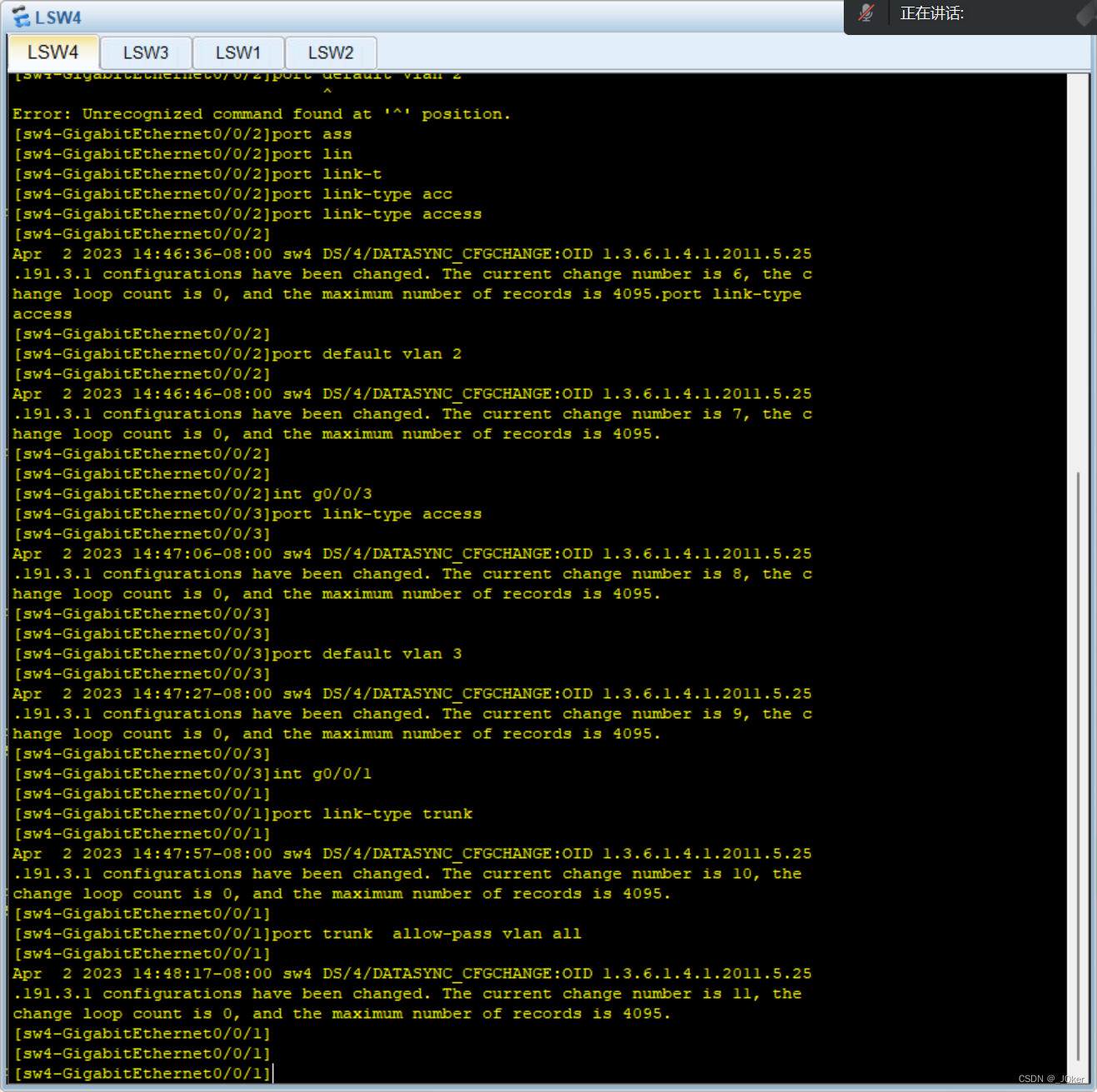

sw4

[sw4]vlan batch 2 3
[sw4-GigabitEthernet0/0/2]port link-type access
[sw4-GigabitEthernet0/0/2]port default vlan 2
[sw4-GigabitEthernet0/0/3]port link-type access
[sw4-GigabitEthernet0/0/3]port default vlan 3
[sw4-GigabitEthernet0/0/1]port link-type trunk
[sw4-GigabitEthernet0/0/1]port trunk allow-pass vlan all

3.配置三层交换机

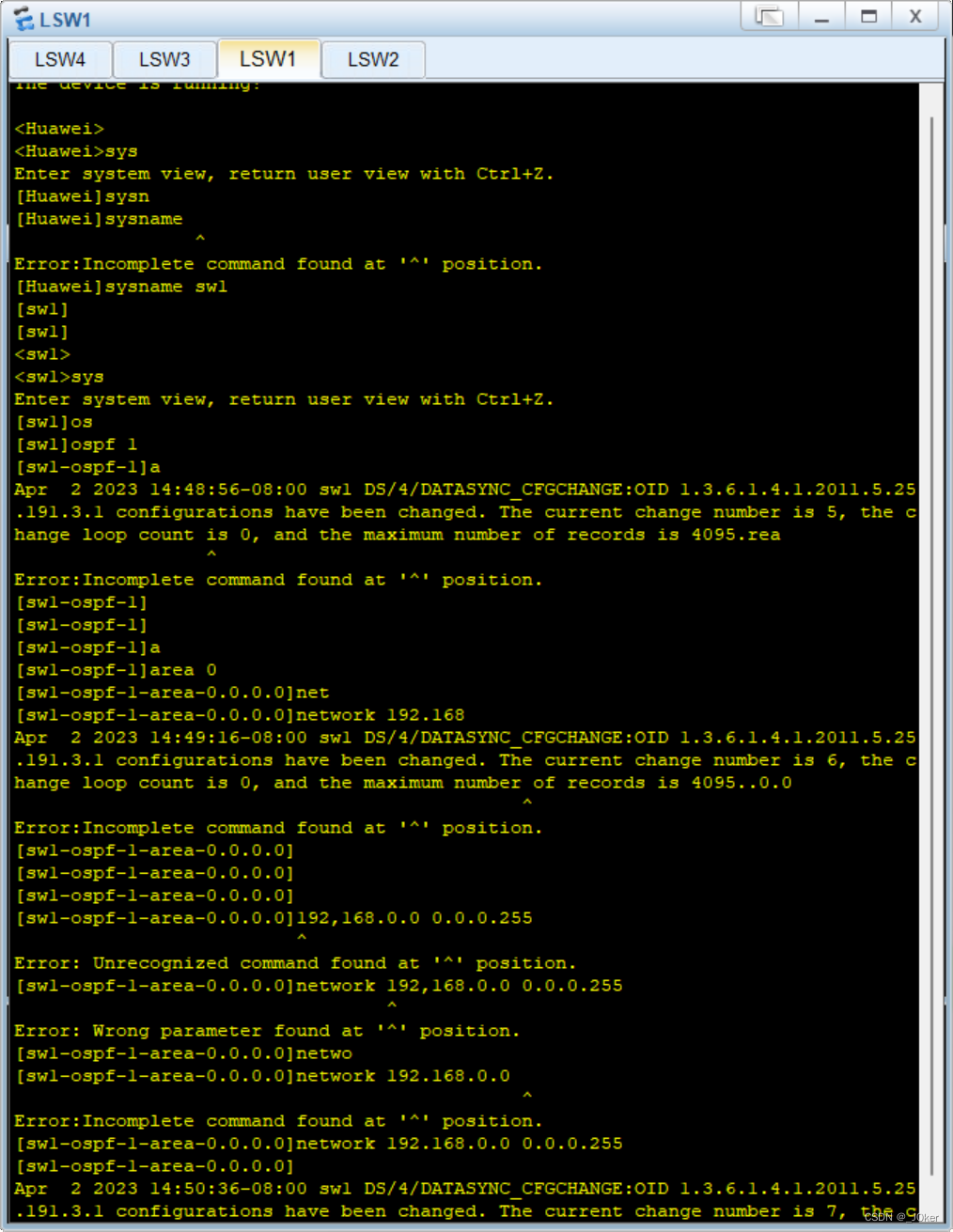

sw1:

[sw1]ospf 1
[sw1-ospf-1]area 0
[sw1-ospf-1-area-0.0.0.0]network 192.168.0.0 0.0.0.255

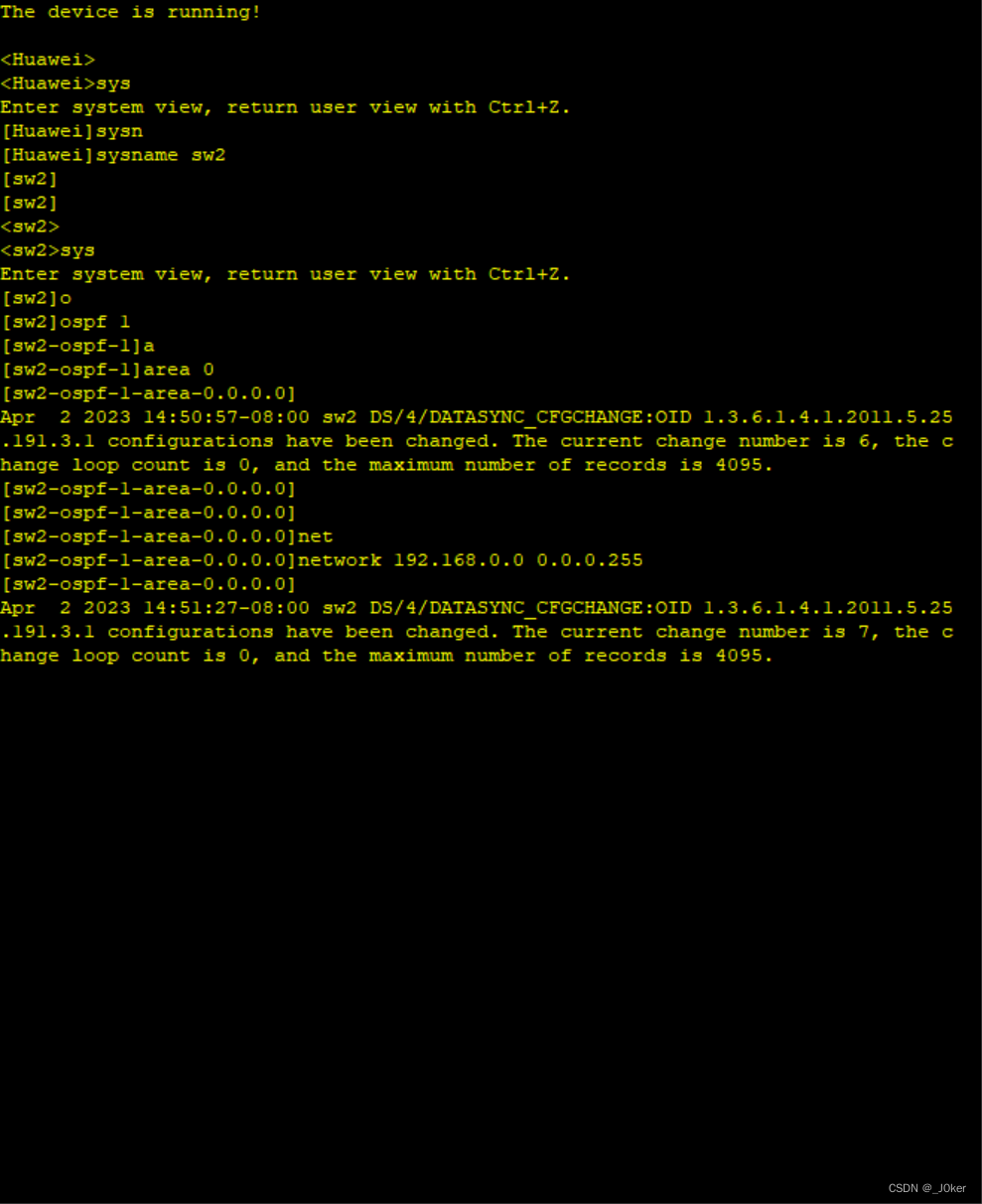

 sw2:

[sw2]ospf
[sw2-ospf-1]area 0
[sw2-ospf-1-area-0.0.0.0]network 192.168.0.0 0.0.0.255
