图片预览和视频在线播放

需求描述

实现播放视频的需求时,往往是前端直接加载一个mp4文件,这样做法在遇到视频文件较大时,容易造成卡顿,不能及时加载出来。我们可以将视频进行切片,然后分段加载。播放一点加载一点,这样同一时间内只会加载一小部分的视频,不容易出现播放卡顿的问题。下面是实现方法。

对视频切片使用的是 ffmpeg,可查看我的这个文章安装使用

后端接口处理

后端需要处理的逻辑有

  1. 根据视频的完整地址找到视频源文件

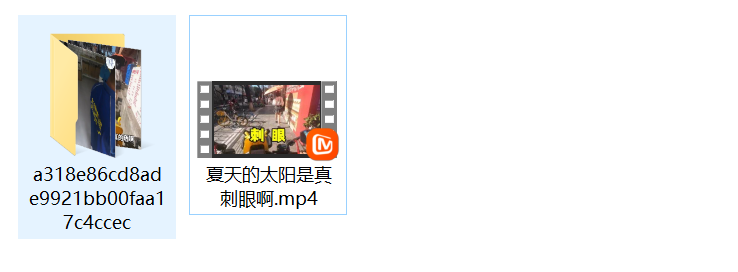

  2. 根据视频名称进行MD5,在同级目录下创建MD5文件夹,用于存放生成的索引文件和视频切片
  3. 前端调用视频预览接口时先判断有没有索引文件

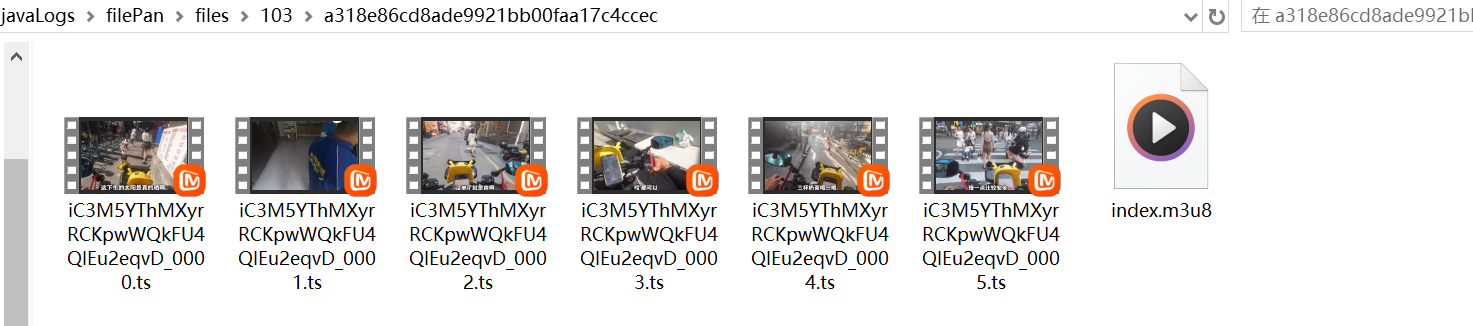

    1. 如果没有,则先将mp4转为ts,然后对ts进行切片处理并生成index.m3u8索引文件,然后删除ts文件
    2. 如果有,则直接读取ts文件写入到响应头,以流的方式返回给浏览器

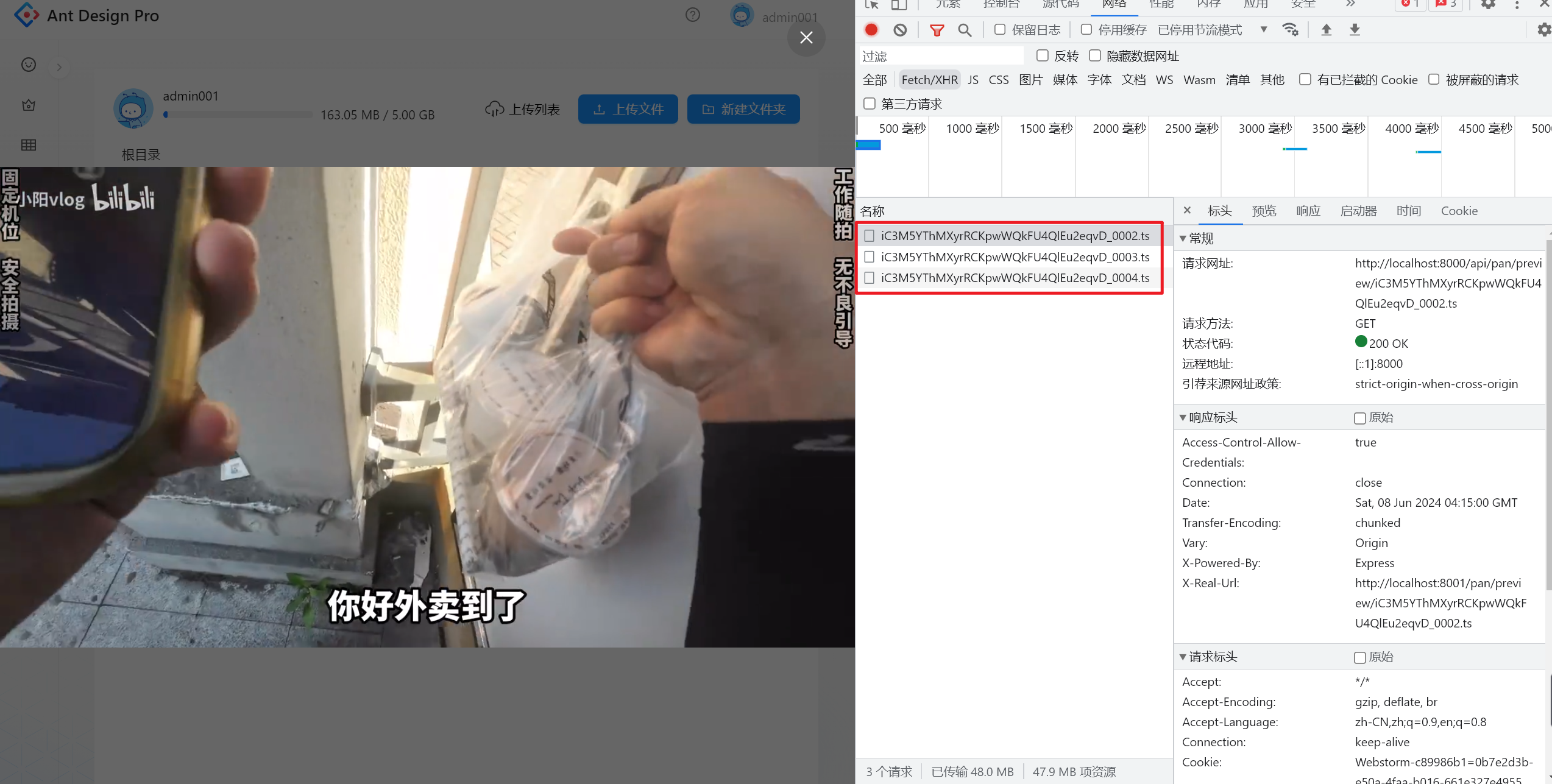

  4. 加载视频分片文件时会重复调用视频预览接口,需要对请求进来的参数做判断,判断是否是请求的索引还是分片

首先定义好接口,接收一个文件ID获取到对应的文件信息

@ApiOperation("文件预览")
@GetMapping("preview/{fileId}")
public void preview(@PathVariable String fileId, HttpServletResponse response) {
    if (fileId.endsWith(".ts")) {
        filePanService.readFileTs(fileId, response);
    } else {
        LambdaUpdateWrapper<FilePan> qw = new LambdaUpdateWrapper<>();
        qw.eq(FilePan::getFileId, fileId);
        FilePan one = filePanService.getOne(qw);
        if (ObjectUtil.isEmpty(one)) {
            throw new CenterExceptionHandler("文件不存在");
        }
        filePanService.preview(one, response);
    }
}

视频信息如下图

image-20240608111547732

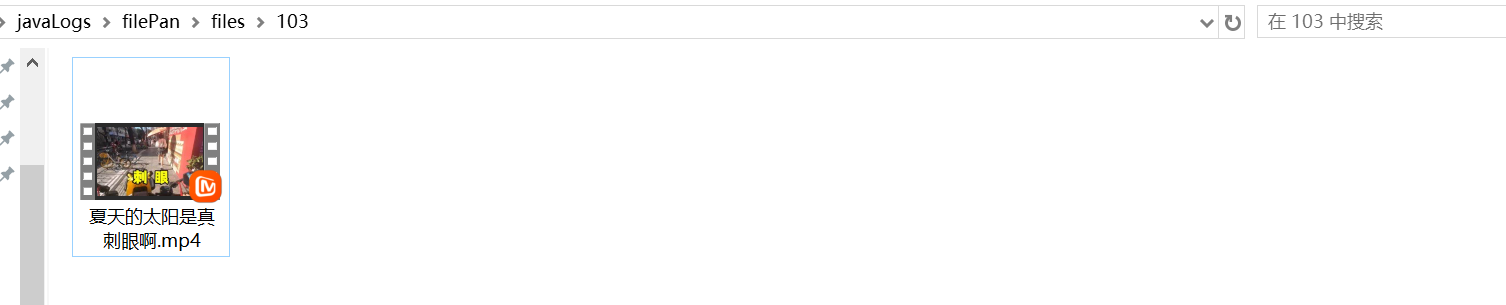

在磁盘上对应的视频

image-20240608111647759

数据库中存放是视频信息

image-20240608111720899

当点击视频时,前端会拿到当前的文件ID请求上面定义好的接口,此时 fielId 肯定不是以 ts 结尾,所以会根据这个 fileId 查询数据库中保存的这条记录,然后调用 filePanService.preview(one, response) 方法

preview方法

preview方法主要处理的几个事情

  1. 首先判断文件类型是图片还是视频
  2. 如果是图片是直接读取图片并返回流
  3. 如果是视频
    1. 首先拿到视频名称,对名称进行md5处理,并生成文件夹
    2. 创建视频ts文件,并对ts进行切片和生成索引
  4. 加载分片文件时调用readFileTs方法
/**
 * 文件预览
 */
@Override
public void preview(FilePan filePan, HttpServletResponse response) {
    // 区分图片还是视频
    if (FileTypeUtil.isImage(filePan.getFileName())) {
        previewImg(filePan, response);
    } else if (FileTypeUtil.isVideo(filePan.getFileName())) {
        previewVideo(filePan, response);
    } else {
        throw new CenterExceptionHandler("该文件不支持预览");
    }
}

/**
 * 图片预览
 *
 * @param filePan
 * @param response
 */
private void previewImg(FilePan filePan, HttpServletResponse response) {
    if (StrUtil.isEmpty(filePan.getFileId())) {
        return;
    }
    // 源文件路径
    String realTargetFile = filePan.getFilePath();
    File file = new File(filePan.getFilePath());
    if (!file.exists()) {
        return;
    }
    readFile(response, realTargetFile);
}

/**
 * 视频预览
 *
 * @param filePan
 * @param response
 */
private void previewVideo(FilePan filePan, HttpServletResponse response) {
    // 根据文件名称创建对应的MD5文件夹
    String md5Dir = FileChunkUtil.createMd5Dir(filePan.getFilePath());
    // 去这个目录下查看是否有index.m3u8这个文件
    String m3u8Path = md5Dir + "/" + FileConstants.M3U8_NAME;
    if (!FileUtil.exist(m3u8Path)) {
        // 创建视频ts文件
        createVideoTs(filePan.getFilePath(), filePan.getFileId(), md5Dir, response);
    } else {
        // 读取切片文件
        readFile(response, m3u8Path);
    }
}

// 创建视频切片文件
private void createVideoTs(String videoPath, String fileId, String targetPath, HttpServletResponse response) {
    // 1.生成ts文件
    String video_2_TS = "ffmpeg -y -i %s -vcodec copy -acodec copy -bsf:v h264_mp4toannexb %s";
    String tsPath = targetPath + "/" + FileConstants.TS_NAME;
    String cmd = String.format(video_2_TS, videoPath, tsPath);
    ProcessUtils.executeCommand(cmd, false);

    // 2.创建切片文件
    String ts_chunk = "ffmpeg -i %s -c copy -map 0 -f segment -segment_list %s -segment_time 60 %s/%s_%%4d.ts";
    String m3u8Path = targetPath + "/" + FileConstants.M3U8_NAME;
    cmd = String.format(ts_chunk, tsPath, m3u8Path, targetPath, fileId);
    ProcessUtils.executeCommand(cmd, false);

    // 删除index.ts文件
    FileUtil.del(tsPath);

    // 读取切片文件
    readFile(response, m3u8Path);
}

// 加载视频切片文件
@Override
public void readFileTs(String tsFileId, HttpServletResponse response) {
    String[] tsArray = tsFileId.split("_");
    String videoFileId = tsArray[0];
    LambdaUpdateWrapper<FilePan> qw = new LambdaUpdateWrapper<>();
    qw.eq(FilePan::getFileId, videoFileId);
    FilePan one = this.getOne(qw);
    // 获取文件对应的MD5文件夹地址
    String md5Dir = FileChunkUtil.createMd5Dir(one.getFilePath());
    // 去MD5目录下读取ts分片文件
    String tsFile = md5Dir + "/" + tsFileId;
    readFile(response, tsFile);
}

用到的几个工具类代码

FileTypeUtil

package com.szx.usercenter.util;

/**
 * @author songzx
 * @create 2024-06-07 13:39
 */
public class FileTypeUtil {
    /**
     * 是否是图片类型的文件
     */
    public static boolean isImage(String fileName) {
        String[] imageSuffix = {"jpg", "jpeg", "png", "gif", "bmp", "webp"};
        String suffix = fileName.substring(fileName.lastIndexOf(".") + 1);
        for (String s : imageSuffix) {
            if (s.equals(suffix)) {
                return true;
            }
        }
        return false;
    }

    /**
     * 是否是视频文件
     */
    public static boolean isVideo(String fileName) {
        String[] videoSuffix = {"mp4", "avi", "rmvb", "mkv", "flv", "wmv"};
        String suffix = fileName.substring(fileName.lastIndexOf(".") + 1);
        for (String s : videoSuffix) {
            if (s.equals(suffix)) {
                return true;
            }
        }
        return false;
    }
}

FileChunkUtil

package com.szx.usercenter.util;

import cn.hutool.core.io.FileUtil;
import cn.hutool.crypto.digest.MD5;

import java.io.File;

/**
 * 文件上传后的各种处理操作
 * @author songzx
 * @create 2024-06-07 13:25
 */
public class FileChunkUtil {
    /**
     * 合并完文件后根据文件名称创建MD5目录
     * 用于存放文件缩略图
     */
    public static String createMd5Dir(String filePath) {
        File targetFile = new File(filePath);
        String md5Dir = MD5.create().digestHex(targetFile.getName());
        String targetDir = targetFile.getParent() + File.separator + md5Dir;
        FileUtil.mkdir(targetDir);
        return targetDir;
    }
}

readFile

/**
 * 读取文件方法
 *
 * @param response
 * @param filePath
 */
public static void readFile(HttpServletResponse response, String filePath) {
    OutputStream out = null;
    FileInputStream in = null;
    try {
        File file = new File(filePath);
        if (!file.exists()) {
            return;
        }
        in = new FileInputStream(file);
        byte[] byteData = new byte[1024];
        out = response.getOutputStream();
        int len = 0;
        while ((len = in.read(byteData)) != -1) {
            out.write(byteData, 0, len);
        }
        out.flush();
    } catch (Exception e) {
        e.printStackTrace();
    } finally {
        if (out != null) {
            try {
                out.close();
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
        if (in != null) {
            try {
                in.close();
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }
}

ProcessUtils

这个方法用于执行CMD命令

package com.szx.usercenter.util;

import com.szx.usercenter.handle.CenterExceptionHandler;
import org.apache.commons.lang3.StringUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;

/**
 * 可以执行命令行命令的工具
 *
 * @author songzx
 * @create 2024-06-06 8:56
 */
public class ProcessUtils {
  private static final Logger logger = LoggerFactory.getLogger(ProcessUtils.class);

  public static String executeCommand(String cmd, Boolean outPrintLog) {
    if (StringUtils.isEmpty(cmd)) {
      logger.error("--- 指令执行失败!---");
      return null;
    }

    Runtime runtime = Runtime.getRuntime();
    Process process = null;
    try {
      process = Runtime.getRuntime().exec(cmd);
      // 取出输出流
      PrintStream errorStream = new PrintStream(process.getErrorStream());
      PrintStream inputStream = new PrintStream(process.getInputStream());
      errorStream.start();
      inputStream.start();
      // 获取执行的命令信息
      process.waitFor();
      // 获取执行结果字符串
      String result = errorStream.stringBuffer.append(inputStream.stringBuffer + "\n").toString();
      // 输出执行的命令信息
      if (outPrintLog) {
        logger.info("执行命令:{},已执行完毕,执行结果:{}", cmd, result);
      } else {
        logger.info("执行命令:{},已执行完毕", cmd);
      }
      return result;
    } catch (Exception e) {
      e.printStackTrace();
      throw new CenterExceptionHandler("命令执行失败");
    } finally {
      if (null != process) {
        ProcessKiller processKiller = new ProcessKiller(process);
        runtime.addShutdownHook(processKiller);
      }
    }
  }

  private static class ProcessKiller extends Thread {
    private Process process;

    public ProcessKiller(Process process) {
      this.process = process;
    }

    @Override
    public void run() {
      this.process.destroy();
    }
  }

  static class PrintStream extends Thread {
    InputStream inputStream = null;
    BufferedReader bufferedReader = null;

    StringBuffer stringBuffer = new StringBuffer();

    public PrintStream(InputStream inputStream) {
      this.inputStream = inputStream;
    }

    @Override
    public void run() {
      try {
        if (null == inputStream) {
          return;
        }
        bufferedReader = new BufferedReader(new InputStreamReader(inputStream));
        String line = null;
        while ((line = bufferedReader.readLine()) != null) {
          stringBuffer.append(line);
        }
      } catch (Exception e) {
        logger.error("读取输入流出错了!错误信息:" + e.getMessage());
      } finally {
        try {
          if (null != bufferedReader) {
            bufferedReader.close();
          }
          if (null != inputStream) {
            inputStream.close();
          }
        } catch (IOException e) {
          logger.error("关闭流时出错!");
        }
      }
    }
  }
}

前端方法实现

前端使用的是React

定义图片预览组件 PreviewImage

import React, { forwardRef, useImperativeHandle } from 'react';
import {
  DownloadOutlined,
  UndoOutlined,
  RotateLeftOutlined,
  RotateRightOutlined,
  SwapOutlined,
  ZoomInOutlined,
  ZoomOutOutlined,
} from '@ant-design/icons';
import { Image, Space } from 'antd';

const PreviewImage: React.FC = forwardRef((props, ref) => {
  const [src, setSrc] = React.useState('');

  const showPreview = (fileId: string) => {
    setSrc(`/api/pan/preview/${fileId}`);
    document.getElementById('previewImage').click();
  };

  useImperativeHandle(ref, () => {
    return {
      showPreview,
    };
  });

  const onDownload = () => {
    fetch(src)
      .then((response) => response.blob())
      .then((blob) => {
        const url = URL.createObjectURL(new Blob([blob]));
        const link = document.createElement('a');
        link.href = url;
        link.download = 'image.png';
        document.body.appendChild(link);
        link.click();
        URL.revokeObjectURL(url);
        link.remove();
      });
  };

  return (
    <Image
      id={'previewImage'}
      style={{ display: 'none' }}
      src={src}
      preview={{
        toolbarRender: (
          _,
          {
            transform: { scale },
            actions: {
              onFlipY,
              onFlipX,
              onRotateLeft,
              onRotateRight,
              onZoomOut,
              onZoomIn,
              onReset,
            },
          },
        ) => (
          <Space size={12} className="toolbar-wrapper">
            <DownloadOutlined onClick={onDownload} />
            <SwapOutlined rotate={90} onClick={onFlipY} />
            <SwapOutlined onClick={onFlipX} />
            <RotateLeftOutlined onClick={onRotateLeft} />
            <RotateRightOutlined onClick={onRotateRight} />
            <ZoomOutOutlined disabled={scale === 1} onClick={onZoomOut} />
            <ZoomInOutlined disabled={scale === 50} onClick={onZoomIn} />
            <UndoOutlined onClick={onReset} />
          </Space>
        ),
      }}
    />
  );
});

export default PreviewImage;

定义视频预览组件

视频预览用到了 dplayer ,安装

pnpm add dplayer hls.js
import React, { forwardRef, useEffect, useImperativeHandle, useRef, useState } from 'react';
import DPlayer from 'dplayer';
import './style/video-model.less';

const Hls = require('hls.js');

const PreviewVideo = forwardRef((props, ref) => {
  let dp = useRef();

  const [modal2Open, setModal2Open] = useState(false);
  const [fileId, setFileId] = useState('');

  const showPreview = (fileId) => {
    setFileId(fileId);
    setModal2Open(true);
  };

  const hideModal = () => {
    setModal2Open(false);
  };

  const clickModal = (e) => {
    if (e.target.dataset.tagName === 'parentBox') {
      hideModal();
    }
  };

  useEffect(() => {
    if (modal2Open) {
      console.log(fileId, 'videovideovideo');
      dp.current = new DPlayer({
        container: document.getElementById('video'), // 注意:这里一定要写div的dom
        lang: 'zh-cn',
        video: {
          url: `/api/pan/preview/${fileId}`, // 这里填写.m3u8视频连接
          type: 'customHls',
          customType: {
            customHls: function (video) {
              const hls = new Hls();
              hls.loadSource(video.src);
              hls.attachMedia(video);
            },
          },
        },
      });
      dp.current.play();
    }
  }, [modal2Open]);

  useImperativeHandle(ref, () => {
    return {
      showPreview,
    };
  });

  return (
    <>
      {modal2Open && (
        <div className={'video-box'} data-tag-name={'parentBox'} onClick={clickModal}>
          <div id="video"></div>
          <button className="ant-image-preview-close" onClick={hideModal}>
            <span role="img" aria-label="close" className="anticon anticon-close">
              <svg
                fill-rule="evenodd"
                viewBox="64 64 896 896"
                focusable="false"
                data-icon="close"
                width="1em"
                height="1em"
                fill="currentColor"
                aria-hidden="true"
              >
                <path d="M799.86 166.31c.02 0 .04.02.08.06l57.69 57.7c.04.03.05.05.06.08a.12.12 0 010 .06c0 .03-.02.05-.06.09L569.93 512l287.7 287.7c.04.04.05.06.06.09a.12.12 0 010 .07c0 .02-.02.04-.06.08l-57.7 57.69c-.03.04-.05.05-.07.06a.12.12 0 01-.07 0c-.03 0-.05-.02-.09-.06L512 569.93l-287.7 287.7c-.04.04-.06.05-.09.06a.12.12 0 01-.07 0c-.02 0-.04-.02-.08-.06l-57.69-57.7c-.04-.03-.05-.05-.06-.07a.12.12 0 010-.07c0-.03.02-.05.06-.09L454.07 512l-287.7-287.7c-.04-.04-.05-.06-.06-.09a.12.12 0 010-.07c0-.02.02-.04.06-.08l57.7-57.69c.03-.04.05-.05.07-.06a.12.12 0 01.07 0c.03 0 .05.02.09.06L512 454.07l287.7-287.7c.04-.04.06-.05.09-.06a.12.12 0 01.07 0z"></path>
              </svg>
            </span>
          </button>
        </div>
      )}
    </>
  );
});

export default PreviewVideo;

父组件引入并使用

import PreviewImage from '@/components/Preview/PreviewImage';
import PreviewVideo from '@/components/Preview/PreviewVideo';

const previewRef = useRef();
const previewVideoRef = useRef();

// 点击的是文件
const clickFile = async (item) => {
    // 预览图片
    if (isImage(item.fileType)) {
        previewRef.current.showPreview(item.fileId);
        return;
    }

    // 预览视频
    if (isVideo(item.fileType)) {
        previewVideoRef.current.showPreview(item.fileId);
        return;
    }

    message.error('暂不支持预览该文件');
};

// 点击的文件夹
const clickFolder = (item) => {
    props.pushBread(item);  // 更新面包屑
};

// 点击某一行时触发
const clickRow = (item: { fileType?: string }) => {
    if (item.fileType) {
        clickFile(item);
    } else {
        clickFolder(item);
    }
};

<PreviewImage ref={previewRef} />
<PreviewVideo ref={previewVideoRef} />

判断文件类型的方法

// 判断文件是否为图片
export function isImage(fileType): boolean {
  const imageTypes = ['.jpg', '.png', '.jpeg', '.gif', '.bmp', '.webp']
  return imageTypes.includes(fileType);
}

// 判断是否为视频
export function isVideo(fileType): boolean {
  const videoTypes = ['.mp4', '.avi', '.rmvb', '.mkv', '.flv', '.wmv']
  return videoTypes.includes(fileType);
}

实现效果

图片预览效果

image-20240608121403097

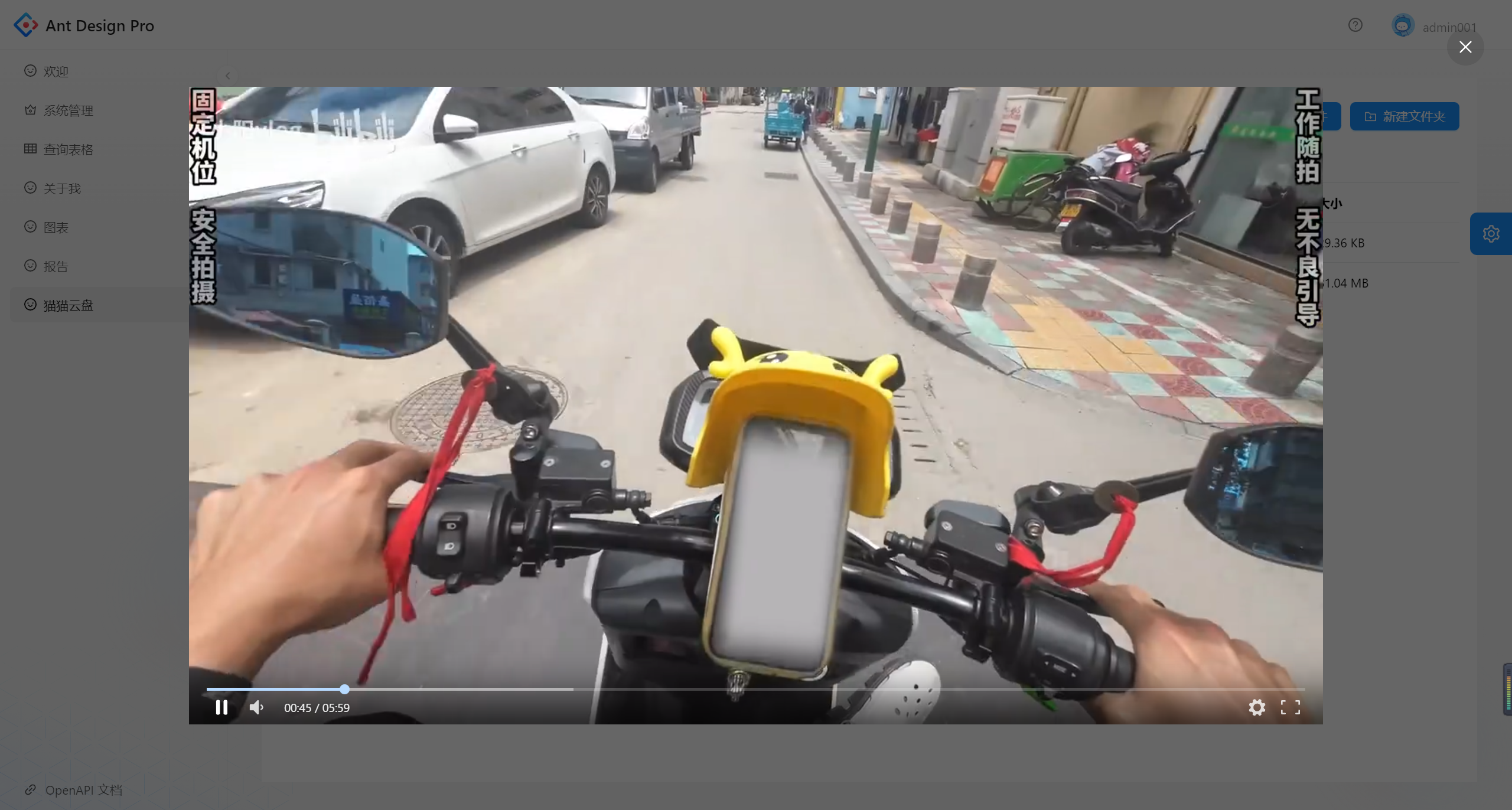

视频预览效果

image-20240608121438971

并且在播放过程中是分段加载的视频

image-20240608121550836

查看源文件,根据文件名创建一个MD5的文件夹

image-20240608121012668

文件夹中对视频进行了分片处理,每一片都是以文件ID开头,方便加载分片时找到分片对应的位置

image-20240608121809812

  • 8
    点赞
  • 15
    收藏
    觉得还不错? 一键收藏
  • 0
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
