SpringBoot整合FastDFS笔记

SpringBoot整合FastDFS笔记

FastDFS是国人余庆开发的一个的分布式存储系统，github地址是https://github.com/happyfish100/fastdfs

FastDFS的特性:

1、分组存储，灵活简洁、对等结构，不存在单点

2、 文件ID由FastDFS生成，作为文件访问凭证。FastDFS不需要传统的name server

3、和流行的web server无缝衔接，FastDFS已提供apache和nginx扩展模块

4、大、中、小文件均可以很好支持，支持海量小文件存储

5、 支持多块磁盘，支持单盘数据恢复

6、 支持相同文件内容只保存一份，节省存储空间

7、 存储服务器上可以保存文件附加属性

8、 下载文件支持多线程方式，支持断点续传

FastDFS部署教程可以参考
https://www.jb51.net/article/251253.htm

springboot整合fastDFS的物料准备：

1.java项目配置fastdfs

2.定义工具类

3.测试使用效果

java项目配置fastdfs

引入fastdfs-client相关依赖

<dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.7.8</version>
        </dependency>

        <dependency>
            <groupId>com.github.tobato</groupId>
            <artifactId>fastdfs-client</artifactId>
            <version>1.26.7</version>
        </dependency>

配置项目yml文件

fdfs:
  so-timeout: 5000 # 读取时间
  connect-timeout: 5000 #连接超时
  # 生成缩略图参数
  thumb-image:
    width: 50
    height: 50
# 支持配置多个存储节点
  tracker-list:
    - 10.1.5.212:22122

启动类配置

package com.example.demo;
import com.github.tobato.fastdfs.FdfsClientConfig;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Import;

@Import({FdfsClientConfig.class,cn.hutool.extra.spring.SpringUtil.class})
@MapperScan(basePackages = {"com.example.demo.orm.dao"})
@SpringBootApplication
public class DemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }
}

定义fdfs工具类

package com.example.demo.util;

import cn.hutool.core.io.file.FileNameUtil;
import cn.hutool.core.util.StrUtil;
import com.github.tobato.fastdfs.domain.fdfs.StorePath;
import com.github.tobato.fastdfs.domain.proto.storage.DownloadByteArray;
import com.github.tobato.fastdfs.service.FastFileStorageClient;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.web.multipart.MultipartFile;

import java.io.*;
import java.nio.charset.StandardCharsets;

@Component
@Slf4j
public class FdfsTools {
    @Autowired
    private FastFileStorageClient fastFileStorageClient;


    /**
     * 文件上传, byte 流类型
     *
     * @param bytes     文件字节
     * @param fileSize  文件大小
     * @param extension 文件扩展名
     * @return fastDfs路径
     */
    public String uploadFile(byte[] bytes, long fileSize, String extension) {
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        StorePath storePath = fastFileStorageClient.uploadFile(
                byteArrayInputStream,
                fileSize,
                extension,
                null);
        return storePath.getFullPath();
    }

    /**
     * MultipartFile类型的文件上传ַ
     *
     * @param file
     * @return
     * @throws IOException
     */
    public String uploadFile(MultipartFile file) throws IOException {
        StorePath storePath = fastFileStorageClient.uploadFile(
                file.getInputStream(),
                file.getSize(),
                FileNameUtil.getSuffix(file.getOriginalFilename()),
                null);
        return storePath.getFullPath();
    }

    /**
     * 普通文件上传
     *
     * @param file
     * @return
     * @throws IOException
     */
    public String uploadFile(File file) throws FileNotFoundException {
        FileInputStream inputStream = new FileInputStream(file);
        StorePath path = fastFileStorageClient.uploadFile(
                inputStream,
                file.length(),
                FileNameUtil.getSuffix(file),
                null);
        return path.getFullPath();
    }


    public String createFileAndUpload(String sourceFilePath) throws Exception {
        File file = new File(sourceFilePath);
        return uploadFile(file);
    }

    /**
     * 带输入流形式的文件上传
     *
     * @param inputStream
     * @param size
     * @param fileName
     * @return
     */
    public String uploadFile(InputStream inputStream, long size, String fileName) {
        StorePath path = fastFileStorageClient.uploadFile(inputStream, size, fileName, null);
        return path.getFullPath();
    }

    /**
     * 将一段文本文件写到fastdfs的服务器上
     *
     * @param content
     * @param fileExtension
     * @return
     */
    public String uploadFile(String content, String fileExtension) {
        byte[] buff = content.getBytes(StandardCharsets.UTF_8);
        ByteArrayInputStream stream = new ByteArrayInputStream(buff);
        StorePath path = fastFileStorageClient.uploadFile(stream, buff.length, fileExtension, null);
        return path.getFullPath();
    }

    /**
     * 下载文件
     *
     * @param fileUrl 文件URL
     * @return 文件字节
     */
    public byte[] downloadFile(String fileUrl) {
        String group = fileUrl.substring(0, fileUrl.indexOf("/"));
        String path = fileUrl.substring(fileUrl.indexOf("/") + 1);
        DownloadByteArray downloadByteArray = new DownloadByteArray();
        log.info("fdfs下载文件的group:{}",group);
        log.info("fdfs下载文件的path:{}",path);
        return fastFileStorageClient.downloadFile(group, path, downloadByteArray);
    }

    public void deleteFile(String fileUrl) {
        if (StrUtil.isBlank(fileUrl)) {
            return;
        }
        try {
            StorePath storePath = StorePath.parseFromUrl(fileUrl);
            fastFileStorageClient.deleteFile(storePath.getGroup(), storePath.getPath());
        } catch (Exception e) {
            log.error("", e);
        }
    }
}

测试使用效果

package com.example.demo;

import cn.hutool.core.io.IoUtil;
import cn.hutool.core.io.file.FileNameUtil;
import com.example.demo.util.FdfsTools;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.multipart.MultipartFile;
import org.springframework.web.multipart.MultipartHttpServletRequest;

import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletResponse;
import java.io.ByteArrayInputStream;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

@Slf4j
@RestController
public class FdfsTestController {


    @Autowired
    private FdfsTools fdfsTools;

    /**
     * 下载fastdfs里的文件
     * http://localhost:8621/mybatis/download?fullPath=group1/M00/64/AF/CgEF1GSSpkGACiJlAAvqH-Poukk892.jpg
     * @param fullPath
     * @param response
     * @throws IOException
     */
    @GetMapping("/download")
    public void download(@RequestParam String fullPath, HttpServletResponse response) throws IOException {
        byte[] bytes = fdfsTools.downloadFile(fullPath);
        String name = FileNameUtil.getName(fullPath);
        System.out.println(name);
        response.setHeader("Content-Disposition",
                "attachment;filename=" + new String(name.getBytes(), StandardCharsets.ISO_8859_1));
        ByteArrayInputStream inputStream = new ByteArrayInputStream(bytes);
        ServletOutputStream ops = response.getOutputStream();
        IoUtil.copy(inputStream, ops);
        IoUtil.closeIfPosible(inputStream);
        IoUtil.closeIfPosible(ops);
    }


    /**
     * 前端单文件上传 form-data形式参数， 传1个 MultipartFile类型，参数名file
     * @param multipartFile
     * @return
     * @throws IOException
     */
    @PostMapping("/uploadOne")
    public String upload(@RequestPart("file") MultipartFile multipartFile) throws IOException {
        System.out.println(multipartFile.getOriginalFilename());
        String s = fdfsTools.uploadFile(multipartFile);
        return "fullPath=" + s;
    }

    /**
     * 前端多文件上传  form-data形式参数 传多个MultipartFile类型,参数名随意
     * @param request
     * @return
     * @throws IOException
     */
    @PostMapping("/uploadBatch")
    public List<String> uploadBatch(MultipartHttpServletRequest request) throws IOException {
        List<String> result = new ArrayList<>();
        Map<String, MultipartFile> fileMap = request.getFileMap();
        for (MultipartFile multipartFile : fileMap.values()) {
            if (!multipartFile.isEmpty()){
                System.err.println(multipartFile.getOriginalFilename());
                String s = fdfsTools.uploadFile(multipartFile);
                result.add("fullPath=" +s);
            }
        }
        return result;
    }


    /**
     * 将一段文本文件写到fastdfs的服务器上
     * @param content
     * @return fullPath=group1/M00/64/AF/CgEF1GSSqdGAHrO4AAAAD0mMR3c910.txt
     */
    @PostMapping("/saveTxtToFdfs")
    public String saveTxtToFdfs(@RequestParam String content){
        String s = fdfsTools.uploadFile(content, "txt");
        return "fullPath=" +s;
    }

    /**
     * 删除FastDfs上的文件
     * http://localhost:8621/mybatis/delFile?fullPath=group1/M00/64/AF/CgEF1GSSpnKAY3CiAAvea9v85c0615.jpg
     * @param fullPath
     * @return
     */
    @DeleteMapping("/delFile")
    public String deleteFastDfsFile(@RequestParam String fullPath){
        fdfsTools.deleteFile(fullPath);
        return "ok!";
    }

}

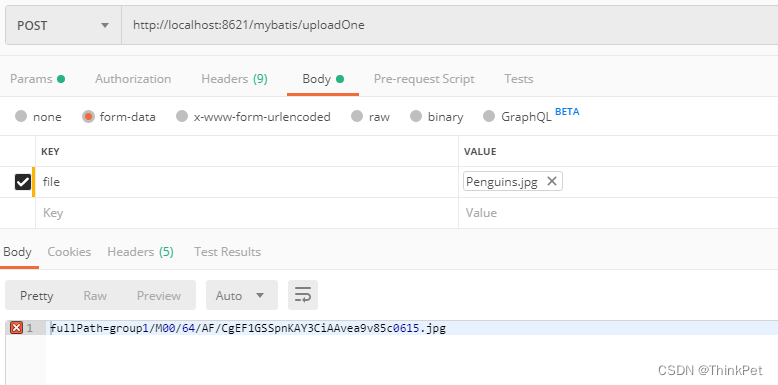

测试上传单个文件

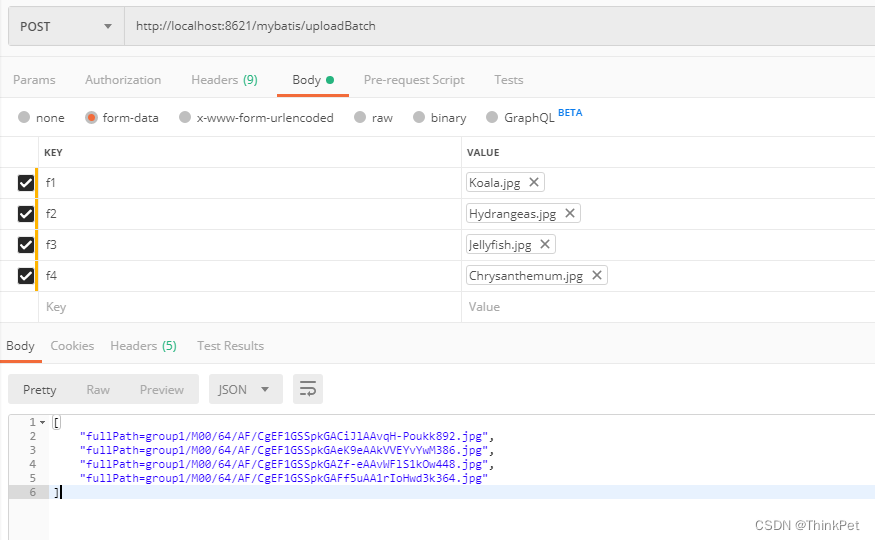

测试上传多个文件

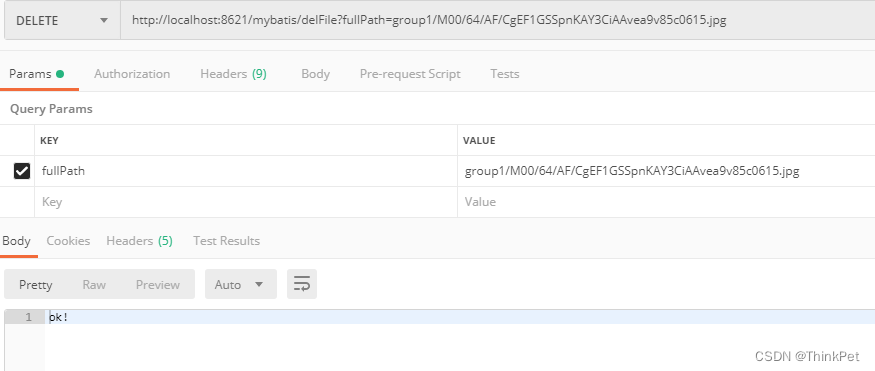

测试删除FastDFS里已上传的文件
