【HBase】HBase项目:简易微博案例

此文章介绍了Java连接HBase数据库实现的微博案例,以及程序的简单测试。

0 前期准备

Hadoop安装:https://blog.csdn.net/Tiezhu_Wang/article/details/113860404
HBase安装:https://blog.csdn.net/Tiezhu_Wang/article/details/114574899

1 HBase数据库表设计

需求:

  • 发布微博内容
    • 在微博内容表中 添加一条数据(发布者)
    • 在微博内容接收邮件箱表对所有粉丝用户添加数据(订阅者)
  • 添加关注用户
    • 在微博用户关系表中 添加新的好友关注(attends)
    • 从被关注用户角度来说, 新增粉丝用户(fans)
    • 微博邮件箱表添加关注用户发布的微博内容
  • 移除或者取消关注用户
    • 在微博用户关系表中 移除新的好友关注(attends)
    • 从被关注用户角度来说, 删除粉丝用户(fans)
    • 微博邮件箱表删除关注用户发布的微博内容
  • 获取关注用户发布的微博内容
    • 从微博内容邮件表中获取该用户其关注用户的微博内容的rowkey
    • 根据上面获取到的微博内容的rowkey 获取微博内容
  • 微博展示的内容信息:
    • message: 发布者ID , 时间戳 , content

1.1 user表

ROWKEY COLUMN+CELL
info
useridpasswordnickname

1.2 blog表

ROWKEY COLUMN+CELL
info
blogiduseridcontent

1.3 email表

ROWKEY COLUMN+CELL
info
emailidattendiduseridblogrowKey

1.4 relation表

ROWKEY COLUMN+CELL
info
relationiduseridattendidfanid

2 项目依赖

新建Maven项目,添加如下依赖:

        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
        </dependency>

        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-client</artifactId>
            <version>2.6.5</version>
        </dependency>

        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-common</artifactId>
            <version>2.6.5</version>
        </dependency>

        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-hdfs</artifactId>
            <version>2.6.5</version>
        </dependency>

        <dependency>
            <groupId>org.apache.hbase</groupId>
            <artifactId>hbase-it</artifactId>
            <version>1.2.0</version>
        </dependency>

3 实体类

User类的属性:userid、password、nickname
Blog类的属性:userid、date、content

4 基本工具类BaseMapper

考虑HBase数据库的命名空间、初始化、终止等,进行BaseMapper类的编写,实现的基本操作和代码如下:

package dao;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.hbase.*;
import org.apache.hadoop.hbase.client.*;
import org.apache.hadoop.hbase.util.Bytes;
import java.io.IOException;
import java.util.*;

public class BaseMapper {
    public static Configuration configuration;
    public static Connection connection;
    public static Admin admin;

	// 1. 初始化
    public void init(){
        configuration  = HBaseConfiguration.create();
        configuration.set("hbase.rootdir","hdfs://localhost:9000/hbase");
        try{
            connection = ConnectionFactory.createConnection(configuration);
            admin = connection.getAdmin();
        }catch (IOException e){
            e.printStackTrace();
        }
    }

	// 2. 关闭
    public void close(){
        try{
            if(admin != null){
                admin.close();
            }
            if(null != connection){
                connection.close();
            }
        }catch (IOException e){
            e.printStackTrace();
        }
    }

	// 3. 创建表
    public void createTable(String myTableName,String[] colFamily) throws IOException {
        TableName tableName = TableName.valueOf(myTableName);
        if(admin.tableExists(tableName)){
            System.out.println("table exists!");
        }else {
            TableDescriptorBuilder tableDescriptor = TableDescriptorBuilder.newBuilder(tableName);
            for(String str:colFamily){
                ColumnFamilyDescriptor family =
                        ColumnFamilyDescriptorBuilder.newBuilder(Bytes.toBytes(str)).build();
                tableDescriptor.setColumnFamily(family);
            }
            admin.createTable(tableDescriptor.build());
        }
    }

	// 4. 插入数据
    public void insertData(String tableName,String rowKey,String colFamily,String col,String val) throws IOException, InterruptedException {
        Table table = connection.getTable(TableName.valueOf(tableName));
        Put put = new Put(rowKey.getBytes());
        put.addColumn(colFamily.getBytes(),col.getBytes(), val.getBytes());
        table.put(put);
        table.close();
        Thread.sleep(1);
    }

	// 5. 删除数据
    public void deleteData(String tableName, String rowKey) throws IOException {
        Table table = connection.getTable(TableName.valueOf(tableName));
        Delete delete = new Delete(Bytes.toBytes(rowKey));
        table.delete(delete);
    }

	// 6. 获取某个cell内的数据
    public String getData(String tableName,String rowKey,String colFamily, String col)throws Exception{
        Table table = connection.getTable(TableName.valueOf(tableName));
        Get get = new Get(rowKey.getBytes());
        get.addColumn(colFamily.getBytes(),col.getBytes());
        Result result = table.get(get);
        table.close();
        return new String(result.getValue(colFamily.getBytes(),col==null?null:col.getBytes()));
    }

	// 7. 获取整个表中所有数据
	// 注:由于此项目数据量较少,就使用此方法获取所需的数据
    public List<Map<String, String>> getAllData(String tableName) throws Exception {
        Table table = connection.getTable(TableName.valueOf(tableName));
        List<Map<String, String>> data = new ArrayList<Map<String, String>>();
        ResultScanner results = table.getScanner(new Scan());
        for(Result result : results){
            Map<String, String> singleData = new HashMap<String, String>();
            String rowKey = "";
            String date = "";
            for(Cell cell : result.rawCells()){
                if(rowKey.equals("")){
                    rowKey = Bytes.toString(cell.getRowArray(),cell.getRowOffset(),cell.getRowLength());
                    date = new Date(cell.getTimestamp()) + "";
                }
                String colName = Bytes.toString(cell.getQualifierArray(),cell.getQualifierOffset(),cell.getQualifierLength());
                String value = Bytes.toString(cell.getValueArray(),cell.getValueOffset(),cell.getValueLength());
                singleData.put(colName,value);
            }
            singleData.put("rowKey",rowKey);
            singleData.put("date",date);
            data.add(singleData);
        }

        return data;
    }

	// 8. 获取某行数据
    public Map<String, String> getRow(String tableName, String rowKey) throws Exception {
        Table table = connection.getTable(TableName.valueOf(tableName));
        Map<String, String> data = new HashMap<String,String>();
        Get get = new Get(rowKey.getBytes());
        if(!get.isCheckExistenceOnly()){
            Result result = table.get(get);
            String date = "";
            for(Cell cell : result.rawCells()){
                if(date.equals("")){
                    date = new Date(cell.getTimestamp())+"";
                }
                String colName = Bytes.toString(cell.getQualifierArray(),cell.getQualifierOffset(),cell.getQualifierLength());
                String value = Bytes.toString(cell.getValueArray(),cell.getValueOffset(),cell.getValueLength());
                data.put(colName,value);
            }
            data.put("rowKey",rowKey);
            data.put("date",date);
        }

        return data;
    }

}

5 基本操作类BlogMapper

此处的基本操作类包含需求中详细步骤的实现方法,如添加微博、添加邮件等,其中实体类Blog和User的定义略去,这个BlogMapper类继承自上述BaseMapper类。实现的方法和代码如下:

package dao;

import pojo.Blog;
import pojo.User;

import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

public class BlogMapper extends BaseMapper{

    public BlogMapper(){
        this.init();
    }

    /**
     * @param tableName
     * @param colFamily
     * @throws IOException
     */
    public void createTable(String tableName,String colFamily) throws IOException {
        this.createTable(tableName,new String[]{colFamily});
    }

    /**
     * @param userid
     * @param password
     * @param nickname
     * @throws IOException
     */
    public void addUser(String userid,String password,String nickname) throws IOException, InterruptedException {
        this.insertData("user",userid,"info","password",password);
        this.insertData("user",userid,"info","nickname",nickname);
    }

    /**
     * @param rowKey mighe be the time
     * @param userid is the userid of the one posting the blog
     * @param content is what the blog is
     * @throws IOException
     */
    public void addBlog(String rowKey,String userid,String content) throws IOException, InterruptedException {
        this.insertData("blog",rowKey,"info","userid",userid);
        this.insertData("blog",rowKey,"info","content",content);
    }

    /**
     * @param rowKey might be the time
     * @param attendid is whom the user attends
     * @param userid is the attender's fan
     * @param blogrowKey belongs to the attender
     * @throws IOException
     *
     * Thinking I have a fan named A.
     * If I post a blog, then my userid is the attendid and A's userid is the userid.
     */
    public void addEmail(String rowKey,String attendid, String userid, String blogrowKey) throws IOException, InterruptedException {
        this.insertData("email",rowKey,"info","attendid",attendid);
        this.insertData("email",rowKey,"info","userid",userid);
        this.insertData("email",rowKey,"info","blogrowKey",blogrowKey);
    }


    /**
     * @param rowKey
     * @param userid
     * @param attendid
     * @param fanid
     * @throws IOException
     *
     * The attendid and the fanid must be the same if two users attend eacher other.
     * Otherwise, one of them is none or both are none.
     */
    public void addRelation(String rowKey,String userid,String attendid,String fanid) throws IOException, InterruptedException {
        this.insertData("relation",rowKey,"info","userid",userid);
        this.insertData("relation",rowKey,"info","attendid",attendid);
        this.insertData("relation",rowKey,"info","fanid",fanid);
    }

    /**
     * @param userid
     * @param attendid is the userid of whom the user attends
     * @throws IOException
     */
    public void removeAttend(String userid,String attendid) throws Exception {
        List<Map<String, String>> relations = this.getAllData("relation");
        String rowKey = "";
        for(Map<String, String> relation : relations){
            if(relation.get("userid").equals(userid) && relation.get("attendid").equals(attendid)){
                rowKey = relation.get("rowKey");
                // set attendid none
                this.insertData("relation",rowKey,"info","attendid","");
                if(relation.get("fanid").equals("")){
                    this.deleteData("relation",rowKey);
                }
                break;
            }
        }
    }

    /**
     * @param userid
     * @param fanid is the userid of whom the user fans
     * @throws IOException
     */
    public void removeFan(String userid,String fanid) throws Exception {
        List<Map<String, String>> relations = this.getAllData("relation");
        String rowKey = "";
        for(Map<String, String> relation : relations){
            if(relation.get("userid").equals(userid) && relation.get("fanid").equals(fanid)){
                rowKey = relation.get("rowKey");
                // set fanid none
                this.insertData("relation",rowKey,"info","fanid","");
                if(relation.get("attendid").equals("")){
                    this.deleteData("relation",rowKey);
                }
                break;
            }
        }
    }

    /**
     * @param attendid is whom the user attends
     * @param userid
     * @throws IOException
     */
    public void removeEmails(String attendid,String userid) throws Exception {
        List<Map<String, String>> emails = this.getAllData("email");
        String rowKey = "";
        for(Map<String, String> email : emails){
            if(email.get("attendid").equals(attendid) && email.get("userid").equals(userid)){
                rowKey = email.get("rowKey");
                this.deleteData("email",rowKey);
            }
        }
    }

    /**
     * @param attendid is whom the user attends
     * @param userid
     * @return
     * @throws IOException
     */
    public List<String> getBlogRowKeys(String attendid, String userid) throws Exception {
        List<String> data = new ArrayList<String>();
        List<Map<String,String>> emails = this.getAllData("email");
        for(Map<String,String> email : emails){
            if(email.get("attendid").equals(attendid) && email.get("userid").equals(userid)){
                data.add(email.get("rowKey"));
            }
        }
        return data;
    }

    /**
     * @param userid
     * @return
     * @throws Exception
     */
    public List<String> getBlogRowKeysByUserid(String userid) throws Exception {
        List<String> data = new ArrayList<String>();
        List<Map<String,String>> blogs = this.getAllData("blog");
        for(Map<String,String> blog : blogs){
            if(blog.get("userid").equals(userid)){
                data.add(blog.get("rowKey"));
            }
        }
        return data;
    }

    /**
     * @param rowKey
     * @return
     * @throws IOException
     *
     * Search the blog by the rowKey
     */
    public Blog getBlog(String rowKey) throws Exception {
        Map<String, String> data = this.getRow("blog",rowKey);
        String userid = data.get("userid");
        String date = data.get("date");
        String content = data.get("content");
        Blog blog = new Blog(userid,date,content);
        return blog;
    }

    /**
     * @param userid
     * @return
     * @throws Exception
     */
    public List<String> getAllFans(String userid) throws Exception {
        List<Map<String, String>> relations = this.getAllData("relation");
        List<String> fans = new ArrayList<String>();
        for(Map<String, String> relation : relations){
            if(relation.get("userid").equals(userid)){
                fans.add(relation.get("fanid"));
            }
        }
        return fans;
    }

    /**
     * @param userid
     * @return
     * @throws Exception
     */
    public List<String> getAllAttends(String userid) throws Exception {
        List<Map<String, String>> relations = this.getAllData("relation");
        List<String> attends = new ArrayList<String>();
        for(Map<String, String> relation : relations){
            if(relation.get("userid").equals(userid)){
                attends.add(relation.get("attendid"));
            }
        }
        return attends;
    }

    /**
     * @param userid
     * @return
     * @throws Exception
     */
    public User getUserById(String userid) throws Exception {
        User user = new User();
        String password = "";
        if(null!=(password=this.getData("user",userid,"info","password"))){
            user.setUserid(userid);
            user.setPassword(password);
            user.setNickname(this.getData("user",userid,"info","nickname"));
        }
        return user;
    }

}

6 具体操作类BlogService

这里的BlogService类实现的是具体的操作,都是些业务逻辑,分别为发布微博、添加关注、取消关注和获取关注用户的微博,具体代码如下:

package service;

import dao.BlogMapper;
import pojo.Blog;
import pojo.User;

import java.util.ArrayList;
import java.util.Date;
import java.util.List;

public class BlogService {

    BlogMapper blogMapper;

    public BlogService() {
        this.blogMapper = new BlogMapper();
    }

    public void postBlog(String userid, String content){
        try{
            String blogRowKey = new Date().getTime()+"";
            // Add blog to blog list
            blogMapper.addBlog(blogRowKey,userid,content);
            List<String> fans = blogMapper.getAllFans(userid);
            for(String fan : fans){
                // Add email to email list
                blogMapper.addEmail(new Date().getTime()+"",userid,fan,blogRowKey);
            }
        }catch (Exception e){
            e.printStackTrace();
        }
    }

    public void addAttend(String userid, String attendid) {
        try{
            // If the attender's fan doesn't contain the user
            if(!blogMapper.getAllFans(attendid).contains(userid)){
                // Add the attend to the user
                blogMapper.addRelation(new Date().getTime()+"",userid,attendid,"");
                // Add the fan to the attender
                blogMapper.addRelation(new Date().getTime()+"",attendid,"",userid);
                // If they attend eacher other
                if(blogMapper.getAllFans(userid).contains(attendid) && blogMapper.getAllFans(attendid).contains(userid)){
                    // Remover four relations
                    blogMapper.removeAttend(userid,attendid);
                    blogMapper.removeAttend(attendid,userid);
                    blogMapper.removeFan(userid,attendid);
                    blogMapper.removeFan(attendid,userid);
                    // Add attend and fan to each other
                    blogMapper.addRelation(new Date().getTime()+"",userid,attendid,attendid);
                    blogMapper.addRelation(new Date().getTime()+"",attendid,userid,userid);
                }
            }
            // Get all blogs by the attendid
            List<String> blogRowKeys = blogMapper.getBlogRowKeysByUserid(attendid);
            for(String blogRowKey : blogRowKeys){
                // Add email
                blogMapper.addEmail(new Date().getTime()+"",attendid,userid,blogRowKey);
            }
        }catch (Exception e){
            e.printStackTrace();
        }
    }

    public void removeAttend(String userid, String attendid) {
        try{
            blogMapper.removeAttend(userid, attendid);
            blogMapper.removeFan(attendid,userid);
            blogMapper.removeEmails(attendid,userid);
        }catch (Exception e){
            e.printStackTrace();
        }
    }

    public List<Blog> getBlogsByFanid(String userid){
        List<Blog> blogs = new ArrayList<Blog>();
        try{
            // Get all attenders of the user
            List<String> attends = blogMapper.getAllAttends(userid);
            for(String attendid : attends){
                // Get all blogRowKeys of the attender
                List<String> attendBlogsRowKey = blogMapper.getBlogRowKeysByUserid(attendid);
                for(String blogRowKey : attendBlogsRowKey){
                    // Add blogs of the attender to the list
                    blogs.add(blogMapper.getBlog(blogRowKey));
                }
            }
        }catch (Exception e){
            e.printStackTrace();
        }
        return blogs;
    }

    public User getUserById(String userid){
        User user = null;
        try{
            user = blogMapper.getUserById(userid);
        }catch (Exception e){
            e.printStackTrace();
        }
        return user;
    }
}

7 测试类TestAll

import dao.BlogMapper;
import org.junit.After;
import org.junit.Before;
import org.junit.Test;
import pojo.Blog;
import service.BlogService;

import java.io.IOException;
import java.util.List;

public class TestAll {

    BlogService bs;
    BlogMapper bm;

    @Before
    public void init(){
        this.bs = new BlogService();
    }

    @Test
    public void testCreateTable() throws IOException {
        this.bm = new BlogMapper();
        bm.createTable("user","info");
        bm.createTable("blog","info");
        bm.createTable("email","info");
        bm.createTable("relation","info");
    }

    @Test
    public void testPostBlog(){
        bs.postBlog("100001","What a wonderful day!");
        bs.postBlog("100001","I love Shenyang!");
        bs.postBlog("100001","My math is really awful...");
        bs.postBlog("100001","There is an exam tommorrow!");
        bs.postBlog("100003","How wonderful!");
        bs.postBlog("100003","I hate Shenyang!");
        bs.postBlog("100004","My English is really awful...");
        bs.postBlog("100005","There is an exam today!");
    }

    @Test
    public void testAddAttend(){
        bs.addAttend("100001","100002");
        bs.addAttend("100002","100001");
        bs.addAttend("100002","100003");
        bs.addAttend("100002","100004");
        bs.addAttend("100002","100005");
    }

    @Test
    public void testRemoveAttend(){
        bs.removeAttend("100001","100002");
    }

    @Test
    public void testGetBlogByFanid(){
        List<Blog> list = bs.getBlogsByFanid("100002");
        for(Blog blog : list){
            System.out.println("User. : "+ bs.getUserById(blog.getUserid()).getNickname());
            System.out.println("Date. : "+blog.getDate());
            System.out.println("Cont. : "+blog.getContent()+"\n---");
        }
    }

}

8 测试运行

首先开启HDFS和HBase:

start-dfs.sh
start-hbase.sh

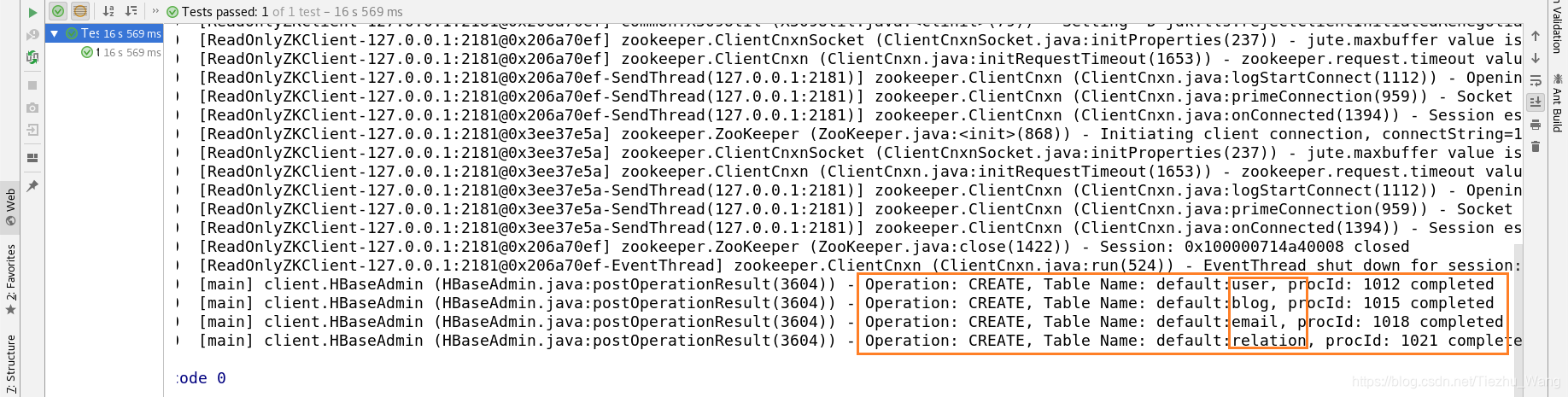

运行testCreateTable方法,先建四个表。运行后控制台会有很多输出,最后会显示建表完成:
输出

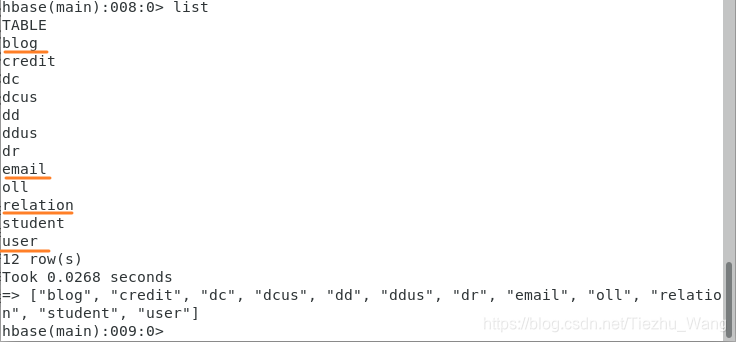

进入hbase的shell,使用list看一下:
list
四个空表已经创建完毕,下面注册几个新User:

put 'user','100001','info:nickname','Jack'
put 'user','100002','info:nickname','Mary'
put 'user','100003','info:nickname','Lucy'
put 'user','100004','info:nickname','John'
put 'user','100005','info:nickname','Tom'
put 'user','100001','info:password','123456'
put 'user','100002','info:password','123456'
put 'user','100003','info:password','123456'
put 'user','100004','info:password','123456'
put 'user','100005','info:password','123456'

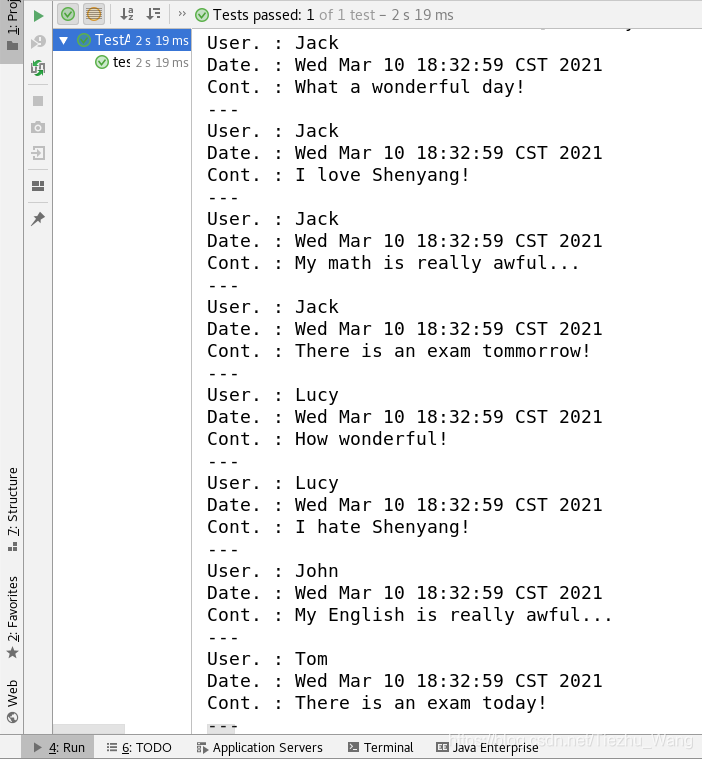

按照顺序进行其余测试,输出和数据库会有更新。这里列出按顺序最后一个方法 testGetBlogByFanid 的输出:
输出
测试完毕。

  • 4
    点赞
  • 20
    收藏
    觉得还不错? 一键收藏
  • 打赏
    打赏
  • 0
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

搬金砖的小白

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付:¥1
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
