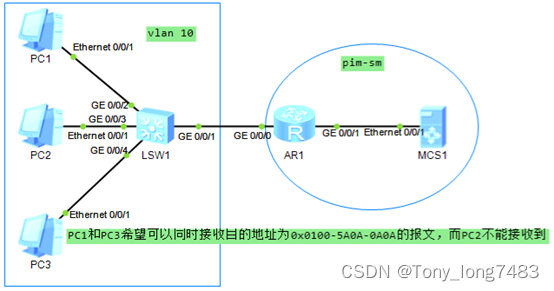

华为设备静态组播MAC地址配置

创建VLAN，配置接口加入VLAN
[LSW1]vlan batch 10
[LSW1-GigabitEthernet0/0/1]port link-type hybrid
[LSW1-GigabitEthernet0/0/1]port hybrid untagged vlan 10
[LSW1-GigabitEthernet0/0/1]port hybrid pvid vlan 10
[LSW1-GigabitEthernet0/0/2]port link-type hybrid
[LSW1-GigabitEthernet0/0/2]port hybrid pvid vlan 10
[LSW1-GigabitEthernet0/0/2]port hybrid untagged vlan 10
[LSW1-GigabitEthernet0/0/3]port link-type hybrid
[LSW1-GigabitEthernet0/0/3]port hybrid untagged vlan 10
[LSW1-GigabitEthernet0/0/3]port hybrid pvid vlan 10
[LSW1-GigabitEthernet0/0/4]port link-type hybrid
[LSW1-GigabitEthernet0/0/4]port hybrid pvid vlan 10
[LSW1-GigabitEthernet0/0/4]port hybrid untagged vlan 10
配置静态组播MAC地址
[LSW1-GigabitEthernet0/0/2]mac-address multicast 0100-5A0A-0A0A vlan 10
[LSW1-GigabitEthernet0/0/4]mac-address multicast 0100-5A0A-0A0A vlan 10

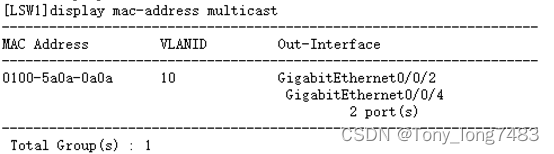

验证配置
