基于Redis消息队列-实现短信服务化
1.Redis实现消息队列原理
常用的消息队列有RabbitMQ,ActiveMQ,个人觉得这种消息队列太大太重,本文介绍下基于Redis的轻量级消息队列服务。
一般来说,消息队列有两种模式,一种是发布者订阅模式,另外一种是生产者和消费者模式。Redis的消息队列,也是基于这2种原理的实现。
发布者和订阅者模式:发布者发送消息到队列,每个订阅者都能收到一样的消息。
生产者和消费者模式:生产者将消息放入队列,多个消费者共同监听,谁先抢到资源,谁就从队列中取走消息去处理。注意,每个消息只能最多被一个消费者接收。
2.Redis消息队列使用场景
在我们的项目中,使用消息队列来实现短信的服务化,任何需要发送短信的模块,都可以直接调用短信服务来完成短信的发送。比如用户系统登录注册短信,订单系统的下单成功的短信等。
3.SpringMVC中实现Redis消息队列
因为我们短信只需要发送一次,所以我们使用的是消息队列的生产者和消费者模式。
3.1引入Maven依赖
引入Redis相应的maven依赖,这里需要spring-data-redis和jedis
//pom.xml
<dependency>
<groupId>org.springframework.data</groupId>
<artifactId>spring-data-redis</artifactId>
<version>1.6.0.RELEASE</version>
</dependency>
<dependency>
<groupId>redis.clients</groupId>
<artifactId>jedis</artifactId>
<version>2.5.1</version>
</dependency>
3.2配置redis生成者消费者模式
//applicationContext-redis.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc"
xmlns:tx="http://www.springframework.org/schema/tx" xmlns:context="http://www.springframework.org/schema/context"
xmlns:aop="http://www.springframework.org/schema/aop" xmlns:cache="http://www.springframework.org/schema/cache"
xmlns:redis="http://www.springframework.org/schema/redis"
xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-34.0.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
http://www.springframework.org/schema/cache http://www.springframework.org/schema/cache/spring-cache-4.0.xsd
http://www.springframework.org/schema/redis http://www.springframework.org/schema/redis/spring-redis-1.0.xsd">
<description>spring-data-redis配置</description>
<bean id="redisConnectionFactory"
class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory">
<property name="hostName" value="${redis.host}"></property>
<property name="port" value="${redis.port}"></property>
<property name="usePool" value="true"></property>
</bean>
<bean id="redisTemplate" class="org.springframework.data.redis.core.RedisTemplate">
<property name="connectionFactory" ref="redisConnectionFactory"></property>
</bean>
<bean id="jdkSerializer"
class="org.springframework.data.redis.serializer.JdkSerializationRedisSerializer" />
<bean id="smsMessageListener"
class="org.springframework.data.redis.listener.adapter.MessageListenerAdapter">
<property name="delegate" ref="smsMessageDelegateListener" />
<property name="serializer" ref="jdkSerializer" />
</bean>
<bean id="sendMessage" class="com.djt.common.cache.redis.queue.SendMessage">
<property name="redisTemplate" ref="redisTemplate"/>
</bean>
<redis:listener-container>
<redis:listener ref="smsMessageListener" method="handleMessage"
serializer="jdkSerializer" topic="sms_queue_web_online" />
</redis:listener-container>
<bean id="jedisPoolConfig" class="redis.clients.jedis.JedisPoolConfig">
<property name="maxIdle" value="300" />
<property name="maxTotal" value="60000" />
<property name="testOnBorrow" value="true" />
</bean>
<bean id="jedisPool" class="redis.clients.jedis.JedisPool">
<constructor-arg index="0" ref="jedisPoolConfig" />
<constructor-arg index="1" value="${redis.host}" />
<constructor-arg index="2" value="${redis.port}" type="int" />
</bean>
</beans>
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
主要的配置说明:
1.序列化:一般我们向Redis发送一个消息定义的Java对象,这个对象需要序列化。这里使用JdkSerializationRedisSerializer:
<bean id="jdkSerializer" class="org.springframework.data.redis.serializer.JdkSerializationRedisSerializer" />
2.发送者:
<bean id="sendMessage" class="com.djt.common.cache.redis.queue.SendMessage">
<property name="redisTemplate" ref="redisTemplate"/>
</bean>
3.监听者:
<bean id="smsMessageListener"
class="org.springframework.data.redis.listener.adapter.MessageListenerAdapter">
<property name="delegate" ref="smsMessageDelegateListener" />
<property name="serializer" ref="jdkSerializer" />
</bean>
<redis:listener-container>
<redis:listener ref="smsMessageListener" method="handleMessage"
serializer="jdkSerializer" topic="sms_queue_web_online" />
</redis:listener-container>
smsMessageListener:消息监听器
redis:listener-container:定义消息监听,method:监听消息执行的方法,serializer:序列化,topic:监听主题(可以理解为队列名称)
3.3代码实现
1.定义短信消息对象SmsMessageVo
public class SmsMessageVo implements Serializable {
private Integer smsId;
private String mobile;
private Byte type;
private Date createDate;
private Date processTime;
private Byte status;
private String content;
...
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
2.定义消息队列发送对象SendMessage
public class SendMessage {
private RedisTemplate<String, Object> redisTemplate;
public RedisTemplate<String, Object> getRedisTemplate() {
return redisTemplate;
}
public void setRedisTemplate(RedisTemplate<String, Object> redisTemplate) {
this.redisTemplate = redisTemplate;
}
public void sendMessage(String channel, Serializable message) {
redisTemplate.convertAndSend(channel, message);
}
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
3.发送消息
String smsContent = templateToContent(template.getContent(),
regMsgCode)
SmsMessageVo smsMessageVo = new SmsMessageVo()
smsMessageVo.setMobile(mobile)
smsMessageVo.setType((byte) SmsType.VERIFICATION.getType())
smsMessageVo.setChannelId(1)
smsMessageVo.setContent(smsContent)
smsMessageVo.setCreateDate(new Date())
smsMessageVo.setStatus((byte) SmsSendStatus.TO_SEND.getType())
smsMessageVo.setTemplateId(1)
//先把待发送的短信存入数据库
SmsQueue smsQueue = new SmsQueue()
BeanUtils.copyProperties(smsQueue, smsMessageVo)
smsQueueService.addSmsQueue(smsQueue)
//异步发送短信到redis队列
sendMessage.sendMessage(Constants.REDIS_QUEUE_SMS_WEB, smsMessageVo)
//Constants.REDIS_QUEUE_SMS_WEB = "sms_queue_web_online",和applicationContext-redis中topic配置一样
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
4.监听消息
@Component("smsMessageDelegateListener")
public class SmsMessageDelegateListener {
@Autowired
private SmsQueueService smsQueueService;
public void handleMessage(Serializable message){
if(message instanceof SmsMessageVo){
SmsMessageVo messageVo = (SmsMessageVo) message;
SmsSender smsSender = SmsSenderFactory.buildEMaySender();
smsSender.setMobile(messageVo.getMobile());
smsSender.setContent(messageVo.getContent());
boolean sendSucc = false;
if(messageVo.getType() == (byte)SmsType.VERIFICATION.getType()){
sendSucc = smsSender.send();
}
if(!sendSucc){
return;
}
final Integer smsId = messageVo.getSmsId();
Executor executor = Executors.newSingleThreadExecutor();
executor.execute(new Runnable() {
public void run() {
SmsQueue smsQueue = new SmsQueue();
smsQueue.setSmsId(smsId);
smsQueue.setStatus((byte)SmsSendStatus.SEND.getType());
smsQueue.setProcessTime(new Date());
smsQueueService.updateSmsQueue(smsQueue);
}
});
}
}
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
4.总结

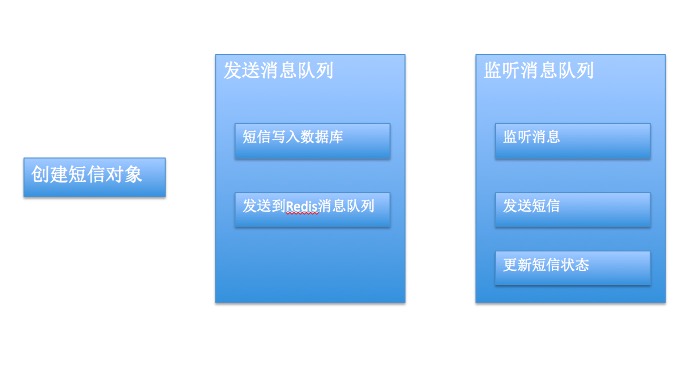

下面使用一张流程图,来总结Redis消息队列和短信服务。
