！！！OpenAPI3规范版本（knife4j 4.x，spring boot3.x）实现可参考：knife4j 4.1.0（OpenAPI3）实现spring security或shiro权限注解内容显示

在前后端交互时，某些接口需要指定权限才能访问，虽然可以在@ApiOperation注解的notes参数上自己加上，但是每个接口都要手动写，有点儿。。。

基于此需求，我们可以使用swagger提供的OperationBuilderPlugin，通过扫描权限注解自动扩展接口的描述信息

项目使用到哪个权限框架，就用哪个配置就行，能直接使用

文档参数分组可参考之前的组件封装：swagger2文档基于knife4j 2.0.5二次封装工具
组件提供了诸如yaml配置分组等一些功能，可自行查看更新日志使用

1 Spring Security 注解展示

将Spring Security的PostAuthorize、PostFilter、PreAuthorize、PreFilter的注解信息追加到接口描述中.

import com.google.common.base.Optional;
import org.springframework.core.annotation.Order;
import org.springframework.security.access.prepost.PostAuthorize;
import org.springframework.security.access.prepost.PostFilter;
import org.springframework.security.access.prepost.PreAuthorize;
import org.springframework.security.access.prepost.PreFilter;
import org.springframework.stereotype.Component;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spi.service.OperationBuilderPlugin;
import springfox.documentation.spi.service.contexts.OperationContext;
import springfox.documentation.swagger.common.SwaggerPluginSupport;

import java.lang.annotation.Annotation;
import java.util.ArrayList;
import java.util.List;
import java.util.function.BiFunction;

@Component
@Order(SwaggerPluginSupport.SWAGGER_PLUGIN_ORDER + 1001)
public class SecurityOperationBuilderPlugin implements OperationBuilderPlugin {

    @Override
    public void apply(OperationContext context) {
        String notes = context.operationBuilder().build().getNotes();
        StringBuilder notesBuilder = new StringBuilder(notes == null ? "" : notes);
        getClassAnnotationNote(notesBuilder, context);
        getMethodAnnotationNote(notesBuilder, context);
        context.operationBuilder().notes(notesBuilder.toString());
    }

    @Override
    public boolean supports(DocumentationType delimiter) {
        return true;
    }

    private void getClassAnnotationNote(StringBuilder notesBuffer, OperationContext context) {
        List<String> values = getAnnotationValues(context, OperationContext::findControllerAnnotation);
        if (!values.isEmpty()) {
            notesBuffer.append("<p />").append("class: ").append(String.join("，", values));
        }
    }

    private void getMethodAnnotationNote(StringBuilder notesBuffer, OperationContext context) {
        List<String> values = getAnnotationValues(context, OperationContext::findAnnotation);
        if (!values.isEmpty()) {
            notesBuffer.append("<p />").append("method: ").append(String.join("，", values));
        }
    }

    private <T, R> List<String> getAnnotationValues(T target, BiFunction<T, Class<? extends Annotation>, Optional<R>> findAnnotation) {
        List<String> values = new ArrayList<>();
        Optional<R> postAuthorize = findAnnotation.apply(target, PostAuthorize.class);
        if (postAuthorize.isPresent()) {
            values.add(((PostAuthorize) postAuthorize.get()).value());
        }
        Optional<R> postFilter = findAnnotation.apply(target, PostFilter.class);
        if (postFilter.isPresent()) {
            values.add(((PostFilter) postFilter.get()).value());
        }
        Optional<R> preAuthorize = findAnnotation.apply(target, PreAuthorize.class);
        if (preAuthorize.isPresent()) {
            values.add(((PreAuthorize) preAuthorize.get()).value());
        }
        Optional<R> preFilter = findAnnotation.apply(target, PreFilter.class);
        if (preFilter.isPresent()) {
            values.add(((PreFilter) preFilter.get()).value());
        }
        return values;
    }
}

2 Apache Shiro 注解展示

将Apache Shiro的RequiresRoles、RequiresPermissions的注解信息追加到接口描述中.

import com.google.common.base.Optional;
import org.apache.shiro.authz.annotation.Logical;
import org.apache.shiro.authz.annotation.RequiresPermissions;
import org.apache.shiro.authz.annotation.RequiresRoles;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spi.service.OperationBuilderPlugin;
import springfox.documentation.spi.service.contexts.OperationContext;
import springfox.documentation.swagger.common.SwaggerPluginSupport;

import java.lang.annotation.Annotation;
import java.util.ArrayList;
import java.util.List;
import java.util.function.BiFunction;

@Component
@Order(SwaggerPluginSupport.SWAGGER_PLUGIN_ORDER + 1001)
public class ShiroOperationBuilderPlugin implements OperationBuilderPlugin {

    private static final String HTML_P = "<p />";
    private static final String PERM = "权限：";
    private static final String ROLE = "角色：";

    @Override
    public void apply(OperationContext context) {
        String notes = context.operationBuilder().build().getNotes();
        StringBuilder notesBuilder = new StringBuilder(notes == null ? "" : notes);
        getClassAnnotationNote(notesBuilder, context);
        getMethodAnnotationNote(notesBuilder, context);
        context.operationBuilder().notes(notesBuilder.toString());
    }

    @Override
    public boolean supports(DocumentationType delimiter) {
        return true;
    }

    private void getClassAnnotationNote(StringBuilder notesBuffer, OperationContext context) {
        List<String> values = getAnnotationValues(context, OperationContext::findControllerAnnotation);
        if (!values.isEmpty()) {
            notesBuffer.append(HTML_P).append("class: ").append(HTML_P).append(String.join("", values));
        }
    }

    private void getMethodAnnotationNote(StringBuilder notesBuffer, OperationContext context) {
        List<String> values = getAnnotationValues(context, OperationContext::findAnnotation);
        if (!values.isEmpty()) {
            notesBuffer.append(HTML_P).append("method: ").append(HTML_P).append(String.join("", values));
        }
    }

    private <T, R> List<String> getAnnotationValues(T target, BiFunction<T, Class<? extends Annotation>, Optional<R>> findAnnotation) {
        List<String> values = new ArrayList<>();
        Optional<R> permissions = findAnnotation.apply(target, RequiresPermissions.class);
        if (permissions.isPresent()) {
            RequiresPermissions requiresPermissions = (RequiresPermissions) permissions.get();
            values.add(HTML_P + PERM + getAnnotationNote(requiresPermissions.value(), requiresPermissions.logical()));
        }
        Optional<R> roles = findAnnotation.apply(target, RequiresRoles.class);
        if (roles.isPresent()) {
            RequiresRoles requiresRoles = (RequiresRoles) roles.get();
            values.add(HTML_P + ROLE + getAnnotationNote(requiresRoles.value(), requiresRoles.logical()));
        }
        return values;
    }

    private String getAnnotationNote(String[] values, Logical logical) {
        if (logical.equals(Logical.AND)) {
            return String.join(" && ", values);
        } else {
            return String.join(" || ", values);
        }
    }
}

3 Controller演示

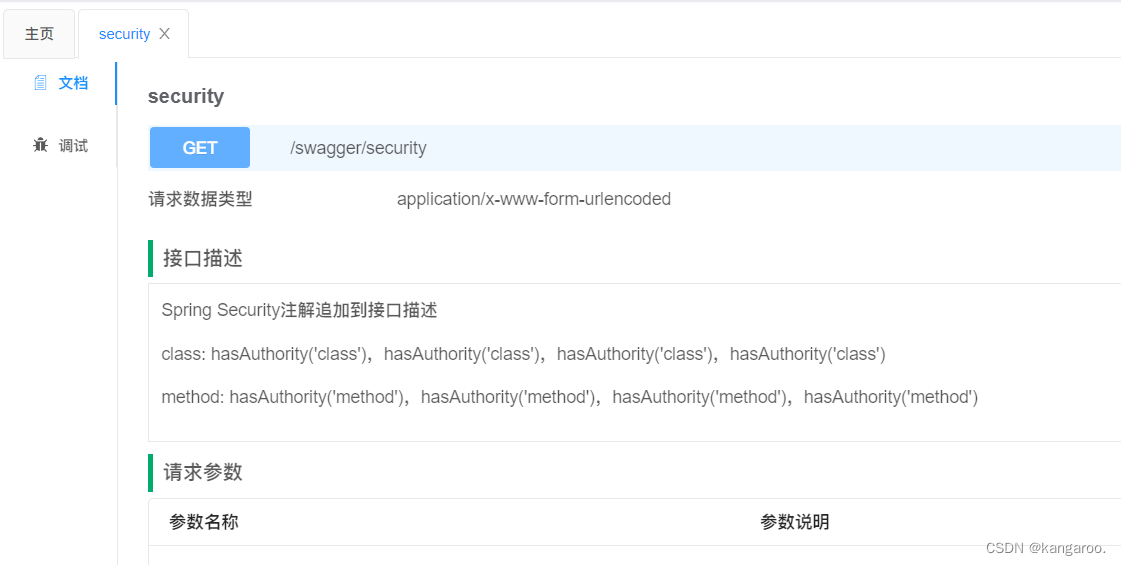

3.1 spring security

import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.security.access.prepost.PostAuthorize;
import org.springframework.security.access.prepost.PostFilter;
import org.springframework.security.access.prepost.PreAuthorize;
import org.springframework.security.access.prepost.PreFilter;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/swagger")
@Api(tags = "security 注解权限展示")
@PostAuthorize("hasAuthority('class')")
@PostFilter("hasAuthority('class')")
@PreAuthorize("hasAuthority('class')")
@PreFilter("hasAuthority('class')")
public class SecuritySwaggerController {

    @GetMapping("/security")
    @ApiOperation(value = "security", notes = "Spring Security注解追加到接口描述")
    @PostAuthorize("hasAuthority('method')")
    @PostFilter("hasAuthority('method')")
    @PreAuthorize("hasAuthority('method')")
    @PreFilter("hasAuthority('method')")
    public String security() {
        return "hello security";
    }
}

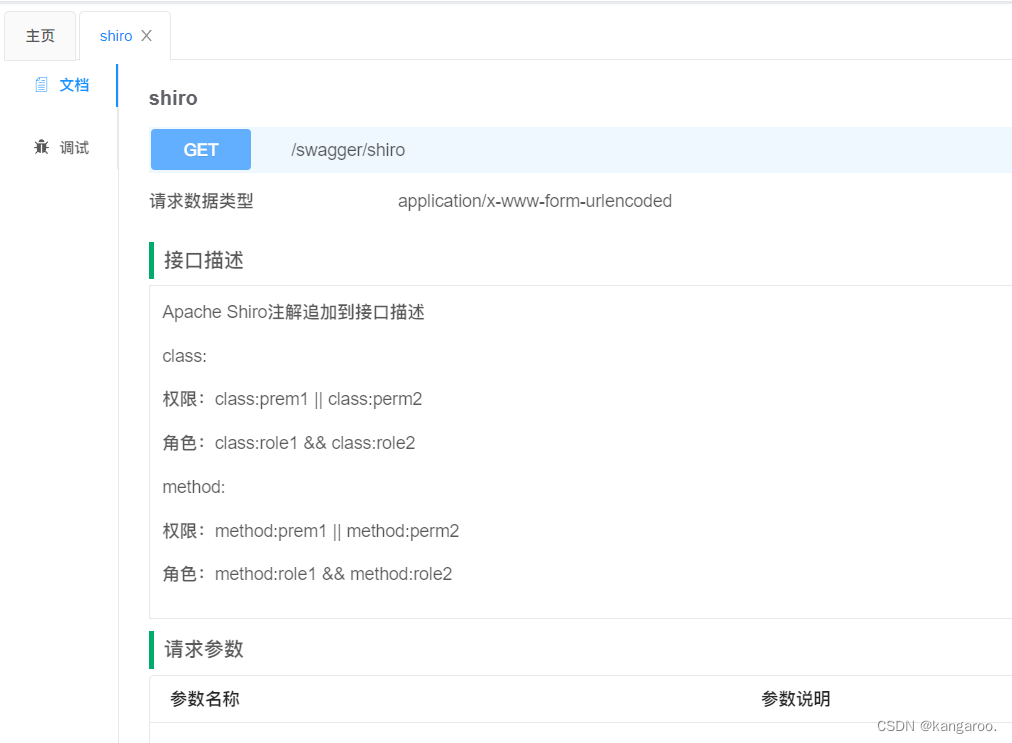

3.2 apache shiro

import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.apache.shiro.authz.annotation.Logical;
import org.apache.shiro.authz.annotation.RequiresPermissions;
import org.apache.shiro.authz.annotation.RequiresRoles;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/swagger")
@Api(tags = "shiro 注解权限展示")
@RequiresRoles(value = {"class:role1","class:role2"})
@RequiresPermissions(value = {"class:prem1","class:perm2"}, logical = Logical.OR)
public class ShiroSwaggerController {

    @GetMapping("/shiro")
    @ApiOperation(value = "shiro", notes = "Apache Shiro注解追加到接口描述")
    @RequiresRoles(value = {"method:role1","method:role2"})
    @RequiresPermissions(value = {"method:prem1","method:perm2"}, logical = Logical.OR)
    public String shiro() {
        return "hello shiro";
    }
}
