Android 仿飞书日历做的行程看板组件

关键字：自定义组件、飞书日历、行程看板

---

背景：

产品：“你看下飞书这个日历，能不能做”

我：“？？？”

产品：“咱们肯定不用做的这么复杂，就一个看版，顶上能切换日期就行”

我：“？？？”

产品：“没问题就下个版本上了啊”

我：“？？？”

---

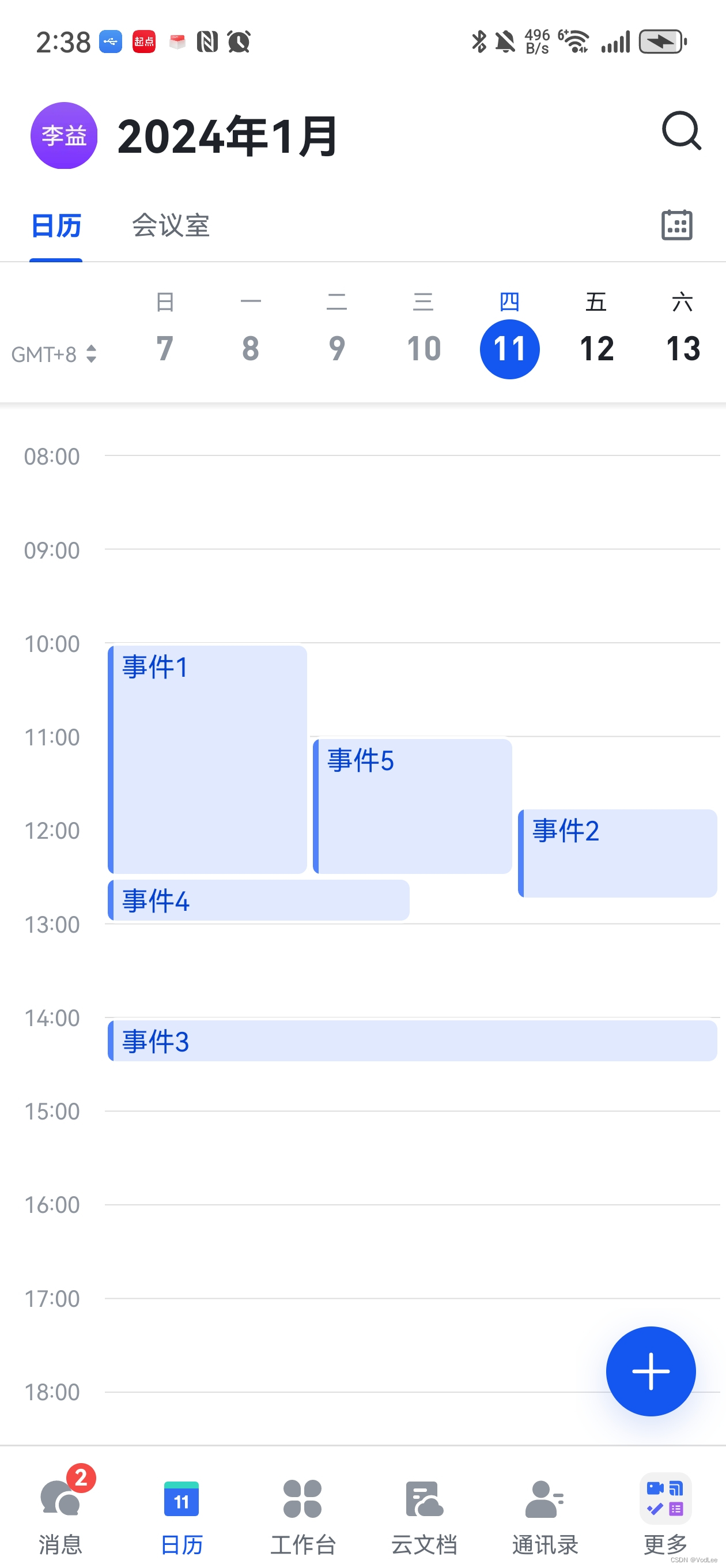

记得那年冬天，产品拿着手机开开心心的过来甩了一个需求，要求仿飞书来一个日历看板，咱们拿到手里体验了下，就感觉到他们产品对研发那满满的恶意了。

简单分析下这个日历的功能：

1. 按照起止时间展示行程卡片
2. 同一时间段存在多个行程卡片要错开展示
3. 行程卡片时间跨度不一
4. 行程卡片展示样式不一
5. 行程卡片支持整体拖动修改时间，也支持拖动上下边框修改起止时间
6. 点击空白区域支持快速创建
7. …

这看板，把百度翻烂都难找开源案例，常用的 RecyclerView 嵌套方案也做不出来这种效果，为了达成这个效果，咱们只能自定义布局去手动 onLayout 了。

---

看板背景：

首先，这个灰色的时间数字和线条基本上固定展示，与业务数据无关，咱们就直接抽离出来，自定义个 Drawable去实现

package com.elee.uidemo.schedule

import android.content.Context
import android.graphics.Canvas
import android.graphics.Color
import android.graphics.ColorFilter
import android.graphics.Paint
import android.graphics.PixelFormat
import android.graphics.drawable.Drawable
import android.util.TypedValue

class ScheduleTimeBackgroundDrawable(context: Context) : Drawable() {

    /**
     * 起止时间
     */
    var startHour: Int = 0
    var endHour: Int = 24

//    /**
//     * 小时高度
//     */
//    var hourHeight: Int = dp2px(context, 40F)
//
    /**
     * 小时分割线高度
     */
    var dividerHeight: Int = dp2px(context, 0.5F)

    /**
     * 分割线颜色
     */
    var dividerColor: Int = Color.argb(14, 0, 0, 0)

    /**
     * 时间颜色
     */
    var timeTextColor: Int = Color.argb(70, 0, 0, 0)

    /**
     * 时间文案宽度
     */
    var timeWidth: Int = dp2px(context, 42F)

    /**
     * 时间字体大小
     */
    var timeTextSize: Int = dp2px(context, 12F)

    override fun draw(canvas: Canvas) {
        var linePaint = Paint().apply {
            strokeWidth = dividerHeight.toFloat()
            style = Paint.Style.FILL
            color = dividerColor
            flags = Paint.ANTI_ALIAS_FLAG or Paint.DITHER_FLAG
        }
        var timePaint = Paint().apply {
            textSize = timeTextSize.toFloat()
            color = timeTextColor
            style = Paint.Style.FILL
            flags = Paint.ANTI_ALIAS_FLAG or Paint.DITHER_FLAG
        }
        val height = bounds.height()
        val width = bounds.width()

        val hourHeight = height / (endHour - startHour)

        for (i in startHour until endHour) {
            val top = (i - startHour) * hourHeight
            canvas.drawLine(
                0F,
                top.toFloat(),
                width.toFloat(),
                top.toFloat() + dividerHeight.toFloat(),
                linePaint
            )
            canvas.drawText(
                "${if (i < 10) "0$i" else i}:00",
                0F,
                top + (timeTextSize + hourHeight) / 2F,
                timePaint
            )
        }
        canvas.drawLine(
            0F,
            height - dividerHeight.toFloat(),
            width.toFloat(),
            height.toFloat(),
            linePaint
        )
    }

    override fun setAlpha(alpha: Int) {
    }

    override fun setColorFilter(colorFilter: ColorFilter?) {
    }

    /**
     * 透明度样式
     */
    override fun getOpacity(): Int = PixelFormat.TRANSLUCENT

    private fun dp2px(context: Context, dpVal: Float): Int {
        return TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_DIP,
            dpVal, context.resources.displayMetrics
        ).toInt()
    }
}

p.s. 这个 draw 里头存在问题，Paint不应该在这里头初始化，或者说 draw 里头不应该 new 任何对象，在做动画等刷新频率较高的场景，频繁调用 draw 导致大量对象创建回收会导致内存抖动。自定义 View 的 measure 和 layout 同理。

p.p.s. 这个 Drawable 没有红色展示当前时间，如果需要就在 draw 里头实现就行。记得增加当前时间和整点时间过近时不展示整点时间数字的判断，还有每分钟刷新的一个延时通知。

---

自定义看板布局：

package com.elee.uidemo.schedule

import android.content.Context
import android.graphics.Canvas
import android.graphics.Color
import android.util.AttributeSet
import android.util.TypedValue
import android.view.View
import android.view.ViewGroup
import android.widget.FrameLayout
import androidx.core.view.children
import java.util.Calendar
import java.util.Date

/**
 * 行程卡片
 */
class ScheduleCardGroupView @JvmOverloads constructor(
    context: Context,
    attrs: AttributeSet? = null,
    defStyleAttr: Int = 0
) : FrameLayout(context, attrs, defStyleAttr) {

    companion object {
        const val MINUTE: Long = 60 * 1000L
        const val HOUR: Long = 60 * 60 * 1000L
    }

    /**
     * 起止时间
     */
    var startHour: Int = 0
    var endHour: Int = 24

    /**
     * 小时高度
     */
    var hourHeight: Int = dp2px(context, 40F)

    /**
     * 小时间隔
     */
    var dividerHeight: Int = dp2px(context, 8F)

    /**
     * 适配器
     */
    var adapter: ScheduleCardAdapter? = null
        set(value) {
            field = value
            field?.refreshListener = {
                notifyDataSetChanged()
            }
        }

    /**
     * 更新全部行程卡片
     */
    fun notifyDataSetChanged() {
        updateAllView()
    }

    /**
     * 更新全部行程卡片
     */
    fun updateAllView() {
        removeAllViews()

        val childList = mutableListOf<Child>()
        val timeList = mutableListOf<TimeInfo>()

        // 初始化所有卡片信息 及 行程数量变动信息
        adapter?.let {
            for (position in 0 until it.getScheduleCount()) {
                Child(
                    position = position,
                    start = it.getStartTime(position),
                    end = it.getEndTime(position)
                ).let { child ->
                    childList.add(child)
                    timeList.add(TimeInfo(time = child.start))
                    timeList.add(TimeInfo(time = child.end))
                }
            }
        }

        // 对卡片信息进行排序
        childList.sortWith { o1, o2 ->
            return@sortWith (o1.start - o2.start).toInt()
        }

        // 对时间节点进行 去重+排序
        timeList.distinctBy { it.time }
        timeList.sortWith { o1, o2 ->
            return@sortWith (o1.time - o2.time).toInt()
        }
        // 确定每个时间段最大并行数量
        var count = 0
        timeList.forEach {
            count = 0
            childList.forEach { child ->
                if (it.time < child.end && it.time >= child.start) {
                    count += 1
                }
            }
            it.num = count
        }
        childList.forEach {
            count = 0
            timeList.forEach { t ->
                if (t.time >= it.start && t.time < it.end) {
                    it.weight = it.weight.coerceAtLeast(t.num)
                }
            }
        }

        if (childList.size > 0) {
            var endTime = 0L
            var start = 0
            var position = 1
            var maxWeight = 0
            while (start < childList.size) {
                maxWeight = childList[start].weight
                endTime = childList[start].end
                while (position < childList.size && childList[position].start < endTime) {
                    // 找到最大权重
                    maxWeight = childList[position].weight.coerceAtLeast(maxWeight)
                    endTime = endTime.coerceAtLeast(childList[position].end)
                    position += 1
                }
                for (i in start until position) {
                    childList[i].weight = maxWeight
                }
                start = position
                position += 1
            }
        }

        adapter?.let {
            childList.forEachIndexed { index, child ->
                var columnIndex = -1
                var columnValid = false
                // 查找可用column
                while (!columnValid) {
                    columnIndex += 1
                    columnValid = true
                    children.forEach {
                        // 如果不可用，那么判断下一个
                        Calendar.getInstance().time = Date(child.start)
                        if (!(it.layoutParams as ScheduleCardLayoutParam).checkColumnValid(
                                start = child.start,
                                end = child.end,
                                index = columnIndex
                            )
                        ) {
                            columnValid = false
                        }
                    }
                }
                // 添加view
                addView(it.getView(child.position, this), ScheduleCardLayoutParam(
                    startTime = Calendar.getInstance().apply { time = Date(child.start) },
                    endTime = Calendar.getInstance().apply { time = Date(child.end) }
                ).apply {
                    weight = child.weight
                    column = columnIndex
                })
            }
        }
    }

    override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) {
        val maxWidth = MeasureSpec.getSize(widthMeasureSpec)
        val height = paddingTop + paddingBottom +
                (endHour - startHour) * (hourHeight + dividerHeight)

        children.forEach {
            measureChild(
                it,
                MeasureSpec.makeMeasureSpec(maxWidth, MeasureSpec.EXACTLY),
                MeasureSpec.makeMeasureSpec(height, MeasureSpec.EXACTLY)
            )
        }

        setMeasuredDimension(
            MeasureSpec.makeMeasureSpec(maxWidth, MeasureSpec.EXACTLY),
            MeasureSpec.makeMeasureSpec(height, MeasureSpec.EXACTLY)
        )
    }

    override fun measureChild(
        child: View?,
        parentWidthMeasureSpec: Int,
        parentHeightMeasureSpec: Int
    ) {
        val lineWidth = MeasureSpec.getSize(parentWidthMeasureSpec) - paddingLeft - paddingRight
        child?.let {
            val params = it.layoutParams as ScheduleCardLayoutParam
            params.width = lineWidth / params.weight
            params.height =
                ((params.endTime.get(Calendar.HOUR_OF_DAY) - params.startTime.get(Calendar.HOUR_OF_DAY) - if (params.endTime.get(
                        Calendar.MINUTE
                    ) == 0
                ) 1 else 0) * dividerHeight +
                        hourHeight * (params.endTime.timeInMillis - params.startTime.timeInMillis) / HOUR).toInt()
            it.measure(
                MeasureSpec.makeMeasureSpec(params.width, MeasureSpec.EXACTLY),
                MeasureSpec.makeMeasureSpec(params.height, MeasureSpec.EXACTLY)
            )
        }
    }

    override fun onLayout(changed: Boolean, left: Int, top: Int, right: Int, bottom: Int) {
//        super.onLayout(changed, left, top, right, bottom)
        children.forEach {
            val param = it.layoutParams as ScheduleCardLayoutParam
            val childLeft = paddingLeft + param.column * param.width
            val childTop = paddingTop +
                    dividerHeight / 2 +
                    ((hourHeight + dividerHeight) * (param.startTime.get(Calendar.HOUR_OF_DAY) - startHour)) +
                    hourHeight * (param.startTime.get(Calendar.MINUTE)) / 60
            it.layout(childLeft, childTop, childLeft + param.width, childTop + param.height)
        }
    }

    override fun dispatchDraw(canvas: Canvas?) {
        super.dispatchDraw(canvas)
    }

    override fun onDraw(canvas: Canvas?) {
        super.onDraw(canvas)
    }

    private fun dp2px(context: Context, dpVal: Float): Int {
        return TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_DIP,
            dpVal, context.resources.displayMetrics
        ).toInt()
    }
}

abstract class ScheduleCardAdapter {

    var refreshListener: () -> Unit = {}

    /**
     * 获取行程数量
     */
    abstract fun getScheduleCount(): Int

    /**
     * 根据position获取开始时间
     */
    abstract fun getStartTime(position: Int): Long

    /**
     * 根据position获取结束时间
     */
    abstract fun getEndTime(position: Int): Long

    /**
     * 获取具体展示用的view
     */
    abstract fun getView(position: Int, parent: ViewGroup): View

    fun notifyDataSetChanged() {
        refreshListener.invoke()
    }
}

private class ScheduleCardLayoutParam(
    val startTime: Calendar,
    val endTime: Calendar,
) : FrameLayout.LayoutParams(MATCH_PARENT, MATCH_PARENT) {

    var weight: Int = 1

    var column: Int = 0

    /**
     * 判断 index 是否与 layout param 的column 重复
     * return true 没问题 false 不可用
     */
    fun checkColumnValid(start: Long, end: Long, index: Int): Boolean {
        return startTime.timeInMillis >= end || endTime.timeInMillis <= start || column != index
    }
}

private data class Child(
    var position: Int,
    var weight: Int = 1,
    var start: Long,
    var end: Long,
    var view: View? = null
)

private data class TimeInfo(
    val time: Long,
    var num: Int = 0
)

p.s. 如果给业务做自定义 ViewGroup，能用 adapter 就要设计 adapter，好处极多。

p.p.s. 如果自定义 ViewGroup 需要让每一个元素记录布局信息，最佳方案就是自定义一个 LayoutParam，然后在 generateLayoutParam 方法中进行初始化。在这个项目由于数据间关联太多所以我放到 updateAllView 方法内处理了。

p.p.p.s 点击卡片肯定放到 adapter 中处理，如果点击空白时间需要增加就需要在自定义 ViewGroup里头处理了（代码实装到项目后增加的功能，这个Demo版本没有）

p.p.p.p.s. 这个代码是引入项目前的最后一个版本，拖动功能被删除了，基本实现方案就是：

1. ScheduleCardLayoutParam 里头增加 oldWeight oldColumn oldStart oldEnd 几个变量，用于松手时处理动画效果（可省略）
2. onTouch 判断长按、拖动时获取手指位置
3. onDraw 中在手指位置绘制一个被拖动的 View 生成的 Bitmap
4. 松手时，先让 LayoutParam 里头的 oldXXX 记录当前 XXX 的信息，然后把对应拖动的卡片时间进行修改，再然后 updateAllView 计算修改完位置，最后 onMeasure 和 onLayout 在计算时多算一步动画效果（如果没有动画就直接updateAllView）

p.p.p.p.p.s 这条附言没意义，我就是想看附附附附附言能有多长～

---

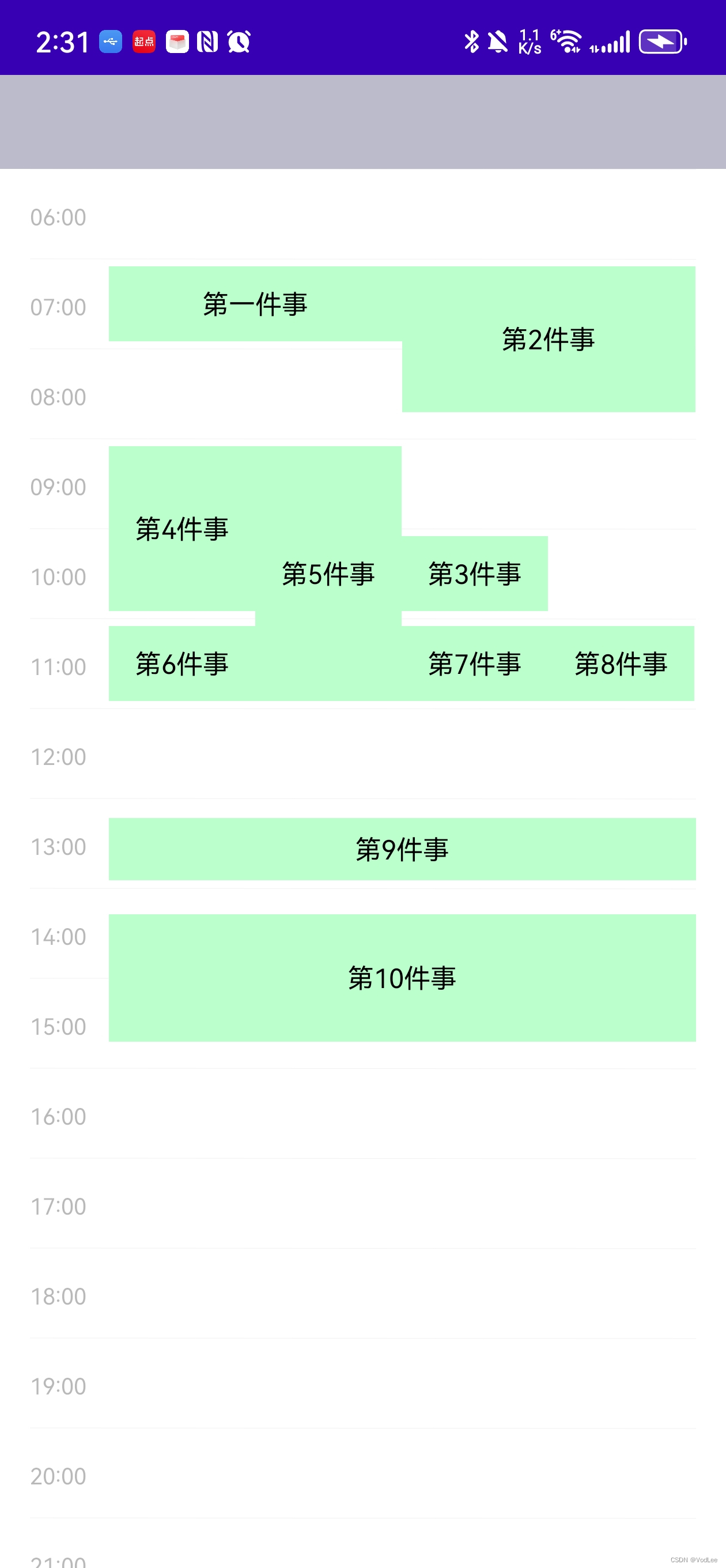

实战案例：

package com.elee.uidemo.schedule

import android.app.Activity
import android.os.Bundle
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import android.widget.TextView
import androidx.recyclerview.widget.RecyclerView
import com.elee.uidemo.R
import java.text.SimpleDateFormat
import java.util.Calendar
import java.util.Locale

class ScheduleBoardDemoActivity : Activity() {

    private val layoutContent: View by lazy { findViewById(R.id.layout_content) }
    private val viewScheduleBoard: ScheduleCardGroupView by lazy { findViewById(R.id.view_schedule_board) }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_schedule_board_demo)

        val hour: Long = 60 * 60 * 1000L
        val currentDay: Long =
            SimpleDateFormat("yyyy-MM-dd", Locale.CHINA).parse("2023-07-05")?.time ?: 0L
        val list = mutableListOf(
            ScheduleCardBean(
                start = currentDay + hour * 7,
                end = currentDay + hour * 8,
                text = "第一件事"
            ),
            ScheduleCardBean(
                start = currentDay + hour * 7,
                end = (currentDay + hour * 8.75).toLong(),
                text = "第2件事"
            ),
            ScheduleCardBean(
                start = currentDay + hour * 10,
                end = currentDay + hour * 11,
                text = "第3件事"
            ),
            ScheduleCardBean(
                start = (currentDay + hour * 9).toLong(),
                end = currentDay + hour * 11,
                text = "第4件事"
            ),
            ScheduleCardBean(
                start = currentDay + hour * 9,
                end = currentDay + hour * 12,
                text = "第5件事"
            ),
            ScheduleCardBean(
                start = currentDay + hour * 11,
                end = currentDay + hour * 12,
                text = "第6件事"
            ),
            ScheduleCardBean(
                start = currentDay + hour * 11,
                end = currentDay + hour * 12,
                text = "第7件事"
            ),
            ScheduleCardBean(
                start = currentDay + hour * 11,
                end = currentDay + hour * 12,
                text = "第8件事"
            ),
            ScheduleCardBean(
                start = currentDay + hour * 13 + hour / 6,
                end = currentDay + hour * 14,
                text = "第9件事"
            ),
            ScheduleCardBean(
                start = (currentDay + hour * 14.25).toLong(),
                end = (currentDay + hour * 15.75).toLong(),
                text = "第10件事"
            )
        )

        val start = 6

        layoutContent.background = ScheduleTimeBackgroundDrawable(this).apply {
            this.startHour = start
        }
        viewScheduleBoard.startHour = start
        viewScheduleBoard.adapter = object : ScheduleCardAdapter() {
            override fun getScheduleCount(): Int = list.size

            override fun getStartTime(position: Int): Long = list[position].start ?: 0L

            override fun getEndTime(position: Int): Long = list[position].end ?: 0L

            override fun getView(position: Int, parent: ViewGroup): View {
                val view = LayoutInflater.from(parent.context)
                    .inflate(R.layout.layout_schedule_card_item, parent, false)
                view.findViewById<TextView>(R.id.tv_schedule).apply {
                    text = list[position].text
                }
                return view
            }

        }
        viewScheduleBoard.notifyDataSetChanged()
    }
}

通过这个案例可以看出，这个看板在使用的时候只需要实现 ScheduleCardAdapter 这个抽象类，就能将数据转化成看板中的卡片，这样不同的页面可以自己写一套 adapter，极大的提高复用性

---

源码暂时没有上传 Github，如果有人对这个Demo有兴趣可以告诉我，我上传完就更新过来

当然也欢迎各位朋友指出问题或提出意见，如果愿意一起再往下完善这个组件欢迎交流～
