安卓Andriod使用入门(十三)【九宫格展示图片】

一个人太久都带着假面生活，会渐渐忘了自己本来的样子。

---

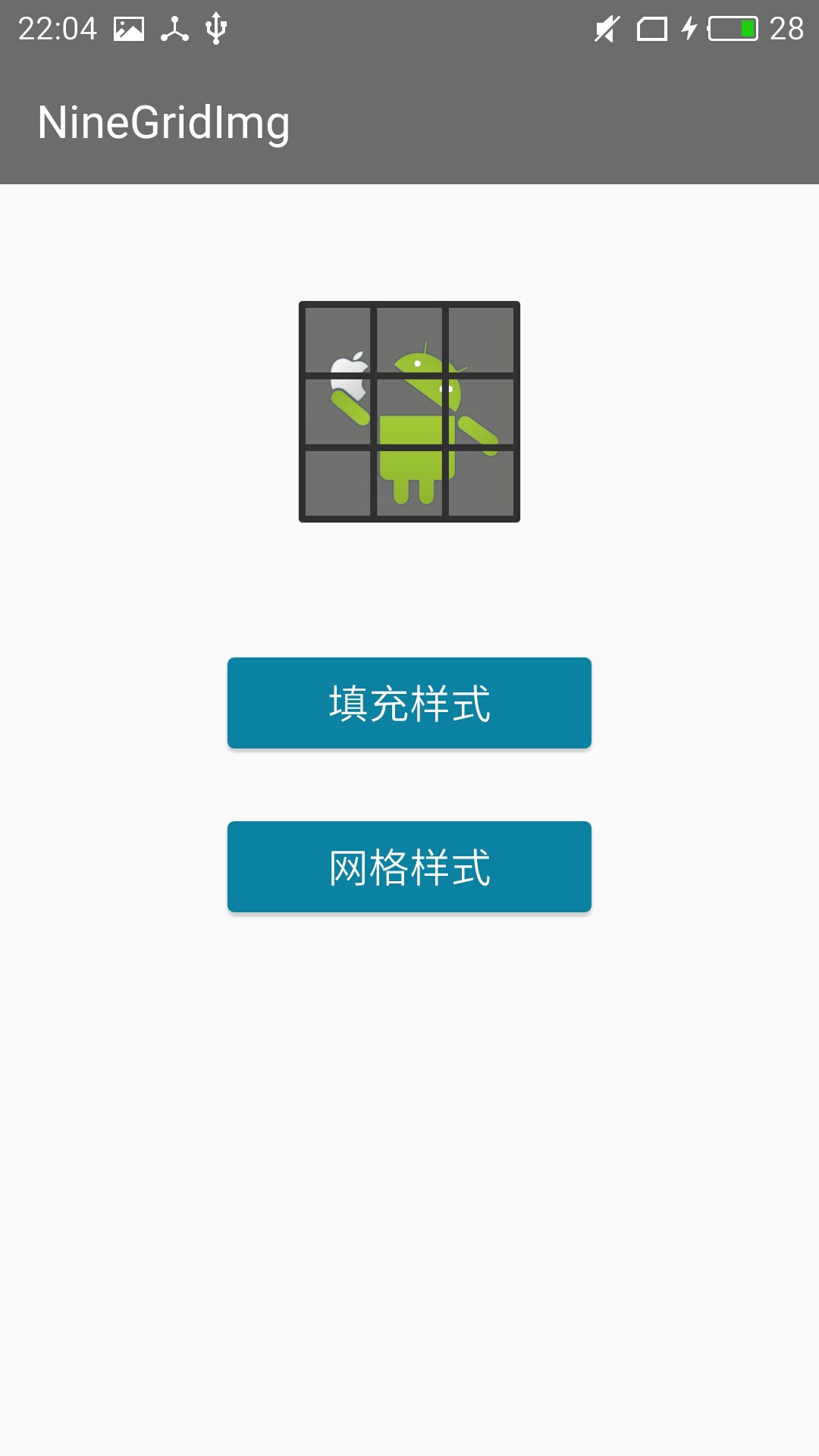

MainActivity.java代码:

package siso.ninegridimg;

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }
}

---

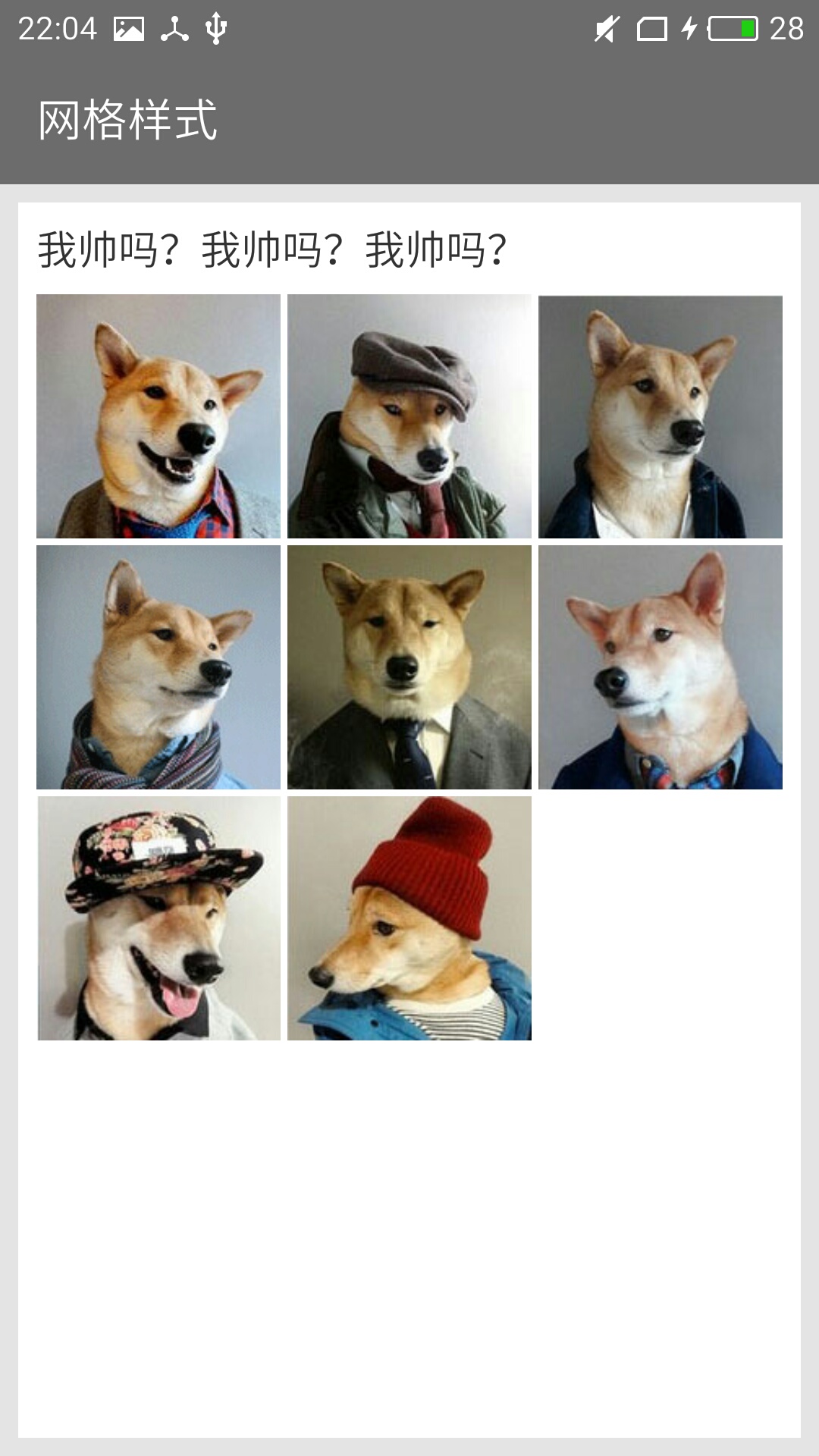

GridStyleActivity.java代码:

package siso.ninegridimg;

import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.LinearLayoutManager;
import android.support.v7.widget.RecyclerView;
import android.support.v7.widget.Toolbar;
import com.jaeger.ninegridimageview.NineGridImageView;
import com.jaeger.ninegridimgdemo.R;
import com.jaeger.ninegridimgdemo.adapter.PostAdapter;
import com.jaeger.ninegridimgdemo.entity.Post;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;

public class GridStyleActivity extends AppCompatActivity {

    private RecyclerView mRvPostLister;
    private PostAdapter mNineImageAdapter;

    private List<Post> mPostList;
    private String[] IMG_URL_LIST = {
        "http://ac-QYgvX1CC.clouddn.com/36f0523ee1888a57.jpg",
        "http://ac-QYgvX1CC.clouddn.com/07915a0154ac4a64.jpg",
        "http://ac-QYgvX1CC.clouddn.com/9ec4bc44bfaf07ed.jpg",
        "http://ac-QYgvX1CC.clouddn.com/fa85037f97e8191f.jpg",
        "http://ac-QYgvX1CC.clouddn.com/de13315600ba1cff.jpg",
        "http://ac-QYgvX1CC.clouddn.com/15c5c50e941ba6b0.jpg",
        "http://ac-QYgvX1CC.clouddn.com/10762c593798466a.jpg",
        "http://ac-QYgvX1CC.clouddn.com/eaf1c9d55c5f9afd.jpg",
        "http://ac-QYgvX1CC.clouddn.com/ad99de83e1e3f7d4.jpg",
        "http://ac-QYgvX1CC.clouddn.com/233a5f70512befcc.jpg",
    };

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_recycler);
        setSupportActionBar((Toolbar) findViewById(R.id.toolbar));

        mRvPostLister = (RecyclerView) findViewById(R.id.rv_post_list);
        mRvPostLister.setLayoutManager(new LinearLayoutManager(this));

        mPostList = new ArrayList<>();
        for (int i = 0; i < 18; i++) {
            List<String> imgUrls = new ArrayList<>();
            imgUrls.addAll(Arrays.asList(IMG_URL_LIST).subList(0, i % 9));
            Post post = new Post("Am I handsome? Am I handsome? Am I handsome?", imgUrls);
            mPostList.add(post);
        }

        mNineImageAdapter = new PostAdapter(this, mPostList, NineGridImageView.STYLE_GRID);
        mRvPostLister.setAdapter(mNineImageAdapter);
    }
}

---

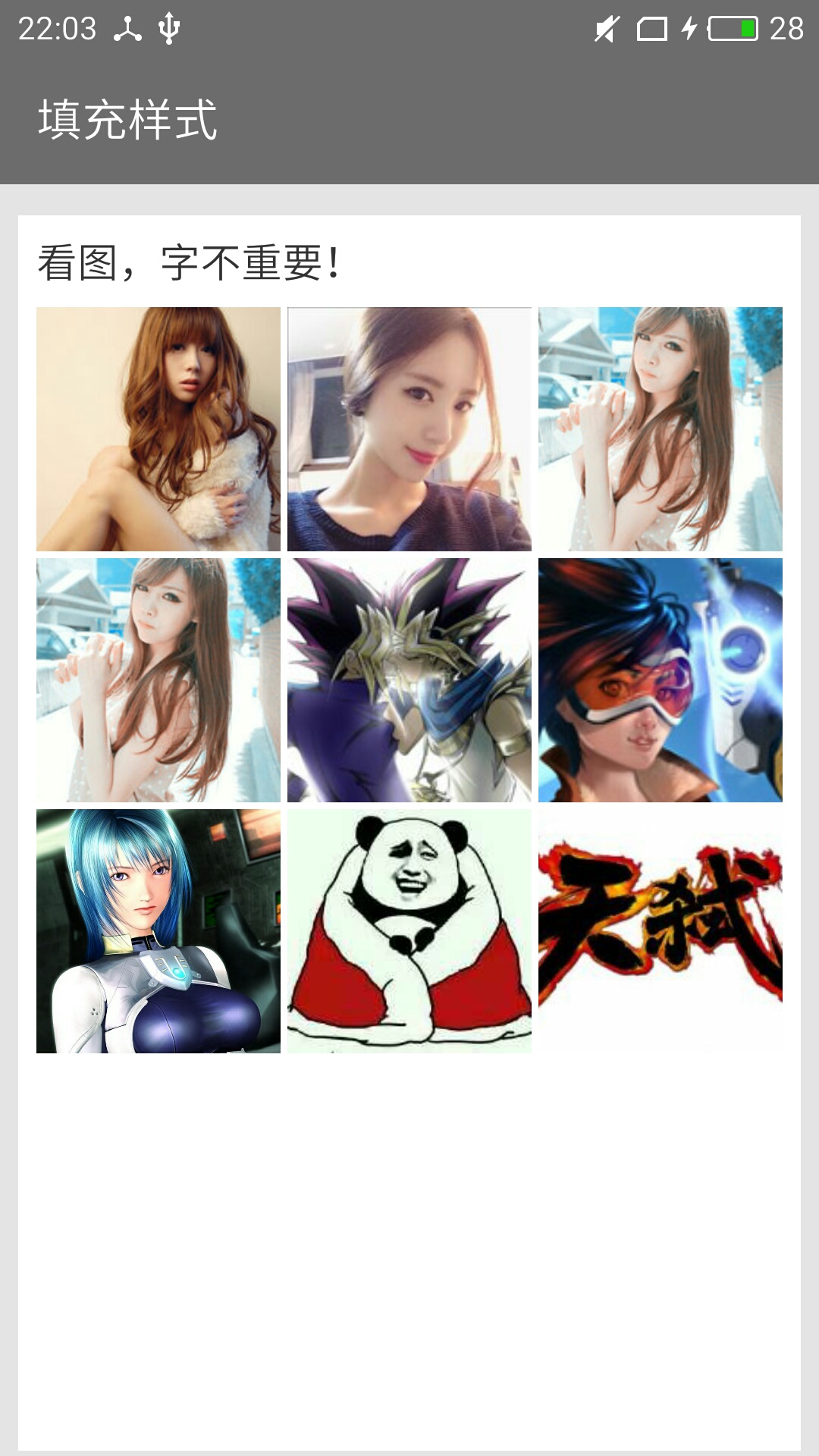

FillStyleActivity.java代码:

package siso.ninegridimg;

import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.LinearLayoutManager;
import android.support.v7.widget.RecyclerView;
import android.support.v7.widget.Toolbar;
import com.jaeger.ninegridimageview.NineGridImageView;
import com.jaeger.ninegridimgdemo.R;
import com.jaeger.ninegridimgdemo.adapter.PostAdapter;
import com.jaeger.ninegridimgdemo.entity.Post;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;

/**
 * Created by Jaeger on 16/2/24.
 *
 * Email: chjie.jaeger@gamil.com
 * GitHub: https://github.com/laobie
 */
public class FillStyleActivity extends AppCompatActivity {

    private RecyclerView mRvPostLister;
    private PostAdapter mPostAdapter;

    private List<Post> mPostList;
    private String[] IMG_URL_LIST = {
        "https://pic4.zhimg.com/02685b7a5f2d8cbf74e1fd1ae61d563b_xll.jpg",
        "https://pic4.zhimg.com/fc04224598878080115ba387846eabc3_xll.jpg",
        "https://pic3.zhimg.com/d1750bd47b514ad62af9497bbe5bb17e_xll.jpg",
        "https://pic4.zhimg.com/da52c865cb6a472c3624a78490d9a3b7_xll.jpg",
        "https://pic3.zhimg.com/0c149770fc2e16f4a89e6fc479272946_xll.jpg",
        "https://pic1.zhimg.com/76903410e4831571e19a10f39717988c_xll.png",
        "https://pic3.zhimg.com/33c6cf59163b3f17ca0c091a5c0d9272_xll.jpg",
        "https://pic4.zhimg.com/52e093cbf96fd0d027136baf9b5cdcb3_xll.png",
        "https://pic3.zhimg.com/f6dc1c1cecd7ba8f4c61c7c31847773e_xll.jpg",
    };

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_recycler);
        setSupportActionBar((Toolbar) findViewById(R.id.toolbar));

        mRvPostLister = (RecyclerView) findViewById(R.id.rv_post_list);
        mRvPostLister.setLayoutManager(new LinearLayoutManager(this));

        mPostList = new ArrayList<>();
        for (int i = 0; i < 18; i++) {
            List<String> imgUrls = new ArrayList<>();
            imgUrls.addAll(Arrays.asList(IMG_URL_LIST).subList(0, i % 9 + 1));
            Post post = new Post("看图，字不重要。想看大图？抱歉我还没做这个 ( •̀ .̫ •́ )", imgUrls);
            mPostList.add(post);
        }
        mPostAdapter = new PostAdapter(this, mPostList, NineGridImageView.STYLE_FILL);
        mRvPostLister.setAdapter(mPostAdapter);
    }
}

---

PostAdapter.java代码:

package siso.ninegridimg.adapter;

import android.content.Context;
import android.support.v7.widget.RecyclerView;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;
import android.widget.TextView;
import android.widget.Toast;

import java.util.List;

import siso.ninegridimg.R;
import siso.ninegridimg.entity.Post;
import siso.nineimglib.NineGridImageView;
import siso.nineimglib.NineGridImageViewAdapter;


public class PostAdapter extends RecyclerView.Adapter<PostAdapter.PostViewHolder> {
    private LayoutInflater mInflater;
    private List<Post> mPostList;
    private int mShowStyle;

    public PostAdapter(Context context, List<Post> postList, int showStyle) {
        super();
        mPostList = postList;
        mInflater = LayoutInflater.from(context);
        mShowStyle = showStyle;
    }

    @Override
    public void onBindViewHolder(PostViewHolder holder, int position) {
        holder.bind(mPostList.get(position));
    }

    @Override
    public int getItemCount() {
        return mPostList.size();
    }

    @Override
    public PostViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
        if (mShowStyle == NineGridImageView.STYLE_FILL) {
            return new PostViewHolder(mInflater.inflate(R.layout.item_post_fill_style, parent, false));
        } else {
            return new PostViewHolder(mInflater.inflate(R.layout.item_post_grid_style, parent, false));
        }
    }

    public class PostViewHolder extends RecyclerView.ViewHolder {
        private NineGridImageView mNglContent;
        private TextView mTvContent;

        private NineGridImageViewAdapter<String> mAdapter = new NineGridImageViewAdapter<String>() {
            @Override
            protected void onDisplayImage(Context context, ImageView imageView, String s) {
                Picasso.with(context)
                    .load(s)
                    .placeholder(R.drawable.ic_default_image)
                    .into(imageView);
            }

            @Override
            protected ImageView generateImageView(Context context) {
                return super.generateImageView(context);
            }

            @Override
            protected void onItemImageClick(Context context, int index, List<String> list) {
                Toast.makeText(context, "image position is " + index, Toast.LENGTH_SHORT).show();
            }
        };

        public PostViewHolder(View itemView) {
            super(itemView);
            mTvContent = (TextView) itemView.findViewById(R.id.tv_content);
            mNglContent = (NineGridImageView) itemView.findViewById(R.id.ngl_images);
            mNglContent.setAdapter(mAdapter);
        }

        public void bind(Post post) {
            mNglContent.setImagesData(post.getImgUrlList());
            mTvContent.setText(post.getContent());
        }
    }
}

---

Post.java代码:

package siso.ninegridimg.entity;

import java.util.List;


public class Post {
    private String mContent;
    private List<String> mImgUrlList;

    public Post() {
    }

    public Post(String content, List<String> imgUrlList) {
        mContent = content;
        mImgUrlList = imgUrlList;
    }

    public String getContent() {
        return mContent;
    }

    public void setContent(String content) {
        mContent = content;
    }

    public List<String> getImgUrlList() {
        return mImgUrlList;
    }

    public void setImgUrlList(List<String> imgUrlList) {
        mImgUrlList = imgUrlList;
    }
}

---

activity_main.xml:

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context="siso.ninegridimg.MainActivity">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Hello World!" />
</RelativeLayout>

---

item_post_fill_style.xml:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:ngl="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_margin="8dp"
android:background="@color/white"
android:orientation="vertical"
android:padding="8dp">

<TextView
    android:id="@+id/tv_content"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_marginBottom="8dp"
    android:textColor="#333333"
    android:textSize="16sp"/>

<com.jaeger.ninegridimageview.NineGridImageView
    android:id="@+id/ngl_images"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    ngl:imgGap="3dp"
    ngl:showStyle="fill"
    ngl:singleImgSize="160dp"/>
</LinearLayout>

---

item_post_grid_style.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:layout_margin="8dp"
    android:background="@color/white"
    android:orientation="vertical"
    android:padding="8dp">

    <TextView
        android:id="@+id/tv_content"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginBottom="8dp"
        android:textColor="#333333"
        android:textSize="16sp"
        tools:text="测试文字"/>

    <com.jaeger.ninegridimageview.NineGridImageView
        android:id="@+id/ngl_images"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:imgGap="3dp"
        app:maxSize="-1"
        app:showStyle="grid"
        app:singleImgSize="500dp"/>
</LinearLayout>

---

item_single_image.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:maxHeight="60dp"
    android:maxWidth="60dp"
    android:orientation="vertical">
    <ImageView
        android:id="@+id/iv_single"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:scaleType="fitStart"/>

</LinearLayout>

---

strings.xml

<resources>
    <string name="app_name">NineGridImg</string>

    <string name="fill_style">Fill Style</string>
    <string name="grid_style">Grid Style</string>
</resources>

---

styles.xml

<resources>

    <!-- Base application theme. -->
    <style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar">
        <!-- Customize your theme here. -->
        <item name="colorPrimary">@color/colorPrimary</item>
        <item name="android:textAllCaps">false</item>
        <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
        <item name="colorAccent">@color/colorAccent</item>
        <item name="windowNoTitle">true</item>
        <item name="android:textColor">@color/white</item>
        <item name="windowActionBar">false</item>
    </style>

</resources>

---

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="siso.ninegridimg">

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>

---

build.gradle

apply plugin: 'com.android.application'

android {
    compileSdkVersion 23
    buildToolsVersion "23.0.1"

    defaultConfig {
        applicationId "siso.ninegridimg"
        minSdkVersion 22
        targetSdkVersion 22
        versionCode 1
        versionName "1.0"
    }
    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
        }
    }
}

dependencies {
    compile fileTree(include: ['*.jar'], dir: 'libs')
    testCompile 'junit:junit:4.12'
    compile 'com.android.support:appcompat-v7:23.0.1'
    compile 'com.android.support:recyclerview-v7:23.3.0'
    compile 'com.squareup.picasso:picasso:2.5.2'
    compile project(path: ':nineimglib')
}

---

Andriod类库项目nineimglib

---

项目运行结果如图:

---

---
