最近做的项目,根据UI图实现头像修改功能,点击头像编辑,弹出头像修改框,需要裁剪及实时预览。
- 话不多说,先来一波效果图:
选择图片前

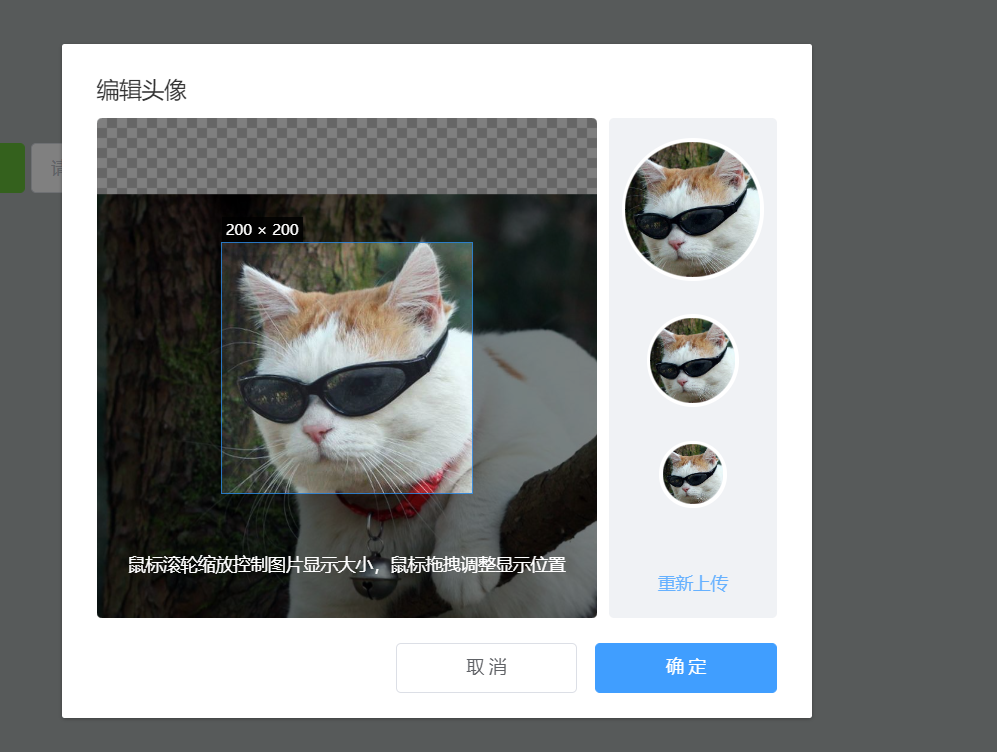

选择图片后
实现代码:
<template>
<el-dialog
title="编辑头像"
:visible.sync="dialogVisible"
:show-close="false"
:close-on-click-modal="false"
:close-on-press-escape="false"
width="600px"
>
<div style="display: flex" class="avatar">
<div class="avatar-left">
<div v-show="!options.img">
<el-upload
ref="upload"
action=""
style="text-align: center;margin-bottom: 24px"
:on-change="uploads"
accept="image/png, image/jpeg, image/jpg"
:show-file-list="false"
:auto-upload="false">
<el-button slot="trigger" size="small" type="primary" ref="uploadBtn">选择图片</el-button>
</el-upload>
<div>支持jpg、png格式的图片,大小不超过3M</div>
</div>
<div v-show="options.img" class="avatar-left-crop">
<vueCropper
class="crop-box"
ref="cropper"
:img="options.img"
:autoCrop="options.autoCrop"
:fixedBox="options.fixedBox"
:canMoveBox="options.canMoveBox"
:autoCropWidth="options.autoCropWidth"
:autoCropHeight="options.autoCropHeight"
:centerBox="options.centerBox"
@realTime="realTime">
</vueCropper>
<p class="avatar-left-p">
鼠标滚轮缩放控制图片显示大小,鼠标拖拽调整显示位置</p>
</div>
</div>
<div class="avatar-right">
<div class="avatar-right-div" v-for="item in previewsDiv" :style="item.style">
<div v-show="options.img" :class="previews.div" class="avatar-right-previews" :style="item.zoomStyle">
<img :src="previews.url" :style="previews.img">
</div>
</div>
<div class="avatar-right-text">
<el-button v-if="options.img" type="text" @click="uploadPreviews">重新上传</el-button>
<span v-else>预览</span>
</div>
</div>
</div>
<span slot="footer" class="dialog-footer">
<el-button @click="closeDialog">取 消</el-button>
<el-button type="primary" @click="getCrop">确 定</el-button>
</span>
</el-dialog>
</template>
<script>
export default {
name: "avatarEdit",
props: {
dialogVisible: {
type: Boolean,
default: false
}
},
data() {
return {
//vueCropper组件 裁剪配置信息
options: {
img: '', //原图文件
autoCrop: true, //默认生成截图框
fixedBox: true, //固定截图框大小
canMoveBox: false, //截图框不能拖动
autoCropWidth: 200, //截图框宽度
autoCropHeight: 200, //截图框高度
centerBox: true, //截图框被限制在图片里面
},
//实时预览图数据
previews: {},
//实时预览图样式
previewsDiv: [
//108px 预览样式
{
style: {
width: '108px',
height: '108px',
margin: '0 auto'
},
zoomStyle: {
zoom: 0.54
}
},
//68px 预览样式
{
style: {
width: '68px',
height: '68px',
margin: '27px auto'
},
zoomStyle: {
zoom: 0.34
}
},
//48px 预览样式
{
style: {
width: '48px',
height: '48px',
margin: '0 auto'
},
zoomStyle: {
zoom: 0.24
}
}
],
}
},
methods: {
//读取原图
uploads(file) {
const isIMAGE = file.raw.type === 'image/jpeg' || file.raw.type === 'image/png';
const isLt3M = file.raw.size / 1024 / 1024 < 3;
if (!isIMAGE) {
this.$message({
showClose: true,
message: '请选择 jpg、png 格式的图片!',
type: 'error', //提示类型
});
return false;
}
if (!isLt3M) {
this.$message({
showClose: true,
message: '上传图片大小不能超过 3MB',
type: 'error', //提示类型
});
return false;
}
let reader = new FileReader();
reader.readAsDataURL(file.raw);
reader.onload = e => {
this.options.img = e.target.result //base64
}
},
//实时预览数据
realTime(data) {
this.previews = data
},
//重新上传
uploadPreviews() {
this.$refs.uploadBtn.$el.click()
},
//获取截图信息
getCrop() {
// 获取截图的 base64 数据
this.$refs.cropper.getCropData((data) => {
console.log(data)
})
// 获取截图的 blob 数据
this.$refs.cropper.getCropBlob((data) => {
console.log(data)
})
},
//关闭弹框
closeDialog() {
//调用父组件关闭弹框方法 closeAvatarEdits()
this.$parent.closeAvatarEdits()
//重置 data 数据。(Object.assign是对象深复制 this.$data是组件内的数据对象 this.$options.data()是原始的数据)
Object.assign(this.$data, this.$options.data())
},
}
}
</script>
<style lang="scss" scoped>
/deep/ .el-dialog__header {
padding: 24px 0 11px 28px;
}
/deep/ .el-dialog__title {
color: #333333;
}
/deep/ .el-dialog__body {
padding: 0 28px;
}
/deep/ .el-dialog__footer {
padding: 20px 28px;
.el-button {
width: 145px;
}
}
.avatar {
display: flex;
.avatar-left {
display: flex;
justify-content: center;
align-items: center;
width: 400px;
height: 400px;
background-color: #F0F2F5;
margin-right: 10px;
border-radius: 4px;
.avatar-left-crop {
width: 400px;
height: 400px;
position: relative;
.crop-box {
width: 100%;
height: 100%;
border-radius: 4px;
overflow: hidden
}
}
.avatar-left-p {
text-align: center;
width: 100%;
position: absolute;
bottom: 20px;
color: #ffffff;
font-size: 14px;
}
}
.avatar-right {
width: 150px;
height: 400px;
background-color: #F0F2F5;
border-radius: 4px;
padding: 16px 0;
box-sizing: border-box;
.avatar-right-div {
border: 3px solid #ffffff;
border-radius: 50%;
}
.avatar-right-previews {
width: 200px;
height: 200px;
overflow: hidden;
border-radius: 50%;
}
.avatar-right-text {
text-align: center;
margin-top: 50px;
font-size: 14px;
/deep/ .el-button {
padding: 0;
}
span {
color: #666666;
}
}
}
}
</style>
- 图片裁剪插件 vueCropper
- 图片上传element ----upload
文字说明不多,如有疑问,请私信哦~
