SpringCloud Eureka架构原理及源码分析

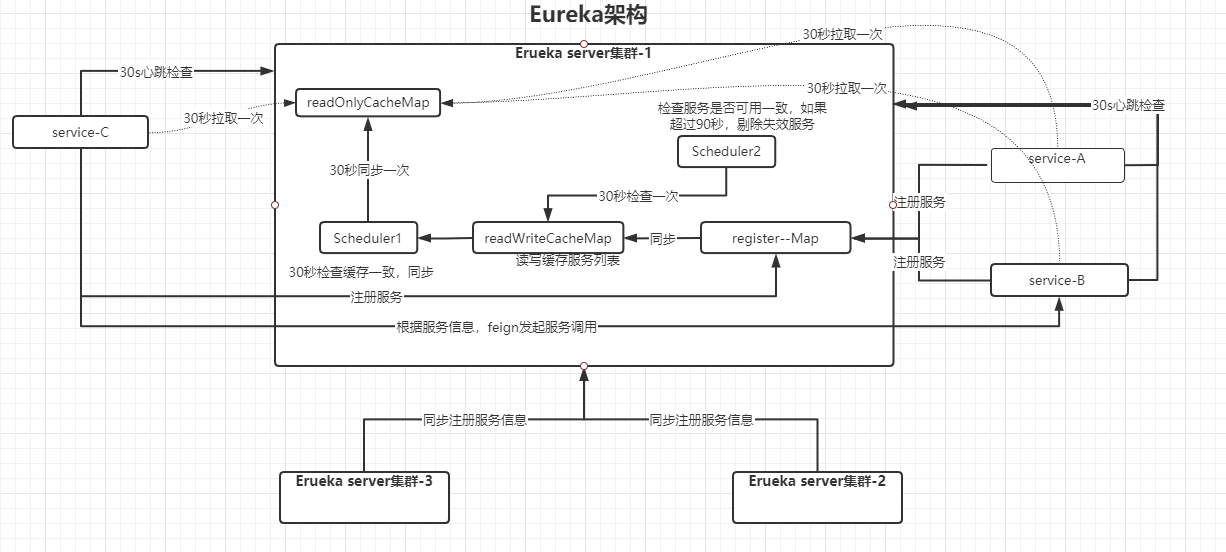

注册表这块是采用三级缓存register-Map ==> readWriterMap ==> readOnlyMap，提高并发能力的同时，防止出现并发加锁解锁的开销以及安全问题；
eureka服务端
eureka客户端
服务注册： Eureka Client会通过发送HTTP REST请求的方式向Eureka Server将自己注册为服务，提供自身的元数据，比如 IP 地址、端口、运行状况指标的URL、主页地址等信息。Eureka Server接收到注册请求后，就会把这些元数据信息存储在一个ConcurrentHashMap中。
服务续约： 在服务注册后，Eureka Client会维护一个心跳来持续通知Eureka Server，说明服务一直处于可用状态，防止被剔除。Eureka Client在默认的情况下会每隔30秒发送一次心跳来进行服务续约。
服务同步： Eureka Server之间会互相进行注册，构建Eureka Server集群，不同Eureka Server之间会进行服务同步，用来保证服务信息的一致性。
获取服务： 服务消费者（Eureka Client）在启动的时候，会发送一个Http REST请求给Eureka Server，获取上面所有注册的服务清单，并且缓存在Eureka Client本地，默认缓存30秒。同时，为了性能考虑，Eureka Server也会维护一份只读的服务清单缓存，该缓存每隔30秒更新一次。[由eureka server进行更新]
服务调用： 服务消费者（Eureka Client）在获取到服务清单后，就可以根据清单中的服务列表信息，查找到其他服务的地址，从而进行远程调用。Eureka有Region和Zone的概念，一个Region可以包含多个Zone，在进行服务调用时，优先访问处于同一个Zone中的服务提供者。
服务下线： 当Eureka Client需要关闭或重启时，就不希望在这个时间段内再有请求进来，所以，就需要提前先发送REST请求给Eureka Server，告诉Eureka Server自己要下线了，Eureka Server在收到请求后，就会把该服务状态置为下线（DOWN），并把该下线事件传播出去。
服务剔除： 有时候，服务实例可能会因为网络故障等原因导致不能提供服务，而此时该实例也没有发送请求给Eureka Server来进行服务下线，所以，还需要有服务剔除的机制。Eureka Server在启动的时候会创建一个定时任务，每隔一段时间（默认60秒），从当前服务清单中把超时没有续约（默认90秒）的服务剔除。
自我保护： 既然Eureka Server会定时剔除超时没有续约的服务，那就有可能出现一种场景，网络一段时间内发生了异常，所有的服务都没能够进行续约，Eureka Server就把所有的服务都剔除了，这样显然不太合理。所以，就有了自我保护机制，当短时间内，统计续约失败的比例，如果达到一定阈值，则会触发自我保护的机制，在该机制下，Eureka Server不会剔除任何的微服务，等到正常后，再退出自我保护机制。
在Finchley版本的SpringCloud中已经不再需要声明式注解为client即：@DiscoveryClient；只需要pom里面引入
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
服务注册+发现部分
入口：eureka-client的包引入后，通过spring.factories里配置的
org.springframework.cloud.netflix.eureka.EurekaClientAutoConfiguration,\ 完成自动注入+注册
具体的类和方法：
@Configuration(proxyBeanMethods = false)
@EnableConfigurationProperties
@ConditionalOnClass(EurekaClientConfig.class)
@Import(DiscoveryClientOptionalArgsConfiguration.class)
@ConditionalOnProperty(value = "eureka.client.enabled", matchIfMissing = true)
@ConditionalOnDiscoveryEnabled
@AutoConfigureBefore({ NoopDiscoveryClientAutoConfiguration.class,
CommonsClientAutoConfiguration.class, ServiceRegistryAutoConfiguration.class })
@AutoConfigureAfter(name = {
"org.springframework.cloud.autoconfigure.RefreshAutoConfiguration",
"org.springframework.cloud.netflix.eureka.EurekaDiscoveryClientConfiguration",
"org.springframework.cloud.client.serviceregistry.AutoServiceRegistrationAutoConfiguration" })
public class EurekaClientAutoConfiguration
// 构造实例信息并注入
@Bean
public EurekaServiceRegistry eurekaServiceRegistry() {
return new EurekaServiceRegistry();
}
// 通过上面的这个注解的自动配置，先构造实例信息，然后@AutoConfigureAfter 进入下一步
// EurekaDiscoveryClientConfiguration类
@Configuration(proxyBeanMethods = false)
@EnableConfigurationProperties
@ConditionalOnClass(EurekaClientConfig.class)
@ConditionalOnProperty(value = "eureka.client.enabled", matchIfMissing = true)
@ConditionalOnDiscoveryEnabled
@ConditionalOnBlockingDiscoveryEnabled
public class EurekaDiscoveryClientConfiguration
// 这个类完成了服务的真正注册
@Configuration(proxyBeanMethods = false)
@ConditionalOnClass(RefreshScopeRefreshedEvent.class)
protected static class EurekaClientConfigurationRefresher
implements ApplicationListener<RefreshScopeRefreshedEvent> {
@Autowired(required = false)
private EurekaClient eurekaClient;
@Autowired(required = false)
private EurekaAutoServiceRegistration autoRegistration;
public void onApplicationEvent(RefreshScopeRefreshedEvent event) {
// This will force the creation of the EurkaClient bean if not already created
// to make sure the client will be reregistered after a refresh event
if (eurekaClient != null) {
eurekaClient.getApplications();
}
if (autoRegistration != null) {
// register in case meta data changed
this.autoRegistration.stop();
// 真正自动注册启动
this.autoRegistration.start();
}
}
}
// 类：EurekaAutoServiceRegistration
@Override
public void start() {
// only set the port if the nonSecurePort or securePort is 0 and this.port != 0
if (this.port.get() != 0) {
if (this.registration.getNonSecurePort() == 0) {
this.registration.setNonSecurePort(this.port.get());
}
if (this.registration.getSecurePort() == 0 && this.registration.isSecure()) {
this.registration.setSecurePort(this.port.get());
}
}
// only initialize if nonSecurePort is greater than 0 and it isn't already running
// because of containerPortInitializer below
if (!this.running.get() && this.registration.getNonSecurePort() > 0) {
// 完成注册
this.serviceRegistry.register(this.registration);
this.context.publishEvent(new InstanceRegisteredEvent<>(this,
this.registration.getInstanceConfig()));
this.running.set(true);
}
}
```java
@Bean
@org.springframework.cloud.context.config.annotation.RefreshScope
@ConditionalOnBean(AutoServiceRegistrationProperties.class)
@ConditionalOnProperty(
value = "spring.cloud.service-registry.auto-registration.enabled",
matchIfMissing = true)
public EurekaRegistration eurekaRegistration(EurekaClient eurekaClient,
CloudEurekaInstanceConfig instanceConfig,
ApplicationInfoManager applicationInfoManager, @Autowired(
required = false) ObjectProvider<HealthCheckHandler> healthCheckHandler) {
// 注册方法跟进去看到的是代理类$Proxy，代理的目标对象是
// interface com.netflix.discovery.EurekaClient
return EurekaRegistration.builder(instanceConfig).with(applicationInfoManager)
.with(eurekaClient).with(healthCheckHandler).build();
}
// 查看EurekaClient代码
@ImplementedBy(DiscoveryClient.class)
public interface EurekaClient extends LookupService {
这里可以看到引入的是DiscoveryClient类
继续下一步
/******************************************************/
/******************************************************/
核心类：
com.netflix.discovery.DiscoveryClient
核心方法：
@Inject
DiscoveryClient(ApplicationInfoManager applicationInfoManager, EurekaClientConfig config, AbstractDiscoveryClientOptionalArgs args,
Provider backupRegistryProvider, EndpointRandomizer endpointRandomizer) {
if (args != null) {
this.healthCheckHandlerProvider = args.healthCheckHandlerProvider;
this.healthCheckCallbackProvider = args.healthCheckCallbackProvider;
this.eventListeners.addAll(args.getEventListeners());
this.preRegistrationHandler = args.preRegistrationHandler;
} else {
this.healthCheckCallbackProvider = null;
this.healthCheckHandlerProvider = null;
this.preRegistrationHandler = null;
}
this.applicationInfoManager = applicationInfoManager;
InstanceInfo myInfo = applicationInfoManager.getInfo();
clientConfig = config;
staticClientConfig = clientConfig;
transportConfig = config.getTransportConfig();
instanceInfo = myInfo;
// 客户端路径唯一标识符：xx-service/120.0.0.1:8090
if (myInfo != null) {
appPathIdentifier = instanceInfo.getAppName() + "/" + instanceInfo.getId();
} else {
logger.warn("Setting instanceInfo to a passed in null value");
}
this.backupRegistryProvider = backupRegistryProvider;
this.endpointRandomizer = endpointRandomizer;
this.urlRandomizer = new EndpointUtils.InstanceInfoBasedUrlRandomizer(instanceInfo);
localRegionApps.set(new Applications());
// 获取远程eureka服务注册列表的次数
fetchRegistryGeneration = new AtomicLong(0);
remoteRegionsToFetch = new AtomicReference<String>(clientConfig.fetchRegistryForRemoteRegions());
remoteRegionsRef = new AtomicReference<>(remoteRegionsToFetch.get() == null ? null : remoteRegionsToFetch.get().split(","));
// 判断配置是否需要获取远程eureka服务注册列表
if (config.shouldFetchRegistry()) {
this.registryStalenessMonitor = new ThresholdLevelsMetric(this, METRIC_REGISTRY_PREFIX + "lastUpdateSec_", new long[]{15L, 30L, 60L, 120L, 240L, 480L});
} else {
this.registryStalenessMonitor = ThresholdLevelsMetric.NO_OP_METRIC;
}
// 判断配置是否需要注册到远程eureka服务
if (config.shouldRegisterWithEureka()) {
this.heartbeatStalenessMonitor = new ThresholdLevelsMetric(this, METRIC_REGISTRATION_PREFIX + "lastHeartbeatSec_", new long[]{15L, 30L, 60L, 120L, 240L, 480L});
} else {
this.heartbeatStalenessMonitor = ThresholdLevelsMetric.NO_OP_METRIC;
}
logger.info("Initializing Eureka in region {}", clientConfig.getRegion());
// 客户端配置为既不注册也不查询数据。
if (!config.shouldRegisterWithEureka() && !config.shouldFetchRegistry()) {
logger.info("Client configured to neither register nor query for data.");
scheduler = null;
heartbeatExecutor = null;
cacheRefreshExecutor = null;
eurekaTransport = null;
instanceRegionChecker = new InstanceRegionChecker(new PropertyBasedAzToRegionMapper(config), clientConfig.getRegion());
// This is a bit of hack to allow for existing code using DiscoveryManager.getInstance()
// to work with DI'd DiscoveryClient
DiscoveryManager.getInstance().setDiscoveryClient(this);
DiscoveryManager.getInstance().setEurekaClientConfig(config);
initTimestampMs = System.currentTimeMillis();
logger.info("Discovery Client initialized at timestamp {} with initial instances count: {}",
initTimestampMs, this.getApplications().size());
return; // no need to setup up an network tasks and we are done
}
//重点： 开始定义定时任务调度器 scheduler
try {
// default size of 2 - 1 each for heartbeat and cacheRefresh
scheduler = Executors.newScheduledThreadPool(2,
new ThreadFactoryBuilder()
.setNameFormat("DiscoveryClient-%d")
.setDaemon(true)
.build());
// 通过定时调度每隔30秒，处理心跳。
// 线程池的核心线程数为1；最大线程数默认为2 (HeartbeatExecutorThreadPoolSize)
// 使用同步队列：SynchronousQueue，每次提交都要阻塞等待处理
heartbeatExecutor = new ThreadPoolExecutor(
1, clientConfig.getHeartbeatExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
new SynchronousQueue<Runnable>(),
new ThreadFactoryBuilder()
.setNameFormat("DiscoveryClient-HeartbeatExecutor-%d")
.setDaemon(true)
.build()
); // use direct handoff
// 通过定时调度每隔30秒，处理eureka提供的服务列表缓存。
// 线程池的核心线程数为1；最大线程数默认为2 (HeartbeatExecutorThreadPoolSize)
// 使用同步队列：SynchronousQueue，每次提交都要阻塞等待处理
cacheRefreshExecutor = new ThreadPoolExecutor(
1, clientConfig.getCacheRefreshExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
new SynchronousQueue<Runnable>(),
new ThreadFactoryBuilder()
.setNameFormat("DiscoveryClient-CacheRefreshExecutor-%d")
.setDaemon(true)
.build()
); // use direct handoff
// 初始化一个eureka请求传输器
eurekaTransport = new EurekaTransport();
scheduleServerEndpointTask(eurekaTransport, args);
AzToRegionMapper azToRegionMapper;
if (clientConfig.shouldUseDnsForFetchingServiceUrls()) {
azToRegionMapper = new DNSBasedAzToRegionMapper(clientConfig);
} else {
azToRegionMapper = new PropertyBasedAzToRegionMapper(clientConfig);
}
if (null != remoteRegionsToFetch.get()) {
azToRegionMapper.setRegionsToFetch(remoteRegionsToFetch.get().split(","));
}
instanceRegionChecker = new InstanceRegionChecker(azToRegionMapper, clientConfig.getRegion());
} catch (Throwable e) {
throw new RuntimeException("Failed to initialize DiscoveryClient!", e);
}
if (clientConfig.shouldFetchRegistry() && !fetchRegistry(false)) {
fetchRegistryFromBackup();
}
// call and execute the pre registration handler before all background tasks (inc registration) is started
if (this.preRegistrationHandler != null) {
this.preRegistrationHandler.beforeRegistration();
}
// 如果配置需要注册为eureka的服务-并且初始化强制注册，则进行注册。
if (clientConfig.shouldRegisterWithEureka() && clientConfig.shouldEnforceRegistrationAtInit()) {
try {
if (!register() ) {
throw new IllegalStateException("Registration error at startup. Invalid server response.");
}
} catch (Throwable th) {
logger.error("Registration error at startup: {}", th.getMessage());
throw new IllegalStateException(th);
}
}
// 最后，初始化调度任务(例如，集群解析器、心跳、instanceInfo复制器、fetch)
// finally, init the schedule tasks (e.g. cluster resolvers, heartbeat, instanceInfo replicator, fetch
initScheduledTasks();
try {
Monitors.registerObject(this);
} catch (Throwable e) {
logger.warn("Cannot register timers", e);
}
// This is a bit of hack to allow for existing code using DiscoveryManager.getInstance()
// to work with DI'd DiscoveryClient
DiscoveryManager.getInstance().setDiscoveryClient(this);
DiscoveryManager.getInstance().setEurekaClientConfig(config);
initTimestampMs = System.currentTimeMillis();
logger.info("Discovery Client initialized at timestamp {} with initial instances count: {}",
initTimestampMs, this.getApplications().size());
}
/**
* 这里是重点，开始启动定时任务调度器 scheduler
* Initializes all scheduled tasks.
* (例如，集群解析器、心跳、instanceInfo复制器、fetch)
*/
private void initScheduledTasks() {
// 根据客户端配置是否需要获取eureka的服务列表；需要的话就开启注册表缓存刷新
if (clientConfig.shouldFetchRegistry()) {
// registry cache refresh timer
// 注册表缓存刷新定时器
int registryFetchIntervalSeconds = clientConfig.getRegistryFetchIntervalSeconds();
int expBackOffBound = clientConfig.getCacheRefreshExecutorExponentialBackOffBound();
// 注册表缓存刷新任务，超时时间和执行时间30秒
cacheRefreshTask = new TimedSupervisorTask(
"cacheRefresh",
scheduler,
cacheRefreshExecutor,
registryFetchIntervalSeconds,
TimeUnit.SECONDS,
expBackOffBound,
new CacheRefreshThread()
);
// 注册表缓存刷新定时调度；30秒一次
scheduler.schedule(
cacheRefreshTask,
registryFetchIntervalSeconds, TimeUnit.SECONDS);
}
// 根据客户端配置是否需要注册到eureka；需要的话就开启心跳租约
if (clientConfig.shouldRegisterWithEureka()) {
int renewalIntervalInSecs = instanceInfo.getLeaseInfo().getRenewalIntervalInSecs();
int expBackOffBound = clientConfig.getHeartbeatExecutorExponentialBackOffBound();
logger.info("Starting heartbeat executor: " + "renew interval is: {}", renewalIntervalInSecs);
// Heartbeat timer
// 心跳租约定时器，超时时间和执行时间30秒
heartbeatTask = new TimedSupervisorTask(
"heartbeat",
scheduler,
heartbeatExecutor,
renewalIntervalInSecs,
TimeUnit.SECONDS,
expBackOffBound,
new HeartbeatThread()
);
// 心跳租约定时调度，默认每隔30秒执行一次
scheduler.schedule(
heartbeatTask,
renewalIntervalInSecs, TimeUnit.SECONDS);
// InstanceInfo replicator
// InstanceInfo复制，实例信息复制定时器
instanceInfoReplicator = new InstanceInfoReplicator(
this,
instanceInfo,
clientConfig.getInstanceInfoReplicationIntervalSeconds(),
2); // burstSize
// 状态更新监听器
statusChangeListener = new ApplicationInfoManager.StatusChangeListener() {
@Override
public String getId() {
return "statusChangeListener";
}
@Override
public void notify(StatusChangeEvent statusChangeEvent) {
if (InstanceStatus.DOWN == statusChangeEvent.getStatus() ||
InstanceStatus.DOWN == statusChangeEvent.getPreviousStatus()) {
// log at warn level if DOWN was involved
logger.warn("Saw local status change event {}", statusChangeEvent);
} else {
logger.info("Saw local status change event {}", statusChangeEvent);
}
instanceInfoReplicator.onDemandUpdate();
}
};
// 注意这里是开启了在需要的时候更新状态变化的开关才会添加监听器，此处当开关开启时，当状态发生变化，会立即收到通知，即调用onDemandUpdate方法
if (clientConfig.shouldOnDemandUpdateStatusChange()) {
applicationInfoManager.registerStatusChangeListener(statusChangeListener);
}
// 启动周期性实例信息复制到远程定时器，默认延迟40秒执行
instanceInfoReplicator.start(clientConfig.getInitialInstanceInfoReplicationIntervalSeconds());
} else {
logger.info("Not registering with Eureka server per configuration");
}
}
// 取消调度和任务
private void cancelScheduledTasks() {
if (instanceInfoReplicator != null) {
instanceInfoReplicator.stop();
}
if (heartbeatExecutor != null) {
heartbeatExecutor.shutdownNow();
}
if (cacheRefreshExecutor != null) {
cacheRefreshExecutor.shutdownNow();
}
if (scheduler != null) {
scheduler.shutdownNow();
}
if (cacheRefreshTask != null) {
cacheRefreshTask.cancel();
}
if (heartbeatTask != null) {
heartbeatTask.cancel();
}
}
/**
* Register with the eureka service by making the appropriate REST call.
* 通过发出适当的REST调用向eureka服务注册。
*/
boolean register() throws Throwable {
logger.info(PREFIX + "{}: registering service...", appPathIdentifier);
EurekaHttpResponse<Void> httpResponse;
try {
httpResponse = eurekaTransport.registrationClient.register(instanceInfo);
} catch (Exception e) {
logger.warn(PREFIX + "{} - registration failed {}", appPathIdentifier, e.getMessage(), e);
throw e;
}
if (logger.isInfoEnabled()) {
logger.info(PREFIX + "{} - registration status: {}", appPathIdentifier, httpResponse.getStatusCode());
}
return httpResponse.getStatusCode() == Status.NO_CONTENT.getStatusCode();
}
#### 服务通过心跳续约部分
```java
/**
* The heartbeat task that renews the lease in the given intervals.
*/
private class HeartbeatThread implements Runnable {
public void run() {
// 心跳租约续期
if (renew()) {
// 如果心跳正常，更新发起上次心跳的时间戳为当前时间
lastSuccessfulHeartbeatTimestamp = System.currentTimeMillis();
}
}
}
/**
* 通过发出适当的REST调用来更新eureka服务
* Renew with the eureka service by making the appropriate REST call
*/
boolean renew() {
EurekaHttpResponse<InstanceInfo> httpResponse;
try {
// 客户端请求eureka服务器，维持客户端与eureka服务器的心跳
httpResponse = eurekaTransport.registrationClient.sendHeartBeat(instanceInfo.getAppName(), instanceInfo.getId(), instanceInfo, null);
logger.debug(PREFIX + "{} - Heartbeat status: {}", appPathIdentifier, httpResponse.getStatusCode());
if (httpResponse.getStatusCode() == Status.NOT_FOUND.getStatusCode()) {
// 如果eureka服务器未发现当前客户端，则进行注册
REREGISTER_COUNTER.increment();
logger.info(PREFIX + "{} - Re-registering apps/{}", appPathIdentifier, instanceInfo.getAppName());
long timestamp = instanceInfo.setIsDirtyWithTime();
// 客户端发起注册eureka
boolean success = register();
if (success) {
instanceInfo.unsetIsDirty(timestamp);
}
return success;
}
return httpResponse.getStatusCode() == Status.OK.getStatusCode();
} catch (Throwable e) {
logger.error(PREFIX + "{} - was unable to send heartbeat!", appPathIdentifier, e);
return false;
}
}
服务通过心跳健康检查+剔除部分(eureka server)
@Path("batch")
@POST
public Response batchReplication(ReplicationList replicationList) {
try {
ReplicationListResponse batchResponse = new ReplicationListResponse();
for (ReplicationInstance instanceInfo : replicationList.getReplicationList()) {
try {
batchResponse.addResponse(dispatch(instanceInfo));
} catch (Exception e) {
batchResponse.addResponse(new ReplicationInstanceResponse(Status.INTERNAL_SERVER_ERROR.getStatusCode(), null));
logger.error("{} request processing failed for batch item {}/{}",
instanceInfo.getAction(), instanceInfo.getAppName(), instanceInfo.getId(), e);
}
}
return Response.ok(batchResponse).build();
} catch (Throwable e) {
logger.error("Cannot execute batch Request", e);
return Response.status(Status.INTERNAL_SERVER_ERROR).build();
}
}
private ReplicationInstanceResponse dispatch(ReplicationInstance instanceInfo) {
ApplicationResource applicationResource = createApplicationResource(instanceInfo);
InstanceResource resource = createInstanceResource(instanceInfo, applicationResource);
String lastDirtyTimestamp = toString(instanceInfo.getLastDirtyTimestamp());
String overriddenStatus = toString(instanceInfo.getOverriddenStatus());
String instanceStatus = toString(instanceInfo.getStatus());
Builder singleResponseBuilder = new Builder();
switch (instanceInfo.getAction()) {
case Register:
singleResponseBuilder = handleRegister(instanceInfo, applicationResource);
break;
case Heartbeat:
singleResponseBuilder = handleHeartbeat(serverConfig, resource, lastDirtyTimestamp, overriddenStatus, instanceStatus);
break;
case Cancel:
singleResponseBuilder = handleCancel(resource);
break;
case StatusUpdate:
singleResponseBuilder = handleStatusUpdate(instanceInfo, resource);
break;
case DeleteStatusOverride:
singleResponseBuilder = handleDeleteStatusOverride(instanceInfo, resource);
break;
}
return singleResponseBuilder.build();
}
刷新readOnlyMap缓存
com.netflix.eureka.registry.ResponseCacheImpl
// 刷新readOnlyMap缓存
ResponseCacheImpl(EurekaServerConfig serverConfig, ServerCodecs serverCodecs, AbstractInstanceRegistry registry) {
this.serverConfig = serverConfig;
this.serverCodecs = serverCodecs;
this.shouldUseReadOnlyResponseCache = serverConfig.shouldUseReadOnlyResponseCache();
this.registry = registry;
long responseCacheUpdateIntervalMs = serverConfig.getResponseCacheUpdateIntervalMs();
this.readWriteCacheMap =
CacheBuilder.newBuilder().initialCapacity(serverConfig.getInitialCapacityOfResponseCache())
.expireAfterWrite(serverConfig.getResponseCacheAutoExpirationInSeconds(), TimeUnit.SECONDS)
.removalListener(new RemovalListener<Key, Value>() {
@Override
public void onRemoval(RemovalNotification<Key, Value> notification) {
Key removedKey = notification.getKey();
if (removedKey.hasRegions()) {
Key cloneWithNoRegions = removedKey.cloneWithoutRegions();
regionSpecificKeys.remove(cloneWithNoRegions, removedKey);
}
}
})
.build(new CacheLoader<Key, Value>() {
@Override
public Value load(Key key) throws Exception {
if (key.hasRegions()) {
Key cloneWithNoRegions = key.cloneWithoutRegions();
regionSpecificKeys.put(cloneWithNoRegions, key);
}
Value value = generatePayload(key);
return value;
}
});
if (shouldUseReadOnlyResponseCache) {
timer.schedule(getCacheUpdateTask(),
new Date(((System.currentTimeMillis() / responseCacheUpdateIntervalMs) * responseCacheUpdateIntervalMs)
+ responseCacheUpdateIntervalMs),
responseCacheUpdateIntervalMs);
}
try {
Monitors.registerObject(this);
} catch (Throwable e) {
logger.warn("Cannot register the JMX monitor for the InstanceRegistry", e);
}
}
private TimerTask getCacheUpdateTask() {
return new TimerTask() {
@Override
public void run() {
logger.debug("Updating the client cache from response cache");
// 循环处理每个只读的缓存
for (Key key : readOnlyCacheMap.keySet()) {
if (logger.isDebugEnabled()) {
logger.debug("Updating the client cache from response cache for key : {} {} {} {}",
key.getEntityType(), key.getName(), key.getVersion(), key.getType());
}
try {
CurrentRequestVersion.set(key.getVersion());
Value cacheValue = readWriteCacheMap.get(key);
Value currentCacheValue = readOnlyCacheMap.get(key);
// value不等，
if (cacheValue != currentCacheValue) {
readOnlyCacheMap.put(key, cacheValue);
}
} catch (Throwable th) {
logger.error("Error while updating the client cache from response cache for key {}", key.toStringCompact(), th);
} finally {
CurrentRequestVersion.remove();
}
}
}
};
}
欢迎各位留言交流，如有不正确的地方，请予以指正。
623
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
