1.通过源码分析SpringBoot的启动流程.首先找到启动程序的入口,从run方法点进去.
@SpringBootApplication
public class OrderApplication extends SpringBootServletInitializer {
public static void main(String[] args) {
SpringApplication.run(OrderApplication.class);
}
/**
* 定义tomcat需要
*/
@Override
protected SpringApplicationBuilder configure(SpringApplicationBuilder builder) {
// 注意这里要指向原先用main方法执行的Application启动类
return builder.sources(OrderApplication.class);
}
}
2.首先创建一个SpringApplication对象通过initialize(sources);方法进行初始化,sources是我们传入的主配置类.
public static ConfigurableApplicationContext run(Class<?> primarySource, String... args) { return run(new Class[]{primarySource}, args); }
public static ConfigurableApplicationContext run(Class<?>[] primarySources, String[] args) { return (new SpringApplication(primarySources)).run(args); }
3.下面先看创建的SpringApplication对象
public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {
this.sources = new LinkedHashSet();
this.bannerMode = Mode.CONSOLE;
this.logStartupInfo = true;
this.addCommandLineProperties = true;
this.addConversionService = true;
this.headless = true;
this.registerShutdownHook = true;
this.additionalProfiles = new HashSet();
this.isCustomEnvironment = false;
this.lazyInitialization = false;
this.resourceLoader = resourceLoader;
Assert.notNull(primarySources, "PrimarySources must not be null");
this.primarySources = new LinkedHashSet(Arrays.asList(primarySources));
this.webApplicationType = WebApplicationType.deduceFromClasspath();
this.setInitializers(this.getSpringFactoriesInstances(ApplicationContextInitializer.class));
this.setListeners(this.getSpringFactoriesInstances(ApplicationListener.class));
this.mainApplicationClass = this.deduceMainApplicationClass();
}

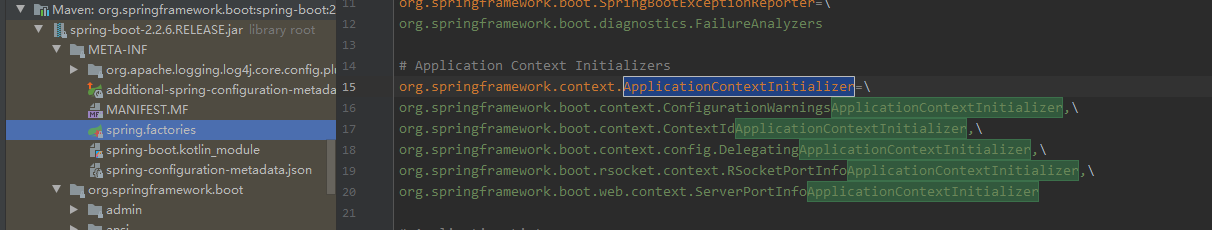

4.setInitializers 方法就是加载spring.factorys配置文件,获取里面的 ApplicationContextInitializer 找到这样的类进行初始化

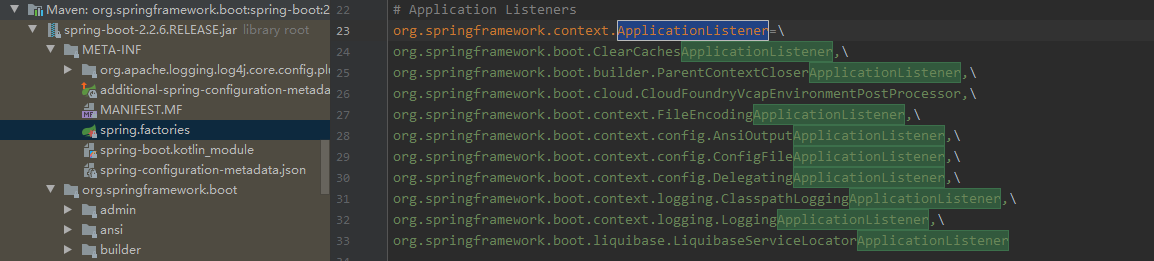

5. setListeners(this.getSpringFactoriesInstances(ApplicationListener.class));
6 .SpringApplication对象创建完以后,直接调用了run方法
public ConfigurableApplicationContext run(String... args) { StopWatch stopWatch = new StopWatch(); stopWatch.start(); ConfigurableApplicationContext context = null; Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList(); this.configureHeadlessProperty(); SpringApplicationRunListeners listeners = this.getRunListeners(args); listeners.starting(); Collection exceptionReporters; try { ApplicationArguments applicationArguments = new DefaultApplicationArguments(args); ConfigurableEnvironment environment = this.prepareEnvironment(listeners, applicationArguments); this.configureIgnoreBeanInfo(environment); Banner printedBanner = this.printBanner(environment); context = this.createApplicationContext(); exceptionReporters = this.getSpringFactoriesInstances(SpringBootExceptionReporter.class, new Class[]{ConfigurableApplicationContext.class}, context); this.prepareContext(context, environment, listeners, applicationArguments, printedBanner); this.refreshContext(context); this.afterRefresh(context, applicationArguments); stopWatch.stop(); if (this.logStartupInfo) { (new StartupInfoLogger(this.mainApplicationClass)).logStarted(this.getApplicationLog(), stopWatch); } listeners.started(context); this.callRunners(context, applicationArguments); } catch (Throwable var10) { this.handleRunFailure(context, var10, exceptionReporters, listeners); throw new IllegalStateException(var10); } try { listeners.running(context); return context; } catch (Throwable var9) { this.handleRunFailure(context, var9, exceptionReporters, (SpringApplicationRunListeners)null); throw new IllegalStateException(var9); } }
7.解析上面的run方法, StopWatch stopWatch = new StopWatch();
StopWatch stopWatch =new StopWatch();开启一个定时器,然后启动定时器,configureHeadlessProperty();这句的意思是开启java.awt.headless./关于这个模式,自行百度一下就可以清楚非常简单.紧接着获取监听器,启动监听器然后获得一个上下文参数,紧接着准备环境,点进去.
