基于BiLSTM+CRF的中文分词(CWS)（附代码以及注释）

本人菜鸟，很多地方都是看其他的博客学到的，自己也说不清楚，就贴出来供大家学习，写的不好大家包涵！

之前做过HMM进行中文分词，这次使用BiLSTM加CRF(条件随机场)进行中文分词。

HMM中文分词：https://blog.csdn.net/Yang_137476932/article/details/105467673

本文代码github地址：https://github.com/WhiteGive-Boy/CWS-Hmm_BiLSTM-CRF

biLSTM，指的是双向LSTM；CRF指的是条件随机场。这俩算法在CWS，NER等自然语言处理的领域都表现的不错，CRF貌似很多时候都用来处理这类词性标注的问题。

1.模型简略介绍

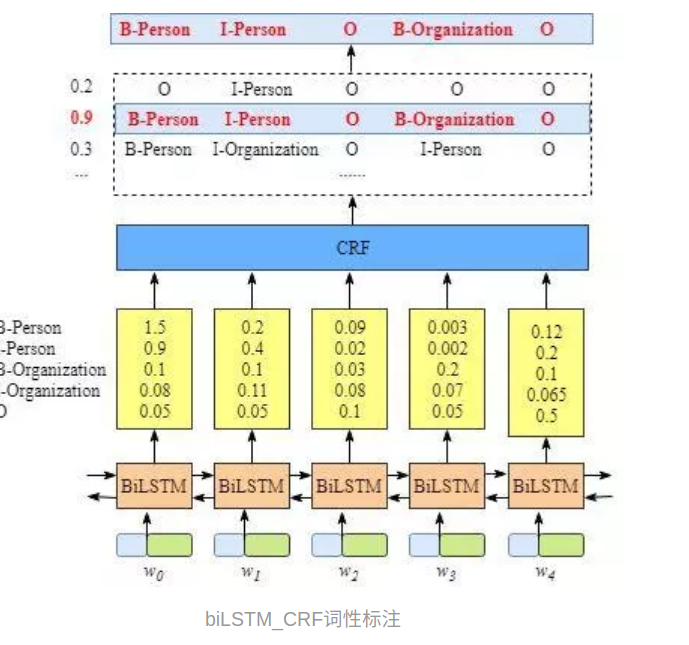

这张图很多写lstm+crf进行词性标注的地方都有，简略的分析下

输入序列{w0,w1,w2,w3,.... }  具体到中文分词来说  Wi为单个汉字的word_embedding，我们输入的序列是一个句子一个sentence的向量表示，所以真正的模型应该在输入前再价格Embedding层。将我们的word序列输入到双向LSTM中，得到每个word对于每个tag状态的概率，之后将这个得到的概率输入到CRF，结合另一个需要训练的各个状态间的转移参数，计算每个句子的score，score也即模型需要训练的loss，score的计算方式是我们训练的状态序列的score除所有可能路径的score和，即让我们的正确的状态序列的score占的比重最大，这里结合了各个状态间的转移矩阵以及所有路径的score和，让我们正确路径的比重最大，这可能是CRF让很多模型效果更优的原因。

这里可以参考这个博文，大佬讲的很细致，这里一定要弄懂，不然看不懂代码https://blog.csdn.net/b285795298/article/details/100764066

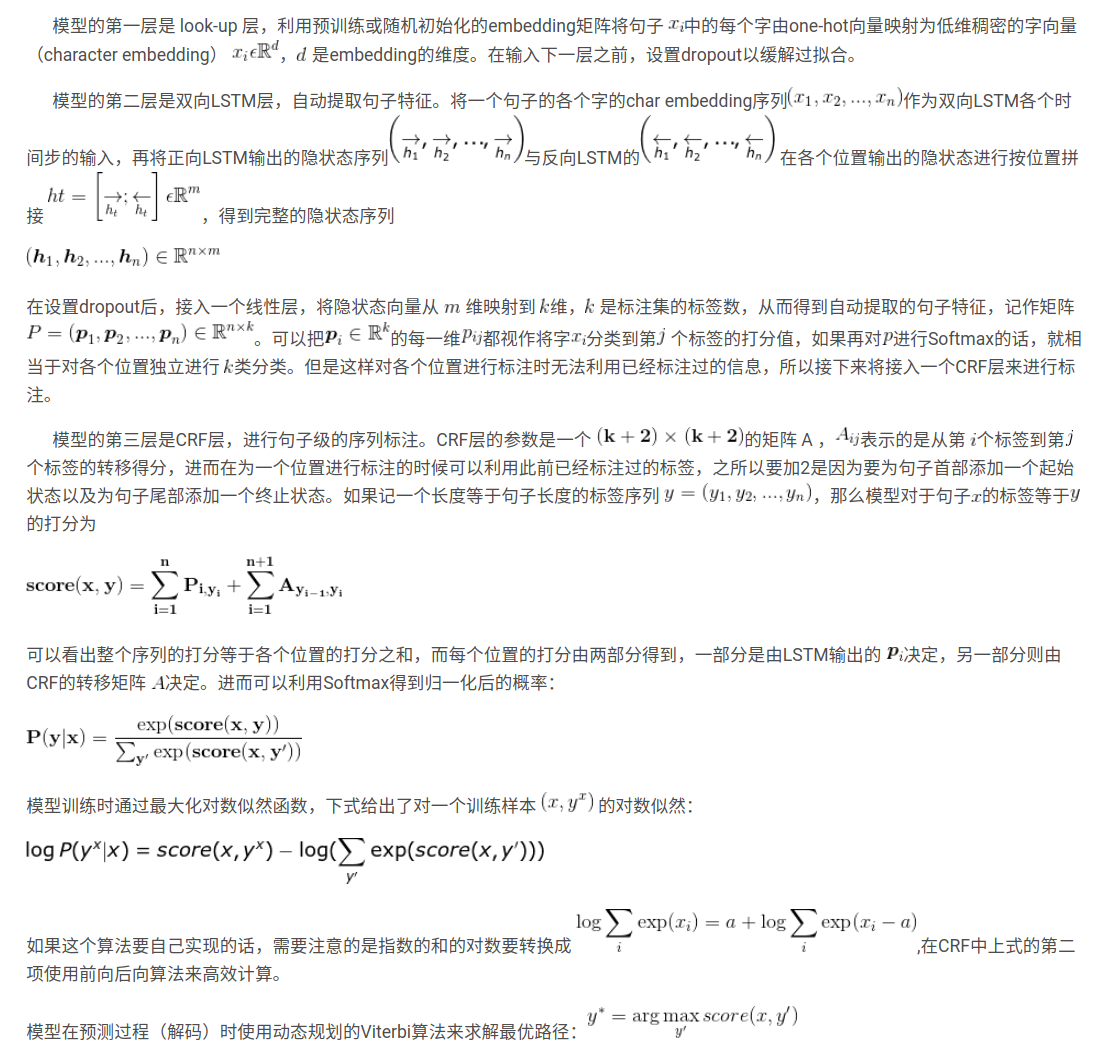

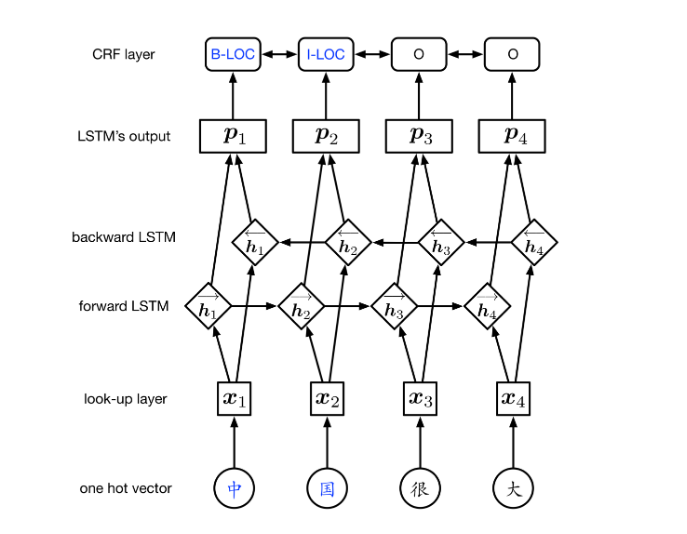

上面博文的贴图：

2.具体实现

2.1数据处理

import codecs
from sklearn.model_selection import train_test_split#进行训练集和测试集划分
import pickle#进行参数保存


INPUT_DATA = "./RenMinData.txt_utf8"#数据集
SAVE_PATH="./datasave.pkl"#保存路径
id2tag = ['B','M','E','S'] #B：分词头部 M：分词词中 E：分词词尾 S：独立成词 id与状态值
tag2id={'B':0,'M':1,'E':2,'S':3}#状态值对应的id
word2id={}#每个汉字对应的id
id2word=[]#每个id对应的汉字

def getList(input_str):
    '''
    单个分词转换为tag序列
    :param input_str: 单个分词
    :return: tag序列
    '''
    outpout_str = []
    if len(input_str) == 1: #长度为1 单个字分词
        outpout_str.append(tag2id['S'])
    elif len(input_str) == 2:#长度为2 两个字分词，BE
        outpout_str = [tag2id['B'],tag2id['E']]
    else:#长度>=3 多个字分词 中间加length-2个M 首尾+BE
        M_num = len(input_str) -2
        M_list = [tag2id['M']] * M_num
        outpout_str.append(tag2id['B'])
        outpout_str.extend(M_list)
        outpout_str.append(tag2id['E'])
    return outpout_str


def handle_data():
    '''
    处理数据，并保存至savepath
    :return:
    '''
    x_data=[] #观测值序列集合
    y_data=[]#状态值序列集合
    wordnum=0
    line_num=0
    with open(INPUT_DATA,'r',encoding="utf-8") as ifp:
        for line in ifp:#对每一个sentence
            line_num =line_num+1
            line = line.strip()
            if not line:continue
            line_x = []
            for i in range(len(line)):
                if line[i] == " ":continue
                if(line[i] in id2word): #word与id对应进行记录
                    line_x.append(word2id[line[i]])
                else:
                    id2word.append(line[i])
                    word2id[line[i]]=wordnum
                    line_x.append(wordnum)
                    wordnum=wordnum+1
            x_data.append(line_x)

            lineArr = line.split(" ")
            line_y = []
            for item in lineArr:#对每一个分词进行状态值转换
                line_y.extend(getList(item))
            y_data.append(line_y)

    print(x_data[0])
    print([id2word[i] for i in x_data[0]])
    print(y_data[0])
    print([id2tag[i] for i in y_data[0]])
    x_train, x_test, y_train, y_test = train_test_split(x_data, y_data, test_size=0.2, random_state=43) #分为训练集和测试集
    with open(SAVE_PATH, 'wb') as outp: #保存
        pickle.dump(word2id, outp)
        pickle.dump(id2word, outp)
        pickle.dump(tag2id, outp)
        pickle.dump(id2tag, outp)
        pickle.dump(x_train, outp)
        pickle.dump(y_train, outp)
        pickle.dump(x_test, outp)
        pickle.dump(y_test, outp)

if __name__ == "__main__":
    handle_data()



2.2 模型实现

import torch
import torch.autograd as autograd
import torch.nn as nn
import torch.optim as optim

torch.manual_seed(1)
START_TAG = "<START>" #为每个句子添加开始和结束的tag
STOP_TAG = "<STOP>"
def argmax(vec):
    '''
    计算一维vec最大值的坐标
    '''
    # return the argmax as a python int
    _, idx = torch.max(vec, 1)
    return idx.item()


def log_sum_exp(vec):
    '''
    计算vec的 log(sum(exp(xi)))=a+log(sum(exp(xi-a)))
    '''
    max_score = vec[0, argmax(vec)]
    max_score_broadcast = max_score.view(1, -1).expand(1, vec.size()[1])
    return max_score + \
        torch.log(torch.sum(torch.exp(vec - max_score_broadcast)))

class Model(nn.Module):

    def __init__(self, vocab_size, tag2id, embedding_dim, hidden_dim):
        super(Model, self).__init__()
        self.embedding_dim = embedding_dim
        self.hidden_dim = hidden_dim
        self.vocab_size = vocab_size
        self.tag2id = tag2id
        self.tagset_size = len(tag2id)

        self.word_embeds = nn.Embedding(vocab_size, embedding_dim) #embedding层 将word映射为向量
        self.lstm = nn.LSTM(embedding_dim, hidden_dim // 2,
                            num_layers=1, bidirectional=True) #LSTM层,输入一个word序列（一个句子），输出hidden层

        # Maps the output of the LSTM into tag space.
        self.hidden2tag = nn.Linear(hidden_dim, self.tagset_size) #线性转换层，将LSTM的输出结果映射为每个word针对各个状态的概率

        # Matrix of transition parameters.  Entry i,j is the score of
        # transitioning *to* i *from* j = trans[i][j] 表示从j转移至i 注意 是颠倒的
        self.transitions = nn.Parameter(
            torch.randn(self.tagset_size, self.tagset_size))  #状态转移矩阵

        # These two statements enforce the constraint that we never transfer
        # to the start tag and we never transfer from the stop tag
        self.transitions.data[tag2id[START_TAG], :] = -10000 #限制状态转移矩阵的部分值，限制任意状态不能转移至开始状态
        self.transitions.data[:, tag2id[STOP_TAG]] = -10000#限制状态转移矩阵的部分值，限制结束状态不能转移至任意状态

        self.hidden = self.init_hidden()#初始化LSTM的hidden

    def init_hidden(self):
        return (torch.randn(2, 1, self.hidden_dim // 2),
                torch.randn(2, 1, self.hidden_dim // 2))

    def _forward_alg(self, feats):
        '''
        计算所有可能的状态路径的score和
        :param feats: LSTM+hidden2tag的输出
        :return: 所有tag路径的score和
        forward_var：之前词的score和
        '''
        # Do the forward algorithm to compute the partition function
        init_alphas = torch.full((1, self.tagset_size), -10000.)
        # START_TAG has all of the score.
        init_alphas[0][self.tag2id[START_TAG]] = 0. #

        # Wrap in a variable so that we will get automatic backprop
        forward_var = init_alphas

        # Iterate through the sentence
        for feat in feats:   #every word
            alphas_t = []  # The forward tensors at this timestep
            for next_tag in range(self.tagset_size): #every word's tag
                # broadcast the emission score: it is the same regardless of
                # the previous tag
                emit_score = feat[next_tag].view(
                    1, -1).expand(1, self.tagset_size)
                # the ith entry of trans_score is the score of transitioning to
                # next_tag from i
                trans_score = self.transitions[next_tag].view(1, -1)
                # The ith entry of next_tag_var is the value for the
                # edge (i -> next_tag) before we do log-sum-exp
                next_tag_var = forward_var + trans_score + emit_score
                # The forward variable for this tag is log-sum-exp of all the
                # scores.
                alphas_t.append(log_sum_exp(next_tag_var).view(1))
            forward_var = torch.cat(alphas_t).view(1, -1)
        terminal_var = forward_var + self.transitions[self.tag2id[STOP_TAG]]
        alpha = log_sum_exp(terminal_var)
        return alpha

    def _get_lstm_features(self, sentence):
        self.hidden = self.init_hidden()
        embeds = self.word_embeds(sentence).view(len(sentence), 1, -1)
        lstm_out, self.hidden = self.lstm(embeds, self.hidden)
        lstm_out = lstm_out.view(len(sentence), self.hidden_dim)
        lstm_feats = self.hidden2tag(lstm_out)
        return lstm_feats

    def _score_sentence(self, feats, tags):
        # Gives the score of a provided tag sequence 当前句子的tag路径score
        score = torch.zeros(1)
        tags = torch.cat([torch.tensor([self.tag2id[START_TAG]], dtype=torch.long), tags])
        for i, feat in enumerate(feats):
            score = score + \
                self.transitions[tags[i + 1], tags[i]] + feat[tags[i + 1]]
        score = score + self.transitions[self.tag2id[STOP_TAG], tags[-1]]
        return score

    def _viterbi_decode(self, feats):
        backpointers = [] #路径保存

        # Initialize the viterbi variables in log space
        init_vvars = torch.full((1, self.tagset_size), -10000.)
        init_vvars[0][self.tag2id[START_TAG]] = 0

        # forward_var at step i holds the viterbi variables for step i-1
        forward_var = init_vvars
        for feat in feats: # for every word
            bptrs_t = []  # holds the backpointers for this step
            viterbivars_t = []  # holds the viterbi variables for this step

            for next_tag in range(self.tagset_size): #for every possible tag of the word
                # next_tag_var[i] holds the viterbi variable for tag i at the
                # previous step, plus the score of transitioning
                # from tag i to next_tag.
                # We don't include the emission scores here because the max
                # does not depend on them (we add them in below)
                next_tag_var = forward_var + self.transitions[next_tag]
                best_tag_id = argmax(next_tag_var)
                bptrs_t.append(best_tag_id)
                viterbivars_t.append(next_tag_var[0][best_tag_id].view(1))
            # Now add in the emission scores, and assign forward_var to the set
            # of viterbi variables we just computed
            forward_var = (torch.cat(viterbivars_t) + feat).view(1, -1)
            backpointers.append(bptrs_t)

        # Transition to STOP_TAG
        terminal_var = forward_var + self.transitions[self.tag2id[STOP_TAG]]
        best_tag_id = argmax(terminal_var)
        path_score = terminal_var[0][best_tag_id]

        # Follow the back pointers to decode the best path.
        best_path = [best_tag_id]
        for bptrs_t in reversed(backpointers):
            best_tag_id = bptrs_t[best_tag_id]
            best_path.append(best_tag_id)
        # Pop off the start tag (we dont want to return that to the caller)
        start = best_path.pop()
        assert start == self.tag2id[START_TAG]  # Sanity check
        best_path.reverse()
        return path_score, best_path

    def forward(self, sentence, tags):
        feats = self._get_lstm_features(sentence)
        forward_score = self._forward_alg(feats)
        gold_score = self._score_sentence(feats, tags)
        return forward_score - gold_score

    def test(self, sentence):  # dont confuse this with _forward_alg above.
        # Get the emission scores from the BiLSTM
        lstm_feats = self._get_lstm_features(sentence)

        # Find the best path, given the features.
        score, tag_seq = self._viterbi_decode(lstm_feats)
        return score, tag_seq

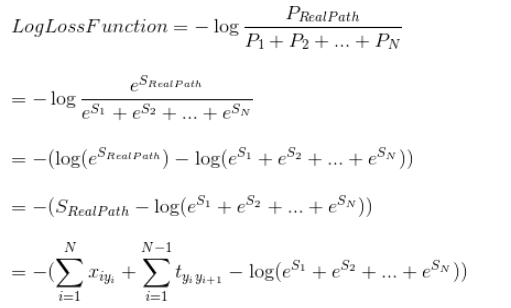

_forward_alg函数计算上式的最后一项，计算过程：我们先对输入的句子每个字进行循环，对每个字的每个tag都计算score并存储，forward_var存储当前词之前的所有词的score，具体的大家看不懂了可以问我，这里可以仔细阅读https://blog.csdn.net/b285795298/article/details/100764066的CRF loss function部分，结合代码就好理解些。

2.3 测试

import  pickle
import torch
import torch.autograd as autograd
import torch.nn as nn
import torch.optim as optim
import codecs
from model import Model

def calculate(x,y,id2word,id2tag,res=[]):
    entity=[]
    for j in range(len(x)):
        if id2tag[y[j]]=='B':
            entity=[id2word[x[j]]]
        elif id2tag[y[j]]=='M' and len(entity)!=0:
            entity.append(id2word[x[j]])
        elif id2tag[y[j]]=='E' and len(entity)!=0:
            entity.append(id2word[x[j]])
            res.append(entity)
            entity=[]
        elif id2tag[y[j]]=='S':
            entity=[id2word[x[j]]]
            res.append(entity)
            entity=[]
        else:
            entity=[]
    return res


with open('../data/datasave.pkl', 'rb') as inp:
    word2id = pickle.load(inp)
    id2word = pickle.load(inp)
    tag2id = pickle.load(inp)
    id2tag = pickle.load(inp)
    x_train = pickle.load(inp)
    y_train = pickle.load(inp)
    x_test = pickle.load(inp)
    y_test = pickle.load(inp)
START_TAG = "<START>"
STOP_TAG = "<STOP>"
EMBEDDING_DIM = 100
HIDDEN_DIM = 200
EPOCHS = 5
LR=0.005
tag2id[START_TAG]=len(tag2id)
tag2id[STOP_TAG]=len(tag2id)

model = Model(len(word2id) + 1, tag2id, EMBEDDING_DIM, HIDDEN_DIM)

optimizer = optim.SGD(model.parameters(), lr=LR, weight_decay=1e-4)



for epoch in range(EPOCHS):
    index = 0
    for sentence, tags in zip(x_train, y_train):
        index += 1
        model.zero_grad()

        sentence = torch.tensor(sentence, dtype=torch.long)
        tags = torch.tensor(tags, dtype=torch.long)

        loss = model(sentence, tags)

        loss.backward()
        optimizer.step()
        if index % 10000 == 0:
            print("epoch", epoch, "index", index)
    entityres = []
    entityall = []
    for sentence, tags in zip(x_test, y_test):
        sentence = torch.tensor(sentence, dtype=torch.long)
        score, predict = model.test(sentence)
        entityres = calculate(sentence, predict, id2word, id2tag, entityres)
        entityall = calculate(sentence, tags, id2word, id2tag, entityall)

    rightpre = [i for i in entityres if i in entityall]
    if len(rightpre) != 0:
        precision = float(len(rightpre)) / len(entityres)
        recall = float(len(rightpre)) / len(entityall)
        print("precision: ", precision)
        print("recall: ", recall)
        print("fscore: ", (2 * precision * recall) / (precision + recall))
    else:
        print("precision: ", 0)
        print("recall: ", 0)
        print("fscore: ", 0)

    path_name = "./model/model" + str(epoch) + ".pkl"
    torch.save(model, path_name)
    print("model has been saved in  ", path_name)

使用fscore进行模型的评价，包含precision和recall 准确率和召回率，结果如下

BiLSTM+CRF
参数选择：embedding_dim=100 hidden_dim=200 epoch=1 lr=0.005
precision:0.96975528
recall:   0.96779571
fscore:   0.96877451
