ESPIDF解决：HTTP_CLIENT: Failed to post http_client event: 1, error: ESP_ERR_TIMEOUT

原创 已于 2025-07-20 15:51:31 修改 · 356 阅读 · 0 ·
CC 4.0 BY-SA版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
文章标签：

#http #网络协议 #网络

于 2025-07-20 15:45:03 首次发布

提高系统事件循环任务优先级（关键！）
xTaskCreate() 或 xTaskCreatePinnedToCore() 确实会设定任务的优先级。但是，不同于系统设置的“系统事件循环任务优先级”，如果网络请求非常卡顿，需要修改系统配置

虽然它的名字是“队列大小”，听起来只是缓冲，但这个队列与我们之前讨论的系统事件循环任务是紧密相关的。

当 ESP32 的网络硬件或协议栈（例如 Wi-Fi 芯片、TCP/IP 堆栈）接收到数据或状态变化时（比如数据包来了，或者 Wi-Fi 连接成功了），它们会生成事件并尝试将这些事件发送到这个“系统事件队列”中。而那个“系统事件循环任务”则会不断地从这个队列中取出事件并进行处理。

您之前遇到的错误 Failed to post http_client event: X, error: ESP_ERR_TIMEOUT，很可能就是因为：

  1. 事件队列太小： 当网络事件突发增多时，队列很快就满了。

  2. 系统事件循环任务优先级太低： 任务被其他高优先级任务抢占，无法及时从队列中取出并处理事件，导致队列堆积。

当队列满了，新的事件就无法放入，并且在尝试放入时会超时，从而向上层（比如 esp_http_client）报告错误。

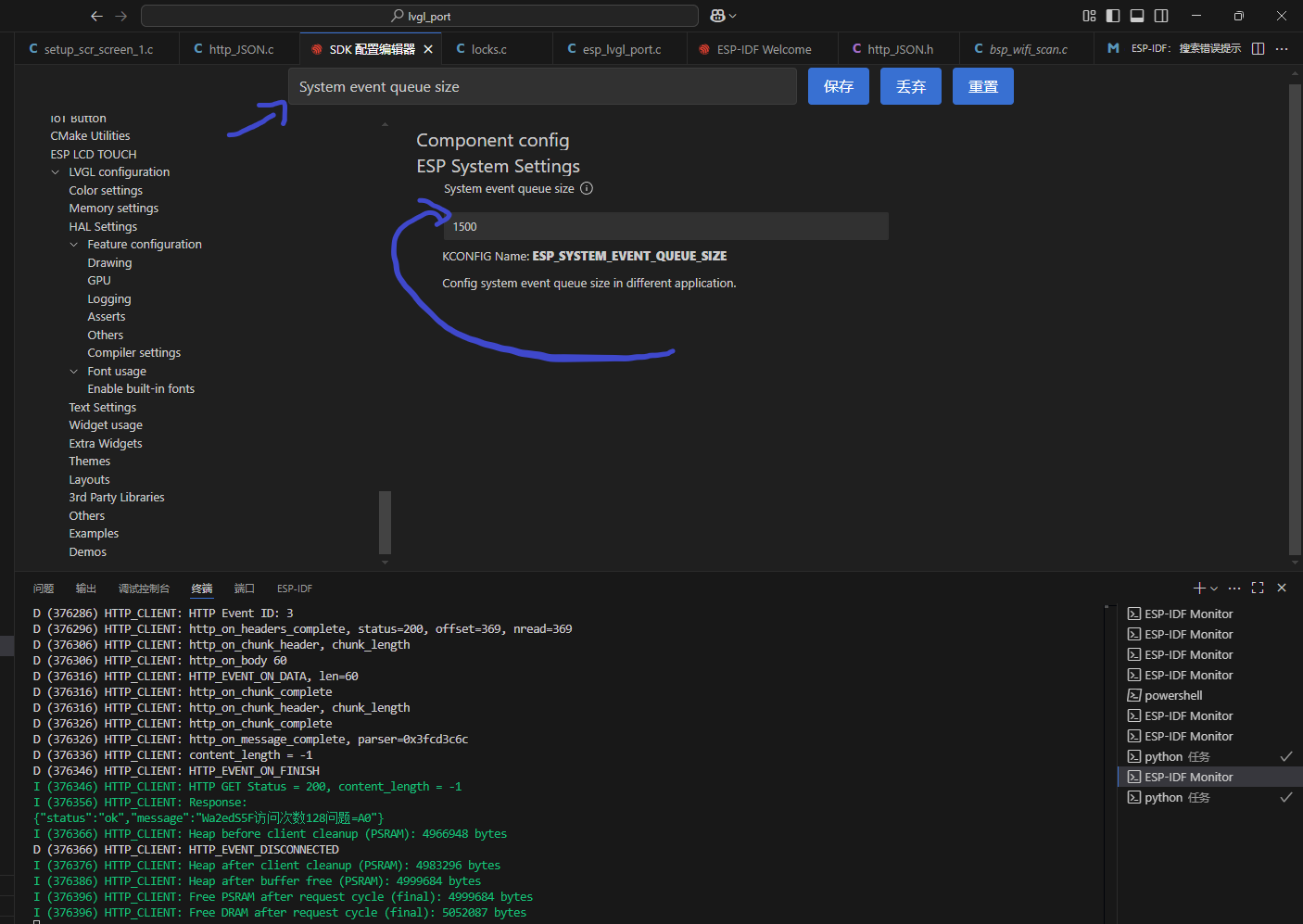

event是循环队列大小，esp32访问网络时候,这个配置需要增大，不然就会响应超时
