一、前言
winsocpe对于一些dump的分析还是很有用的，但是Lienageos编译之后的winscope用不了，很坑。记录一下使用的时候遇到的问题。
首先我们进入lineageos/development/tools/winscope/ 目录下,默认已经安装好了nodejs环境。
1.nodejs版本问题
编译命令
npm install
这里需要开vpn或者切换一下源，不然可能失败。
然后直接提示require xxx version什么的，我们需要更新一下nodejs版本，我这里提示需要16.10.0
#升级
n v16.10.0
#切换
n 16.10.0
#查看版本
node -v
接下来执行
npm run build:prod
2.编译问题
我这里可能vpn还是不太好，执行了好几次才下载完成，然后提示一个jzip报错，安装一下
npm install jszip --save
最后编译成功
启动
npm run start
3.dump命令问题
Lineageos没有su命令了，winscope提供的python脚本有非常多的adb shell su root，我们需要把这个su root全部移除。然后之前还需要执行一下。
adb root;adb remount;
中间还碰到几个删除文件的报错，这个如果遇到了就直接区那个文件夹目录下新建一个文件就行了。
最后我们执行
python3 ***/lineageos/development/tools/winscope/src/adb/winscope_proxy.py

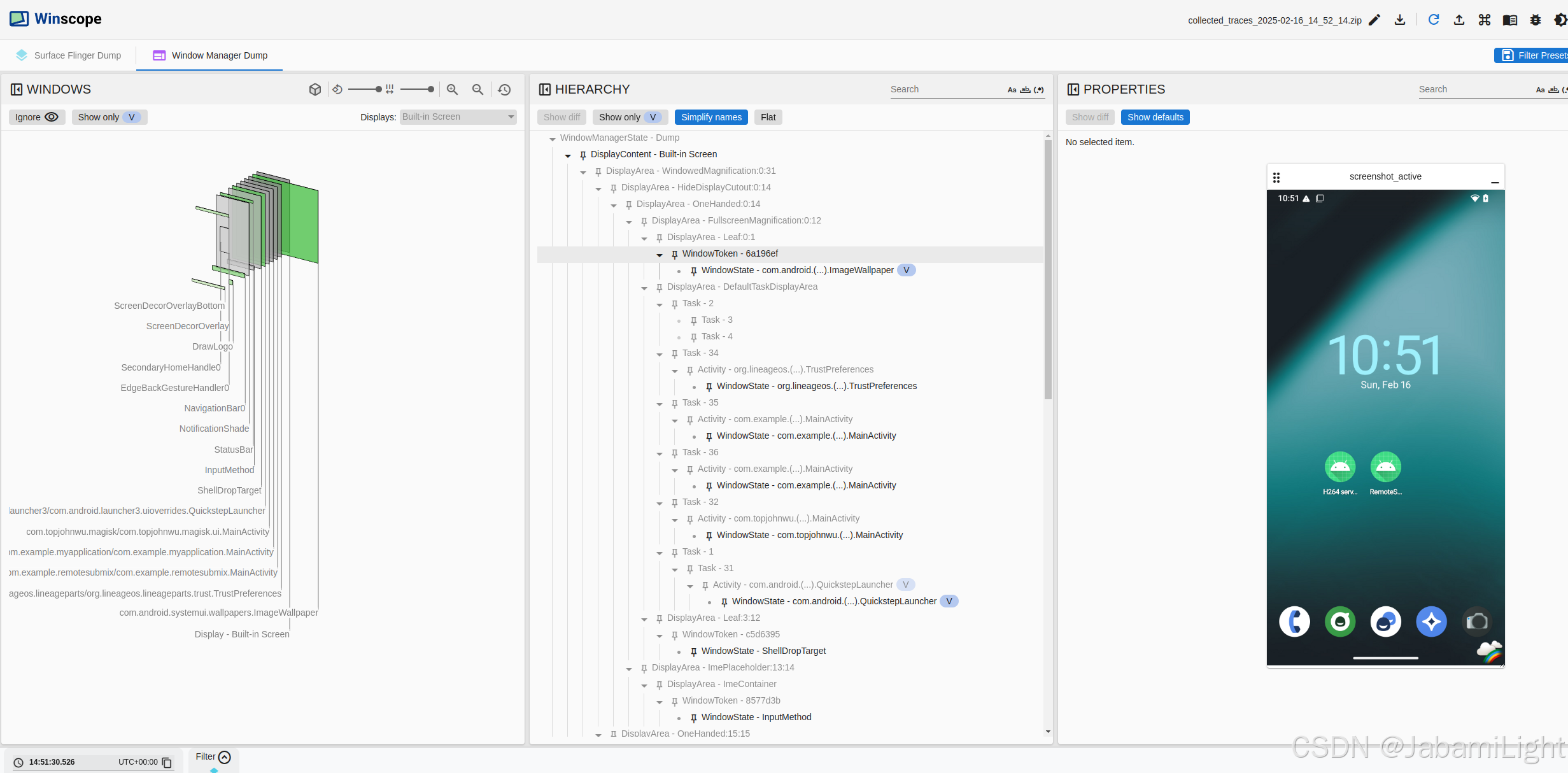

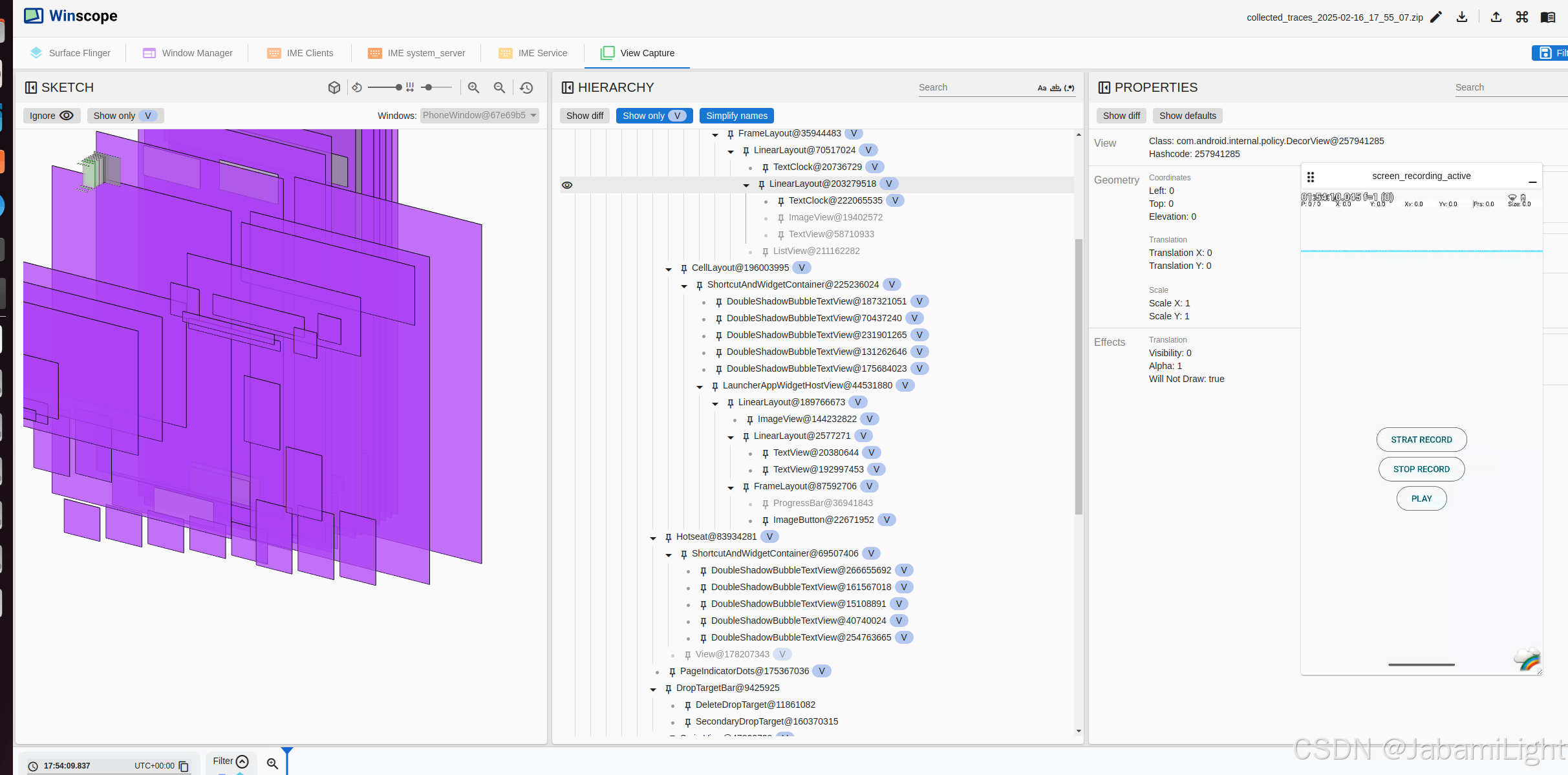

然后dump一下就可以看到了
我贴一下我这里调整的py，大家可以按需修改，我只是简单改了一下，surfaceflinger和windowmanager能用，但是其他的感觉有点问题，各种出异常，先这样用这吧。
#!/usr/bin/python3
# Copyright (C) 2019 The Android Open Source Project
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#
# This is an ADB proxy for Winscope.
#
# Requirements: python3.10 and ADB installed and in system PATH.
#
# Usage:
# run: python3 winscope_proxy.py
#
import argparse
import base64
import gzip
import json
import logging
import os
import re
import secrets
import signal
import subprocess
import sys
import threading
import time
from abc import abstractmethod
from enum import Enum
from http import HTTPStatus
from http.server import HTTPServer, BaseHTTPRequestHandler
from logging import DEBUG, INFO, WARNING
from tempfile import NamedTemporaryFile
from typing import Callable
# GLOBALS #
log = None
secret_token = None
# CONFIG #
def create_argument_parser() -> argparse.ArgumentParser:
parser = argparse.ArgumentParser(description='Proxy for go/winscope', prog='winscope_proxy')
parser.add_argument('--verbose', '-v', dest='loglevel', action='store_const', const=INFO)
parser.add_argument('--debug', '-d', dest='loglevel', action='store_const', const=DEBUG)
parser.add_argument('--port', '-p', default=5544, action='store')
parser.set_defaults(loglevel=WARNING)
return parser
# Keep in sync with ProxyConnection#VERSION in Winscope
VERSION = '4.0.0'
PERFETTO_TRACE_CONFIG_FILE = '/data/misc/perfetto-configs/winscope-proxy-trace.conf'
PERFETTO_DUMP_CONFIG_FILE = '/data/misc/perfetto-configs/winscope-proxy-dump.conf'
PERFETTO_TRACE_FILE = '/data/misc/perfetto-traces/winscope-proxy-trace.perfetto-trace'
PERFETTO_DUMP_FILE = '/data/misc/perfetto-traces/winscope-proxy-dump.perfetto-trace'
PERFETTO_UNIQUE_SESSION_NAME = 'winscope proxy perfetto tracing'
WINSCOPE_VERSION_HEADER = "Winscope-Proxy-Version"
WINSCOPE_TOKEN_HEADER = "Winscope-Token"
# Location to save the proxy security token
WINSCOPE_TOKEN_LOCATION = os.path.expanduser('~/.config/winscope/.token')
# Winscope traces extensions
WINSCOPE_EXT = ".winscope"
WINSCOPE_EXT_LEGACY = ".pb"
WINSCOPE_EXTS = [WINSCOPE_EXT, WINSCOPE_EXT_LEGACY]
# Winscope traces directories
WINSCOPE_DIR = "/data/misc/wmtrace/"
WINSCOPE_BACKUP_DIR = "/data/local/tmp/last_winscope_tracing_session/"
# Tracing handlers
SIGNAL_HANDLER_LOG = "/data/local/tmp/winscope_signal_handler.log"
WINSCOPE_STATUS = "/data/local/tmp/winscope_status"
# Max interval between the client keep-alive requests in seconds
KEEP_ALIVE_INTERVAL_S = 5
class File:
def __init__(self, file, filetype) -> None:
self.file = file
self.type = filetype
def get_filepaths(self, device_id) -> list[str]:
return [self.file]
def get_filetype(self) -> str:
return self.type
class FileMatcher:
def __init__(self, path, matcher, filetype) -> None:
self.path = path
self.matcher = matcher
self.type = filetype
def get_filepaths(self, device_id) -> list[str]:
if len(self.matcher) > 0:
matchingFiles = call_adb(
f"shell find {self.path} -name {self.matcher}", device_id)
else:
matchingFiles = call_adb(
f"shell find {self.path}", device_id)
files = matchingFiles.split('\n')[:-1]
log.debug("Found files %s", files)
return files
def get_filetype(self) -> str:
return self.type
class WinscopeFileMatcher(FileMatcher):
def __init__(self, path, matcher, filetype) -> None:
self.path = path
self.internal_matchers = list(map(lambda ext: FileMatcher(path, f'{matcher}{ext}', filetype),
WINSCOPE_EXTS))
self.type = filetype
def get_filepaths(self, device_id) -> list[str]:
for matcher in self.internal_matchers:
files = matcher.get_filepaths(device_id)
if len(files) > 0:
return files
log.debug("No files found")
return []
def get_shell_args(device_id: str, type: str) -> list[str]:
shell = ['adb', '-s', device_id, 'shell']
log.debug(f"Starting {type} shell {' '.join(shell)}")
return shell
def is_perfetto_data_source_available(name: str, query_result: str) -> bool:
return name in query_result
def is_any_perfetto_data_source_available(query_result: str) -> bool:
return is_perfetto_data_source_available('android.inputmethod', query_result) or \
is_perfetto_data_source_available('android.protolog', query_result) or \
is_perfetto_data_source_available('android.surfaceflinger.layers', query_result) or \
is_perfetto_data_source_available('android.surfaceflinger.transactions', query_result) or \
is_perfetto_data_source_available('com.android.wm.shell.transition', query_result) or \
is_perfetto_data_source_available('android.viewcapture', query_result) or \
is_perfetto_data_source_available('android.windowmanager', query_result) or \
is_perfetto_data_source_available('android.input.inputevent', query_result)
class TraceConfig:
def __init__(self, is_perfetto: bool) -> None:
self.is_perfetto = is_perfetto
@abstractmethod
def add(self, config: str, value: str | list[str] | None) -> None:
pass
@abstractmethod
def is_valid(self, config: str) -> bool:
pass
@abstractmethod
def execute_command(self, server, device_id):
pass
def get_trace_identifiers(self)-> list[str]:
return [""]
def get_optional_start_args(self, identifier)-> str:
return ""
def execute_optional_config_command(self, server, device_id, shell, command, config_key, config_value):
process = subprocess.Popen(shell, stdout=subprocess.PIPE, stderr=subprocess.PIPE,
stdin=subprocess.PIPE, start_new_session=True)
log.debug(f"Changing optional trace config on device {device_id} {config_key}:{config_value}")
out, err = process.communicate(command.encode('utf-8'))
if process.returncode != 0:
raise AdbError(
f"Error executing command:\n {command}\n\n### OUTPUT ###{out.decode('utf-8')}\n{err.decode('utf-8')}")
log.debug(f"Optional trace config changed on device {device_id}")
server.respond(HTTPStatus.OK, b'', "text/plain")
def execute_perfetto_config_command(self, server, shell, command, trace_name):
process = subprocess.Popen(shell, stdout=subprocess.PIPE, stderr=subprocess.PIPE,
stdin=subprocess.PIPE, start_new_session=True)
out, err = process.communicate(command.encode('utf-8'))
if process.returncode != 0:
raise AdbError(
f"Error executing command:\n {command}\n\n### OUTPUT ###{out.decode('utf-8')}\n{err.decode('utf-8')}")
log.debug(f'{trace_name} (perfetto) configured to start along the other perfetto traces.')
server.respond(HTTPStatus.OK, b'', "text/plain")
class SurfaceFlingerTraceConfig(TraceConfig):
"""Handles optional configuration for Surface Flinger traces.
"""
LEGACY_FLAGS_MAP = {
"input": 1 << 1,
"composition": 1 << 2,
"metadata": 1 << 3,
"hwc": 1 << 4,
"tracebuffers": 1 << 5,
"virtualdisplays": 1 << 6
}
PERFETTO_FLAGS_MAP = {
"input": "TRACE_FLAG_INPUT",
"composition": "TRACE_FLAG_COMPOSITION",
"metadata": "TRACE_FLAG_EXTRA",
"hwc": "TRACE_FLAG_HWC",
"tracebuffers": "TRACE_FLAG_BUFFERS",
"virtualdisplays": "TRACE_FLAG_VIRTUAL_DISPLAYS",
}
def __init__(self, is_perfetto: bool) -> None:
super().__init__(is_perfetto)
self.flags = []
self.perfetto_flags = []
# defaults set for all configs
self.selected_configs = {
"sfbuffersize": "16000"
}
def add(self, config: str, value: str | None) -> None:
if config in SurfaceFlingerTraceConfig.LEGACY_FLAGS_MAP:
self.flags.append(config)
elif config in self.selected_configs:
self.selected_configs[config] = value
def is_valid(self, config: str) -> bool:
return config in SurfaceFlingerTraceConfig.LEGACY_FLAGS_MAP or config in self.selected_configs
def execute_command(self, server, device_id):
shell = get_shell_args(device_id, "sf config")
if self.is_perfetto:
self.execute_perfetto_config_command(server, shell, self._perfetto_config_command(), "SurfaceFlinger")
else:
self.execute_optional_config_command(server, device_id, shell, self._legacy_flags_command(), "sf flags", self.flags)
self.execute_optional_config_command(server, device_id, shell, self._legacy_buffer_size_command(), "sf buffer size", self.selected_configs["sfbuffersize"])
def _perfetto_config_command(self) -> str:
flags = "\n".join([f"""trace_flags: {SurfaceFlingerTraceConfig.PERFETTO_FLAGS_MAP[flag]}""" for flag in self.flags])
return f"""
cat << EOF >> {PERFETTO_TRACE_CONFIG_FILE}
data_sources: {{
config {{
name: "android.surfaceflinger.layers"
surfaceflinger_layers_config: {{
mode: MODE_ACTIVE
{flags}
}}
}}
}}
EOF
"""
def _legacy_buffer_size_command(self) -> str:
return f' service call SurfaceFlinger 1029 i32 {self.selected_configs["sfbuffersize"]}'
def _legacy_flags_command(self) -> str:
flags = 0
for flag in self.flags:
flags |= SurfaceFlingerTraceConfig.LEGACY_FLAGS_MAP[flag]
return f" service call SurfaceFlinger 1033 i32 {flags}"
class WindowManagerTraceConfig(TraceConfig):
PERFETTO_LOG_LEVEL_MAP = {
"verbose": "LOG_LEVEL_VERBOSE",
"debug": "LOG_LEVEL_DEBUG",
"critical": "LOG_LEVEL_CRITICAL",
}
PERFETTO_LOG_FREQUENCY_MAP = {
"frame": "LOG_FREQUENCY_FRAME",
"transaction": "LOG_FREQUENCY_TRANSACTION",
}
"""Handles optional selected configuration for Window Manager traces.
"""
def __init__(self, is_perfetto: bool) -> None:
super().__init__(is_perfetto)
# defaults set for all configs
self.selected_configs = {
"wmbuffersize": "16000",
"tracinglevel": "debug",
"tracingtype": "frame",
}
def add(self, config_type: str, config_value: str | None) -> None:
self.selected_configs[config_type] = config_value
def is_valid(self, config_type: str) -> bool:
return config_type in self.selected_configs
def execute_command(self, server, device_id):
shell = get_shell_args(device_id, "wm config")
if self.is_perfetto:
self.execute_perfetto_config_command(server, shell, self._perfetto_config_command(), "WM")
else:
self.execute_optional_config_command(server, device_id, shell, self._legacy_tracing_type_command(), "tracing type", self.selected_configs["tracingtype"])
self.execute_optional_config_command(server, device_id, shell, self._legacy_tracing_level_command(), "tracing level", self.selected_configs["tracinglevel"])
# /!\ buffer size must be configured last
# otherwise the other configurations might override it
self.execute_optional_config_command(server, device_id, shell, self._legacy_buffer_size_command(), "wm buffer size", self.selected_configs["wmbuffersize"])
def _perfetto_config_command(self) -> str:
log_level = WindowManagerTraceConfig.PERFETTO_LOG_LEVEL_MAP[self.selected_configs["tracinglevel"]]
log_frequency = WindowManagerTraceConfig.PERFETTO_LOG_FREQUENCY_MAP[self.selected_configs["tracingtype"]]
return f"""
cat << EOF >> {PERFETTO_TRACE_CONFIG_FILE}
data_sources: {{
config {{
name: "android.windowmanager"
windowmanager_config: {{
log_level: {log_level}
log_frequency: {log_frequency}
}}
}}
}}
EOF
"""
def _legacy_tracing_type_command(self) -> str:
return f' cmd window tracing {self.selected_configs["tracingtype"]}'
def _legacy_tracing_level_command(self) -> str:
return f' cmd window tracing level {self.selected_configs["tracinglevel"]}'
def _legacy_buffer_size_command(self) -> str:
return f' cmd window tracing size {self.selected_configs["wmbuffersize"]}'
class ViewCaptureTraceConfig(TraceConfig):
"""Handles perfetto config for View Capture traces."""
COMMAND = f"""
cat << EOF >> {PERFETTO_TRACE_CONFIG_FILE}
data_sources: {{
config {{
name: "android.viewcapture"
}}
}}
EOF
"""
def execute_command(self, server, device_id):
if (self.is_perfetto):
shell = get_shell_args(device_id, "perfetto config view capture")
self.execute_perfetto_config_command(server, shell, ViewCaptureTraceConfig.COMMAND, "View Capture")
class TransactionsConfig(TraceConfig):
"""Handles perfetto config for Transactions traces."""
COMMAND = f"""
cat << EOF >> {PERFETTO_TRACE_CONFIG_FILE}
data_sources: {{
config {{
name: "android.surfaceflinger.transactions"
surfaceflinger_transactions_config: {{
mode: MODE_ACTIVE
}}
}}
}}
EOF
"""
def execute_command(self, server, device_id):
if (self.is_perfetto):
shell = get_shell_args(device_id, "perfetto config transactions")
self.execute_perfetto_config_command(server, shell, TransactionsConfig.COMMAND, "SF transactions")
class ProtoLogConfig(TraceConfig):
"""Handles perfetto config for ProtoLog traces."""
COMMAND = f"""
cat << EOF >> {PERFETTO_TRACE_CONFIG_FILE}
data_sources: {{
config {{
name: "android.protolog"
protolog_config: {{
tracing_mode: ENABLE_ALL
}}
}}
}}
EOF
"""
def execute_command(self, server, device_id):
if (self.is_perfetto):
shell = get_shell_args(device_id, "perfetto config protolog")
self.execute_perfetto_config_command(server, shell, ProtoLogConfig.COMMAND, "ProtoLog")
class ImeConfig(TraceConfig):
"""Handles perfetto config for IME traces."""
COMMAND = f"""
cat << EOF >> {PERFETTO_TRACE_CONFIG_FILE}
data_sources: {{
config {{
name: "android.inputmethod"
}}
}}
EOF
"""
def execute_command(self, server, device_id):
if (self.is_perfetto):
shell = get_shell_args(device_id, "perfetto config ime")
self.execute_perfetto_config_command(server, shell, ImeConfig.COMMAND, "IME tracing")
class TransitionTracesConfig(TraceConfig):
"""Handles perfetto config for Transition traces."""
COMMAND = f"""
cat << EOF >> {PERFETTO_TRACE_CONFIG_FILE}
data_sources: {{
config {{
name: "com.android.wm.shell.transition"
}}
}}
EOF
"""
def execute_command(self, server, device_id):
if (self.is_perfetto):
shell = get_shell_args(device_id, "perfetto config transitions")
self.execute_perfetto_config_command(server, shell, TransitionTracesConfig.COMMAND, "Transitions")
class InputConfig(TraceConfig):
"""Handles perfetto config for Input traces."""
COMMAND = f"""
cat << EOF >> {PERFETTO_TRACE_CONFIG_FILE}
data_sources: {{
config {{
name: "android.input.inputevent"
android_input_event_config {{
mode: TRACE_MODE_TRACE_ALL
}}
}}
}}
EOF
"""
def execute_command(self, server, device_id):
if (self.is_perfetto):
shell = get_shell_args(device_id, "perfetto config input")
self.execute_perfetto_config_command(server, shell, InputConfig.COMMAND, "Input trace")
class MediaBasedConfig(TraceConfig):
"""Creates trace identifiers for Screen Recording traces and Screenshots."""
trace_identifiers = ["active"]
def get_trace_identifiers(self):
return self.trace_identifiers
def is_valid(self, config_type: str) -> bool:
return config_type == "displays"
def add(self, config_type: str, config_value: str | list[str] | None):
if config_type != "displays":
return
if config_value and len(config_value) > 0:
if type(config_value) == str:
self.trace_identifiers = [config_value.split(" ")[0]]
else:
self.trace_identifiers = list(map(lambda d: d.split(" ")[0], config_value))
def execute_command(self, server, device_id):
pass
class ScreenRecordingConfig(MediaBasedConfig):
"""Creates display args for Screen Recording traces."""
def get_optional_start_args(self, identifier):
if identifier == "active":
return ""
return f"--display-id {identifier}"
class ScreenshotConfig(MediaBasedConfig):
"""Creates display args for Screenshots."""
def get_optional_start_args(self, identifier):
if identifier == "active":
return ""
return f"-d {identifier}"
class SurfaceFlingerDumpConfig(TraceConfig):
"""Handles perfetto config for SurfaceFlinger dumps."""
def __init__(self, is_perfetto: bool) -> None:
super().__init__(is_perfetto)
def add(self, config: str, value: str | None) -> None:
pass
def is_valid(self, config: str) -> bool:
return False
def execute_command(self, server, device_id):
shell = get_shell_args(device_id, "sf config")
if self.is_perfetto:
self.execute_perfetto_config_command(server, shell, self._perfetto_config_command(), "SurfaceFlinger")
def _perfetto_config_command(self) -> str:
return f"""
cat << EOF >> {PERFETTO_DUMP_CONFIG_FILE}
data_sources: {{
config {{
name: "android.surfaceflinger.layers"
surfaceflinger_layers_config: {{
mode: MODE_DUMP
trace_flags: TRACE_FLAG_INPUT
trace_flags: TRACE_FLAG_COMPOSITION
trace_flags: TRACE_FLAG_HWC
trace_flags: TRACE_FLAG_BUFFERS
trace_flags: TRACE_FLAG_VIRTUAL_DISPLAYS
}}
}}
}}
EOF
"""
def _legacy_buffer_size_command(self) -> str:
return f' service call SurfaceFlinger 1029 i32 {self.selected_configs["sfbuffersize"]}'
def _legacy_flags_command(self) -> str:
flags = 0
for flag in self.flags:
flags |= SurfaceFlingerTraceConfig.LEGACY_FLAGS_MAP[flag]
return f" service call SurfaceFlinger 1033 i32 {flags}"
class TraceTarget:
"""Defines a single parameter to trace.
Attributes:
trace_name: used as a key to access config and log statements during Start/End endpoints.
files: the matchers used to identify the paths on the device the trace results are saved to.
is_perfetto_available: callback to determine if perfetto tracing is available for target.
trace_start: command to start the trace from adb shell, must not block.
trace_stop: command to stop the trace, should block until the trace is stopped.
get_trace_config: getter for optional setup to execute pre-tracing adb commands and define start command arguments.
"""
def __init__(
self,
trace_name: str,
files: list[File | FileMatcher],
is_perfetto_available: Callable[[str], bool],
trace_start: str,
trace_stop: str,
get_trace_config: Callable[[bool], TraceConfig] | None = None
) -> None:
self.trace_name = trace_name
if type(files) is not list:
files = [files]
self.files = files
self.is_perfetto_available = is_perfetto_available
self.trace_start = trace_start
self.trace_stop = trace_stop
self.get_trace_config = get_trace_config
# Order of files matters as they will be expected in that order and decoded in that order
TRACE_TARGETS = {
"view_capture_trace": TraceTarget(
"view_capture_trace",
File('/data/misc/wmtrace/view_capture_trace.zip', "view_capture_trace.zip"),
lambda res: is_perfetto_data_source_available("android.viewcapture", res),
"""
settings put global view_capture_enabled 1
echo 'ViewCapture tracing (legacy) started.'
""",
"""
cmd launcherapps dump-view-hierarchies >/data/misc/wmtrace/view_capture_trace.zip
settings put global view_capture_enabled 0
echo 'ViewCapture tracing (legacy) stopped.'
""",
lambda is_perfetto: ViewCaptureTraceConfig(is_perfetto)
),
"window_trace": TraceTarget(
"window_trace",
WinscopeFileMatcher(WINSCOPE_DIR, "wm_trace", "window_trace"),
lambda res: is_perfetto_data_source_available('android.windowmanager', res),
"""
cmd window tracing start
echo 'WM trace (legacy) started.'
""",
"""
cmd window tracing stop >/dev/null 2>&1
echo 'WM trace (legacy) stopped.'
""",
lambda is_perfetto: WindowManagerTraceConfig(is_perfetto)
),
"layers_trace": TraceTarget(
"layers_trace",
WinscopeFileMatcher(WINSCOPE_DIR, "layers_trace", "layers_trace"),
lambda res: is_perfetto_data_source_available('android.surfaceflinger.layers', res),
"""
service call SurfaceFlinger 1025 i32 1
echo 'SF layers trace (legacy) started.'
""",
"""
service call SurfaceFlinger 1025 i32 0 >/dev/null 2>&1
echo 'SF layers trace (legacy) stopped.'
""",
lambda is_perfetto: SurfaceFlingerTraceConfig(is_perfetto)
),
"screen_recording": TraceTarget(
"screen_recording",
File(
'/data/local/tmp/screen_{trace_identifier}.mp4',
"screen_recording_{trace_identifier}"),
lambda res: False,
'''
settings put system show_touches 1 && \
settings put system pointer_location 1 && \
screenrecord --bugreport --bit-rate 8M {options} /data/local/tmp/screen_{trace_identifier}.mp4 & \
echo "ScreenRecorder started."
''',
'''settings put system pointer_location 0 && \
settings put system show_touches 0 && \
pkill -l SIGINT screenrecord >/dev/null 2>&1
'''.strip(),
lambda is_perfetto: ScreenRecordingConfig(is_perfetto)
),
"transactions": TraceTarget(
"transactions",
WinscopeFileMatcher(WINSCOPE_DIR, "transactions_trace", "transactions"),
lambda res: is_perfetto_data_source_available('android.surfaceflinger.transactions', res),
"""
service call SurfaceFlinger 1041 i32 1
echo 'SF transactions trace (legacy) started.'
""",
" service call SurfaceFlinger 1041 i32 0 >/dev/null 2>&1",
lambda is_perfetto: TransactionsConfig(is_perfetto)
),
"transactions_legacy": TraceTarget(
"transactions_legacy",
[
WinscopeFileMatcher(WINSCOPE_DIR, "transaction_trace", "transactions_legacy"),
FileMatcher(WINSCOPE_DIR, f'transaction_merges_*', "transaction_merges"),
],
lambda res: False,
' service call SurfaceFlinger 1020 i32 1\necho "SF transactions recording started."',
' service call SurfaceFlinger 1020 i32 0 >/dev/null 2>&1',
),
"proto_log": TraceTarget(
"proto_log",
WinscopeFileMatcher(WINSCOPE_DIR, "wm_log", "proto_log"),
lambda res: is_perfetto_data_source_available('android.protolog', res),
"""
cmd window logging start
echo "ProtoLog (legacy) started."
""",
"""
cmd window logging stop >/dev/null 2>&1
echo "ProtoLog (legacy) stopped."
""",
lambda is_perfetto: ProtoLogConfig(is_perfetto)
),
"ime": TraceTarget(
"ime",
[WinscopeFileMatcher(WINSCOPE_DIR, "ime_trace_clients", "ime_trace_clients"),
WinscopeFileMatcher(WINSCOPE_DIR, "ime_trace_service", "ime_trace_service"),
WinscopeFileMatcher(WINSCOPE_DIR, "ime_trace_managerservice", "ime_trace_managerservice")],
lambda res: is_perfetto_data_source_available('android.inputmethod', res),
"""
ime tracing start
echo "IME tracing (legacy) started."
""",
"""
ime tracing stop >/dev/null 2>&1
echo "IME tracing (legacy) stopped."
""",
lambda is_perfetto: ImeConfig(is_perfetto)
),
"wayland_trace": TraceTarget(
"wayland_trace",
WinscopeFileMatcher("/data/misc/wltrace", "wl_trace", "wl_trace"),
lambda res: False,
' service call Wayland 26 i32 1 >/dev/null\necho "Wayland trace started."',
' service call Wayland 26 i32 0 >/dev/null'
),
"eventlog": TraceTarget(
"eventlog",
WinscopeFileMatcher("/data/local/tmp", "eventlog", "eventlog"),
lambda res: False,
'rm -f /data/local/tmp/eventlog.winscope && EVENT_LOG_TRACING_START_TIME=$EPOCHREALTIME\necho "Event Log trace started."',
'echo "EventLog\\n" > /data/local/tmp/eventlog.winscope && logcat -b events -v threadtime -v printable -v uid -v nsec -v epoch -b events -t $EVENT_LOG_TRACING_START_TIME >> /data/local/tmp/eventlog.winscope',
),
"transition_traces": TraceTarget(
"transition_traces",
[WinscopeFileMatcher(WINSCOPE_DIR, "wm_transition_trace", "wm_transition_trace"),
WinscopeFileMatcher(WINSCOPE_DIR, "shell_transition_trace", "shell_transition_trace")],
lambda res: is_perfetto_data_source_available('com.android.wm.shell.transition', res),
"""
cmd window shell tracing start && dumpsys activity service SystemUIService WMShell transitions tracing start
echo "Transition traces (legacy) started."
""",
"""
cmd window shell tracing stop && dumpsys activity service SystemUIService WMShell transitions tracing stop >/dev/null 2>&1
echo 'Transition traces (legacy) stopped.'
""",
lambda is_perfetto: TransitionTracesConfig(is_perfetto)
),
"input": TraceTarget(
"input",
[WinscopeFileMatcher(WINSCOPE_DIR, "input_trace", "input_trace")],
lambda res: is_perfetto_data_source_available('android.input.inputevent', res),
"",
"",
lambda is_perfetto: InputConfig(is_perfetto)
),
"perfetto_trace": TraceTarget(
"perfetto_trace",
File(PERFETTO_TRACE_FILE, "trace.perfetto-trace"),
lambda res: is_any_perfetto_data_source_available(res),
f"""
cat << EOF >> {PERFETTO_TRACE_CONFIG_FILE}
buffers: {{
size_kb: 500000
fill_policy: RING_BUFFER
}}
duration_ms: 0
file_write_period_ms: 999999999
write_into_file: true
unique_session_name: "{PERFETTO_UNIQUE_SESSION_NAME}"
EOF
if is_perfetto_tracing_session_running; then
perfetto --attach=WINSCOPE-PROXY-TRACING-SESSION --stop
echo 'Stopped already-running winscope perfetto session.'
fi
echo 'Concurrent Perfetto Sessions'
perfetto --query | sed -n '/^TRACING SESSIONS:$/,$p'
rm -f {PERFETTO_TRACE_FILE}
perfetto --out {PERFETTO_TRACE_FILE} --txt --config {PERFETTO_TRACE_CONFIG_FILE} --detach=WINSCOPE-PROXY-TRACING-SESSION
echo 'Started perfetto trace.'
""",
"""
perfetto --attach=WINSCOPE-PROXY-TRACING-SESSION --stop
echo 'Stopped perfetto trace.'
""",
),
}
class DumpTarget:
"""Defines a single parameter to dump.
Attributes:
trace_name: used as a key to access config and log statements during Dump endpoint.
files: the matchers used to identify the paths on the device the dump results are saved to.
dump_command: command to dump state to file.
get_trace_config: getter for optional setup to execute pre-tracing adb commands and define start command arguments.
"""
def __init__(
self,
trace_name: str,
files: list[File | FileMatcher],
is_perfetto_available: Callable[[str], bool],
dump_command: str,
get_trace_config: Callable[[bool], TraceConfig] | None = None
) -> None:
self.trace_name = trace_name
if type(files) is not list:
files = [files]
self.files = files
self.is_perfetto_available = is_perfetto_available
self.dump_command = dump_command
self.get_trace_config = get_trace_config
DUMP_TARGETS = {
"window_dump": DumpTarget(
"window_dump",
File(f'/data/local/tmp/wm_dump{WINSCOPE_EXT}', "window_dump"),
lambda res: False,
f' dumpsys window --proto > /data/local/tmp/wm_dump{WINSCOPE_EXT}'
),
"layers_dump": DumpTarget(
"layers_dump",
File(f'/data/local/tmp/sf_dump{WINSCOPE_EXT}', "layers_dump"),
lambda res: is_perfetto_data_source_available('android.surfaceflinger.layers', res),
f"""
dumpsys SurfaceFlinger --proto > /data/local/tmp/sf_dump{WINSCOPE_EXT}
""",
lambda is_perfetto: SurfaceFlingerDumpConfig(is_perfetto)
),
"screenshot": DumpTarget(
"screenshot",
File("/data/local/tmp/screenshot_{trace_identifier}.png", "screenshot_{trace_identifier}.png"),
lambda res: False,
"screencap -p {options}> /data/local/tmp/screenshot_{trace_identifier}.png",
lambda is_perfetto: ScreenshotConfig(is_perfetto)
),
"perfetto_dump": DumpTarget(
"perfetto_dump",
File(PERFETTO_DUMP_FILE, "dump.perfetto-trace"),
lambda res: is_any_perfetto_data_source_available(res),
f"""
cat << EOF >> {PERFETTO_DUMP_CONFIG_FILE}
buffers: {{
size_kb: 500000
fill_policy: RING_BUFFER
}}
duration_ms: 1
EOF
rm -f {PERFETTO_DUMP_FILE}
perfetto --out {PERFETTO_DUMP_FILE} --txt --config {PERFETTO_DUMP_CONFIG_FILE}
echo 'Recorded perfetto dump.'
"""
)
}
# END OF CONFIG #
def get_token() -> str:
"""Returns saved proxy security token or creates new one"""
try:
with open(WINSCOPE_TOKEN_LOCATION, 'r') as token_file:
token = token_file.readline()
log.debug("Loaded token {} from {}".format(
token, WINSCOPE_TOKEN_LOCATION))
return token
except IOError:
token = secrets.token_hex(32)
os.makedirs(os.path.dirname(WINSCOPE_TOKEN_LOCATION), exist_ok=True)
try:
with open(WINSCOPE_TOKEN_LOCATION, 'w') as token_file:
log.debug("Created and saved token {} to {}".format(
token, WINSCOPE_TOKEN_LOCATION))
token_file.write(token)
os.chmod(WINSCOPE_TOKEN_LOCATION, 0o600)
except IOError:
log.error("Unable to save persistent token {} to {}".format(
token, WINSCOPE_TOKEN_LOCATION))
return token
class RequestType(Enum):
GET = 1
POST = 2
HEAD = 3
def add_standard_headers(server):
server.send_header('Cache-Control', 'no-cache, no-store, must-revalidate')
server.send_header('Access-Control-Allow-Origin', '*')
server.send_header('Access-Control-Allow-Methods', 'POST, GET, OPTIONS')
server.send_header('Access-Control-Allow-Headers',
WINSCOPE_TOKEN_HEADER + ', Content-Type, Content-Length')
server.send_header('Access-Control-Expose-Headers',
'Winscope-Proxy-Version')
server.send_header(WINSCOPE_VERSION_HEADER, VERSION)
server.end_headers()
class RequestEndpoint:
"""Request endpoint to use with the RequestRouter."""
@abstractmethod
def process(self, server, path):
pass
class AdbError(Exception):
"""Unsuccessful ADB operation"""
pass
class BadRequest(Exception):
"""Invalid client request"""
pass
class RequestRouter:
"""Handles HTTP request authentication and routing"""
def __init__(self, handler):
self.request = handler
self.endpoints = {}
def register_endpoint(self, method: RequestType, name: str, endpoint: RequestEndpoint):
self.endpoints[(method, name)] = endpoint
def _bad_request(self, error: str):
log.warning("Bad request: " + error)
self.request.respond(HTTPStatus.BAD_REQUEST, b"Bad request!\nThis is Winscope ADB proxy.\n\n"
+ error.encode("utf-8"), 'text/txt')
def _internal_error(self, error: str):
log.error("Internal error: " + error)
self.request.respond(HTTPStatus.INTERNAL_SERVER_ERROR,
error.encode("utf-8"), 'text/txt')
def _bad_token(self):
log.info("Bad token")
self.request.respond(HTTPStatus.FORBIDDEN, b"Bad Winscope authorization token!\nThis is Winscope ADB proxy.\n",
'text/txt')
def process(self, method: RequestType):
token = self.request.headers[WINSCOPE_TOKEN_HEADER]
if not token or token != secret_token:
return self._bad_token()
path = self.request.path.strip('/').split('/')
if path and len(path) > 0:
endpoint_name = path[0]
try:
return self.endpoints[(method, endpoint_name)].process(self.request, path[1:])
except KeyError as ex:
if "RequestType" in repr(ex):
return self._bad_request("Unknown endpoint /{}/".format(endpoint_name))
return self._internal_error(repr(ex))
except AdbError as ex:
return self._internal_error(str(ex))
except BadRequest as ex:
return self._bad_request(str(ex))
except Exception as ex:
return self._internal_error(repr(ex))
self._bad_request("No endpoint specified")
def call_adb(params: str, device: str = None, stdin: bytes = None):
command = ['adb'] + (['-s', device] if device else []) + params.split(' ')
try:
log.debug("Call: " + ' '.join(command))
return subprocess.check_output(command, stderr=subprocess.STDOUT, input=stdin).decode('utf-8')
except OSError as ex:
log.debug('Error executing adb command: {}\n{}'.format(
' '.join(command), repr(ex)))
raise AdbError('Error executing adb command: {}\n{}'.format(
' '.join(command), repr(ex)))
except subprocess.CalledProcessError as ex:
log.debug('Error executing adb command: {}\n{}'.format(
' '.join(command), ex.output.decode("utf-8")))
raise AdbError('Error executing adb command: adb {}\n{}'.format(
params, ex.output.decode("utf-8")))
def call_adb_outfile(params: str, outfile, device: str = None, stdin: bytes = None):
try:
process = subprocess.Popen(['adb'] + (['-s', device] if device else []) + params.split(' '), stdout=outfile,
stderr=subprocess.PIPE)
_, err = process.communicate(stdin)
outfile.seek(0)
if process.returncode != 0:
log.debug('Error executing adb command: adb {}\n'.format(params) + err.decode(
'utf-8') + '\n' + outfile.read().decode('utf-8'))
raise AdbError('Error executing adb command: adb {}\n'.format(params) + err.decode(
'utf-8') + '\n' + outfile.read().decode('utf-8'))
except OSError as ex:
log.debug('Error executing adb command: adb {}\n{}'.format(
params, repr(ex)))
raise AdbError(
'Error executing adb command: adb {}\n{}'.format(params, repr(ex)))
class ListDevicesEndpoint(RequestEndpoint):
ADB_INFO_RE = re.compile("^([A-Za-z0-9._:\\-]+)\\s+(\\w+)(.*model:(\\w+))?")
foundDevices: dict[str | int, dict[str, bool | str]] = {}
def process(self, server, path):
lines = list(filter(None, call_adb('devices -l').split('\n')))
devices = {}
for m in [ListDevicesEndpoint.ADB_INFO_RE.match(d) for d in lines[1:]]:
if m:
authorized = str(m.group(2)) != 'unauthorized'
try:
screen_record_version = call_adb('shell screenrecord --version', m.group(1)) if authorized else '0'
except AdbError:
try:
help_text = call_adb('shell screenrecord --help', m.group(1))
version_start_index = help_text.find('v') + 1
screen_record_version = help_text[version_start_index:version_start_index + 3]
except AdbError:
screen_record_version = '0'
try:
displays = list(filter(None, call_adb('shell dumpsys SurfaceFlinger --display-id',
m.group(1)).split('\n'))) if authorized else []
except AdbError:
displays = []
devices[m.group(1)] = {
'authorized': authorized,
'model': m.group(4).replace('_', ' ') if m.group(4) else '',
'displays': displays,
'screenrecord_version': screen_record_version,
}
self.foundDevices = devices
j = json.dumps(devices)
log.debug("Detected devices: " + j)
server.respond(HTTPStatus.OK, j.encode("utf-8"), "text/json")
class CheckWaylandServiceEndpoint(RequestEndpoint):
def __init__(self, listDevicesEndpoint: ListDevicesEndpoint):
self._listDevicesEndpoint = listDevicesEndpoint
def process(self, server, path):
self._listDevicesEndpoint.process(server, path)
foundDevices = self._listDevicesEndpoint.foundDevices
if len(foundDevices) != 1:
res = 'false'
else:
device = list(foundDevices.values())[0]
if not device.get('authorized') or not device.get('model'):
res = 'false'
else:
raw_res = call_adb('shell service check Wayland')
res = 'false' if 'not found' in raw_res else 'true'
server.respond(HTTPStatus.OK, res.encode("utf-8"), "text/json")
class DeviceRequestEndpoint(RequestEndpoint):
def process(self, server, path):
if len(path) > 0 and re.fullmatch("[A-Za-z0-9._:\\-]+", path[0]):
self.process_with_device(server, path[1:], path[0])
else:
raise BadRequest("Device id not specified")
@abstractmethod
def process_with_device(self, server, path, device_id):
pass
def get_request(self, server) -> str:
try:
length = int(server.headers["Content-Length"])
except KeyError as err:
raise BadRequest("Missing Content-Length header\n" + str(err))
except ValueError as err:
raise BadRequest("Content length unreadable\n" + str(err))
return json.loads(server.rfile.read(length).decode("utf-8"))
def get_targets_and_prepare_for_tracing(self, server, device_id, perfetto_config_file, targets_map: dict[str, TraceTarget | DumpTarget], perfetto_name):
log.debug("Clearing perfetto config file for previous tracing session")
call_adb(f"shell rm -f {perfetto_config_file}", device_id)
trace_requests: list[dict] = self.get_request(server)
trace_types = [t.get("name") for t in trace_requests]
log.debug(f"Received client request of {trace_types} for {device_id}")
perfetto_query_result = call_adb("shell perfetto --query", device_id)
trace_targets: list[tuple[DumpTarget | TraceTarget, TraceConfig | None]] = []
for t in trace_requests:
try:
trace_name = t.get("name")
target = targets_map[trace_name]
is_perfetto = target.is_perfetto_available(perfetto_query_result)
config = None
if target.get_trace_config is not None:
config = target.get_trace_config(is_perfetto)
self.apply_config(config, t.get("config"), server, device_id)
if trace_name == perfetto_name or not is_perfetto:
trace_targets.append((target, config))
except KeyError as err:
log.warning("Unsupported trace target\n" + str(err))
trace_targets = self.move_perfetto_target_to_end_of_list(trace_targets)
self.check_device_and_permissions(server, device_id)
self.clear_last_tracing_session(device_id)
log.debug("Trace requested for {} with targets {}".format(
device_id, ','.join([target.trace_name for target, config in trace_targets])))
return trace_targets
def apply_config(self, trace_config: TraceConfig, requested_configs: list[dict], server, device_id):
for requested_config in requested_configs:
config_key = requested_config.get("key")
if not trace_config.is_valid(config_key):
raise BadRequest(
f"Unsupported config {config_key}\n")
trace_config.add(config_key, requested_config.get("value"))
if device_id in TRACE_THREADS:
BadRequest(f"Trace in progress for {device_id}")
if not self.check_root(device_id):
raise AdbError(
f"Unable to acquire root privileges on the device - check the output of 'adb -s {device_id} shell id'")
trace_config.execute_command(server, device_id)
def check_root(self, device_id):
log.debug("Checking root access on {}".format(device_id))
return int(call_adb('shell id -u', device_id)) == 0
def move_perfetto_target_to_end_of_list(self, targets: list[tuple[TraceTarget, TraceConfig | None]]) -> list[tuple[TraceTarget, TraceConfig | None]]:
# Make sure a perfetto target (if present) comes last in the list of targets, i.e. will
# be processed last.
# A perfetto target must be processed last, so that perfetto tracing is started only after
# the other targets have been processed and have configured the perfetto config file.
def is_perfetto_target(target: TraceTarget):
return target == TRACE_TARGETS["perfetto_trace"] or target == DUMP_TARGETS["perfetto_dump"]
non_perfetto_targets = [t for t in targets if not is_perfetto_target(t[0])]
perfetto_targets = [t for t in targets if is_perfetto_target(t[0])]
return non_perfetto_targets + perfetto_targets
def check_device_and_permissions(self, server, device_id):
if device_id in TRACE_THREADS:
log.warning("Trace already in progress for {}", device_id)
server.respond(HTTPStatus.OK, b'', "text/plain")
if not self.check_root(device_id):
raise AdbError(
"Unable to acquire root privileges on the device - check the output of 'adb -s {} shell id'"
.format( device_id))
def clear_last_tracing_session(self, device_id):
log.debug("Clearing previous tracing session files from device")
call_adb(f"shell rm -rf {WINSCOPE_BACKUP_DIR}", device_id)
call_adb(f"shell mkdir {WINSCOPE_BACKUP_DIR}", device_id)
class FetchFilesEndpoint(DeviceRequestEndpoint):
def process_with_device(self, server, path, device_id):
file_buffers = self.fetch_existing_files(device_id)
j = json.dumps(file_buffers)
server.respond(HTTPStatus.OK, j.encode("utf-8"), "text/json")
def fetch_existing_files(self, device_id):
file_buffers = dict()
file = FileMatcher(f"{WINSCOPE_BACKUP_DIR}*", "", "")
try:
file_paths = file.get_filepaths(device_id)
for file_path in file_paths:
with NamedTemporaryFile() as tmp:
file_name = file_path.split('/')[-1] + ".gz"
log.debug(
f"Fetching file {file_path} from device to {tmp.name}")
try:
call_adb_outfile('exec-out cat ' +
file_path, tmp, device_id)
except AdbError as ex:
log.warning(f"Unable to fetch file {file_path} - {repr(ex)}")
return
log.debug(f"Uploading file {tmp.name}")
if file_name not in file_buffers:
file_buffers[file_name] = []
buf = base64.encodebytes(gzip.compress(tmp.read())).decode("utf-8")
file_buffers[file_name].append(buf)
except:
self.log_no_files_warning()
return file_buffers
def log_no_files_warning(self):
log.warning("Proxy didn't find any file to fetch")
TRACE_THREADS = {}
class TraceThread(threading.Thread):
def __init__(self, trace_name: str, device_id: str, command: str, trace_identifier: str):
self.trace_command = command
self.trace_name = trace_name
self.trace_identifier = trace_identifier
self._device_id = device_id
self._keep_alive_timer = None
self.out = None,
self.err = None,
self._success = False
try:
shell = get_shell_args(self._device_id, "trace")
self.process = subprocess.Popen(shell, stdout=subprocess.PIPE,
stderr=subprocess.PIPE, stdin=subprocess.PIPE, start_new_session=True)
except OSError as ex:
raise AdbError(
'Error executing adb command for trace {}: adb shell\n{}'.format(trace_name, repr(ex)))
super().__init__()
def timeout(self):
if self.is_alive():
log.warning("Keep-alive timeout for {} trace on {}".format(self.trace_name, self._device_id))
self.end_trace()
def reset_timer(self):
log.debug(
"Resetting keep-alive clock for {} trace on {}".format(self.trace_name, self._device_id))
if self._keep_alive_timer:
self._keep_alive_timer.cancel()
self._keep_alive_timer = threading.Timer(
KEEP_ALIVE_INTERVAL_S, self.timeout)
self._keep_alive_timer.start()
def end_trace(self):
if self._keep_alive_timer:
self._keep_alive_timer.cancel()
log.debug("Sending SIGINT to the {} process on {}".format(
self.trace_name,
self._device_id))
self.process.send_signal(signal.SIGINT)
try:
log.debug("Waiting for {} trace shell to exit for {}".format(
self.trace_name,
self._device_id))
self.process.wait(timeout=5)
except TimeoutError:
log.debug(
"TIMEOUT - sending SIGKILL to the {} trace process on {}".format(self.trace_name, self._device_id))
self.process.kill()
self.join()
def run(self):
log.debug("Trace {} started on {}".format(self.trace_name, self._device_id))
self.reset_timer()
self.out, self.err = self.process.communicate(self.trace_command)
log.debug("Trace {} ended on {}, waiting for cleanup".format(self.trace_name, self._device_id))
time.sleep(0.2)
for i in range(50):
if call_adb(f"shell cat {WINSCOPE_STATUS}", device=self._device_id) == 'TRACE_OK\n':
log.debug("Trace {} finished successfully on {}".format(
self.trace_name,
self._device_id))
if self.trace_name == "perfetto_trace":
self._success = True
else:
self._success = len(self.err) == 0
break
log.debug("Still waiting for cleanup on {} for {}".format(self._device_id, self.trace_name))
time.sleep(0.1)
def success(self):
return self._success
class StartTraceEndpoint(DeviceRequestEndpoint):
TRACE_COMMAND = """
set -e
echo "Starting trace..."
echo "TRACE_START" > {winscope_status}
# Do not print anything to stdout/stderr in the handler
function stop_trace() {{
echo "start" >{signal_handler_log}
# redirect stdout/stderr to log file
exec 1>>{signal_handler_log}
exec 2>>{signal_handler_log}
set -x
trap - EXIT HUP INT
{stop_commands}
echo "TRACE_OK" > {winscope_status}
}}
trap stop_trace EXIT HUP INT
echo "Signal handler registered."
{start_commands}
# ADB shell does not handle hung up well and does not call HUP handler when a child is active in foreground,
# as a workaround we sleep for short intervals in a loop so the handler is called after a sleep interval.
while true; do sleep 0.1; done
"""
def process_with_device(self, server, path, device_id):
trace_targets = self.get_targets_and_prepare_for_tracing(
server, device_id, PERFETTO_TRACE_CONFIG_FILE, TRACE_TARGETS, "perfetto_trace")
for t, config in trace_targets:
if config:
trace_identifiers = config.get_trace_identifiers()
else:
trace_identifiers = [""]
for trace_identifier in trace_identifiers:
if trace_identifier:
if config:
options = config.get_optional_start_args(trace_identifier)
else:
options = ""
start_cmd = t.trace_start.format(trace_identifier=trace_identifier, options=options)
else:
start_cmd = t.trace_start
command = StartTraceEndpoint.TRACE_COMMAND.format(
winscope_status=WINSCOPE_STATUS,
signal_handler_log=SIGNAL_HANDLER_LOG,
stop_commands=t.trace_stop,
perfetto_config_file=PERFETTO_TRACE_CONFIG_FILE,
start_commands=start_cmd,
)
log.debug(f"Executing start command for {t.trace_name} on {device_id}...")
thread = TraceThread(t.trace_name, device_id, command.encode('utf-8'), trace_identifier)
if device_id not in TRACE_THREADS:
TRACE_THREADS[device_id] = [thread]
else:
TRACE_THREADS[device_id].append(thread)
thread.start()
server.respond(HTTPStatus.OK, b'', "text/plain")
def move_collected_files(files: list[File | FileMatcher], device_id, trace_identifier):
for f in files:
file_paths = f.get_filepaths(device_id)
file_type = f.get_filetype().format(trace_identifier=trace_identifier)
for file_path in file_paths:
formatted_path = file_path.format(trace_identifier=trace_identifier)
log.debug(f"Moving file {formatted_path} to {WINSCOPE_BACKUP_DIR}{file_type} on device")
try:
call_adb(
f"shell [ ! -f {formatted_path} ] || mv {formatted_path} {WINSCOPE_BACKUP_DIR}{file_type}",
device_id)
except AdbError as ex:
log.warning(f"Unable to move file {formatted_path} - {repr(ex)}")
class EndTraceEndpoint(DeviceRequestEndpoint):
def process_with_device(self, server, path, device_id):
if device_id not in TRACE_THREADS:
raise BadRequest("No trace in progress for {}".format(device_id))
errors: list[str] = []
for thread in TRACE_THREADS[device_id]:
if thread.is_alive():
thread.end_trace()
success = thread.success()
signal_handler_log = call_adb(f"shell cat {SIGNAL_HANDLER_LOG}", device=device_id).encode('utf-8')
out = b"### Shell script's stdout - start\n" + \
thread.out + \
b"### Shell script's stdout - end\n" + \
b"### Shell script's stderr - start\n" + \
thread.err + \
b"### Shell script's stderr - end\n" + \
b"### Signal handler log - start\n" + \
signal_handler_log + \
b"### Signal handler log - end\n"
if not success:
log.error(
"Error ending trace {} on the device\n### Output ###\n".format(thread.trace_name) + out.decode(
"utf-8")
)
errors.append("Error ending trace {} on the device: {}".format(thread.trace_name, thread.err))
if thread.trace_name in TRACE_TARGETS:
files = TRACE_TARGETS[thread.trace_name].files
move_collected_files(files, device_id, thread.trace_identifier)
else:
errors.append(f"File location unknown for {thread.trace_name}")
call_adb(f"shell rm {WINSCOPE_STATUS}", device=device_id)
TRACE_THREADS.pop(device_id)
server.respond(HTTPStatus.OK, json.dumps(errors).encode("utf-8"), "text/plain")
class StatusEndpoint(DeviceRequestEndpoint):
def process_with_device(self, server, path, device_id):
if device_id not in TRACE_THREADS:
raise BadRequest("No trace in progress for {}".format(device_id))
for thread in TRACE_THREADS[device_id]:
thread.reset_timer()
server.respond(HTTPStatus.OK, str(TRACE_THREADS[device_id][0].is_alive()).encode("utf-8"), "text/plain")
class DumpEndpoint(DeviceRequestEndpoint):
def process_with_device(self, server, path, device_id):
dump_targets = self.get_targets_and_prepare_for_tracing(
server, device_id, PERFETTO_DUMP_CONFIG_FILE, DUMP_TARGETS, "perfetto_dump")
dump_commands = []
for t, config in dump_targets:
if config:
for trace_identifier in config.get_trace_identifiers():
dump_commands.append(
t.dump_command.format(trace_identifier=trace_identifier, options=config.get_optional_start_args(trace_identifier)))
else:
dump_commands.append(t.dump_command)
dump_commands = '\n'.join(dump_commands)
shell = get_shell_args(device_id, "dump")
process = subprocess.Popen(shell, stdout=subprocess.PIPE, stderr=subprocess.PIPE,
stdin=subprocess.PIPE, start_new_session=True)
log.debug("Starting dump on device {}".format(device_id))
out, err = process.communicate(dump_commands.encode('utf-8'))
if process.returncode != 0:
raise AdbError("Error executing dump command." + "\n\n### OUTPUT ###" + out.decode('utf-8') + "\n"
+ err.decode('utf-8'))
log.debug("Dump finished on device {}".format(device_id))
for target, config in dump_targets:
if config:
trace_identifiers = config.get_trace_identifiers()
for trace_identifier in trace_identifiers:
move_collected_files(target.files, device_id, trace_identifier)
else:
move_collected_files(target.files, device_id, "")
server.respond(HTTPStatus.OK, b'', "text/plain")
class ADBWinscopeProxy(BaseHTTPRequestHandler):
def __init__(self, request, client_address, server):
self.router = RequestRouter(self)
listDevicesEndpoint = ListDevicesEndpoint()
self.router.register_endpoint(
RequestType.GET, "devices", listDevicesEndpoint)
self.router.register_endpoint(
RequestType.GET, "status", StatusEndpoint())
self.router.register_endpoint(
RequestType.GET, "fetch", FetchFilesEndpoint())
self.router.register_endpoint(RequestType.POST, "start", StartTraceEndpoint())
self.router.register_endpoint(RequestType.POST, "end", EndTraceEndpoint())
self.router.register_endpoint(RequestType.POST, "dump", DumpEndpoint())
self.router.register_endpoint(
RequestType.GET, "checkwayland", CheckWaylandServiceEndpoint(listDevicesEndpoint))
super().__init__(request, client_address, server)
def respond(self, code: int, data: bytes, mime: str) -> None:
self.send_response(code)
self.send_header('Content-type', mime)
add_standard_headers(self)
self.wfile.write(data)
def do_GET(self):
self.router.process(RequestType.GET)
def do_POST(self):
self.router.process(RequestType.POST)
def do_OPTIONS(self):
self.send_response(HTTPStatus.OK)
self.send_header('Allow', 'GET,POST')
add_standard_headers(self)
self.end_headers()
self.wfile.write(b'GET,POST')
def log_request(self, code='-', size='-'):
log.info('{} {} {}'.format(self.requestline, str(code), str(size)))
if __name__ == '__main__':
args = create_argument_parser().parse_args()
logging.basicConfig(stream=sys.stderr, level=args.loglevel,
format='%(asctime)s - %(name)s - %(levelname)s - %(message)s')
log = logging.getLogger("ADBProxy")
secret_token = get_token()
print("Winscope ADB Connect proxy version: " + VERSION)
print('Winscope token: ' + secret_token)
httpd = HTTPServer(('localhost', args.port), ADBWinscopeProxy)
try:
httpd.serve_forever()
except KeyboardInterrupt:
log.info("Shutting down")
二、后续
我仔细阅读了md，发现还有一步需要操作一下，应该是有一部分map的字段适配，我操作一下，貌似正常了，但是后续是否还有问题还需要继续测试。
### Update IntDefMapping
# Build `framework-minus-apex-intdefs` module and a preprocessor will
# generate the latest IntDefMapping. From the `ANDROID_ROOT` run:
. build/envsetup.sh
m framework-minus-apex-intdefs
# Copy the generated `intDefMapping.json` files to the `winscope`.
python3 -c 'import sys,json,collections; print(json.dumps(collections.OrderedDict(sorted(collections.ChainMap(*map(lambda x:json.load(open(x)), sys.argv[1:])).items())), indent=2))' $(find out/soong/.intermediates/frameworks/base -iname intDefMapping.json) > ./development/tools/winscope/src/common/intDefMapping.json
如下，trace都抓成功了
扫一扫
1302
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
