Android contextual action mode 学习

Android的menu有多种实现方式，Action Mode是Android 3.0以后出现的，我们可以使用AppCompat库使Action Mode兼容至Android 2.1。

    Android 3.0以前，我们处理列表的长按事件经常使用Context Menu，Android3.0以后，我们有了新的选择：Action Mode。下图左边效果为Context Menu右边效果为Action Mode。

Android开发者应该都熟悉Context Menu了，Context Menu是悬浮在操作项之上的视图。Action Mode是临时占据了ActionBar的位置。

关于Action Mode 详细资料：http://developer.android.com/guide/topics/ui/menus.html#context-menu

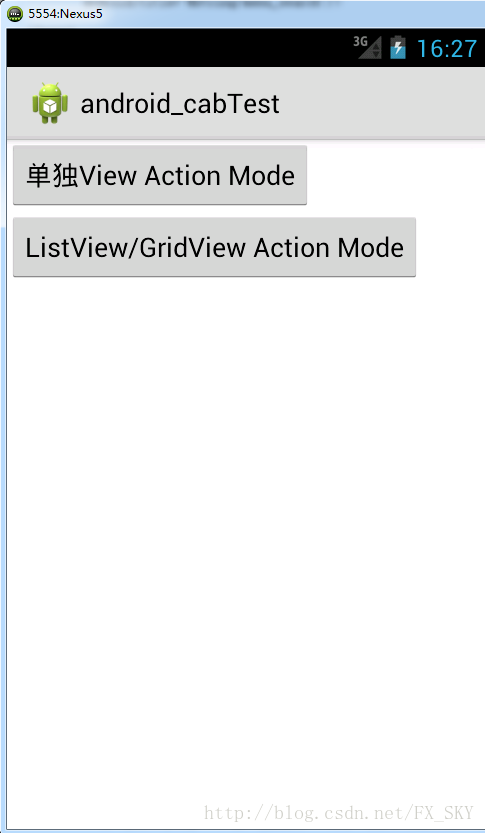

自己写了一个示例以增强记忆运行效果如下：

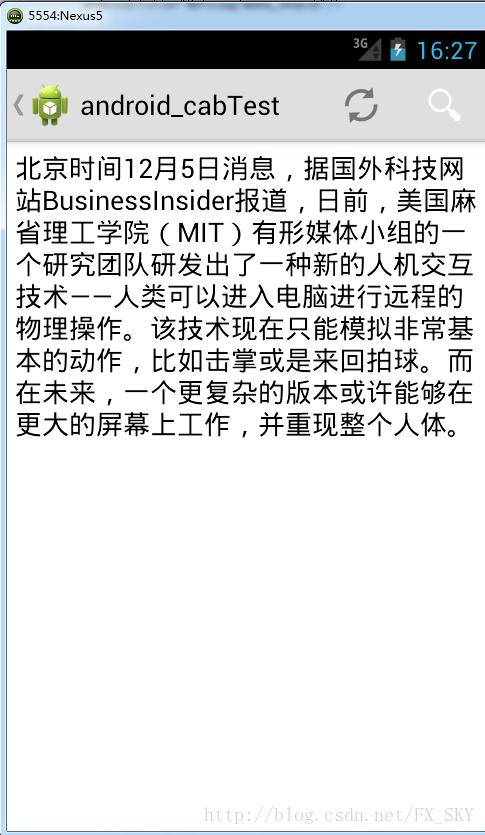

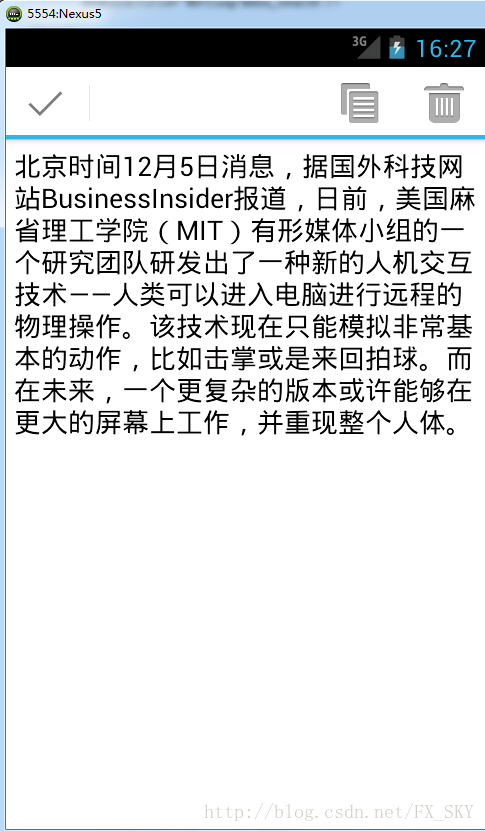

在TextView上使用Contextual Action Mode

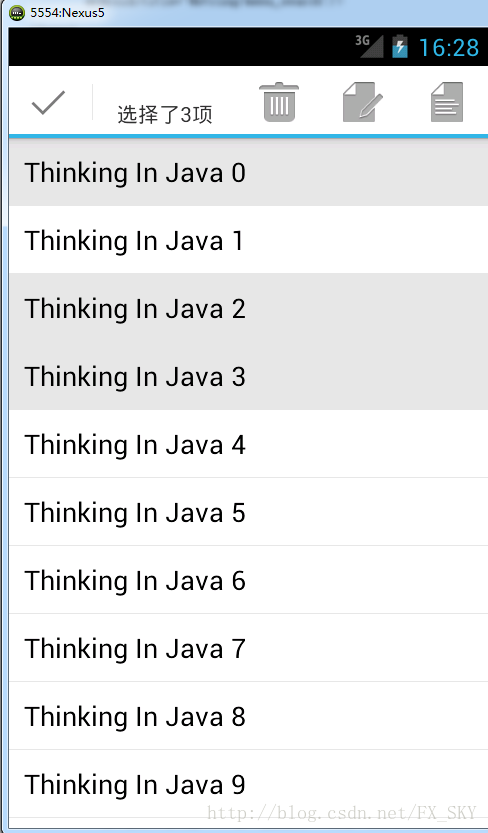

在ListView上使用Contextual Action Mode

1、在单个View上使用Contextual Action Mode

package com.example.cabtest;

import android.annotation.SuppressLint;
import android.app.ActionBar;
import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.ActionMode;
import android.view.Menu;
import android.view.MenuInflater;
import android.view.MenuItem;
import android.view.View;
import android.view.View.OnLongClickListener;
import android.widget.TextView;
import android.widget.Toast;

public class IndividualviewsCAMActivity extends Activity {

    private ActionMode mActionMode;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        setContentView(R.layout.activity_individual);
        super.onCreate(savedInstanceState);

        ActionBar mActionBar = getActionBar();
        mActionBar.setDisplayHomeAsUpEnabled(true);
        mActionBar.setDisplayUseLogoEnabled(true);

        findView();
    }

    @SuppressLint("NewApi")
    private void findView() {
        String content = "北京时间12月5日消息，据国外科技网站BusinessInsider报道，日前，美国麻省理工学院（MIT）有形媒体小组的一个研究团队研发出了一种新的人机交互技术——人类可以进入电脑进行远程的物理操作。该技术现在只能模拟非常基本的动作，比如击掌或是来回拍球。而在未来，一个更复杂的版本或许能够在更大的屏幕上工作，并重现整个人体。";
        TextView tv_content = (TextView) findViewById(R.id.tv_content);
        tv_content.setText(content);

        tv_content.setOnLongClickListener(new OnLongClickListener() {

            @Override
            public boolean onLongClick(View v) {

                if (mActionMode != null) {
                    return false;
                }

                mActionMode = IndividualviewsCAMActivity.this
                        .startActionMode(mActionModeCallback);
                v.setSelected(true);
                return true;
            }
        });
    }

    @SuppressLint("NewApi")
    private ActionMode.Callback mActionModeCallback = new ActionMode.Callback() {

        @Override
        public boolean onCreateActionMode(ActionMode mode, Menu menu) {
            // Inflate a menu resource providing context menu items
            MenuInflater inflater = mode.getMenuInflater();
            inflater.inflate(R.menu.context_menu_individual, menu);
            return true;
        }

        @Override
        public boolean onPrepareActionMode(ActionMode mode, Menu menu) {
            // TODO Auto-generated method stub
            return false;
        }

        @Override
        public boolean onActionItemClicked(ActionMode mode, MenuItem item) {
            switch (item.getItemId()) {
            case R.id.menu_copy:

                Toast.makeText(getApplicationContext(), R.string.menu_copy,
                        Toast.LENGTH_SHORT).show();

                mode.finish(); // Action picked, so close the CAB
                return true;
            case R.id.menu_delete:

                Toast.makeText(getApplicationContext(), R.string.menu_delete,
                        Toast.LENGTH_SHORT).show();

                mode.finish(); // Action picked, so close the CAB
                return true;
            default:
                return false;
            }
        }

        @Override
        public void onDestroyActionMode(ActionMode mode) {
            mActionMode = null;
        }
    };

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.context_menu_test, menu);
        return true;
    }

    @Override
    public boolean onOptionsItemSelected(MenuItem item) {
        switch (item.getItemId()) {
        case android.R.id.home:
            // app icon in action bar clicked; go home
            Intent intent = new Intent(this, MainActivity.class);
            intent.addFlags(Intent.FLAG_ACTIVITY_CLEAR_TOP);
            startActivity(intent);
            return true;

        default:
            return super.onOptionsItemSelected(item);
        }
    }
}

context_menu_individual.xml

<menu xmlns:android="http://schemas.android.com/apk/res/android" >

    <item
        android:id="@+id/menu_copy"
        android:icon="@drawable/ic_copy"
        android:orderInCategory="1"
        android:showAsAction="always"
        android:title="@string/menu_copy"/>

    <item
        android:id="@+id/menu_delete"
        android:icon="@drawable/ic_delete"
        android:orderInCategory="2"
        android:showAsAction="always"
        android:title="@string/menu_delete"/>

</menu>

2、在ListView/GridView 上使用Contextual Action Mode

package com.example.cabtest;

import java.util.ArrayList;
import java.util.List;

import com.example.cabtest.entity.Book;

import android.app.ActionBar;
import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.ActionMode;
import android.view.Menu;
import android.view.MenuInflater;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AbsListView.MultiChoiceModeListener;
import android.widget.BaseAdapter;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;

public class ListCAMActivity extends Activity {

    private List<Book> mList = new ArrayList<Book>();
    private List<Book> checkedList = new ArrayList<Book>();
    private BookAdapter mAdapter;
    private ListView mListView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        setContentView(R.layout.activity_list);
        super.onCreate(savedInstanceState);

        ActionBar mActionBar = getActionBar();
        mActionBar.setDisplayHomeAsUpEnabled(true);
        mActionBar.setDisplayUseLogoEnabled(true);

        initData();
        findView();
    }

    private void initData() {

        for (int i = 0; i < 40; i++) {

            Book book = new Book();
            book.setId(i);
            book.setName("Thinking In Java " + i);

            mList.add(book);
        }
    }

    private void findView() {

        mListView = (ListView) findViewById(R.id.mListView);
        mAdapter = new BookAdapter();
        mListView.setAdapter(mAdapter);

        mListView.setChoiceMode(ListView.CHOICE_MODE_MULTIPLE_MODAL);
        mListView.setMultiChoiceModeListener(new MultiChoiceModeListener() {

            @Override
            public void onItemCheckedStateChanged(ActionMode mode,
                    int position, long id, boolean checked) {
                // Here you can do something when items are
                // selected/de-selected,such as update the title in the CAB
                Book book = mList.get(position);
                if (checked) {
                    book.setChecked(true);
                    checkedList.add(book);
                } else {
                    checkedList.remove(book);
                    book.setChecked(false);
                }

                if (mAdapter != null) {
                    mAdapter.notifyDataSetChanged();
                }
                setSubtitle(mode);

            }

            private void setSubtitle(ActionMode mode) {
                int checkedCount = checkedList.size();
                // int checkedCount = mListView.getCheckedItemCount();
                switch (checkedCount) {
                case 0:
                    mode.setSubtitle(null);
                    break;
                default:
                    mode.setSubtitle("选择了" + checkedCount + "项");
                    break;
                }
            }

            @Override
            public boolean onActionItemClicked(ActionMode mode, MenuItem item) {
                // Respond to clicks on the actions in the CAB
                switch (item.getItemId()) {
                case R.id.menu_delete:

                    mList.removeAll(checkedList);

                    if (mAdapter != null) {
                        mAdapter.notifyDataSetChanged();
                    }

                    Toast.makeText(getApplicationContext(),
                            R.string.menu_delete, Toast.LENGTH_SHORT).show();

                    checkedList.clear();

                    mode.finish(); // Action picked, so close the CAB
                    return true;

                case R.id.menu_edit:

                    Toast.makeText(getApplicationContext(), R.string.menu_edit,
                            Toast.LENGTH_SHORT).show();

                    mode.finish(); // Action picked, so close the CAB
                    return true;
                case R.id.menu_detail:

                    Toast.makeText(getApplicationContext(),
                            R.string.menu_detail, Toast.LENGTH_SHORT).show();

                    mode.finish(); // Action picked, so close the CAB
                    return true;
                default:
                    return false;
                }
            }

            @Override
            public boolean onCreateActionMode(ActionMode mode, Menu menu) {
                // Inflate the menu for the CAB
                MenuInflater inflater = mode.getMenuInflater();
                inflater.inflate(R.menu.context_menu_list, menu);
                return true;
            }

            @Override
            public void onDestroyActionMode(ActionMode mode) {
                // Here you can make any necessary updates to the activity when
                // the CAB is removed. By default, selected items are
                // deselected/unchecked.
            }

            @Override
            public boolean onPrepareActionMode(ActionMode mode, Menu menu) {
                // Here you can perform updates to the CAB due to
                // an invalidate() request
                return false;
            }
        });
    }

    private class BookAdapter extends BaseAdapter {

        @Override
        public int getCount() {

            return mList.size();
        }

        @Override
        public Object getItem(int position) {

            return mList.get(position);
        }

        @Override
        public long getItemId(int position) {
            // TODO Auto-generated method stub
            return position;
        }

        @Override
        public View getView(int position, View convertView, ViewGroup parent) {

            ViewHolder holder;
            if (convertView == null) {

                convertView = View.inflate(getApplicationContext(),
                        R.layout.list_item, null);
                holder = new ViewHolder();
                holder.tv_name = (TextView) convertView
                        .findViewById(R.id.tv_name);

                convertView.setTag(holder);
            } else {
                holder = (ViewHolder) convertView.getTag();
            }

            Book book = mList.get(position);

            if(book.isChecked()){
                convertView.setBackgroundColor(getResources().getColor(R.color.blur));
            }else{
                convertView.setBackgroundColor(getResources().getColor(R.color.white));
            }

            holder.tv_name.setText(book.getName());

            return convertView;
        }
    }

    static class ViewHolder {
        TextView tv_name;
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.context_menu_test, menu);
        return true;
    }

    @Override
    public boolean onOptionsItemSelected(MenuItem item) {
        switch (item.getItemId()) {
        case android.R.id.home:
            // app icon in action bar clicked; go home
            Intent intent = new Intent(this, MainActivity.class);
            intent.addFlags(Intent.FLAG_ACTIVITY_CLEAR_TOP);
            startActivity(intent);
            return true;

        default:
            return super.onOptionsItemSelected(item);
        }
    }
}

context_menu_list.xml

<menu xmlns:android="http://schemas.android.com/apk/res/android" >

    <item
        android:id="@+id/menu_delete"
        android:icon="@drawable/ic_delete"
        android:orderInCategory="1"
        android:showAsAction="always"
        android:title="@string/menu_delete"/>

    <item
        android:id="@+id/menu_edit"
        android:icon="@drawable/ic_edit"
        android:orderInCategory="2"
        android:showAsAction="always"
        android:title="@string/menu_edit"/>

    <item
        android:id="@+id/menu_detail"
        android:icon="@drawable/ic_detail"
        android:orderInCategory="3"
        android:showAsAction="always"
        android:title="@string/menu_detail"/>

</menu>

list_item.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical" >

    <TextView
        android:id="@+id/tv_name"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="18sp"
        android:layout_gravity="center_vertical"
        android:layout_margin="10dp"
        android:textColor="@color/black"/>

</LinearLayout>

context_menu_test.xml

<menu xmlns:android="http://schemas.android.com/apk/res/android" >

    <item
        android:id="@+id/menu_refresh"
        android:icon="@drawable/ic_action_refresh"
        android:orderInCategory="1"
        android:showAsAction="always"
        android:title="@string/menu_refresh"/>

    <item
        android:id="@+id/menu_search"
        android:icon="@drawable/ic_action_search"
        android:orderInCategory="2"
        android:showAsAction="always"
        android:title="@string/menu_search"/>

</menu>
