【支持NET6】
github地址：GitHub - icsharpcode/AvalonEdit: The WPF-based text editor component used in SharpDevelop
官方文档:AvalonEdit - Table of Content
它有个很好的项目GitHub - icsharpcode/WpfDesigner: The WPF Designer from SharpDevelop
GitHub - WPFDevelopersOrg/XamlViewer: XAML Viewer is a lightweight XAML editor.

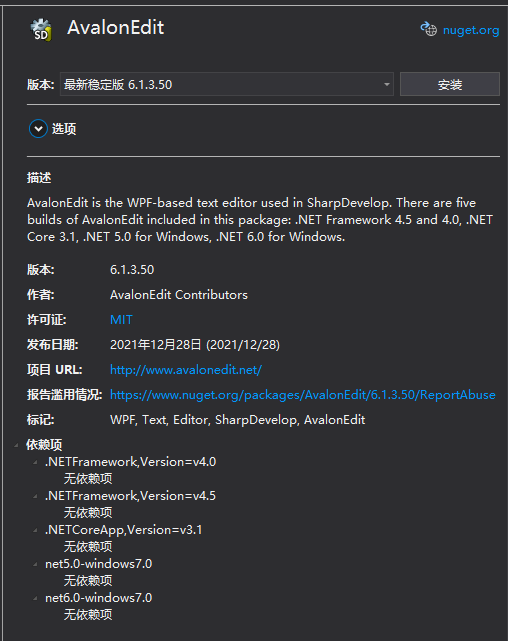

新建wpf .net framework4.5的项目，nuget搜avalonedit
当前版本6.1.3.50
准备工作
<Window x:Class="avaedit.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:local="clr-namespace:avaedit" mc:Ignorable="d" WindowStartupLocation="CenterScreen" xmlns:avalonEdit="http://icsharpcode.net/sharpdevelop/avalonedit" Title="" Height="700" Width="1200"> <Grid> </Grid> </Window>
入门
<Window x:Class="avaedit.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:local="clr-namespace:avaedit" mc:Ignorable="d" WindowStartupLocation="CenterScreen" xmlns:avalonEdit="http://icsharpcode.net/sharpdevelop/avalonedit" Title="" Height="700" Width="1200"> <Grid> <avalonEdit:TextEditor x:Name="textEditor" SyntaxHighlighting="C#"/> </Grid> </Window>

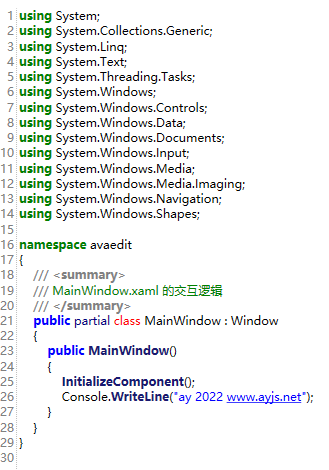

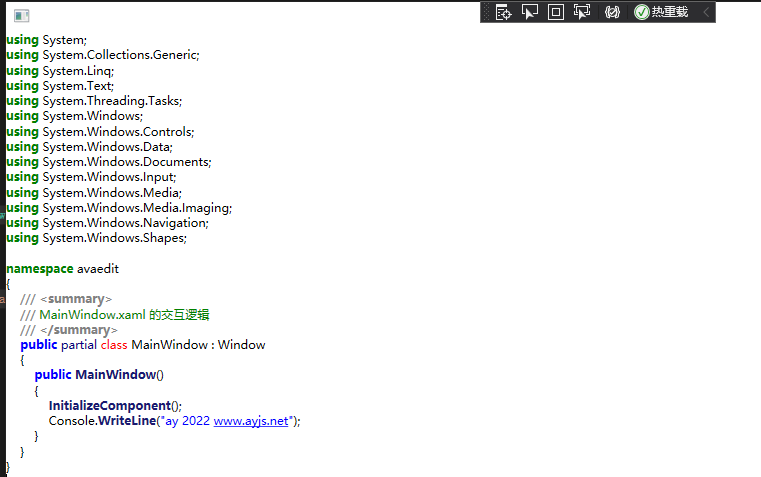

运行后，粘贴一段C#代码

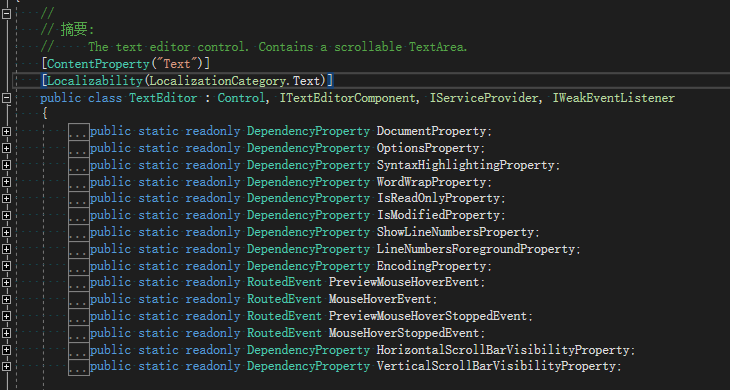

看了下代码，原生自己写的
显示行号
折叠功能
这里以xml文件做demo，内置了xml的高亮规则和折叠
<?xml version="1.0"?> <SyntaxDefinition name="Custom Highlighting" xmlns="http://icsharpcode.net/sharpdevelop/syntaxdefinition/2008"> <Color name="Comment" foreground="Green" /> <Color name="String" foreground="Blue" /> <!-- This is the main ruleset. --> <RuleSet> <Span color="Comment" begin="//" /> <Span color="Comment" multiline="true" begin="/\*" end="\*/" /> <Span color="String"> <Begin>"</Begin> <End>"</End> <RuleSet> <!-- nested span for escape sequences --> <Span begin="\\" end="." /> </RuleSet> </Span> <Keywords fontWeight="bold" foreground="Blue"> <Word>if</Word> <Word>else</Word> <!-- ... --> </Keywords> <Keywords fontWeight="bold" fontStyle="italic" foreground="Red"> <Word>AvalonEdit</Word> </Keywords> <!-- Digits --> <Rule foreground="DarkBlue"> \b0[xX][0-9a-fA-F]+ # hex number | \b ( \d+(\.[0-9]+)? #number with optional floating point | \.[0-9]+ #or just starting with floating point ) ([eE][+-]?[0-9]+)? # optional exponent </Rule> </RuleSet> </SyntaxDefinition>
后台单击折叠按钮
private static FoldingManager foldingManager = null;
private static XmlFoldingStrategy foldingStrategy = new XmlFoldingStrategy();
private void zhedie_Click(object sender, RoutedEventArgs e)
{
//默认语法高亮规则
textEditor.SyntaxHighlighting = HighlightingManager.Instance.GetDefinitionByExtension(".xml");
//折叠
foldingManager = FoldingManager.Install(textEditor.TextArea);
//textEditor.Text = "";
foldingStrategy.UpdateFoldings(foldingManager, textEditor.Document);
}

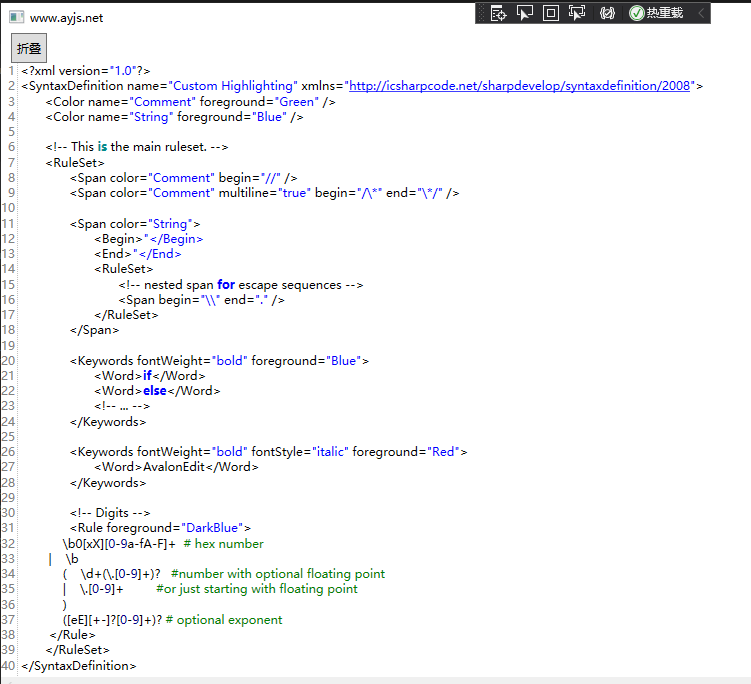

运行后，粘贴一段xml

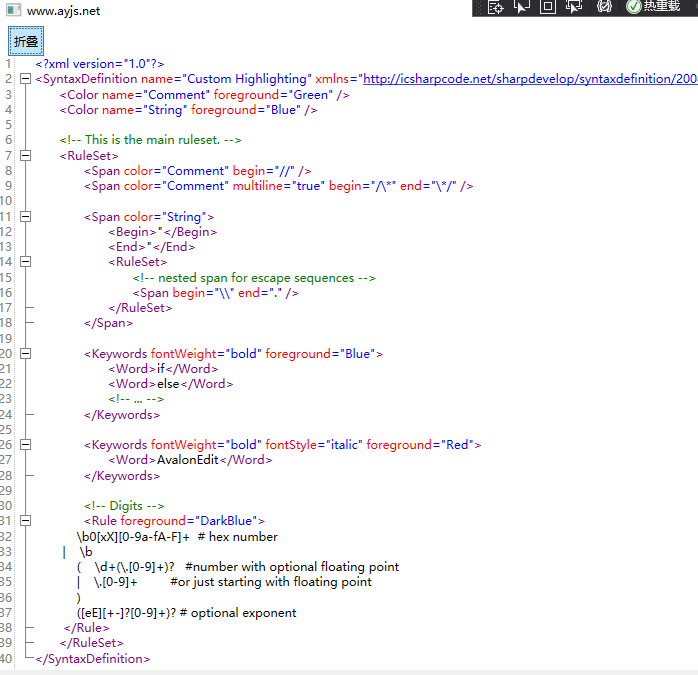

单击折叠后
折叠后，复制文本都是可以的

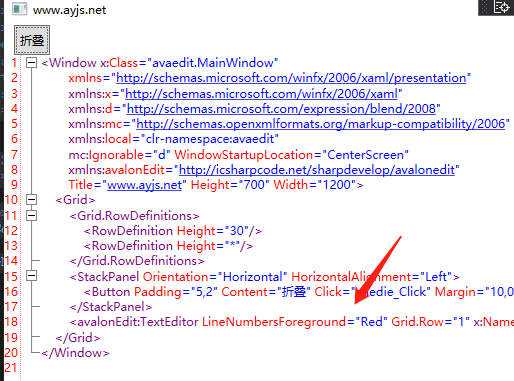

行号的显示颜色 LineNumbersForeground
引入xmlns:system="clr-namespace:System;assembly=mscorlib"，xaml上设置数字
<avalonEdit:TextEditor LineNumbersForeground="Red" Grid.Row="1" x:Name="textEditor" SyntaxHighlighting="C#" ShowLineNumbers="True"> <avalonEdit:TextEditor.Options> <avalonEdit:TextEditorOptions ShowSpaces="True" > </avalonEdit:TextEditorOptions> </avalonEdit:TextEditor.Options> </avalonEdit:TextEditor>

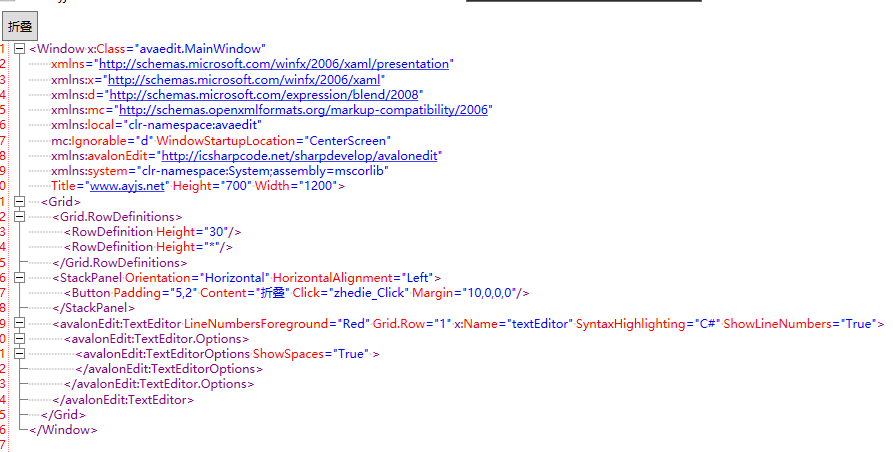

通过Options指定设置，F12可以看到很多设置，比如ShowSpaces="True"，显示虚线
删掉了一些xml节点，折叠节点不是实时更新 折叠的，修改折叠按钮后面的代码
private void zhedie_Click(object sender, RoutedEventArgs e)
{
//默认语法高亮规则
textEditor.SyntaxHighlighting = HighlightingManager.Instance.GetDefinitionByExtension(".xml");
//折叠
if (foldingManager != null)
{
FoldingManager.Uninstall(foldingManager);
foldingManager.Clear();
}
foldingManager = FoldingManager.Install(textEditor.TextArea);
//textEditor.Text = "";
foldingStrategy.UpdateFoldings(foldingManager, textEditor.Document);
}
下面几个设置没看到效果
<avalonEdit:TextEditorOptions ShowSpaces="True" WordWrapIndentation="14" InheritWordWrapIndentation="true"> <avalonEdit:TextEditorOptions.ColumnRulerPosition> <system:Int32>10</system:Int32> </avalonEdit:TextEditorOptions.ColumnRulerPosition> </avalonEdit:TextEditorOptions>
输入点号，自动补全
需要先自己继承 ICompletionData 接口创建提示数据
public class CompletionData : ICompletionData
{
public CompletionData(string text)
{
Text = text;
}
public ImageSource Image => null;
public string Text { get; }
public object Content => Text;
public object Description =>this.Text +" 的描述";
public double Priority { get; }
public void Complete(TextArea textArea, ISegment completionSegment,
EventArgs insertionRequestEventArgs)
{
textArea.Document.Replace(completionSegment, Text);
}
}
输入点号，主要CompletionWindow这个窗体show就可以了，主要是自己要判断什么时候弹，弹什么提示
private CompletionWindow _completionWindow;
private void TextAreaOnTextEntered(object sender, TextCompositionEventArgs e)
{
if (e.Text == ".")
{
_completionWindow = new CompletionWindow(textEditor.TextArea);
var completionData = _completionWindow.CompletionList.CompletionData;
completionData.Add(new CompletionData("Name"));
completionData.Add(new CompletionData("Gender"));
completionData.Add(new CompletionData("Class"));
_completionWindow.Show();
_completionWindow.Closed += (o, args) => _completionWindow = null;
}
}

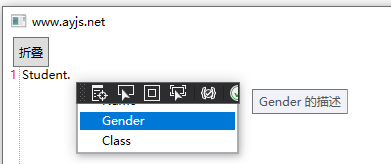

输入.
暂时不知道怎么拿到前面的 Student这个单词的值，毕竟要根据什么值，然后提示啥
=============2022 02 14 ==============================
默认文本区域没有右键菜单的

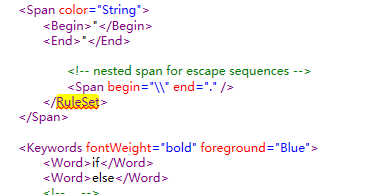

验证xml，把当前的xml内容用XmlDocument. Load 加载文本，报的异常来验证xml
https://github.com/ay2015/avaedit/
效果图
下面2个接口，对文字背景修改，一个应该是线
IBackgroundRenderer, IVisualLineTransformer
定义一个外观的文本块，继承TextSegment
public sealed class TextMarker : TextSegment
{
public TextMarker(int startOffset, int length)
{
StartOffset = startOffset;
Length = length;
}
public Color? BackgroundColor { get; set; }
public Color MarkerColor { get; set; }
public string ToolTip { get; set; }
}
public sealed class TextMarker : TextSegment
{
public TextMarker(int startOffset, int length)
{
StartOffset = startOffset;
Length = length;
}
public Color? BackgroundColor { get; set; }
public Color MarkerColor { get; set; }
public string ToolTip { get; set; }
}
public class TextMarkerService : IBackgroundRenderer, IVisualLineTransformer
{
private readonly TextEditor textEditor;
private readonly TextSegmentCollection<TextMarker> markers;
public TextMarkerService(TextEditor textEditor)
{
this.textEditor = textEditor;
markers = new TextSegmentCollection<TextMarker>(textEditor.Document);
}
public void Draw(TextView textView, DrawingContext drawingContext)
{
if (markers == null || !textView.VisualLinesValid)
{
return;
}
var visualLines = textView.VisualLines;
if (visualLines.Count == 0)
{
return;
}
int viewStart = visualLines.First().FirstDocumentLine.Offset;
int viewEnd = visualLines.Last().LastDocumentLine.EndOffset;
foreach (TextMarker marker in markers.FindOverlappingSegments(viewStart, viewEnd - viewStart))
{
if (marker.BackgroundColor != null)
{
var geoBuilder = new BackgroundGeometryBuilder { AlignToWholePixels = true, CornerRadius = 3 };
geoBuilder.AddSegment(textView, marker);
Geometry geometry = geoBuilder.CreateGeometry();
if (geometry != null)
{
Color color = marker.BackgroundColor.Value;
var brush = new SolidColorBrush(color);
brush.Freeze();
drawingContext.DrawGeometry(brush, null, geometry);
}
}
foreach (Rect r in BackgroundGeometryBuilder.GetRectsForSegment(textView, marker))
{
Point startPoint = r.BottomLeft;
Point endPoint = r.BottomRight;
var usedPen = new Pen(new SolidColorBrush(marker.MarkerColor), 1);
usedPen.Freeze();
const double offset = 2.5;
int count = Math.Max((int)((endPoint.X - startPoint.X) / offset) + 1, 4);
var geometry = new StreamGeometry();
using (StreamGeometryContext ctx = geometry.Open())
{
ctx.BeginFigure(startPoint, false, false);
ctx.PolyLineTo(CreatePoints(startPoint, endPoint, offset, count).ToArray(), true, false);
}
geometry.Freeze();
drawingContext.DrawGeometry(Brushes.Transparent, usedPen, geometry);
break;
}
}
}
public KnownLayer Layer
{
get { return KnownLayer.Selection; }
}
public void Transform(ITextRunConstructionContext context, IList<VisualLineElement> elements)
{ }
private IEnumerable<Point> CreatePoints(Point start, Point end, double offset, int count)
{
for (int i = 0; i < count; i++)
{
yield return new Point(start.X + (i * offset), start.Y - ((i + 1) % 2 == 0 ? offset : 0));
}
}
public void Clear()
{
foreach (TextMarker m in markers)
{
Remove(m);
}
}
private void Remove(TextMarker marker)
{
if (markers.Remove(marker))
{
Redraw(marker);
}
}
private void Redraw(ISegment segment)
{
textEditor.TextArea.TextView.Redraw(segment);
}
public void Create(int offset, int length, string message)
{
var m = new TextMarker(offset, length);
markers.Add(m);
m.MarkerColor = Colors.Red;
m.ToolTip = message;
Redraw(m);
}
public IEnumerable<TextMarker> GetMarkersAtOffset(int offset)
{
return markers == null ? Enumerable.Empty<TextMarker>() : markers.FindSegmentsContaining(offset);
}
}
新建一个用户控件AvaEditor.xaml
前台代码
<UserControl x:Class="avaedit.AvaEditor" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:local="clr-namespace:avaedit" mc:Ignorable="d" xmlns:avalonEdit="http://icsharpcode.net/sharpdevelop/avalonedit" d:DesignHeight="450" d:DesignWidth="800"> <UserControl.CommandBindings> <CommandBinding Command="local:AvaEditor.ValidateCommand" Executed="Validate"/> </UserControl.CommandBindings> <Grid> <avalonEdit:TextEditor x:Name="textEditor" SyntaxHighlighting="XML" ShowLineNumbers="True" > <avalonEdit:TextEditor.ContextMenu> <ContextMenu> <MenuItem Command="Undo" /> <MenuItem Command="Redo" /> <Separator/> <MenuItem Command="Cut" /> <MenuItem Command="Copy" /> <MenuItem Command="Paste" /> <Separator/> <MenuItem Command="local:AvaEditor.ValidateCommand" /> </ContextMenu> </avalonEdit:TextEditor.ContextMenu> </avalonEdit:TextEditor> </Grid> </UserControl>
后台代码：
public partial class AvaEditor : UserControl
{
private static readonly ICommand validateCommand = new RoutedUICommand("验证XML", "Validate", typeof(AvaEditor),
new InputGestureCollection { new KeyGesture(Key.V, ModifierKeys.Control | ModifierKeys.Shift) });
public static ICommand ValidateCommand
{
get { return validateCommand; }
}
public AvaEditor()
{
InitializeComponent();
Loaded += AvaEditor_Loaded;
}
private ToolTip toolTip;
private TextMarkerService textMarkerService;
private void AvaEditor_Loaded(object sender, RoutedEventArgs e)
{
Loaded -= AvaEditor_Loaded;
textMarkerService = new TextMarkerService(textEditor);
var textView = textEditor.TextArea.TextView;
textView.BackgroundRenderers.Add(textMarkerService);
textView.LineTransformers.Add(textMarkerService);
textView.Services.AddService(typeof(TextMarkerService), textMarkerService);
textView.MouseHover += MouseHover;
textView.MouseHoverStopped += TextEditorMouseHoverStopped;
textView.VisualLinesChanged += VisualLinesChanged;
}
private void MouseHover(object sender, MouseEventArgs e)
{
var pos = textEditor.TextArea.TextView.GetPositionFloor(e.GetPosition(textEditor.TextArea.TextView) + textEditor.TextArea.TextView.ScrollOffset);
bool inDocument = pos.HasValue;
if (inDocument)
{
TextLocation logicalPosition = pos.Value.Location;
int offset = textEditor.Document.GetOffset(logicalPosition);
var markersAtOffset = textMarkerService.GetMarkersAtOffset(offset);
TextMarker markerWithToolTip = markersAtOffset.FirstOrDefault(marker => marker.ToolTip != null);
if (markerWithToolTip != null)
{
if (toolTip == null)
{
toolTip = new ToolTip();
toolTip.Closed += ToolTipClosed;
toolTip.PlacementTarget = this;
toolTip.Content = new TextBlock
{
Text = markerWithToolTip.ToolTip,
TextWrapping = TextWrapping.Wrap
};
toolTip.IsOpen = true;
e.Handled = true;
}
}
}
}
void ToolTipClosed(object sender, RoutedEventArgs e)
{
toolTip = null;
}
void TextEditorMouseHoverStopped(object sender, MouseEventArgs e)
{
if (toolTip != null)
{
toolTip.IsOpen = false;
e.Handled = true;
}
}
private void VisualLinesChanged(object sender, EventArgs e)
{
if (toolTip != null)
{
toolTip.IsOpen = false;
}
}
private void Validate(object sender, ExecutedRoutedEventArgs e)
{
IServiceProvider sp = textEditor;
var markerService = (TextMarkerService)sp.GetService(typeof(TextMarkerService));
markerService.Clear();
try
{
var document = new XmlDocument { XmlResolver = null };
document.LoadXml(textEditor.Document.Text);
}
catch (XmlException ex)
{
DisplayValidationError(ex.Message, ex.LinePosition, ex.LineNumber);
}
}
private void DisplayValidationError(string message, int linePosition, int lineNumber)
{
if (lineNumber >= 1 && lineNumber <= textEditor.Document.LineCount)
{
int offset = textEditor.Document.GetOffset(new TextLocation(lineNumber, linePosition));
int endOffset = TextUtilities.GetNextCaretPosition(textEditor.Document, offset, System.Windows.Documents.LogicalDirection.Forward, CaretPositioningMode.WordBorderOrSymbol);
if (endOffset < 0)
{
endOffset = textEditor.Document.TextLength;
}
int length = endOffset - offset;
if (length < 2)
{
length = Math.Min(2, textEditor.Document.TextLength - offset);
}
textMarkerService.Create(offset, length, message);
}
}
}
然后找一个页面使用下就行了
<local:AvaEditor Grid.Row="1"/>
加个背景色
public void Create(int offset, int length, string message)
{
var m = new TextMarker(offset, length);
markers.Add(m);
m.MarkerColor = Colors.Red;
m.BackgroundColor = Colors.Yellow;
m.ToolTip = message;
Redraw(m);
}
自定义高亮规则
官方示例
<SyntaxDefinition name="Custom Highlighting" xmlns="http://icsharpcode.net/sharpdevelop/syntaxdefinition/2008"> <Color name="Comment" foreground="#FF00FF" /> <Color name="String" foreground="Blue" /> <!-- This is the main ruleset. --> <RuleSet> <Span color="Comment" begin="//" /> <Span color="Comment" multiline="true" begin="/\*" end="\*/" /> <Span color="String"> <Begin>"</Begin> <End>"</End> <RuleSet> <!-- nested span for escape sequences --> <Span begin="\\" end="." /> </RuleSet> </Span> <Keywords fontWeight="bold" foreground="Blue"> <Word>if</Word> <Word>else</Word> <!-- ... --> </Keywords> <Keywords fontWeight="bold" fontStyle="italic" foreground="Red"> <Word>AvalonEdit</Word> </Keywords> <!-- Digits --> <Rule foreground="DarkBlue"> \b0[xX][0-9a-fA-F]+ # hex number | \b ( \d+(\.[0-9]+)? #number with optional floating point | \.[0-9]+ #or just starting with floating point ) ([eE][+-]?[0-9]+)? # optional exponent </Rule> </RuleSet> </SyntaxDefinition>
给颜色取名字，下方定义规则

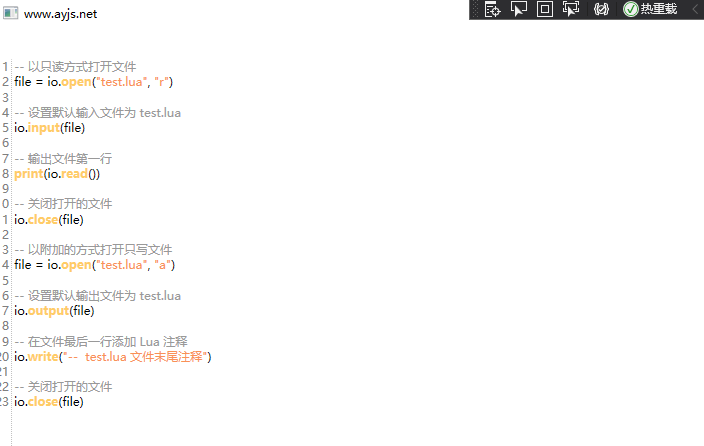

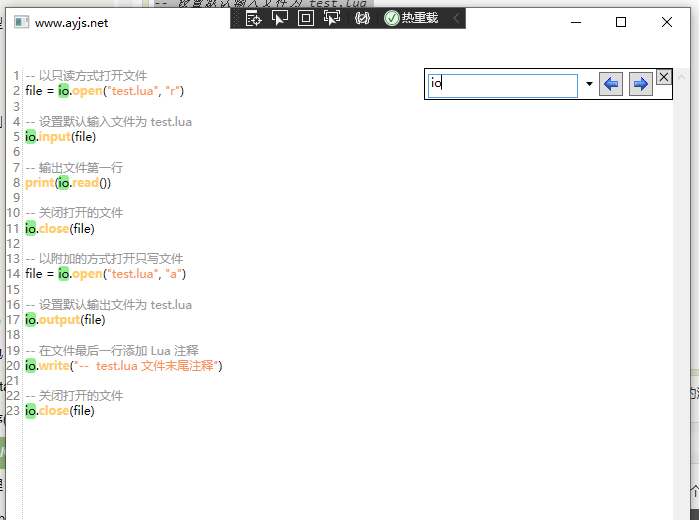

下面定义个lua的高亮规则
新建个txt，改名字lua.xshd 文件类型改为 嵌入的资源，你也可以是资源，主要嵌入到程序还能读取xml内容
<?xml version="1.0"?>
<SyntaxDefinition name="SharpLua" extensions=".slua;.lua" xmlns="http://icsharpcode.net/sharpdevelop/syntaxdefinition/2008">
<!-- The named colors 'Comment' and 'String' are used in SharpDevelop to detect if a line is inside a multiline string/comment -->
<Color name="Comment" foreground="#ff999999" exampleText="-- comment" />
<Color name="String" foreground="#fff99157" />
<Color name="Punctuation" />
<Color name="MethodCall" foreground="#ffffcc66" fontWeight="bold"/>
<Color name="NumberLiteral" foreground="#ff99cc99"/>
<Color name="NilKeyword" fontWeight="bold"/>
<Color name="Keywords" fontWeight="bold" foreground="#ff6699cc" />
<Color name="GotoKeywords" foreground="#ffcc99cc" />
<Color name="Visibility" fontWeight="bold" foreground="#fff99157"/>
<Color name="TrueFalse" fontWeight="bold" foreground="#ff66cccc" />
<RuleSet name="CommentMarkerSet">
<Keywords fontWeight="bold" foreground="#fff2777a">
<Word>TODO</Word>
<Word>FIXME</Word>
</Keywords>
<Keywords fontWeight="bold" foreground="#fff2777a">
<Word>HACK</Word>
<Word>UNDONE</Word>
</Keywords>
</RuleSet>
<!-- This is the main ruleset. -->
<RuleSet>
<Span color="Comment">
<Begin color="XmlDoc/DocComment">---</Begin>
<RuleSet>
<Import ruleSet="XmlDoc/DocCommentSet"/>
<Import ruleSet="CommentMarkerSet"/>
</RuleSet>
</Span>
<Span color="Comment" ruleSet="CommentMarkerSet" multiline="true">
<Begin>--\[[=]*\[</Begin>
<End>\][=]*]</End>
</Span>
<Span color="Comment" ruleSet="CommentMarkerSet">
<Begin>--</Begin>
</Span>
<Span color="String">
<Begin>"</Begin>
<End>"</End>
<RuleSet>
<!-- span for escape sequences -->
<Span begin="\\" end="."/>
</RuleSet>
</Span>
<Span color="String">
<Begin>'</Begin>
<End>'</End>
<RuleSet>
<!-- span for escape sequences -->
<Span begin="\\" end="."/>
</RuleSet>
</Span>
<Span color="String" multiline="true">
<Begin color="String">\[[=]*\[</Begin>
<End>\][=]*]</End>
</Span>
<Keywords color="TrueFalse">
<Word>true</Word>
<Word>false</Word>
</Keywords>
<Keywords color="Keywords">
<Word>and</Word>
<Word>break</Word>
<Word>do</Word>
<Word>else</Word>
<Word>elseif</Word>
<Word>end</Word>
<Word>false</Word>
<Word>for</Word>
<Word>function</Word>
<Word>if</Word>
<Word>in</Word>
<Word>local</Word>
<!--<Word>nil</Word>-->
<Word>not</Word>
<Word>or</Word>
<Word>repeat</Word>
<Word>return</Word>
<Word>then</Word>
<Word>true</Word>
<Word>until</Word>
<Word>while</Word>
<Word>using</Word>
<Word>continue</Word>
</Keywords>
<Keywords color="GotoKeywords">
<Word>break</Word>
<Word>return</Word>
</Keywords>
<Keywords color="Visibility">
<Word>local</Word>
</Keywords>
<Keywords color="NilKeyword">
<Word>nil</Word>
</Keywords>
<!-- Mark previous rule-->
<Rule color="MethodCall">
\b
[\d\w_]+ # an identifier
(?=\s*\() # followed by (
</Rule>
<Rule color="MethodCall">
\b
[\d\w_]+ # an identifier
(?=\s*\") # followed by "
</Rule>
<Rule color="MethodCall">
\b
[\d\w_]+ # an identifier
(?=\s*\') # followed by '
</Rule>
<Rule color="MethodCall">
\b
[\d\w_]+ # an identifier
(?=\s*\{) # followed by {
</Rule>
<Rule color="MethodCall">
\b
[\d\w_]+ # an identifier
(?=\s*\[) # followed by [
</Rule>
<!-- Digits -->
<Rule color="NumberLiteral">
\b0[xX][0-9a-fA-F]+ # hex number
|
( \b\d+(\.[0-9]+)? #number with optional floating point
| \.[0-9]+ #or just starting with floating point
)
([eE][+-]?[0-9]+)? # optional exponent
</Rule>
<Rule color="Punctuation">
[?,.;()\[\]{}+\-/%*<>^+~!|&]+
</Rule>
</RuleSet>
</SyntaxDefinition>
然后在后台找个loaded的地方指定SyntaxHighlighting属性
string name = System.Reflection.Assembly.GetExecutingAssembly().GetName().Name + ".lua.xshd";
System.Reflection.Assembly assembly = System.Reflection.Assembly.GetExecutingAssembly();
using (System.IO.Stream s = assembly.GetManifestResourceStream(name))
{
using (XmlTextReader reader = new XmlTextReader(s))
{
var xshd = HighlightingLoader.LoadXshd(reader);
textEditor.SyntaxHighlighting = HighlightingLoader.Load(xshd, HighlightingManager.Instance);
}
}
运行后，粘贴lua代码
-- 以只读方式打开文件
file = io.open("test.lua", "r")
-- 设置默认输入文件为 test.lua
io.input(file)
-- 输出文件第一行
print(io.read())
-- 关闭打开的文件
io.close(file)
-- 以附加的方式打开只写文件
file = io.open("test.lua", "a")
-- 设置默认输出文件为 test.lua
io.output(file)
-- 在文件最后一行添加 Lua 注释
io.write("-- test.lua 文件末尾注释")
-- 关闭打开的文件
io.close(file)
你也可以设置文件为资源
using (XmlTextReader xmlTextReader = new XmlTextReader(Application.GetResourceStream(new Uri("pack://application:,,,/avaedit;component/lua.xshd")).Stream))
{
textEditor.SyntaxHighlighting = HighlightingLoader.Load(xmlTextReader, HighlightingManager.Instance);
}
加载文件textEditor.Load(filename);
官方写法，可以给个名字，注册文件后缀和 高亮规则，那么就可以直接指定这个名字了，而不是传递一些 高亮规则的xml
IHighlightingDefinition customHighlighting;
using (Stream s = typeof(Window1).Assembly.GetManifestResourceStream("AvalonEdit.Sample.CustomHighlighting.xshd")) {
if (s == null)
throw new InvalidOperationException("Could not find embedded resource");
using (XmlReader reader = new XmlTextReader(s)) {
customHighlighting = ICSharpCode.AvalonEdit.Highlighting.Xshd.
HighlightingLoader.Load(reader, HighlightingManager.Instance);
}
}
// and register it in the HighlightingManager
HighlightingManager.Instance.RegisterHighlighting("Custom Highlighting", new string[] { ".cool" }, customHighlighting);
增加搜索面板
SearchPanel.Install(textEditor.TextArea);
运行后按 Ctrl+F ，面板有点丑，自己可以修改源码改外观
=============2022 02 16 ==============================
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
