在一个由 0 和 1 组成的二维矩阵内,找到只包含 1 的最大正方形,并返回其面积。
示例:
输入:
1 0 1 0 0
1 0 1 1 1
1 1 1 1 1
1 0 0 1 0
输出: 4
来源:力扣(LeetCode)
链接:https://leetcode-cn.com/problems/maximal-square
解题思路:
1.暴力破解法:
寻找每个值为1的点的坐标,以该坐标为左上点寻找尽可能大的正方形,计算其长度,返回长度的平方。
2.动态规划:
每个dp(i,p)的坐标表示以该坐标为右下角的正方形的最长边。

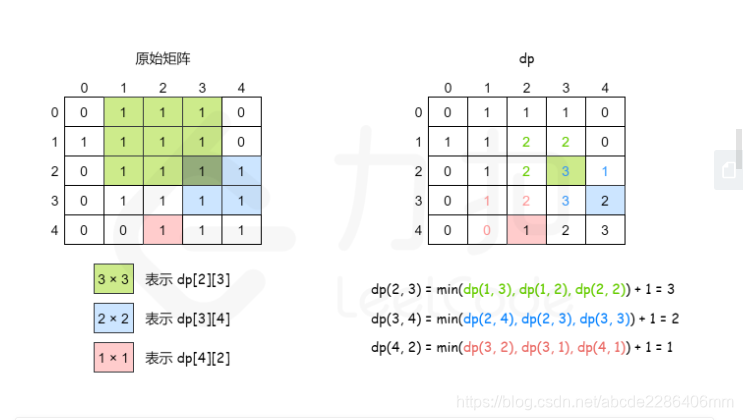

这是官方的讲解图,我将该模型优化了一下,直接用入参的二维数组作为存储媒介,使得空间复杂度降低为O(1)。
这题官方的解题方法默认每行数组的列都是相等的,由于题目里没有明确指出,以下给出的解答同样适用于数组列数不相等的情况:
package com.ucarinc.wtf.demo;
/**
* @ProjectName: shiro-demo
* @Package: com.ucarinc.wtf.demo
* @ClassName: MaximalSquare
* @Author: tengfei.wu01@ucarinc.com
* @Description: 最大正方形
* @Date: 2020/5/8 13:54
* @Version: 1.0
*/
public class MaximalSquare {
/***
* @author tengfei.wu01@ucarinc.com
* @description 暴力破解法
* @date 2020/5/8 16:51
* @param matrix 二维数组
* @return int
*/
public static int maximalSquare(char[][] matrix) {
int maxSize = 0;
for (int x = 0; x < matrix.length; x++){
for (int y = 0; y < matrix[x].length; y++){
//循环遍历二维数组,当某一位置值为'1'时,通过迭代获取其最长边长
if (matrix[x][y] == '1'){
int indexX = x;
int indexY = y;
int maxLength = 0;
for (; ;++x,++y,++maxLength){
//如果以x,y为左上角,x+1,y+1的格子作为右下角的时候围成的图形满足正方形的条件,则进一步伸展右下角
if (isSquare(matrix,indexX,indexY,x,y)){
continue;
}else {
//若不满足条件则返回目前最大面积
maxSize = Math.max(maxSize,maxLength*maxLength);
break;
}
}
x = indexX;
y = indexY;
}
}
}
return maxSize;
}
/***
* @author tengfei.wu01@ucarinc.com
* @description 判断是否为正方形
* @date 2020/5/8 16:54
* @param matrix 二维数组
* @param startX 左上角x坐标
* @param startY 左上角y坐标
* @param endX 右下角x坐标
* @param endY 右下角y坐标
* @return boolean
*/
public static boolean isSquare(char[][] matrix, int startX, int startY, int endX, int endY){
for (; startX <= endX; startX++){
if (startX >= matrix.length){
return false;
}
for (int start = startY; start <= endY; start++){
if (start >= matrix[startX].length){
return false;
}
if (matrix[startX][start] == '1'){
continue;
}else {
return false;
}
}
}
return true;
}
/***
* @author tengfei.wu01@ucarinc.com
* @description 动态规划算法
* @date 2020/5/8 16:56
* @param matrix
* @return int
*/
public static int maximalSquareV2(char[][] matrix) {
int maxLength = 0;
for (int x = 0; x < matrix.length; x++){
for (int y = 0; y < matrix[x].length; y++){
if (matrix[x][y] >= '1'){
//如果该点处于边界,则最大长度一定为1
if (x == 0 || y == 0){
matrix[x][y] = '1';
}
else {
//如果越界了,则无法与其他坐标构成正方形,因此最大长度为1
if (y >= matrix[x-1].length){
matrix[x][y] = '1';
}else {
//如果该坐标的其他三个角都可以与别的坐标点构成正方形,那么这个点同样可以与这三个角构成正方形,取最短长度+1作为新正方形的边长
int val = Math.min(Math.min(matrix[x-1][y] - '0',matrix[x][y-1] - '0'),matrix[x-1][y-1] - '0') + 1;
matrix[x][y] = (char) (val+'0');
}
}
}
maxLength = Math.max(matrix[x][y] - '0',maxLength);
}
}
return maxLength*maxLength;
}
}
