背景

项目某需求需要通过程序定时将数据从A系统同步至B、C等系统。数据同步过程中常见的一种错误是是唯一性冲突（主键或者其它唯一约束），开发中一般直接使用org.springframework.dao.DuplicateKeyException判断冲突是否出现了唯一性冲突，如果是则忽略该条数据，但是使用国产达梦数据库后该判断方式失效了，默认返回了dm.jdbc.driver.DMException。因此需要将达梦等国产数据库错误码适配Spring

伪代码

String sql="insert into TABLE(EMPLOYEEID, EMPLOYEENAME, IDENTITYCARD) values(?,?,?)";
List params = new ArrayList();
try {
    for(int i=0;i<1000;i++){
        Object param[]={"001", "adaivskenan", "140000202201018888"};
     	params.add(param);
   	}
	jdbcTemplate.batchUpdate(sql,params);
   } catch (Exception e) {
	//判断批量异常，退化为单条处理
	if(NestedExceptionUtils.getRootCause(e).equals(BatchUpdateException.class)){
		for(int i=0;i<1000;i++){
	        Object param[]={"001", "adaivskenan", "140000202201018888"};
	     	params.add(param);
	   		try{
	   			jdbcTemplate.update(sql,params);
	   		}catch(DuplicateKeyException e){
	   		//忽略唯一索引错误
	   		}
	}
  }

解决办法

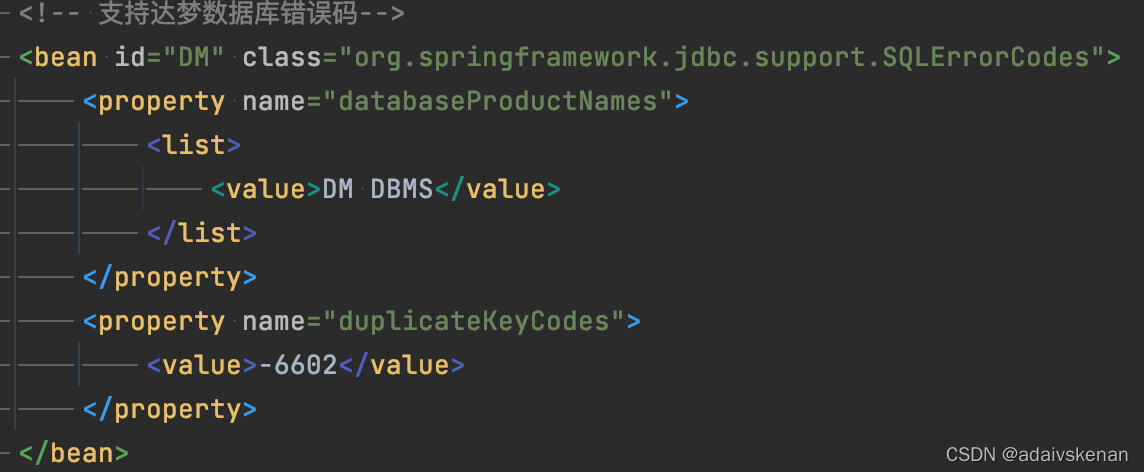

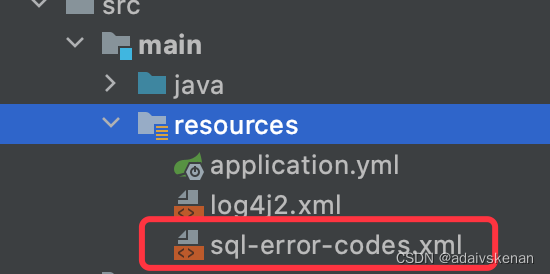

在资源目录下放置sql-error-codes.xml文件，增加数据库错误码映射
在这里插入图片描述

分析过程

1. DuplicateKeyException产生过程

Spring JDBC模块发生数据库异常时会执行org.springframework.jdbc.support.SQLErrorCodeSQLExceptionTranslator#doTranslate方法，将不同数据库的errorCode进行翻译，转换为自定义的框架异常，如下

// 根据errorCode通过sqlErrorCodes判断是否为DuplicateKey冲突，转换为DuplicateKeyException
else if (Arrays.binarySearch(sqlErrorCodes.getDuplicateKeyCodes(), errorCode) >= 0) {
					logTranslation(task, sql, sqlEx, false);
					return new DuplicateKeyException(buildMessage(task, sql, sqlEx), sqlEx);
				}

2. SQLErrorCodes生成方式

Spring服务启动时将资源该资源文件org/springframework/jdbc/support/sql-error-codes.xml生成org.springframework.jdbc.support.SQLErrorCodes对象，程序出现异常时将根据错误码解析并转义为Spring定义的数据库异常。

// 解析数据库自定义错误码
//org.springframework.jdbc.support.SQLErrorCodesFactory#resolveErrorCodes
synchronized (this.dataSourceCache) {
				// Double-check within full dataSourceCache lock
				sec = this.dataSourceCache.get(dataSource);
				if (sec == null) {
					// We could not find it - got to look it up.
					try {
					// 获取数据库名称如Orcle、MariaDB、MySQL等
						String name = JdbcUtils.extractDatabaseMetaData(dataSource,
								DatabaseMetaData::getDatabaseProductName);
						if (StringUtils.hasLength(name)) {
							return registerDatabase(dataSource, name);
						}
					}
					catch (MetaDataAccessException ex) {
						logger.warn("Error while extracting database name", ex);
					}
					return null;
				}
			}


// 注册数据库并将SQLErrorCodoes与之对应
//org.springframework.jdbc.support.SQLErrorCodesFactory#registerDatabase
	SQLErrorCodes sec = getErrorCodes(databaseName);
		if (logger.isDebugEnabled()) {
			logger.debug("Caching SQL error codes for DataSource [" + identify(dataSource) +
					"]: database product name is '" + databaseName + "'");
		}
		this.dataSourceCache.put(dataSource, sec);
		return sec;

3. 判断解决方案

sql-error-codes.xml中关键的一句描述" Can be overridden by definitions in a “sql-error-codes.xml” file - in the root of the class path." 。该文件可以被覆盖，直接复制该文件增加对应数据库需要的错误码映射。

4. 错误码与数据库名称的确定过程

发生异常时通过java.sql.SQLException#vendorCode可获取数据库错误码(JSR规范)
JdbcUtils.extractDatabaseMetaData(dataSource,DatabaseMetaData::getDatabaseProductName)方法可获取数据库名称

参考 sql-error-codes.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE beans PUBLIC "-//SPRING//DTD BEAN 2.0//EN" "https://www.springframework.org/dtd/spring-beans-2.0.dtd">

<!--
	- Default SQL error codes for well-known databases.
	- Can be overridden by definitions in a "sql-error-codes.xml" file
	- in the root of the class path.
	-
	- If the Database Product Name contains characters that are invalid
	- to use in the id attribute (like a space) then we need to add a property
	- named "databaseProductName"/"databaseProductNames" that holds this value.
	- If this property is present, then it will be used instead of the id for
	- looking up the error codes based on the current database.
	-->
<beans>

	<bean id="DB2" name="Db2" class="org.springframework.jdbc.support.SQLErrorCodes">
		<property name="databaseProductName">
			<value>DB2*</value>
		</property>
		<property name="badSqlGrammarCodes">
			<value>-007,-029,-097,-104,-109,-115,-128,-199,-204,-206,-301,-408,-441,-491</value>
		</property>
		<property name="duplicateKeyCodes">
			<value>-803</value>
		</property>
		<property name="dataIntegrityViolationCodes">
			<value>-407,-530,-531,-532,-543,-544,-545,-603,-667</value>
		</property>
		<property name="dataAccessResourceFailureCodes">
			<value>-904,-971</value>
		</property>
		<property name="transientDataAccessResourceCodes">
			<value>-1035,-1218,-30080,-30081</value>
		</property>
		<property name="deadlockLoserCodes">
			<value>-911,-913</value>
		</property>
	</bean>

	<bean id="Derby" class="org.springframework.jdbc.support.SQLErrorCodes">
		<property name="databaseProductName">
			<value>Apache Derby</value>
		</property>
		<property name="useSqlStateForTranslation">
			<value>true</value>
		</property>
		<property name="badSqlGrammarCodes">
			<value>42802,42821,42X01,42X02,42X03,42X04,42X05,42X06,42X07,42X08</value>
		</property>
		<property name="duplicateKeyCodes">
			<value>23505</value>
		</property>
		<property name="dataIntegrityViolationCodes">
			<value>22001,22005,23502,23503,23513,X0Y32</value>
		</property>
		<property name="dataAccessResourceFailureCodes">
			<value>04501,08004,42Y07</value>
		</property>
		<property name="cannotAcquireLockCodes">
			<value>40XL1</value>
		</property>
		<property name="deadlockLoserCodes">
			<value>40001</value>
		</property>
	</bean>

	<bean id="H2" class="org.springframework.jdbc.support.SQLErrorCodes">
		<property name="badSqlGrammarCodes">
			<value>42000,42001,42101,42102,42111,42112,42121,42122,42132</value>
		</property>
		<property name="duplicateKeyCodes">
			<value>23001,23505</value>
		</property>
		<property name="dataIntegrityViolationCodes">
			<value>22001,22003,22012,22018,22025,23000,23002,23003,23502,23503,23506,23507,23513</value>
		</property>
		<property name="dataAccessResourceFailureCodes">
			<value>90046,90100,90117,90121,90126</value>
		</property>
		<property name="cannotAcquireLockCodes">
			<value>50200</value>
		</property>
	</bean>

	<!-- https://help.sap.com/saphelp_hanaplatform/helpdata/en/20/a78d3275191014b41bae7c4a46d835/content.htm -->
	<bean id="HDB" name="Hana" class="org.springframework.jdbc.support.SQLErrorCodes">
		<property name="databaseProductNames">
			<list>
				<value>SAP HANA</value>
				<value>SAP DB</value>
			</list>
		</property>
		<property name="badSqlGrammarCodes">
			<value>
				257,259,260,261,262,263,264,267,268,269,270,271,272,273,275,276,277,278,
				278,279,280,281,282,283,284,285,286,288,289,290,294,295,296,297,299,308,309,
				313,315,316,318,319,320,321,322,323,324,328,329,330,333,335,336,337,338,340,
				343,350,351,352,362,368
			</value>
		</property>
		<property name="permissionDeniedCodes">
			<value>10,258</value>
		</property>
		<property name="duplicateKeyCodes">
			<value>301</value>
		</property>
		<property name="dataIntegrityViolationCodes">
			<value>461,462</value>
		</property>
		<property name="dataAccessResourceFailureCodes">
			<value>-813,-709,-708,1024,1025,1026,1027,1029,1030,1031</value>
		</property>
		<property name="invalidResultSetAccessCodes">
			<value>-11210,582,587,588,594</value>
		</property>
		<property name="cannotAcquireLockCodes">
			<value>131</value>
		</property>
		<property name="cannotSerializeTransactionCodes">
			<value>138,143</value>
		</property>
		<property name="deadlockLoserCodes">
			<value>133</value>
		</property>
	</bean>

	<bean id="HSQL" name="Hsql" class="org.springframework.jdbc.support.SQLErrorCodes">
		<property name="databaseProductName">
			<value>HSQL Database Engine</value>
		</property>
		<property name="badSqlGrammarCodes">
			<value>-22,-28</value>
		</property>
		<property name="duplicateKeyCodes">
			<value>-104</value>
		</property>
		<property name="dataIntegrityViolationCodes">
			<value>-9</value>
		</property>
		<property name="dataAccessResourceFailureCodes">
			<value>-80</value>
		</property>
	</bean>

	<bean id="Informix" class="org.springframework.jdbc.support.SQLErrorCodes">
		<property name="databaseProductName">
			<value>Informix Dynamic Server</value>
		</property>
		<property name="badSqlGrammarCodes">
			<value>-201,-217,-696</value>
		</property>
		<property name="duplicateKeyCodes">
			<value>-239,-268,-6017</value>
		</property>
		<property name="dataIntegrityViolationCodes">
			<value>-692,-11030</value>
		</property>
	</bean>

	<bean id="MS-SQL" name="SqlServer" class="org.springframework.jdbc.support.SQLErrorCodes">
		<property name="databaseProductName">
			<value>Microsoft SQL Server</value>
		</property>
		<property name="badSqlGrammarCodes">
			<value>156,170,207,208,209</value>
		</property>
		<property name="permissionDeniedCodes">
			<value>229</value>
		</property>
		<property name="duplicateKeyCodes">
			<value>2601,2627</value>
		</property>
		<property name="dataIntegrityViolationCodes">
			<value>544,8114,8115</value>
		</property>
		<property name="dataAccessResourceFailureCodes">
			<value>4060</value>
		</property>
		<property name="cannotAcquireLockCodes">
			<value>1222</value>
		</property>
		<property name="deadlockLoserCodes">
			<value>1205</value>
		</property>
	</bean>

	<bean id="MySQL" class="org.springframework.jdbc.support.SQLErrorCodes">
		<property name="databaseProductNames">
			<list>
			 	<!-- 同宗同源的M家族 -->
				<value>MySQL</value>
				<value>MariaDB</value>
			</list>
		</property>
		<property name="badSqlGrammarCodes">
			<value>1054,1064,1146</value>
		</property>
		<property name="duplicateKeyCodes">
			<value>1062</value>
		</property>
		<property name="dataIntegrityViolationCodes">
			<value>630,839,840,893,1169,1215,1216,1217,1364,1451,1452,1557</value>
		</property>
		<property name="dataAccessResourceFailureCodes">
			<value>1</value>
		</property>
		<property name="cannotAcquireLockCodes">
			<value>1205,3572</value>
		</property>
		<property name="deadlockLoserCodes">
			<value>1213</value>
		</property>
	</bean>

	<bean id="Oracle" class="org.springframework.jdbc.support.SQLErrorCodes">
		<property name="badSqlGrammarCodes">
			<value>900,903,904,917,936,942,17006,6550</value>
		</property>
		<property name="invalidResultSetAccessCodes">
			<value>17003</value>
		</property>
		<property name="duplicateKeyCodes">
			<value>1</value>
		</property>
		<property name="dataIntegrityViolationCodes">
			<value>1400,1722,2291,2292</value>
		</property>
		<property name="dataAccessResourceFailureCodes">
			<value>17002,17447</value>
		</property>
		<property name="cannotAcquireLockCodes">
			<value>54,30006</value>
		</property>
		<property name="cannotSerializeTransactionCodes">
			<value>8177</value>
		</property>
		<property name="deadlockLoserCodes">
			<value>60</value>
		</property>
	</bean>

	<bean id="PostgreSQL" name="Postgres" class="org.springframework.jdbc.support.SQLErrorCodes">
		<property name="useSqlStateForTranslation">
			<value>true</value>
		</property>
		<property name="badSqlGrammarCodes">
			<value>03000,42000,42601,42602,42622,42804,42P01</value>
		</property>
		<property name="duplicateKeyCodes">
			<value>21000,23505</value>
		</property>
		<property name="dataIntegrityViolationCodes">
			<value>23000,23502,23503,23514</value>
		</property>
		<property name="dataAccessResourceFailureCodes">
			<value>53000,53100,53200,53300</value>
		</property>
		<property name="cannotAcquireLockCodes">
			<value>55P03</value>
		</property>
		<property name="cannotSerializeTransactionCodes">
			<value>40001</value>
		</property>
		<property name="deadlockLoserCodes">
			<value>40P01</value>
		</property>
	</bean>

	<bean id="Sybase" class="org.springframework.jdbc.support.SQLErrorCodes">
		<property name="databaseProductNames">
			<list>
				<value>Sybase SQL Server</value>
				<value>Adaptive Server Enterprise</value>
				<value>ASE</value>  <!-- name as returned by jTDS driver -->
				<value>SQL Server</value>
				<value>sql server</value>  <!-- name as returned by jTDS driver -->
			</list>
		</property>
		<property name="badSqlGrammarCodes">
			<value>101,102,103,104,105,106,107,108,109,110,111,112,113,116,120,121,123,207,208,213,257,512</value>
		</property>
		<property name="duplicateKeyCodes">
			<value>2601,2615,2626</value>
		</property>
		<property name="dataIntegrityViolationCodes">
			<value>233,511,515,530,546,547,2615,2714</value>
		</property>
		<property name="transientDataAccessResourceCodes">
			<value>921,1105</value>
		</property>
		<property name="cannotAcquireLockCodes">
			<value>12205</value>
		</property>
		<property name="deadlockLoserCodes">
			<value>1205</value>
		</property>
	</bean>

	<!-- 支持达梦数据库错误码-->
	<bean id="DM" class="org.springframework.jdbc.support.SQLErrorCodes">
		<property name="databaseProductNames">
			<list>
				<!-- 数据源名称存在空格不能像Oracle一样直接作为beanId -->
				<value>DM DBMS</value>
			</list>
		</property>
		<property name="duplicateKeyCodes">
			<value>-6602</value>
		</property>
	</bean>

</beans>
