【解决方案】Zotero论文编排交叉引用 建立超链接快速链接引文与参考条目 实现(作者日期/数字)引文与参考文献点击跳转

EndNote 本身支持在文档中插入引文后,自动生成参考文献列表,并且引文与参考文献之间可以自动链接,用户点击引文时,能够直接跳转到对应的参考文献。

但是Zotero 官方一直不支持这项功能,虽然其可以生成参考文献列表,但引文与参考文献之间无法自动链接。之前有写过一篇【解决方案——Zotero生成的参考文献和Word如何建立超链接,实现点击引用跳转的效果】,但是其不支持样式的设置,且不太稳定,会出现各种bug。

最近在网上找到一个开源方案:ZoteroLinkCitation能够建立超链接快速链接引文与参考条目,实现作者-日期或数字样式引文的自动化管理,这里分享给大家。

一、Zotero简述

这里再简单介绍一下,Zotero是一款开源的文献管理工具,它可以帮助用户方便地收集、组织、引用和共享文献。

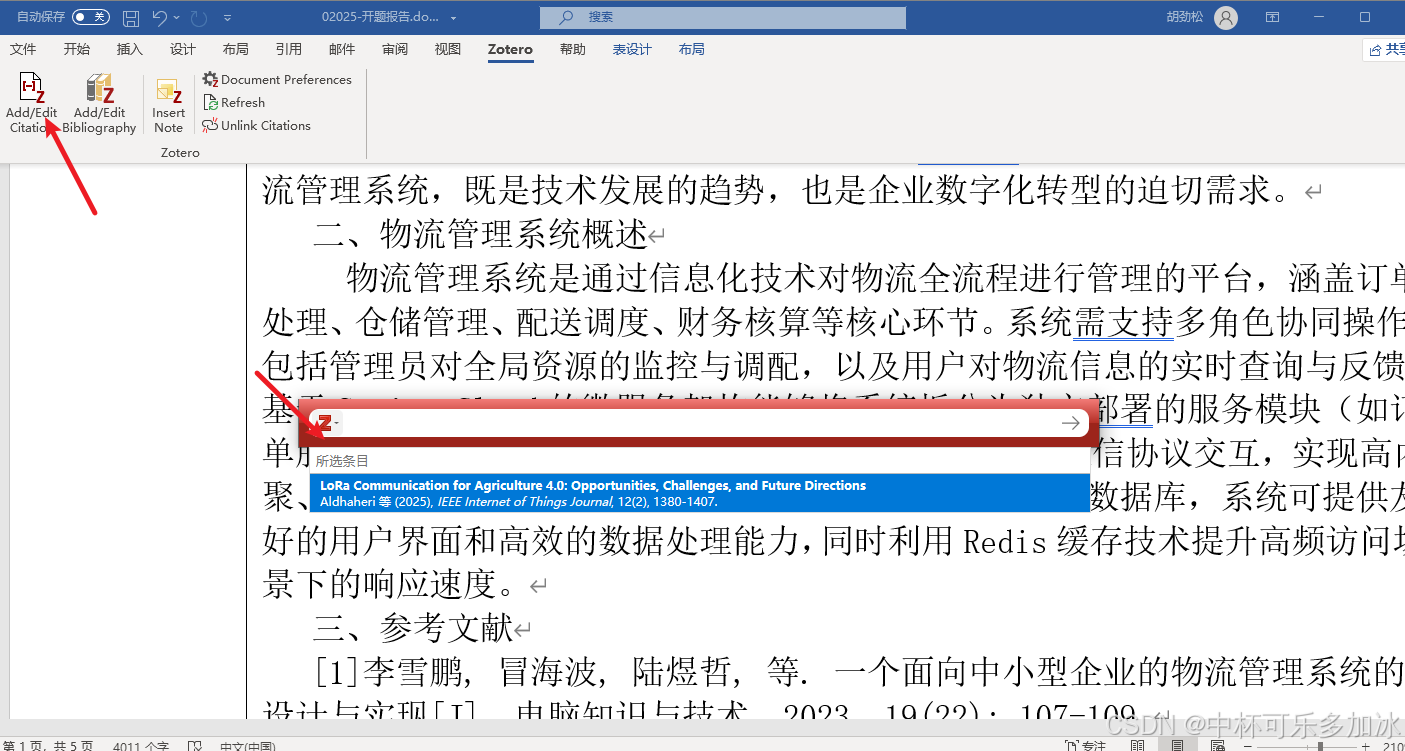

在这里插入图片描述
Zotero具有强大的论文管理功能,用户可以轻松添加、编辑和删除文献条目,并将它们分门别类地整理到文件夹中。其还能自动识别网页上的参考文献信息,并将其转换为标准的格式,如BibTeX或CSL JSON,支持 集成Word、WPS等多种软件,支持Windows、macOS、Linux 等多个操作系统

二、ZoteroLinkCitation介绍

ZoteroLinkCitation 是一个基于 Word VBA 宏的解决方案,其可以将 Zotero 插入的引用与参考文献条目通过超链接关联,用户点击引用即可跳转到对应的参考文献。项目原地址:https://github.com/altairwei/ZoteroLinkCitation,其具有以下特点:

  1. 支持自动检测文档中使用的引用样式。
  2. 支持多种引用样式,支持American Chemical Society、China National Standard GB/T 7714-2015 (numeric)/(author-date) 、IEEE、Nature、Elsevier - Harvard (with titles)等格式,包括Author-Year styles、Numeric styles、Author-only styles。
  3. 可以对新建的链接设置统一的Word文字样式,可以更改链接的颜色、大小、字体等。
  4. 正确处理作者-日期格式中第一作者相同的多个引用

效果如下:

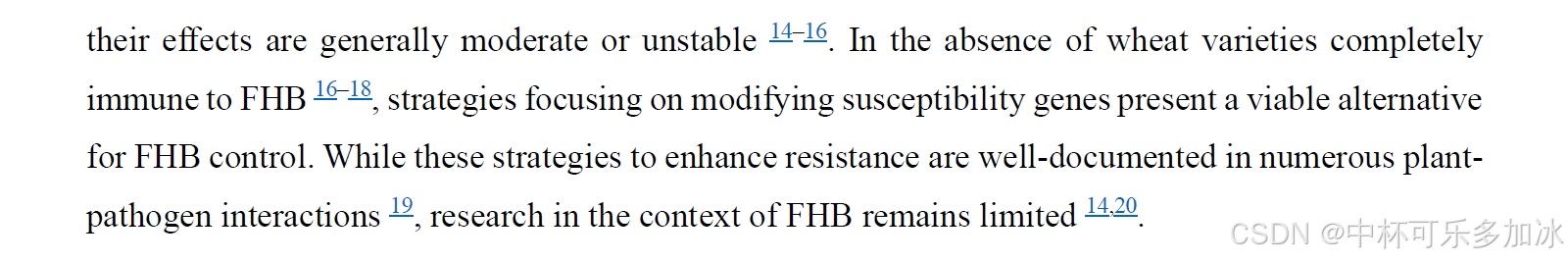

数字样式
在这里插入图片描述

年份样式
在这里插入图片描述

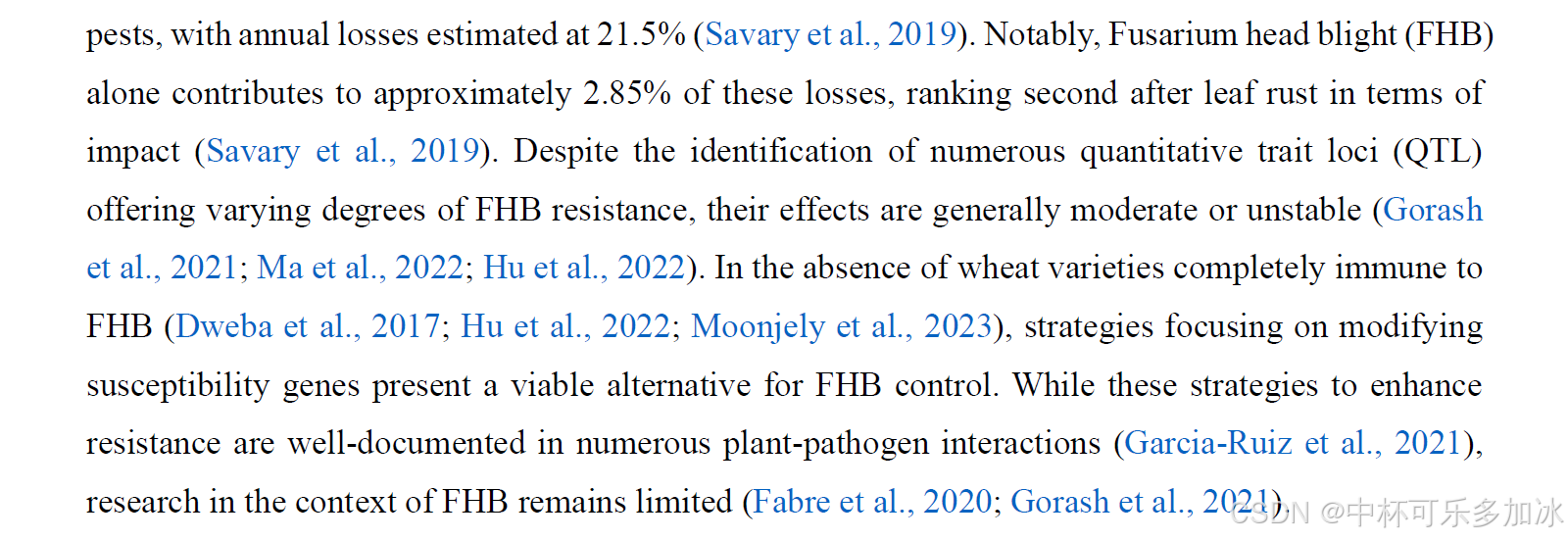

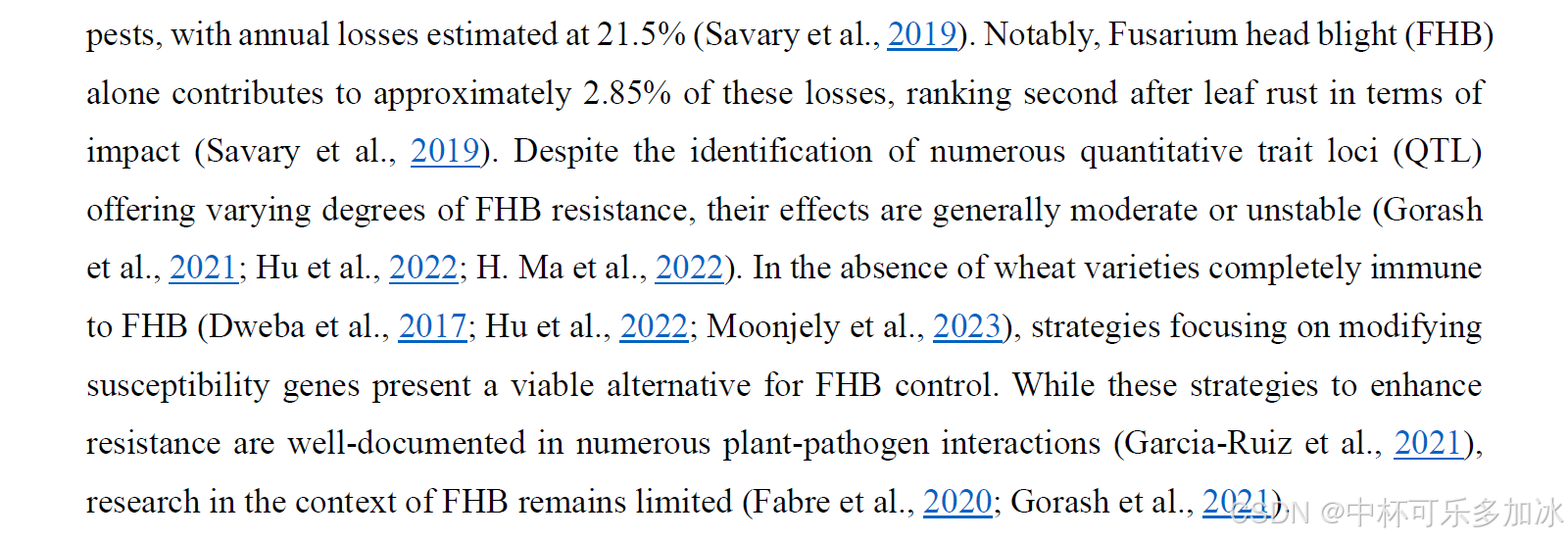

作者,年份样式
在这里插入图片描述

三、实践指南:建立超链接,实现点击引用跳转

3.1、前提准备

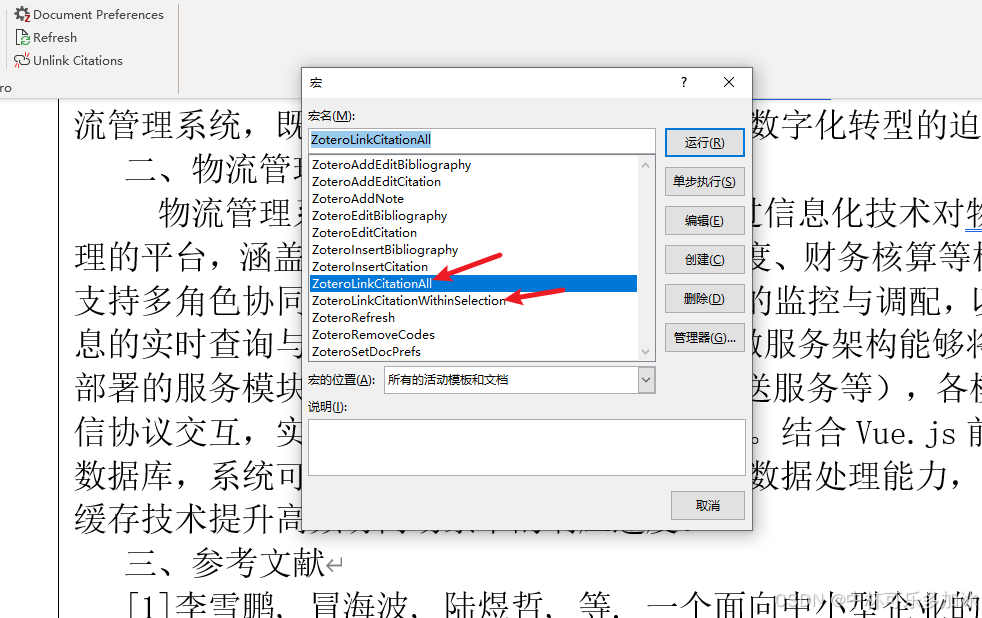

注意,在运行ZoteroLinkCitationAll宏之前,请确保已经备份文档,因为这类脚本执行的操作都是不可逆的批量操作。

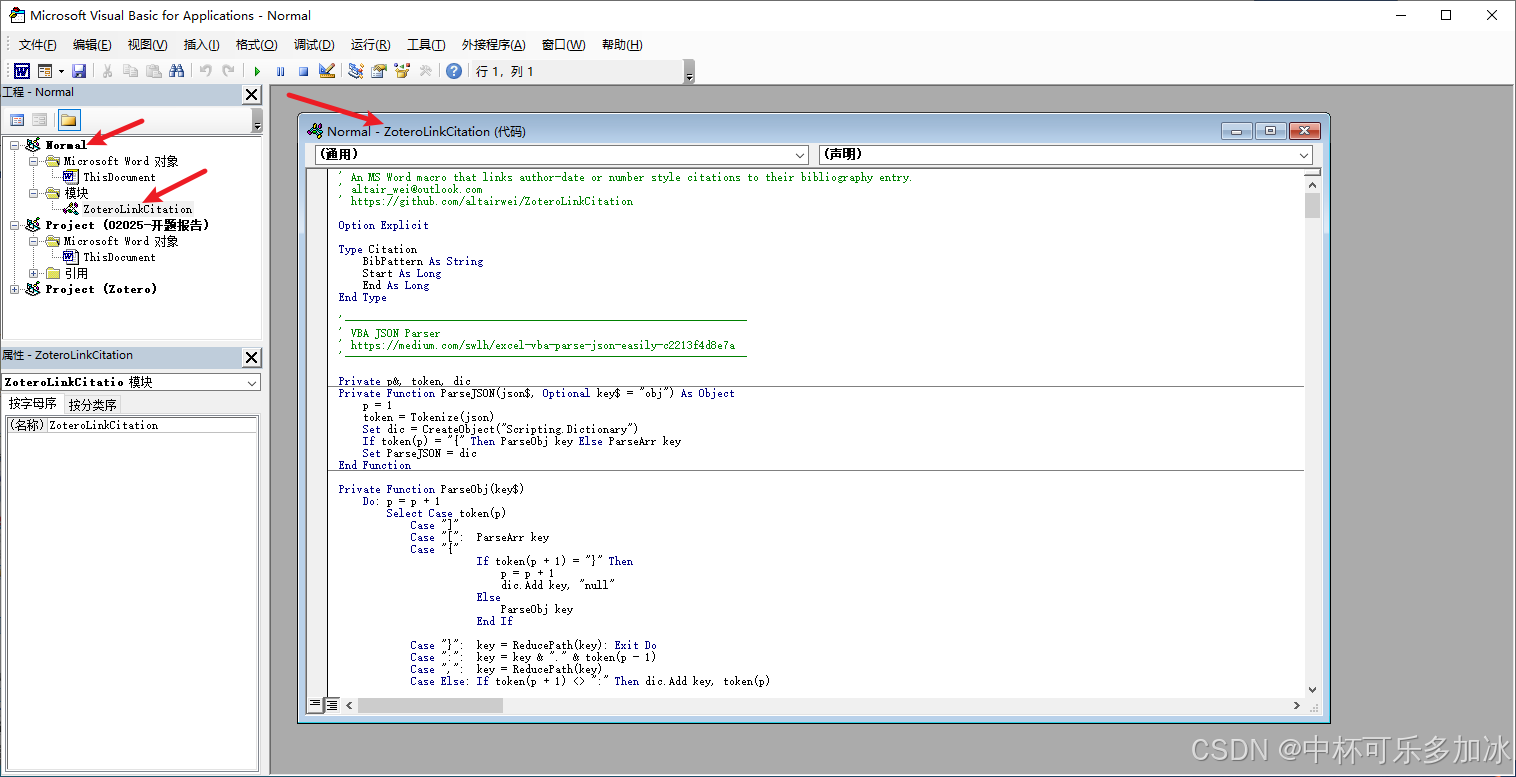

首先下载仓库里的ZoteroLinkCitation.bas文件,或者复制以下这段代码保存为.bas文件:

Attribute VB_Name = "ZoteroLinkCitation"
' An MS Word macro that links author-date or number style citations to their bibliography entry.
' altair_wei@outlook.com
' https://github.com/altairwei/ZoteroLinkCitation

Option Explicit

Type Citation
    BibPattern As String
    Start As Long
    End As Long
End Type

'-------------------------------------------------------------------
' VBA JSON Parser
' https://medium.com/swlh/excel-vba-parse-json-easily-c2213f4d8e7a
'-------------------------------------------------------------------

Private p&, token, dic
Private Function ParseJSON(json$, Optional key$ = "obj") As Object
    p = 1
    token = Tokenize(json)
    Set dic = CreateObject("Scripting.Dictionary")
    If token(p) = "{" Then ParseObj key Else ParseArr key
    Set ParseJSON = dic
End Function

Private Function ParseObj(key$)
    Do: p = p + 1
        Select Case token(p)
            Case "]"
            Case "[":  ParseArr key
            Case "{"
                       If token(p + 1) = "}" Then
                           p = p + 1
                           dic.Add key, "null"
                       Else
                           ParseObj key
                       End If

            Case "}":  key = ReducePath(key): Exit Do
            Case ":":  key = key & "." & token(p - 1)
            Case ",":  key = ReducePath(key)
            Case Else: If token(p + 1) <> ":" Then dic.Add key, token(p)
        End Select
    Loop
End Function

Private Function ParseArr(key$)
    Dim e&
    Do: p = p + 1
        Select Case token(p)
            Case "}"
            Case "{":  ParseObj key & ArrayID(e)
            Case "[":  ParseArr key & ArrayID(e)
            Case "]":  Exit Do
            Case ":":  key = key & ArrayID(e)
            Case ",":  e = e + 1
            Case Else: dic.Add key & ArrayID(e), token(p)
        End Select
    Loop
End Function

Private Function Tokenize(s$)
    Const Pattern = """(([^""\\]|\\.)*)""|[+\-]?(?:0|[1-9]\d*)(?:\.\d*)?(?:[eE][+\-]?\d+)?|\w+|[^\s""']+?"
    Tokenize = RExtract(s, Pattern, True)
End Function

Private Function RExtract(s$, Pattern, Optional bGroup1Bias As Boolean, Optional bGlobal As Boolean = True)
  Dim c&, m, n
  Dim v()
  With CreateObject("VBScript.RegExp")
    .Global = bGlobal
    .MultiLine = False
    .IgnoreCase = True
    .Pattern = Pattern
    If .TEST(s) Then
      Set m = .Execute(s)
      ReDim v(1 To m.Count)
      For Each n In m
        c = c + 1
        v(c) = n.value
        If bGroup1Bias Then If Len(n.submatches(0)) Or n.value = """""" Then v(c) = n.submatches(0)
      Next
    End If
  End With
  RExtract = v
End Function

Private Function ArrayID$(e)
    ArrayID = "(" & e & ")"
End Function

Private Function ReducePath$(key$)
    If InStr(key, ".") Then ReducePath = Left(key, InStrRev(key, ".") - 1) Else ReducePath = key
End Function

Function GetFilteredValues(dic, match)
    Dim c&, i&, v, w
    v = dic.keys
    ReDim w(1 To dic.Count)
    For i = 0 To UBound(v)
        If v(i) Like match Then
            c = c + 1
            w(c) = dic(v(i))
        End If
    Next
    ReDim Preserve w(1 To c)
    GetFilteredValues = w
End Function

Function GetFilteredTable(dic, cols)
    Dim c&, i&, j&, v, w, z
    v = dic.keys
    z = GetFilteredValues(dic, cols(0))
    ReDim w(1 To UBound(z), 1 To UBound(cols) + 1)
    For j = 1 To UBound(cols) + 1
         z = GetFilteredValues(dic, cols(j - 1))
         For i = 1 To UBound(z)
            w(i, j) = z(i)
         Next
    Next
    GetFilteredTable = w
End Function

'-------------------------------------------------------------------
' ZoteroLinkCitation Utilities
'-------------------------------------------------------------------

Private Sub QuickSort(arr As Variant, inLow As Long, inHigh As Long)
    Dim pivot As String
    Dim tmpSwap As Variant
    Dim low As Long
    Dim high As Long

    low = inLow
    high = inHigh
    pivot = arr((low + high) \ 2)

    While (low <= high)
        While (arr(low) < pivot And low < inHigh)
            low = low + 1
        Wend

        While (pivot < arr(high) And high > inLow)
            high = high - 1
        Wend

        If (low <= high) Then
            tmpSwap = arr(low)
            arr(low) = arr(high)
            arr(high) = tmpSwap
            low = low + 1
            high = high - 1
        End If
    Wend

    If (inLow < high) Then QuickSort arr, inLow, high
    If (low < inHigh) Then QuickSort arr, low, inHigh
End Sub

Private Function ExtractZoteroPrefData() As String
    Dim prop As Variant
    Dim dict As Object
    Set dict = CreateObject("Scripting.Dictionary")

    For Each prop In ActiveDocument.CustomDocumentProperties
        If Left(prop.Name, 11) = "ZOTERO_PREF" Then
            dict(prop.Name) = prop.Value
        End If
    Next prop

    Dim sortedKeys As Variant
    sortedKeys = dict.Keys
    Call QuickSort(sortedKeys, LBound(sortedKeys), UBound(sortedKeys))

    Dim concatenatedValues As String
    Dim key As Variant
    For Each key In sortedKeys
        concatenatedValues = concatenatedValues & dict(key)
    Next key

    ExtractZoteroPrefData = concatenatedValues
End Function

Private Function GetZoteroPrefs() As Object
    Dim zoteroData As String
    zoteroData = ExtractZoteroPrefData()

    Dim xmlDoc As Object
    Set xmlDoc = CreateObject("MSXML2.DOMDocument.6.0")

    xmlDoc.Async = False
    xmlDoc.LoadXML zoteroData

    Dim dict As Object
    Set dict = CreateObject("Scripting.Dictionary")

    If xmlDoc.ParseError.ErrorCode <> 0 Then
        MsgBox "XML Parse Error: " & xmlDoc.ParseError.Reason
        Set GetZoteroPrefs = dict
        Exit Function
    End If

    Dim dataElem As Object
    Set dataElem = xmlDoc.SelectSingleNode("//data")
    If Not dataElem Is Nothing Then
        dict("data-version") = dataElem.getAttribute("data-version")
        dict("zotero-version") = dataElem.getAttribute("zotero-version")
    End If

    Dim sessionElem As Object
    Set sessionElem = xmlDoc.SelectSingleNode("//session")
    If Not sessionElem Is Nothing Then
        dict("session-id") = sessionElem.getAttribute("id")
    End If

    Dim styleElem As Object
    Set styleElem = xmlDoc.SelectSingleNode("//style")
    If Not styleElem Is Nothing Then
        Dim segments() As String
        segments = Split(styleElem.getAttribute("id"), "/")
        dict("style-id") = segments(UBound(segments))
        dict("hasBibliography") = styleElem.getAttribute("hasBibliography")
        dict("bibliographyStyleHasBeenSet") = styleElem.getAttribute("bibliographyStyleHasBeenSet")
    End If

    Dim prefElem As Object
    Set prefElem = xmlDoc.SelectSingleNode("//prefs/pref[@name='fieldType']")
    If Not prefElem Is Nothing Then
        dict("pref-fieldType") = prefElem.getAttribute("value")
    End If

    Set GetZoteroPrefs = dict
End Function

Private Function RemoveSpecifiedHtmlTags(inputString As String, tagsToRemove As Variant) As String
    Dim regex As Object
    Dim tag As Variant

    Set regex = CreateObject("VBScript.RegExp")

    For Each tag In tagsToRemove
        With regex
            .Global = True
            .IgnoreCase = True
            .Pattern = "</?" & tag & ".*?>"
            inputString = .Replace(inputString, "")
        End With
    Next tag

    RemoveSpecifiedHtmlTags = inputString
End Function

Private Function RemoveHtmlTags(inputString As String) As String
    Dim tagsToRemove() As Variant
    tagsToRemove = Array("i", "sub", "sup")

    RemoveHtmlTags = RemoveSpecifiedHtmlTags(inputString, tagsToRemove)
End Function

Function SimpleHash(ByVal inputString As String) As String
    Dim i As Long
    Dim hashValue As Long

    For i = 1 To Len(inputString)
        hashValue = hashValue + (Asc(Mid(inputString, i, 1)) * i)
    Next i

    Dim modValue As Long
    modValue = 100
    hashValue = hashValue Mod modValue

    If hashValue < 0 Then
        hashValue = hashValue + modValue
    End If

    SimpleHash = Format$(hashValue, "000")
End Function

Private Function ConvertToBookmarkName(ByVal str As String) As String
    Dim result As String
    Dim i As Integer

    ' Replace illegal characters
    result = Replace(str, " ", "_")
    For i = 1 To Len(result)
        ' Check each character and replace if not alphanumeric or underscore
        If Not (Mid(result, i, 1) Like "[A-Za-z0-9_]") Then
            Mid(result, i, 1) = "_"
        End If
    Next i

    ' Avoid starting with a digit
    If Left(result, 1) Like "[0-9]" Then
        result = "_" & result
    End If

    ' Limit the length to 40 characters
    If Len(result) > 40 Then
        result = Left(result, 36)
        result = result & "_" & SimpleHash(str)
    End If

    ConvertToBookmarkName = result
End Function

Private Sub AssertArrayLengthsEqual(array1 As Variant, array2 As Variant)
    If Not UBound(array1) - LBound(array1) = UBound(array2) - LBound(array2) Then
        MsgBox "Assertion Failed: The lengths of the two arrays are not equal.", vbCritical, "Assertion Failed"
        Err.Raise Number:=vbObjectError + 513, Description:="Array length assertion failed."
    End If
End Sub

Private Function ParseCSLCitationJson(ByVal code As String) As Object
    Dim jsonObj As Object
    Set jsonObj = ParseJSON(Trim(Replace(code, "ADDIN ZOTERO_ITEM CSL_CITATION", "")), "CSL")
    Set ParseCSLCitationJson = jsonObj
End Function

Function StyleExists(ByVal styleToTest As String, ByVal docToTest as Word.Document) As Boolean
    Dim testStyle as Word.Style
    On Error Resume Next
    Set testStyle = docToTest.Styles(styleToTest)
    StyleExists = Not testStyle Is Nothing
End Function

'-------------------------------------------------------------------
' Citation Style Handler
'-------------------------------------------------------------------

' Such as (Dweba et al., 2017; Hu et al., 2022; Moonjely et al., 2023)
Private Sub ExtractAuthorYearCitations(field As Field, ByRef citations() As Citation, _
        Optional onlyYear As Boolean = False, Optional multiRefCommaSep As Boolean = True)
    Dim targetRange As Range, charRange As Range
    Set targetRange = field.Result
    Set charRange = targetRange.Duplicate
    charRange.Collapse wdCollapseStart

    ReDim citations(0)
    Dim rangeIndex As Long
    rangeIndex = -1

    Dim inCitation As Boolean, nComma As Integer, beginYear As Boolean
    inCitation = False
    nComma = 0
    beginYear = False

    Dim json As Object
    Set json = ParseCSLCitationJson(field.Code)

    Dim startChar As Long, endChar As Long

    Dim i As Long
    For i = 1 To targetRange.Characters.Count
        charRange.Start = targetRange.Start + i - 1
        charRange.End = targetRange.Start + i

        ' Start of full author-year citation
        If charRange.Text = "(" And Not onlyYear Then
            inCitation = True
            startChar = charRange.Start + 1

        ' Start of year citation
        ElseIf charRange.Text Like "[0-9]" Then
            beginYear = True

            If onlyYear And Not inCitation Then
                inCitation = True
                startChar = charRange.Start
            EndIf

        ' Check multiple citations of same author
        ElseIf multiRefCommaSep And charRange.Text = "," Then
            nComma = nComma + 1
            If nComma > 1 And beginYear Then
                GoTo CreateCitationObject
            End If

        ' End of citation
        ElseIf charRange.Text = ";" Or charRange.Text = ")" Then
            beginYear = False
            If multiRefCommaSep Then nComma = 0

        CreateCitationObject:
            If inCitation Then
                endChar = charRange.Start

                rangeIndex = rangeIndex + 1
                If rangeIndex > UBound(citations) Then
                    ReDim Preserve citations(0 To rangeIndex)
                End If

                citations(rangeIndex).Start = startChar
                citations(rangeIndex).End = endChar
                citations(rangeIndex).BibPattern = RemoveHtmlTags( _
                    json("CSL.citationItems(" & rangeIndex & ").itemData.title"))

                inCitation = False
            End If

            ' Skip space after delimiter
            If (charRange.Text = ";" Or charRange.Text = ",") And Not onlyYear Then
                i = i + 1
                startChar = endChar + 2
                inCitation = True
            End If

        End If
    Next i

    ' Resize the array to fit the number of found ranges
    ReDim Preserve citations(0 To rangeIndex)
End Sub

' Such as [1], [2], [3] etc.
Private Sub ExtractNumberInBrackets(field As Field, ByRef citations() As Citation, Optional bracket As String = "[]")
    Dim targetRange As Range, charRange As Range
    Set targetRange = field.Result
    Set charRange = targetRange.Duplicate
    charRange.Collapse wdCollapseStart

    ReDim citations(0)
    Dim rangeIndex As Long
    rangeIndex = -1

    Dim startBracket As String, endBracket As String
    startBracket = Left(bracket, 1)
    endBracket = Right(bracket, 1)

    Dim inBrackets As Boolean
    inBrackets = False

    Dim json As Object
    Set json = ParseCSLCitationJson(field.code)

    Dim startChar As Long, endChar As Long

    Dim i As Long
    For i = 1 To targetRange.Characters.Count
        charRange.Start = targetRange.Start + i - 1
        charRange.End = targetRange.Start + i

        If charRange.Text = startBracket Then
            inBrackets = True
            startChar = charRange.Start + 1 ' Start after the bracket
        ElseIf charRange.Text = endBracket And inBrackets Then
            If startChar < endChar Then
                rangeIndex = rangeIndex + 1
                If rangeIndex > UBound(citations) Then
                    ReDim Preserve citations(0 To rangeIndex)
                End If
                With citations(rangeIndex)
                    .Start = startChar
                    .End = endChar
                    .BibPattern = RemoveHtmlTags( _
                        json("CSL.citationItems(" & rangeIndex & ").itemData.title"))
                End With
            End If
            inBrackets = False
        ElseIf inBrackets And IsNumeric(charRange.Text) Then
            endChar = charRange.End ' Update end if still in brackets and character is numeric
        End If
    Next i

    ' Resize the array to fit the number of found ranges
    ReDim Preserve citations(0 To rangeIndex)

End Sub

' Such as [47,98,100–102]
Private Sub ExtractSerialNumberCitations(field As Field, ByRef citations() As Citation, Optional border = "")
    Dim targetRange As Range, charRange As Range
    Set targetRange = field.Result
    Set charRange = targetRange.Duplicate
    charRange.Collapse wdCollapseStart

    ReDim citations(0)
    Dim rangeIndex As Long, citOrder As Long
    rangeIndex = -1
    citOrder = -1

    Dim startBorder As String, endBorder As String
    startBorder = Left(border, 1)
    endBorder = Right(border, 1)

    Dim inCitation As Boolean
    inCitation = False

    Dim lastNum As Long
    lastNum = 0

    Dim json As Object
    Set json = ParseCSLCitationJson(field.Code)

    Dim startChar As Long, endChar As Long

    Dim currentChar As String
    Dim citationText As String

    Dim i As Long, RL As Long
    RL = targetRange.Characters.Count

    ' Add a pseudo-border to the citation text without borders
    If Len(endBorder) = 0 Then
        RL = RL + 1
        endBorder = "]"
    EndIf

    For i = 1 To RL
        charRange.Start = targetRange.Start + i - 1
        charRange.End = targetRange.Start + i

        If i <= targetRange.Characters.Count Then
            currentChar = charRange.Text
        Else
            ' Point to the psuedo-border
            currentChar = endBorder
        EndIf

        If currentChar Like "[0-9]" And Not inCitation Then
            inCitation = True
            startChar = charRange.Start
            citationText = currentChar

        ' ChrW(8211) means the character "en dash"
        ElseIf currentChar = "," Or currentChar = endBorder Or currentChar = ChrW(8211) Then

            If currentChar = ChrW(8211) Then
                lastNum = CLng(citationText)
            End If

            If inCitation Then
                endChar = charRange.Start

                rangeIndex = rangeIndex + 1
                If rangeIndex > UBound(citations) Then
                    ReDim Preserve citations(0 To rangeIndex)
                End If

                If (currentChar = "," Or currentChar = endBorder) And lastNum > 0 Then
                    citOrder = citOrder + CLng(citationText) - lastNum
                Else
                    citOrder = citOrder + 1
                End If

                citations(rangeIndex).Start = startChar
                citations(rangeIndex).End = endChar
                citations(rangeIndex).BibPattern = RemoveHtmlTags( _
                    json("CSL.citationItems(" & citOrder & ").itemData.title"))

                If Len(citations(rangeIndex).BibPattern) = 0 Then
                    Err.Raise vbObjectError + 1, "ExtractCitations", "Can not find citation CSL data"
                EndIf

                inCitation = False
            End If

            If currentChar = "," Or currentChar = endBorder Then
                lastNum = 0
            End If

        ElseIf inCitation Then
            citationText = citationText & currentChar

        End If

    Next i

    ReDim Preserve citations(0 To rangeIndex)
End Sub

'-------------------------------------------------------------------
' Supported Citation Styles
'-------------------------------------------------------------------

Private Function isSupportedStyle(ByVal style As String) As Boolean
    Dim predefinedList As String
    predefinedList = "|" & _
        "molecular-plant|ieee|apa|vancouver|american-chemical-society|" & _
        "american-medical-association|nature|american-political-science-association|" & _
        "american-sociological-association|chicago-author-date|" & _
        "china-national-standard-gb-t-7714-2015-numeric|" & _
        "china-national-standard-gb-t-7714-2015-author-date|" & _
        "harvard-cite-them-right|elsevier-harvard|modern-language-association|"
    style = "|" & style & "|"
    isSupportedStyle = InStr(1, predefinedList, style, vbTextCompare) > 0
End Function

Private Sub ExtractCitations(field As Field, ByRef citations() As Citation, style As String)
    Select Case style
        Case "molecular-plant", "chicago-author-date", "modern-language-association"
            Call ExtractAuthorYearCitations(field, citations, onlyYear:=False, multiRefCommaSep:=False)

        Case "apa", "china-national-standard-gb-t-7714-2015-author-date", _
             "american-political-science-association", "american-sociological-association", _
             "harvard-cite-them-right"
            Call ExtractAuthorYearCitations(field, citations, onlyYear:=True, multiRefCommaSep:=True)

        Case "elsevier-harvard"
            Call ExtractAuthorYearCitations(field, citations, onlyYear:=False, multiRefCommaSep:=True)

        Case "ieee"
            Call ExtractNumberInBrackets(field, citations, "[]")

        Case "vancouver"
            Call ExtractSerialNumberCitations(field, citations, "()")

        Case "china-national-standard-gb-t-7714-2015-numeric"
            Call ExtractSerialNumberCitations(field, citations, "[]")

        Case "american-chemical-society", "american-medical-association", "nature"
            Call ExtractSerialNumberCitations(field, citations, "")

        Case Else
            Err.Raise vbObjectError + 1, "ExtractCitations", "Citation style not recognized"
    End Select
End Sub

'-------------------------------------------------------------------
' ZoteroLinkCitation Macro
'-------------------------------------------------------------------

Public Sub ZoteroLinkCitationWithinSelection()
    If Selection.Fields.Count > 0 Then
        Dim originalRng As Range
        Set originalRng = Selection.Range

        Application.ScreenUpdating = False

        Dim targetFields As New Collection
        Dim fld As Field

        For Each fld In Selection.Fields
            targetFields.Add fld
        Next fld

        Call ZoteroLinkCitation(targetFields, False, False)

        ' Restore the original selection
        ActiveWindow.ScrollIntoView originalRng, True
        originalRng.Select

        Application.ScreenUpdating = True
    End If
End Sub

Public Sub ZoteroLinkCitationAll()
    Dim originalRng As Range
    Set originalRng = Selection.Range

    Dim debugging As Boolean
    debugging = (MsgBox("Do you want run in debug mode?", vbYesNo + vbQuestion, "Debug?") = vbYes)

    ' Disable screen updating for performance
    Application.ScreenUpdating = False

    Call ZoteroLinkCitation(ActiveDocument.Fields, debugging)

    ' Restore the original selection
    ActiveWindow.ScrollIntoView originalRng, True
    originalRng.Select

    ' Re-enable screen updating
    Application.ScreenUpdating = True
    Exit Sub
End Sub

Private Sub ZoteroLinkCitation(targetFields, Optional debugging As Boolean = False, Optional notify As Boolean = True)
    ' Do not support Bookmark-type citations
    Dim prefs As Object
    Set prefs = GetZoteroPrefs()
    If Not prefs("pref-fieldType") = "Field" Then
        MsgBox "Only support 'Fields' type citations", vbCritical, "Error"
        Exit Sub
    End If

    Dim styleId As String
    styleId = prefs("style-id")
    If Not isSupportedStyle(styleId) Then
        MsgBox "The current citation style is not yet supported: " & styleId, vbCritical, "Error"
        Exit Sub
    End If

    Dim userTextStyle As String

    If notify Then
        Dim resp As String
        resp = InputBox(title := "Set an MS Word style for hyperlinks?", _
                        prompt := "If you want to set a certain style for hyperlinks," & _
                                    " enter the name of that style below.")
        If StyleExists(resp, ActiveDocument) Then userTextStyle = resp
    End If

    Dim i As Long
    Dim bibField As Field
    Set bibField = Nothing

    ' Find the Zotero bibliography field
    For i = ActiveDocument.Fields.Count To 1 Step -1
        If ActiveDocument.Fields(i).Type = wdFieldAddin Then
            If InStr(ActiveDocument.Fields(i).Code, "ADDIN ZOTERO_BIBL") > 0 Then
                Set bibField = ActiveDocument.Fields(i)
                Exit For
            EndIf
        End If
    Next i

    If bibField Is Nothing Then
        Err.Raise vbObjectError + 513, , "Can not find Zotero bibliography field."
    End If

    ' Iterate through all fields in the document
    Dim aField As Field, iCount As Integer
    For Each aField In targetFields
        ' Check if the field is a Zotero citation
        If aField.Type = wdFieldAddin Then
            If InStr(aField.Code, "ADDIN ZOTERO_ITEM") > 0 Then

                If debugging Then
                    ' Focus to next field
                    Application.ScreenUpdating = True
                    ActiveWindow.ScrollIntoView aField.Result, True
                    aField.Result.Select

                    ' Update the document
                    DoEvents

                    If MsgBox("Processed " & iCount & " citations, and found the next group:" & vbCrLf & vbCrLf & _
                                aField.Result.Text & vbCrLf & vbCrLf & "Do you want to continue?", _
                                vbYesNo + vbQuestion, "Continue?") = vbNo Then
                        Exit For
                    End If

                    Application.ScreenUpdating = False
                End If

                Dim cit As Citation, cits() As Citation
                Call ExtractCitations(aField, cits, styleId)

                ' Locate all citations in the field
                Dim tempBookmarkName As String
                For i = 0 To UBound(cits)
                    cit = cits(i)
                    Dim rng As Range
                    Set rng = aField.Result.Document.Range(Start:=cit.Start, End:=cit.End)
                    tempBookmarkName = "ZoteroLinkCitationTempBookmark" & i
                    ActiveDocument.Bookmarks.Add Name:=tempBookmarkName, Range:=rng
                Next i

                ' Link citations to bibliography
                For i = 0 To UBound(cits)
                    cit = cits(i)

                    Dim title As String
                    title = cit.BibPattern

                    ' Create a sanitized anchor name from the title
                    Dim titleAnchor As String
                    titleAnchor = ConvertToBookmarkName(title)

                    ' Get the range of Zotero bibliography
                    Dim rngBibliography As Range
                    Set rngBibliography = bibField.Result

                    With rngBibliography.Find
                        .ClearFormatting
                        .Text = Left(title, 255)
                        .Forward = True
                        .MatchPhrase = True
                        .Wrap = wdFindStop ' Stop when reaching the end of the range
                        .Format = False
                        .MatchCase = False
                        .MatchWholeWord = False
                        .MatchWildcards = False
                        .Execute
                    End With

                    ' Check if the text was found
                    If rngBibliography.Find.Found Then
                        ' Create a new range object to represent the found paragraph
                        Dim rngFound As Range
                        Set rngFound = rngBibliography.Paragraphs(1).Range
                        ' Ensure that the Range does not extend to the end of the bibliography field
                        rngFound.End = rngFound.End - 1
                        ' Add a bookmark to the found range
                        ActiveDocument.Bookmarks.Add Range:=rngFound, Name:=titleAnchor
                    Else
                        If MsgBox("Not found in bibliography:" & vbCrLf & title & vbCrLf & vbCrLf & _
                                    "Do you want to continue with the next Zotero citation?", _
                                        vbYesNo + vbCritical, "Error") = vbNo Then
                            GoTo ExitTheMacro
                        Else
                            GoTo SkipToNextCitation
                        End If
                    End If

                    ' Create hyperlink according to temporary bookmark
                    Dim hp As Hyperlink
                    Set hp = ActiveDocument.Hyperlinks.Add( _
                        Anchor:=ActiveDocument.Bookmarks("ZoteroLinkCitationTempBookmark" & i).Range, _
                        SubAddress:=titleAnchor, ScreenTip:="")

                    ' Apply text style to the hyperlink
                    If userTextStyle <> "" Then
                        hp.Range.style = ActiveDocument.Styles(userTextStyle)
                    End If

                    iCount = iCount + 1

                SkipToNextCitation:
                    ActiveDocument.Bookmarks("ZoteroLinkCitationTempBookmark" & i).Delete

                Next i

            End If
        End If
    Next aField

ExitTheMacro:

    If notify Then MsgBox "Linked " & iCount & " Zotero citations.", vbInformation, "Finish"

End Sub

3.2、引入宏

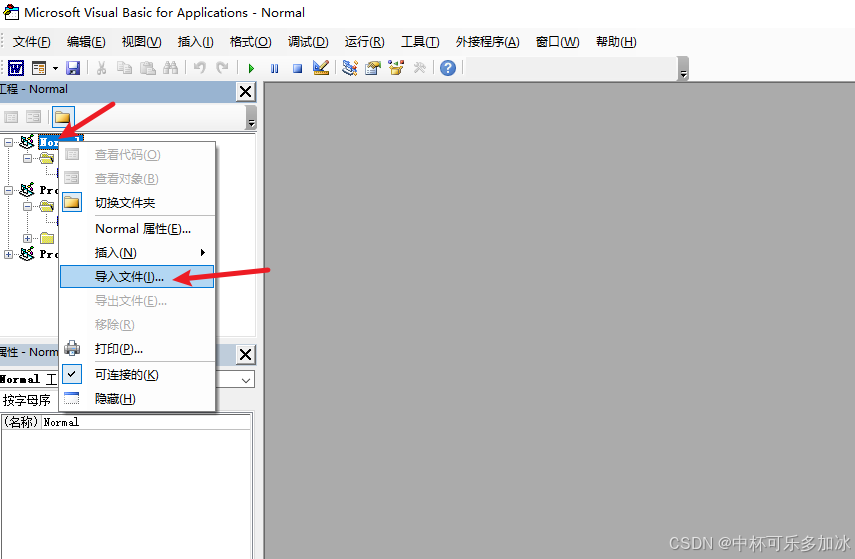

进入Word或者WPS,使用Alt + F11打开Visual Basic for Applications (VBA) 编辑器,在 VBA 编辑器中,找到Normal左侧的项目窗口。右键单击Normal选择Import File:
在这里插入图片描述
找到并选择ZoteroLinkCitation.bas文件,确认导入,导入成功后如下,记得Ctrl + S保存:

在这里插入图片描述
然后,退出 VBA 编辑器以返回到 Word 文档:

3.3、运行宏

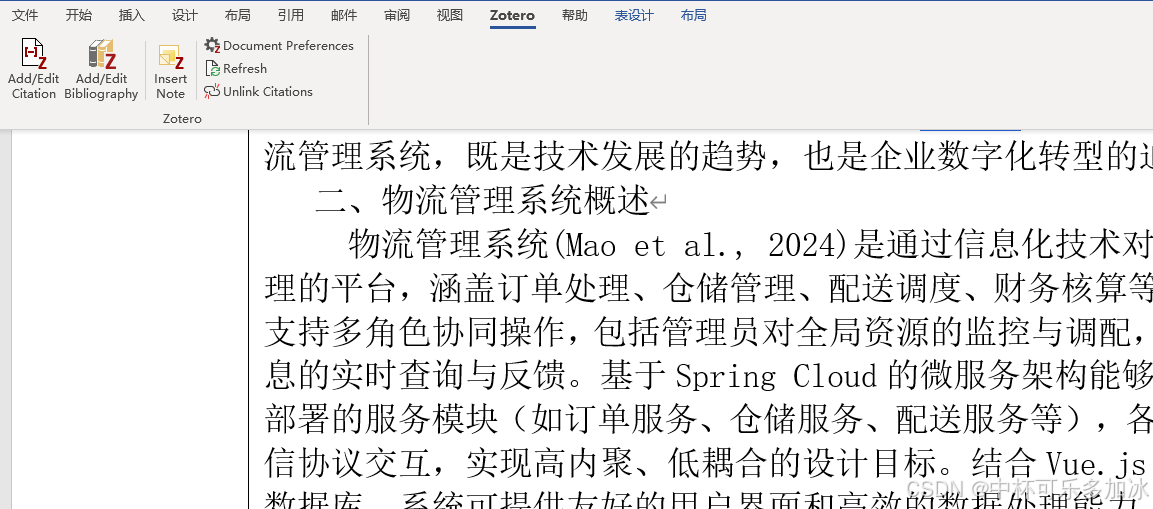

点击Add/Edit Citation,正常为段落加入引用,并点击Add/Edit Bibliography在文末加入参考文献列表:
在这里插入图片描述
加入引用后:

在这里插入图片描述
使用快捷键Alt + F8打开宏视图,选择ZoteroLinkCitationAll就可以批量为引文添加超链接了选择ZoteroLinkCitationWithinSelection可以为单条引文增加超链接

在这里插入图片描述

等待片刻后,就可以查看效果了:

在这里插入图片描述

四、加入快速访问

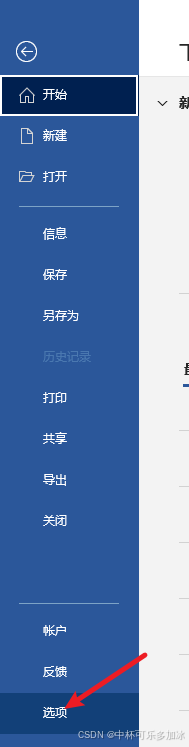

如果嫌每次点比较麻烦,可以将宏加入到快速访问栏,点击文件-选项:

在这里插入图片描述

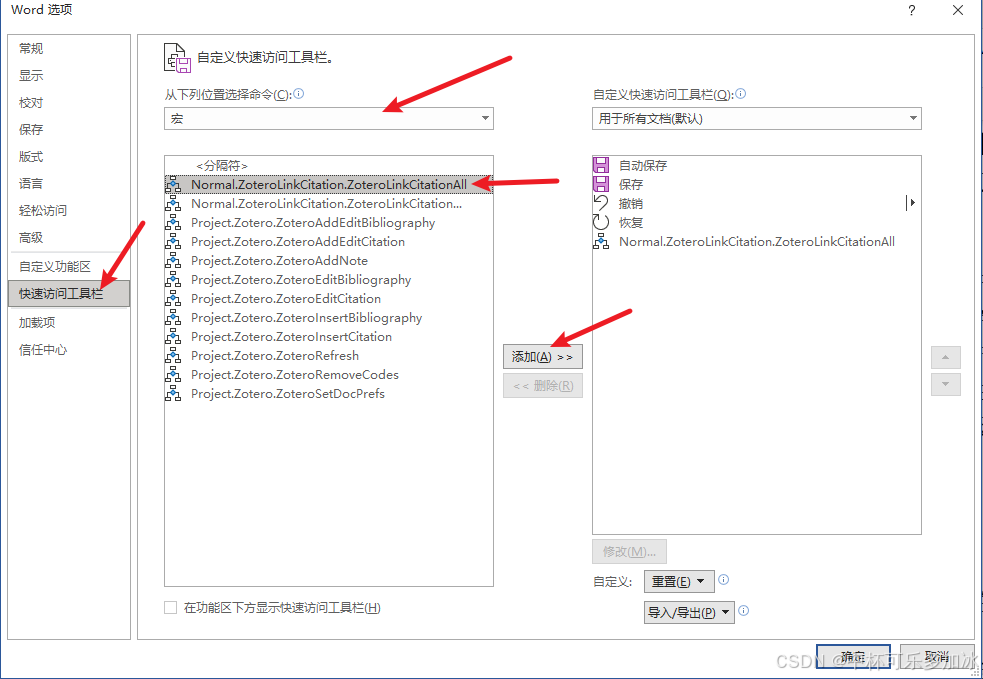

然后选择快速访问工具栏,从宏中选择到ZoteroLinkCitationAll,并添加:

在这里插入图片描述

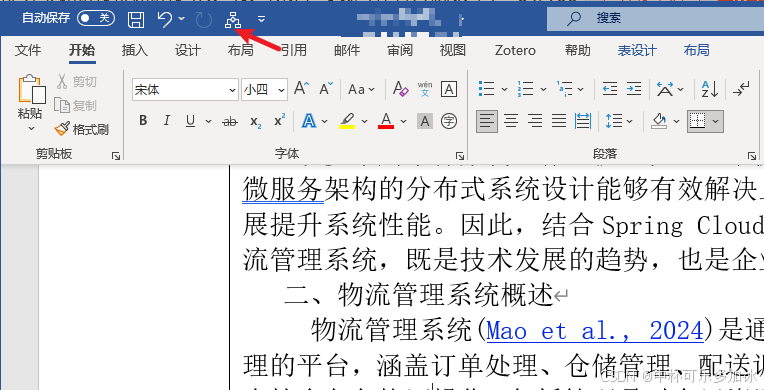

然后就可以点击快捷使用了。

在这里插入图片描述

如果有帮助到你,可以 支持我🎉:点赞👍+收藏⭐️+留言📝,后续文章会持续推出!

另外,我们已经建立了🏤采苓研学社群,如果你还有其他疑问,可以私信我加入社群

📝 加入社群 抱团学习中杯可乐多加冰-采苓AI研习社

<think>好的,我现在需要帮助用户解决如何在ZoteroWord之间实现交叉引用,包括插件设置和教程的问题。首先,我得回忆一下Zotero的基本功能和相关插件。Zotero本身是一个文献管理工具,但默认情况下可能不支持Word中的交叉引用超链接,所以需要插件或额外的设置。 根据用户提供的引用内容,特别是引用[1]和[2],他们提到了使用VBA代码来添加超链接,以及样式的调整。用户可能已经尝试过一些方法,但遇到了问题,比如样式名称不匹配或者代码报错。我需要整理一个步骤清晰的教程,确保用户能一步步操作。 首先,安装ZoteroWord插件是基础,这应该包括在Zotero的安装过程中。但用户可能已经安装好了,所以需要确认。然后,关于交叉引用的部分,可能需要使用特定的插件,比如Zotero Citation Toolbar或Better BibTeX。但根据引用内容,用户是通过VBA宏来实现的,所以可能需要指导用户如何启用宏并插入代码。 接下来,用户需要下载并导入VBA代码到Word中。这部分需要详细说明如何打开VBA编辑器,插入模块,并复制代码。同时,要提醒用户调整代码中的样式名称,比如将“s-citation”改为用户自己使用的样式,这点在引用[2]中提到了。 然后,设置自定义引用样式,用户可能需要修改现有的GB/T 7714样式,确保超链接正确生成。这里需要指导用户如何查找和编辑CSL文件,或者通过Zotero的样式编辑器进行调整。 应用交叉引用的步骤需要具体,例如如何插入文献后运行宏,以及如何检查超链接是否有效。同时,要提到常见问题,比如样式名称错误、宏安全性设置、更新Zotero插件等,这些都是用户可能遇到的障碍。 最后,生成相关问题,帮助用户进一步探索优化方法和解决其他潜在问题。需要确保问题覆盖性能分析、优化方法、应用场景,以及其他工具的比较,如EndNote。 需要检查每一步是否清晰,避免技术术语过多,用中文简明扼要地解释。同时,确保所有LaTeX格式正确,比如行内公式用$...$,独立公式用$$...$$,但在这个问题中可能涉及较少数学公式,更多是操作步骤。不过要留意用户提到的引用部分是否有需要特别处理的格式。 总结步骤: 1. 安装必备插件。 2. 配置VBA宏。 3. 设置文献样式。 4. 插入文献并应用宏。 5. 解决常见问题。 确保每个步骤都有对应的详细说明,并引用用户提供的参考链接和调整点,比如样式名称的修改。可能需要提醒用户启用宏时的安全性设置,以及如何信任VBA项目,这部分对不熟悉Word宏的用户可能是个难点。 此外,用户可能对Zotero的样式编辑不太熟悉,需要指导如何通过Zotero的样式管理器或在线编辑器调整CSL文件,添加超链接字段。这部分可能需要参考引用[1]中的修改过的GB/T 7714样式,建议用户下载该样式文件导入。 最后,验证整个流程是否可行,考虑用户可能的操作环境,如Word的版本(32位或64位)是否影响宏的运行,但引用中没有提到这点,可能需要忽略或作为常见问题提及。</think>### ZoteroWord交叉引用设置教程 #### 一、基础环境配置 1. **安装Zotero Word插件** - 确保Zotero客户端已安装,并在安装时勾选**Microsoft Word Add-in**(默认已选)[^1]。 - 打开Word,顶部菜单栏应出现**Zotero**标签页。 2. **安装必要插件** - **Better BibTeX**:通过Zotero插件库安装,用于生成稳定引用键。 - **Zotero Citation Toolbar**:优化Word中的引用交互(可选)。 --- #### 二、配置VBA宏添加超链接 1. **下载VBA代码** 从引用[1]获取修改后的宏代码(或直接复制下方代码): ```vba Sub AddHyperlinksToCitations() ' 代码来源:引用[1] Dim hyperlinkRange As Range For Each hyperlinkRange In ActiveDocument.StoryRanges ' 调整"s-citation"为你的样式名,参考引用[2] With hyperlinkRange.Find .Text = "\[@" .Forward = True .Wrap = wdFindStop While .Execute hyperlinkRange.MoveStartUntil "]", wdForward hyperlinkRange.Hyperlinks.Add Anchor:=hyperlinkRange, Address:="" Wend End With Next End Sub ``` 2. **导入宏到Word** - 按下`Alt+F11`打开VBA编辑器。 - 右键**Normal** → 插入 → 模块,粘贴代码。 3. **绑定快捷键或按钮** - 在Word选项中自定义快速访问工具栏,添加宏便于一键运行。 --- #### 三、设置文献引用样式 1. **修改GB/T 7714样式** - 在Zotero样式编辑器中打开GB/T 7714-2015,添加超链接字段: ```xml <text variable="URL" prefix="<a href=""" suffix=""">Link</a>"/> ``` - 或直接下载引用[1]提供的已修改样式文件[^1]。 2. **应用样式** - 在WordZotero标签页中选择**Document Preferences**,切换为修改后的样式。 --- #### 四、插入文献交叉引用 1. **插入文献** - 点击**Add/Edit Citation**搜索文献并插入,格式为`[@引用键]`。 2. **运行宏添加超链接** - 点击快速访问工具栏中的宏按钮,自动将`[@...]`转换为可跳转超链接。 --- #### 五、常见问题解决 1. **样式名称报错** - 检查VBA代码中的`Selection.style = ActiveDocument.Styles("s-citation")`是否Word中的实际样式名一致[^2]。 2. **宏安全性限制** - 在Word信任中心启用**启用所有宏**并勾选**信任对VBA工程对象模型的访问**[^1]。 3. **超链接失效** - 更新Zotero插件至最新版本,并重启Word。 ---
评论 16
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

中杯可乐多加冰

请我喝杯可乐吧,我会多加冰!

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付:¥1
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
