高仿知乎日报(二)[主页面]

by seaicelin
转载请注明出处：http://blog.csdn.net/amd123456789/article/details/52292623

主页面

主页面从上到下由DrawerLayout + ToolBar + SwipeRefreshLayout + RecylerView + HomeProtocol组成。

• DrawerLayout : 用于实现抽屉效果的侧边栏菜单。
• ToolBar : 用于实现标题栏，类似以前ActionBar。
• SwipeRefreshLayout：用于实现下拉刷新效果，直接包裹着RecylerView。
• RecylerView：主要用于显示日报的列表的ListView。

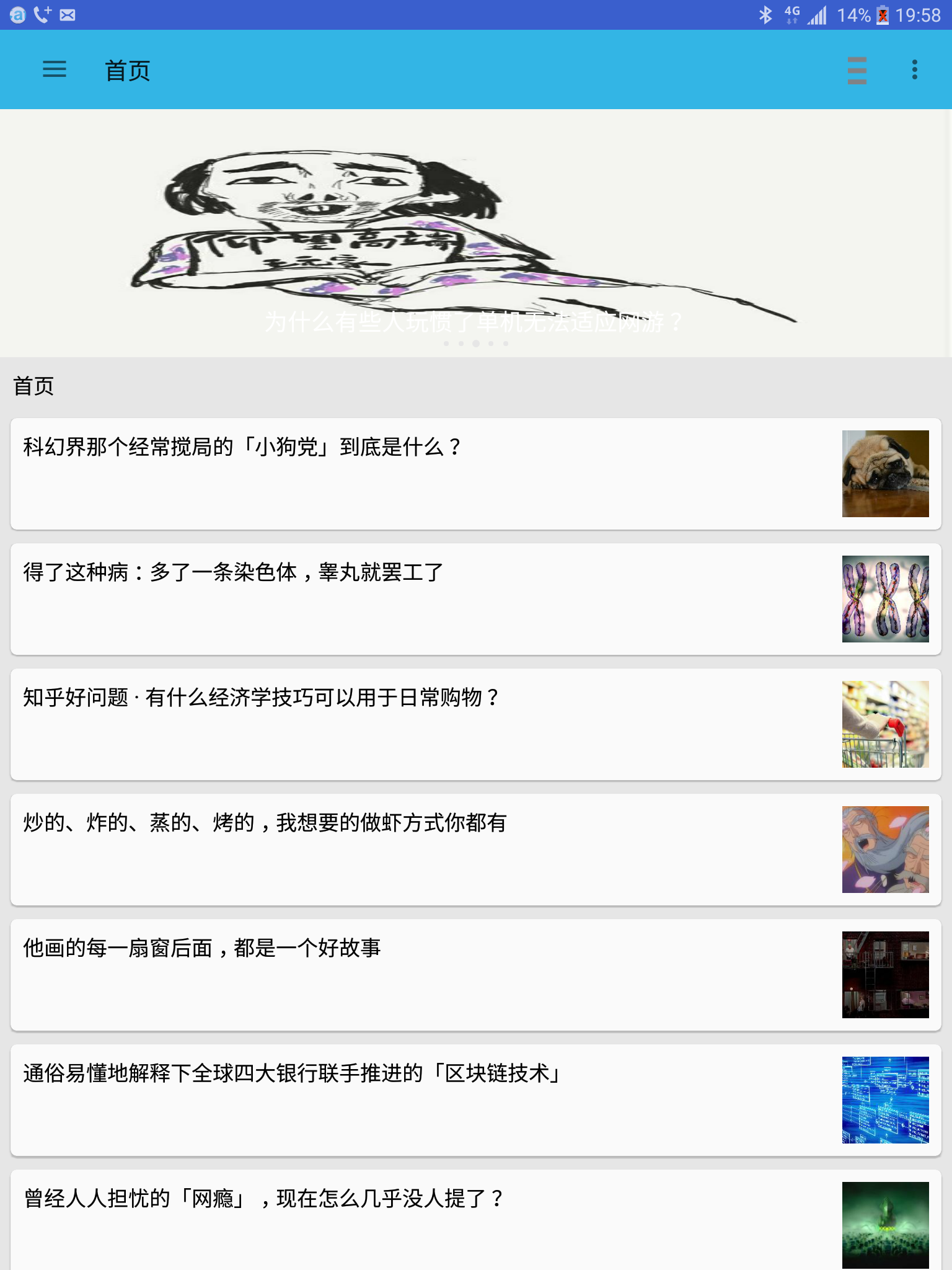

先来一睹主页面的效果(不会搞GIF图，并且手上是平板！)，也就是这篇文章所要实现的效果图：

---

DrawerLayout 主页面和侧边栏抽屉效果

DrawerLayout是V4包提供的一个widget，需要在activity和布局文件里边操作来实现这个效果。布局界面包含侧边栏界面和主页面界面。布局文件按照规定的格式书写如下：
activity_content.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.v4.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/drawer"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
    <!-- 内容显示   -->
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:background="@android:color/white"
        android:orientation="vertical">

        <include
            android:id="@+id/toolbar"
            layout="@layout/toolbar"></include>
        //包裹下拉刷新
        <android.support.v4.widget.SwipeRefreshLayout
            android:id="@+id/swipe_container"
            android:layout_width="match_parent"
            android:layout_height="match_parent">

            <RelativeLayout
                android:layout_width="match_parent"
                android:layout_height="match_parent"
                android:background="@color/light_grey">
                <android.support.v7.widget.RecyclerView
                    android:id="@+id/recyle_view"
                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    android:background="@color/light_grey">
                </android.support.v7.widget.RecyclerView>
            </RelativeLayout>
        </android.support.v4.widget.SwipeRefreshLayout>
    </LinearLayout>
    <!--侧边栏-->
    <LinearLayout
        android:id="@+id/drawer_view"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_gravity="start"//可以设置左边还是右边侧滑
        android:background="@android:color/white"
        android:orientation="vertical"></LinearLayout>
</android.support.v4.widget.DrawerLayout>

写好布局文件后，我们再来看看activity是怎么实现这个效果的， 请看下面代码：

    ...
    private ActionBarDrawerToggle mDrawerToggle;
    @InjectView(R.id.drawer)
    DrawerLayout drawerLayout;
    ...
    //设置侧边栏
    private void setDrawerLayout() {
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
        mDrawerToggle = new ActionBarDrawerToggle(this, drawerLayout, toolbar, R.string.drawer_open, R.string.drawer_close);//和Toolbar也绑定
        mDrawerToggle.syncState();
        drawerLayout.setDrawerListener(mDrawerToggle);
    }

---

ToolBar

ToolBar是android5.0推出的一个新控件，用来替换ActionBar，说是更加灵活。如何使用？
首先，要设置这个activity的主题为不包含actionBar.

//no action bar
<style name="AppToolBarTheme" parent="Theme.AppCompat.Light.NoActionBar">
</style>
//Toolbar布局文件如下，Toolbar.xml
<?xml version="1.0" encoding="utf-8"?>
<android.support.v7.widget.Toolbar xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:background="@android:color/holo_blue_light"
    app:popupTheme="@style/ThemeOverlay.AppCompat.ActionBar"
    app:theme="@style/AppBaseTheme">
</android.support.v7.widget.Toolbar>

接着，在Activity里面加入Toolbar相关代码。

@InjectView(R.id.toolbar)
Toolbar toolbar;
//设置ToolBar
private void setToolBar() {
    toolbar.setTitle(R.string.home_page);
    toolbar.setNavigationIcon(R.mipmap.ic_drawer_am);
    setSupportActionBar(toolbar);//设置Toolbar
}
//设置ToolBar的相关选项
@Override
public boolean onCreateOptionsMenu(Menu menu) {
    MenuInflater inflater = getMenuInflater();
    inflater.inflate(R.menu.toolbar_menu, menu);
    return true;
}

@Override
public boolean onOptionsItemSelected(MenuItem menu) {
    switch (menu.getItemId()) {
        case R.id.action_login:
            break;
        case R.id.action_night:
            break;
        case R.id.action_settiong:
            break;
        default:
            break;
    }
    return true;
}

ToolBar里面的选项，是加载res/menu/toolbar_menu.xml这个布局文件：

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    tools:context=".ContentActivity">
    <item
        android:id="@+id/action_login"
        android:icon="@mipmap/ic_drawer_am"
        android:orderInCategory="100"
        android:title="Login"
        app:showAsAction="always" />
    <item
        android:id="@+id/action_settiong"
        android:orderInCategory="100"
        android:title="action_settings"
        app:showAsAction="never" />
    <item
        android:id="@+id/action_night"
        android:orderInCategory="100"
        android:title="Night"
        app:showAsAction="never"></item>
</menu>

---

SwipeRefreshLayout下拉刷新

下拉刷新只需要在布局文件的最外层包裹他就可以了，布局文件请看前面activity_content.xml的布局文件。在ContentActivity去实现SwipeRefreshLayout.OnRefreshListener。请看代码：

//设置下拉刷新
private void setSwipeLayout() {
    swipeRefreshLayout.setOnRefreshListener(this);
    swipeRefreshLayout.setColorSchemeResources(R.color.blue);
}
//下拉刷新监听
@Override
public void onRefresh() {
    BaseApplication.getHandler().postDelayed(new Runnable() {
        @Override
        public void run() {
            swipeRefreshLayout.setRefreshing(false);//刷新完毕
            Toast.makeText(BaseApplication.getApplication(), "刷新成功", Toast.LENGTH_SHORT).show();
        }
    }, 3000);
}

RecylerView列表控件

RecylerView也是V7包下的控件，我们简单理解为ListView控件的升级版就行。它的使用，无非就是
1. 设置布局管理器。
2. 设置适配器。
3. 设置Item相关ItemAnimator，增删动画。
在ContentActivity里面数据加载后，设置RecylerView。

//初始化数据相关
private void initData() {
    homeProtocol = new HomeProtocol();
    new Thread(new Runnable() {
        @Override
        public void run() {
            homeInfo = homeProtocol.loadData();
            BaseApplication.getHandler().postDelayed(new Runnable() {
                @Override
                public void run() {
                    setRecylerView();
                }
            }, 500);
        }
    }).start();
}
//设置recyler view
private void setRecylerView() {
    HomeRecylerViewAdapter adapter = new HomeRecylerViewAdapter(homeInfo);//适配器
    LinearLayoutManager layoutManager = new LinearLayoutManager(BaseApplication.getApplication());//布局信息，设置Item显示的样式
    layoutManager.setOrientation(LinearLayoutManager.VERTICAL);
    recylerView.setLayoutManager(layoutManager);//设置LayoutManager
    recylerView.setAdapter(adapter);//设置适配器
}

HomeRecylerViewAdapter主要就三个方法
1. getItemCount
2. onCreateViewHolder
3. onBindViewHolder

package com.example.seaice.zhihuribao.adapter;

import android.content.Context;
import android.support.v4.view.ViewPager;
import android.support.v7.widget.RecyclerView;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;
import android.widget.TextView;
import com.example.seaice.zhihuribao.R;
import com.example.seaice.zhihuribao.Utils.BaseApplication;
import com.example.seaice.zhihuribao.bean.HomeInfo;
import com.example.seaice.zhihuribao.bean.HomeStoriesInfo;
import com.example.seaice.zhihuribao.bean.HomeTopInfo;
import com.example.seaice.zhihuribao.view.CircleIndicator;
import com.squareup.picasso.Picasso;
import java.util.List;
import butterknife.ButterKnife;
/**
 * Created by seaice on 2016/8/22.
 */
public class HomeRecylerViewAdapter extends RecyclerView.Adapter<RecyclerView.ViewHolder> {
    private static final int TYPE_HEADER = 0;
    private static final int TYPE_ITEM = 1;
    private static final int TYPE_DATE = 2;
    private LayoutInflater mInflate;
    private Context mContext;
    private List<HomeStoriesInfo> homeStoriesInfos;
    private List<HomeTopInfo> homeTopInfos;
    private HomeInfo homeInfo;
    private boolean isTouchViewPager = false;
    private boolean isViewPagerLoop = false;

    public HomeRecylerViewAdapter(HomeInfo homeInfo) {
        this.homeInfo = homeInfo;
        initData();
    }

    private void initData() {
        homeStoriesInfos = homeInfo.getHomeStoriesInfos();
        homeTopInfos = homeInfo.getHomeTopInfoList();
        mContext = BaseApplication.getApplication();
        mInflate = LayoutInflater.from(mContext);
    }

    //绑定不同类型Holder
    @Override
    public RecyclerView.ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
        if (viewType == TYPE_HEADER) {
            View view = mInflate.inflate(R.layout.header_recyler_view, parent, false);
            return new HeaderHolder(view);
        } else if (viewType == TYPE_DATE) {
            View view = mInflate.inflate(R.layout.date_recyler_view, parent, false);
            return new DateHolder(view);
        } else if (viewType == TYPE_ITEM) {
            View view = mInflate.inflate(R.layout.item_recyler_view, parent, false);
            return new MyViewHolder(view);
        }
        throw new RuntimeException("there is no type that match the type " + viewType);
    }

    //设置holder的view元素
    @Override
    public void onBindViewHolder(RecyclerView.ViewHolder vh, int position) {
        if (vh instanceof HeaderHolder) {
            if(isViewPagerLoop == false){
                isViewPagerLoop = true;
                setViewPager((HeaderHolder) vh);
            }
        } else if (vh instanceof DateHolder) {
        } else if (vh instanceof MyViewHolder) {
            HomeStoriesInfo info = homeStoriesInfos.get(position - 2);
            MyViewHolder holder = (MyViewHolder) vh;
            holder.tv_title.setText(info.getTitle());
            Picasso.with(BaseApplication.getApplication()).load(info.getImages()).into(holder.iv_title);
        } else {
            throw new RuntimeException("there is no holer that match the  " + vh);
        }
    }

    @Override
    public int getItemCount() {
        return homeStoriesInfos.size() + 1;
    }

    @Override
    public int getItemViewType(int position) {
        if (isPositionHeader(position)) {
            return TYPE_HEADER;
        } else if (isPositionDate(position)) {
            return TYPE_DATE;
        } else {
            return TYPE_ITEM;
        }
    }

    private boolean isPositionDate(int position) {
        return position == 1;
    }

    private boolean isPositionHeader(int position) {
        return position == 0;
    }

    //设置viewPager
    private void setViewPager(final HeaderHolder holder) {
        holder.viewPager.setAdapter(new HomeViewPagerAdapter(homeTopInfos));
        holder.indicator.setCircleNumber(homeTopInfos.size());
        holder.viewPager.setOnPageChangeListener(new ViewPager.OnPageChangeListener() {
            @Override
            public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {
            }
            @Override
            public void onPageSelected(int position) {
                holder.indicator.setSelectdItem(position);
            }
            @Override
            public void onPageScrollStateChanged(int state) {
                if (state == ViewPager.SCROLL_STATE_DRAGGING) {
                    isTouchViewPager = true;
                } else {
                    isTouchViewPager = false;
                }
            }
        });
        loopViewPager(holder);
    }

    //让viewpager循环播放
    private void loopViewPager(final HeaderHolder holder) {
        BaseApplication.getHandler().postDelayed(new Runnable() {
            @Override
            public void run() {
                if (isTouchViewPager == false) {
                    int item = (holder.viewPager.getCurrentItem()) + 1;
                    holder.viewPager.setCurrentItem(item % (holder.viewPager.getAdapter().getCount()));
                    holder.indicator.setSelectdItem(item);
                }
                loopViewPager(holder);
            }
        }, 5000);
    }

    //item view
    public class MyViewHolder extends RecyclerView.ViewHolder {
        public ImageView iv_title;
        public TextView tv_title;

        public MyViewHolder(View view) {
            super(view);
            iv_title = ButterKnife.findById(view, R.id.iv_title);
            tv_title = ButterKnife.findById(view, R.id.tv_title);
        }
    }

    //header view
    public class HeaderHolder extends RecyclerView.ViewHolder {
        public ViewPager viewPager;
        public CircleIndicator indicator;

        public HeaderHolder(View view) {
            super(view);
            viewPager = ButterKnife.findById(view, R.id.viewPager);
            indicator = ButterKnife.findById(view, R.id.indicator);
        }
    }

    //dateHolder view
    public class DateHolder extends RecyclerView.ViewHolder {
        public TextView tv_date;
        public DateHolder(View view) {
            super(view);
            tv_date = ButterKnife.findById(view, R.id.tv_date);
        }
    }
}

---

HomeProtocol加载数据

HomeProtocol的逻辑实际上和GuideProtocol逻辑是一样的，那么此刻可以提取出一个基类，然后子类去实现各自的方法便可以。
基类，提取为BaseProtocol，后面子类只需要各自实现三个抽象方法便可以。
1. paserJsonData(String json) …//解析json数据
2. getCacheDir()….//获取缓存的文件路劲
3. getUrl()…//获取网页地址

package com.example.seaice.zhihuribao.protocol;

import android.util.Log;
import com.example.seaice.zhihuribao.Utils.FileUtils;
import com.example.seaice.zhihuribao.Utils.HttpUtils;
import com.example.seaice.zhihuribao.Utils.LogUtils;
import com.example.seaice.zhihuribao.bean.GuideInfo;
import java.io.BufferedReader;
import java.io.BufferedWriter;
import java.io.File;
import java.io.FileNotFoundException;
import java.io.FileReader;
import java.io.FileWriter;
import java.io.IOException;
import java.io.StringWriter;
import okhttp3.Request;
import okhttp3.Response;

/**
 * Created by seaice on 2016/8/18.
 */
public abstract class BaseProtocol<T> {

    //解析json数据
    protected abstract T paserJsonData(String json);
    //获取连接路径
    protected abstract String getCacheDir();
    //获取新闻链接网址
    protected abstract String getUrl();

    /**
     * 1.先从本地获取json数据
     * 2.如果为空，再从服务器上获取
     * 3.若获取到json,保存到本地
     * 4.获取到json不为空，解析json数据
     */
    public T loadData() {
        String json = loadDataFromLocal();
        if (json == null) {
            LogUtils.e("从服务器获取json");
            json = loadDataFromServer();
            if (json != null) {
                saveDataToLocal(json);
            }
        } else {
            LogUtils.e("已经从本地获取");
        }
        if (json != null) {
            return paserJsonData(json);
        }
        return null;
    }

    //1.把整个json文件写到一个本地文件中
    //2.把每条数据摘出来保存到数据库中
    private String loadDataFromLocal() {
        File dir = FileUtils.getCacheDir();
        File file = new File(dir, getCacheDir());

        try {
            FileReader fr = new FileReader(file);
            BufferedReader br = new BufferedReader(fr);
            long saveTime = Long.parseLong(br.readLine());
            if (System.currentTimeMillis() > saveTime) {
                return null;
            } else {
                String str;
                StringWriter sw = new StringWriter();
                while ((str = br.readLine()) != null) {
                    sw.write(str);
                }
                LogUtils.i("本地获取数据");
                return sw.toString();
            }
        } catch (FileNotFoundException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        }
        return null;
    }
    //把数据保存到本地
    private void saveDataToLocal(String json) {
        LogUtils.i("保存到本地");
        //第一行写时间，然后保存起来
        File dir = FileUtils.getCacheDir();
        File file = new File(dir, getCacheDir());
        BufferedWriter bw = null;
        try {
            FileWriter fw = new FileWriter(file);
            bw = new BufferedWriter(fw);
            bw.write(System.currentTimeMillis() + 1000 * 100 + "");
            bw.newLine();
            bw.write(json);
            bw.flush();
            fw.close();
            bw.close();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    //从服务器加载数据
    private String loadDataFromServer() {
        String result = null;
        Request request = new Request.Builder().url(getUrl()).build();
        Response response = null;
        response = HttpUtils.execute(request);
        if (response != null && response.isSuccessful()) {
            try {
                result = response.body().string();
                LogUtils.e(result);
                return result;
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
        return null;
    }
}

好了，那么剩下的就交给子类HomeProtocol.java来实现

package com.example.seaice.zhihuribao.protocol;

import com.example.seaice.zhihuribao.Utils.LogUtils;
import com.example.seaice.zhihuribao.bean.HomeInfo;
import com.example.seaice.zhihuribao.bean.HomeStoriesInfo;
import com.example.seaice.zhihuribao.bean.HomeTopInfo;
import org.json.JSONArray;
import org.json.JSONException;
import org.json.JSONObject;
import java.util.ArrayList;
import java.util.List;

/**
 * Created by seaice on 2016/8/18.
 */
public class HomeProtocol extends BaseProtocol<HomeInfo> {

    private static final String HOMEURL = "http://news-at.zhihu.com/api/4/news/latest";
    private static final String HOMECACHE = "home";

    @Override
    protected HomeInfo paserJsonData(String json) {
        try {
            JSONObject jsonObject = new JSONObject(json);
            String date = jsonObject.getString("date");
            JSONArray jsonArrayStories = jsonObject.getJSONArray("stories");
            List<HomeStoriesInfo> homeStoriesInfos = new ArrayList<HomeStoriesInfo>();
            for (int i = 0; i < jsonArrayStories.length(); i++) {
                JSONObject object = jsonArrayStories.getJSONObject(i);
                int type = object.getInt("type");
                String id = object.getString("id");
                String ga_prefix = object.getString("ga_prefix");
                String title = object.getString("title");
                String images = object.getString("images");
                String image = images.substring(2, images.length()-2);
                image = image.replace("\\", "");//去掉这个斜杠才能得到数据,take me a lot of time
                HomeStoriesInfo homeStoriesInfo = new HomeStoriesInfo(image, type,id,ga_prefix,title);
                LogUtils.e(homeStoriesInfo.toString());
                homeStoriesInfos.add(homeStoriesInfo);
            }
            JSONArray jsonArrayTop = jsonObject.getJSONArray("top_stories");
            List<HomeTopInfo> homeTopInfoList = new ArrayList<HomeTopInfo>();
            for (int i = 0; i < jsonArrayTop.length(); i++) {
                JSONObject object = jsonArrayTop.getJSONObject(i);
                String image = object.getString("image");
                int type = object.getInt("type");
                String id = object.getString("id");
                String ga_prefix = object.getString("ga_prefix");
                String title = object.getString("title");
                HomeTopInfo homeTopInfo = new HomeTopInfo(image,type,id,ga_prefix,title);
                homeTopInfoList.add(homeTopInfo);
            }
            HomeInfo homeInfo = new HomeInfo(date, homeStoriesInfos,homeTopInfoList);
            return homeInfo;
        } catch (JSONException e) {
            e.printStackTrace();
        }
        return null;
    }

    @Override
    protected String getCacheDir() {
        return HOMECACHE;
    }

    @Override
    protected String getUrl() {
        return HOMEURL;
    }
}

---

ViewPager主页面第一条Item

RecylerView的第一条Item是一个ViewPager，不是其他普通的目录。怎么区分对待这种不同的Item呢？我的做法就是用不同的viewHolder，设置不同的type，让adapter区分处理。详细见上面的HomeRecylerViewAdapter。其他Item用CardView来实现，布局文件item_revyler_view.xml如下：

<?xml version="1.0" encoding="utf-8"?>
<android.support.v7.widget.CardView xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    app:contentPadding="5dp"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    app:cardCornerRadius="5dp"
    app:cardElevation="1dp"
    app:cardPreventCornerOverlap="true"
    app:cardUseCompatPadding="true"
    android:layout_marginBottom="2dp"
    android:layout_marginRight="5dp"
    android:layout_marginLeft="5dp">
    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent">

        <ImageView
            android:id="@+id/iv_title"
            android:layout_width="70dp"
            android:layout_height="70dp"
            android:layout_alignParentRight="true"
            android:layout_margin="5dp" />

        <TextView
            android:id="@+id/tv_title"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_alignParentLeft="true"
            android:layout_margin="5dp"
            android:layout_toLeftOf="@id/iv_title"
            android:gravity="center_vertical"
            android:textColor="@android:color/black"
            android:textSize="18sp"
            android:ellipsize="end"/>
    </RelativeLayout>
</android.support.v7.widget.CardView>

再来说说viewPager，他是V4包里一个被用到烂的控件，实现左右滑动的效果。下面的圆点作为indicator指示滑动到哪个界面，自定义一个layout来画底部的圆点。
看看viewpager的布局文件, header_recyler_view.xml

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/rl_vp"
    android:layout_width="match_parent"
    android:layout_height="200dp">

    <android.support.v4.view.ViewPager
        android:id="@+id/viewPager"
        android:layout_width="match_parent"
        android:layout_height="200dp"></android.support.v4.view.ViewPager>

    <com.example.seaice.zhihuribao.view.CircleIndicator
        android:id="@+id/indicator"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignBottom="@id/viewPager"
        android:layout_centerHorizontal="true"
        android:layout_marginBottom="8dp" />
</RelativeLayout>

其中CircleIndicator是底部的圆点，自定义view:

package com.example.seaice.zhihuribao.view;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.support.v4.view.ViewPager;
import android.util.AttributeSet;
import android.util.DisplayMetrics;
import android.view.View;
import com.example.seaice.zhihuribao.R;

public class CircleIndicator extends View {

    private int mCount;//设置格数
    private int selectItem;//当前选中
    private float mRadius;//原点半径
    private float mSelectRadius;//选中原点半径
    private float mSpace;//圆形间隔
    private Paint mPaint;//画笔


    public CircleIndicator(Context context) {
        this(context, null);
    }

    public CircleIndicator(Context context, AttributeSet attrs) {
        this(context, attrs, 0);
    }

    public CircleIndicator(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        initPaint();
        setSize();
    }

    //设置圆点的大小
    private void setSize() {
        DisplayMetrics metrcs = getResources().getDisplayMetrics();
        mRadius = 2 * metrcs.density;
        mSelectRadius = 3 * metrcs.density;
        mSpace = 12 * metrcs.density;
    }

    //初始化画笔
    private void initPaint() {
        mPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
        mPaint.setColor(getResources().getColor(R.color.light_grey));
        mPaint.setStyle(Paint.Style.FILL);
    }

    public void setViewPager(ViewPager pager) {
        mCount = pager.getAdapter().getCount();
        invalidate();
    }

    //设置圆点的个数
    public void setCircleNumber(int num){
        mCount = num;
        invalidate();
    }

    //设置选中的圆点
    public void setSelectdItem(int position) {
        selectItem = position;
        invalidate();
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        setMeasuredDimension(measureWidth(widthMeasureSpec), measureHeight(heightMeasureSpec));
    }

    private int measureWidth(int widthMeasureSpec) {
        int specMode = MeasureSpec.getMode(widthMeasureSpec);
        int specSize = MeasureSpec.getSize(widthMeasureSpec);
        int result;
        if (specMode != MeasureSpec.EXACTLY) {
            result = (int) (getPaddingLeft() + getPaddingRight() + mSpace * mCount);
            if (specMode == MeasureSpec.AT_MOST) {
                result = Math.min(specSize, result);
            }
        } else {
            result = specSize;
        }
        return result;
    }

    private int measureHeight(int heightMeasureSpec) {
        int specMode = MeasureSpec.getMode(heightMeasureSpec);
        int specSize = MeasureSpec.getSize(heightMeasureSpec);
        int result;
        if (specMode != MeasureSpec.EXACTLY) {
            result = (int) (getPaddingTop() + getPaddingBottom() + mSelectRadius * 2);
            if (specMode == MeasureSpec.AT_MOST) {
                result = Math.min(specSize, result);
            }
        } else {
            result = specSize;
        }
        return result;
    }

    //画圆点
    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        float y = getHeight() / 2f;
        float x = mSpace / 2f;
        for (int i = 0; i < mCount; i++) {
            if (i != selectItem) {
                canvas.drawCircle(x, y, mRadius, mPaint);
            } else {
                canvas.drawCircle(x, y, mSelectRadius, mPaint);
            }
            x += mSpace;
        }
    }
}

---

至此，主页面的效果基本是做出来了，基本上用到的控件也都说清楚了。那么接下来的问题是：

• RecylerView 如何上拉加载更多条目？

这个问题，留到下一篇解决，现在我也不知道怎么弄，嘿嘿。
代码我都上传到GitHub了，公司上传不了，只能每次拷贝回家上传代码。地址是：

https://github.com/jwsn/zhihuribao2

欢迎查阅！！
