简述:
基于Spring MVC, 使用Http Service Invoke远程调用方法
(参考: http://blog.csdn.net/hanqunfeng/article/details/4303127)
步骤:
1. 本地定义接口,并在配置文件中说明
PersonService.java
package com.anialy.httpservice.service;
import com.anialy.httpservice.entity.Person;
public interface PersonService {
public Person getPersonByName(String name);
}
PersonService.java
package com.anialy.httpservice.service.impl;
import com.anialy.httpservice.entity.Person;
import com.anialy.httpservice.service.PersonService;
public class PersonServiceImpl implements PersonService{
public Person getPersonByName(String name) {
if("anialy".equals(name))
return new Person("anialy", 100);
return null;
}
}
applicationContext-server-http-service.xml
<?xml version="1.0" encoding="UTF-8"?>
<!-- 指定Spring配置文件的Schema信息 -->
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx-2.5.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop-2.5.xsd">
<bean id="httpService"
class="org.springframework.remoting.httpinvoker.HttpInvokerServiceExporter">
<property name="service">
<ref bean="personService" />
</property>
<property name="serviceInterface" value="com.anialy.httpservice.service.PersonService">
</property>
</bean>
<bean id="personService" class="com.anialy.httpservice.service.impl.PersonServiceImpl"/>
</beans>
2. mvc配置服务uri与对应的service
applicationContext-mvc.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.1.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd">
<mvc:view-controller path="/" view-name="redirect:/home" />
<mvc:view-controller path="/home" view-name="home" />
<!-- Spring Service Invoke -->
<bean
class="org.springframework.web.servlet.handler.SimpleUrlHandlerMapping">
<property name="mappings">
<props>
<prop key="/service/httpService">httpService</prop>
</props>
</property>
</bean>
<!-- Spring MVC -->
<bean
class="org.springframework.web.servlet.handler.SimpleUrlHandlerMapping">
<property name="mappings">
<value>
/test=testController
</value>
</property>
<property name="order" value="1" />
</bean>
<bean id="testController" class="com.anialy.webproj.controller.TestController">
<property name="methodNameResolver" ref="paramResolver" />
</bean>
<!-- 定义JSP -->
<bean
class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/views/" />
<property name="suffix" value=".jsp" />
</bean>
<bean id="paramResolver"
class="org.springframework.web.servlet.mvc.multiaction.ParameterMethodNameResolver">
<property name="paramName" value="action" />
<property name="defaultMethodName" value="test" />
</bean>
</beans>
3. 客户端配置uri的invoke
applicationContext-client-http-service.xml
<?xml version="1.0" encoding="UTF-8"?>
<!-- 指定Spring配置文件的Schema信息 -->
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx-2.5.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop-2.5.xsd">
<bean id="personService"
class="org.springframework.remoting.httpinvoker.HttpInvokerProxyFactoryBean"
depends-on="propertyConfigurer">
<property name="serviceUrl" >
<value>
http://${host}:${port}/${contextPath}/service/httpService
</value>
</property>
<property name="serviceInterface" value="com.anialy.httpservice.service.PersonService">
</property>
</bean>
</beans>
设置属性文件
system.properties
serviceName=localhost
host=127.0.0.1
port=8080
contextPath=WebProj
加载配置文件的xml
applicationContext-constants.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">
<bean id="propertyConfigurer"
class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
<property name="locations">
<list>
<value>classpath:jdbc.properties</value>
<value>classpath:system.properties</value>
</list>
</property>
</bean>
</beans>
4. 编写测试方法
TestHttpServiceInvoke.java
package httpservice;
import java.io.IOException;
import org.junit.Before;
import org.junit.Test;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.anialy.httpservice.entity.Person;
import com.anialy.httpservice.service.PersonService;
public class TestHttpServiceInvoke {
private static final Logger logger
= LoggerFactory.getLogger(TestHttpServiceInvoke.class);
private ApplicationContext ctx;
private PersonService personService;
@Before
public void init() throws IOException{
ctx = new ClassPathXmlApplicationContext(new String[]{
"classpath*:/applicationContext-client-http-service.xml",
"classpath*:/applicationContext-constants.xml"
});
personService = (PersonService) ctx.getBean("personService");
System.out.println("");
}
@Test
public void test() {
Person person = personService.getPersonByName("anialy");
logger.info("姓名:" + person.getName());
logger.info("年龄:" + person.getAge());
}
}

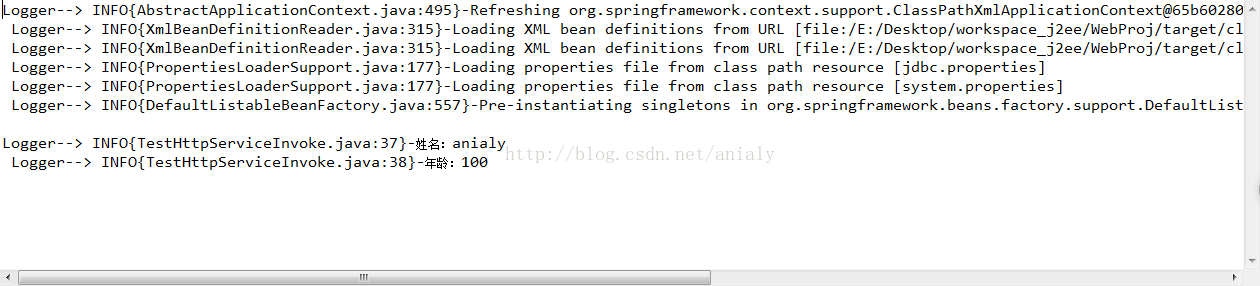

输出:
