手把手将PYNQ-Z2-mnist IP

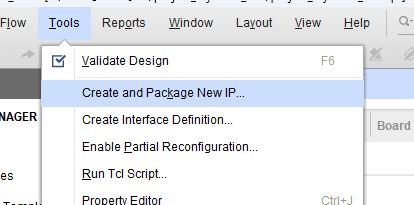

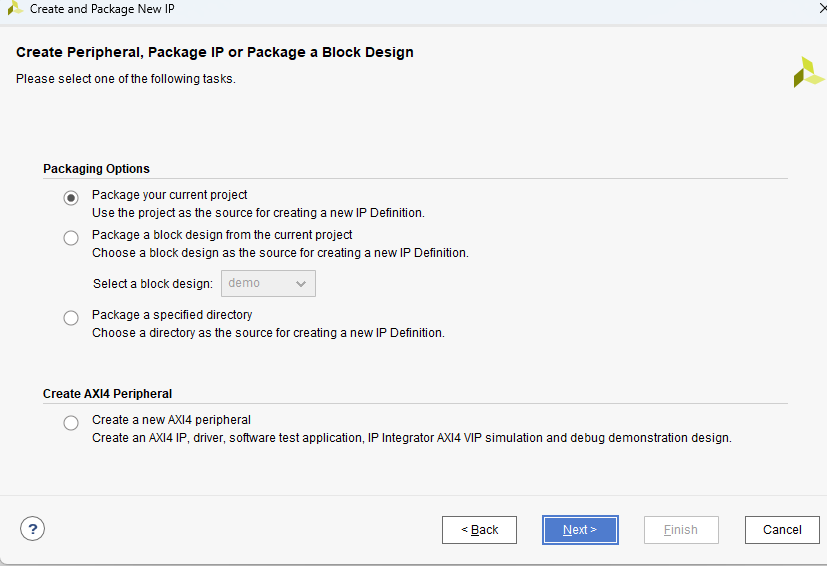

添加文件库后才能搜到IP

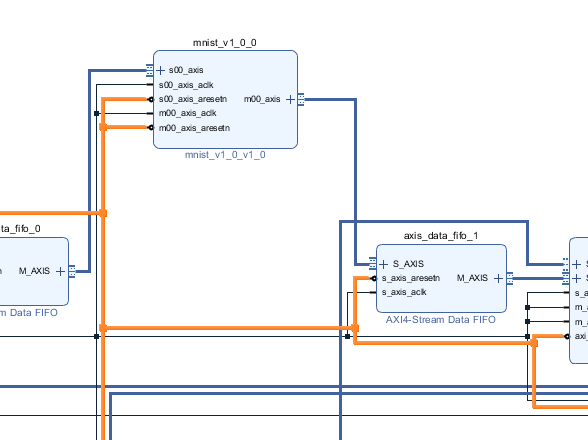

添加IP后连线

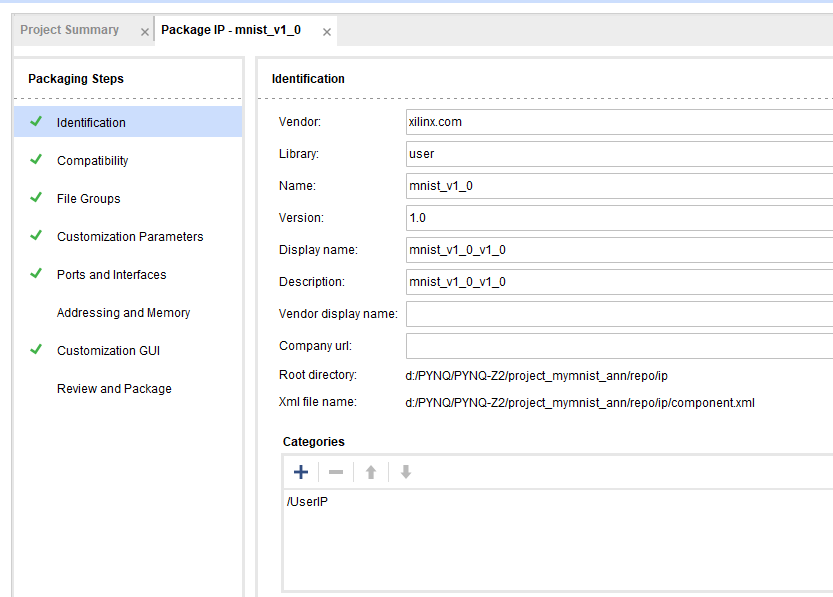

看这个IP的文件

查看一simulation

添加testbench的Verilog或者systemverilog文件后，启动仿真报错：

ERROR: [XSIM 43-3268] Logical library name '"../../../../../../repo/ip/sim/BN_blkmem.v"' should not contain white space, new line, /, \, = or . ERROR: [XSIM 43-3217] mnist_v1_0_tb_vlog.prj (line 3): Incorrect project file syntax. Correct syntax is one of: vhdl <worklib> <file>, verilog <worklib> <file> [<file> ...] [[-d <macro>] ...] [[-i <include>] ...], or NOSORT. Presence of NOSORT on a line of its own disables file order sorting.

 解决方法，将所有文件放入默认库中，

在vivado命令行执行：

set_property library xil_defaultlib [get_files]


from pynq import Overlay
import pynq.lib.dma
from pynq import allocate
import time
import numpy as np
import matplotlib.pyplot as plt
import os
mnist_test_design = Overlay("./bitstreams/demo.bit")

img = plt.imread("./images/mnist/9/3.bmp")
plt.imshow(img)
img_size = 28
input_buf = allocate(shape=(img_size*img_size,), dtype=np.uint32)
output_buf = allocate(shape=(1,), dtype=np.uint32)
for i in range(img_size):
    for j in range(img_size):
        input_buf[img_size*i+j] = img[i][j]
dma_send_recv = mnist_test_design.axi_dma_0
start = time.time()
dma_send_recv.sendchannel.transfer(input_buf)
dma_send_recv.recvchannel.transfer(output_buf)
dma_send_recv.sendchannel.wait()
dma_send_recv.recvchannel.wait()
end = time.time()
print('time cost: ' + str(round(end-start,5)) + ' s')
print('label: ' +str(output_buf[0]))
