使用spark+python对2020年美国新冠肺炎疫情数据分析

一、数据集来源

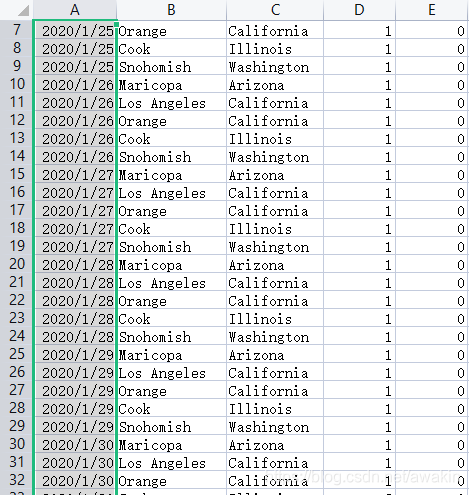

数据集来自数据网站Kaggle的美国新冠肺炎疫情数据集，（从百度网盘下载，提取码：t7tu）该数据集以数据表us-counties.csv组织
在这里插入图片描述
该数据集以数据表us-counties.csv组织，其中包含了美国发现首例新冠肺炎确诊病例至今（2020-05-19）的相关数据。数据包含以下字段：

date 日期例：2020/1/21；
county 区县（州的下一级单位）例：Snohomish；
state 州例：Washington；
cases 截止该日期该区县的累计确诊人数例：1；
deaths 截止该日期该区县的累计确诊人数例：0。

二、格式转换

将us-counties.csv文件放到Ubuntu系统的/usr/local/hadoop/data目录下，在这个目录下将CSV文件转为TXT文件

新建toTxt.py，将下列代码写入到文件中

import pandas as pd
#.csv->.txt
data = pd.read_csv('/home/hadoop/data/us-counties.csv')
with open('/home/hadoop/data/us-counties.txt','a+',encoding='utf-8') as f:
    for line in data.values:
        f.write((str(line[0])+'\t'+str(line[1])+'\t'
                +str(line[2])+'\t'+str(line[3])+'\t'+str(line[4])+'\n'))

运行toTxt.py

python toExt.py

三、将文件上传至HDFS文件系统中

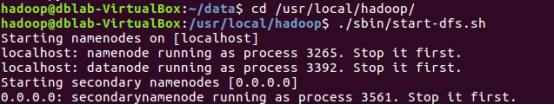

启动Hadoop，并查看启动结果
在HDFS文件系统中，创建/user/hadoop文件夹，后续的运行结果文件都将存放在这里

./bin/hdfs dfs -mkdir -p /user/hadoop
./bin/hdfs dfs -put /home/hadoop/data/us-counties.txt /user/hadoop

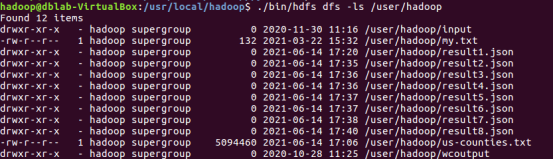

./bin/hdfs dfs -ls /user/hadoop

在这里插入图片描述

四、使用Spark对数据进行分析

创建analyst.py文件，代码如下：

from pyspark import SparkConf,SparkContext
from pyspark.sql import Row
from pyspark.sql.types import *
from pyspark.sql import SparkSession
from datetime import datetime
import pyspark.sql.functions as func

def toDate(inputStr):
    newStr = ""
    if len(inputStr) == 8:
        s1 = inputStr[0:4]
        s2 = inputStr[5:6]
        s3 = inputStr[7]
        newStr = s1+"-"+"0"+s2+"-"+"0"+s3
    else:
        s1 = inputStr[0:4]
        s2 = inputStr[5:6]
        s3 = inputStr[7:]
        newStr = s1+"-"+"0"+s2+"-"+s3
    date = datetime.strptime(newStr, "%Y-%m-%d")
    return date


#主程序:
spark = SparkSession.builder.config(conf = SparkConf()).getOrCreate()

fields = [StructField("date", DateType(),False),StructField("county", StringType(),False),StructField("state", StringType(),False),
                    StructField("cases", IntegerType(),False),StructField("deaths", IntegerType(),False),]
schema = StructType(fields)

rdd0 = spark.sparkContext.textFile("/user/hadoop/us-counties.txt")
rdd1 = rdd0.map(lambda x:x.split("\t")).map(lambda p: Row(toDate(p[0]),p[1],p[2],int(p[3]),int(p[4])))


shemaUsInfo = spark.createDataFrame(rdd1,schema)

shemaUsInfo.createOrReplaceTempView("usInfo")

#1.计算每日的累计确诊病例数和死亡数
df = shemaUsInfo.groupBy("date").agg(func.sum("cases"),func.sum("deaths")).sort(shemaUsInfo["date"].asc())

#列重命名
df1 = df.withColumnRenamed("sum(cases)","cases").withColumnRenamed("sum(deaths)","deaths")
df1.repartition(1).write.json("result1.json")                               #写入hdfs

#注册为临时表供下一步使用
df1.createOrReplaceTempView("ustotal")

#2.计算每日较昨日的新增确诊病例数和死亡病例数
df2 = spark.sql("select t1.date,t1.cases-t2.cases as caseIncrease,t1.deaths-t2.deaths as deathIncrease from ustotal t1,ustotal t2 where t1.date = date_add(t2.date,1)")

df2.sort(df2["date"].asc()).repartition(1).write.json("result2.json")           #写入hdfs

#3.统计截止5.19日 美国各州的累计确诊人数和死亡人数
df3 = spark.sql("select date,state,sum(cases) as totalCases,sum(deaths) as totalDeaths,round(sum(deaths)/sum(cases),4) as deathRate from usInfo  where date = to_date('2020-05-19','yyyy-MM-dd') group by date,state")

df3.sort(df3["totalCases"].desc()).repartition(1).write.json("result3.json") #写入hdfs

df3.createOrReplaceTempView("eachStateInfo")

#4.找出美国确诊最多的10个州
df4 = spark.sql("select date,state,totalCases from eachStateInfo  order by totalCases desc limit 10")
df4.repartition(1).write.json("result4.json")

#5.找出美国死亡最多的10个州
df5 = spark.sql("select date,state,totalDeaths from eachStateInfo  order by totalDeaths desc limit 10")
df5.repartition(1).write.json("result5.json")

#6.找出美国确诊最少的10个州
df6 = spark.sql("select date,state,totalCases from eachStateInfo  order by totalCases asc limit 10")
df6.repartition(1).write.json("result6.json")

#7.找出美国死亡最少的10个州
df7 = spark.sql("select date,state,totalDeaths from eachStateInfo  order by totalDeaths asc limit 10")
df7.repartition(1).write.json("result7.json")

#8.统计截止5.19全美和各州的病死率
df8 = spark.sql("select 1 as sign,date,'USA' as state,round(sum(totalDeaths)/sum(totalCases),4) as deathRate from eachStateInfo group by date union select 2 as sign,date,state,deathRate from eachStateInfo").cache()
df8.sort(df8["sign"].asc(),df8["deathRate"].desc()).repartition(1).write.json("result8.json")

运行analyst.py

python analyst.py

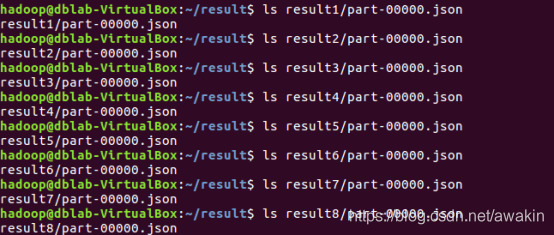

在终端查看文件是否都存在

五、将结果从HDFS下载至本地文件系统

在本地文件系统中，在/home/hadoop中创建result文件夹，在result文件夹中再创建8个子文件，分别以result1、result2等进行命名。

cd ~/
mkdir result
cd result
mkdir result1 result2 result3 result4 result5 result6 result7 result8

在这里插入图片描述
3. 将HDFS文件系统中的文件下载至本地文件系统。

./bin/hdfs dfs -get /user/hadoop/result1.json/*.json ~/result/result1/
./bin/hdfs dfs -get /user/hadoop/result2.json/*.json ~/result/result2/
# 对于其他文件以此类推，将文件路径修改即可

查看下载好的文件

六、数据可视化

安装第三方可视化工具pyecharts

pip install pyecharts

在这里插入图片描述
2. 创建showdata.py文件中。具体代码如下：

from pyecharts import options as opts
from pyecharts.charts import Bar
from pyecharts.charts import Line
from pyecharts.components import Table
from pyecharts.charts import WordCloud
from pyecharts.charts import Pie
from pyecharts.charts import Funnel
from pyecharts.charts import Scatter
from pyecharts.charts import PictorialBar
from pyecharts.options import ComponentTitleOpts
from pyecharts.globals import SymbolType
import json

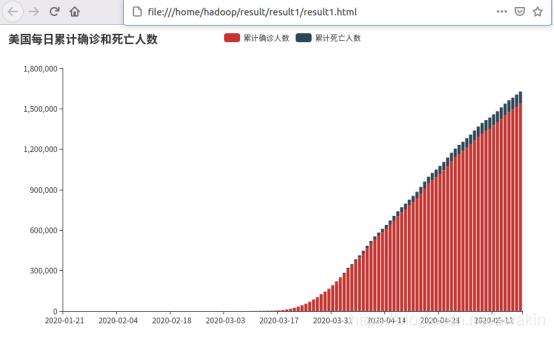

#1.画出每日的累计确诊病例数和死亡数——>双柱状图
def drawChart_1(index):
    root = "/home/hadoop/result/result" + str(index) +"/part-00000.json"
    date = []
    cases = []
    deaths = []
    with open(root, 'r') as f:
        while True:
            line = f.readline()
            if not line:                            # 到 EOF，返回空字符串，则终止循环
                break
            js = json.loads(line)
            date.append(str(js['date']))
            cases.append(int(js['cases']))
            deaths.append(int(js['deaths']))

    d = (
    Bar()
    .add_xaxis(date)
    .add_yaxis("累计确诊人数", cases, stack="stack1")
    .add_yaxis("累计死亡人数", deaths, stack="stack1")
    .set_series_opts(label_opts=opts.LabelOpts(is_show=False))
    .set_global_opts(title_opts=opts.TitleOpts(title="美国每日累计确诊和死亡人数"))
    .render("/home/hadoop/result/result1/result1.html")
    )

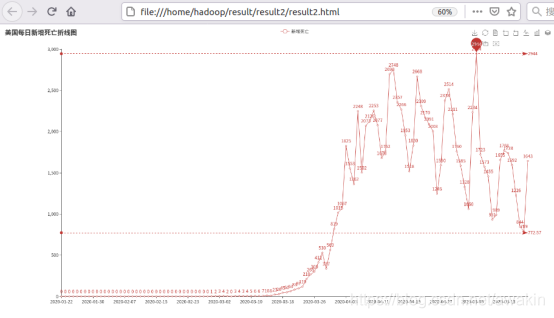

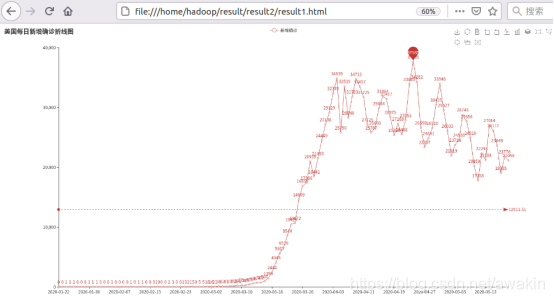

#2.画出每日的新增确诊病例数和死亡数——>折线图
def drawChart_2(index):
    root = "/home/hadoop/result/result" + str(index) +"/part-00000.json"
    date = []
    cases = []
    deaths = []
    with open(root, 'r') as f:
        while True:
            line = f.readline()
            if not line:                            # 到 EOF，返回空字符串，则终止循环
                break
            js = json.loads(line)
            date.append(str(js['date']))
            cases.append(int(js['caseIncrease']))
            deaths.append(int(js['deathIncrease']))

    (
    Line(init_opts=opts.InitOpts(width="1600px", height="800px"))
    .add_xaxis(xaxis_data=date)
    .add_yaxis(
        series_name="新增确诊",
        y_axis=cases,
        markpoint_opts=opts.MarkPointOpts(
            data=[
                opts.MarkPointItem(type_="max", name="最大值")

            ]
        ),
        markline_opts=opts.MarkLineOpts(
            data=[opts.MarkLineItem(type_="average", name="平均值")]
        ),
    )
    .set_global_opts(
        title_opts=opts.TitleOpts(title="美国每日新增确诊折线图", subtitle=""),
        tooltip_opts=opts.TooltipOpts(trigger="axis"),
        toolbox_opts=opts.ToolboxOpts(is_show=True),
        xaxis_opts=opts.AxisOpts(type_="category", boundary_gap=False),
    )
    .render("/home/hadoop/result/result2/result1.html")
    )
    (
    Line(init_opts=opts.InitOpts(width="1600px", height="800px"))
    .add_xaxis(xaxis_data=date)
    .add_yaxis(
        series_name="新增死亡",
        y_axis=deaths,
        markpoint_opts=opts.MarkPointOpts(
            data=[opts.MarkPointItem(type_="max", name="最大值")]
        ),
        markline_opts=opts.MarkLineOpts(
            data=[
                opts.MarkLineItem(type_="average", name="平均值"),
                opts.MarkLineItem(symbol="none", x="90%", y="max"),
                opts.MarkLineItem(symbol="circle", type_="max", name="最高点"),
            ]
        ),
    )
    .set_global_opts(
        title_opts=opts.TitleOpts(title="美国每日新增死亡折线图", subtitle=""),
        tooltip_opts=opts.TooltipOpts(trigger="axis"),
        toolbox_opts=opts.ToolboxOpts(is_show=True),
        xaxis_opts=opts.AxisOpts(type_="category", boundary_gap=False),
    )
    .render("/home/hadoop/result/result2/result2.html")
    )

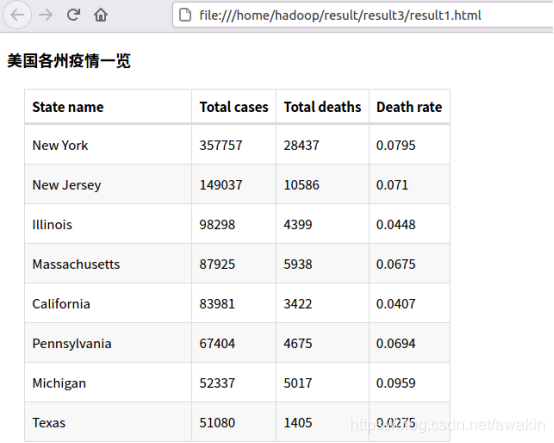

#3.画出截止5.19，美国各州累计确诊、死亡人数和病死率--->表格
def drawChart_3(index):
    root = "/home/hadoop/result/result" + str(index) +"/part-00000.json"
    allState = []
    with open(root, 'r') as f:
        while True:
            line = f.readline()
            if not line:                            # 到 EOF，返回空字符串，则终止循环
                break
            js = json.loads(line)
            row = []
            row.append(str(js['state']))
            row.append(int(js['totalCases']))
            row.append(int(js['totalDeaths']))
            row.append(float(js['deathRate']))
            allState.append(row)

    table = Table()

    headers = ["State name", "Total cases", "Total deaths", "Death rate"]
    rows = allState
    table.add(headers, rows)
    table.set_global_opts(
        title_opts=ComponentTitleOpts(title="美国各州疫情一览", subtitle="")
    )
    table.render("/home/hadoop/result/result3/result1.html")

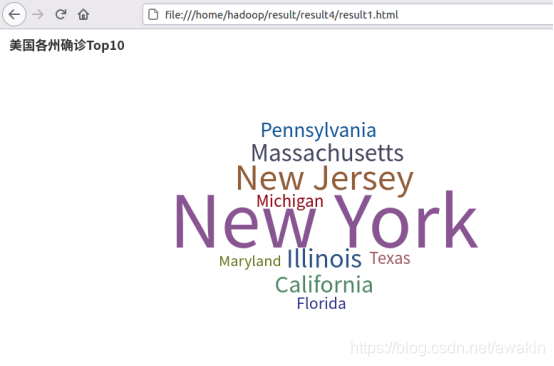

#4.画出美国确诊最多的10个州——>词云图
def drawChart_4(index):
    root = "/home/hadoop/result/result" + str(index) +"/part-00000.json"
    data = []
    with open(root, 'r') as f:
        while True:
            line = f.readline()
            if not line:                            # 到 EOF，返回空字符串，则终止循环
                break
            js = json.loads(line)
            row=(str(js['state']),int(js['totalCases']))
            data.append(row)

    c = (
    WordCloud()
    .add("", data, word_size_range=[20, 100], shape=SymbolType.DIAMOND)
    .set_global_opts(title_opts=opts.TitleOpts(title="美国各州确诊Top10"))
    .render("/home/hadoop/result/result4/result1.html")
    )

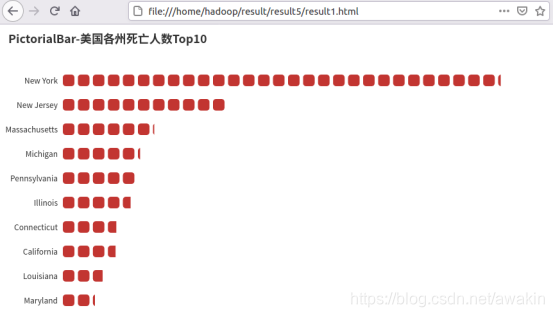

#5.画出美国死亡最多的10个州——>象柱状图
def drawChart_5(index):
    root = "/home/hadoop/result/result" + str(index) +"/part-00000.json"
    state = []
    totalDeath = []
    with open(root, 'r') as f:
        while True:
            line = f.readline()
            if not line:                            # 到 EOF，返回空字符串，则终止循环
                break
            js = json.loads(line)
            state.insert(0,str(js['state']))
            totalDeath.insert(0,int(js['totalDeaths']))

    c = (
    PictorialBar()
    .add_xaxis(state)
    .add_yaxis(
        "",
        totalDeath,
        label_opts=opts.LabelOpts(is_show=False),
        symbol_size=18,
        symbol_repeat="fixed",
        symbol_offset=[0, 0],
        is_symbol_clip=True,
        symbol=SymbolType.ROUND_RECT,
    )
    .reversal_axis()
    .set_global_opts(
        title_opts=opts.TitleOpts(title="PictorialBar-美国各州死亡人数Top10"),
        xaxis_opts=opts.AxisOpts(is_show=False),
        yaxis_opts=opts.AxisOpts(
            axistick_opts=opts.AxisTickOpts(is_show=False),
            axisline_opts=opts.AxisLineOpts(
                linestyle_opts=opts.LineStyleOpts(opacity=0)
            ),
        ),
    )
    .render("/home/hadoop/result/result5/result1.html")
    )

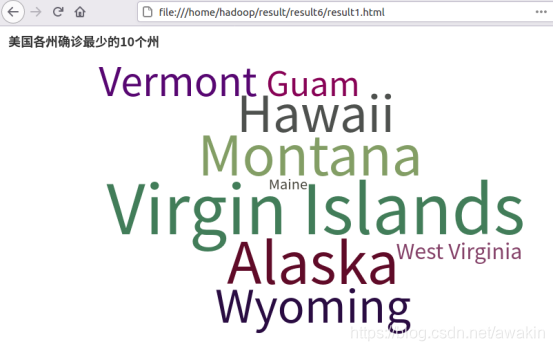

#6.找出美国确诊最少的10个州——>词云图
def drawChart_6(index):
    root = "/home/hadoop/result/result" + str(index) +"/part-00000.json"
    data = []
    with open(root, 'r') as f:
        while True:
            line = f.readline()
            if not line:                            # 到 EOF，返回空字符串，则终止循环
                break
            js = json.loads(line)
            row=(str(js['state']),int(js['totalCases']))
            data.append(row)

    c = (
    WordCloud()
    .add("", data, word_size_range=[100, 20], shape=SymbolType.DIAMOND)
    .set_global_opts(title_opts=opts.TitleOpts(title="美国各州确诊最少的10个州"))
    .render("/home/hadoop/result/result6/result1.html")
    )

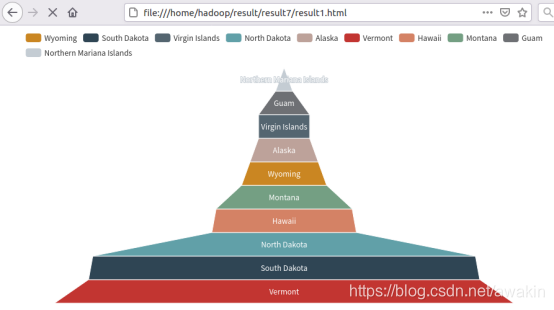

#7.找出美国死亡最少的10个州——>漏斗图
def drawChart_7(index):
    root = "/home/hadoop/result/result" + str(index) +"/part-00000.json"
    data = []
    with open(root, 'r') as f:
        while True:
            line = f.readline()
            if not line:                            # 到 EOF，返回空字符串，则终止循环
                break
            js = json.loads(line)
            data.insert(0,[str(js['state']),int(js['totalDeaths'])])

    c = (
    Funnel()
    .add(
        "State",
        data,
        sort_="ascending",
        label_opts=opts.LabelOpts(position="inside"),
    )
    .set_global_opts(title_opts=opts.TitleOpts(title=""))
    .render("/home/hadoop/result/result7/result1.html")
    )

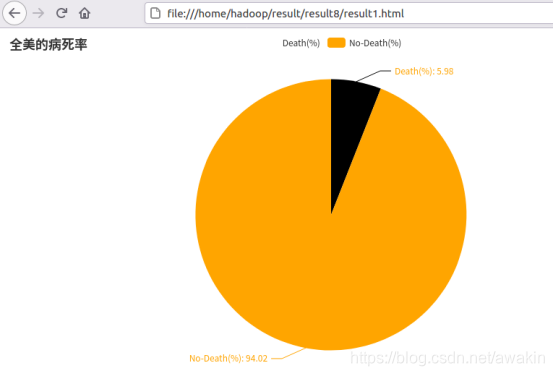

#8.美国的病死率--->饼状图
def drawChart_8(index):
    root = "/home/hadoop/result/result" + str(index) +"/part-00000.json"
    values = []
    with open(root, 'r') as f:
        while True:
            line = f.readline()
            if not line:                            # 到 EOF，返回空字符串，则终止循环
                break
            js = json.loads(line)
            if str(js['state'])=="USA":
                values.append(["Death(%)",round(float(js['deathRate'])*100,2)])
                values.append(["No-Death(%)",100-round(float(js['deathRate'])*100,2)])
    c = (
    Pie()
    .add("", values)
    .set_colors(["blcak","orange"])
    .set_global_opts(title_opts=opts.TitleOpts(title="全美的病死率"))
    .set_series_opts(label_opts=opts.LabelOpts(formatter="{b}: {c}"))
    .render("/home/hadoop/result/result8/result1.html")
    )

#可视化主程序：
index = 1
while index<9:
    funcStr = "drawChart_" + str(index)
    eval(funcStr)(index)
index+=1

运行showdata.py

python showdata.py

查看八个问题所生成的html图
（1）美国每日的累计确诊病例数和死亡数——>双柱状图

（2）美国每日的新增确诊病例数——>折线图

美国每日的新增死亡病例数——>折线图

（3）截止5.19，美国各州累计确诊、死亡人数和病死率—>表格

（4）截止5.19，美国累计确诊人数前10的州—>词云图

（5）截止5.19，美国累计死亡人数前10的州—>象柱状图

（6）截止5.19，美国累计确诊人数最少的10个州—>词云图

（7）截止5.19，美国累计死亡人数最少的10个州—>漏斗图

（8）截止5.19，美国的病死率—>饼状图
