一、概述
日志系统作为企业日常运维重要支撑，以及大数据分析、审计工作，已经成为企业IT系统不可缺少的重要组成部分。
3月15日亚马逊云科技发布了集中式日志解决方案 — Log Hub的预览版，通过该解决方案，我们可以将来自于亚马逊云服务的日志，如Amazon Elastic Kubernetes Service（以下简称Amazon EKS）集群内日志、Amazon CloudFront日志、Amazon Cloud Trail日志、Amazon RDS/Aurora 日志、Amazon Web 应用程序防火墙(WAF)日志、Amazon EC2上日志和来自于应用的日志，如Nginx日志等收集到Amazon OpenSearch Service中（如果您想了解关于Log Hub更多日志类型的支持，可以访问以下链接进行查阅），并可以通过Amazon OpenSearch Service 进行一站式日志的检索、通过Log Hub解决方案内置的Kibana仪表板进行分析。
接下来，本文将介绍如何使用Log Hub来收集与分析Amazon EKS集群内的日志。
通过本文您将会了解到：
1.通过Log Hub创建应用日志分析流水线
2.通过IAM OIDC Identity Provider，将Kubernetes的 service account 关联 IAM policy
3.Amazon EKS环境下使用Fluent Bit通过DaemonSet模式进行日志采集

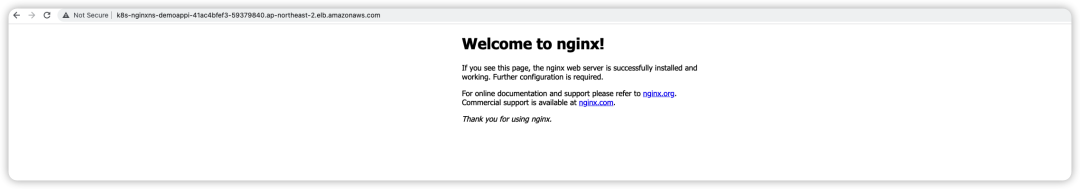

4.通过Kubectl命令部署Nginx应用，用以测试日志发送

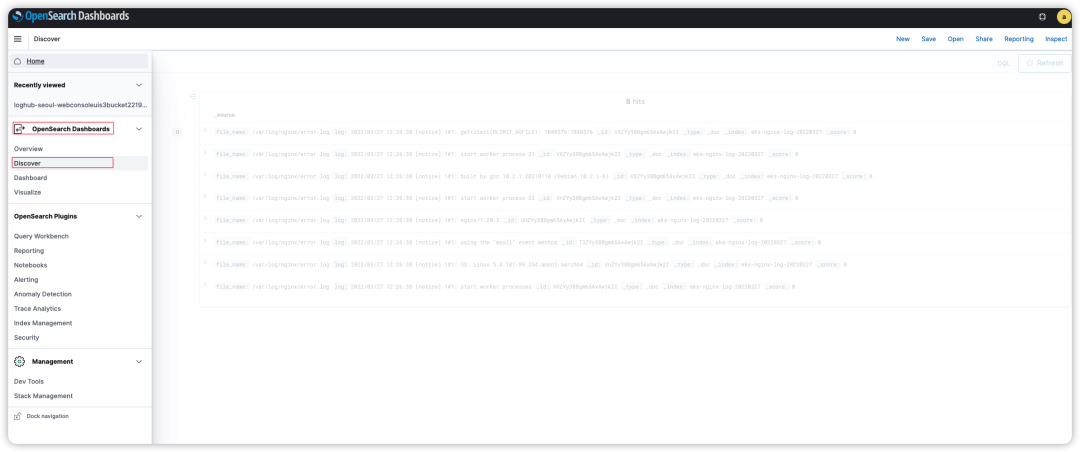

5.通过Log Hub打开Amazon OpenSearch Service访问代理，访问Amazon OpenSearch Service的Dashboards，查看日志
6.收集Fluent Bit容器日志

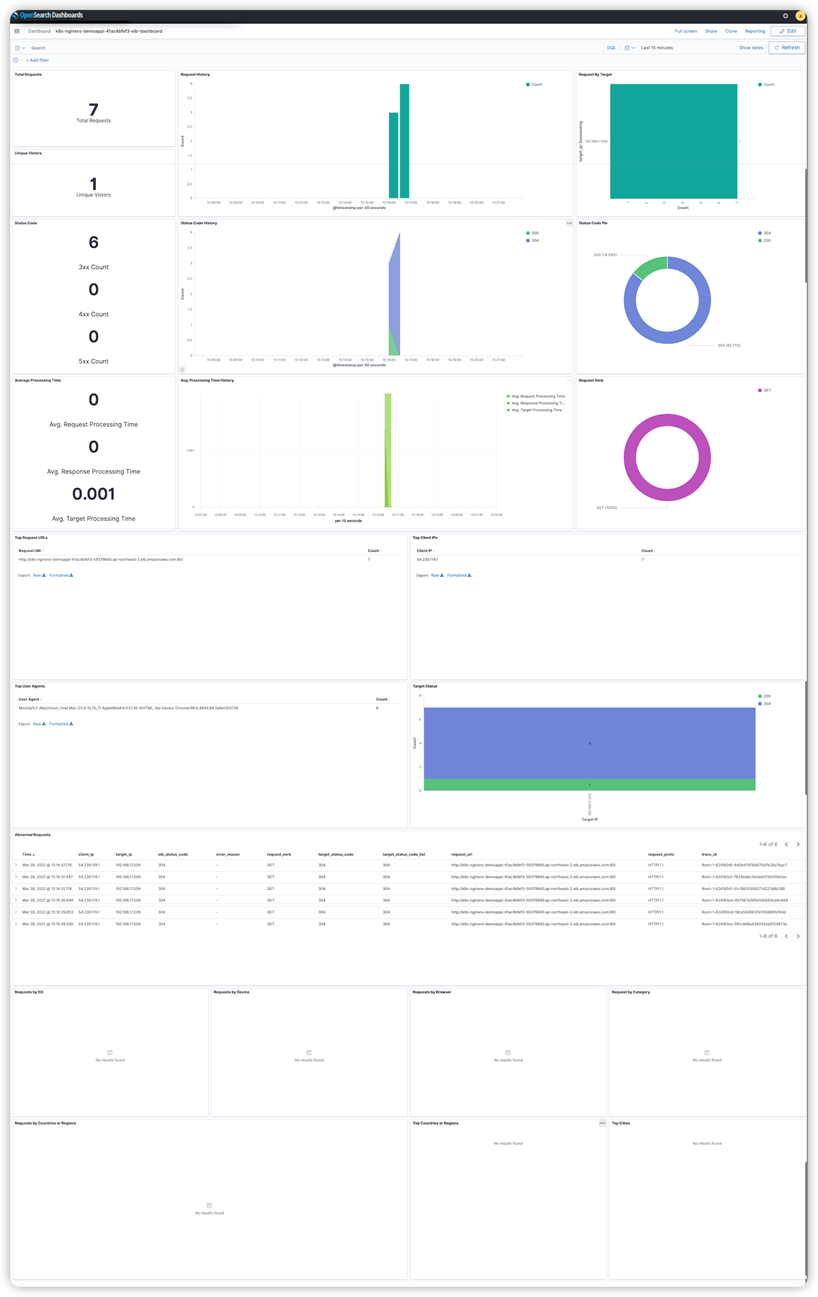

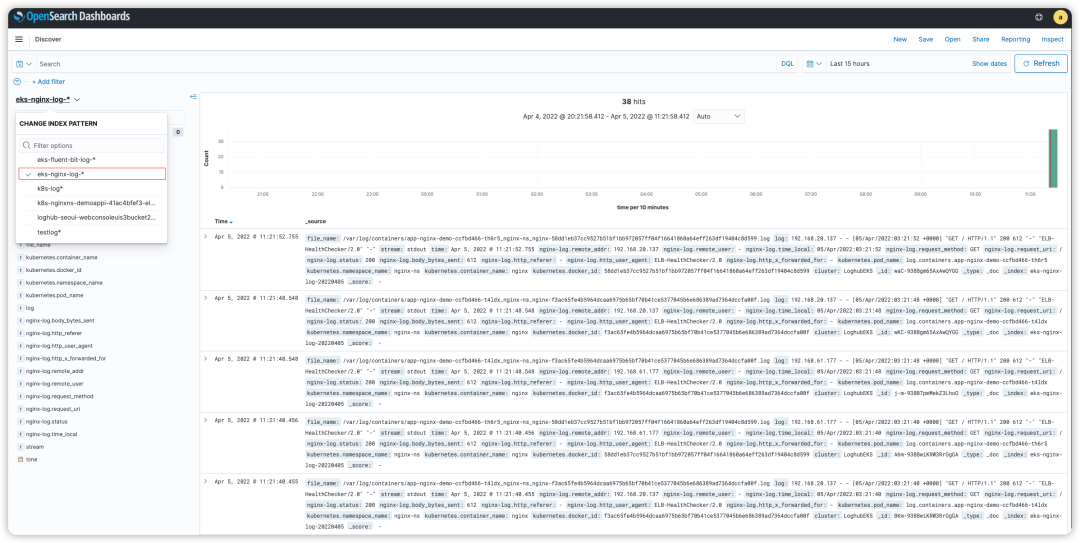

7.收集Ingress Controller日志，并通过Log Hub创建预定义的示例仪表板
二、简要说明

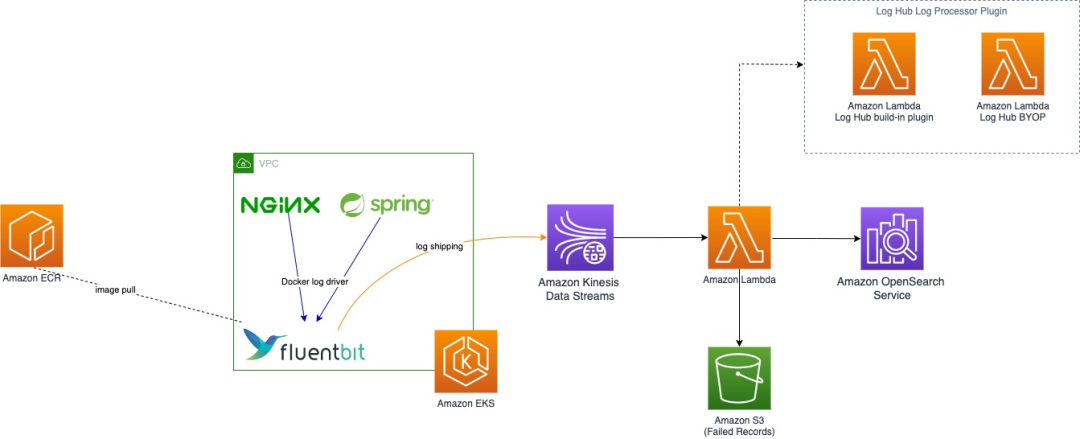

下面我们基于下图的总体架构，以EKS集群中Nginx为例，详细讲解一下如何将Log Hub的日志agent-Fluent Bit部署为DaemonSet模式，通过Fluent Bit捕获Nginx的应用日志、容器日志、Ingress Controller日志，并把日志发送到Log Hub解决方案创建的日志缓存区Amazon Kinesis Data Stream，最终将日志输送到Amazon OpenSearch Service中，以及如何通过Amazon OpenSearch Service查询与分析日志。文章使用的Region为ap-northeast-2，大家也可以根据自己的实际场景，选择对应的Region。
1．通过Log Hub创建应用日志收集的管道

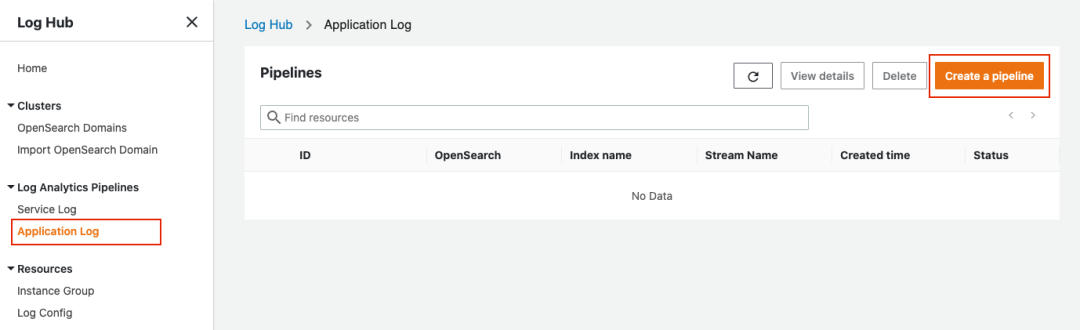

通过Amazon CloudFormation部署Log Hub解决方案，并登录到Log Hub控制台后，在日志分析流水线处点击“应用日志”，并点击创建流水线，用于收集Amazon EKS集群中的Nginx日志。创建过程可点击这里，参考链接内容的“Create application log pipeline”部分。在创建过程中，索引名称我们可以命名为“eks-nginx-log”。
注意：链接内容处的“Create EC2 policy”以及后续内容可以忽视。

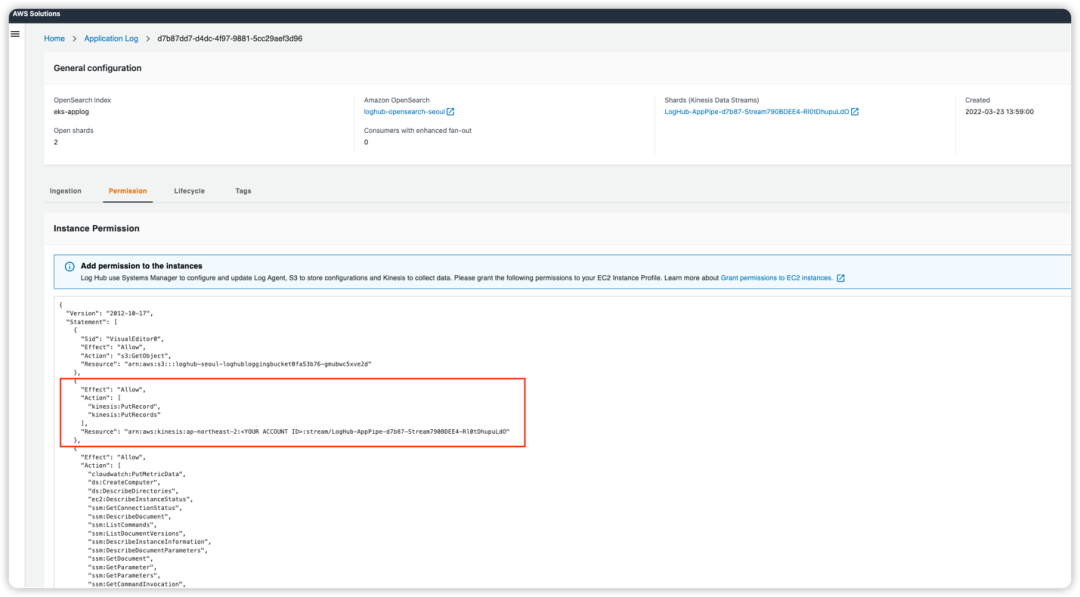

创建成功后，选择刚才创建的流水线，并点击查看详情，复制权限处策略文档中Amazon Kinesis Data Stream相关的内容。复制内容参考下图：
2．通过IAM OIDC Identity Provider，将Kubernetes的 service account 关联 IAM Role以及对应的Policy。

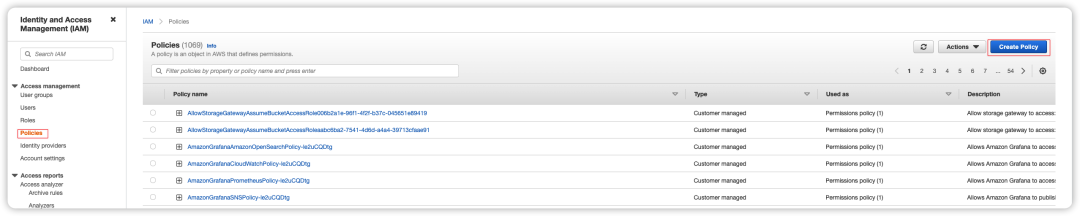

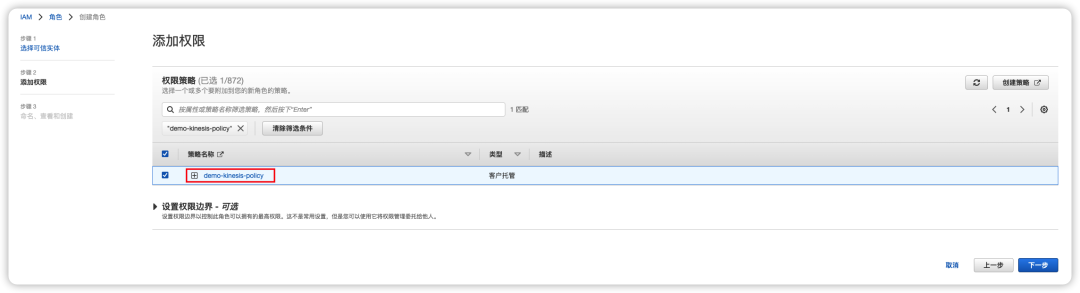

创建策略，选择“JSON”，并从刚才创建的应用日志流水线权限处复制的内容粘贴至“Statement”处的“[ ]”内。策略文档名称为“demo-kinesis-policy”, 创建过程参考下图：
注意：请将替换成实际账户ID。“stream/”后为Amazon Kinesis Data Stream的名称，这里我们需要先记录下来，后面创建Fluent Bit的ConfigMap时需要使用到。
创建面向Service Account的IAM的Role，让Pod可以访问Amazon Kinesis Data Stream。

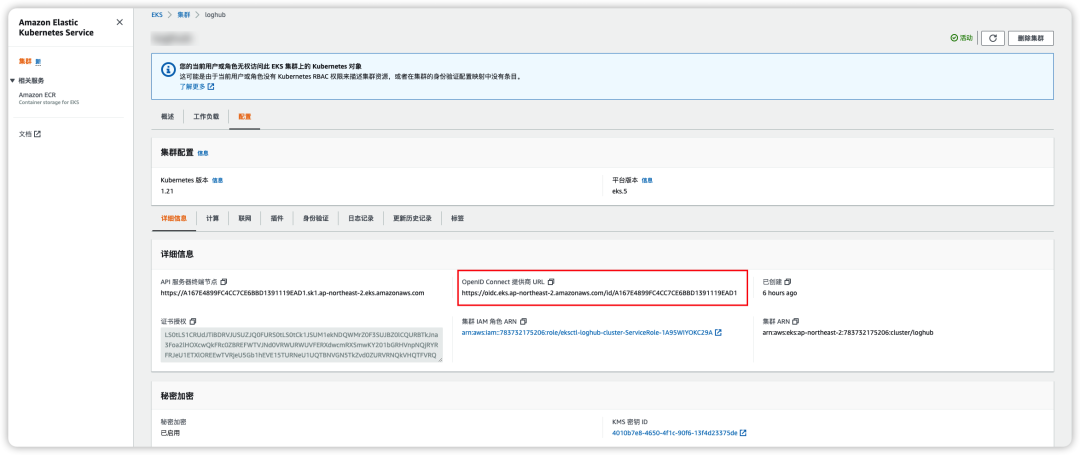

1）访问你所创建EKS集群的配置，并复制OpenID Connect 提供商 URL

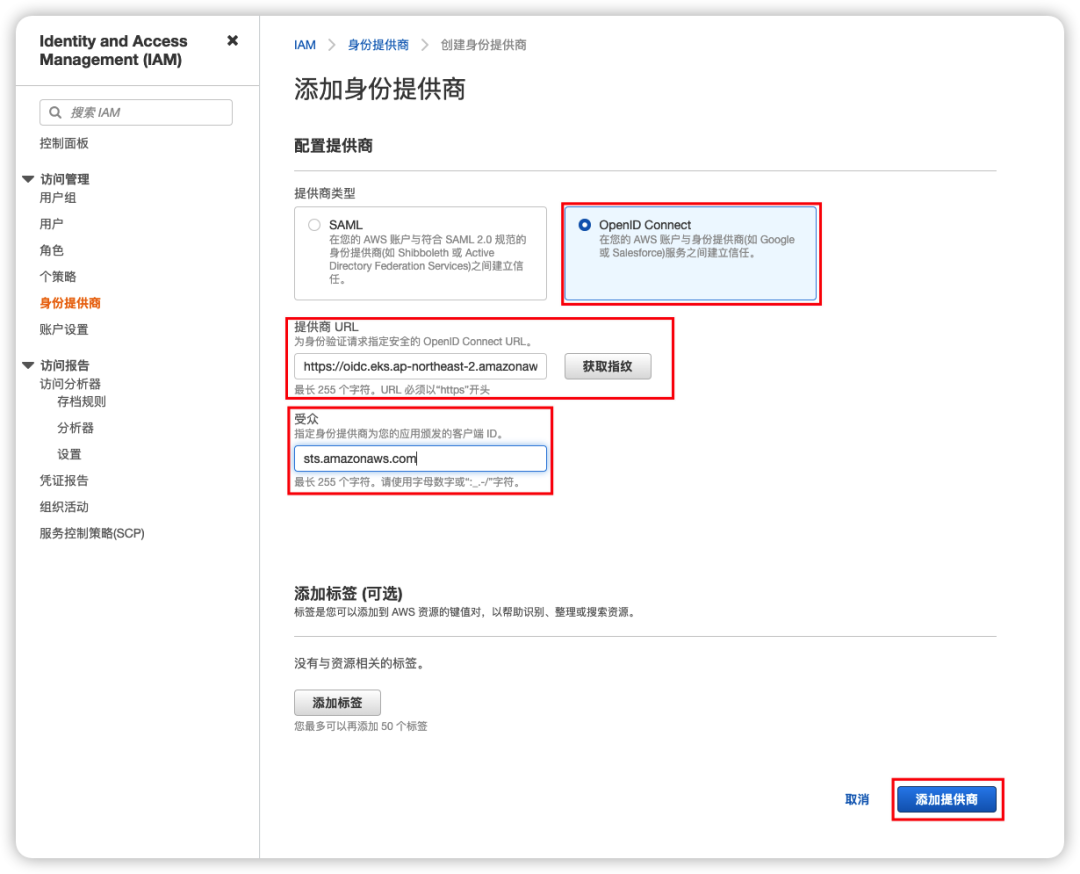

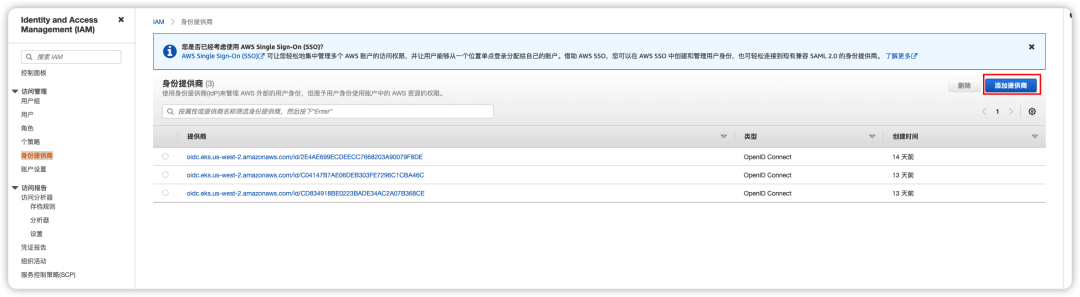

2）在IAM的身份提供商处添加提供商，选择OpenID Connect，并将上一步复制的“提供商 URL”粘贴在提供商 URL，点击获取指纹。在受众处填写“sts.amazonaws.com”,并添加提供商

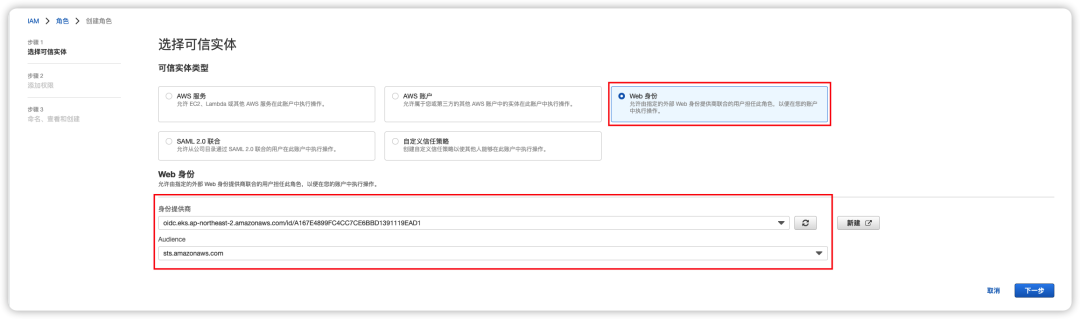

3）创建IAM 角色，选择Web身份，在身份提供商处选择步骤2创建的身份服务商，并在Audience处选择“sts.amazonaws.com”。点击”下一步”，在权限策略处选择“demo-kinesis-policy”。点击”下一步”，输入角色名称，并创建。这里我们将角色名称命名为“eks-fluent-bit-role”。

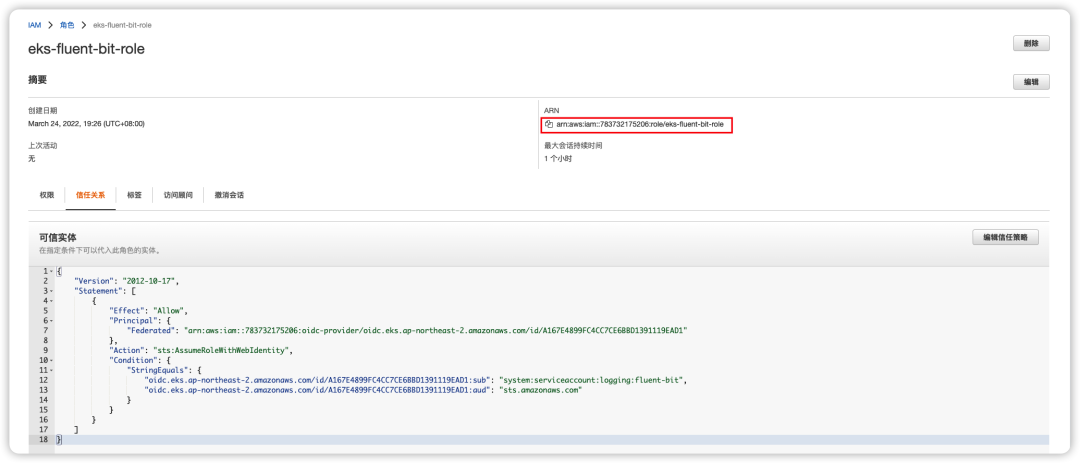

4）选择刚才创建的“eks-fluent-bit-role”角色，点击信任关系，编辑信任策略，参考下图在“String Equals”处添加“:sub”: “system:serviceaccount:logging:fluent-bit”,”点击“更新策略”。
注意：请将替换成步骤2)添加的提供商
5）复制“eks-fluent-bit-role”的ARN。
通过kubectl命令创建Fluent Bit的namespace，这里我们命名为“logging”。创建命令参考如下：
kubectl create namespace logging
当然，我们也可以通过kubectl create -f fluent-bit-ns.yaml命令使用yaml文件的方式创建，fluent-bit-ns.yaml文件参考内容如下
apiVersion: v1
kind: Namespace
metadata:
name: logging创建以及Service Account，Service Account的yaml文件内容参考如下：
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: fluent-bit
namespace: logging
annotations:
eks.amazonaws.com/role-arn: < eks-fluent-bit-role-arn>*左滑查看更多
注意：请将替换前面复制“eks-fluent-bit-role”的ARN。
创建命令参考如下：
kubectl create -f fluent-bit-service-account.yaml
通过kubectl命令在Kubernetes中创建Fluent Bit的Role，yaml文件参考如下：
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: fluent-bit-read
rules:
- apiGroups: [""]
resources:
- namespaces
- pods
- nodes
- nodes/proxy
verbs:
- get
- list
- watch*左滑查看更多
通过kubectl命令建立Service Account与Kubernetes Role的绑定关系，yaml文件参加如下：
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: fluent-bit-read
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: fluent-bit-read
subjects:
- kind: ServiceAccount
name: fluent-bit
namespace: logging*左滑查看更多
3．Amazon EKS环境下使用Fluent Bit通过DaemonSet方式进行日志采集
创建Fluent Bit的DaemonSet模式所使用的ConfigMap等资源，用于收集/var/log/containers目录下容器日志。这里我们将文件命名fluent-bit.yaml，并通过kubectl apply -f fluent-bit.yaml创建对应资源。yaml文件内容参考如下:
---
apiVersion: v1
kind: ConfigMap
metadata:
name: fluent-bit-config
namespace: logging
labels:
k8s-app: fluent-bit
version: v1
data:
# Configuration files: apache, apache2, nginx and multiline text for java slf4j
# =============================================================================
applog-parsers-conf: |
[PARSER]
Name apache
Format regex
Regex ^(?[^ ]*) [^ ]* (?[^ ]*) \[(?[^\]]*)\] "(?\S+)(?: +(?[^\"]*?)(?: +\S*)?)?" (?[^ ]*) (?[^ ]*)(?: "(?[^\"]*)" "(?[^\"]*)")?$
Time_Key time
Time_Format %d/%b/%Y:%H:%M:%S %z
[PARSER]
Name apache2
Format regex
Regex ^(?[^ ]*) [^ ]* (?[^ ]*) \[(?[^\]]*)\] "(?\S+)(?: +(?[^ ]*) +\S*)?" (?[^ ]*) (?[^ ]*)(?: "(?[^\"]*)" "(?.*)")?$
Time_Key time
Time_Format %d/%b/%Y:%H:%M:%S %z
[PARSER]
Name apache_error
Format regex
Regex ^\[[^ ]* (?[^\]]*)\] \[(?[^\]]*)\](?: \[pid (?[^\]]*)\])?( \[client (?[^\]]*)\])? (?.*)$
[PARSER]
Name nginx
Format regex
Regex ^(?[^ ]*) (?[^ ]*) (?[^ ]*) \[(?[^\]]*)\] "(?\S+)(?: +(?[^\"]*?)(?: +\S*)?)?" (?[^ ]*) (?[^ ]*)(?: "(?[^\"]*)" "(?[^\"]*)")
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%LZ
[PARSER]
Name json
Format json
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%LZ
Time_Keep On

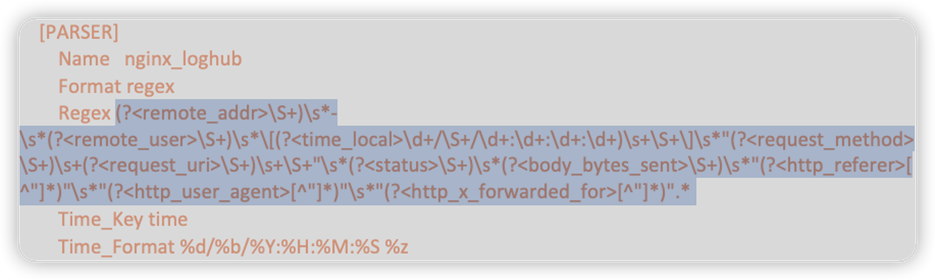

[PARSER]
Name nginx_loghub
Format regex
Regex (?\S+)\s*-\s*(?\S+)\s*\[(?\d+/\S+/\d+:\d+:\d+:\d+)\s+\S+\]\s*"(?\S+)\s+(?\S+)\s+\S+"\s*(?\S+)\s*(?\S+)\s*"(?[^"]*)"\s*"(?[^"]*)"\s*"(?[^"]*)".*
Time_Key time
Time_Format %d/%b/%Y:%H:%M:%S %z
[PARSER]
Name multilinetext_efeff2cb-10eb-4c94-b5ed-90efd689b3c4
Format regex
Regex (?\d{4}-\d{2}-\d{2}\s*\d{2}:\d{2}:\d{2}.\d{3})\s*(?\S+)\s*\[(?\S+)\]\s*(?\S+)\s*:\s*(?[\s\S]+)
[PARSER]
# https://rubular.com/r/IhIbCAIs7ImOkc
Name k8s-nginx-ingress
Format regex
Regex ^(?[^ ]*) - (?[^ ]*) \[(?[^\]]*)\] "(?\S+)(?: +(?[^\"]*?)(?: +\S*)?)?" (?[^ ]*) (?[^ ]*) "(?[^\"]*)" "(?[^\"]*)" (?[^ ]*) (?[^ ]*) \[(?[^ ]*)\] (\[(?[^ ]*)\] )?(?[^ ]*) (?[^ ]*) (?[^ ]*) (?[^ ]*) (?[^ ]*).*$
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%LZ
[PARSER]
Name docker
Format json
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%LZ
Time_Keep On
[PARSER]
Name container_firstline
Format regex
Regex (?(?<="log":")\S(?!\.).*?)(?(?<="stream":").*?)".*(?\d{4}-\d{1,2}-\d{1,2}T\d{2}:\d{2}:\d{2}\.\w*).*(?=})
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%LZ
[PARSER]
Name docker-daemon
Format regex
Regex time="(?[^ ]*)" level=(?[^ ]*) msg="(?[^ ].*)"
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%L
Time_Keep On
[PARSER]
Name syslog
Format regex
Regex ^(?[^ ]* {1,2}[^ ]* [^ ]*) (?[^ ]*) (?[a-zA-Z0-9_\/\.\-]*)(?:\[(?[0-9]+)\])?(?:[^\:]*\:)? *(?.*)$
Time_Key time
Time_Format %b %d %H:%M:%S
[PARSER]
Name syslog-rfc5424
Format regex
Regex ^\<(?[0-9]{1,5})\>1 (?[^ ]+) (?[^ ]+) (?[^ ]+) (?[-0-9]+) (?[^ ]+) (?(\[(.*)\]|-)) (?.+)$
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%L
Time_Keep On
[PARSER]
Name syslog-rfc3164-local
Format regex
Regex ^\<(?[0-9]+)\>(?[^ ]* {1,2}[^ ]* [^ ]*) (?[a-zA-Z0-9_\/\.\-]*)(?:\[(?[0-9]+)\])?(?:[^\:]*\:)? *(?.*)$
Time_Key time
Time_Format %b %d %H:%M:%S
Time_Keep On
[PARSER]
Name syslog-rfc3164
Format regex
Regex /^\<(?[0-9]+)\>(?[^ ]* {1,2}[^ ]* [^ ]*) (?[^ ]*) (?[a-zA-Z0-9_\/\.\-]*)(?:\[(?[0-9]+)\])?(?:[^\:]*\:)? *(?.*)$/
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%L
Time_Keep On
[PARSER]
Name mongodb
Format regex
Regex ^(?[^ ]*)\s+(?\w)\s+(?[^ ]+)\s+\[(?[^\]]+)]\s+(?.*?) *(?(\d+))?(:?ms)?$
Time_Format %Y-%m-%dT%H:%M:%S.%L
Time_Key time
Time_Keep On
[PARSER]
Name envoy
Format regex
Regex ^\[(?[^\]]*)\] "(?\S+)(?: +(?[^\"]*?)(?: +\S*)?)? (?\S+)" (?[^ ]*) (?[^ ]*) (?[^ ]*) (?[^ ]*) (?[^ ]*) (?[^ ]*) "(?[^ ]*)" "(?[^\"]*)" "(?[^\"]*)" "(?[^ ]*)" "(?[^ ]*)"
Time_Format %Y-%m-%dT%H:%M:%S.%L%z
Time_Key start_time
Time_Keep On
[PARSER]
Name cri
Format regex
Regex ^(?[^ ]+) (?stdout|stderr) (?[^ ]*) (?.*)$
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%L%z
Time_Keep On
[PARSER]
Name kube-custom
Format regex
Regex (?[^.]+)?\.?(?[a-z0-9](?:[-a-z0-9]*[a-z0-9])?(?:\.[a-z0-9]([-a-z0-9]*[a-z0-9])?)*)_(?[^_]+)_(?.+)-(?[a-z0-9]{64})\.log$
# Configuration files: server, input, filters and output
# ======================================================
application-containers-conf: |
# ====================collect nginx log==================================
[INPUT]
Name tail
Tag kube.var.log.containers.nginx.*
Exclude_Path /var/log/containers/cloudwatch-agent*, /var/log/containers/fluent-bit*, /var/log/containers/aws-node*, /var/log/containers/kube-proxy*
Path /var/log/containers/app-nginx-demo*.log
Path_Key file_name
Parser docker
DB /fluent-bit/checkpoint/flb_container.db
Mem_Buf_Limit 50MB
Skip_Long_Lines On
Refresh_Interval 10
Rotate_Wait 30
storage.type filesystem
Read_from_Head True
[OUTPUT]
Name kinesis_streams
Match kube.var.log.containers.nginx.*
Region ap-northeast-2
Stream
Retry_Limit False
#Auto_retry_requests True

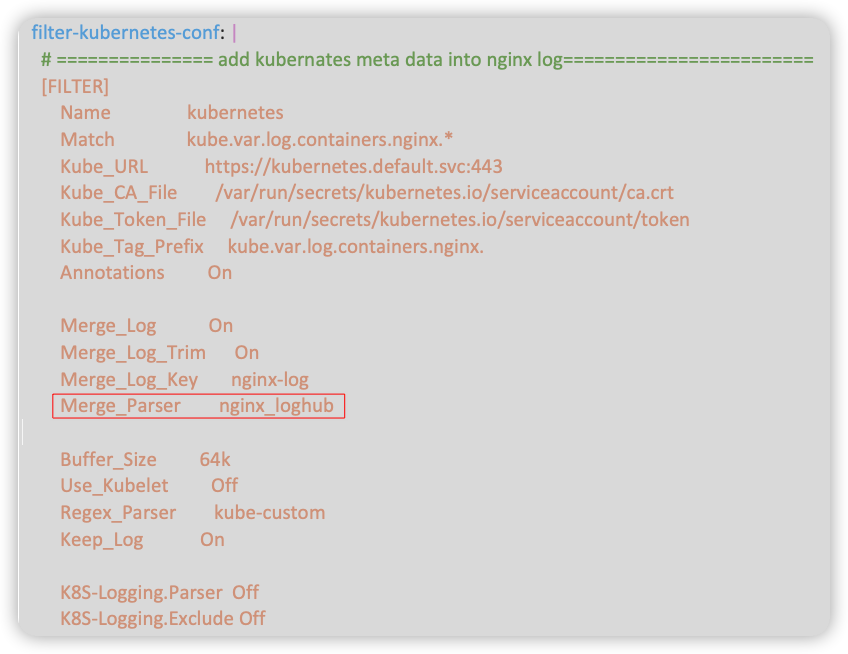

filter-kubernetes-conf: |
# =============== add kubernates meta data into nginx log========================
[FILTER]
Name kubernetes
Match kube.var.log.containers.nginx.*
Kube_URL https://kubernetes.default.svc:443
Kube_CA_File /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
Kube_Token_File /var/run/secrets/kubernetes.io/serviceaccount/token
Kube_Tag_Prefix kube.var.log.containers.nginx.
Annotations On
Merge_Log On
Merge_Log_Trim On
Merge_Log_Key nginx-log
Merge_Parser nginx_loghub
Buffer_Size 64k
Use_Kubelet Off
Regex_Parser kube-custom
Keep_Log On
K8S-Logging.Parser Off
K8S-Logging.Exclude Off
[FILTER]
Name modify
Match *
Set cluster ${CLUSTER_NAME}
fluent-bit-conf: |
[SERVICE]
Flush 5
Daemon off
Log_level Info
#Log_File /fluent-bit/log/fluent-bit.log
Http_server On
Http_listen 0.0.0.0
Http_port 2022
Storage.sync normal
storage.checksum Off
Storage.backlog.mem_limit 5M
Storage.path /fluent-bit/flb-storage/
Parsers_File /fluent-bit/etc/applog-parsers.conf
@INCLUDE application-containers.conf
@INCLUDE filter-kubernetes.conf
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: fluent-bit
namespace: logging
labels:
app.kubernetes.io/name: fluent-bit
annotations:
prometheus.io/scrape: "true"
prometheus.io/port: "2022"
prometheus.io/path: /api/v1/metrics/prometheus
# fluentbit.io/exclude: "false"
# fluentbit.io/parser_stderr: json
# fluentbit.io/parser_stdout: json
spec:
selector:
matchLabels:
app: fluent-bit
updateStrategy:
type: RollingUpdate
template:
metadata:
labels:
app: fluent-bit
version: v1
kubernetes.io/cluster-service: "true"
spec:
containers:
- name: fluent-bit
image: amazon/aws-for-fluent-bit:2.21.0
imagePullPolicy: Always
env:
- name: CLUSTER_NAME
value: "LoghubEKS"
ports:
- containerPort: 2022
command: ["/fluent-bit/bin/fluent-bit", "-c"]
args:
- /fluent-bit/etc/fluent-bit.conf
resources:
limits:
memory: 200Mi
requests:
cpu: 500m
memory: 100Mi
volumeMounts:
#reference volume name
- name: fluentbit-storage
mountPath: /fluent-bit/flb-storage
- name: fluent-bit-log
mountPath: /fluent-bit/log
- name: fluent-bit-checkpoint-db
mountPath: /fluent-bit/checkpoint
- name: var-log
mountPath: /var/log
readOnly: true
- name: app-spring-boot-log
mountPath: /spring-log
- name: var-lib-docker-containers
mountPath: /var/lib/docker/containers
readOnly: true
- name: fluent-bit-config
mountPath: /fluent-bit/etc
- name: etc-machine-id
mountPath: /etc/machine-id
readOnly: true
- name: runlogjournal
mountPath: /run/log/journal
readOnly: true
- name: dmesg
mountPath: /var/log/dmesg
readOnly: true
- name: secure
mountPath: /var/log/secure
- name: messages
mountPath: /var/log/messages
terminationGracePeriodSeconds: 10
volumes:
#define volume name
- name: fluentbit-storage
hostPath:
path: /var/fluent-bit/storage
- name: fluent-bit-log
hostPath:
path: /var/fluent-bit/log
- name: fluent-bit-checkpoint-db
hostPath:
path: /var/fluent-bit/checkpoint
- name: var-log
hostPath:
path: /var/log
# - name: var-log-containers
# hostPath:
# path: /var/log/containers
- name: app-spring-boot-log
hostPath:
path: /spring-boot/log
- name: var-lib-docker-containers
hostPath:
path: /var/lib/docker/containers
- name: etc-machine-id
hostPath:
path: /etc/machine-id
type: "File"
- name: fluent-bit-config
configMap:
name: fluent-bit-config
items:
- key: applog-parsers-conf
#using the content of applog-parsers-conf as applog-parsers.conf file to mount
path: applog-parsers.conf
- key: fluent-bit-conf
#using the content of fluent-bit-conf as fluent-bit.conf file to mount
path: fluent-bit.conf
- key: application-containers-conf
#using the content of application-containers-conf as application-containers.conf file to mount
path: application-containers.conf
- key: filter-kubernetes-conf
#using the content of filter-kubernetes-conf as filter-kubernetes.conf file to mount
path: filter-kubernetes.conf
- key: dataplane-log-conf
path: dataplane-log.conf
- key: host-log-conf
path: host-log.conf
- name: runlogjournal
hostPath:
path: /run/log/journal
- name: dmesg
hostPath:
path: /var/log/dmesg
- name: secure
hostPath:
path: /var/log/secure
- name: messages
hostPath:
path: /var/log/messages
serviceAccountName: fluent-bit
tolerations:
- key: node-role.kubernetes.io/master
operator: Exists
effect: NoSchedule
- operator: "Exists"
effect: "NoExecute"
- operator: "Exists"
effect: "NoSchedule"
注意：请将以上内容中 “”替换成前面创建应用日志流水线时所生成的Amazon Kinesis Data Stream实际的名称。
通过kubectl get pods -n logging -o wide命令验证运行状态。
4．通过Kubectl部署Nginx应用，测试日志发送
到目前为止，我们已经完成Fluent Bit在EKS集群中的部署，并且通过用于创建Fluent Bit的ConfigMap的Yaml文件我们发现Fluent Bit是读取/var/log/nginx目录的文件。我们通过kubectl apply -f nginx-app.yaml部署Nginx，nginx-app.yaml文件内容参考如下：
---
apiVersion: v1
kind: Namespace
metadata:
name: nginx-ns
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: nginx-user
namespace: nginx-ns
---
apiVersion: apps/v1
kind: Deployment
metadata:
namespace: nginx-ns
name: app-nginx-demo
labels:
app.kubernetes.io/name: app-nginx-demo
spec:
replicas: 1
selector:
matchLabels:
app: app-nginx-demo
strategy:
rollingUpdate:
maxSurge: 25%
maxUnavailable: 25%
type: RollingUpdate
template:
metadata:
labels:
app: app-nginx-demo
spec:
serviceAccountName: nginx-user
containers:
- image: nginx:1.20
imagePullPolicy: Always
name: app-nginx-demo
ports:
- containerPort: 80
protocol: TCP
---
apiVersion: v1
kind: Service
metadata:
name: app-nginx-demo
namespace: nginx-ns
spec:
selector:
app: app-nginx-demo
ports:
# Default port used by the image
- protocol: TCP
port: 80
targetPort: 80
通过kubectl get pods -n nginx-ns -o wide命令验证运行状态。
5．通过Log Hub打开Amazon OpenSearch Service访问代理，访问Amazon OpenSearch Service的Dashboards，查看日志
通过前面步骤我们已经将Amazon EKS的集群中应用日志发送到Amazon OpenSearch Service中。为了访问VPC内的Amazon OpenSearch Service，查看日志，您可以通过Log Hub打开访问代理，详细步骤可以点击这里参考。登录Amazon OpenSearch Service的Dashboards后，我们先创建“Index Pattern”。

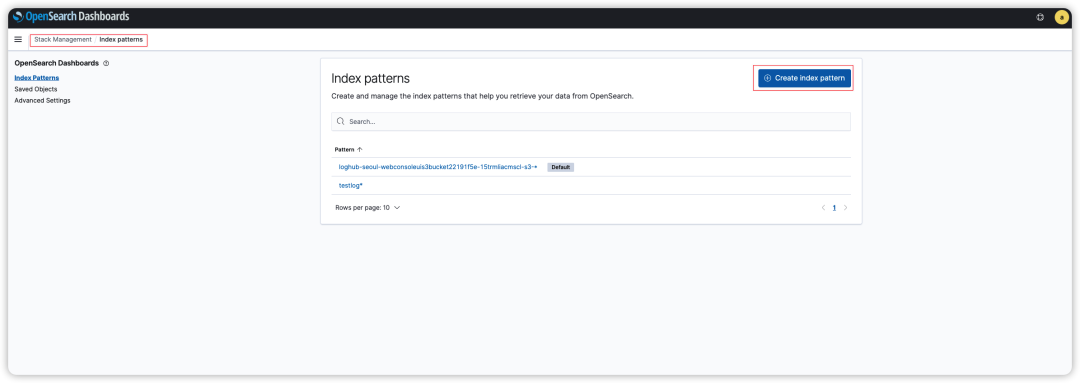

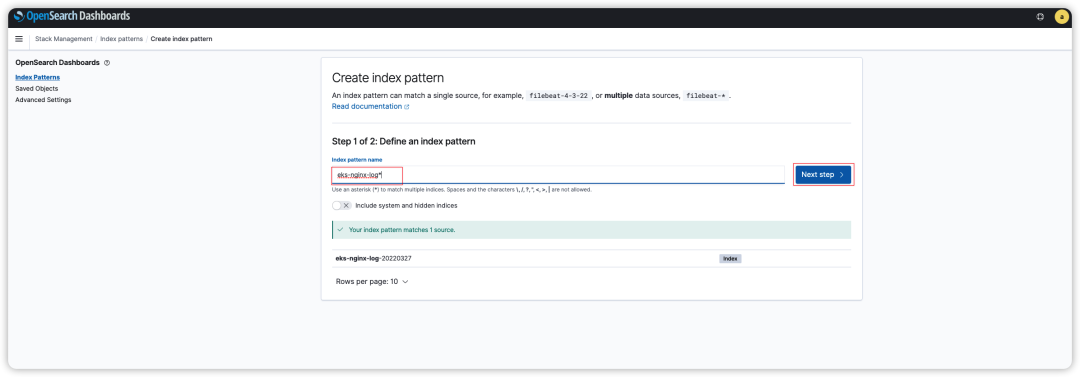

登录后，在“Management”处选择“Stack Management”，然后继续选择“Index Patterns”,并点击创建Index pattern。输入“eks-nginx-log *”，并点击下一步，完成创建。创建过程可以参考以下截图：
在“OpenSearch Dashboards”处选择“Discover”，并在“CHANGE INDEX PATTERN”处选择上一步创建的Index Pattern，即可进行Nginx日志搜索与过滤。
6．收集Fluent Bit容器日志
我们重新创建一个应用日志流水线，用于收集Amazon EKS集群的容器日志。创建步骤可以参考前面的步骤“1.通过Log Hub创建应用日志收集的管道“。创建完成后，我们复制数据流名称，更改策略“demo-kinesis-policy”，添加允许对该数据流访问。同样，我们还要编辑fluent-bit.yaml，在“application-containers-conf”和“filter-kubernetes-conf: |“处分别添加如下内容：
# ========collect fluent bit log， add it into application-containers-conf===================
[INPUT]
Name tail
Tag kube.var.log.containers.fluent-bit.*
Path /var/log/containers/fluent-bit*
Path_Key file_name
Parser docker
DB /fluent-bit/checkpoint/flb_log.db
Mem_Buf_Limit 5MB
Skip_Long_Lines On
Refresh_Interval 10
Read_from_Head True
[OUTPUT]
Name kinesis_streams
Match kube.var.log.containers.fluent-bit.*
Region ap-northeast-2
Stream <fluent-bit-log-kinesis-data-stream-name>
Retry_Limit False# =============== add kubernates meta data into fluent bit log============================
[FILTER]
Name kubernetes
Match kube.var.log.containers.fluent-bit.*
Kube_URL https://kubernetes.default.svc:443
Kube_CA_File /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
Kube_Token_File /var/run/secrets/kubernetes.io/serviceaccount/token
Kube_Tag_Prefix kube.var.log.containers.fluent-bit.
Annotations On
Merge_Log On
Merge_Log_Trim On
Merge_Log_Key fluent-bit-log
Merge_Parser json
Buffer_Size 64k
Use_Kubelet Off
Regex_Parser kube-custom
Keep_Log On
K8S-Logging.Parser Off
K8S-Logging.Exclude Off*左滑查看更多
注意：请将，替换成复制的数据流名称，保存后执行kubectl replace --force -f ./fluent-bit.yaml。

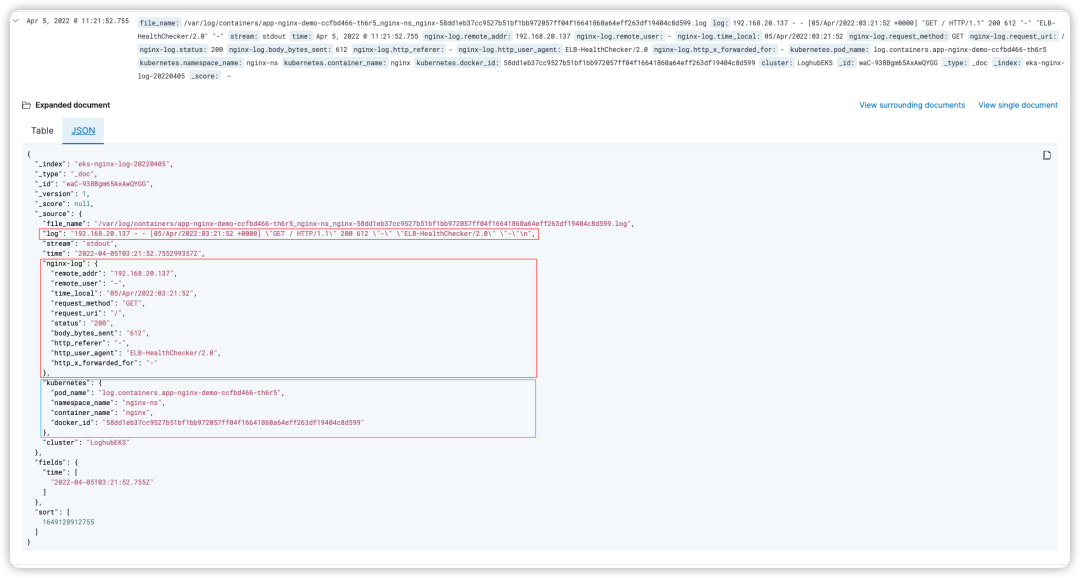

然后重新登录Amazon OpenSearch Service的Dashboards，创建“Index pattern”后，在“Discover”处，选择对应的“Index pattern”名称即可展示对应日志内容。
7．收集Ingress Controller日志，并通过Log Hub创建预定义的示例仪表板
我们将使用aws-load-balancer-controller作为Ingress Controller来暴露Nginx服务，这里我们使用aws-load-balancer-controller的版本为2.4.0，关于aws-load-balancer-controller的安装部分，大家可以参考这篇文章。
安装完成后，通过kubectl apply -f alb-ingress.yaml命令创建ALB， 将 pod 服务暴露出去，alb-ingress.yaml文件内容参考如下：
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: demo-app-ingress
namespace: nginx-ns
annotations:
kubernetes.io/ingress.class: alb
alb.ingress.kubernetes.io/scheme: internet-facing
alb.ingress.kubernetes.io/target-type: ip
alb.ingress.kubernetes.io/listen-ports: '[{"HTTP":80}]'
spec:
rules:
- http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: app-nginx-demo
port:
number: 80*左滑查看更多
安装完成后，我们通过kubectl get ingress/demo-app-ingress -n nginx-ns命令验证是否已经使用：

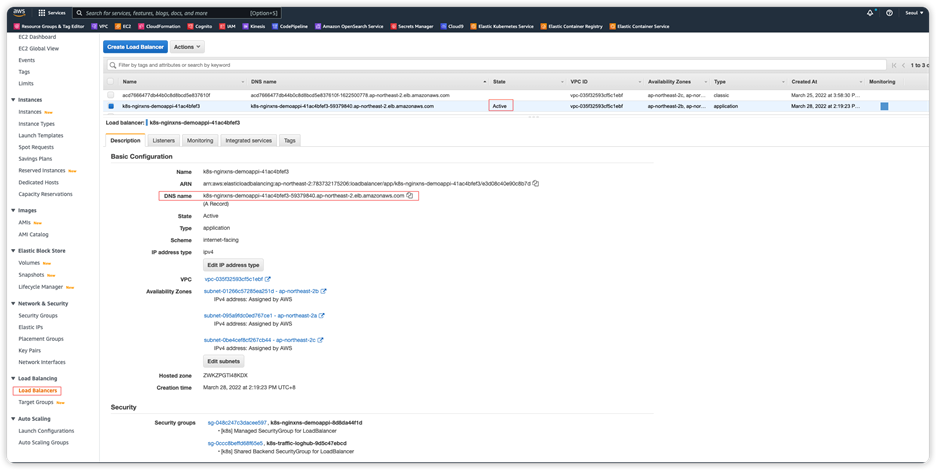

登录Amazon Web Services的控制台，选择EC2服务的Load Balancers，查看刚才创建的ALB服务，并复制DNS name，通过浏览器访问，验证成功。
通过Log Hub Console创建ALB 服务日志流水线

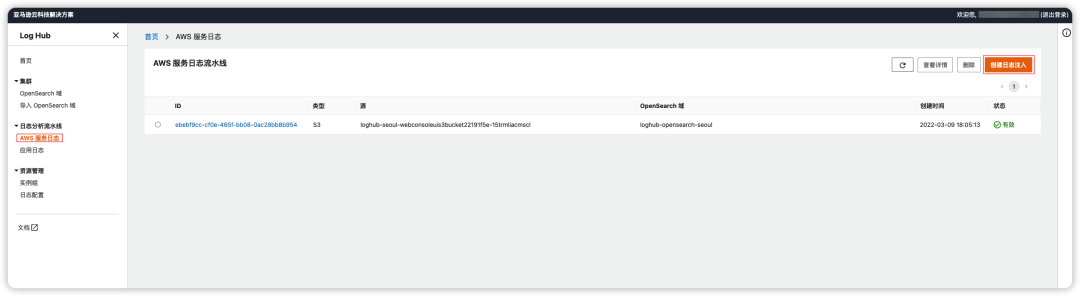

1)访问Log Hub控制台，在“日志分析流水线”选择“亚马逊云科技服务日志”，并创建日志注入。

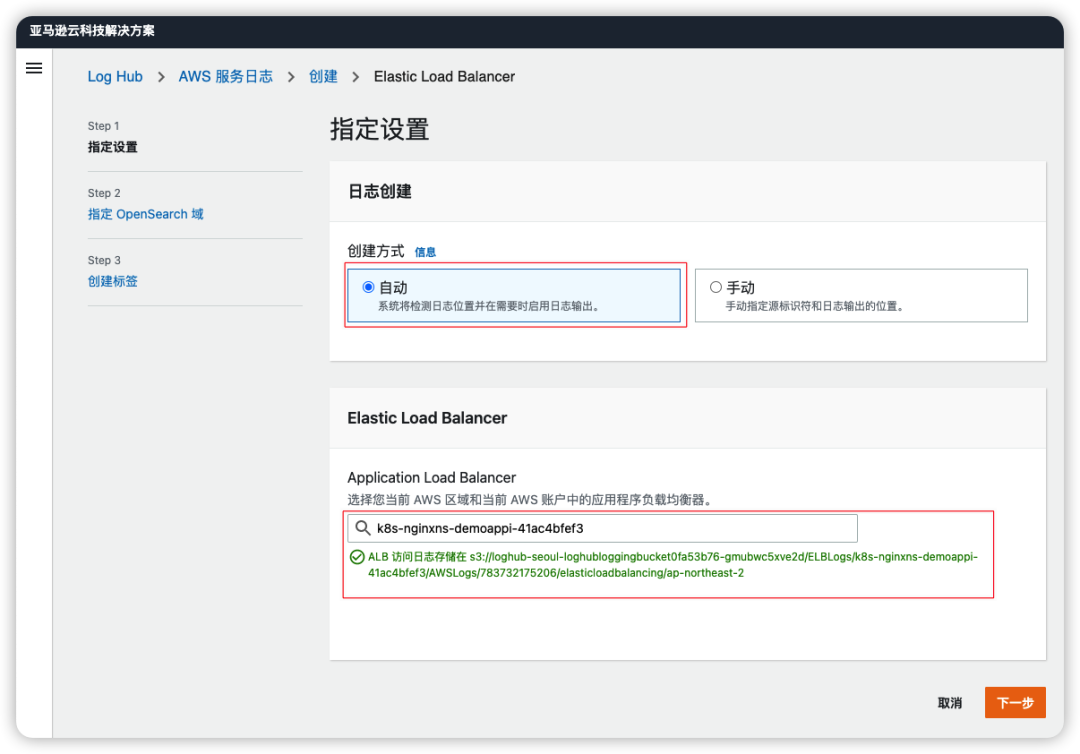

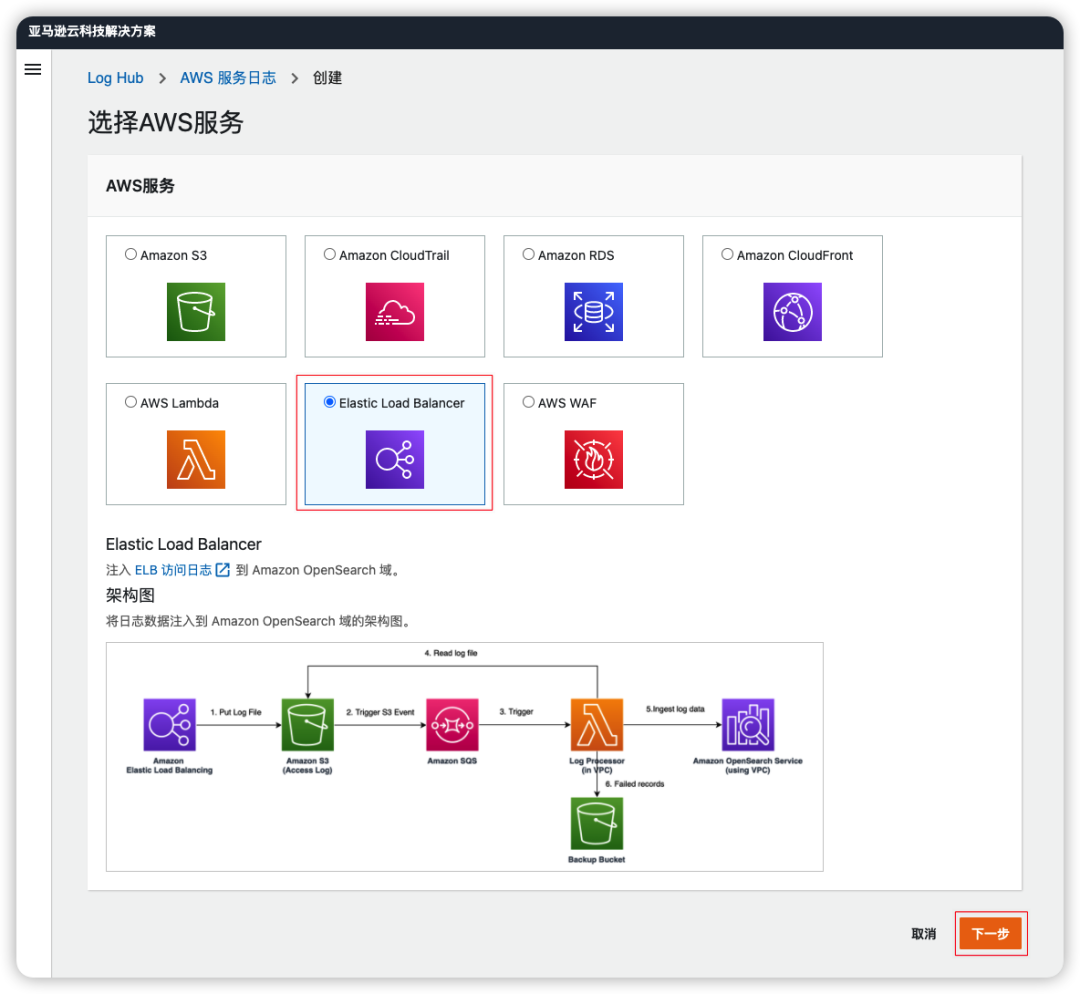

2)在亚马逊云科技服务处选择“Elastic Load Balancer”，并点击“下一步”，参考如下截图，完成创建。
3）选择导入的Amazon OpenSearch Service集群，并在“示例仪表板”处选择“是”，这样我们可以通过Log Hub内置的Amazon OpenSearch Service仪表板深度分析ALB日志。

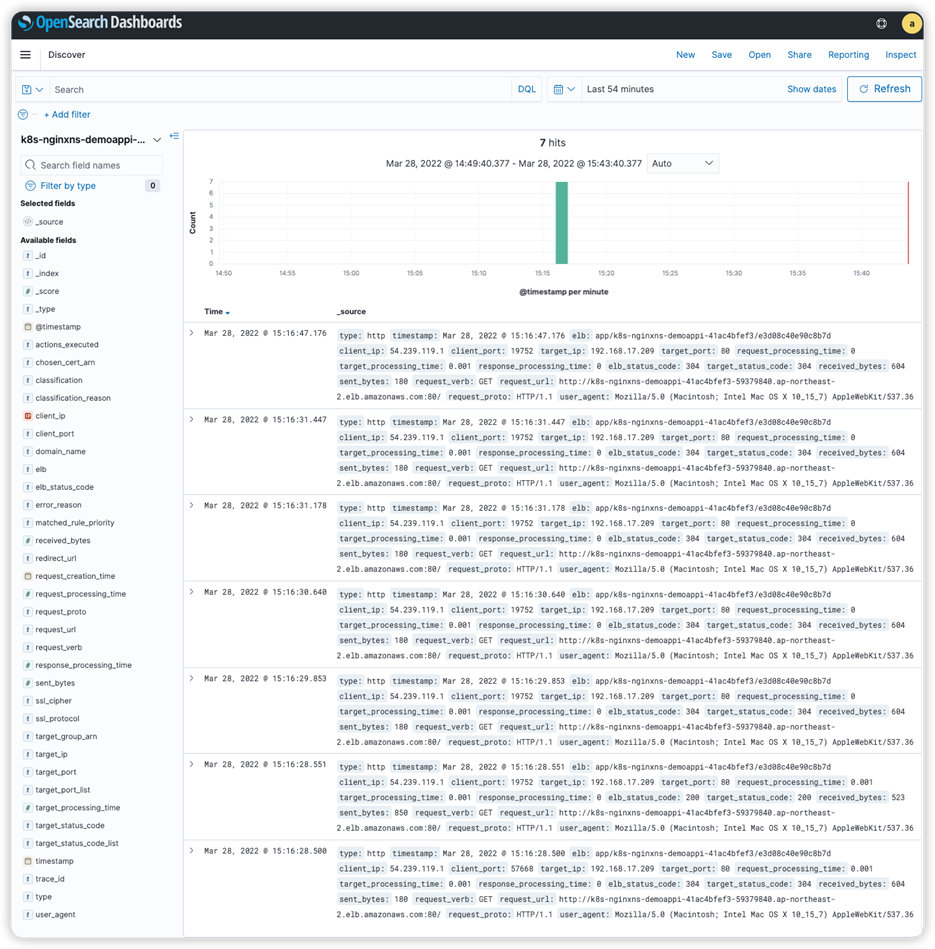

4）完成创建后，通过访问代理访问Amazon OpenSearch Service的Dashboard，查看Ingress Controller日志。
三、常见问题和优化方法
1．如果Nginx日志格式需要定制化，如果更改？
答：可以通过Log Hub解决方案创建日志配置，在日志类型处选择“Nginx“。输入Nginx的日志格式配置，并通过输入日志样例，解析日志验证通过后，复制正则表达式，然后替换fluent-bit.yaml文件中的”nginx_loghub“处内容。详细内容可以参考以下截图：
2．如何更换Parser？
答：如果需要使用自定义的Parser, 可以先在“applog-parsers-conf: |”处添加内容，然后参考下图，新建一个Filter，并更改对应的Merge_Parser。注意，新建的Filter时，请替换Kube_Tag_Prefix与Match处内容。
3．如何收集Kube-proxy日志？
答：以下为本文涉及Fluent Bit的yaml文件完整内容，可供参考，关于Kube-proxy的日志可以直接看文件中dataplane-log-conf的内容。
---
apiVersion: v1
kind: ConfigMap
metadata:
name: fluent-bit-config
namespace: logging
labels:
k8s-app: fluent-bit
version: v1
data:
# Configuration files: apache, apache2, nginx and multiline text for java slf4j
# =============================================================================
applog-parsers-conf: |
[PARSER]
Name apache
Format regex
Regex ^(?[^ ]*) [^ ]* (?[^ ]*) \[(?[^\]]*)\] "(?\S+)(?: +(?[^\"]*?)(?: +\S*)?)?" (?[^ ]*) (?[^ ]*)(?: "(?[^\"]*)" "(?[^\"]*)")?$
Time_Key time
Time_Format %d/%b/%Y:%H:%M:%S %z
[PARSER]
Name apache2
Format regex
Regex ^(?[^ ]*) [^ ]* (?[^ ]*) \[(?[^\]]*)\] "(?\S+)(?: +(?[^ ]*) +\S*)?" (?[^ ]*) (?[^ ]*)(?: "(?[^\"]*)" "(?.*)")?$
Time_Key time
Time_Format %d/%b/%Y:%H:%M:%S %z
[PARSER]
Name apache_error
Format regex
Regex ^\[[^ ]* (?[^\]]*)\] \[(?[^\]]*)\](?: \[pid (?[^\]]*)\])?( \[client (?[^\]]*)\])? (?.*)$
[PARSER]
Name nginx
Format regex
Regex ^(?[^ ]*) (?[^ ]*) (?[^ ]*) \[(?[^\]]*)\] "(?\S+)(?: +(?[^\"]*?)(?: +\S*)?)?" (?[^ ]*) (?[^ ]*)(?: "(?[^\"]*)" "(?[^\"]*)")
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%LZ
[PARSER]
Name json
Format json
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%LZ
Time_Keep On
[PARSER]
Name nginx_loghub
Format regex
Regex (?\S+)\s*-\s*(?\S+)\s*\[(?\d+/\S+/\d+:\d+:\d+:\d+)\s+\S+\]\s*"(?\S+)\s+(?\S+)\s+\S+"\s*(?\S+)\s*(?\S+)\s*"(?[^"]*)"\s*"(?[^"]*)"\s*"(?[^"]*)".*
Time_Key time
Time_Format %d/%b/%Y:%H:%M:%S %z
[PARSER]
Name multilinetext_efeff2cb-10eb-4c94-b5ed-90efd689b3c4
Format regex
Regex (?\d{4}-\d{2}-\d{2}\s*\d{2}:\d{2}:\d{2}.\d{3})\s*(?\S+)\s*\[(?\S+)\]\s*(?\S+)\s*:\s*(?[\s\S]+)
[PARSER]
# https://rubular.com/r/IhIbCAIs7ImOkc
Name k8s-nginx-ingress
Format regex
Regex ^(?[^ ]*) - (?[^ ]*) \[(?[^\]]*)\] "(?\S+)(?: +(?[^\"]*?)(?: +\S*)?)?" (?[^ ]*) (?[^ ]*) "(?[^\"]*)" "(?[^\"]*)" (?[^ ]*) (?[^ ]*) \[(?[^ ]*)\] (\[(?[^ ]*)\] )?(?[^ ]*) (?[^ ]*) (?[^ ]*) (?[^ ]*) (?[^ ]*).*$
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%LZ
[PARSER]
Name docker
Format json
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%LZ
Time_Keep On
[PARSER]
Name container_firstline
Format regex
Regex (?(?<="log":")\S(?!\.).*?)(?(?<="stream":").*?)".*(?\d{4}-\d{1,2}-\d{1,2}T\d{2}:\d{2}:\d{2}\.\w*).*(?=})
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%LZ
[PARSER]
Name docker-daemon
Format regex
Regex time="(?[^ ]*)" level=(?[^ ]*) msg="(?[^ ].*)"
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%L
Time_Keep On
[PARSER]
Name syslog
Format regex
Regex ^(?[^ ]* {1,2}[^ ]* [^ ]*) (?[^ ]*) (?[a-zA-Z0-9_\/\.\-]*)(?:\[(?[0-9]+)\])?(?:[^\:]*\:)? *(?.*)$
Time_Key time
Time_Format %b %d %H:%M:%S
[PARSER]
Name syslog-rfc5424
Format regex
Regex ^\<(?[0-9]{1,5})\>1 (?[^ ]+) (?[^ ]+) (?[^ ]+) (?[-0-9]+) (?[^ ]+) (?(\[(.*)\]|-)) (?.+)$
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%L
Time_Keep On
[PARSER]
Name syslog-rfc3164-local
Format regex
Regex ^\<(?[0-9]+)\>(?[^ ]* {1,2}[^ ]* [^ ]*) (?[a-zA-Z0-9_\/\.\-]*)(?:\[(?[0-9]+)\])?(?:[^\:]*\:)? *(?.*)$
Time_Key time
Time_Format %b %d %H:%M:%S
Time_Keep On
[PARSER]
Name syslog-rfc3164
Format regex
Regex /^\<(?[0-9]+)\>(?[^ ]* {1,2}[^ ]* [^ ]*) (?[^ ]*) (?[a-zA-Z0-9_\/\.\-]*)(?:\[(?[0-9]+)\])?(?:[^\:]*\:)? *(?.*)$/
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%L
Time_Keep On
[PARSER]
Name mongodb
Format regex
Regex ^(?[^ ]*)\s+(?\w)\s+(?[^ ]+)\s+\[(?[^\]]+)]\s+(?.*?) *(?(\d+))?(:?ms)?$
Time_Format %Y-%m-%dT%H:%M:%S.%L
Time_Key time
Time_Keep On
[PARSER]
Name envoy
Format regex
Regex ^\[(?[^\]]*)\] "(?\S+)(?: +(?[^\"]*?)(?: +\S*)?)? (?\S+)" (?[^ ]*) (?[^ ]*) (?[^ ]*) (?[^ ]*) (?[^ ]*) (?[^ ]*) "(?[^ ]*)" "(?[^\"]*)" "(?[^\"]*)" "(?[^ ]*)" "(?[^ ]*)"
Time_Format %Y-%m-%dT%H:%M:%S.%L%z
Time_Key start_time
Time_Keep On
[PARSER]
Name cri
Format regex
Regex ^(?[^ ]+) (?stdout|stderr) (?[^ ]*) (?.*)$
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%L%z
Time_Keep On
[PARSER]
Name kube-custom
Format regex
Regex (?[^.]+)?\.?(?[a-z0-9](?:[-a-z0-9]*[a-z0-9])?(?:\.[a-z0-9]([-a-z0-9]*[a-z0-9])?)*)_(?[^_]+)_(?.+)-(?[a-z0-9]{64})\.log$
# Configuration files: server, input, filters and output
# ======================================================
application-containers-conf: |
# ====================collect nginx log==================================
[INPUT]
Name tail
Tag kube.var.log.containers.nginx.*
Exclude_Path /var/log/containers/cloudwatch-agent*, /var/log/containers/fluent-bit*, /var/log/containers/aws-node*, /var/log/containers/kube-proxy*
Path /var/log/containers/app-nginx-demo*.log
Path_Key file_name
Parser docker
DB /fluent-bit/checkpoint/flb_container.db
Mem_Buf_Limit 50MB
Skip_Long_Lines On
Refresh_Interval 10
Rotate_Wait 30
storage.type filesystem
Read_from_Head True
[OUTPUT]
Name kinesis_streams
Match kube.var.log.containers.nginx.*
Region ap-northeast-2
Stream
Retry_Limit False
#Auto_retry_requests True
# ====================collect fluent bit log==================================
[INPUT]
Name tail
Tag kube.var.log.containers.fluent-bit.*
Path /var/log/containers/fluent-bit*
Path_Key file_name
Parser docker
DB /fluent-bit/checkpoint/flb_log.db
Mem_Buf_Limit 5MB
Skip_Long_Lines On
Refresh_Interval 10
Read_from_Head True
[OUTPUT]
Name kinesis_streams
Match kube.var.log.containers.fluent-bit.*
Region ap-northeast-2
Stream
Retry_Limit False
#Auto_retry_requests True
filter-kubernetes-conf: |
# =============== add kubernates meta data into nginx log========================
[FILTER]
Name kubernetes
Match kube.var.log.containers.nginx.*
Kube_URL https://kubernetes.default.svc:443
Kube_CA_File /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
Kube_Token_File /var/run/secrets/kubernetes.io/serviceaccount/token
Kube_Tag_Prefix kube.var.log.containers.nginx.
Annotations On
Merge_Log On
Merge_Log_Trim On
Merge_Log_Key nginx-log
Merge_Parser nginx_loghub
Buffer_Size 64k
Use_Kubelet Off
Regex_Parser kube-custom
Keep_Log On
K8S-Logging.Parser Off
K8S-Logging.Exclude Off
# ============ add kubernates meta data into fluent bit log==================
[FILTER]
Name kubernetes
Match kube.var.log.containers.fluent-bit.*
Kube_URL https://kubernetes.default.svc:443
Kube_CA_File /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
Kube_Token_File /var/run/secrets/kubernetes.io/serviceaccount/token
Kube_Tag_Prefix kube.var.log.containers.fluent-bit.
Annotations On
Merge_Log On
Merge_Log_Trim On
Merge_Log_Key fluent-bit-log
Merge_Parser json
Buffer_Size 64k
Use_Kubelet Off
Regex_Parser kube-custom
Keep_Log On
K8S-Logging.Parser Off
K8S-Logging.Exclude Off
[FILTER]
Name modify
Match *
Set cluster ${CLUSTER_NAME}
fluent-bit-conf: |
[SERVICE]
Flush 5
Daemon off
Log_level Info
#Log_File /fluent-bit/log/fluent-bit.log
Http_server On
Http_listen 0.0.0.0
Http_port 2022
Storage.sync normal
storage.checksum Off
Storage.backlog.mem_limit 5M
Storage.path /fluent-bit/flb-storage/
Parsers_File /fluent-bit/etc/applog-parsers.conf
@INCLUDE application-containers.conf
@INCLUDE filter-kubernetes.conf
@INCLUDE dataplane-log.conf
@INCLUDE host-log.conf
dataplane-log-conf: |
[INPUT]
Name systemd
Tag dataplane.systemd.*
Systemd_Filter _SYSTEMD_UNIT=docker.service
Systemd_Filter _SYSTEMD_UNIT=kubelet.service
DB /fluent-bit/checkpoint/flb_systemd.db
Path /var/log/journal
Path_Key file_name
Read_From_Tail True
[INPUT]
Name tail
Tag dataplane.tail.*
Path /var/log/containers/aws-node*, /var/log/containers/kube-proxy*
Path_Key file_name
Docker_Mode On
Docker_Mode_Flush 5
Docker_Mode_Parser container_firstline
Parser docker
DB /fluent-bit/checkpoint/flb_dataplane_tail.db
Mem_Buf_Limit 50MB
Skip_Long_Lines On
Refresh_Interval 10
Rotate_Wait 30
storage.type filesystem
Read_from_Head True
[FILTER]
Name modify
Match dataplane.systemd.*
Rename _HOSTNAME hostname
Rename _SYSTEMD_UNIT systemd_unit
Rename MESSAGE message
Remove_regex ^((?!hostname|systemd_unit|message).)*$
[FILTER]
Name aws
Match dataplane.*
imds_version v2
ec2_instance_type True
ami_id True
private_ip True
hostname True
vpc_id True
[OUTPUT]
Name kinesis_streams
Match dataplane.*
Region ap-northeast-2
Stream
Retry_Limit False
Auto_retry_requests True
host-log-conf: |
[INPUT]
Name tail
Tag host.dmesg
Path /var/log/dmesg
Path_Key file_name
Parser syslog
DB /fluent-bit/checkpoint/flb_dmesg.db
Mem_Buf_Limit 5MB
Skip_Long_Lines On
Refresh_Interval 10
Read_from_Head True
[INPUT]
Name tail
Tag host.messages
Path /var/log/messages
Path_Key file_name
Parser syslog
DB /fluent-bit/checkpoint/flb_messages.db
Mem_Buf_Limit 5MB
Skip_Long_Lines On
Refresh_Interval 10
Read_from_Head True
[INPUT]
Name tail
Tag host.secure
Path /var/log/secure
Path_Key file_name
Parser syslog
DB /fluent-bit/checkpoint/flb_secure.db
Mem_Buf_Limit 5MB
Skip_Long_Lines On
Refresh_Interval 10
Read_from_Head True
[FILTER]
Name aws
Match host.*
imds_version v1
[OUTPUT]
Name kinesis_streams
Match host.*
Region ap-northeast-2
Stream
Retry_Limit False
Auto_retry_requests True
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: fluent-bit
namespace: logging
labels:
app.kubernetes.io/name: fluent-bit
annotations:
prometheus.io/scrape: "true"
prometheus.io/port: "2022"
prometheus.io/path: /api/v1/metrics/prometheus
# fluentbit.io/exclude: "false"
# fluentbit.io/parser_stderr: json
# fluentbit.io/parser_stdout: json
spec:
selector:
matchLabels:
app: fluent-bit
updateStrategy:
type: RollingUpdate
template:
metadata:
labels:
app: fluent-bit
version: v1
kubernetes.io/cluster-service: "true"
spec:
containers:
- name: fluent-bit
image: amazon/aws-for-fluent-bit:2.21.0
imagePullPolicy: Always
env:
- name: CLUSTER_NAME
value: "LoghubEKS"
ports:
- containerPort: 2022
command: ["/fluent-bit/bin/fluent-bit", "-c"]
args:
- /fluent-bit/etc/fluent-bit.conf
resources:
limits:
memory: 200Mi
requests:
cpu: 500m
memory: 100Mi
volumeMounts:
#reference volume name
- name: fluentbit-storage
mountPath: /fluent-bit/flb-storage
- name: fluent-bit-log
mountPath: /fluent-bit/log
- name: fluent-bit-checkpoint-db
mountPath: /fluent-bit/checkpoint
- name: var-log
mountPath: /var/log
readOnly: true
- name: app-spring-boot-log
mountPath: /spring-log
- name: var-lib-docker-containers
mountPath: /var/lib/docker/containers
readOnly: true
- name: fluent-bit-config
mountPath: /fluent-bit/etc
- name: etc-machine-id
mountPath: /etc/machine-id
readOnly: true
- name: runlogjournal
mountPath: /run/log/journal
readOnly: true
- name: dmesg
mountPath: /var/log/dmesg
readOnly: true
- name: secure
mountPath: /var/log/secure
- name: messages
mountPath: /var/log/messages
terminationGracePeriodSeconds: 10
volumes:
#define volume name
- name: fluentbit-storage
hostPath:
path: /var/fluent-bit/storage
- name: fluent-bit-log
hostPath:
path: /var/fluent-bit/log
- name: fluent-bit-checkpoint-db
hostPath:
path: /var/fluent-bit/checkpoint
- name: var-log
hostPath:
path: /var/log
# - name: var-log-containers
# hostPath:
# path: /var/log/containers
- name: app-spring-boot-log
hostPath:
path: /spring-boot/log
- name: var-lib-docker-containers
hostPath:
path: /var/lib/docker/containers
- name: etc-machine-id
hostPath:
path: /etc/machine-id
type: "File"
- name: fluent-bit-config
configMap:
name: fluent-bit-config
items:
- key: applog-parsers-conf
#using the content of applog-parsers-conf as applog-parsers.conf file to mount
path: applog-parsers.conf
- key: fluent-bit-conf
#using the content of fluent-bit-conf as fluent-bit.conf file to mount
path: fluent-bit.conf
- key: application-containers-conf
#using the content of application-containers-conf as application-containers.conf file to mount
path: application-containers.conf
- key: filter-kubernetes-conf
#using the content of filter-kubernetes-conf as filter-kubernetes.conf file to mount
path: filter-kubernetes.conf
- key: dataplane-log-conf
path: dataplane-log.conf
- key: host-log-conf
path: host-log.conf
- name: runlogjournal
hostPath:
path: /run/log/journal
- name: dmesg
hostPath:
path: /var/log/dmesg
- name: secure
hostPath:
path: /var/log/secure
- name: messages
hostPath:
path: /var/log/messages
serviceAccountName: fluent-bit
tolerations:
- key: node-role.kubernetes.io/master
operator: Exists
effect: NoSchedule
- operator: "Exists"
effect: "NoExecute"
- operator: "Exists"
effect: NoSchedule
四、总结
在本文中，我们介绍了如何通过Amazon Log Hub解决方案在Amazon EKS集群环境下收集应用程序的容器日志以及使用aws-load-balancer-controller提供服务时的Ingress Controller日志。您也可以根据具体的使用需求进一步修改相关配置。如果您对本文有任何意见和建议，请与我们分享！
五、参考资料
Amazon Log Hub资料：
https://log-hub-preview.docs.solutions.gcr.aws.dev/
Amazon Elastic Kubernetes Service资料：
https://docs.aws.amazon.com/eks/latest/userguide/getting-started.html
Fluent Bit资料：
https://docs.fluentbit.io/manual/
亚马逊云科技 Load Balancer Controller资料：
https://kubernetes-sigs.github.io/aws-load-balancer-controller/v2.4/deploy/installation/#detailed-instructions
本篇作者
何文安
亚马逊云科技解决方案架构师，负责帮助客户进行上云架构的设计和咨询。
马涛
亚马逊云科技解决方案研发架构师，主要负责云上解决方案的设计与研发。
听说，点完下面4个按钮
就不会碰到bug了！
扫一扫
9443
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
