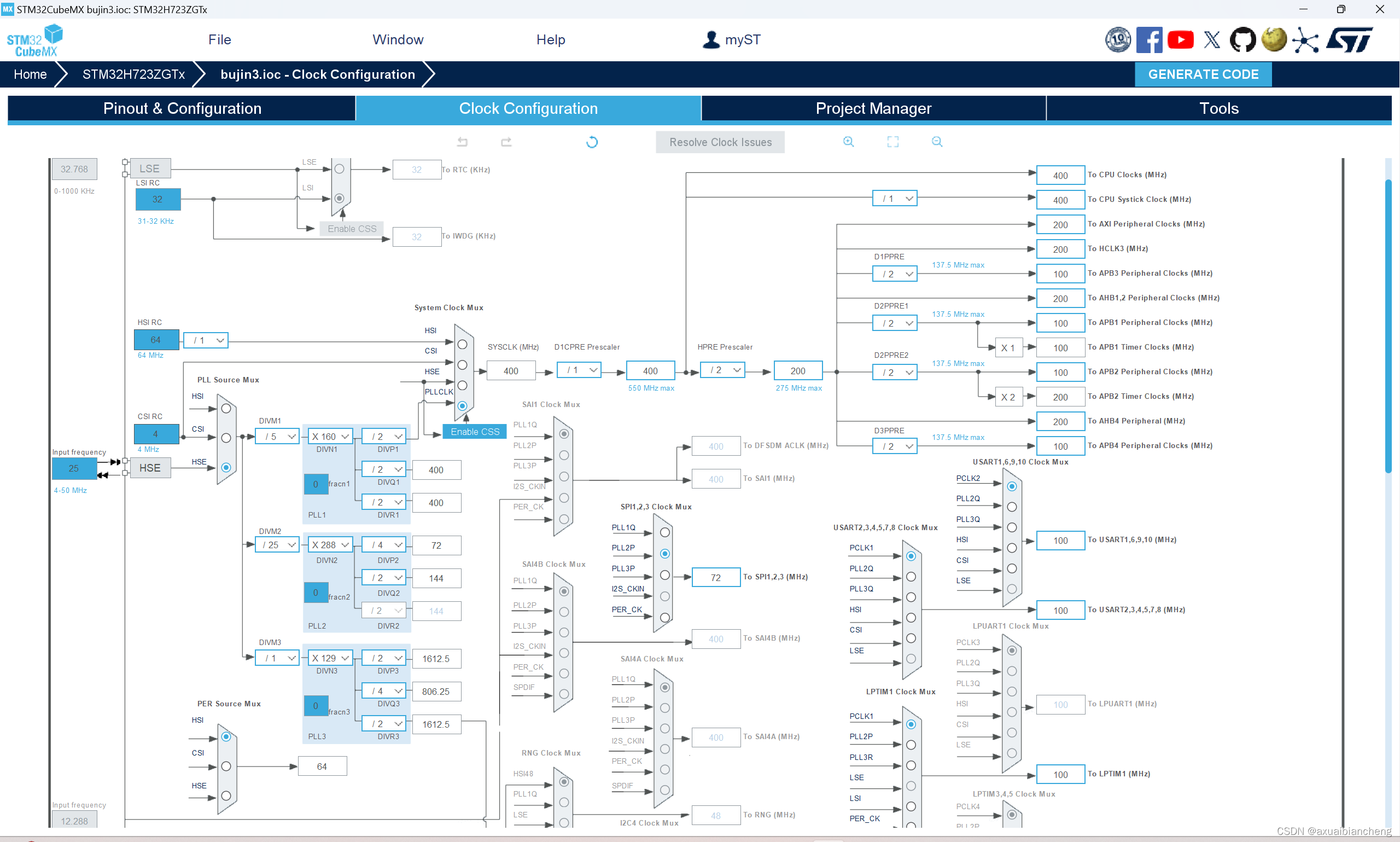

时钟配置如上

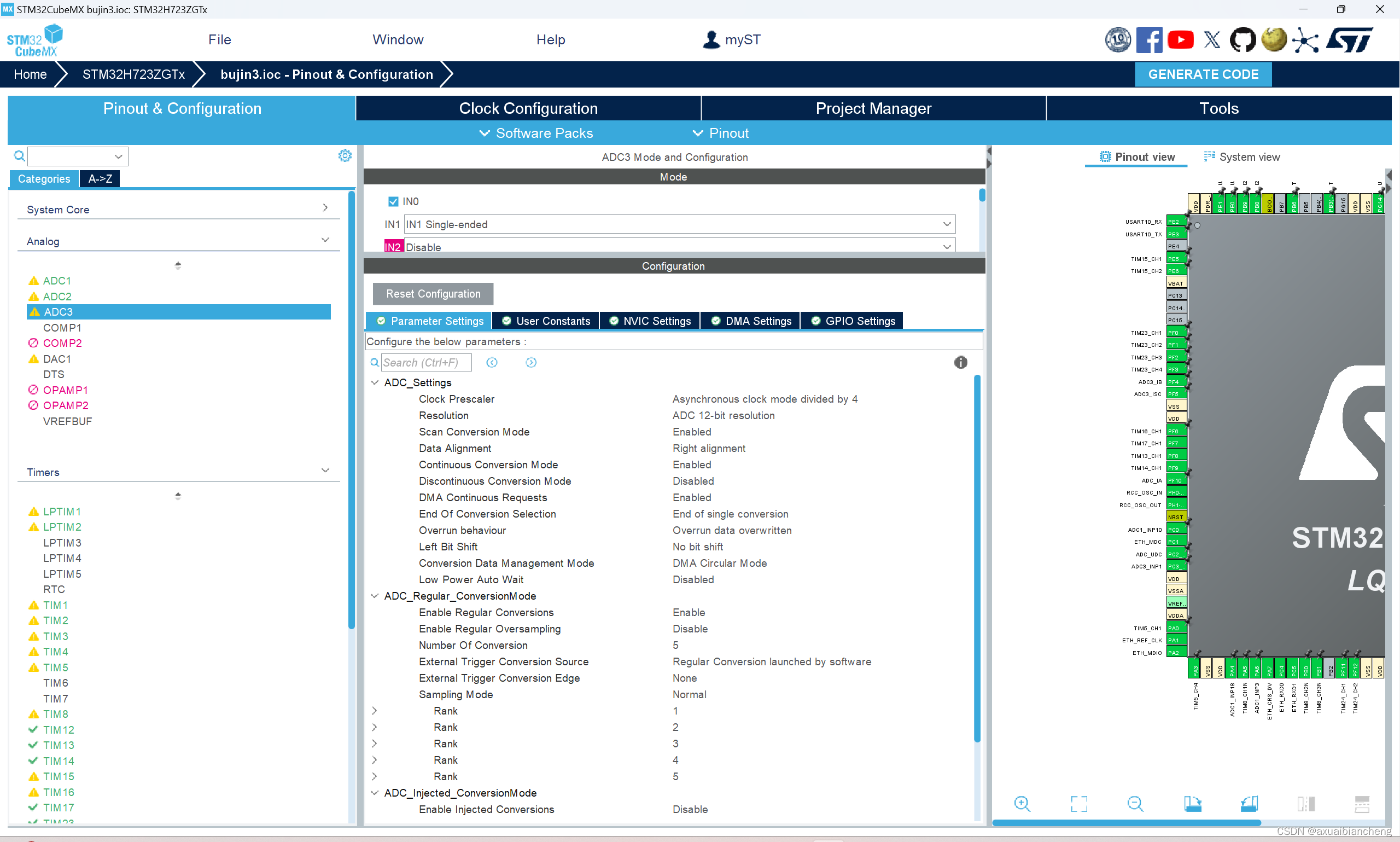

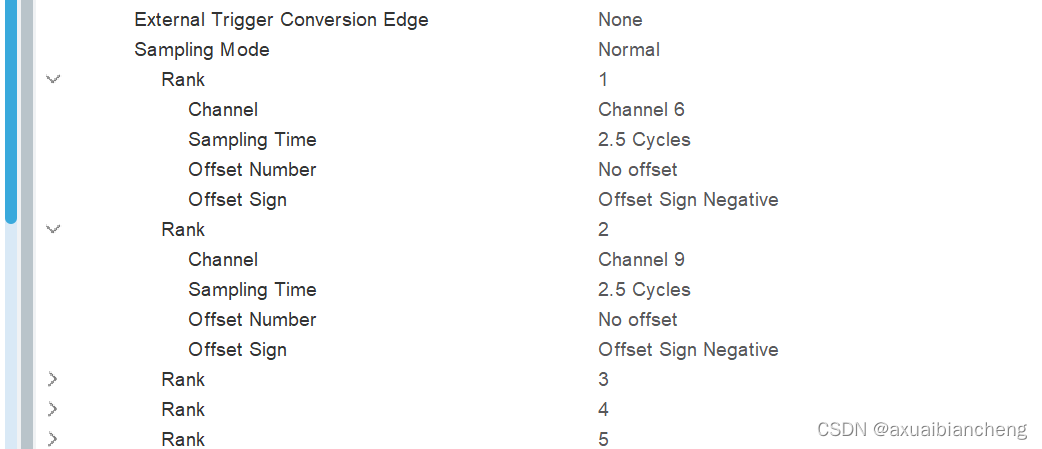

这里千万注意一个个配下去，参数多容易配错，而且要注意一下Rank这里，如果是像我一样多通道的话，channel一定要配置好，如果是默认的话可能会有重复配置一个通道的情况，我当时就踩了这个坑。

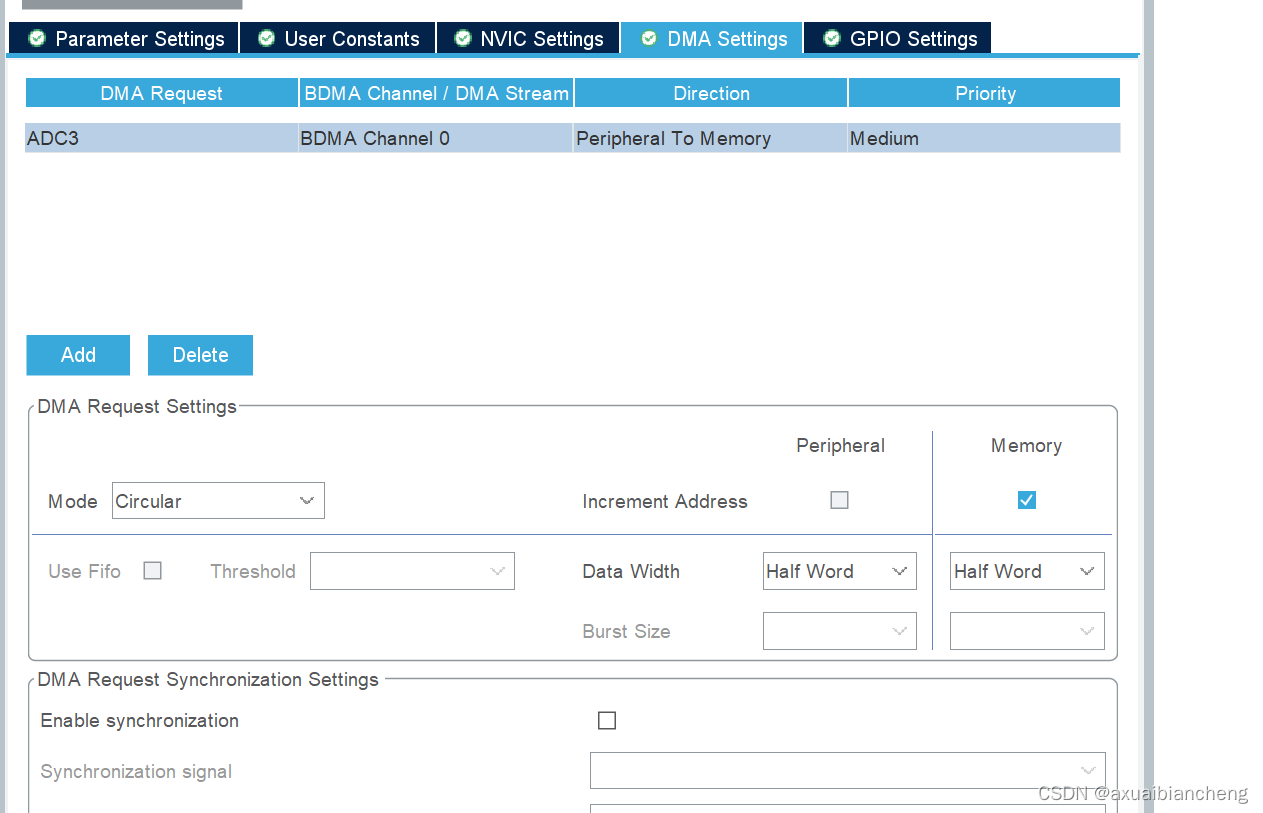

BMDA如上

MPU如下配置

在adc.c中加入如下代码。具体ADC转化逻辑为电压逻辑可以自己写也可以参考这。

/* USER CODE BEGIN 1 */

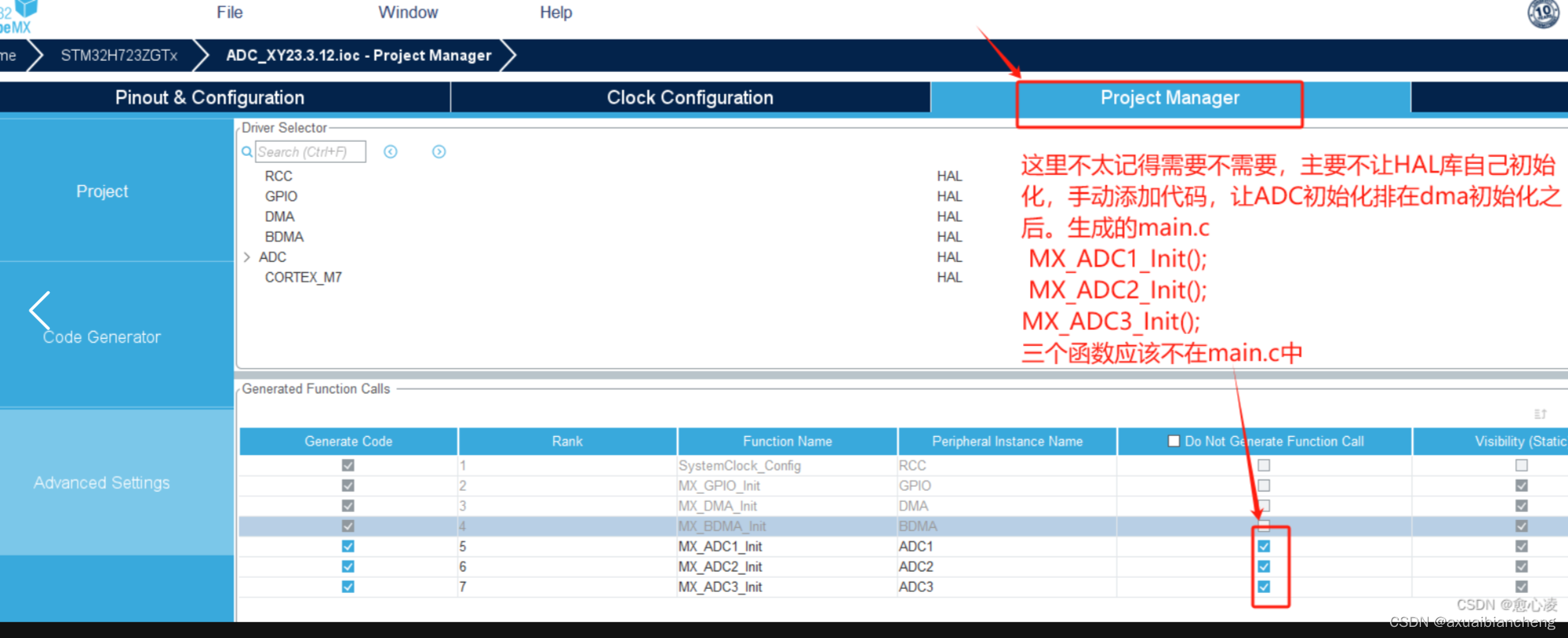

void adc_init(void)//在adc.c文件下插入写到/* USER CODE BEGIN 1 */下和/* USER CODE END 1 */中间
{
MX_ADC1_Init();   //初始化调用放这里, 确保在MX_DMA_Init()初始化后面
MX_ADC2_Init();   //初始化调用放这里, 确保在MX_DMA_Init()初始化后面
MX_ADC3_Init();   //在MX_BDMA_Init()初始化后面

//HAL_Delay(100);   //有地方说这里可以等等电压稳定后再校准

if (HAL_ADCEx_Calibration_Start(&hadc1, ADC_CALIB_OFFSET, ADC_SINGLE_ENDED) != HAL_OK)
{
Error_Handler();
}

if (HAL_ADCEx_Calibration_Start(&hadc2, ADC_CALIB_OFFSET, ADC_SINGLE_ENDED) != HAL_OK)
{
Error_Handler();
}
if (HAL_ADCEx_Calibration_Start(&hadc3, ADC_CALIB_OFFSET, ADC_SINGLE_ENDED) != HAL_OK)
{
Error_Handler();
}

if (HAL_ADC_Start_DMA(&hadc1, (uint32_t *)adc1_dmabuff, adc1_buff_Size) != HAL_OK)
{
Error_Handler();
}
if (HAL_ADC_Start_DMA(&hadc2, (uint32_t *)adc2_dmabuff, adc2_buff_Size) != HAL_OK)
{
Error_Handler();
}
if (HAL_ADC_Start_DMA(&hadc3, (uint32_t *)adc3_dmabuff, adc3_buff_Size) != HAL_OK)
{
Error_Handler();
}
}

void HAL_ADC_ConvHalfCpltCallback(ADC_HandleTypeDef* hadc)
{
if(hadc->Instance == ADC1) {
// flag0++;
SCB_InvalidateDCache_by_Addr((uint32_t *) &adc1_dmabuff[0], adc1_buff_Size);
}else if(hadc->Instance == ADC2) {
// flag1++;
SCB_InvalidateDCache_by_Addr((uint32_t *) &adc2_dmabuff[0], adc2_buff_Size);
}
else if(hadc->Instance == ADC3) {
// flag2++;
SCB_InvalidateDCache_by_Addr((uint32_t *) &adc3_dmabuff[0], adc3_buff_Size);
}
}

//ADC的DMA的完成中断回调
void HAL_ADC_ConvCpltCallback(ADC_HandleTypeDef* hadc)
{
uint8_t j;
j=1;
ADC.flag_adc1=j;
ADC.flag_adc2=j;
ADC.flag_adc3=j;
   if(hadc->Instance == ADC1) {
SCB_InvalidateDCache_by_Addr((uint32_t *) &adc1_dmabuff[adc1_buff_Size/2], adc1_buff_Size);
// HAL_ADC_Stop_DMA(&hadc1);//add//sxq3.13
} else if(hadc->Instance == ADC2) {
SCB_InvalidateDCache_by_Addr((uint32_t *) &adc2_dmabuff[adc2_buff_Size/2], adc2_buff_Size);
// HAL_ADC_Stop_DMA(&hadc2);//add//sxq3.13
}else if(hadc->Instance == ADC3) {
SCB_InvalidateDCache_by_Addr((uint32_t *) &adc3_dmabuff[adc3_buff_Size/2], adc3_buff_Size);
// HAL_ADC_Stop_DMA(&hadc3);//add//sxq3.13
}
}

void Scan_ADC(void)
{
uint32_t j;
SCB_DisableDCache();
   if(ADC.flag_adc1==1){ //判断是不是ADC1进入的中断回调
       for(j=0;j<adc1_buff_Size;j++){
           ADC1_VALUE[j]=adc1_dmabuff[j];
ADC.ADC1_V[j]=(float)(ADC1_VALUE[j]*3.3/65536.0);
       }
ADC.flag_adc1=0;
   }
if(ADC.flag_adc2==1)
{
for(j=0;j<adc2_buff_Size;j++){
ADC2_VALUE[j]=adc2_dmabuff[j];
ADC.ADC2_V[j]=(float)(ADC2_VALUE[j]*3.3/65536.0);
       }
ADC.flag_adc2=0;
}
if(ADC.flag_adc3==1)
{
for(j=0;j<adc3_buff_Size;j++){
ADC3_VALUE[j]=adc3_dmabuff[j];
ADC.ADC3_V[j]=(float)(ADC3_VALUE[j]*3.3/4096.0);
       }
ADC.flag_adc3=0;
}
SCB_EnableDCache();
}
/* USER CODE END 1 */

——在adc.c文件中需要注意的地方需要添加代码——在void MX_ADC3_Init(void)结尾的用户可以添加的代码区域添加上。

/* USER CODE BEGIN ADC3_Init 2 */
   //ADD FOR adc3 the //ADC3只能使用BDMA ，数据访问的区域有限定，在0x38000000之后；
   /** Initializes and configures the Region and the memory to be protected */
MPU_Region_InitTypeDef MPU_InitStruct = {0};;
MPU_InitStruct.Enable = MPU_REGION_ENABLE;
MPU_InitStruct.Number = MPU_REGION_NUMBER1;
MPU_InitStruct.BaseAddress = 0x38000000;
MPU_InitStruct.Size = MPU_REGION_SIZE_64KB;
MPU_InitStruct.SubRegionDisable = 0x0;
MPU_InitStruct.TypeExtField = MPU_TEX_LEVEL0;

MPU_InitStruct.AccessPermission = MPU_REGION_FULL_ACCESS;
MPU_InitStruct.IsBufferable = MPU_ACCESS_NOT_BUFFERABLE;
MPU_InitStruct.DisableExec = MPU_INSTRUCTION_ACCESS_ENABLE;
MPU_InitStruct.IsShareable = MPU_ACCESS_SHAREABLE;
MPU_InitStruct.IsCacheable = MPU_ACCESS_CACHEABLE;

HAL_MPU_ConfigRegion(&MPU_InitStruct);

/* USER CODE END ADC3_Init 2 */

——还有一个值得注意的地方——在adc.h中需要添加代码——这一步是因为BDMA的特殊，在D3区域，看参考手册可以知道D3区域地址在0x38000000。需要改变一下它的地址

/* USER CODE BEGIN Includes */
typedef struct {//配置使用的ADC数据存储区域结构体

volatile uint32_t flag_adc1;
volatile uint32_t flag_adc2;
volatile uint32_t flag_adc3;
float ADC1_V[adc1_buff_Size];
float ADC2_V[adc2_buff_Size];
float ADC3_V[adc3_buff_Size];

}ADC_VALUE;
ADC_VALUE ADC;
extern ADC_VALUE ADC;

volatile uint16_t ADC1_VALUE[adc1_buff_Size];
volatile uint16_t ADC2_VALUE[adc2_buff_Size];
volatile uint16_t ADC3_VALUE[adc3_buff_Size];
//32字节对齐(地址+大小)
//adc1_data指定到 AXI SRAM 的0x24000000
//adc3_data指定到 SRAM4 的0x38000000
ALIGN_32BYTES (uint16_t adc1_dmabuff[adc1_buff_Size]) __attribute__((section(".ARM.__at_0x24000080")));
ALIGN_32BYTES (uint16_t adc2_dmabuff[adc2_buff_Size]) __attribute__((section(".ARM.__at_0x24000060")));
ALIGN_32BYTES (uint16_t adc3_dmabuff[adc3_buff_Size]) __attribute__((section(".ARM.__at_0x38000000")));
/* USER CODE END Includes */

extern ADC_HandleTypeDef hadc1;

extern ADC_HandleTypeDef hadc2;

extern ADC_HandleTypeDef hadc3;

/* USER CODE BEGIN Private defines */

/* USER CODE END Private defines */

void MX_ADC1_Init(void);
void MX_ADC2_Init(void);
void MX_ADC3_Init(void);

/* USER CODE BEGIN Prototypes */
void adc_init(void);//头文件声明
void Scan_ADC(void);//头文件声明
