Docker Engine 存储驱动框架

Docker 镜像由一系列层级构成，每一层只存储与前一层的差异，OCI 给出了一个创建层的样例。

在使用 Dockerfile 构建镜像时，每条添加或删除文件的指令都会生成新的层，而其它不更改文件系统的指令只会在 Config 中体现。通过命令行查看镜像的构建过程，只有 SIZE 不为零的才会生成层，所以该 nginx 镜像层数为 7 层：

$ sudo docker image history nginx
IMAGE          CREATED       CREATED BY                                       SIZE      COMMENT
a830707172e8   13 days ago   CMD ["nginx" "-g" "daemon off;"]                 0B        buildkit.dockerfile.v0
<missing>      13 days ago   STOPSIGNAL SIGQUIT                               0B        buildkit.dockerfile.v0
<missing>      13 days ago   EXPOSE map[80/tcp:{}]                            0B        buildkit.dockerfile.v0
<missing>      13 days ago   ENTRYPOINT ["/docker-entrypoint.sh"]             0B        buildkit.dockerfile.v0
<missing>      13 days ago   COPY 30-tune-worker-processes.sh /docker-ent…   4.62kB    buildkit.dockerfile.v0
<missing>      13 days ago   COPY 20-envsubst-on-templates.sh /docker-ent…   3.02kB    buildkit.dockerfile.v0
<missing>      13 days ago   COPY 15-local-resolvers.envsh /docker-entryp…   389B      buildkit.dockerfile.v0
<missing>      13 days ago   COPY 10-listen-on-ipv6-by-default.sh /docker…   2.12kB    buildkit.dockerfile.v0
<missing>      13 days ago   COPY docker-entrypoint.sh / # buildkit           1.62kB    buildkit.dockerfile.v0
<missing>      13 days ago   RUN /bin/sh -c set -x     && groupadd --syst…   118MB     buildkit.dockerfile.v0
<missing>      13 days ago   ENV DYNPKG_RELEASE=1~bookworm                    0B        buildkit.dockerfile.v0
<missing>      13 days ago   ENV PKG_RELEASE=1~bookworm                       0B        buildkit.dockerfile.v0
<missing>      13 days ago   ENV NJS_RELEASE=1~bookworm                       0B        buildkit.dockerfile.v0
<missing>      13 days ago   ENV NJS_VERSION=0.8.10                           0B        buildkit.dockerfile.v0
<missing>      13 days ago   ENV NGINX_VERSION=1.27.5                         0B        buildkit.dockerfile.v0
<missing>      13 days ago   LABEL maintainer=NGINX Docker Maintainers <d…   0B        buildkit.dockerfile.v0
<missing>      13 days ago   # debian.sh --arch 'amd64' out/ 'bookworm' '…   74.8MB    debuerreotype 0.15

查看 nginx 的 manifest 验证层数，其 layers 下的层数同样为 7：

$ docker manifest inspect nginx@sha256:88b3388ea06c7262e410a3ab5c05dc4088b7b39dea569addd8c30766f4f47440
{
	"schemaVersion": 2,
	"mediaType": "application/vnd.oci.image.manifest.v1+json",
	"config": {
		"mediaType": "application/vnd.oci.image.config.v1+json",
		"digest": "sha256:a830707172e8069c09cf6c67a04e23e5a1a332d70a90a54999b76273a928b9ce",
		"size": 8584
	},
	"layers": [
		{
			"mediaType": "application/vnd.oci.image.layer.v1.tar+gzip",
			"digest": "sha256:254e724d77862dc53abbd3bf0e27f9d2f64293909cdd3d0aad6a8fe5a6680659",
			"size": 28227642
		},
		{
			"mediaType": "application/vnd.oci.image.layer.v1.tar+gzip",
			"digest": "sha256:91311529275035c77ef310fe38a81841c8f3e0a324cf6a68d86b36f48a145d0a",
			"size": 44150678
		},
		{
			"mediaType": "application/vnd.oci.image.layer.v1.tar+gzip",
			"digest": "sha256:3e544d53ce49d405a41bd59e97d102d77cc5412a717b3bae2295d237ccdfb706",
			"size": 629
		},
		{
			"mediaType": "application/vnd.oci.image.layer.v1.tar+gzip",
			"digest": "sha256:4f21ed9ac0c04aa7c64ffd32df025f4545ab9f007d175ce82c920903590daec7",
			"size": 955
		},
		{
			"mediaType": "application/vnd.oci.image.layer.v1.tar+gzip",
			"digest": "sha256:d38f2ef2d6f270e6bc87cad48e49a5ec4ebdd2f5d1d4955c4df3780dabbf2393",
			"size": 404
		},
		{
			"mediaType": "application/vnd.oci.image.layer.v1.tar+gzip",
			"digest": "sha256:40a6e9f4e4564bc7213f3983964e76c27e1dc94ceb473f04a8460f5e95e365d1",
			"size": 1208
		},
		{
			"mediaType": "application/vnd.oci.image.layer.v1.tar+gzip",
			"digest": "sha256:d3dc5ec71e9d6d1a06a1740efb4a875b28b102166509c8563c90b48f7c5e0bcb",
			"size": 1398
		}
	],
	"annotations": {
		"com.docker.official-images.bashbrew.arch": "amd64",
		"org.opencontainers.image.base.digest": "sha256:5accafaaf0f2c0a3ee5f2dcd9a5f2ef7ed3089fe4ac6a9fc9b1cf16396571322",
		"org.opencontainers.image.base.name": "debian:bookworm-slim",
		"org.opencontainers.image.created": "2025-04-16T14:50:31Z",
		"org.opencontainers.image.revision": "eaf8875a1967d24cea6ed8b37109075e39ed9e43",
		"org.opencontainers.image.source": "https://github.com/nginx/docker-nginx.git#eaf8875a1967d24cea6ed8b37109075e39ed9e43:mainline/debian",
		"org.opencontainers.image.url": "https://hub.docker.com/_/nginx",
		"org.opencontainers.image.version": "1.27.5"
	}
}

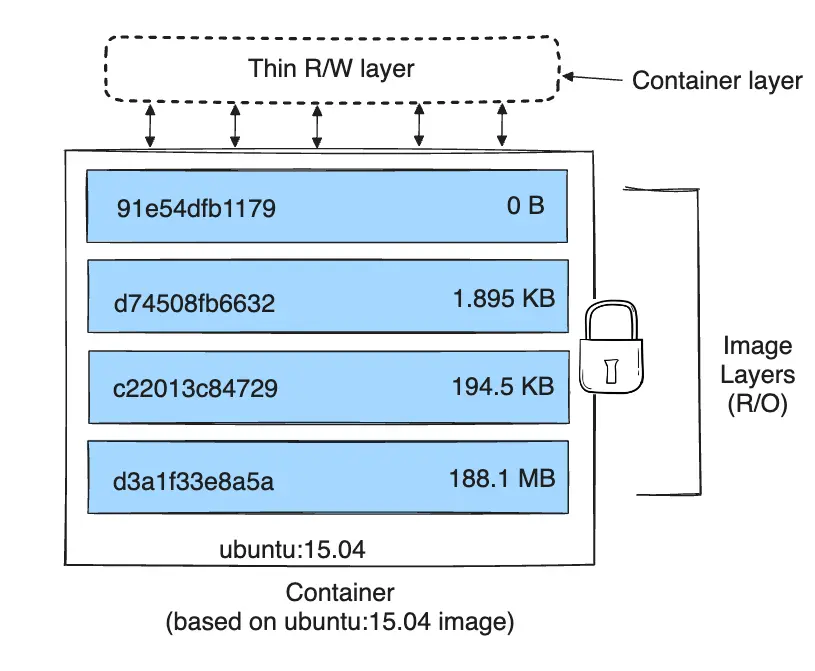

Docker 容器是在 Docker 镜像的基础上添加一个新的可写层，也称为容器层，以保存容器运行期间对文件系统的更改。当容器被删除时，只会删除最上层的可写层，底层镜像保持不变。可以通过命令行查看容器层的大小：

$ sudo docker container ls --size
CONTAINER ID   IMAGE    COMMAND       CREATED        STATUS        PORTS   NAMES            SIZE
0d6a9b00db67   ubuntu   "/bin/bash"   44 hours ago   Up 44 hours           friendly_kalam   792MB (virtual 870MB)

其中 SIZE 792MB 表示容器可写层大小；virtual 870MB 表示容器可写层加容器镜像层的总大小。这些层都存储在 /var/lib/docker/<storage-driver> 下。

未来发展

docker 的定位为容器编排，而镜像和容器的存储功能理应由容器运行时管理。目前已经可以通过修改 dockerd 配置将镜像和容器的存储功能移交给容器运行时 containerd：

$ sudo /etc/docker/daemon.json
{
  "features": {
    "containerd-snapshotter": true
  }
}

此时 dockerd 使用的 Storage Driver 为 containerd 的 overlayfs，其将层存储在 /var/lib/containerd/io.containerd.snapshotter.v1.overlayfs：

$ sudo docker info
......
 Storage Driver: overlayfs
  driver-type: io.containerd.snapshotter.v1
......

如果不做任何配置，dockerd 默认使用的 Storage Driver 为自己的 overlay2 驱动：

$ sudo docker info
......
 Storage Driver: overlay2
  Backing Filesystem: extfs
  Supports d_type: true
  Using metacopy: false
  Native Overlay Diff: true
  userxattr: false
......

参考资料

1. 【文档】Storage drivers
