TSC TTP-244 Pro打印机QT版本开发
一、硬件安装
1、根据官方使用手册和视频正确完成打印机的安装,如果缺乏驱动可以到官网下载。驱动链接:https://pan.baidu.com/s/1puw8f0xKftginOvJjkwrLg 提取码: kgu7

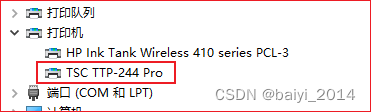

在设备管理器上正确显示TTP-244 Pro打印机即正确安装完毕,如下图:
二、软件安装
1、安装供应商提供的【标签打印软件】【Dlabel云标签】,这个软件适合一般用户使用。
标签打印软件可到我的资源里下载,已上传;
三、QT自定义TSC打印机开发
1、去官网下载对应型号的动态库TSCLIB.dll,官网链接:资料下载 | TSC Printers (chinatsc.cn)

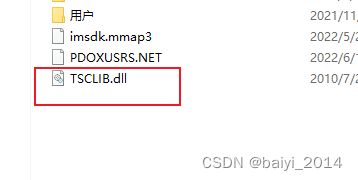

2、根据设备情况,下载64位TTP-244 Pro动态库并解压到C盘;
3、QT版本TTP-244 Pro打印机开发示例代码:
.h
#ifndef MAINWINDOW_H
#define MAINWINDOW_H
#include <QDebug>
#include <QMainWindow>
#include <QPushButton>
#include <QWidget>
namespace Ui {
class MainWindow;
}
class MainWindow : public QMainWindow
{
Q_OBJECT
public:
explicit MainWindow(QWidget *parent = nullptr);
~MainWindow();
private:
Ui::MainWindow *ui;
private slots:
void handleButton();
private:
QPushButton *m_button;
};
#endif // MAINWINDOW_H
.cpp
#include "mainwindow.h"
#include "ui_mainwindow.h"
#include <QDebug>
#include <QLibrary>
#include <QTextCodec>
#include <QByteArray>
#include <QString>
#include "qmessagebox.h"
#include <QMessageBox>
MainWindow::MainWindow(QWidget *parent) :
QMainWindow(parent),
ui(new Ui::MainWindow)
{
ui->setupUi(this);
connect(ui->pushButton, SIGNAL(clicked()), this, SLOT(handleButton()));
}
MainWindow::~MainWindow()
{
delete ui;
}
void MainWindow::handleButton()
{
//QApplication::exit();
ui->pushButton->setText("Example");
int result;
typedef int (*TSCabout)();
typedef int (*TSCopenport)(char*);
typedef int (*TSCsendcommand)(char*);
typedef int (*TSCcloseport)();
typedef int (*TSCnobackfeed)();
//你存放TSCLIB.dll的路径
QLibrary tscdll("C:\\TSCLIB.dll");
if(tscdll.load())
{
TSCabout about=(TSCabout)tscdll.resolve("about"); //add about() function
TSCopenport openport=(TSCopenport)tscdll.resolve("openport"); //add about() function
TSCcloseport closeport=(TSCcloseport)tscdll.resolve("closeport"); //add closeport() function
TSCsendcommand sendcommand=(TSCsendcommand)tscdll.resolve("sendcommand"); //add sendcommand() function
TSCnobackfeed nobackfeed =(TSCnobackfeed)tscdll.resolve("nobackfeed"); //add nobackfeed() function
about();//显示DLL版本号
openport("TSC TTP-244 Pro"); //指定电脑端的输出口
nobackfeed();
sendcommand("SIZE 80 mm. 30 mm");
sendcommand("DIRECTION 1");
sendcommand("CLS");
/*
* TEXT:文本打印指令
* 10 :X坐标
* 150 :Y坐标
* 2 :字体
* 0 :旋转角度
* 1 :放大比例
* 1 :对齐模式
*/
sendcommand("TEXT 10,150,\"2\",0,1,1,\"123456ABCD\"");
sendcommand("BARCODE 100,250, \"128\",70,1,0,2,2, \"123456\"");
/* QRCODE QRCODE左上角X坐标,QRCODE左上角Y坐标,纠错等级,宽度(1~10),模式,角度,条码对齐位置,版本,掩码,最大尺寸,数据内容 */
sendcommand("QRCODE 90,40,H,5,A,0,M2,S7, \"12345ABCED\"");
sendcommand("PRINT 1");
closeport();
}
//hdll.unload();
}
四、常见问题
1、添加的动态库无法使用
答:根据自己的型号去官网下载正确的dll;
2、打印中文乱码问题
答:正确设置编码类型;
