android底部滚轮式选择弹跳框（支持循环滚动）

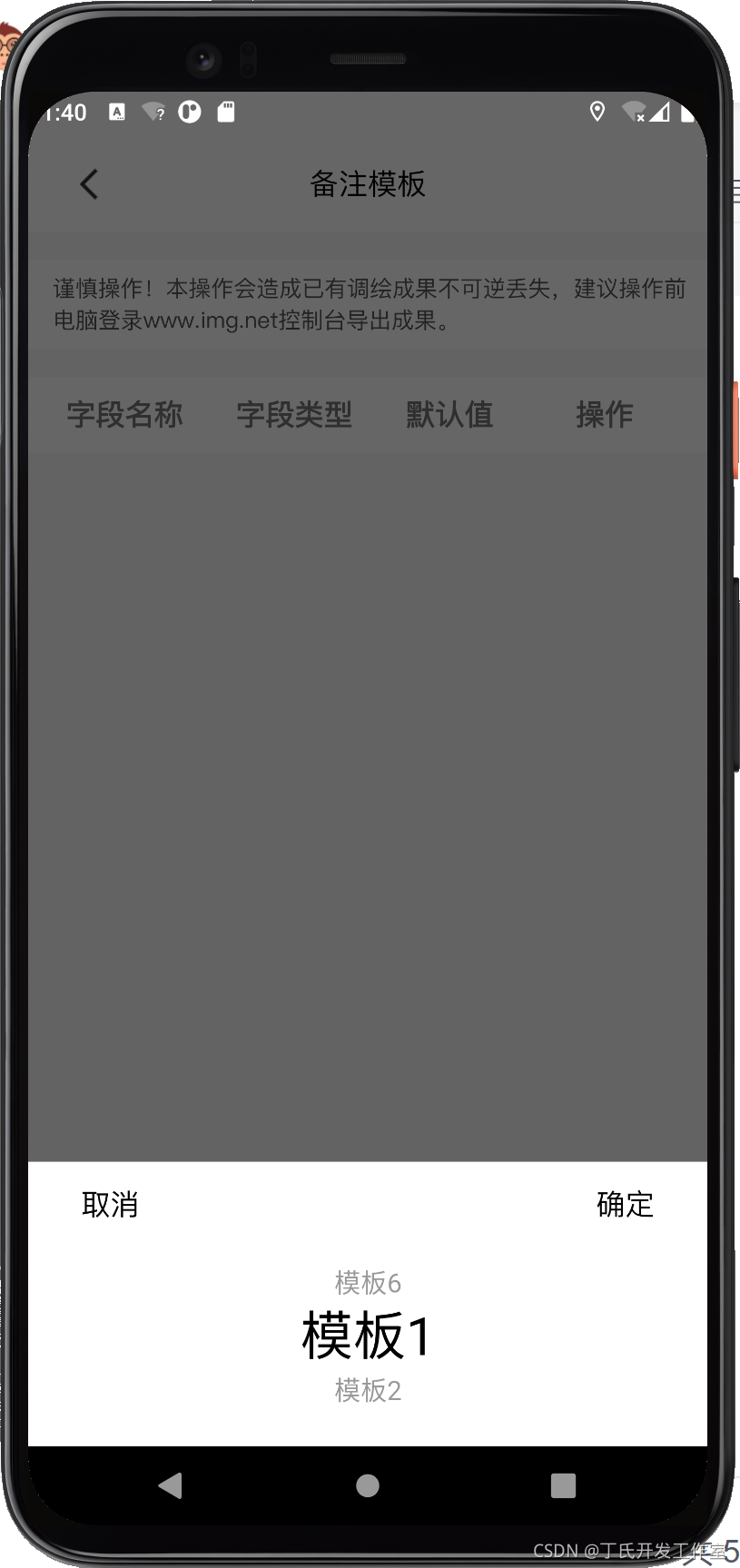

先看效果：

 调用方法：

SlideDialog slideDialog = new SlideDialog(this, list, false, false);
slideDialog.setOnSelectClickListener(new SlideDialog.OnSelectListener() {
      @Override
      public void onCancel() {
          Toast.makeText(GroupFormListActivity.this, "未选择", Toast.LENGTH_SHORT).show();
            }

      @Override
      public void onAgree(String txt) {
          Toast.makeText(GroupFormListActivity.this, "已选中", Toast.LENGTH_SHORT).show();
            }
        });
slideDialog.show();

 自定义SlideDialog

package xxx.xxx.xxx.xxx;

import android.app.Dialog;
import android.content.Context;
import android.os.Bundle;
import android.view.Gravity;
import android.view.View;
import android.view.Window;
import android.view.WindowManager;
import android.widget.TextView;

import androidx.annotation.NonNull;

import com.txh.yunyao.R;
import com.txh.yunyao.common.views.EasyPickerView;

import java.util.ArrayList;
import java.util.List;

/**
 * 底部滑动选择弹跳框
 */
public class SlideDialog extends Dialog {
    private boolean isCancelable = false;
    private boolean isBackCancelable = false;
    private Context mContext;   //上下文
    private List<String> list = new ArrayList<>(0); //数据
    private int selectPos; //默认选中位置
    private OnSelectListener mSelectListener; //监听

    public SlideDialog(@NonNull Context context, int view, List<String> list, boolean isCancelable, boolean isBackCancelable) {
        super(context, R.style.SlideDialog);
        this.mContext = context;
        this.isCancelable = isCancelable;
        this.isBackCancelable = isBackCancelable;
        this.list = list;
        this.selectPos = 0;
    }

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        //设置View
        setContentView(R.layout.select_slide_template);
        //设置点击物理返回键是否可关闭弹框
        setCancelable(isCancelable);
        //设置点击弹框外是否可关闭弹框
        setCanceledOnTouchOutside(isBackCancelable);
        //设置view显示位置
        Window window = this.getWindow();
        window.setGravity(Gravity.BOTTOM);
        WindowManager.LayoutParams params = window.getAttributes();
        params.width = WindowManager.LayoutParams.MATCH_PARENT;
        params.height = WindowManager.LayoutParams.WRAP_CONTENT;
        window.setAttributes(params);
        //初始化控件
        TextView tv_cancel = findViewById(R.id.tv_cancel);
        TextView tv_agree = findViewById(R.id.tv_agree);
        EasyPickerView pickerView = findViewById(R.id.pickerView);
        //取消点击事件
        tv_cancel.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                //取消
                mSelectListener.onCancel();
                dismiss();
            }
        });
        //确认点击事件
        tv_agree.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                //确认
                mSelectListener.onAgree(list.get(selectPos));
                dismiss();
            }
        });
        //设置数据
        pickerView.setDataList(list);
        //监听数据
        pickerView.setOnScrollChangedListener(new EasyPickerView.OnScrollChangedListener() {
            @Override
            public void onScrollChanged(int curIndex) {
                //滚动时选中项发生变化

            }

            @Override
            public void onScrollFinished(int curIndex) {
                //滚动结束
                selectPos = curIndex;

            }
        });

    }

    public interface OnSelectListener {
        //取消
        void onCancel();
        //确认
        void onAgree(String txt);
    }

    public void setOnSelectClickListener(OnSelectListener listener) {
        this.mSelectListener = listener;
    }
}

R.style.SlideDialog

    <style name="SlideDialog" parent="@android:style/Theme.Holo.Dialog">
        <!-- 是否有边框 -->
        <item name="android:windowFrame">@null</item>
        <!--是否在悬浮Activity之上  -->
        <item name="android:windowIsFloating">true</item>
        <!-- 标题 -->
        <item name="android:windowNoTitle">true</item>
        <!--阴影  -->
        <item name="android:windowIsTranslucent">true</item><!--半透明-->
        <!--背景透明-->
        <item name="android:windowBackground">@android:color/transparent</item>
        <!-- 还可以加入一些弹出和退出的动画 (lan)-->
    </style>

 R.layout.select_slide_template

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:background="@color/white"
    android:orientation="vertical">

    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginLeft="@dimen/dp_10"
        android:layout_marginRight="@dimen/dp_10"
        android:paddingTop="@dimen/dp_10"
        android:paddingLeft="@dimen/dp_15"
        android:paddingRight="@dimen/dp_15">

        <TextView
            android:id="@+id/tv_cancel"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="@string/picture_cancel"
            android:padding="3dp"
            android:textColor="@color/black" />

        <TextView
            android:id="@+id/tv_agree"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_alignParentRight="true"
            android:text="@string/picture_confirm"
            android:padding="3dp"
            android:textColor="@color/black" />
    </RelativeLayout>

    <com.txh.yunyao.common.views.EasyPickerView
        android:id="@+id/pickerView"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:epvMaxShowNum="3"
        android:layout_marginBottom="@dimen/dp_15"
        android:layout_marginTop="@dimen/dp_15"
        app:epvTextColor="@color/black"
        app:epvTextPadding="@dimen/dp_10"
        app:epvRecycleMode="true"
        app:epvTextSize="14dp"/>
</LinearLayout>

自定义EasyPickerView支持以下几个属性：
- epvTextSize：字符的大小
- epvTextColor：字符的颜色
- epvTextPadding：字符的间距
- epvTextMaxScale：中间字符缩放的最大值
- epvTextMinAlpha：两端字符最小alpha值
- epvRecycleMode：是否为循环模式
- epvMaxShowNum：显示多少个字符

 自定义EasyPickerView

package xxx.xxx.xxx.xxx.xxx;

import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.text.TextPaint;
import android.util.AttributeSet;
import android.util.TypedValue;
import android.view.MotionEvent;
import android.view.VelocityTracker;
import android.view.View;
import android.view.ViewConfiguration;
import android.widget.Scroller;

import com.txh.yunyao.R;

import java.util.ArrayList;
import java.util.List;

/**
 * 滚轮视图，可设置是否循环模式，实现OnScrollChangedListener接口以监听滚轮变化
 */
public class EasyPickerView extends View {

    // 文字大小
    private int textSize;
    // 颜色，默认Color.BLACK
    private int textColor;
    // 文字之间的间隔，默认10dp
    private int textPadding;
    // 文字最大放大比例，默认2.0f
    private float textMaxScale;
    // 文字最小alpha值，范围0.0f~1.0f，默认0.4f
    private float textMinAlpha;
    // 是否循环模式，默认是
    private boolean isRecycleMode;
    // 正常状态下最多显示几个文字，默认3（偶数时，边缘的文字会截断）
    private int maxShowNum;

    private TextPaint textPaint;
    private Paint.FontMetrics fm;

    private Scroller scroller;
    private VelocityTracker velocityTracker;
    private int minimumVelocity;
    private int maximumVelocity;
    private int scaledTouchSlop;

    // 数据
    private List<String> dataList = new ArrayList<>(0);
    // 中间x坐标
    private int cx;
    // 中间y坐标
    private int cy;
    // 文字最大宽度
    private float maxTextWidth;
    // 文字高度
    private int textHeight;
    // 实际内容宽度
    private int contentWidth;
    // 实际内容高度
    private int contentHeight;

    // 按下时的y坐标
    private float downY;
    // 本次滑动的y坐标偏移值
    private float offsetY;
    // 在fling之前的offsetY
    private float oldOffsetY;
    // 当前选中项
    private int curIndex;
    private int offsetIndex;

    // 回弹距离
    private float bounceDistance;
    // 是否正处于滑动状态
    private boolean isSliding = false;

    public EasyPickerView(Context context) {
        this(context, null);
    }

    public EasyPickerView(Context context, AttributeSet attrs) {
        this(context, attrs, 0);
    }

    public EasyPickerView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);

        TypedArray a = context.getTheme().obtainStyledAttributes(attrs, R.styleable.EasyPickerView, defStyleAttr, 0);
        textSize = a.getDimensionPixelSize(R.styleable.EasyPickerView_epvTextSize, (int) TypedValue.applyDimension(
                TypedValue.COMPLEX_UNIT_SP, 16, getResources().getDisplayMetrics()));
        textColor = a.getColor(R.styleable.EasyPickerView_epvTextColor, Color.BLACK);
        textPadding = a.getDimensionPixelSize(R.styleable.EasyPickerView_epvTextPadding, (int) TypedValue.applyDimension(
                TypedValue.COMPLEX_UNIT_DIP, 20, getResources().getDisplayMetrics()));
        textMaxScale = a.getFloat(R.styleable.EasyPickerView_epvTextMaxScale, 2.0f);
        textMinAlpha = a.getFloat(R.styleable.EasyPickerView_epvTextMinAlpha, 0.4f);
        isRecycleMode = a.getBoolean(R.styleable.EasyPickerView_epvRecycleMode, true);
        maxShowNum = a.getInteger(R.styleable.EasyPickerView_epvMaxShowNum, 3);
        a.recycle();

        textPaint = new TextPaint();
        textPaint.setColor(textColor);
        textPaint.setTextSize(textSize);
        textPaint.setAntiAlias(true);
        fm = textPaint.getFontMetrics();
        textHeight = (int) (fm.bottom - fm.top);

        scroller = new Scroller(context);
        minimumVelocity = ViewConfiguration.get(getContext()).getScaledMinimumFlingVelocity();
        maximumVelocity = ViewConfiguration.get(getContext()).getScaledMaximumFlingVelocity();
        scaledTouchSlop = ViewConfiguration.get(getContext()).getScaledTouchSlop();
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        int mode = MeasureSpec.getMode(widthMeasureSpec);
        int width = MeasureSpec.getSize(widthMeasureSpec);
        contentWidth = (int) (maxTextWidth * textMaxScale + getPaddingLeft() + getPaddingRight());
        if (mode != MeasureSpec.EXACTLY) { // wrap_content
            width = contentWidth;
        }

        mode = MeasureSpec.getMode(heightMeasureSpec);
        int height = MeasureSpec.getSize(heightMeasureSpec);
        contentHeight = textHeight * maxShowNum + textPadding * maxShowNum;
        if (mode != MeasureSpec.EXACTLY) { // wrap_content
            height = contentHeight + getPaddingTop() + getPaddingBottom();
        }

        cx = width / 2;
        cy = height / 2;

        setMeasuredDimension(width, height);
    }

    @Override
    public boolean dispatchTouchEvent(MotionEvent event) {
        getParent().requestDisallowInterceptTouchEvent(true);
        return super.dispatchTouchEvent(event);
    }

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        addVelocityTracker(event);
        switch (event.getAction()) {
            case MotionEvent.ACTION_DOWN:
                if (!scroller.isFinished()) {
                    scroller.forceFinished(true);
                    finishScroll();
                }
                downY = event.getY();
                break;

            case MotionEvent.ACTION_MOVE:
                offsetY = event.getY() - downY;
                if (isSliding || Math.abs(offsetY) > scaledTouchSlop) {
                    isSliding = true;
                    reDraw();
                }
                break;

            case MotionEvent.ACTION_UP:
                int scrollYVelocity = 2 * getScrollYVelocity() / 3;
                if (Math.abs(scrollYVelocity) > minimumVelocity) {
                    oldOffsetY = offsetY;
                    scroller.fling(0, 0, 0, scrollYVelocity, 0, 0, -Integer.MAX_VALUE, Integer.MAX_VALUE);
                    invalidate();
                } else {
                    finishScroll();
                }

                // 没有滑动，则判断点击事件
                if (!isSliding) {
                    if (downY < contentHeight / 3)
                        moveBy(-1);
                    else if (downY > 2 * contentHeight / 3)
                        moveBy(1);
                }

                isSliding = false;
                recycleVelocityTracker();
                break;
        }
        return true;
    }

    @Override
    protected void onDraw(Canvas canvas) {
        if (null != dataList && dataList.size() > 0) {
            canvas.clipRect(
                    cx - contentWidth / 2,
                    cy - contentHeight / 2,
                    cx + contentWidth / 2,
                    cy + contentHeight / 2
            );

            // 绘制文字，从当前中间项往前、后一共绘制maxShowNum个字
            int size = dataList.size();
            int centerPadding = textHeight + textPadding;
            int half = maxShowNum / 2 + 1;
            for (int i = -half; i <= half; i++) {
                int index = curIndex - offsetIndex + i;

                if (isRecycleMode) {
                    if (index < 0)
                        index = (index + 1) % dataList.size() + dataList.size() - 1;
                    else if (index > dataList.size() - 1)
                        index = index % dataList.size();
                }

                if (index >= 0 && index < size) {
                    // 计算每个字的中间y坐标
                    int tempY = cy + i * centerPadding;
                    tempY += offsetY % centerPadding;

                    // 根据每个字中间y坐标到cy的距离，计算出scale值
                    float scale = 1.0f - (1.0f * Math.abs(tempY - cy) / centerPadding);

                    // 根据textMaxScale，计算出tempScale值，即实际text应该放大的倍数，范围 1~textMaxScale
                    float tempScale = scale * (textMaxScale - 1.0f) + 1.0f;
                    tempScale = tempScale < 1.0f ? 1.0f : tempScale;

                    // 计算文字alpha值
                    float textAlpha = textMinAlpha;
                    if (textMaxScale != 1) {
                        float tempAlpha = (tempScale - 1) / (textMaxScale - 1);
                        textAlpha = (1 - textMinAlpha) * tempAlpha + textMinAlpha;
                    }

                    textPaint.setTextSize(textSize * tempScale);
                    textPaint.setAlpha((int) (255 * textAlpha));

                    // 绘制
                    Paint.FontMetrics tempFm = textPaint.getFontMetrics();
                    String text = dataList.get(index);
                    float textWidth = textPaint.measureText(text);
                    canvas.drawText(text, cx - textWidth / 2, tempY - (tempFm.ascent + tempFm.descent) / 2, textPaint);
                }
            }
        }
    }

    @Override
    public void computeScroll() {
        if (scroller.computeScrollOffset()) {
            offsetY = oldOffsetY + scroller.getCurrY();

            if (!scroller.isFinished())
                reDraw();
            else
                finishScroll();
        }
    }

    private void addVelocityTracker(MotionEvent event) {
        if (velocityTracker == null)
            velocityTracker = VelocityTracker.obtain();

        velocityTracker.addMovement(event);
    }

    private void recycleVelocityTracker() {
        if (velocityTracker != null) {
            velocityTracker.recycle();
            velocityTracker = null;
        }
    }

    private int getScrollYVelocity() {
        velocityTracker.computeCurrentVelocity(1000, maximumVelocity);
        int velocity = (int) velocityTracker.getYVelocity();
        return velocity;
    }

    private void reDraw() {
        // curIndex需要偏移的量
        int i = (int) (offsetY / (textHeight + textPadding));
        if (isRecycleMode || (curIndex - i >= 0 && curIndex - i < dataList.size())) {
            if (offsetIndex != i) {
                offsetIndex = i;

                if (null != onScrollChangedListener)
                    onScrollChangedListener.onScrollChanged(getNowIndex(-offsetIndex));
            }
            postInvalidate();
        } else {
            finishScroll();
        }
    }

    private void finishScroll() {
        // 判断结束滑动后应该停留在哪个位置
        int centerPadding = textHeight + textPadding;
        float v = offsetY % centerPadding;
        if (v > 0.5f * centerPadding)
            ++offsetIndex;
        else if (v < -0.5f * centerPadding)
            --offsetIndex;

        // 重置curIndex
        curIndex = getNowIndex(-offsetIndex);

        // 计算回弹的距离
        bounceDistance = offsetIndex * centerPadding - offsetY;
        offsetY += bounceDistance;

        // 更新
        if (null != onScrollChangedListener)
            onScrollChangedListener.onScrollFinished(curIndex);

        // 重绘
        reset();
        postInvalidate();
    }

    private int getNowIndex(int offsetIndex) {
        int index = curIndex + offsetIndex;
        if (isRecycleMode) {
            if (index < 0)
                index = (index + 1) % dataList.size() + dataList.size() - 1;
            else if (index > dataList.size() - 1)
                index = index % dataList.size();
        } else {
            if (index < 0)
                index = 0;
            else if (index > dataList.size() - 1)
                index = dataList.size() - 1;
        }
        return index;
    }

    private void reset() {
        offsetY = 0;
        oldOffsetY = 0;
        offsetIndex = 0;
        bounceDistance = 0;
    }

    /**
     * 设置要显示的数据
     *
     * @param dataList 要显示的数据
     */
    public void setDataList(List<String> dataList) {
        this.dataList.clear();
        this.dataList.addAll(dataList);

        // 更新maxTextWidth
        if (null != dataList && dataList.size() > 0) {
            int size = dataList.size();
            for (int i = 0; i < size; i++) {
                float tempWidth = textPaint.measureText(dataList.get(i));
                if (tempWidth > maxTextWidth)
                    maxTextWidth = tempWidth;
            }
            curIndex = 0;
        }
        requestLayout();
        invalidate();
    }

    /**
     * 获取当前状态下，选中的下标
     *
     * @return 选中的下标
     */
    public int getCurIndex() {
        return getNowIndex(-offsetIndex);
    }

    /**
     * 滚动到指定位置
     *
     * @param index 需要滚动到的指定位置
     */
    public void moveTo(int index) {
        if (index < 0 || index >= dataList.size() || curIndex == index)
            return;

        if (!scroller.isFinished())
            scroller.forceFinished(true);

        finishScroll();

        int dy = 0;
        int centerPadding = textHeight + textPadding;
        if (!isRecycleMode) {
            dy = (curIndex - index) * centerPadding;
        } else {
            int offsetIndex = curIndex - index;
            int d1 = Math.abs(offsetIndex) * centerPadding;
            int d2 = (dataList.size() - Math.abs(offsetIndex)) * centerPadding;

            if (offsetIndex > 0) {
                if (d1 < d2)
                    dy = d1; // ascent
                else
                    dy = -d2; // descent
            } else {
                if (d1 < d2)
                    dy = -d1; // descent
                else
                    dy = d2; // ascent
            }
        }
        scroller.startScroll(0, 0, 0, dy, 500);
        invalidate();
    }

    /**
     * 滚动指定的偏移量
     *
     * @param offsetIndex 指定的偏移量
     */
    public void moveBy(int offsetIndex) {
        moveTo(getNowIndex(offsetIndex));
    }

    /**
     * 滚动发生变化时的回调接口
     */
    public interface OnScrollChangedListener {
        public void onScrollChanged(int curIndex);

        public void onScrollFinished(int curIndex);
    }

    private OnScrollChangedListener onScrollChangedListener;

    public void setOnScrollChangedListener(OnScrollChangedListener onScrollChangedListener) {
        this.onScrollChangedListener = onScrollChangedListener;
    }
}

attrs中 EasyPickerView配置

<declare-styleable name="EasyPickerView">
    <attr name="epvTextSize" format="dimension"/>
    <attr name="epvTextColor" format="color"/>
    <attr name="epvTextPadding" format="dimension"/>
    <attr name="epvTextMaxScale" format="float"/>
    <attr name="epvTextMinAlpha" format="float"/>
    <attr name="epvRecycleMode" format="boolean"/>
    <attr name="epvMaxShowNum" format="integer"/>
</declare-styleable>

 注：如有帮助请点点关注，如有疑问请留言。
