在内核中,如果要hook某个函数,有三种方法,
1. 修改syscall table
2.替换对象指针
3. inline hook 只要把函数开头的5个字节替换成call/jmp指令.
前两种比较简单,这里记录下inline hook的实现过程.

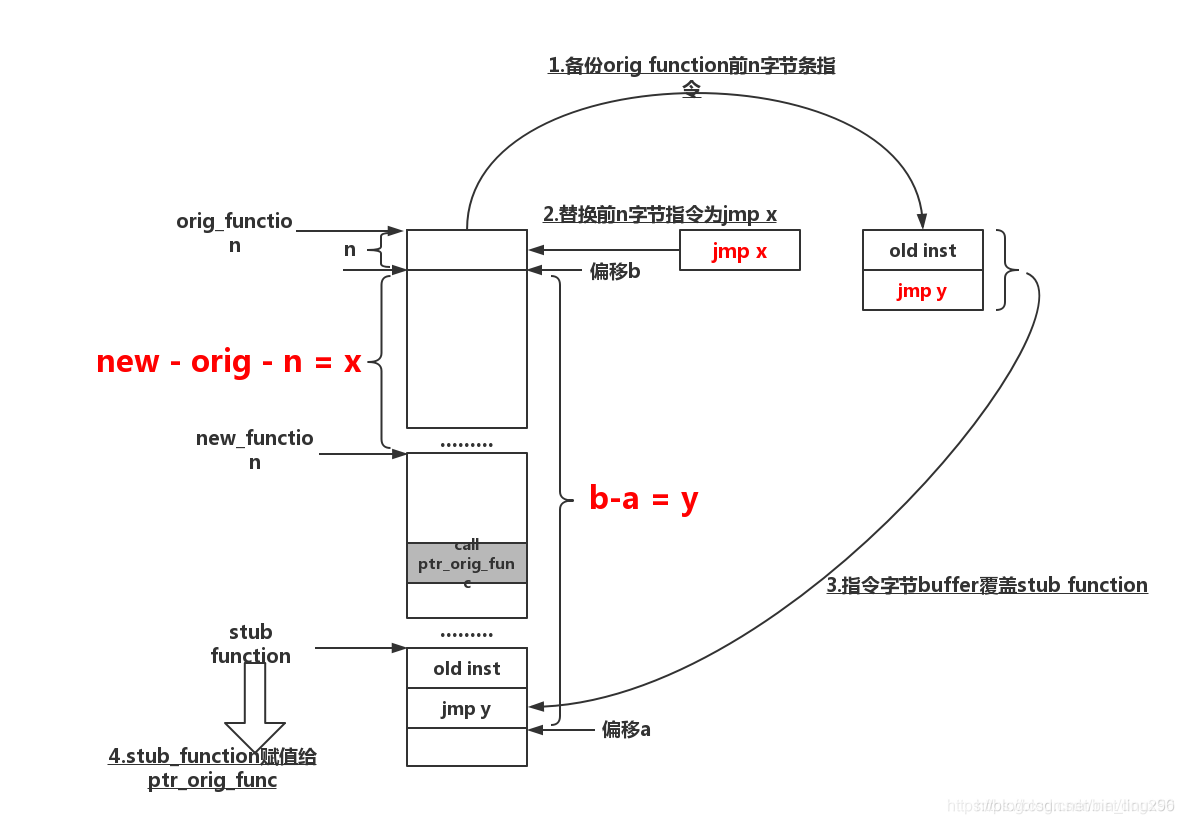

步骤
1. 保存orig 函数的前5个字节指令.
2.定义一个stub函数,用于跳转回orig函数.
3.在新函数中,调用stub函数.
具体实现
#include<linux/module.h>
#include<linux/printk.h>
#include<linux/kobject.h>
#include<linux/kernel.h>
#include<asm/unistd_64.h>
#include<linux/syscalls.h>
#include<linux/delay.h>
#include<linux/kallsyms.h>
#include<asm/syscall.h>
#include<asm/paravirt.h>
#include <asm/nops.h>
#include <linux/net.h>
#include <linux/in.h>
#include <net/tcp.h>
#include <net/udp.h>
#include <linux/init.h>
#include <asm/insn.h>
typedef void *(*text_poke_t)(void *addr, const void *opcode, size_t len);
typedef void (*insn_init_t)(struct insn *insn, const void *kaddr, int buf_len, int x86_64);
typedef void (*insn_get_len_t)(struct insn *insn);
static int (*orig_ip_rcv)(struct sk_buff *skb, struct net_device *dev, struct packet_type *pt,
struct net_device *orig_dev) ;
static int stub_ip_rcv(struct sk_buff *skb, struct net_device *dev, struct packet_type *pt,
struct net_device *orig_dev)
{
printk("stub\n");
asm("nop;nop;nop;nop;nop;nop;nop;nop;nop;nop;nop;nop;nop");
return 0;
}
static int hook_ip_rcv(struct sk_buff *skb, struct net_device *dev, struct packet_type *pt,
struct net_device *orig_dev)
{
printk(KERN_ERR"I'm hook function\n");
return stub_ip_rcv(skb,dev,pt,orig_dev);
}
static char save_ip[15];
static char jump_ip[15];
#define JUMP_LEN (5)
static int save_len = 0;
text_poke_t poke_fun = NULL ;
static int __init rootkits_lkm_init(void)
{
int ret = 0;
int len = 0;
int * tmp = 0;
char * tmp1 = NULL;
insn_init_t ins_init ;
insn_get_len_t ins_get_len ;
struct insn ins ;
text_poke_t text_poke = kallsyms_lookup_name("text_poke");
if(!text_poke){
printk(KERN_ERR"get text poke error\n");
return 0;
}
ins_init = kallsyms_lookup_name("insn_init");
ins_get_len = kallsyms_lookup_name("insn_get_length");
if(!ins_init||!ins_get_len){
printk("get insn error\n");
return 0;
}
orig_ip_rcv = kallsyms_lookup_name("ip_rcv");
/* jump offset */
jump_ip[0] = 0xe9 ;
tmp = (int *)&jump_ip[1] ;
/*offset = to_ip - (from_ip+JUMP_LEN) */
*tmp = (unsigned long )hook_ip_rcv - ((unsigned long)orig_ip_rcv+JUMP_LEN);
/* Get first instrucion len*/
while(ret<JUMP_LEN){
ins_init(&ins,orig_ip_rcv+ret,15,1);
ins_get_len(&ins);
ret +=ins.length ;
}
len = ret ;
memcpy(save_ip,orig_ip_rcv,len);
tmp1 = (char *)orig_ip_rcv ;
printk(KERN_ERR"We get len = %d [%x]\n",len,*tmp1) ;
for(ret=0;ret<len;ret++)
printk(KERN_ERR"[%x]",*(tmp1+ret));
/*offset = to_ip - (from_ip+JUMP_LEN) */
ret = ((unsigned long)orig_ip_rcv+len) - ((unsigned long)stub_ip_rcv+JUMP_LEN+len);
save_ip[len] = 0xe9 ;
tmp = (int *)&save_ip[len+1] ;
*tmp = ret ;
text_poke(stub_ip_rcv,save_ip,JUMP_LEN+len);
text_poke(orig_ip_rcv,jump_ip,JUMP_LEN);
poke_fun = text_poke ;
save_len = len ;
return 0;
}
static void __exit root_kits_lkm_uninit(void)
{
printk("hell world lsm uninit\n");
poke_fun(orig_ip_rcv,save_ip,save_len);
}
module_init(rootkits_lkm_init);
module_exit(root_kits_lkm_uninit);
MODULE_LICENSE("GPL");
给函数插入指令
扫描函数所有的指令序列
校准针对函数外部的相对寻址的指令(call/jmp),使其操作数减去函数搬移的偏移值
offset = function_A - stub_B + offset
注意事项:
1. 如果不使用text_poke接口,需要手动对ip_rcv的内存进行重新映射,让内存变为可写,或者直接禁止CR0写保护
2. stub函数和orig function需要在2G范围内。
3.如果时给内核函数插入指令,需要校准相对偏移
校准针对函数外部的相对寻址的指令(call/jmp),使其操作数减去函数搬移的偏移值
offset_B = function_A - stub_B + offset_A
