RadioGroup嵌套Layout再放RadioButton

1. InclusiveRadioGroup

public class InclusiveRadioGroup extends LinearLayout {
    // holds the checked id; the selection is empty by default
    private int mCheckedId = -1;
    // tracks children radio buttons checked state
    private CompoundButton.OnCheckedChangeListener mChildOnCheckedChangeListener;
    // when true, mOnCheckedChangeListener discards events
    private boolean mProtectFromCheckedChange = false;
    private OnCheckedChangeListener mOnCheckedChangeListener;
    private PassThroughHierarchyChangeListener mPassThroughListener;

    /**
     * {@inheritDoc}
     */
    public InclusiveRadioGroup(Context context) {
        super(context);
        setOrientation(VERTICAL);
        init();
    }

    /**
     * {@inheritDoc}
     */
    public InclusiveRadioGroup(Context context, AttributeSet attrs) {
        super(context, attrs);
        init();
    }

    private void init() {
        mChildOnCheckedChangeListener = new CheckedStateTracker();
        mPassThroughListener = new PassThroughHierarchyChangeListener();
        super.setOnHierarchyChangeListener(mPassThroughListener);
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public void setOnHierarchyChangeListener(OnHierarchyChangeListener listener) {
        // the user listener is delegated to our pass-through listener
        mPassThroughListener.mOnHierarchyChangeListener = listener;
    }

    /**
     * set the default checked radio button, without notification the listeners
     * @param mCheckedId the default checked radio button's id, if none use -1
     */
    public void setCheckWithoutNotif(int id){
        if (id != -1 && (id == mCheckedId)) {
            return;
        }

        mProtectFromCheckedChange = true;
        if (mCheckedId != -1) {
            setCheckedStateForView(mCheckedId, false);
        }

        if (id != -1) {
        	setCheckedStateForView(id, true);
        }

        mCheckedId = id;
		mProtectFromCheckedChange = false;
    }

    @Override
    public void addView(View child, int index, ViewGroup.LayoutParams params) {
    	List<RadioButton> btns = getAllRadioButton(child);
    	if(btns != null && btns.size() > 0){
    		for(RadioButton button : btns){
    			if (button.isChecked()) {
        			mProtectFromCheckedChange = true;
        			if (mCheckedId != -1) {
        				setCheckedStateForView(mCheckedId, false);
        			}
        			mProtectFromCheckedChange = false;
        			setCheckedId(button.getId());
        		}
    		}
    	}
        super.addView(child, index, params);
    }

    /**
     * get all radio buttons which are in the view
     * @param child
     */
    private List<RadioButton> getAllRadioButton(View child){
    	List<RadioButton> btns = new ArrayList<>();
    	if (child instanceof RadioButton) {
    		btns.add((RadioButton) child);
    	}else if(child instanceof ViewGroup){
    		int counts = ((ViewGroup) child).getChildCount();
    		for(int i = 0; i < counts; i++){
    			btns.addAll(getAllRadioButton(((ViewGroup) child).getChildAt(i)));
    		}
    	}
    	return btns;
    }

    /**
     * <p>Sets the selection to the radio button whose identifier is passed in
     * parameter. Using -1 as the selection identifier clears the selection;
     * such an operation is equivalent to invoking {@link #clearCheck()}.</p>
     *
     * @param id the unique id of the radio button to select in this group
     *
     * @see #getCheckedRadioButtonId()
     * @see #clearCheck()
     */
    public void check(int id) {
        // don't even bother
        if (id != -1 && (id == mCheckedId)) {
            return;
        }

        if (mCheckedId != -1) {
            setCheckedStateForView(mCheckedId, false);
        }

        if (id != -1) {
            setCheckedStateForView(id, true);
        }

        setCheckedId(id);
    }

    private void setCheckedId(int id) {
        mCheckedId = id;
        if (mOnCheckedChangeListener != null) {
            mOnCheckedChangeListener.onCheckedChanged(this, mCheckedId);
        }
    }

    private void setCheckedStateForView(int viewId, boolean checked) {
        View checkedView = findViewById(viewId);
        if (checkedView != null && checkedView instanceof RadioButton) {
            ((RadioButton) checkedView).setChecked(checked);
        }
    }

    /**
     * <p>Returns the identifier of the selected radio button in this group.
     * Upon empty selection, the returned value is -1.</p>
     *
     * @return the unique id of the selected radio button in this group
     *
     * @see #check(int)
     * @see #clearCheck()
     *
     * @attr ref android.R.styleable#MyRadioGroup_checkedButton
     */
    public int getCheckedRadioButtonId() {
        return mCheckedId;
    }

    /**
     * <p>Clears the selection. When the selection is cleared, no radio button
     * in this group is selected and {@link #getCheckedRadioButtonId()} returns
     * null.</p>
     *
     * @see #check(int)
     * @see #getCheckedRadioButtonId()
     */
    public void clearCheck() {
        check(-1);
    }

    /**
     * <p>Register a callback to be invoked when the checked radio button
     * changes in this group.</p>
     *
     * @param listener the callback to call on checked state change
     */
    public void setOnCheckedChangeListener(OnCheckedChangeListener listener) {
        mOnCheckedChangeListener = listener;
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public LayoutParams generateLayoutParams(AttributeSet attrs) {
        return new LayoutParams(getContext(), attrs);
    }

    /**
     * {@inheritDoc}
     */
    @Override
    protected boolean checkLayoutParams(ViewGroup.LayoutParams p) {
        return p instanceof LayoutParams;
    }

    @Override
    protected LinearLayout.LayoutParams generateDefaultLayoutParams() {
        return new LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT);
    }

    @Override
    public void onInitializeAccessibilityEvent(AccessibilityEvent event) {
        super.onInitializeAccessibilityEvent(event);
        event.setClassName(InclusiveRadioGroup.class.getName());
    }

    @Override
    public void onInitializeAccessibilityNodeInfo(AccessibilityNodeInfo info) {
        super.onInitializeAccessibilityNodeInfo(info);
        info.setClassName(InclusiveRadioGroup.class.getName());
    }

    /**
     * <p>This set of layout parameters defaults the width and the height of
     * the children to {@link #WRAP_CONTENT} when they are not specified in the
     * XML file. Otherwise, this class ussed the value read from the XML file.</p>
     *
     * <p>See
     * {@link android.R.styleable#LinearLayout_Layout LinearLayout Attributes}
     * for a list of all child view attributes that this class supports.</p>
     *
     */
    public static class LayoutParams extends LinearLayout.LayoutParams {
        /**
         * {@inheritDoc}
         */
        public LayoutParams(Context c, AttributeSet attrs) {
            super(c, attrs);
        }

        /**
         * {@inheritDoc}
         */
        public LayoutParams(int w, int h) {
            super(w, h);
        }

        /**
         * {@inheritDoc}
         */
        public LayoutParams(int w, int h, float initWeight) {
            super(w, h, initWeight);
        }

        /**
         * {@inheritDoc}
         */
        public LayoutParams(ViewGroup.LayoutParams p) {
            super(p);
        }

        /**
         * {@inheritDoc}
         */
        public LayoutParams(MarginLayoutParams source) {
            super(source);
        }

        /**
         * <p>Fixes the child's width to
         * {@link ViewGroup.LayoutParams#WRAP_CONTENT} and the child's
         * height to  {@link ViewGroup.LayoutParams#WRAP_CONTENT}
         * when not specified in the XML file.</p>
         *
         * @param a the styled attributes set
         * @param widthAttr the width attribute to fetch
         * @param heightAttr the height attribute to fetch
         */
        @Override
        protected void setBaseAttributes(TypedArray a,
                int widthAttr, int heightAttr) {

            if (a.hasValue(widthAttr)) {
                width = a.getLayoutDimension(widthAttr, "layout_width");
            } else {
                width = WRAP_CONTENT;
            }

            if (a.hasValue(heightAttr)) {
                height = a.getLayoutDimension(heightAttr, "layout_height");
            } else {
                height = WRAP_CONTENT;
            }
        }
    }

    /**
     * <p>Interface definition for a callback to be invoked when the checked
     * radio button changed in this group.</p>
     */
    public interface OnCheckedChangeListener {
        /**
         * <p>Called when the checked radio button has changed. When the
         * selection is cleared, checkedId is -1.</p>
         *
         * @param group the group in which the checked radio button has changed
         * @param checkedId the unique identifier of the newly checked radio button
         */
        public void onCheckedChanged(InclusiveRadioGroup group, int checkedId);
    }

    private class CheckedStateTracker implements CompoundButton.OnCheckedChangeListener {
        public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) {
            // prevents from infinite recursion
            if (mProtectFromCheckedChange) {
                return;
            }

            mProtectFromCheckedChange = true;
            if (mCheckedId != -1) {
                setCheckedStateForView(mCheckedId, false);
            }
            mProtectFromCheckedChange = false;

            int id = buttonView.getId();
            setCheckedId(id);
        }
    }

    /**
     * <p>A pass-through listener acts upon the events and dispatches them
     * to another listener. This allows the table layout to set its own internal
     * hierarchy change listener without preventing the user to setup his.</p>
     */
    private class PassThroughHierarchyChangeListener implements
            OnHierarchyChangeListener {
        private OnHierarchyChangeListener mOnHierarchyChangeListener;

        /**
         * {@inheritDoc}
         */
        @SuppressLint("NewApi")
		public void onChildViewAdded(View parent, View child) {
            if (parent == InclusiveRadioGroup.this ) {
            	List<RadioButton> btns = getAllRadioButton(child);
            	if(btns != null && btns.size() > 0){
            		for(RadioButton btn : btns){
            			int id = btn.getId();
            			// generates an id if it's missing
            			if (id == View.NO_ID && Build.VERSION.SDK_INT >= Build.VERSION_CODES.JELLY_BEAN_MR1) {
            				id = View.generateViewId();
            				btn.setId(id);
            			}
            			btn.setOnCheckedChangeListener(
            					mChildOnCheckedChangeListener);
            		}
            	}
            }

            if (mOnHierarchyChangeListener != null) {
                mOnHierarchyChangeListener.onChildViewAdded(parent, child);
            }
        }

        /**
         * {@inheritDoc}
         */
        public void onChildViewRemoved(View parent, View child) {
            if (parent == InclusiveRadioGroup.this) {
                List<RadioButton> btns = getAllRadioButton(child);
            	if(btns != null && btns.size() > 0){
            		for(RadioButton btn : btns){
            			btn.setOnCheckedChangeListener(null);
            		}
            	}
            }

            if (mOnHierarchyChangeListener != null) {
                mOnHierarchyChangeListener.onChildViewRemoved(parent, child);
            }
        }
    }
}

2. xml里使用

            <core.base.views.radiobutton.InclusiveRadioGroup
                android:id="@+id/pick_group"
                android:layout_width="match_parent"
                android:layout_height="@dimen/dp_82">


                <androidx.constraintlayout.widget.ConstraintLayout
                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    >


                    <RadioButton
                        android:id="@+id/rb_pass"
                        style="@style/audit_radio_button"
                        android:layout_width="wrap_content"
                        android:layout_height="match_parent"
                        android:text="通过"
                        app:layout_constraintEnd_toStartOf="@+id/rb_change"
                        app:layout_constraintHorizontal_bias="0.5"
                        app:layout_constraintStart_toStartOf="parent" />

                    <RadioButton
                        android:id="@+id/rb_change"
                        style="@style/audit_radio_button"
                        android:layout_width="wrap_content"
                        android:layout_height="match_parent"
                        android:text="打回修改"
                        app:layout_constraintEnd_toStartOf="@+id/rb_fail"
                        app:layout_constraintHorizontal_bias="0.5"
                        app:layout_constraintStart_toEndOf="@+id/rb_pass" />

                    <RadioButton
                        android:id="@+id/rb_fail"
                        style="@style/audit_radio_button"
                        android:layout_width="wrap_content"
                        android:layout_height="match_parent"
                        android:text="无效"
                        app:layout_constraintEnd_toEndOf="parent"
                        app:layout_constraintHorizontal_bias="0.5"
                        app:layout_constraintStart_toEndOf="@+id/rb_change" />

                </androidx.constraintlayout.widget.ConstraintLayout>

            </core.base.views.radiobutton.InclusiveRadioGroup>

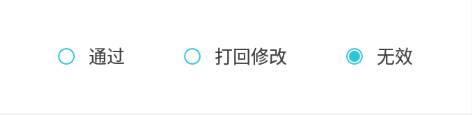

3.出来的效果
