C#从电子秤读取称重数值

    最近公司要从电子秤读取称重数值，然后保存到系统，为了让自己记忆深刻同时方便他人调用，遂将代码整理出来。

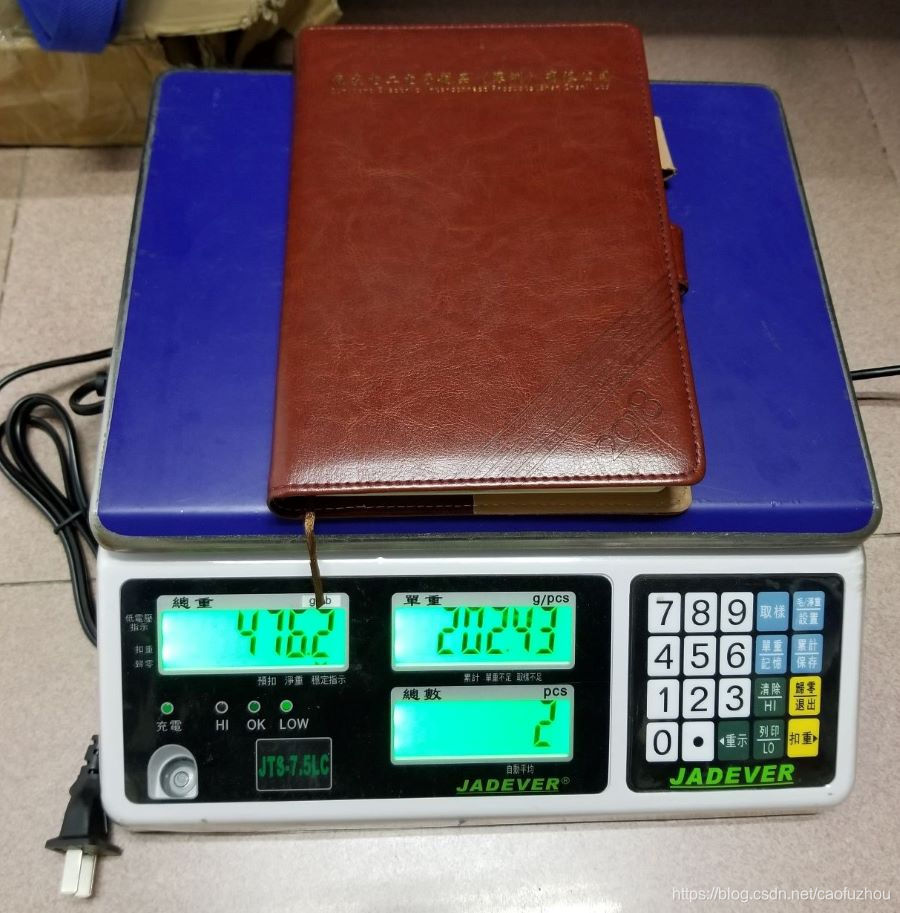

1. 首先展示被读取数据的电子秤

 2. 贴上代码

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.IO.Ports;
using System.Threading;

namespace SerialPortDemo
{
    public partial class Form1 : Form
    {
        private SerialPort com;
        public Form1()
        {
            InitializeComponent();
        }
        private void Form1_Load(object sender, EventArgs e)
        {
            com = new SerialPort("COM1");       //实例化SerialPort并设置COM口
            com.BaudRate = 9600;//波特率
            com.Parity = Parity.None;//无奇偶校验位
            com.StopBits = StopBits.Two;//两个停止位
            com.Handshake = Handshake.RequestToSend;//控制协议
            com.ReceivedBytesThreshold = 13;//设置 DataReceived 事件发生前内部输入缓冲区中的字节数,我这里是13字节为一组
            com.Open();                 //打开串口
            com.DataReceived += new SerialDataReceivedEventHandler(Com_DataReceived);           //接受数据线程
        }

        /// <summary>
        /// 监听串口数据线程
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void Com_DataReceived(object sender, SerialDataReceivedEventArgs e)
        {
            Thread.Sleep(500);//线程休眠500毫秒，方便接收串口的全部数据
            try
            {
                if (com.IsOpen)
                {
                    byte[] readBuffer = new byte[com.ReadBufferSize + 1];
                    try
                    {
                        int count = com.Read(readBuffer, 0, com.ReadBufferSize);        //读取串口数据(监听)
                        String SerialIn = System.Text.Encoding.ASCII.GetString(readBuffer, 0, count);//将字节数组解码为字符串
                        if (count != 0)
                        {
                            //这里强调一下,线程里不可以直接对UI进行赋值，只能使用委托操作控件
                            this.BeginInvoke(new System.Threading.ThreadStart(delegate ()
                            {
                                richTextBox1.Text =SerialIn;
                            }));

                        }
                    }
                    catch (TimeoutException) { }
                }
                else
                {
                    TimeSpan waitTime = new TimeSpan(0, 0, 0, 0, 50);
                    Thread.Sleep(waitTime);
                }
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.ToString());
            }
        }
    }
}

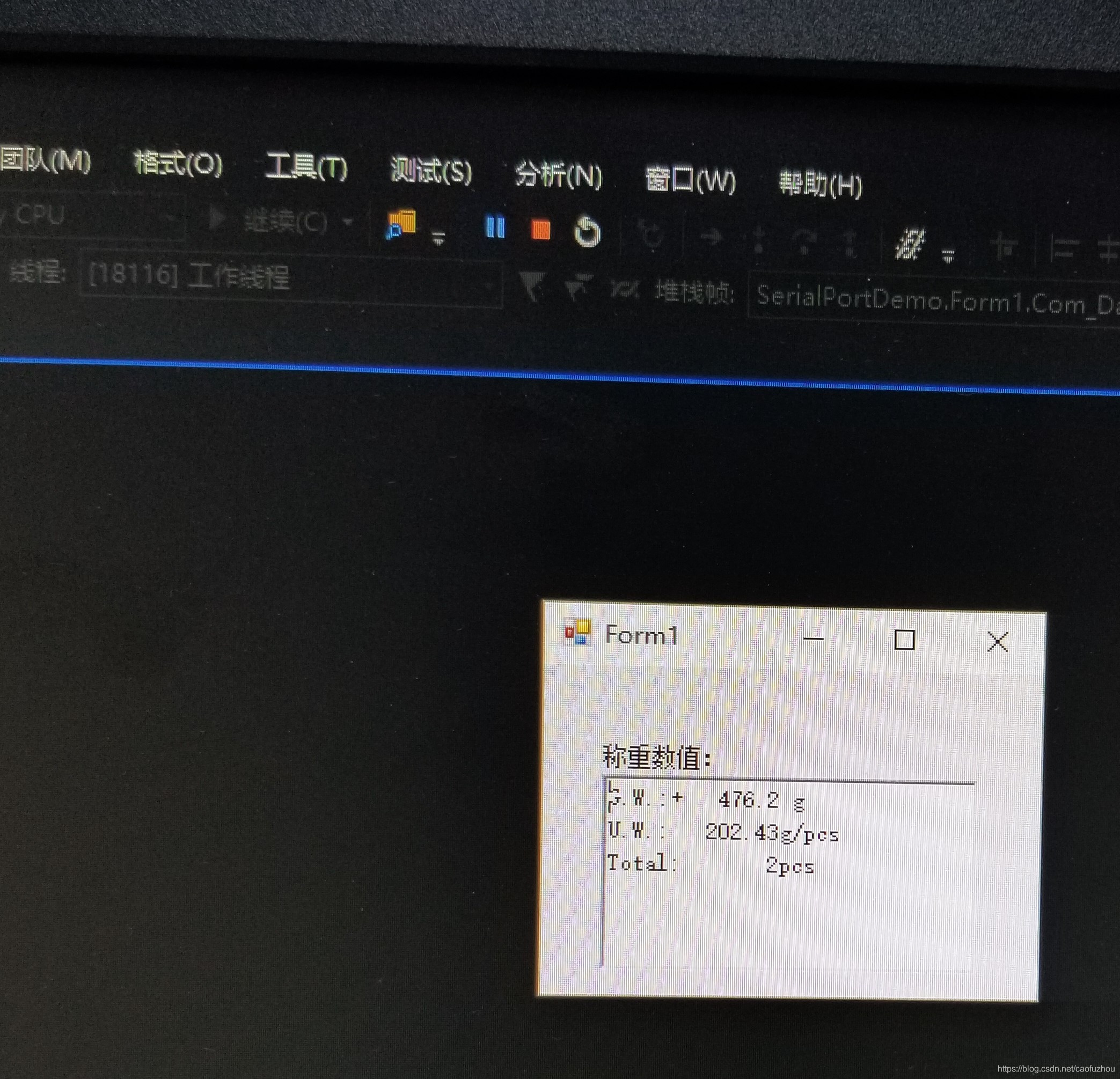

3. 展示程式读取到的电子秤数值

4. 需要注意的是，设置COM口时一定要设置正确，如果读到其它COM口的话，就会出现一堆二进制数字。
