信息安全-openvas安装

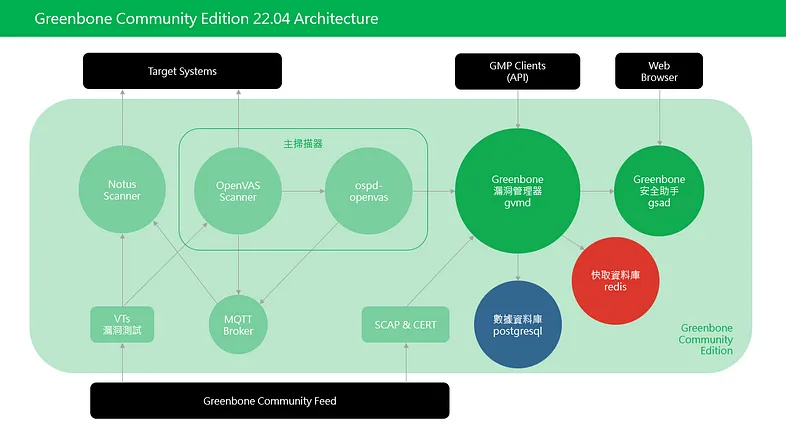

        ‌Openvas是一个开源的漏洞扫描和管理工具，接下来我们要在 Kali Linux 上安裝 OpenVAS，架构图如下。

• Greenbone Vulnerability Manager Daemon (gvmd)：將普通漏洞扫描整合为完整漏洞管理解决方案的中央服务，该服务本身提供基于 XML 的无状态 Greenbone 管理协议 (GMP)，也负责用户管理、角色权限控制以及定期任务和其他事件。
• Greenbone Security Assistant (GSA)：是用戶控制扫描和访问漏洞信息的 Web 介面。
• OpenVAS 扫描仪：由组件 ospd-openvas和 openvas-scanner 所组成的扫描引擎。可针对目标系统执行漏洞测试 (VT) 并将扫描結果通过 ospd 传输到 gvmd。
• Notus 扫描仪：在每次常规扫描后进行扫描，將主机上安装的软件与已知易受攻击的软件列表进行比较，而不是为每个 LSC 運行 VT脚本。因此掃描速度更快，提供了更好的性能。
• Greenbone Community Feed：提供用於檢測現有漏洞的測試和有關其潛在威脅的資訊。

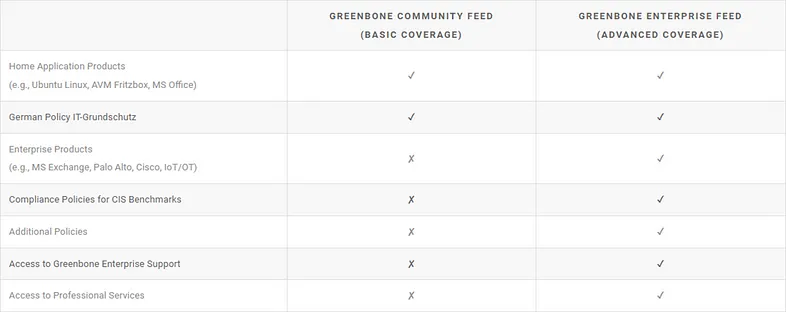

社区版与 企业版 的差异如下

先进行Kali Linux系统更新。

sudo apt update
sudo apt dist-upgrade

OpenVAS 安裝
相比于通过源代码构建，通过 Kali Linux 安裝 OpenVAS 非常简单。

sudo apt install gvm

Greenbone 已经将自家的 OpenVAS 改名为 Greenbone Vulnerability Management (GVM)，避免与市场上的品牌混淆。
Background - Greenbone Community Documentation

Using the term Greenbone Vulnerability Management (GVM) instead of “OpenVAS framework” for the releases.

接下來的安装过程，我们统一使用 GVM 这个名词。

GVM 會幫我們安裝 PostgreSQL 儲存用戶數據與檢驗結果，檢查服務是否正常運行。

sudo systemctl status postgresql.service
sudo systemctl enable postgresql.service

● postgresql.service - PostgreSQL RDBMS
     Loaded: loaded (/lib/systemd/system/postgresql.service; enabled; preset: disabled)
     Active: active (exited) since Fri 2023-06-09 23:23:10 CST; 5 days ago
   Main PID: 753 (code=exited, status=0/SUCCESS)
        CPU: 2ms

GVM 會幫我們安裝 Redis 作為快取使用，檢查服務是否正常運行。

sudo systemctl status redis-server@openvas.service
sudo systemctl enable redis-server@openvas.service

● redis-server@openvas.service - Advanced key-value store (openvas)
     Loaded: loaded (/lib/systemd/system/redis-server@.service; enabled; preset: disabled)
     Active: active (running) since Fri 2023-06-09 23:23:07 CST; 5 days ago
       Docs: http://redis.io/documentation,
             man:redis-server(1)
   Main PID: 696 (redis-server)
     Status: "Ready to accept connections"
      Tasks: 5 (limit: 9470)
     Memory: 263.6M
        CPU: 18min 51.125s
     CGroup: /system.slice/system-redis\x2dserver.slice/redis-server@openvas.service
             └─696 "/usr/bin/redis-server unixsocket:/run/redis-openvas/redis-server.sock"

首先要進行 GVM 的初始設定

sudo gvm-setup

[>] Starting PostgreSQL service

[>] Creating GVM's certificate files

[>] Creating PostgreSQL database

[*] Creating database user

[*] Creating database

[*] Creating permissions
CREATE ROLE

[*] Applying permissions
GRANT ROLE

[*] Creating extension uuid-ossp
CREATE EXTENSION

[*] Creating extension pgcrypto
CREATE EXTENSION

[*] Creating extension pg-gvm
CREATE EXTENSION

[>] Migrating database

[>] Checking for GVM admin user
[*] Creating user admin for gvm
[*] Please note the generated admin password
[*] User created with password '796f5d2b-7792-43a0-aedb-53e563ef4925'.
[*] Configure Feed Import Owner
[*] Define Feed Import Owner

[>] Updating GVM feeds
[*] Updating NVT (Network Vulnerability Tests feed from Greenbone Security Feed/Community Feed)
...(略)...
[+] GVM feeds updated
[*] Checking Default scanner
[*] Modifying Default Scanner
Scanner modified.

[+] Done
[*] Please note the password for the admin user
[*] User created with password '9aceeb89-7cfe-42c6-85bd-c3b9da9ac76a'.

[>] You can now run gvm-check-setup to make sure everything is correctly configured

請務必記住 admin 的密碼，稍後登入頁面會使用到。

運行檢查指令，確認安裝沒有問題。

sudo gvm-check-setup

gvm-check-setup 22.4.1
  Test completeness and readiness of GVM-22.4.1
Step 1: Checking OpenVAS (Scanner)...
        OK: OpenVAS Scanner is present in version 22.4.1.
        OK: Notus Scanner is present in version 22.4.4.
        OK: Server CA Certificate is present as /var/lib/gvm/CA/servercert.pem.
Checking permissions of /var/lib/openvas/gnupg/*
        OK: _gvm owns all files in /var/lib/openvas/gnupg
        OK: redis-server is present.
        OK: scanner (db_address setting) is configured properly using the redis-server socket: /var/run/redis-openvas/redis-server.sock
        OK: redis-server is running and listening on socket: /var/run/redis-openvas/redis-server.sock.
        OK: redis-server configuration is OK and redis-server is running.
        OK: the mqtt_server_uri is defined in /etc/openvas/openvas.conf
        OK: _gvm owns all files in /var/lib/openvas/plugins
        OK: NVT collection in /var/lib/openvas/plugins contains 85636 NVTs.
        OK: The notus directory /var/lib/notus/products contains 430 NVTs.
Checking that the obsolete redis database has been removed
        OK: No old Redis DB
        OK: ospd-OpenVAS is present in version 22.4.6.
Step 2: Checking GVMD Manager ...
        OK: GVM Manager (gvmd) is present in version 22.4.2.
Step 3: Checking Certificates ...
        OK: GVM client certificate is valid and present as /var/lib/gvm/CA/clientcert.pem.
        OK: Your GVM certificate infrastructure passed validation.
Step 4: Checking data ...
        OK: SCAP data found in /var/lib/gvm/scap-data.
        OK: CERT data found in /var/lib/gvm/cert-data.
Step 5: Checking Postgresql DB and user ...
        OK: Postgresql version and default port are OK.
 gvmd      | _gvm     | UTF8     | en_US.UTF-8 | en_US.UTF-8 |            | libc            |
16435|pg-gvm|10|2200|f|22.4.0||
        OK: At least one user exists.
Step 6: Checking Greenbone Security Assistant (GSA) ...
        OK: Greenbone Security Assistant is present in version 22.04.1~git.
Step 7: Checking if GVM services are up and running ...
        Starting ospd-openvas service
        Waiting for ospd-openvas service
        OK: ospd-openvas service is active.
        Starting gvmd service
        Waiting for gvmd service
        OK: gvmd service is active.
        Starting gsad service
        Waiting for gsad service
        OK: gsad service is active.
Step 8: Checking few other requirements...
        OK: nmap is present.
        OK: ssh-keygen found, LSC credential generation for GNU/Linux targets is likely to work.
        OK: nsis found, LSC credential package generation for Microsoft Windows targets is likely to work.
        OK: xsltproc found.
        WARNING: Your password policy is empty.
        SUGGEST: Edit the /etc/gvm/pwpolicy.conf file to set a password policy.
Step 9: Checking greenbone-security-assistant...
        OK: greenbone-security-assistant is installed

It seems like your GVM-22.4.1 installation is OK.

檢查 gvmd 服務是否正常運行

sudo systemctl status gvmd
sudo systemctl enable gvmd

● gvmd.service - Greenbone Vulnerability Manager daemon (gvmd)
     Loaded: loaded (/lib/systemd/system/gvmd.service; enabled; preset: disabled)
     Active: active (running) since Wed 2023-06-14 10:40:43 CST; 1 day 3h ago
       Docs: man:gvmd(8)
   Main PID: 156609 (gvmd)
      Tasks: 1 (limit: 9470)
     Memory: 686.4M
        CPU: 9min 23.961s
     CGroup: /system.slice/gvmd.service
             └─156609 "gvmd: gvmd: Wa" --osp-vt-update=/run/ospd/ospd.sock --listen-group=_gvm

檢查 ospd-openvas 服務是否正常運行

sudo systemctl status ospd-openvas
sudo systemctl enable ospd-openvas

● ospd-openvas.service - OSPd Wrapper for the OpenVAS Scanner (ospd-openvas)
     Loaded: loaded (/lib/systemd/system/ospd-openvas.service; enabled; preset: disabled)
     Active: active (running) since Wed 2023-06-14 10:40:40 CST; 1 day 3h ago
       Docs: man:ospd-openvas(8)
             man:openvas(8)
   Main PID: 156596 (ospd-openvas)
      Tasks: 5 (limit: 9470)
     Memory: 139.2M
        CPU: 7min 35.265s
     CGroup: /system.slice/ospd-openvas.service
             ├─156596 /usr/bin/python3 /usr/bin/ospd-openvas --config /etc/gvm/ospd-openvas.conf --log-config /etc/gvm/ospd-logging.conf
             └─156599 /usr/bin/python3 /usr/bin/ospd-openvas --config /etc/gvm/ospd-openvas.conf --log-config /etc/gvm/ospd-logging.conf

檢查 gsad 服務是否正常運行

sudo systemctl status greenbone-security-assistant
sudo systemctl enable greenbone-security-assistant

● gsad.service - Greenbone Security Assistant daemon (gsad)
     Loaded: loaded (/lib/systemd/system/gsad.service; enabled; preset: disabled)
     Active: active (running) since Wed 2023-06-14 10:40:48 CST; 1 day 3h ago
       Docs: man:gsad(8)
             https://www.greenbone.net
   Main PID: 156644 (gsad)
      Tasks: 5 (limit: 9470)
     Memory: 42.3M
        CPU: 7.085s
     CGroup: /system.slice/gsad.service
             ├─156644 /usr/sbin/gsad --foreground --listen 0.0.0.0 --port 9392
             └─156648 /usr/sbin/gsad --foreground --listen 0.0.0.0 --port 9392

手動更新漏洞資料庫，需要一點時間等它更新完。

sudo gvm-feed-update

[>] Updating GVM feeds

[*] Updating NVT (Network Vulnerability Tests feed from Greenbone Security Feed/Community Feed)
...(略)...
[*] Updating GVMD Data
...(略)...
[*] Updating Scap Data
...(略)...
[*] Updating Cert Data
...(略)...

[+] GVM feeds updated

預設 gsad 只會監聽本機 9392 埠號，只能從本機登入 GVM。

netstat -tnpl | grep LISTEN

(Not all processes could be identified, non-owned process info will not be shown, you would have to be root to see it all.)
tcp        0      0 127.0.0.1:6010          0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:1883          0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:5432          0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:9392          0.0.0.0:*               LISTEN      -
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:80            0.0.0.0:*               LISTEN      -
tcp6       0      0 ::1:6010                :::*                    LISTEN      -
tcp6       0      0 ::1:1883                :::*                    LISTEN      -
tcp6       0      0 :::22                   :::*                    LISTEN      -
tcp6       0      0 ::1:5432                :::*                    LISTEN      -

瀏覽 https://your_gvm_ip:9392 會顯示找不到網頁，對 127.0.0.1 進行 curl 會發現網頁其實是正常運作的。

curl -k https://localhost:9392

<!doctype html>
<html>
   <head>
      <link rel="icon" href="/img/favicon.png" type="image/png"/>
      <title>Greenbone Security Assistant</title>
      <meta charset="UTF-8">
      <meta name="viewport" content="width=device-width,initial-scale=1">
      <script type="text/javascript" src="/config.js"></script><script defer="defer" src="/static/js/main.7232151a.js"></script>
      <link href="/static/css/main.8aca95b1.css" rel="stylesheet">
   </head>
   <body>
      <div id="app"></div>
      <div id="portals"></div>
   </body>
</html>

先關閉 GVM 服務並修改 gsad 服務組態

sudo gvm-stop
sudo vi /lib/systemd/system/greenbone-security-assistant.service

將 127.0.0.1 改為 0.0.0.0，開放外部登入 OpenVAS。

[Unit]
Description=Greenbone Security Assistant daemon (gsad)
Documentation=man:gsad(8) https://www.greenbone.net
After=network.target gvmd.service
Wants=gvmd.service

[Service]
Type=exec
User=_gvm
Group=_gvm
RuntimeDirectory=gsad
RuntimeDirectoryMode=2775
PIDFile=/run/gsad/gsad.pid
ExecStart=/usr/sbin/gsad --foreground --listen 0.0.0.0 --port 9392
Restart=always
TimeoutStopSec=10

[Install]
WantedBy=multi-user.target
Alias=greenbone-security-assistant.service

開啟 GVM 服務

sudo systemctl daemon-reload
sudo gvm-start

確認是否有修改成功

netstat -tnpl | grep LISTEN

(Not all processes could be identified, non-owned process info will not be shown, you would have to be root to see it all.)
tcp        0      0 127.0.0.1:6010          0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:1883          0.0.0.0:*               LISTEN      -
tcp        0      0 0.0.0.0:9392            0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:5432          0.0.0.0:*               LISTEN      -
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      -
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      -
tcp6       0      0 ::1:6010                :::*                    LISTEN      -
tcp6       0      0 ::1:1883                :::*                    LISTEN      -
tcp6       0      0 :::22                   :::*                    LISTEN      -
tcp6       0      0 ::1:5432                :::*                    LISTEN      -

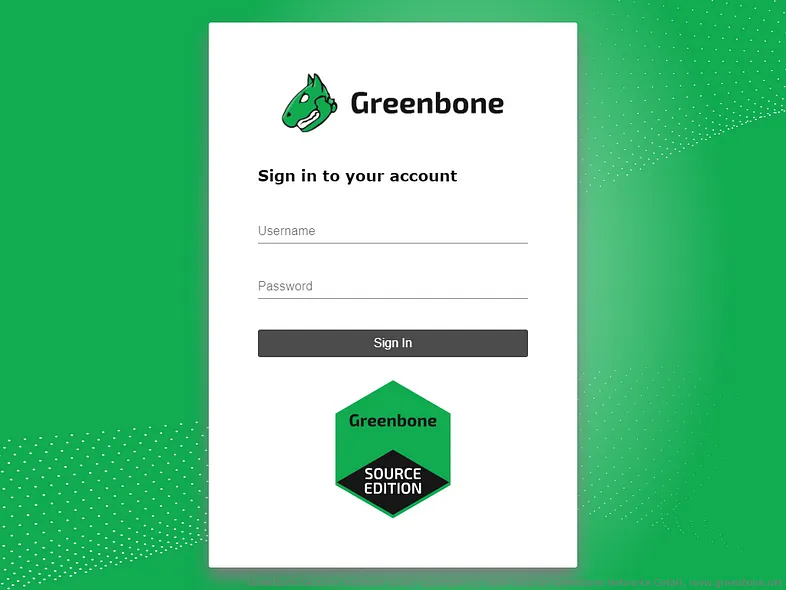

瀏覽 https://your_gvm_ip:9392 終於正常顯示登入頁面

預設帳號為 admin 並輸入 gvm-check-setup 幫我們產生的密碼

[>] Checking for GVM admin user
[*] Creating user admin for gvm
[*] Please note the generated admin password
[*] User created with password '796f5d2b-7792-43a0-aedb-53e563ef4925'.

若真的找不到了，可以使用下列指令重置 admin 密碼。

sudo runuser -u _gvm -- gvmd --user=admin --new-password=your_new_password

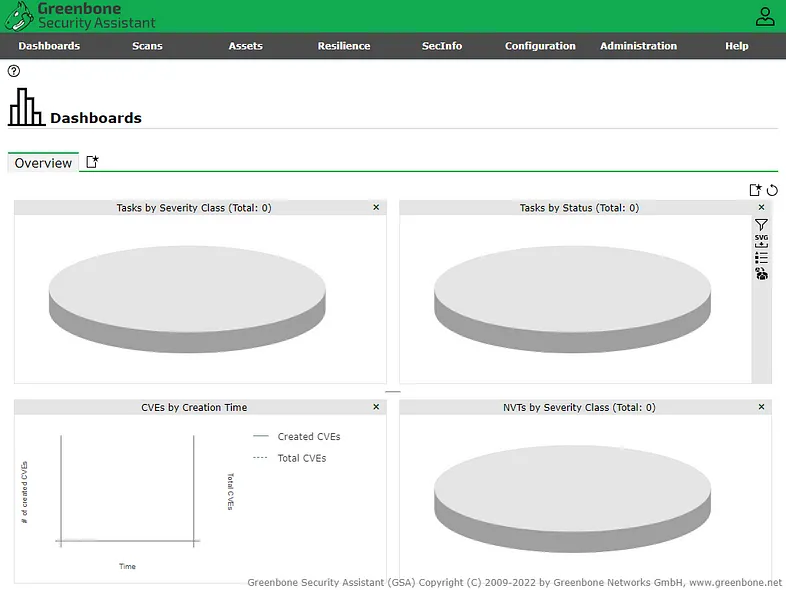

登入後畫面如下

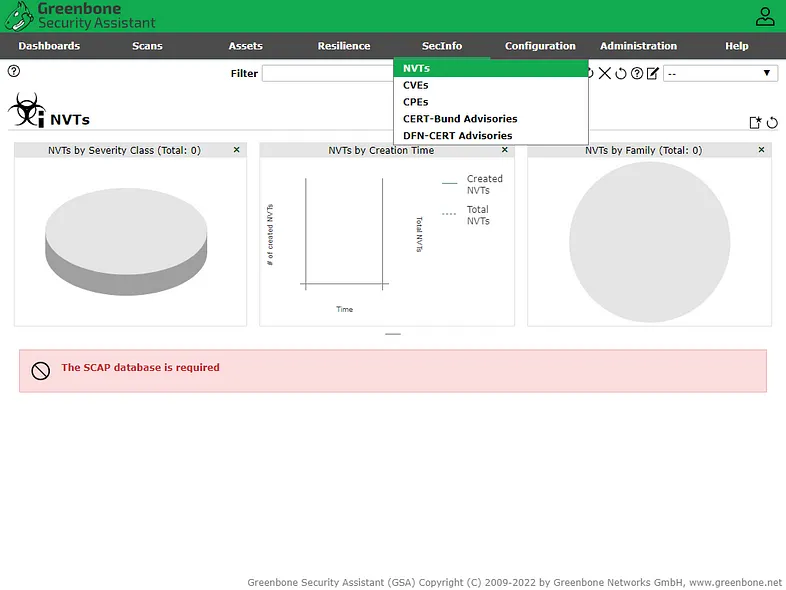

點選 SecInfo 的頁面，錯誤提示 SCAP 資料庫不存在。

手动更新漏洞资料库

sudo gvm-stop
sudo greenbone-feed-sync
sudo reboot

注意 Community 版本对于Feed 更新做了限制，每次只能執行一個 Sync，否則會暫時封鎖來源 IP。

Only one sync per time, otherwise the source ip will be temporarily blocked.
How many times i can sync nvts, scapdata, certdata? - Feed Services (GCF & GSF) - Greenbone Community Forum

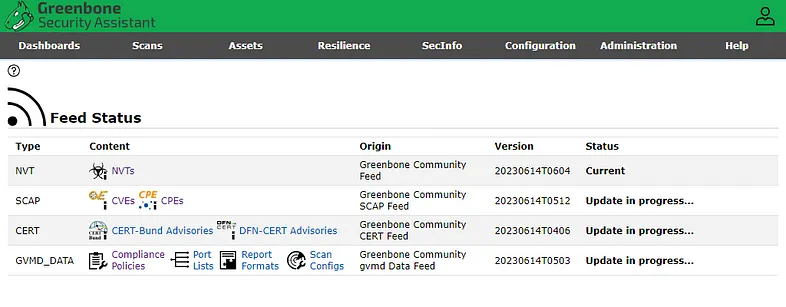

点选 Administration 的 Feed Status 会发现状态为 Update in progress

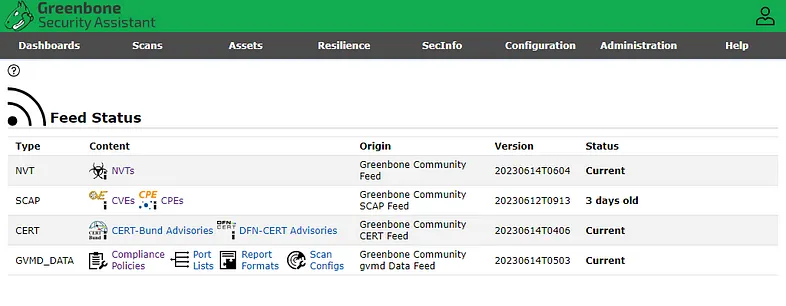

等待一些事件，状态就会变成 Current。

似乎是 Community 版本的关系，SCAP 通常不會是最新，只要狀態不要是 Too Old 就可以了。

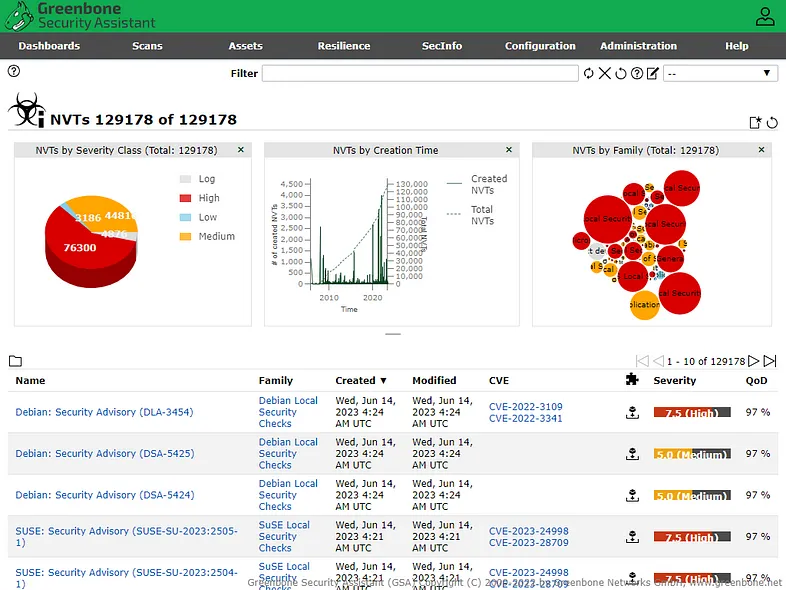

點選 SecInfo 的頁面，可以正常顯示了。

每天更新漏洞資料庫，加入 Crontab 排程。

crontab -e

# For example, you can run a backup of all your user accounts
# at 5 a.m every week with:
# 0 5 * * 1 tar -zcf /var/backups/home.tgz /home/
#
# For more information see the manual pages of crontab(5) and cron(8)
#
# m h  dom mon dow   command
0  0  * * * sudo gvm-feed-update > /tmp/log/greenbone-feed-update.log 2>&1

允許 sudo gvm-feed-update 不用輸入密碼

sudo -i
cp /etc/sudoers /root/sudoers.bak
visudo

在檔案底部添加下列這行即可

your_account_name ALL=(ALL) NOPASSWD: /usr/bin/gvm-feed-update

安裝的部分到這邊就完成了，下一篇我們將介紹如何使用 GVM 進行弱點掃描，感謝收看。
