.Net MAUI 如何创建一个MAUI程序(保姆级教程)附图超详细~

先决条件

  • Visual Studio 2022 17.8 或更高版本,并安装了 .NET Multi-platform App UI 工作负载

创建应用

在本教程中,你将在 Visual Studio 2022 中创建第一个 .NET MAUI 应用并在 Windows 上运行它:

  1. 启动 Visual Studio 2022。 在开始窗口中,单击“创建新项目”以创建新项目:

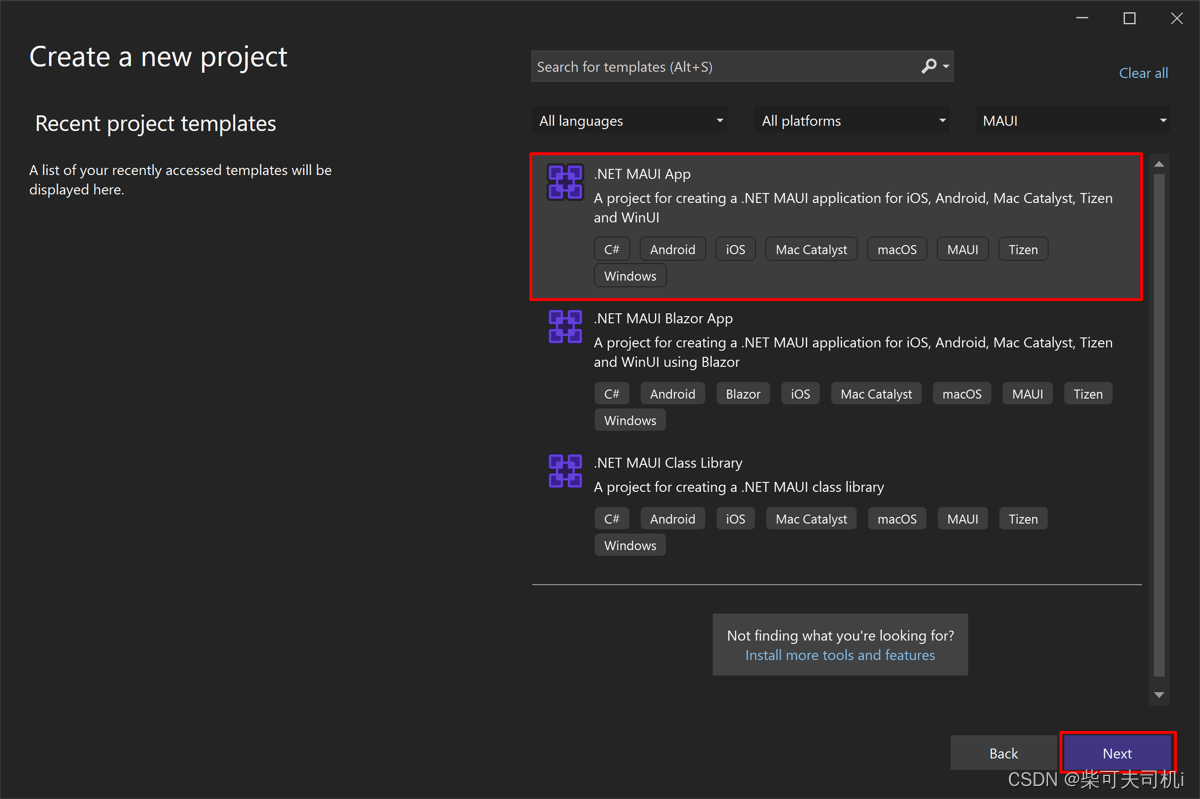

  2. 在“创建新项目”窗口中,在“所有项目类型”下拉列表中选择“MAUI”,选择“.NET MAUI 应用”模板,然后单击“下一步”按钮:

  3. 在“配置新项目”窗口中命名项目,为其选择合适的位置,然后单击“创建”按钮:

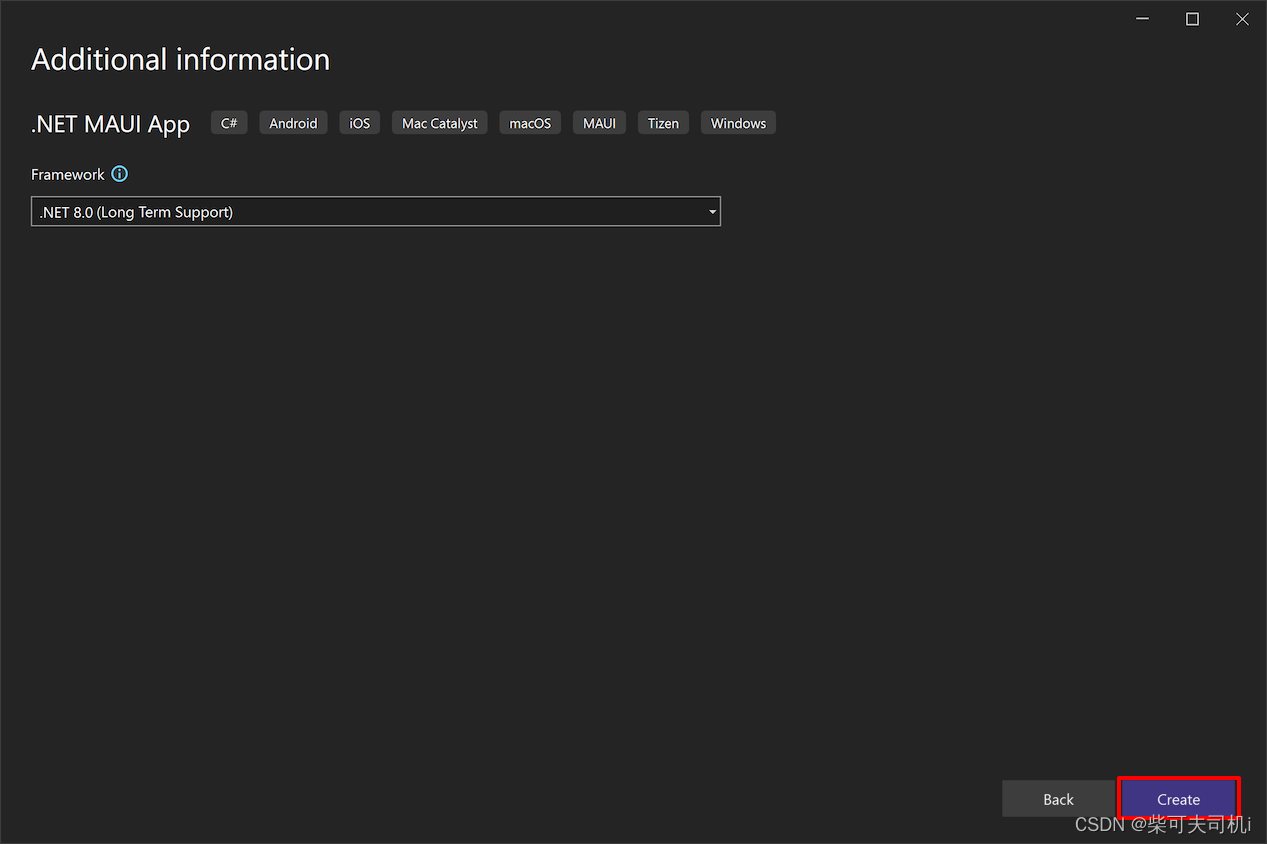

  4. 在“其他信息”窗口中,选择要面向的 .NET 版本,然后单击“创建”按钮:

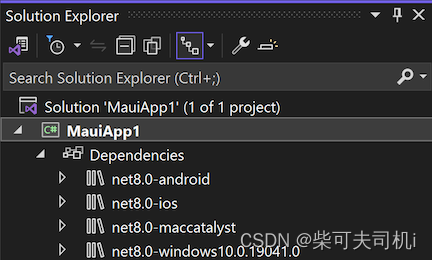

  5. 等待项目创建及其依赖项还原完成:

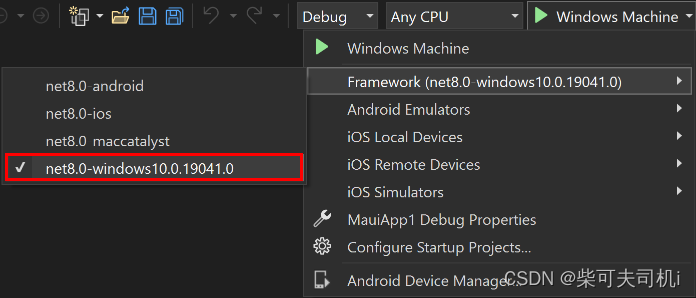

  1. 在 Visual Studio 工具栏中,使用“调试目标”下拉列表选择“框架”,然后选择“net8.0-windows” 条目:

  2. 在 Visual Studio 工具栏中,按下“Windows 计算机”按钮以生成并运行应用:

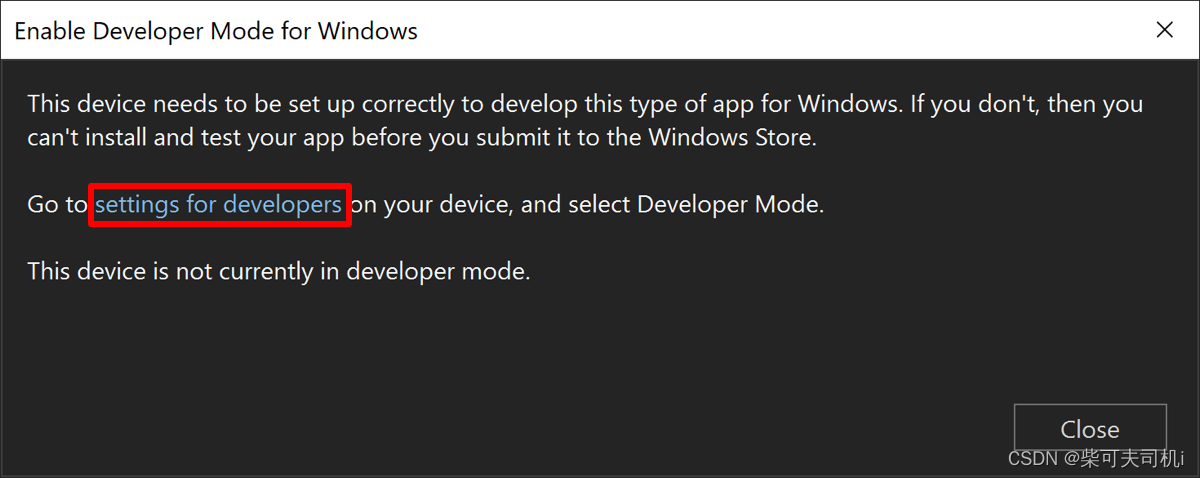

    如果未启用开发人员模式,Visual Studio 将提示你启用它。 在“为 Windows 启用开发人员模式”对话框中,单击“面向开发人员的设置”,以打开“设置”应用:

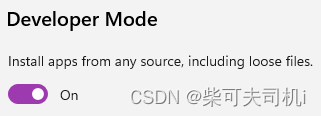

    在“设置”应用中,打开“开发人员模式”,并接受免责声明:

    关闭“设置”应用,然后关闭“为 Windows 启用开发人员模式”对话框。

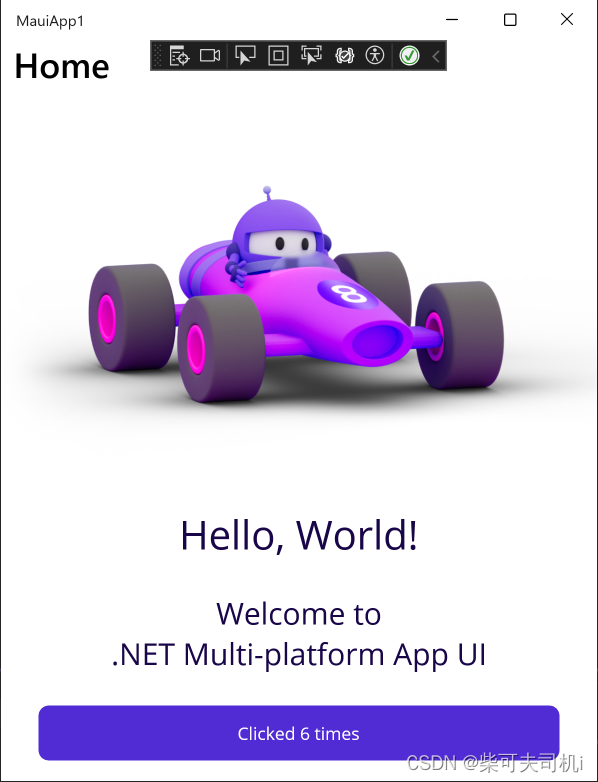

  3. 在正在运行的应用中,多次按下“单击”按钮,并观察按钮单击次数的计数递增:

  4. 详情请见教程:创建 .NET MAUI 应用 - .NET MAUI | Microsoft Learn
