Web端--jquery 图片裁剪

注意事项:需要引入jquery的图片裁剪插件--Jcrop

 <script src="./assets/lib/Jcrop/js/jquery.Jcrop.min.js"></script>

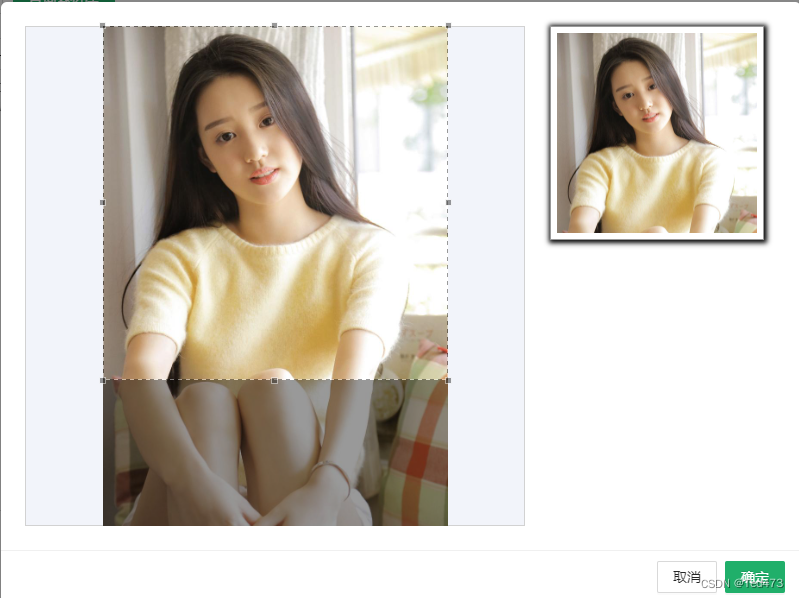

1.实现效果图:

2.代码实现:

html部分:

<nz-modal
  [(nzVisible)]="imageCropperVisible"
  (nzOnCancel)="imageCropperVisible = false"
  (nzAfterClose)="jcropModalClosed()"
  (nzOnOk)="updateAvatar()"
  [nzOkLoading]="modalOkLoading"
  [nzKeyboard]="false"
  [nzClosable]="false"
  [nzMaskClosable]="false"
  [nzWidth]="800"
>
  <div class="jcrop-wrapper">
    <div class="jcrop-main">
      <!-- 上传的原图部分 -->
      <div class="jcrop-target">
        <img id="target" />
        <span [ngStyle]="{ display: jcropLoaded ? 'none' : 'block' }">Loading...</span>
      </div>

      <!-- 预览图部分 -->
      <div id="preview-pane" [ngStyle]="{ display: jcropLoaded ? 'block' : 'none' }">
        <div class="preview-container">
          <img class="jcrop-preview" />
        </div>
      </div>
    </div>
  </div>
</nz-modal>

js部分:

 imageCropperVisible = false; // 是否展示弹窗
 jcropApi: any = null;
 jcropBound = {
    x: 0,
    y: 0,
 };
 jcropLoaded = false; // 图片加载loading
 modalOkLoading = false; // 确认上传loading

 private previewPane = null; // 预览图盒子
 private previewImg = null; //预览图url
 // 裁切图片的偏移量
 private jcropData = {
    w: 0,
    h: 0,
    x: 0,
    y: 0,
  };

const JCROP_CONFIG = {
  aspectRatio: 0, // 选框宽高比。说明：width/height,默认值为0
  size: 750,
  boxWidth: 500,
  boxHeight: 500,
};


/**
* 裁剪图片
* 在html传原图地址
*/
editIamge(url: any) {
 this.imageCropperVisible = true; // 是否出现裁剪弹窗
 this.imageUrl = environment.imageDomain + '/' + url; // 裁剪弹窗的底图
 this.imagepath = url; // 裁剪图片的参数
 setTimeout(() => {
   this.initJcrop();
 }, 500);
}

initJcrop() {
    const _that = this;
    this.previewPane = $('#preview-pane .preview-container');
    this.previewImg = $('#preview-pane .preview-container img');

    $('.jcrop-preview').attr('src', this.imageUrl);

    let jcropInit = false;

    const { boxWidth, boxHeight, aspectRatio } = JCROP_CONFIG;

    $('#target').Jcrop(
      {
        onChange: this.updatePreview,
        onSelect: this.updatePreview,
        boxWidth,
        boxHeight,
        aspectRatio,
        allowSelect: false,
        minSize: [100, 100],
      },
      // 不可使用箭头函数，否则无法获取真实的jcrop对象
      function () {
        _that.jcropApi = this;
        this.setImage(_that.imageUrl, function () {
          jcropInit = true;
          const bounds = this.getBounds();
          const [w, h] = bounds;

          _that.jcropBound.x = w;
          _that.jcropBound.y = h;
          const x = w / 2 - JCROP_CONFIG.size;
          const x2 = w / 2 + JCROP_CONFIG.size;
          const y = h / 2 - JCROP_CONFIG.size;
          const y2 = h / 2 + JCROP_CONFIG.size;

          this.setSelect([x, y, x2, y2]);
          this.animateTo([x, y, x2, y2]);
        });
      },
    );
  }

// 设置预览
  updatePreview = (c) => {
    this.jcropLoaded = true;
    if (parseInt(c.w) > 0) {
      const rx = this.previewPane.width() / c.w;
      const ry = this.previewPane.height() / c.h;

      this.previewImg.css({
        width: Math.round(rx * this.jcropBound.x) + 'px',
        height: Math.round(ry * this.jcropBound.y) + 'px',
        marginLeft: '-' + Math.round(rx * c.x) + 'px',
        marginTop: '-' + Math.round(ry * c.y) + 'px',
      });
    }

    const { x, y, w, h } = c;
    this.jcropData = {
      x,
      y,
      w,
      h,
    };
  };

 // 裁剪弹窗关闭
  jcropModalClosed() {
    if (this.jcropApi) {
      this.jcropApi.destroy();
    }
    this.jcropApi = null;

    this.jcropBound = {
      x: 0,
      y: 0,
    };

    this.imageUrl = '';
    this.imagepath = '';

    this.previewPane = null;
    this.previewImg = null;
    this.jcropLoaded = false;
  }

// 裁切完图片上传
updateAvatar() {
    this.modalOkLoading = true;
    const { x, y, w, h } = this.jcropData;
    const params = {
        filePath: this.imagepath,
        width: Math.round(w),
        height: Math.round(h),
        startX: Math.round(x),
        startY: Math.round(y),
     }
  }
