整合：spring4.2.5+mybatis3.2.8+springMVC+maven
环境：Myeclipse2014+mysql5.5.20+tomcat8+jdk1.7+linux
目标：实现对用户表的简单添加（分别有表单数据提交和json提交）、分页查看和文件上传
源码在github上：https://github.com/fuckyourdick/myRegisterSystem/tree/master/mavenSSM

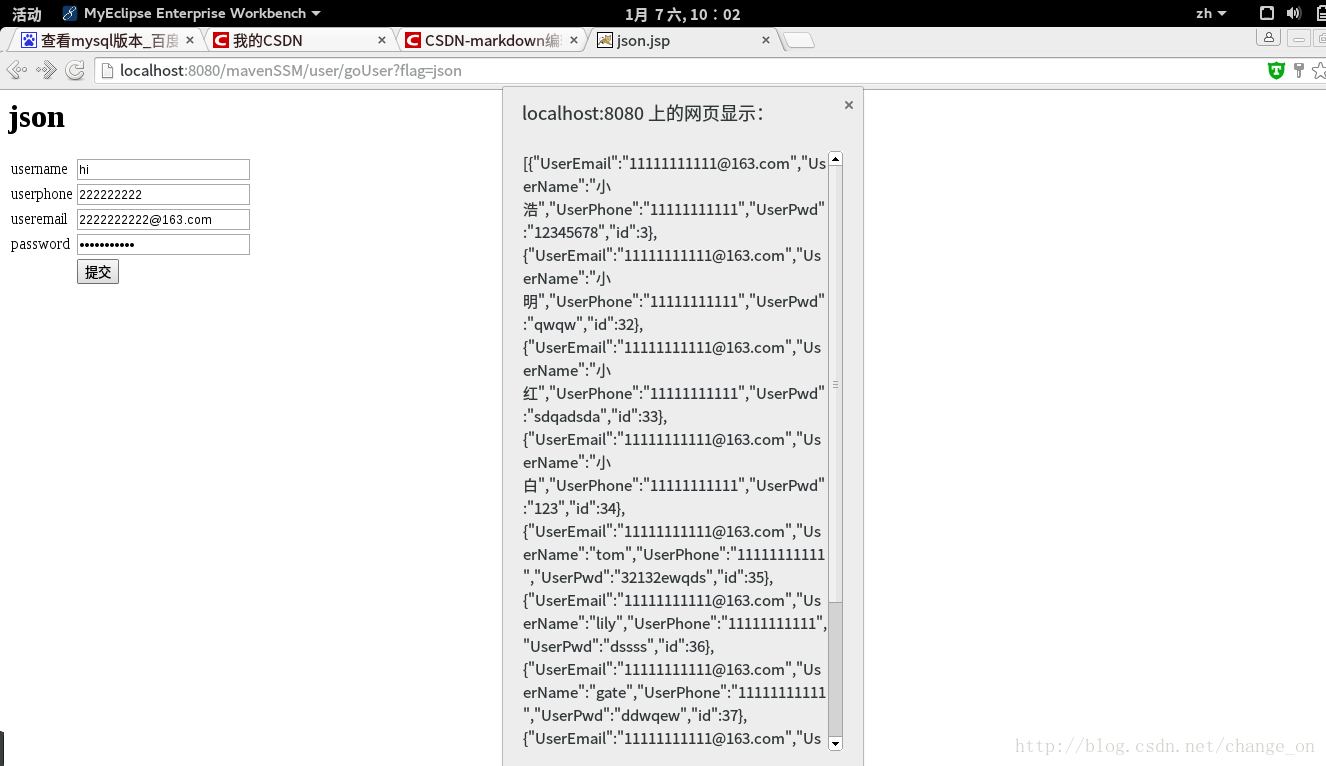

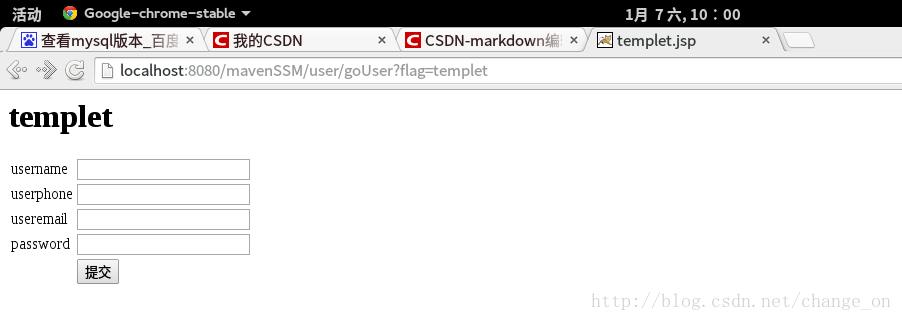

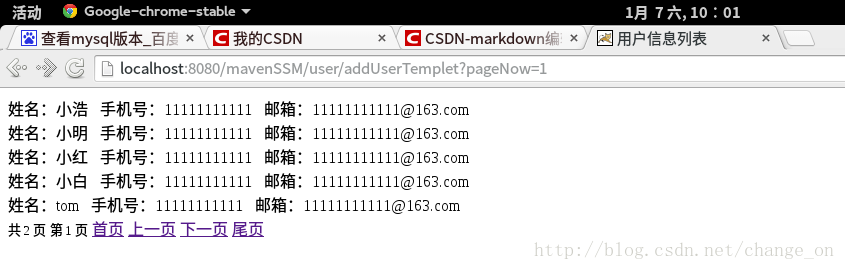

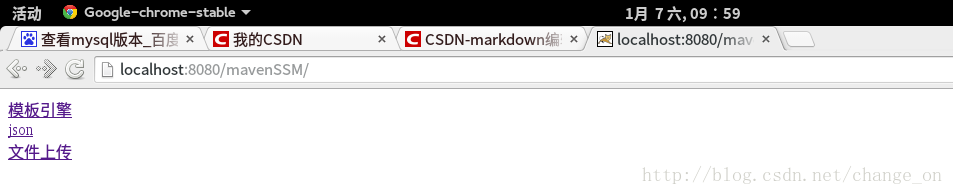

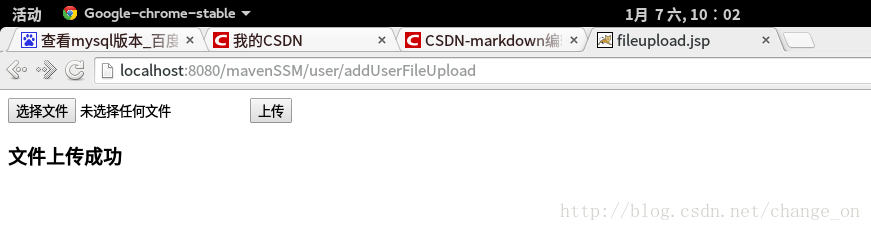

效果图：

这里写图片描述

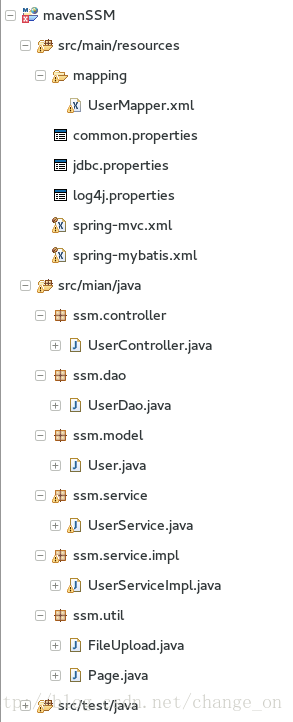

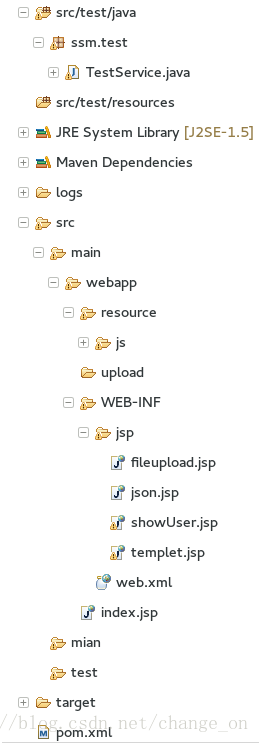

项目结构图：

这里写图片描述

1).创建maven项目，引入所需的jar包

pom.xml:

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.hsp.maven</groupId>
  <artifactId>mavenSSH</artifactId>
  <packaging>war</packaging>
  <version>0.0.1-SNAPSHOT</version>
  <name>mavenSSH</name>
  <url>http://maven.apache.org</url>
    <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>

    <!-- spring版本号 -->
    <spring.version>4.2.5.RELEASE</spring.version>

    <!-- mybatis版本号 -->
    <mybatis.version>3.2.8</mybatis.version>

    <!-- mysql驱动版本号 -->
    <mysql-driver.version>5.1.29</mysql-driver.version>

    <!-- log4j日志包版本号 -->
    <slf4j.version>1.7.18</slf4j.version>
    <log4j.version>1.2.17</log4j.version>

  </properties>

  <dependencies>

  <!-- 添加jstl依赖 -->
    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>

    <dependency>
      <groupId>javax</groupId>
      <artifactId>javaee-api</artifactId>
      <version>7.0</version>
    </dependency>

    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.11</version>
      <scope>test</scope>
    </dependency>

    <!-- 添加spring核心依赖 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-core</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-oxm</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-support</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>

     <!-- 添加mybatis依赖 -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>

    <!-- 添加mybatis/spring整合包依赖 -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.2.2</version>
    </dependency>

    <!-- 添加mysql驱动依赖 -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql-driver.version}</version>
    </dependency>
    <!-- 添加数据库连接池依赖 -->
    <dependency>
      <groupId>commons-dbcp</groupId>
      <artifactId>commons-dbcp</artifactId>
      <version>1.2.2</version>
    </dependency>

    <!-- 添加fastjson -->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>fastjson</artifactId>
      <version>1.1.41</version>
    </dependency>

    <!-- 添加日志相关jar包 -->
    <dependency>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
      <version>${log4j.version}</version>
    </dependency>
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-api</artifactId>
      <version>${slf4j.version}</version>
    </dependency>
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-log4j12</artifactId>
      <version>${slf4j.version}</version>
    </dependency>

    <!-- log end -->
    <!-- 映入JSON -->
    <dependency>
      <groupId>org.codehaus.jackson</groupId>
      <artifactId>jackson-mapper-asl</artifactId>
      <version>1.9.13</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-core -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-core</artifactId>
      <version>2.8.0</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.8.0</version>
    </dependency>

    <dependency>
      <groupId>commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>1.3.1</version>
    </dependency>

    <dependency>
      <groupId>commons-io</groupId>
      <artifactId>commons-io</artifactId>
      <version>2.4</version>
    </dependency>

    <dependency>
      <groupId>commons-codec</groupId>
      <artifactId>commons-codec</artifactId>
      <version>1.9</version>
    </dependency>

    <!-- 本地环境要求 -->
    <dependency>
      <groupId>com.thoughtworks.xstream</groupId>
      <artifactId>xstream</artifactId>
      <version>1.3.1</version>
    </dependency>

    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>3.1-b07</version>
    </dependency>


  </dependencies>

  <build>
    <finalName>mavenSSM</finalName>
  </build>
</project>

2).建立各种资源文件

<1>jdbc.properties

driverClasss=com.mysql.jdbc.Driver
jdbcUrl=jdbc:mysql://localhost:3306/maven?useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull
username=root
password=XXXXXXXX
#\u5B9A\u4E49\u521D\u59CB\u8FDE\u63A5\u6570
initialSize=0
#\u5B9A\u4E49\u6700\u5927\u8FDE\u63A5\u6570
maxActive=10
#\u5B9A\u4E49\u6700\u5927\u7A7A\u95F2
maxIdle=10
#\u5B9A\u4E49\u6700\u5C0F\u7A7A\u95F2
minIdle=1
#\u5B9A\u4E49\u6700\u957F\u7B49\u5F85\u65F6\u95F4
maxWait=60000

<2>log4j.properties

log4j.rootLogger=INFO,Console,File

#控制台日志
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.Target=System.out
log4j.appender.Console.layout=org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=[%p][%t][%d{yyyy-MM-dd HH\:mm\:ss}][%C] - %m%n

#普通文件日志
log4j.appender.File=org.apache.log4j.RollingFileAppender
log4j.appender.File.File=logs/ssm.log
log4j.appender.File.MaxFileSize=10MB
#输出日志，如果换成DEBUG表示输出DEBUG以上级别日志
log4j.appender.File.Threshold=ALL
log4j.appender.File.layout=org.apache.log4j.PatternLayout
log4j.appender.File.layout.ConversionPattern=[%p][%t][%d{yyyy-MM-dd HH\:mm\:ss}][%C] - %m%n

<3>common.properties
该文件暂时不需要添加

<4>spring-mybatis.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
                        http://www.springframework.org/schema/context
                        http://www.springframework.org/schema/context/spring-context-3.1.xsd
                        http://www.springframework.org/schema/tx
                        http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!-- 自动扫描 -->
    <context:component-scan base-package="ssm"/>

    <!-- 第一种方式：加载一个properties文件 -->
    <bean id="propertyConfigurer" class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
        <property name="location" value="classpath:jdbc.properties"/>
    </bean>


    <!-- 第二种方式：加载多个properties文件
    <bean id="configProperties" class="org.springframework.beans.factory.config.PropertiesFactoryBean">
        <property name="locations">
            <list>
                <value>classpath:jdbc.properties</value>
                <value>classpath:common.properties</value>
            </list>
        </property>
        <property name="fileEncoding" value="UTF-8"/>
    </bean>
    <bean id="propertyConfigurer" class="org.springframework.beans.factory.config.PreferencesPlaceholderConfigurer">
        <property name="properties" ref="configProperties"/>
    </bean>
    -->

    <!-- 配置数据源 -->
    <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
          destroy-method="close">
        <property name="driverClassName" value="${driverClasss}"/>
        <property name="url" value="${jdbcUrl}"/>
        <property name="username" value="${username}"/>
        <property name="password" value="${password}"/>
        <!-- 初始化连接大小 -->
        <property name="initialSize" value="${initialSize}"></property>
        <!-- 连接池最大数量 -->
        <property name="maxActive" value="${maxActive}"></property>
        <!-- 连接池最大空闲 -->
        <property name="maxIdle" value="${maxIdle}"></property>
        <!-- 连接池最小空闲 -->
        <property name="minIdle" value="${minIdle}"></property>
        <!-- 获取连接最大等待时间 -->
        <property name="maxWait" value="${maxWait}"></property>
    </bean>

    <!-- mybatis和spring完美整合，不需要mybatis的配置映射文件 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <!-- 自动扫描mapping.xml文件 -->
        <property name="mapperLocations" value="classpath:mapping/*.xml"></property>
    </bean>

    <!-- DAO接口所在包名，Spring会自动查找其下的类 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="ssm.dao"/>
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"></property>
    </bean>


    <!-- (事务管理)transaction manager, use JtaTransactionManager for global tx -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!-- (事务管理)transaction manager, use JtaTransactionManager for global tx -->
    <tx:annotation-driven transaction-manager="transactionManager"/>
</beans>

<5>spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
                        http://www.springframework.org/schema/context
                        http://www.springframework.org/schema/context/spring-context-4.0.xsd
                        http://www.springframework.org/schema/mvc
                        http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">

    <!-- 自动扫描  @Controller-->
    <context:component-scan base-package="ssm.controller"/>

    <!--避免IE执行AJAX时，返回JSON出现下载文件 -->
    <bean id="mappingJacksonHttpMessageConverter"
          class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter">
        <property name="supportedMediaTypes">
            <list>
                <value>text/html;charset=UTF-8</value>
            </list>
        </property>
    </bean>
    <!-- 启动SpringMVC的注解功能，完成请求和注解POJO的映射 -->
    <bean class="org.springframework.web.servlet.mvc.annotation.AnnotationMethodHandlerAdapter">
        <property name="messageConverters">
            <list>
                <ref bean="mappingJacksonHttpMessageConverter"/> <!-- JSON转换器 -->
            </list>
        </property>
    </bean>

    <!-- 定义跳转的文件的前后缀 ，视图模式配置 -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/" />
        <property name="suffix" value=".jsp"/>
    </bean>

    <!-- 文件上传配置 -->
    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <!-- 默认编码 -->
        <property name="defaultEncoding" value="UTF-8"/>
        <!-- 上传文件大小限制为31M，31*1024*1024 -->
        <property name="maxUploadSize" value="32505856"/>
        <!-- 内存中的最大值 -->
        <property name="maxInMemorySize" value="4096"/>
    </bean>
</beans>

<6>web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
          http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         version="3.0">

    <display-name>ssm</display-name>

    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:spring-mybatis.xml</param-value>
    </context-param>

    <context-param>
        <param-name>log4jConfigLocation</param-name>
        <param-value>classpath:log4j.properties</param-value>
    </context-param>

    <!-- 编码过滤器 -->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- spring监听器 -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <!-- 防止spring内存溢出监听器，比如quartz -->
    <listener>
        <listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
    </listener>

    <!-- 访问静态文件 -->
    <servlet-mapping>
        <servlet-name>default</servlet-name>
        <url-pattern>*.js</url-pattern>
    </servlet-mapping>
    <servlet-mapping>
        <servlet-name>default</servlet-name>
        <url-pattern>*.css</url-pattern>
    </servlet-mapping>

    <!-- spring mvc servlet-->
    <servlet>
        <servlet-name>SpringMVC</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-mvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
        <async-supported>true</async-supported>
    </servlet>
    <servlet-mapping>
        <servlet-name>SpringMVC</servlet-name>
        <!-- 此处也可以配置成 *.do 形式 -->
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <welcome-file-list>
        <welcome-file>/index.jsp</welcome-file>
    </welcome-file-list>

    <!-- session配置 -->
    <session-config>
        <session-timeout>20</session-timeout>
    </session-config>

</web-app>

3).建立实体类和对应的实体dao和Mapper.xml文件

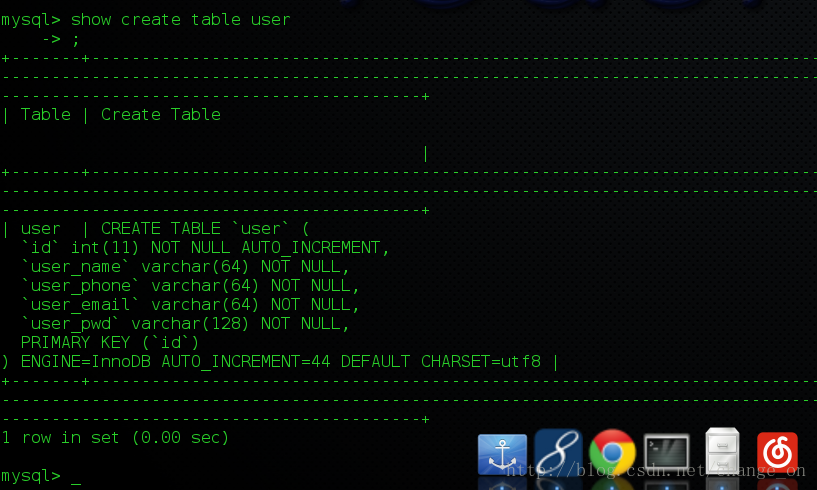

<1>先在数据库建立数据库和表（数据库名根据自己的实际而定）

这里写图片描述

<2>ssm.model–User.java

package ssm.model;

public class User {
    private Integer id;

    private String userName;

    private String userPhone;

    private String userEmail;

    private String userPwd;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName == null ? null : userName.trim();
    }

    public String getUserPhone() {
        return userPhone;
    }

    public void setUserPhone(String userPhone) {
        this.userPhone = userPhone == null ? null : userPhone.trim();
    }

    public String getUserEmail() {
        return userEmail;
    }

    public void setUserEmail(String userEmail) {
        this.userEmail = userEmail == null ? null : userEmail.trim();
    }

    public String getUserPwd() {
        return userPwd;
    }

    public void setUserPwd(String userPwd) {
        this.userPwd = userPwd == null ? null : userPwd.trim();
    }
}

<3>ssm.dao–UserDao.java

package ssm.dao;

import java.util.List;

import org.apache.ibatis.annotations.Param;

import ssm.model.User;

public interface UserDao {
    int deleteByPrimaryKey(Integer id);

    int insert(User record);

    int insertSelective(User record);

    User selectByPrimaryKey(Integer id);

    int updateByPrimaryKeySelective(User record);

    int updateByPrimaryKey(User record);

    List<User> getAllUser();

    public List<User> selectUserByPage(@Param(value="startPos") Integer startPos,@Param(value="pageSize") Integer pageSize);

    public int selectUserCount();
}

<4>mapping–UserMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="ssm.dao.UserDao" >
  <resultMap id="BaseResultMap" type="ssm.model.User" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="user_name" property="userName" jdbcType="VARCHAR" />
    <result column="user_phone" property="userPhone" jdbcType="VARCHAR" />
    <result column="user_email" property="userEmail" jdbcType="VARCHAR" />
    <result column="user_pwd" property="userPwd" jdbcType="VARCHAR" />
  </resultMap>
  <sql id="Base_Column_List" >
    id, user_name, user_phone, user_email, user_pwd
  </sql>
  <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Integer" >
    select
    <include refid="Base_Column_List" />
    from user
    where id = #{id,jdbcType=INTEGER}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer" >
    delete from user
    where id = #{id,jdbcType=INTEGER}
  </delete>
  <insert id="insert" parameterType="ssm.model.User" >
    insert into user (id, user_name, user_phone,
      user_email, user_pwd)
    values (#{id,jdbcType=INTEGER}, #{userName,jdbcType=VARCHAR}, #{userPhone,jdbcType=VARCHAR},
      #{userEmail,jdbcType=VARCHAR}, #{userPwd,jdbcType=VARCHAR})
  </insert>
  <insert id="insertSelective" parameterType="ssm.model.User" >
    insert into user
    <trim prefix="(" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        id,
      </if>
      <if test="userName != null" >
        user_name,
      </if>
      <if test="userPhone != null" >
        user_phone,
      </if>
      <if test="userEmail != null" >
        user_email,
      </if>
      <if test="userPwd != null" >
        user_pwd,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        #{id,jdbcType=INTEGER},
      </if>
      <if test="userName != null" >
        #{userName,jdbcType=VARCHAR},
      </if>
      <if test="userPhone != null" >
        #{userPhone,jdbcType=VARCHAR},
      </if>
      <if test="userEmail != null" >
        #{userEmail,jdbcType=VARCHAR},
      </if>
      <if test="userPwd != null" >
        #{userPwd,jdbcType=VARCHAR},
      </if>
    </trim>
  </insert>
  <update id="updateByPrimaryKeySelective" parameterType="ssm.model.User" >
    update user
    <set >
      <if test="userName != null" >
        user_name = #{userName,jdbcType=VARCHAR},
      </if>
      <if test="userPhone != null" >
        user_phone = #{userPhone,jdbcType=VARCHAR},
      </if>
      <if test="userEmail != null" >
        user_email = #{userEmail,jdbcType=VARCHAR},
      </if>
      <if test="userPwd != null" >
        user_pwd = #{userPwd,jdbcType=VARCHAR},
      </if>
    </set>
    where id = #{id,jdbcType=INTEGER}
  </update>
  <update id="updateByPrimaryKey" parameterType="ssm.model.User" >
    update user
    set user_name = #{userName,jdbcType=VARCHAR},
      user_phone = #{userPhone,jdbcType=VARCHAR},
      user_email = #{userEmail,jdbcType=VARCHAR},
      user_pwd = #{userPwd,jdbcType=VARCHAR}
    where id = #{id,jdbcType=INTEGER}
  </update>
  <select id="getAllUser" resultMap="BaseResultMap">
    SELECT * FROM user
  </select>
  <!-- 分页SQL语句 -->
<select id="selectUserByPage" resultMap="BaseResultMap">
  select
  *
  from user limit #{startPos},#{pageSize}
</select>
<!-- 取得记录的总数 -->
<select id="selectUserCount" resultType="java.lang.Integer">
  SELECT COUNT(*) FROM user
</select>
</mapper>

4).建立service层

<1>ssm.service–UserService.java

package ssm.service;


import ssm.model.User;

import java.util.List;

import org.apache.ibatis.annotations.Param;

public interface UserService {

    /*添加用户*/
    void addUser(User user);

    /*获得所有用户*/
    List<User> getAllUsers();

    public List<User> getUserByPage(Integer startPos, Integer pageSize);

    public int getUserCount();

}

<2>ssm.service.impl–UserServiceImpl.java

package ssm.service.impl;

import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import ssm.dao.UserDao;
import ssm.model.User;
import ssm.service.UserService;
import ssm.util.Page;

import javax.annotation.Resource;

import java.util.ArrayList;
import java.util.List;

@Service
@Transactional(rollbackFor = Exception.class)
public class UserServiceImpl implements UserService {

    @Resource
    private UserDao userDao;

    public void addUser(User user) {
        userDao.insert(user);

    }

    public List<User> getAllUsers() {
        return userDao.getAllUser();
    }

    public List<User> getUserByPage(Integer startPos, Integer pageSize) {
        return userDao.selectUserByPage(startPos, pageSize);
    }

    public int getUserCount() {
        return userDao.selectUserCount();
    }

}

5).在工具包添加文件上传和分页的工具类

<1>ssm.util–FileUpload.java

package ssm.util;

import java.io.File;
import java.util.UUID;

import javax.servlet.http.HttpServletRequest;

import org.springframework.web.multipart.MultipartFile;

public class FileUpload {

    public String upload(HttpServletRequest request, MultipartFile file) {
        String path = request.getSession().getServletContext().getRealPath("upload");
        String fileName = file.getOriginalFilename();
        fileName=UUID.randomUUID()+fileName.substring(fileName.indexOf("."),fileName.length());
        File targetFile = new File(path, fileName);
        if(!targetFile.exists()){
            targetFile.mkdirs();
        }
        //保存
        try {
            file.transferTo(targetFile);
        } catch (Exception e) {
            e.printStackTrace();
        }
        return fileName;
    }

}

<2>ssm.util–Page.java

package ssm.util;

import java.io.Serializable;

public class Page implements Serializable {

    private static final long serialVersionUID = -3198048449643774660L;

    private int pageNow = 1; // 当前页数

    private int pageSize = 5; // 每页显示记录的条数

    private int totalCount; // 总的记录条数

    private int totalPageCount; // 总的页数

    @SuppressWarnings("unused")
    private int startPos; // 开始位置，从0开始

    @SuppressWarnings("unused")
    private boolean hasFirst;// 是否有首页

    @SuppressWarnings("unused")
    private boolean hasPre;// 是否有前一页

    @SuppressWarnings("unused")
    private boolean hasNext;// 是否有下一页

    @SuppressWarnings("unused")
    private boolean hasLast;// 是否有最后一页

    /**
     * 通过构造函数 传入  总记录数  和  当前页
     * @param totalCount
     * @param pageNow
     */
    public Page(int totalCount, int pageNow) {
        this.totalCount = totalCount;
        this.pageNow = pageNow;
    }

    /**
     * 取得总页数，总页数=总记录数/总页数
     * @return
     */
    public int getTotalPageCount() {
        totalPageCount = getTotalCount() / getPageSize();
        return (totalCount % pageSize == 0) ? totalPageCount
                : totalPageCount + 1;
    }

    public void setTotalPageCount(int totalPageCount) {
        this.totalPageCount = totalPageCount;
    }

    public int getPageNow() {
        return pageNow;
    }

    public void setPageNow(int pageNow) {
        this.pageNow = pageNow;
    }

    public int getPageSize() {
        return pageSize;
    }

    public void setPageSize(int pageSize) {
        this.pageSize = pageSize;
    }

    public int getTotalCount() {
        return totalCount;
    }

    public void setTotalCount(int totalCount) {
        this.totalCount = totalCount;
    }
    /**
     * 取得选择记录的初始位置
     * @return
     */
    public int getStartPos() {
        return (pageNow - 1) * pageSize;
    }

    public void setStartPos(int startPos) {
        this.startPos = startPos;
    }

    /**
     * 是否是第一页
     * @return
     */
    public boolean isHasFirst() {
        return (pageNow == 1) ? false : true;
    }

    public void setHasFirst(boolean hasFirst) {
        this.hasFirst = hasFirst;
    }
    /**
     * 是否有首页
     * @return
     */
    public boolean isHasPre() {
        // 如果有首页就有前一页，因为有首页就不是第一页
        return isHasFirst() ? true : false;
    }

    public void setHasPre(boolean hasPre) {
        this.hasPre = hasPre;
    }
    /**
     * 是否有下一页
     * @return
     */
    public boolean isHasNext() {
        // 如果有尾页就有下一页，因为有尾页表明不是最后一页
        return isHasLast() ? true : false;
    }

    public void setHasNext(boolean hasNext) {
        this.hasNext = hasNext;
    }
    /**
     * 是否有尾页
     * @return
     */
    public boolean isHasLast() {
        // 如果不是最后一页就有尾页
        return (pageNow == getTotalCount()) ? false : true;
    }

    public void setHasLast(boolean hasLast) {
        this.hasLast = hasLast;
    }

}

6).测试

<1>ssm.test–TestService.java

package ssm.test;

import java.util.List;

import javax.annotation.Resource;

import org.junit.Before;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

import ssm.model.User;
import ssm.service.UserService;
import ssm.service.impl.UserServiceImpl;

public class TestService {

    ApplicationContext ctx;

    @Before
    public void setUp() throws Exception {
        ctx=new ClassPathXmlApplicationContext("spring-mybatis.xml");
    }

    @Test
    public void test() {
    }

}

7).写前端界面

<1>WEB-INF–index.jsp

...
<a href="user/goUser?flag=templet">模板引擎</a><br>
<a href="user/goUser?flag=json">json</a><br>
<a href="user/goUser?flag=fileupload">文件上传</a><br>
...

<2>WEB-INF–jsp–templet.jsp

...
<h1>templet</h1>
    <form>
         <table>
            <tr>
                <td>username</td>
                <td>
                    <input type="text" name="userName">
                </td>
            </tr>
            <tr>
                <td>userphone</td>
                <td>
                    <input type="text" name="userPhone">
                </td>
            </tr>
            <tr>
                <td>useremail</td>
                <td>
                    <input type="email" name="userEmail">
                </td>
            </tr>
            <tr>
                <td>password</td>
                <td>
                    <input type="password" name="userPwd">
                </td>
            </tr>
                <td> </td>
                <td>
                    <input type="button" value="提交" onclick="addUser()">
                </td>
            </tr>
        </table>
    </form>
    <script type="text/javascript">
    //添加用户
    function addUser() {
        var form = document.forms[0];
        form.action = "user/addUserTemplet?flag=add";
        form.method = "post";
        form.submit();
    }
</script>
...

<3>WEB-INF–jsp–json.jsp

...
<h1>json</h1>
<form id="myform">
        <table>
            <tr>
                <td>username</td>
                <td>
                    <input type="text" name="userName" id="userName">
                </td>
            </tr>
            <tr>
                <td>userphone</td>
                <td>
                    <input type="text" name="userPhone" id="userPhone">
                </td>
            </tr>
            <tr>
                <td>useremail</td>
                <td>
                    <input type="email" name="userEmail" id="userEmail">
                </td>
            </tr>
            <tr>
                <td>password</td>
                <td>
                    <input type="password" name="userPwd" id="userPwd">
                </td>
            </tr>
            <tr>
                <td> </td>
                <td>
                    <input type="button" value="提交" id="submit" />
                </td>
            </tr>
        </table>
    </form>
    <script type="text/javascript" src="<%=request.getContextPath() %>/resource/js/jquery-1.9.1.min.js"></script>
    <script type="text/javascript">
    $(function(){
    $('#submit').click(function(){
        //选取表单
        var form = $('#myform');
        //获取表单数据
        var name = $("#userName").val();
         var phone = $("#userPhone").val();
         var email = $("#userEmail").val();
         var pwd = $("#userPwd").val();
         var user = {userName:name,userPhone:phone,userEmail:email,userPwd:pwd};//拼装成json格式
        //发送AJAX请求
        $.post('user/addUserJson',user,function(user){
            alert(user);
        });

    });

});
</script>
...

<4>WEB-INF–jsp–showUser.jsp

...
<c:if test="${!empty userList}">
        <c:forEach var="user" items="${userList}">
            姓名：${user.userName} &nbsp;&nbsp;手机号：${user.userPhone} &nbsp;&nbsp;邮箱：${user.userEmail} &nbsp;&nbsp;<br>
        </c:forEach>
    </c:if>
   <!-- 分页 start -->
    <div align="left">
        <font size="2">共 ${page.totalPageCount} 页</font> <font size="2">第
            ${page.pageNow} 页</font> <a href="addUserTemplet?pageNow=1">首页</a>
        <c:choose>
            <c:when test="${page.pageNow - 1 > 0}">
                <a href="addUserTemplet?pageNow=${page.pageNow - 1}">上一页</a>
            </c:when>
           <c:when test="${page.pageNow - 1 <= 0}">
                <a href="addUserTemplet?pageNow=1">上一页</a>
            </c:when>
        </c:choose>
        <c:choose>
            <c:when test="${page.totalPageCount==0}">
                <a href="addUserTemplet?pageNow=${page.pageNow}">下一页</a>
            </c:when>
            <c:when test="${page.pageNow + 1 < page.totalPageCount}">
                <a href="addUserTemplet?pageNow=${page.pageNow + 1}">下一页</a>
            </c:when>
            <c:when test="${page.pageNow + 1 >= page.totalPageCount}">
                <a href="addUserTemplet?pageNow=${page.totalPageCount}">下一页</a>
            </c:when>
        </c:choose>
        <c:choose>
            <c:when test="${page.totalPageCount==0}">
                <a href="addUserTemplet?pageNow=${page.pageNow}">尾页</a>
            </c:when>
            <c:otherwise>
                <a href="addUserTemplet?pageNow=${page.totalPageCount}">尾页</a>
            </c:otherwise>
        </c:choose>
    </div>
    <!-- 分页 End -->
...

<5>WEB-INF–jsp–fileupload.jsp

...
<form action="user/addUserFileUpload" method="post" enctype="multipart/form-data">
    <input type="file" name="file" /> <input type="submit" value="上传" /></form>
    <h3>${message}</h3>
...

8).由于7)的步骤需要jquery，所以需要引进jquery

在webapp下建立resource目录，在resource下建立js目录，在js目录下存放一个jquery-1.9.1.min.js

9).写控制类处理页面逻辑

<1>ssm.controller–UserController.java

package ssm.controller;

import org.apache.log4j.Logger;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.multipart.MultipartFile;

import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;

import ssm.model.User;
import ssm.service.UserService;
import ssm.util.FileUpload;
import ssm.util.Page;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

@Controller
@RequestMapping("/user")
public class UserController {

    private Logger log = Logger.getLogger(UserController.class);
    @Resource
    private UserService userService;

    /*json数据交互*/
    @RequestMapping("/addUserJson")
    public void addUserJson(HttpServletRequest request, HttpServletResponse response, User user)
    throws IOException {
        log.info("添加用户");
        System.out.println("添加用户"+user.getUserName()+","+user.getUserPhone()+","+
        user.getUserEmail()+","+user.getUserPwd()+".");
        userService.addUser(user);
        List<User> userList = userService.getAllUsers();
        JSONArray jsons = new JSONArray();
        for(User a_user : userList) {
            JSONObject jsonObject = new JSONObject();
            jsonObject.put("id", a_user.getId());
            jsonObject.put("UserName", a_user.getUserName());
            jsonObject.put("UserPhone", a_user.getUserPhone());
            jsonObject.put("UserEmail", a_user.getUserEmail());
            jsonObject.put("UserPwd", a_user.getUserPwd());
            jsons.add(jsonObject);
        }
        /*设置字符集为'UTF-8'*/
        response.setCharacterEncoding("UTF-8");
        response.getWriter().print(jsons.toString()) ;
    }

    /*模板引擎渲染*/
    @RequestMapping("/addUserTemplet")
    public String addUserTemplet(HttpServletRequest request, Model model, User user){
        String flag = request.getParameter("flag");
        if(null != flag && flag.equals("add"))
        {
            log.info("添加用户");
            System.out.println("添加用户"+user.getUserName()+","+user.getUserPhone()+","+
                user.getUserEmail()+","+user.getUserPwd()+".");
            userService.addUser(user);
        }
        Page page = null;
        String pageNow = request.getParameter("pageNow");
        List<User> userList = new ArrayList<User>();
        int totalCount = userService.getUserCount();
        if (pageNow != null) {
            page = new Page(totalCount, Integer.parseInt(pageNow));
            userList = userService.getUserByPage(page.getStartPos(), page.getPageSize());
        } else {
            page = new Page(totalCount, 1);
            userList = userService.getUserByPage(page.getStartPos(), page.getPageSize());
        }
        model.addAttribute("userList", userList);
        model.addAttribute("page", page);
        return "showUser";
    }

    /*文件上传*/
    @RequestMapping("/addUserFileUpload")
    public String fileUpload(@RequestParam(value = "file", required = false) MultipartFile file,
            HttpServletRequest request, Model model){
        log.info("添加用户");
        System.out.println("文件上传");
        FileUpload fileUpload = new FileUpload();
        String filename = fileUpload.upload(request, file);
        System.out.println(filename);
        model.addAttribute("message", "文件上传成功");
        return "fileupload";
    }

    @RequestMapping("/goUser")
    public String goUser(HttpServletRequest request, Model model){
        log.info("前往用户界面");
        String flag = request.getParameter("flag");
        if(null != flag && flag.equals("fileupload")) {
            return "fileupload";
        }
        if(null != flag && flag.equals("templet")) {
            return "templet";
        }
        else {
            return "json";
        }
    }
}
