【基于Sentinel1.8.8持久化流控规则和熔断降级规则到Nacos2.3.0】

0.概述

Sentinel 控制台是流量控制、熔断降级规则统一配置和管理的入口，它为用户提供了机器自发现、簇点链路自发现、监控、规则配置等功能。在 Sentinel 控制台上，我们可以配置规则并实时查看流量控制效果。

Sentinel客户端默认情况下接收到 Dashboard 推送的规则配置后，可以实时生效。但是，有一个致命缺陷，Dashboard和业务服务并没有持久化这些配置，当业务服务重启后，由于规则默认是存储在内存中的，这些规则配置将全部丢失。

那么，本文将介绍如何改造Sentinel-dashboard源码，实现将规则持久化到 Nacos配置中心

Sentinel 的理念是开发者只需要关注资源的定义，当资源定义成功后可以动态增加各种流控降级规则：

Sentinel 提供两种方式修改规则：

• 通过 API 直接修改 (loadRules)
• 通过 DataSource 适配不同数据源修改

通过 API 修改比较直观，可以通过以下几个 API 修改不同的规则：

FlowRuleManager.loadRules(List<FlowRule> rules); // 修改流控规则
DegradeRuleManager.loadRules(List<DegradeRule> rules); // 修改降级规则

手动修改规则（硬编码方式）一般仅用于测试和演示，生产上一般通过动态规则源的方式来动态管理规则。

上述 loadRules() 方法只接受内存态的规则对象，但更多时候规则存储在文件、数据库或者配置中心当中。DataSource 接口给我们提供了对接任意配置源的能力。相比直接通过 API 修改规则，实现 DataSource 接口是更加可靠的做法。

下面引用官方的资料进一步介绍一下：官方wiki

一般来说，规则的推送有下面三种模式:

推送模式	说明	优点	缺点
原始模式	API 将规则推送至客户端并直接更新到内存中，扩展写数据源（WritableDataSource）	简单，无任何依赖	不保证一致性；规则保存在内存中，重启即消失。严重不建议用于生产环境
Pull 模式	扩展写数据源（WritableDataSource）， 客户端主动向某个规则管理中心定期轮询拉取规则，这个规则中心可以是 RDBMS、文件 等	简单，无任何依赖；规则持久化	不保证一致性；实时性不保证，拉取过于频繁也可能会有性能问题。
Push 模式	扩展读数据源（ReadableDataSource），规则中心统一推送，客户端通过注册监听器的方式时刻监听变化，比如使用 Nacos、Zookeeper 等配置中心。这种方式有更好的实时性和一致性保证。生产环境下一般采用 push 模式的数据源。	规则持久化；一致性；快速	引入第三方依赖

原始模式
如果不做任何修改，Dashboard 的推送规则方式是通过 API 将规则推送至客户端并直接更新到内存中：

这种做法的好处是简单，无依赖；坏处是应用重启规则就会消失，仅用于简单测试，不能用于生产环境。

Pull模式
pull 模式的数据源（如本地文件、RDBMS 等）一般是可写入的。使用时需要在客户端注册数据源：将对应的读数据源注册至对应的 RuleManager，将写数据源注册至 transport 的 WritableDataSourceRegistry 中。以本地文件数据源为例：

public class FileDataSourceInit implements InitFunc {

    @Override
    public void init() throws Exception {
        String flowRulePath = "xxx";

        ReadableDataSource<String, List<FlowRule>> ds = new FileRefreshableDataSource<>(
            flowRulePath, source -> JSON.parseObject(source, new TypeReference<List<FlowRule>>() {})
        );
        // 将可读数据源注册至 FlowRuleManager.
        FlowRuleManager.register2Property(ds.getProperty());

        WritableDataSource<List<FlowRule>> wds = new FileWritableDataSource<>(flowRulePath, this::encodeJson);
        // 将可写数据源注册至 transport 模块的 WritableDataSourceRegistry 中.
        // 这样收到控制台推送的规则时，Sentinel 会先更新到内存，然后将规则写入到文件中.
        WritableDataSourceRegistry.registerFlowDataSource(wds);
    }

    private <T> String encodeJson(T t) {
        return JSON.toJSONString(t);
    }
}

本地文件数据源会定时轮询文件的变更，读取规则。这样我们既可以在应用本地直接修改文件来更新规则，也可以通过 Sentinel 控制台推送规则。以本地文件数据源为例，推送过程如下图所示：

首先 Sentinel 控制台通过 API 将规则推送至客户端并更新到内存中，接着注册的写数据源会将新的规则保存到本地的文件中。使用 pull 模式的数据源时一般不需要对 Sentinel 控制台进行改造。

这种实现方法好处是简单，不引入新的依赖，坏处是无法保证监控数据的一致性。

Push模式

生产环境下一般更常用的是 push 模式的数据源。对于 push 模式的数据源,如远程配置中心（ZooKeeper, Nacos, Apollo等等），推送的操作不应由 Sentinel 客户端进行，而应该经控制台统一进行管理，直接进行推送，数据源仅负责获取配置中心推送的配置并更新到本地。因此推送规则正确做法应该是 配置中心控制台/Sentinel 控制台 → 配置中心 → Sentinel 数据源 → Sentinel，而不是经 Sentinel 数据源推送至配置中心。这样的流程就非常清晰了：

本文将基于Push模式对sentinel-dashboard进行改造，使其规则持久化到Nacos中

1.准备工作

在开始之前，请确保已安装以下软件：(这里安装不再赘述)

• 本地基础环境：
  • Java 8 或更高版本
  • Maven 或其他构建工具
  • 安装部署Nacos 服务端（版本2.x以上均可，我这里用自己改造的2.24），详解《Nacos2.24持久化到Postgres数据库适配》
• 主角
  • Sentinel 控制台（版本推荐 1.8.8），拉取官方源码：地址

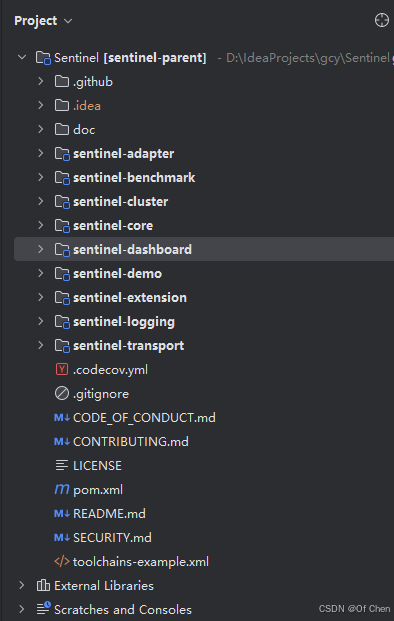

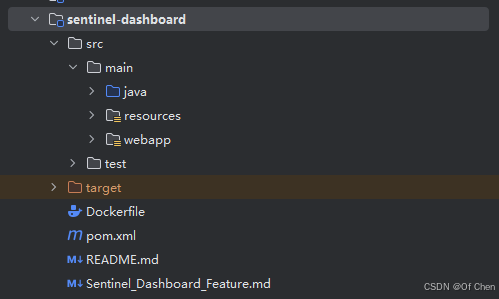

拉取完在IDEA中是这样的：

我们的主角是：

2.源码改造开始

2.1修改 pom.xml 文件

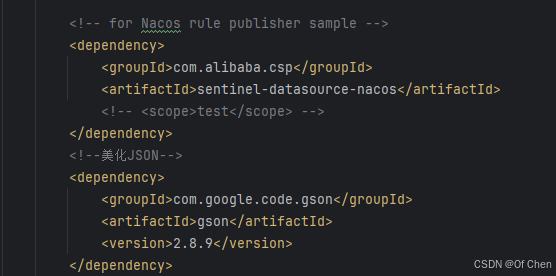

在sentinel-dashboard/pom.xml中，默认的 scope 是 test，表示只能在测试时使用，这里要注释或删掉如下<scope>test</scope> ；这里我加入了gson依赖，后面会有用

    <!-- for Nacos rule publisher sample -->
   <dependency>
       <groupId>com.alibaba.csp</groupId>
       <artifactId>sentinel-datasource-nacos</artifactId>
       <!-- <scope>test</scope> -->
   </dependency>

	<!-- 美化JSON -->
   <dependency>
       <groupId>com.google.code.gson</groupId>
       <artifactId>gson</artifactId>
       <version>2.8.9</version>
   </dependency>

2.2复制官方对Nacos支持的源码

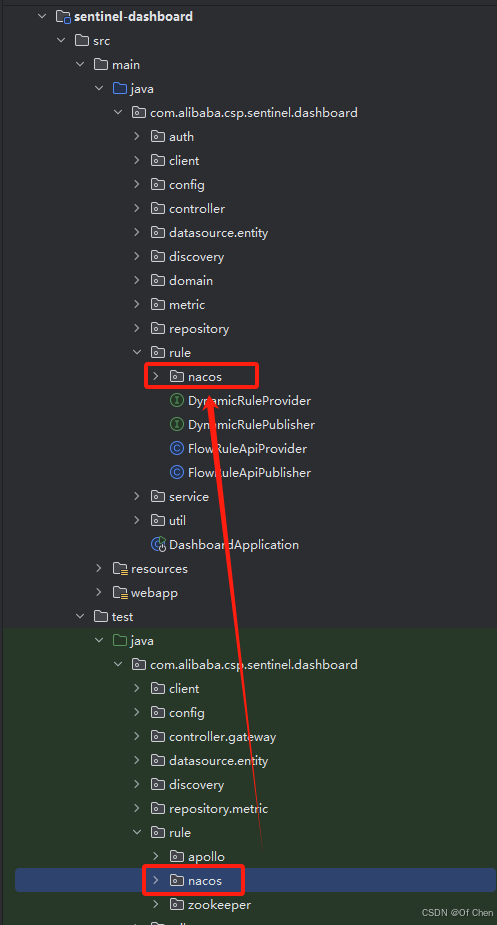

在sentinel-dashboard/src/test/java/com/alibaba/csp/sentinel/dashboard/rule/nacos中将nacos整个包复制到sentinel-dashboard/src/main/java/com/alibaba/csp/sentinel/dashboard/rule/包下，包中有四个类：FlowRuleNacosProvider、FlowRuleNacosPublisher、NacosConfig 和 NacosConfigUtils

这里需要注意一下，复制过去了，就把test下的nacos整个包删除，避免又调用到了这里，虽然我们pom.xml中删除或注释掉了test，但是还是避免一下，否则你修改源码的时候点击方法跳转的时候可能会跳到test包中，导致改错地方了

2.3 修改application.properties 文件，添加 Nacos 服务器的相关配置

# 新加Sentinel连接nacos配置
sentinel.nacos.serverAddr=你的nacos地址
sentinel.nacos.username=nacos用户名
sentinel.nacos.password=nacos密码
sentinel.nacos.namespace=nacos命名空间
sentinel.nacos.groupId=SENTINEL_GROUP

2.4 新建Nacos配置文件的读取类NacosPropertiesConfiguration.java

在sentinel-dashboard/src/main/java/com/alibaba/csp/sentinel/dashboard/rule/nacos/目录下新建NacosPropertiesConfiguration.java类：

@ConfigurationProperties(prefix = "sentinel.nacos")
@Configuration
public class NacosPropertiesConfiguration {
    private String serverAddr;
    private String namespace;
    private String groupId;
    private String username;
    private String password;

	// 省略setter/getter
}

2.5 修改 NacosConfig 类以支持自定义配置：

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.DegradeRuleEntity;
import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.FlowRuleEntity;
import com.alibaba.csp.sentinel.datasource.Converter;
import com.alibaba.fastjson.JSON;
import com.alibaba.nacos.api.PropertyKeyConst;
import com.alibaba.nacos.api.config.ConfigFactory;
import com.alibaba.nacos.api.config.ConfigService;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.List;
import java.util.Properties;

@Configuration
public class NacosConfig {

    @Bean
    public Converter<List<FlowRuleEntity>, String> flowRuleEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<FlowRuleEntity>> flowRuleEntityDecoder() {
        return s -> JSON.parseArray(s, FlowRuleEntity.class);
    }

    @Bean
    public Converter<List<DegradeRuleEntity>, String> degradeRuleEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<DegradeRuleEntity>> degradeRuleEntityDecoder() {
        return s -> JSON.parseArray(s, DegradeRuleEntity.class);
    }

    @Bean
    public ConfigService nacosConfigService(NacosPropertiesConfiguration nacosPropertiesConfiguration) throws Exception {
        Properties properties = new Properties();
        properties.put(PropertyKeyConst.SERVER_ADDR, nacosPropertiesConfiguration.getServerAddr());
        properties.put(PropertyKeyConst.NAMESPACE, nacosPropertiesConfiguration.getNamespace());
        properties.put("groupId", nacosPropertiesConfiguration.getGroupId());
        properties.put(PropertyKeyConst.USERNAME, nacosPropertiesConfiguration.getUsername());
        properties.put(PropertyKeyConst.PASSWORD, nacosPropertiesConfiguration.getPassword());
        return ConfigFactory.createConfigService(properties);
        //  return ConfigFactory.createConfigService("localhost"); // 原代码
    }
}

2.6 修改 NacosConfigUtil类以支持熔断规则及其他规则：

public final class NacosConfigUtil {

    public static final String GROUP_ID = "SENTINEL_GROUP";

    public static final String FLOW_DATA_ID_POSTFIX = "-flow-rules";
    /**
     * 增加对熔断规则的支持
     */
    public static final String DEGRADE_DATA_ID_POSTFIX = "-degrade-rules";
    public static final String PARAM_FLOW_DATA_ID_POSTFIX = "-param-rules";
    public static final String CLUSTER_MAP_DATA_ID_POSTFIX = "-cluster-map";

    /**
     * cc for `cluster-client`
     */
    public static final String CLIENT_CONFIG_DATA_ID_POSTFIX = "-cc-config";
    /**
     * cs for `cluster-server`
     */
    public static final String SERVER_TRANSPORT_CONFIG_DATA_ID_POSTFIX = "-cs-transport-config";
    public static final String SERVER_FLOW_CONFIG_DATA_ID_POSTFIX = "-cs-flow-config";
    public static final String SERVER_NAMESPACE_SET_DATA_ID_POSTFIX = "-cs-namespace-set";

    private NacosConfigUtil() {}
}

2.7 修改 FlowRuleNacosPublisher 确认配置文件格式为美化的JSON

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.FlowRuleEntity;
import com.alibaba.csp.sentinel.dashboard.rule.DynamicRulePublisher;
import com.alibaba.csp.sentinel.datasource.Converter;
import com.alibaba.csp.sentinel.util.AssertUtil;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.nacos.api.config.ConfigService;
import com.alibaba.nacos.api.config.ConfigType;
import com.google.gson.Gson;
import com.google.gson.GsonBuilder;
import com.google.gson.JsonArray;
import com.google.gson.JsonParser;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.util.List;


@Component("flowRuleNacosPublisher")
public class FlowRuleNacosPublisher implements DynamicRulePublisher<List<FlowRuleEntity>> {
    private final Logger log = LoggerFactory.getLogger(FlowRuleNacosPublisher.class);

    @Autowired
    private ConfigService configService;
    @Autowired
    private Converter<List<FlowRuleEntity>, String> converter;

    @Override
    public void publish(String app, List<FlowRuleEntity> rules) throws Exception {
        AssertUtil.notEmpty(app, "app name cannot be empty");
        if (rules == null) {
            return;
        }
        // 美化xxx-flow-rules.yml配置中的格式
        String prettyFormat = toPrettyFormat(JSONArray.toJSONString(rules));
        log.info("flow rules change and publish, app=" + app + ", rules=" + prettyFormat);
        configService.publishConfig(app + NacosConfigUtil.FLOW_DATA_ID_POSTFIX,
                NacosConfigUtil.GROUP_ID, prettyFormat, ConfigType.JSON.getType());
    }

    /**
     * 格式化输出JSON字符串
     *
     * @return 格式化后的JSON字符串
     */
    private String toPrettyFormat(String json) {
        JsonArray asJsonArray = JsonParser.parseString(json).getAsJsonArray();
        Gson gson = new GsonBuilder().setPrettyPrinting().create();
        return gson.toJson(asJsonArray);

    }
}

这里要插一嘴，为什么前面要引入gson的依赖，就是这里要做一下美化json格式，如果没有美化，那么后面在sentinel-dashboard页面持久化到nacos中的时候，就是这个鬼样子：

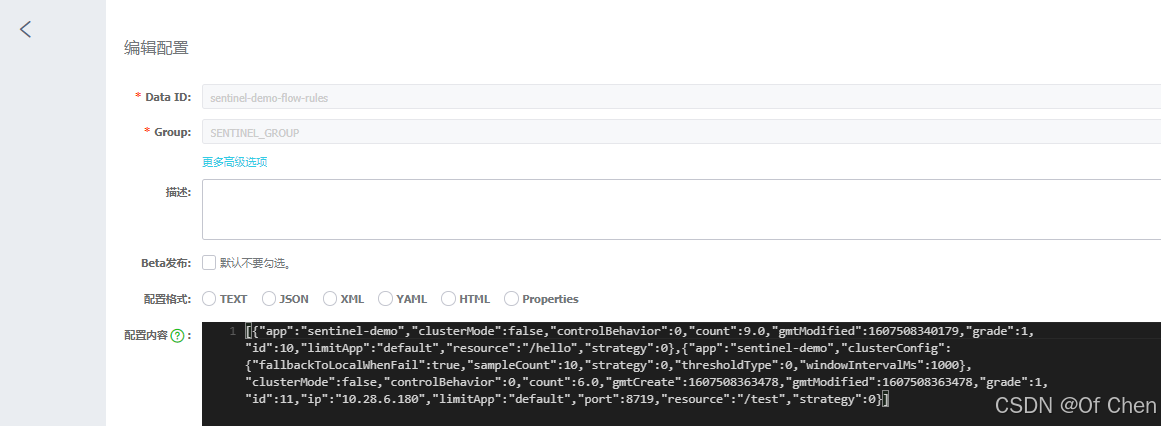

美化之前

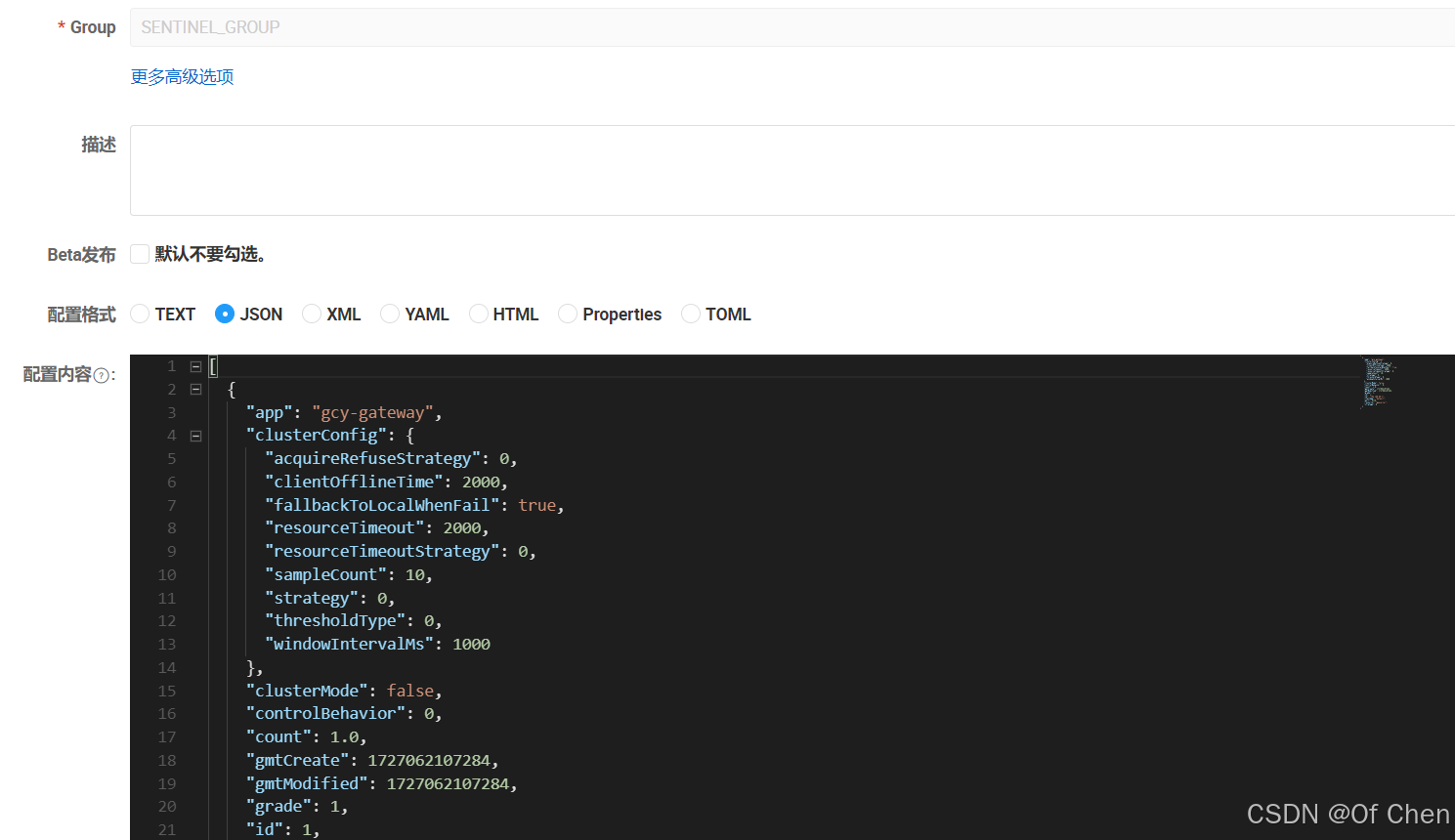

美化之后

2.8 新增DegradeRuleNacosProvider和DegradeRuleNacosPublisher

同样的，在nacos包下，可以新建，也可以从FlowRuleNacosProvider和FlowRuleNacosPublisher复制过来修改，代码如下：

DegradeRuleNacosProvider类

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.DegradeRuleEntity;
import com.alibaba.csp.sentinel.dashboard.rule.DynamicRuleProvider;
import com.alibaba.csp.sentinel.datasource.Converter;
import com.alibaba.csp.sentinel.util.StringUtil;
import com.alibaba.nacos.api.config.ConfigService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.util.ArrayList;
import java.util.List;


@Component("degradeRuleNacosProvider")
public class DegradeRuleNacosProvider implements DynamicRuleProvider<List<DegradeRuleEntity>> {

    @Autowired
    private ConfigService configService;
    @Autowired
    private Converter<String, List<DegradeRuleEntity>> converter;

    @Override
    public List<DegradeRuleEntity> getRules(String appName) throws Exception {
        String rules = configService.getConfig(appName + NacosConfigUtil.DEGRADE_DATA_ID_POSTFIX,
                NacosConfigUtil.GROUP_ID, 3000);
        if (StringUtil.isEmpty(rules)) {
            return new ArrayList<>();
        }
        return converter.convert(rules);
    }
}

DegradeRuleNacosPublisher类

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.DegradeRuleEntity;
import com.alibaba.csp.sentinel.dashboard.rule.DynamicRulePublisher;
import com.alibaba.csp.sentinel.datasource.Converter;
import com.alibaba.csp.sentinel.util.AssertUtil;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.nacos.api.config.ConfigService;
import com.alibaba.nacos.api.config.ConfigType;
import com.google.gson.Gson;
import com.google.gson.GsonBuilder;
import com.google.gson.JsonArray;
import com.google.gson.JsonParser;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.util.List;


@Component("degradeRuleNacosPublisher")
public class DegradeRuleNacosPublisher implements DynamicRulePublisher<List<DegradeRuleEntity>> {

    private final Logger log = LoggerFactory.getLogger(DegradeRuleNacosPublisher.class);

    @Autowired
    private ConfigService configService;
    @Autowired
    private Converter<List<DegradeRuleEntity>, String> converter;

    @Override
    public void publish(String app, List<DegradeRuleEntity> rules) throws Exception {
        AssertUtil.notEmpty(app, "app name cannot be empty");
        if (rules == null) {
            return;
        }
        // 美化xxxx-degrade-rules.yml配置中的格式
        String prettyFormat = toPrettyFormat(JSONArray.toJSONString(rules));
        log.info("degrade rules change and publish, app=" + app + ", rules=" + prettyFormat);
        configService.publishConfig(app + NacosConfigUtil.DEGRADE_DATA_ID_POSTFIX,
                NacosConfigUtil.GROUP_ID, prettyFormat, ConfigType.JSON.getType());
    }

    /**
     * 格式化输出JSON字符串
     *
     * @return 格式化后的JSON字符串
     */
    private String toPrettyFormat(String json) {
        JsonArray asJsonArray = JsonParser.parseString(json).getAsJsonArray();
        Gson gson = new GsonBuilder().setPrettyPrinting().create();
        return gson.toJson(asJsonArray);

    }
}

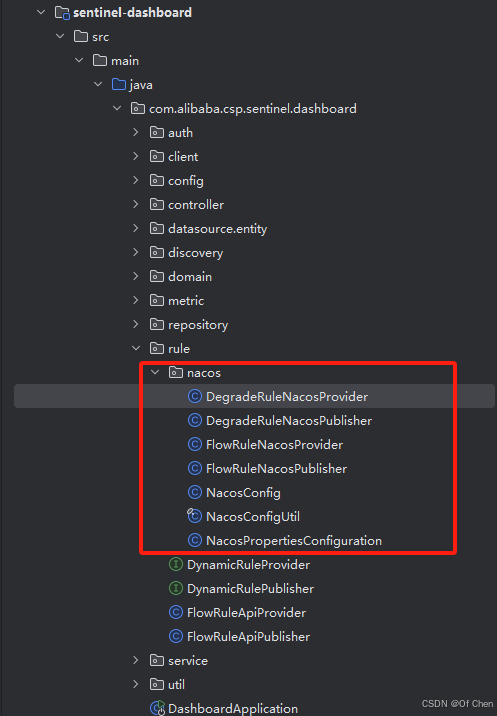

最终nacos包下的类如下：

其他热点规则，系统规则，授权规则……如法炮制，这里不赘述了

2.9 修改FlowControllerV1源码

在sentinel-dashboard/src/main/java/com/alibaba/csp/sentinel/dashboard/controller/FlowControllerV1.java进行改造

直接上改造后的源码：

	import java.util.Date;
import java.util.List;
import java.util.concurrent.CompletableFuture;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeUnit;

import com.alibaba.csp.sentinel.dashboard.auth.AuthAction;
import com.alibaba.csp.sentinel.dashboard.auth.AuthService.PrivilegeType;
import com.alibaba.csp.sentinel.dashboard.discovery.AppManagement;
import com.alibaba.csp.sentinel.dashboard.rule.DynamicRuleProvider;
import com.alibaba.csp.sentinel.dashboard.rule.DynamicRulePublisher;
import com.alibaba.csp.sentinel.util.StringUtil;

import com.alibaba.csp.sentinel.dashboard.client.SentinelApiClient;
import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.FlowRuleEntity;
import com.alibaba.csp.sentinel.dashboard.discovery.MachineInfo;
import com.alibaba.csp.sentinel.dashboard.domain.Result;
import com.alibaba.csp.sentinel.dashboard.repository.rule.InMemoryRuleRepositoryAdapter;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.util.CollectionUtils;
import org.springframework.web.bind.annotation.DeleteMapping;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.PutMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

/**
 * Flow rule controller.
 *
 * @author leyou
 * @author Eric Zhao
 */
@RestController
@RequestMapping(value = "/v1/flow")
public class FlowControllerV1 {

    private final Logger logger = LoggerFactory.getLogger(FlowControllerV1.class);

    @Autowired
    private InMemoryRuleRepositoryAdapter<FlowRuleEntity> repository;
    @Autowired
    private AppManagement appManagement;

    @Autowired
    private SentinelApiClient sentinelApiClient;

    @Autowired
    @Qualifier("flowRuleNacosProvider")
    private DynamicRuleProvider<List<FlowRuleEntity>> ruleProvider;
    @Autowired
    @Qualifier("flowRuleNacosPublisher")
    private DynamicRulePublisher<List<FlowRuleEntity>> rulePublisher;

    @GetMapping("/rules")
    @AuthAction(PrivilegeType.READ_RULE)
    public Result<List<FlowRuleEntity>> apiQueryMachineRules(@RequestParam String app,
                                                             @RequestParam String ip,
                                                             @RequestParam Integer port) {
        if (StringUtil.isEmpty(app)) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isEmpty(ip)) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (port == null) {
            return Result.ofFail(-1, "port can't be null");
        }
        if (!appManagement.isValidMachineOfApp(app, ip)) {
            return Result.ofFail(-1, "given ip does not belong to given app");
        }
        try {
//            List<FlowRuleEntity> rules = sentinelApiClient.fetchFlowRuleOfMachine(app, ip, port);
            List<FlowRuleEntity> rules = ruleProvider.getRules(app);
            if (rules != null && !rules.isEmpty()) {
                for (FlowRuleEntity entity : rules) {
                    entity.setApp(app);
                    if (entity.getClusterConfig() != null && entity.getClusterConfig().getFlowId() != null) {
                        entity.setId(entity.getClusterConfig().getFlowId());
                    }
                }
            }
            rules = repository.saveAll(rules);
            return Result.ofSuccess(rules);
        } catch (Throwable throwable) {
            logger.error("Error when querying flow rules", throwable);
            return Result.ofThrowable(-1, throwable);
        }
    }

    private <R> Result<R> checkEntityInternal(FlowRuleEntity entity) {
        if (StringUtil.isBlank(entity.getApp())) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getIp())) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (entity.getPort() == null) {
            return Result.ofFail(-1, "port can't be null");
        }
        if (!appManagement.isValidMachineOfApp(entity.getApp(), entity.getIp())) {
            return Result.ofFail(-1, "given ip does not belong to given app");
        }
        if (StringUtil.isBlank(entity.getLimitApp())) {
            return Result.ofFail(-1, "limitApp can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getResource())) {
            return Result.ofFail(-1, "resource can't be null or empty");
        }
        if (entity.getGrade() == null) {
            return Result.ofFail(-1, "grade can't be null");
        }
        if (entity.getGrade() != 0 && entity.getGrade() != 1) {
            return Result.ofFail(-1, "grade must be 0 or 1, but " + entity.getGrade() + " got");
        }
        if (entity.getCount() == null || entity.getCount() < 0) {
            return Result.ofFail(-1, "count should be at lease zero");
        }
        if (entity.getStrategy() == null) {
            return Result.ofFail(-1, "strategy can't be null");
        }
        if (entity.getStrategy() != 0 && StringUtil.isBlank(entity.getRefResource())) {
            return Result.ofFail(-1, "refResource can't be null or empty when strategy!=0");
        }
        if (entity.getControlBehavior() == null) {
            return Result.ofFail(-1, "controlBehavior can't be null");
        }
        int controlBehavior = entity.getControlBehavior();
        if (controlBehavior == 1 && entity.getWarmUpPeriodSec() == null) {
            return Result.ofFail(-1, "warmUpPeriodSec can't be null when controlBehavior==1");
        }
        if (controlBehavior == 2 && entity.getMaxQueueingTimeMs() == null) {
            return Result.ofFail(-1, "maxQueueingTimeMs can't be null when controlBehavior==2");
        }
        if (entity.isClusterMode() && entity.getClusterConfig() == null) {
            return Result.ofFail(-1, "cluster config should be valid");
        }
        return null;
    }

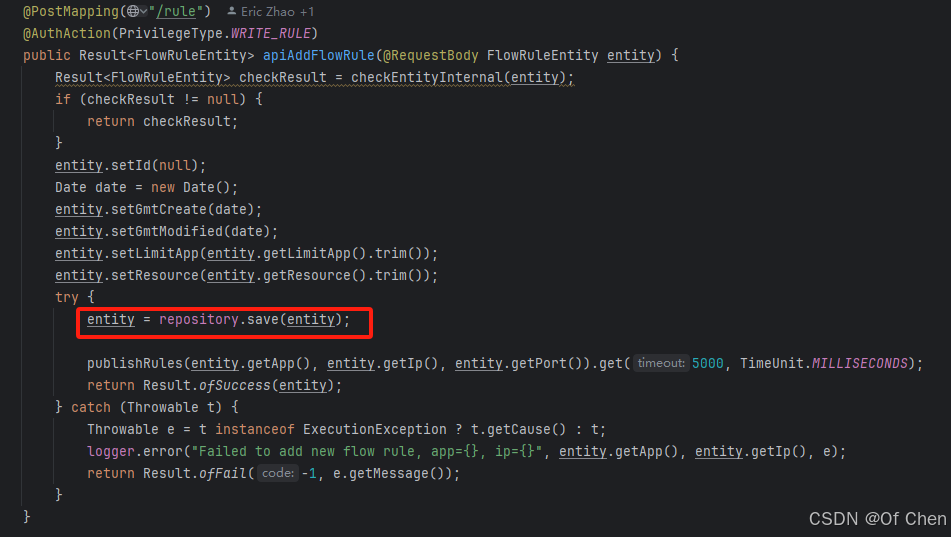

    @PostMapping("/rule")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<FlowRuleEntity> apiAddFlowRule(@RequestBody FlowRuleEntity entity) {
        Result<FlowRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }
        entity.setId(null);
        Date date = new Date();
        entity.setGmtCreate(date);
        entity.setGmtModified(date);
        entity.setLimitApp(entity.getLimitApp().trim());
        entity.setResource(entity.getResource().trim());
        try {
            entity = repository.save(entity);

            publishRules(entity.getApp(), entity.getIp(), entity.getPort()).get(5000, TimeUnit.MILLISECONDS);
            return Result.ofSuccess(entity);
        } catch (Throwable t) {
            Throwable e = t instanceof ExecutionException ? t.getCause() : t;
            logger.error("Failed to add new flow rule, app={}, ip={}", entity.getApp(), entity.getIp(), e);
            return Result.ofFail(-1, e.getMessage());
        }
    }

    @PutMapping("/save.json")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<FlowRuleEntity> apiUpdateFlowRule(Long id, String app,
                                                  String limitApp, String resource, Integer grade,
                                                  Double count, Integer strategy, String refResource,
                                                  Integer controlBehavior, Integer warmUpPeriodSec,
                                                  Integer maxQueueingTimeMs) {
        if (id == null) {
            return Result.ofFail(-1, "id can't be null");
        }
        FlowRuleEntity entity = repository.findById(id);
        if (entity == null) {
            return Result.ofFail(-1, "id " + id + " dose not exist");
        }
        if (StringUtil.isNotBlank(app)) {
            entity.setApp(app.trim());
        }
        if (StringUtil.isNotBlank(limitApp)) {
            entity.setLimitApp(limitApp.trim());
        }
        if (StringUtil.isNotBlank(resource)) {
            entity.setResource(resource.trim());
        }
        if (grade != null) {
            if (grade != 0 && grade != 1) {
                return Result.ofFail(-1, "grade must be 0 or 1, but " + grade + " got");
            }
            entity.setGrade(grade);
        }
        if (count != null) {
            entity.setCount(count);
        }
        if (strategy != null) {
            if (strategy != 0 && strategy != 1 && strategy != 2) {
                return Result.ofFail(-1, "strategy must be in [0, 1, 2], but " + strategy + " got");
            }
            entity.setStrategy(strategy);
            if (strategy != 0) {
                if (StringUtil.isBlank(refResource)) {
                    return Result.ofFail(-1, "refResource can't be null or empty when strategy!=0");
                }
                entity.setRefResource(refResource.trim());
            }
        }
        if (controlBehavior != null) {
            if (controlBehavior != 0 && controlBehavior != 1 && controlBehavior != 2) {
                return Result.ofFail(-1, "controlBehavior must be in [0, 1, 2], but " + controlBehavior + " got");
            }
            if (controlBehavior == 1 && warmUpPeriodSec == null) {
                return Result.ofFail(-1, "warmUpPeriodSec can't be null when controlBehavior==1");
            }
            if (controlBehavior == 2 && maxQueueingTimeMs == null) {
                return Result.ofFail(-1, "maxQueueingTimeMs can't be null when controlBehavior==2");
            }
            entity.setControlBehavior(controlBehavior);
            if (warmUpPeriodSec != null) {
                entity.setWarmUpPeriodSec(warmUpPeriodSec);
            }
            if (maxQueueingTimeMs != null) {
                entity.setMaxQueueingTimeMs(maxQueueingTimeMs);
            }
        }
        Date date = new Date();
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
            if (entity == null) {
                return Result.ofFail(-1, "save entity fail: null");
            }

            publishRules(entity.getApp(), entity.getIp(), entity.getPort()).get(5000, TimeUnit.MILLISECONDS);
            return Result.ofSuccess(entity);
        } catch (Throwable t) {
            Throwable e = t instanceof ExecutionException ? t.getCause() : t;
            logger.error("Error when updating flow rules, app={}, ip={}, ruleId={}", entity.getApp(),
                entity.getIp(), id, e);
            return Result.ofFail(-1, e.getMessage());
        }
    }

    @DeleteMapping("/delete.json")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<Long> apiDeleteFlowRule(Long id) {

        if (id == null) {
            return Result.ofFail(-1, "id can't be null");
        }
        FlowRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofSuccess(null);
        }

        try {
            repository.delete(id);
        } catch (Exception e) {
            return Result.ofFail(-1, e.getMessage());
        }
        try {
            publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort()).get(5000, TimeUnit.MILLISECONDS);
            return Result.ofSuccess(id);
        } catch (Throwable t) {
            Throwable e = t instanceof ExecutionException ? t.getCause() : t;
            logger.error("Error when deleting flow rules, app={}, ip={}, id={}", oldEntity.getApp(),
                oldEntity.getIp(), id, e);
            return Result.ofFail(-1, e.getMessage());
        }
    }

    private CompletableFuture<Void> publishRules(String app, String ip, Integer port) throws Exception {
        List<FlowRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
        // 将数据推送到Nacos配置中心
        rulePublisher.publish(app, rules);
        return sentinelApiClient.setFlowRuleOfMachineAsync(app, ip, port, rules);
    }
}

2.10 修改DegradeController源码

在sentinel-dashboard/src/main/java/com/alibaba/csp/sentinel/dashboard/controller/DegradeController.java中改造

直接上改造后的源码：

import com.alibaba.csp.sentinel.dashboard.auth.AuthAction;
import com.alibaba.csp.sentinel.dashboard.auth.AuthService.PrivilegeType;
import com.alibaba.csp.sentinel.dashboard.client.SentinelApiClient;
import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.DegradeRuleEntity;
import com.alibaba.csp.sentinel.dashboard.discovery.AppManagement;
import com.alibaba.csp.sentinel.dashboard.discovery.MachineInfo;
import com.alibaba.csp.sentinel.dashboard.domain.Result;
import com.alibaba.csp.sentinel.dashboard.repository.rule.RuleRepository;
import com.alibaba.csp.sentinel.dashboard.rule.DynamicRuleProvider;
import com.alibaba.csp.sentinel.dashboard.rule.DynamicRulePublisher;
import com.alibaba.csp.sentinel.slots.block.RuleConstant;
import com.alibaba.csp.sentinel.slots.block.degrade.circuitbreaker.CircuitBreakerStrategy;
import com.alibaba.csp.sentinel.util.StringUtil;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.web.bind.annotation.*;

import java.util.Date;
import java.util.List;

/**
 * Controller regarding APIs of degrade rules. Refactored since 1.8.0.
 *
 * @author Carpenter Lee
 * @author Eric Zhao
 */
@RestController
@RequestMapping("/degrade")
public class DegradeController {

    private final Logger logger = LoggerFactory.getLogger(DegradeController.class);

    @Autowired
    private RuleRepository<DegradeRuleEntity, Long> repository;
    @Autowired
    private SentinelApiClient sentinelApiClient;
    @Autowired
    private AppManagement appManagement;

    @Autowired
    @Qualifier("degradeRuleNacosProvider")
    private DynamicRuleProvider<List<DegradeRuleEntity>> ruleProvider;
    @Autowired
    @Qualifier("degradeRuleNacosPublisher")
    private DynamicRulePublisher<List<DegradeRuleEntity>> rulePublisher;

    @GetMapping("/rules.json")
    @AuthAction(PrivilegeType.READ_RULE)
    public Result<List<DegradeRuleEntity>> apiQueryMachineRules(String app, String ip, Integer port) {
        if (StringUtil.isEmpty(app)) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isEmpty(ip)) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (port == null) {
            return Result.ofFail(-1, "port can't be null");
        }
        if (!appManagement.isValidMachineOfApp(app, ip)) {
            return Result.ofFail(-1, "given ip does not belong to given app");
        }
        try {
//            List<DegradeRuleEntity> rules = sentinelApiClient.fetchDegradeRuleOfMachine(app, ip, port);
            List<DegradeRuleEntity> rules = ruleProvider.getRules(app);
            rules = repository.saveAll(rules);
            return Result.ofSuccess(rules);
        } catch (Throwable throwable) {
            logger.error("queryApps error:", throwable);
            return Result.ofThrowable(-1, throwable);
        }
    }

    @PostMapping("/rule")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<DegradeRuleEntity> apiAddRule(@RequestBody DegradeRuleEntity entity) {
        Result<DegradeRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }
        Date date = new Date();
        entity.setGmtCreate(date);
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
        } catch (Throwable t) {
            logger.error("Failed to add new degrade rule, app={}, ip={}", entity.getApp(), entity.getIp(), t);
            return Result.ofThrowable(-1, t);
        }
        try {
            if (!publishRules(entity.getApp(), entity.getIp(), entity.getPort())) {
                logger.warn("Publish degrade rules failed, app={}", entity.getApp());
            }
        } catch (Exception e) {
            logger.error("Publish degrade rules failed, app={}", entity.getApp());
            throw new RuntimeException(e);
        }
        return Result.ofSuccess(entity);
    }

    @PutMapping("/rule/{id}")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<DegradeRuleEntity> apiUpdateRule(@PathVariable("id") Long id,
                                                   @RequestBody DegradeRuleEntity entity) {
        if (id == null || id <= 0) {
            return Result.ofFail(-1, "id can't be null or negative");
        }
        DegradeRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofFail(-1, "Degrade rule does not exist, id=" + id);
        }
        entity.setApp(oldEntity.getApp());
        entity.setIp(oldEntity.getIp());
        entity.setPort(oldEntity.getPort());
        entity.setId(oldEntity.getId());
        Result<DegradeRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }

        entity.setGmtCreate(oldEntity.getGmtCreate());
        entity.setGmtModified(new Date());
        try {
            entity = repository.save(entity);
        } catch (Throwable t) {
            logger.error("Failed to save degrade rule, id={}, rule={}", id, entity, t);
            return Result.ofThrowable(-1, t);
        }
        try {
            if (!publishRules(entity.getApp(), entity.getIp(), entity.getPort())) {
                logger.warn("Publish degrade rules failed, app={}", entity.getApp());
            }
        } catch (Exception e) {
            logger.error("Publish degrade rules failed, app={}", entity.getApp());
            throw new RuntimeException(e);
        }
        return Result.ofSuccess(entity);
    }

    @DeleteMapping("/rule/{id}")
    @AuthAction(PrivilegeType.DELETE_RULE)
    public Result<Long> delete(@PathVariable("id") Long id) {
        if (id == null) {
            return Result.ofFail(-1, "id can't be null");
        }

        DegradeRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofSuccess(null);
        }

        try {
            repository.delete(id);
        } catch (Throwable throwable) {
            logger.error("Failed to delete degrade rule, id={}", id, throwable);
            return Result.ofThrowable(-1, throwable);
        }
        try {
            if (!publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort())) {
                logger.warn("Publish degrade rules failed, app={}", oldEntity.getApp());
            }
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
        return Result.ofSuccess(id);
    }

    private boolean publishRules(String app, String ip, Integer port) throws Exception {
        List<DegradeRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
        // 将数据推送到Nacos配置中心
        rulePublisher.publish(app, rules);
        return sentinelApiClient.setDegradeRuleOfMachine(app, ip, port, rules);
    }

    private <R> Result<R> checkEntityInternal(DegradeRuleEntity entity) {
        if (StringUtil.isBlank(entity.getApp())) {
            return Result.ofFail(-1, "app can't be blank");
        }
        if (StringUtil.isBlank(entity.getIp())) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (!appManagement.isValidMachineOfApp(entity.getApp(), entity.getIp())) {
            return Result.ofFail(-1, "given ip does not belong to given app");
        }
        if (entity.getPort() == null || entity.getPort() <= 0) {
            return Result.ofFail(-1, "invalid port: " + entity.getPort());
        }
        if (StringUtil.isBlank(entity.getLimitApp())) {
            return Result.ofFail(-1, "limitApp can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getResource())) {
            return Result.ofFail(-1, "resource can't be null or empty");
        }
        Double threshold = entity.getCount();
        if (threshold == null || threshold < 0) {
            return Result.ofFail(-1, "invalid threshold: " + threshold);
        }
        Integer recoveryTimeoutSec = entity.getTimeWindow();
        if (recoveryTimeoutSec == null || recoveryTimeoutSec <= 0) {
            return Result.ofFail(-1, "recoveryTimeout should be positive");
        }
        Integer strategy = entity.getGrade();
        if (strategy == null) {
            return Result.ofFail(-1, "circuit breaker strategy cannot be null");
        }
        if (strategy < CircuitBreakerStrategy.SLOW_REQUEST_RATIO.getType()
                || strategy > RuleConstant.DEGRADE_GRADE_EXCEPTION_COUNT) {
            return Result.ofFail(-1, "Invalid circuit breaker strategy: " + strategy);
        }
        if (entity.getMinRequestAmount() == null || entity.getMinRequestAmount() <= 0) {
            return Result.ofFail(-1, "Invalid minRequestAmount");
        }
        if (entity.getStatIntervalMs() == null || entity.getStatIntervalMs() <= 0) {
            return Result.ofFail(-1, "Invalid statInterval");
        }
        if (strategy == RuleConstant.DEGRADE_GRADE_RT) {
            Double slowRatio = entity.getSlowRatioThreshold();
            if (slowRatio == null) {
                return Result.ofFail(-1, "SlowRatioThreshold is required for slow request ratio strategy");
            } else if (slowRatio < 0 || slowRatio > 1) {
                return Result.ofFail(-1, "SlowRatioThreshold should be in range: [0.0, 1.0]");
            }
        } else if (strategy == RuleConstant.DEGRADE_GRADE_EXCEPTION_RATIO) {
            if (threshold > 1) {
                return Result.ofFail(-1, "Ratio threshold should be in range: [0.0, 1.0]");
            }
        }
        return null;
    }
}

好了，流控和降级的规则就改造好了，其他规则如法炮制，这里不再赘述

2.11 改造规则ID

先说说为什么要改造规则ID，这其实是一个坑：当控制台重启后，在已有的规则上在添加 规则会出现覆盖之前规则的情况，原因如下：

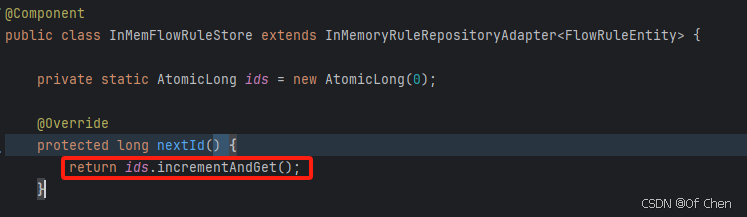

看到了吧，源码里：每次重启sentinel之后再添加规则，规则的id都会1 的开始覆盖，如果原来有id为1得规则，就会被覆盖掉，所以修改规则id就很有必要，不然你刚改造好，跑起来没问题，重启后再新增规则，就会发现原来的不生效了，找都找不到问题在哪里，坑~

改造开始

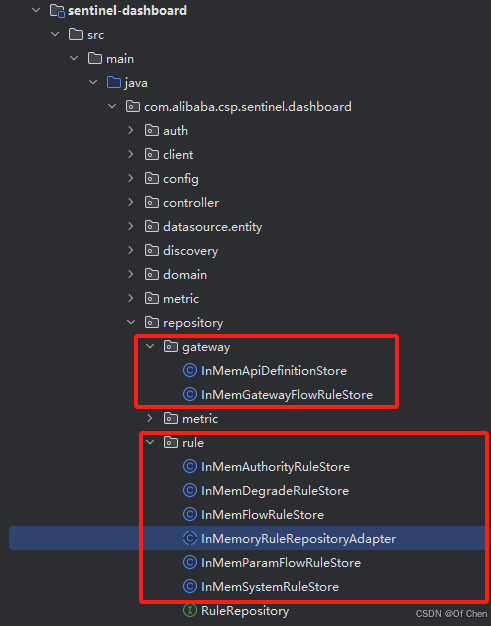

修改如下图所示几个类即可：

上修改后源码：

InMemoryRuleRepositoryAdapter类

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.RuleEntity;
import com.alibaba.csp.sentinel.dashboard.discovery.MachineInfo;
import com.alibaba.csp.sentinel.util.AssertUtil;

import java.util.ArrayList;
import java.util.List;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

/**
 * @author leyou
 */
public abstract class InMemoryRuleRepositoryAdapter<T extends RuleEntity> implements RuleRepository<T, Long> {

    /**
     * {@code <machine, <id, rule>>}
     */
    private Map<MachineInfo, Map<Long, T>> machineRules = new ConcurrentHashMap<>(16);
    private Map<Long, T> allRules = new ConcurrentHashMap<>(16);

    private Map<String, Map<Long, T>> appRules = new ConcurrentHashMap<>(16);

    private static final int MAX_RULES_SIZE = 10000;

    @Override
    public T save(T entity) {
        if (entity.getId() == null) {
            entity.setId(nextId(entity));
        }
        T processedEntity = preProcess(entity);
        if (processedEntity != null) {
            allRules.put(processedEntity.getId(), processedEntity);
            machineRules.computeIfAbsent(MachineInfo.of(processedEntity.getApp(), processedEntity.getIp(),
                            processedEntity.getPort()), e -> new ConcurrentHashMap<>(32))
                    .put(processedEntity.getId(), processedEntity);
            appRules.computeIfAbsent(processedEntity.getApp(), v -> new ConcurrentHashMap<>(32))
                    .put(processedEntity.getId(), processedEntity);
        }

        return processedEntity;
    }

    @Override
    public List<T> saveAll(List<T> rules) {
        // TODO: check here.
        allRules.clear();
        machineRules.clear();
        appRules.clear();

        if (rules == null) {
            return null;
        }
        List<T> savedRules = new ArrayList<>(rules.size());
        for (T rule : rules) {
            savedRules.add(save(rule));
        }
        return savedRules;
    }

    @Override
    public T delete(Long id) {
        T entity = allRules.remove(id);
        if (entity != null) {
            if (appRules.get(entity.getApp()) != null) {
                appRules.get(entity.getApp()).remove(id);
            }
            machineRules.get(MachineInfo.of(entity.getApp(), entity.getIp(), entity.getPort())).remove(id);
        }
        return entity;
    }

    @Override
    public T findById(Long id) {
        return allRules.get(id);
    }

    @Override
    public List<T> findAllByMachine(MachineInfo machineInfo) {
        Map<Long, T> entities = machineRules.get(machineInfo);
        if (entities == null) {
            return new ArrayList<>();
        }
        return new ArrayList<>(entities.values());
    }

    @Override
    public List<T> findAllByApp(String appName) {
        AssertUtil.notEmpty(appName, "appName cannot be empty");
        Map<Long, T> entities = appRules.get(appName);
        if (entities == null) {
            return new ArrayList<>();
        }
        return new ArrayList<>(entities.values());
    }

    public void clearAll() {
        allRules.clear();
        machineRules.clear();
        appRules.clear();
    }

    protected T preProcess(T entity) {
        return entity;
    }

    /**
     * Get next unused id.
     *
     * @return next unused id
     */
    abstract protected long nextId(T entity);
}

InMemApiDefinitionStore类

import com.alibaba.csp.sentinel.dashboard.datasource.entity.gateway.ApiDefinitionEntity;
import com.alibaba.csp.sentinel.dashboard.repository.rule.InMemoryRuleRepositoryAdapter;
import org.springframework.stereotype.Component;
import org.springframework.util.CollectionUtils;

import java.util.Comparator;
import java.util.concurrent.atomic.AtomicLong;

/**
 * Store {@link ApiDefinitionEntity} in memory.
 *
 * @author cdfive
 * @since 1.7.0
 */
@Component
public class InMemApiDefinitionStore extends InMemoryRuleRepositoryAdapter<ApiDefinitionEntity> {

    private static AtomicLong ids = new AtomicLong(0);

    @Override
    protected long nextId(ApiDefinitionEntity entity) {
        if (ids.intValue() == 0) {//如果是重启后 且存在已有规则则赋值为最大id+1
            if (!CollectionUtils.isEmpty(this.findAllByApp(entity.getApp()))) {
                long maxId = this.findAllByApp(entity.getApp()).stream().max(Comparator.comparingLong(ApiDefinitionEntity::getId)).get().getId();
                ids.set(maxId);
            }
        }
        return ids.incrementAndGet();
    }
}

InMemGatewayFlowRuleStore类

import com.alibaba.csp.sentinel.dashboard.datasource.entity.gateway.GatewayFlowRuleEntity;
import com.alibaba.csp.sentinel.dashboard.repository.rule.InMemoryRuleRepositoryAdapter;
import org.springframework.stereotype.Component;
import org.springframework.util.CollectionUtils;

import java.util.Comparator;
import java.util.concurrent.atomic.AtomicLong;

/**
 * Store {@link GatewayFlowRuleEntity} in memory.
 *
 * @author cdfive
 * @since 1.7.0
 */
@Component
public class InMemGatewayFlowRuleStore extends InMemoryRuleRepositoryAdapter<GatewayFlowRuleEntity> {

    private static AtomicLong ids = new AtomicLong(0);

    @Override
    protected long nextId(GatewayFlowRuleEntity entity) {
        if (ids.intValue() == 0) { //如果是重启后 且存在已有规则则赋值为最大id+1
            if (!CollectionUtils.isEmpty(this.findAllByApp(entity.getApp()))) {
                long maxId = this.findAllByApp(entity.getApp()).stream().max(Comparator.comparingLong(GatewayFlowRuleEntity::getId)).get().getId();
                ids.set(maxId);
            }
        }
        return ids.incrementAndGet();
    }
}

InMemAuthorityRuleStore类

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.AuthorityRuleEntity;
import org.springframework.stereotype.Component;
import org.springframework.util.CollectionUtils;

import java.util.Comparator;
import java.util.concurrent.atomic.AtomicLong;

/**
 * In-memory storage for authority rules.
 *
 * @author Eric Zhao
 * @since 0.2.1
 */
@Component
public class InMemAuthorityRuleStore extends InMemoryRuleRepositoryAdapter<AuthorityRuleEntity> {

    private static AtomicLong ids = new AtomicLong(0);

    @Override
    protected long nextId(AuthorityRuleEntity entity) {
        if (ids.intValue() == 0) {//如果是重启后 且存在已有规则则赋值为最大id+1
            if (!CollectionUtils.isEmpty(this.findAllByApp(entity.getApp()))) {
                long maxId = this.findAllByApp(entity.getApp()).stream().max(Comparator.comparingLong(AuthorityRuleEntity::getId)).get().getId();
                ids.set(maxId);
            }
        }
        return ids.incrementAndGet();
    }
}

InMemDegradeRuleStore类

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.DegradeRuleEntity;
import org.springframework.stereotype.Component;
import org.springframework.util.CollectionUtils;

import java.util.Comparator;
import java.util.concurrent.atomic.AtomicLong;

/**
 * @author leyou
 */
@Component
public class InMemDegradeRuleStore extends InMemoryRuleRepositoryAdapter<DegradeRuleEntity> {

    private static AtomicLong ids = new AtomicLong(0);

    @Override
    protected long nextId(DegradeRuleEntity entity) {
        if (ids.intValue() == 0) {//如果是重启后 且存在已有规则则赋值为最大id+1
            if (!CollectionUtils.isEmpty(this.findAllByApp(entity.getApp()))) {
                long maxId = this.findAllByApp(entity.getApp()).stream().max(Comparator.comparingLong(DegradeRuleEntity::getId)).get().getId();
                ids.set(maxId);
            }
        }
        return ids.incrementAndGet();
    }
}

InMemFlowRuleStore类

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.FlowRuleEntity;
import com.alibaba.csp.sentinel.slots.block.flow.ClusterFlowConfig;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.util.CollectionUtils;

import java.util.Comparator;
import java.util.concurrent.atomic.AtomicLong;

/**
 * Store {@link FlowRuleEntity} in memory.
 *
 * @author leyou
 */
@Component
public class InMemFlowRuleStore extends InMemoryRuleRepositoryAdapter<FlowRuleEntity> {

    private static AtomicLong ids = new AtomicLong(0);

    @Override
    protected long nextId(FlowRuleEntity entity) {
        if (ids.intValue() == 0) {//如果是重启后 且存在已有规则则赋值为最大id+1
            if (!CollectionUtils.isEmpty(this.findAllByApp(entity.getApp()))) {
                long maxId = this.findAllByApp(entity.getApp()).stream().max(Comparator.comparingLong(FlowRuleEntity::getId)).get().getId();
                ids.set(maxId);
            }
        }
        return ids.incrementAndGet();
    }

    @Override
    protected FlowRuleEntity preProcess(FlowRuleEntity entity) {
        if (entity != null && entity.isClusterMode()) {
            ClusterFlowConfig config = entity.getClusterConfig();
            if (config == null) {
                config = new ClusterFlowConfig();
                entity.setClusterConfig(config);
            }
            // Set cluster rule id.
            config.setFlowId(entity.getId());
        }
        return entity;
    }
}

InMemParamFlowRuleStore类

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.ParamFlowRuleEntity;
import com.alibaba.csp.sentinel.slots.block.flow.param.ParamFlowClusterConfig;
import org.springframework.stereotype.Component;
import org.springframework.util.CollectionUtils;

import java.util.Comparator;
import java.util.concurrent.atomic.AtomicLong;

/**
 * @author Eric Zhao
 * @since 0.2.1
 */
@Component
public class InMemParamFlowRuleStore extends InMemoryRuleRepositoryAdapter<ParamFlowRuleEntity> {

    private static AtomicLong ids = new AtomicLong(0);

    @Override
    protected long nextId(ParamFlowRuleEntity entity) {
        if (ids.intValue() == 0) {
            //如果是重启后 且存在已有规则则赋值为最大id+1
            if (!CollectionUtils.isEmpty(this.findAllByApp(entity.getApp()))) {
                long maxId = this.findAllByApp(entity.getApp()).stream().max(Comparator.comparingLong(ParamFlowRuleEntity::getId)).get().getId();
                ids.set(maxId);
            }
        }
        return ids.incrementAndGet();
    }

    @Override
    protected ParamFlowRuleEntity preProcess(ParamFlowRuleEntity entity) {
        if (entity != null && entity.isClusterMode()) {
            ParamFlowClusterConfig config = entity.getClusterConfig();
            if (config == null) {
                config = new ParamFlowClusterConfig();
            }
            // Set cluster rule id.
            config.setFlowId(entity.getId());
        }
        return entity;
    }
}

InMemSystemRuleStore类

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.SystemRuleEntity;
import org.springframework.stereotype.Component;
import org.springframework.util.CollectionUtils;

import java.util.Comparator;
import java.util.concurrent.atomic.AtomicLong;

/**
 * @author leyou
 */
@Component
public class InMemSystemRuleStore extends InMemoryRuleRepositoryAdapter<SystemRuleEntity> {

    private static AtomicLong ids = new AtomicLong(0);

    @Override
    protected long nextId(SystemRuleEntity entity) {
        if (ids.intValue() == 0) {//如果是重启后 且存在已有规则则赋值为最大id+1
            if (!CollectionUtils.isEmpty(this.findAllByApp(entity.getApp()))) {
                long maxId = this.findAllByApp(entity.getApp()).stream().max(Comparator.comparingLong(SystemRuleEntity::getId)).get().getId();
                ids.set(maxId);
            }
        }
        return ids.incrementAndGet();
    }
}

好了，到这里改造的内容就大功告成了~

3 项目使用

3.1 引入依赖

项目中需要在pom.xml引入nacos和sentinel相关的依赖

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
            <exclusions>
            <exclusion>
                <artifactId>fastjson</artifactId>
                <groupId>com.alibaba</groupId>
            </exclusion>
        </exclusions>
        </dependency>
         <!--sentinel集成nacos作为数据源 -->
        <dependency>
            <groupId>com.alibaba.csp</groupId>
            <artifactId>sentinel-datasource-nacos</artifactId>
        </dependency>
        <!--Sentinel规则持久化至Nacos配置 sentinel流控链路不生效-->
        <dependency>
            <groupId>com.alibaba.csp</groupId>
            <artifactId>sentinel-web-servlet</artifactId>
        </dependency>

3.2配置项目中yml或propertie

我这里以yml中的配置为例：

spring:
  application:
    name: order-service
  cloud:
    nacos:
      server-addr: nacos地址
      username: nacos用户名
      password: nacos密码
      discovery:
        namespace: acd06760-3c02-4186-9478-9d28991ddc0b
        group: DEMO_DISCOVERY_GROUP
      config:
        namespace: 1cacd9da-414b-4425-b321-600e6881d941
        group: DEMO_CONFIG_GROUP
        file-extension: yml
        refresh-enabled: true
        timeout: 3000
    sentinel:
      transport:
        dashboard: localhost:8080 #控制台地址：指定sentinel控制台服务的地址(与启动sentinel控制台命令配置的地址相同)
      eager: true # 启动直接加载配置，关闭懒加载
      # 使用nacos来做持久化
      datasource:
        flow:
          nacos:
            # 设置Nacos的连接地址、命名空间和Group ID
            server-addr: ${spring.cloud.nacos.discovery.server-addr}
            username: ${spring.cloud.nacos.discovery.username}
            password: ${spring.cloud.nacos.discovery.password}
            namespace: ${spring.cloud.nacos.discovery.namespace}
            # 设置Nacos中配置文件的命名规则
            data-id: ${spring-application-name}-flow-rules # 在修改的sentinel 源码中定义的规则名
            group-id: SENTINEL_GROUP
            data-type: json
            rule-type: flow #枚举类型 严格规范
        degrade:
          nacos:
            server-addr: ${spring.cloud.nacos.discovery.server-addr}
            username: ${spring.cloud.nacos.discovery.username}
            password: ${spring.cloud.nacos.discovery.password}
            group-id: SENTINEL_GROUP
            data-id: ${spring-application-name}--degrade-rules
            data-type: json
            ## rule-type设置对应得规则类型，总共七大类型，在com.alibaba.cloud.sentinel.datasource.RuleType这个枚举类中有体现
            rule-type: degrade
      log:
        dir: ./sentinel/logs/${spring.application.name}
      filter:
        enabled: true
      scg:
        # 流控触发返回
        fallback:
          response-body: '{"code":-10000, "data":null, "msg":"前方拥堵，请稍后重试"}'
          mode: response
          response-status: 500

4 完成

1.启动 Nocos 服务。

2.启动 Sentinel Dashboard。

3.启动项目 xxx-service 服务。

这里在Sentinel-dashboard新建流控规则和熔断规则，就会在nacos对应namespace的SENTINEL_GROUP分组生成xxx-flow-rules和xxx-degrade-rules两个规则，在nacos上修改也会同步到sentinel-dashboard中，好了，这里就实现了流控和熔断两种规则的双向同步了，其他规则如法炮制，这里就不赘述了。
