Mobaxterm is a secure remote connection tool suite that provides SSH, VNC, and RDP protocols, and much more. MobaXterm provides the ultimate toolbox for remote computing. MobaXterm is created for Windows operating systems where Windows 7, Windows 8, Windows 10 and Windows Servers are supported.

Mobaxterm是一个安全的远程连接工具套件，可提供SSH，VNC和RDP协议等。 MobaXterm提供了用于远程计算的终极工具箱。 MobaXterm是为支持Windows 7，Windows 8，Windows 10和Windows Server的Windows操作系统创建的。

Whats makes the MobaXterm so great is a single applications will provide and support a lot f different protocols, standards in a single applications. With MobaXterm you can create an SSH server in the Windows with just few clicks or connect remote X11 desktop service from a Windows system easily without any problem.

是什么使MobaXterm如此出色，因为单个应用程序将在单个应用程序中提供并支持许多不同的协议，标准。使用MobaXterm，您只需单击几下即可在Windows中创建SSH服务器，或轻松地从Windows系统连接远程X11桌面服务，而不会出现任何问题。

Mobaxterm版本和许可证 (Mobaxterm Versions and License)

MobaXterm is normally a paid application but a free version of the MobaXterm is provided to the users in order to show its great features. MobaXterm is provided as two versions and licenses MobaXterm Home Edition and MobaXterm Professional Edition.

MobaXterm通常是付费应用程序，但向用户提供了MobaXterm的免费版本，以显示其强大功能。 MobaXterm提供两个版本，并提供MobaXterm Home Edition和MobaXterm Professional Edition许可。

家庭版 (Home Edition)

As a free version Home Edition provides useful features which may be enough for some users. In Home edition of the MobaXterm full X server and SSH server can be run on a Windows operating system. Also remote sessions like RDP, VNC, Xdmcp and remote terminals SSH, telnet, rlogin can be used with some sessions restrictions. Currently maximum 12 sessions can be run at the same time and maximum 2 SSH tunnels can be created.

作为免费版本，家庭版提供了有用的功能，对于某些用户而言可能就足够了。 MobaXterm Full X服务器和SSH服务器的家庭版可以在Windows操作系统上运行。远程会话(如RDP，VNC，Xdmcp和远程终端SSH，telnet，rlogin)也可以在某些会话限制下使用。当前最多可以同时运行12个会话，并且最多可以创建2个SSH隧道。

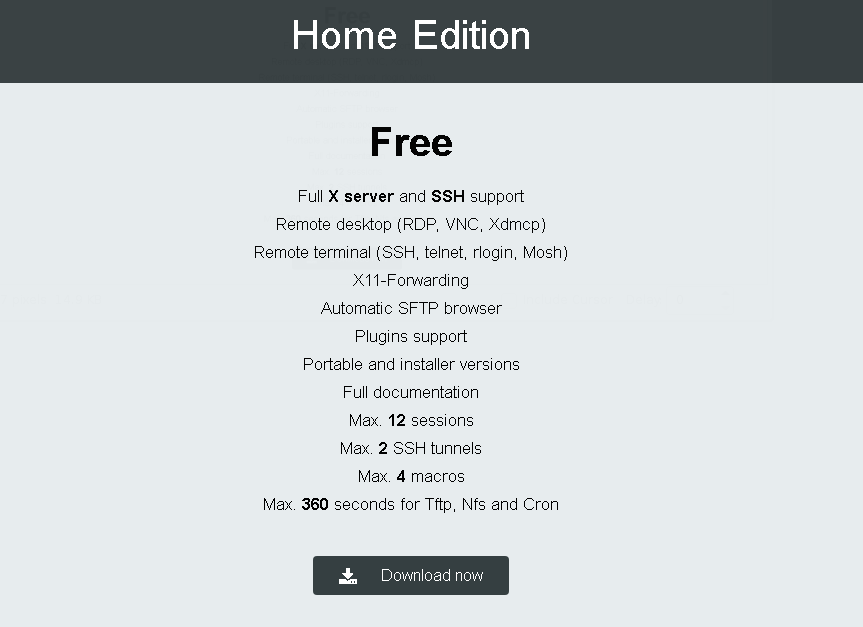

Mobaxterm License — Mobaxterm Home Edition License

Full X server and SSH support
完整的X服务器和SSH支持
Remote desktop (RDP, VNC, Xdmcp)
远程桌面(RDP，VNC，Xdmcp)
Remote terminal (SSH, telnet, rlogin, Mosh)
远程终端(SSH，telnet，rlogin，Mosh)
X11-Forwarding
X11转发
Automatic SFTP browser
自动SFTP浏览器
Plugins support
插件支持
Portable and installer versions
便携式和安装程序版本
Full documentation
完整文件
Max. 12 sessions
最高12节
Max. 2 SSH tunnels
最高2个SSH隧道
Max. 4 macros
最高4个宏
Max. 360 seconds for Tftp, Nfs and Cron
最高Tftp，Nfs和Cron的360秒

LEARN MORE How To Download and Install Linux Bash Shell On Windows 10?

了解更多如何在Windows 10上下载并安装Linux Bash Shell？

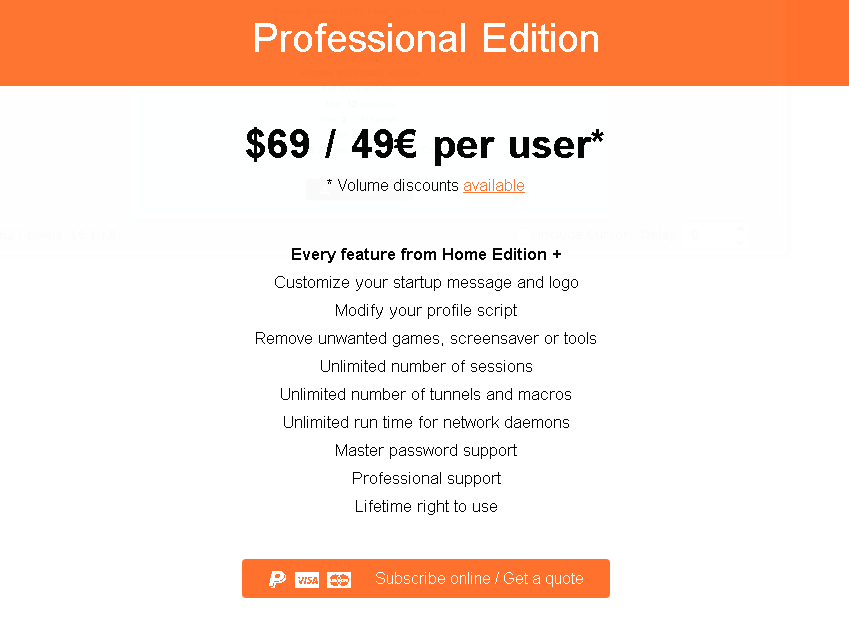

专业版 (Professional Edition)

Professional edition provides all great features of the MobaXterm without any restriction. Server support for SSH, VNC, RDP on the Windows operating system. There is no limit about maximum session count and network daemons. Also professional support provided in any problem. This license provides life time use without any annual license fee.

专业版提供MobaXterm的所有强大功能，没有任何限制。 Windows操作系统上的服务器支持SSH，VNC，RDP。关于最大会话数和网络守护程序没有限制。如有任何问题，还将提供专业支持。该许可证可终身使用，无需支付任何年度许可证费用。

Every feature from Home Edition +
家庭版的所有功能+
Customize your startup message and logo
自定义您的启动消息和徽标
Modify your profile script
修改您的个人资料脚本
Remove unwanted games, screensaver or tools
删除不需要的游戏，屏保或工具
Unlimited number of sessions
会话数不限
Unlimited number of tunnels and macros
无限数量的隧道和宏
Unlimited run time for network daemons
网络守护程序的运行时间不受限制
Master password support
主密码支持
Professional support
专业的支持
Lifetime right to use
终身使用权

下载MobaXterm(Download MobaXterm)

We will prefer the home edition which is enough and free for us. Mobaxterm for Windows can be downloaded from the following link. As of writing, this post latest version of the Mobaxterm was 10.2. There is two option to download and install.

我们会偏爱足够免费的家庭版。可以从以下链接下载适用于Windows的Mobaxterm。撰写本文时，此最新版本的Mobaxterm为10.2。有两个选项可以下载和安装。

MobaXterm便携式版本 (MobaXterm Portable Version)

The portable version of MobaXterm does not require installation or any admin’s rights to make changes in the computer. In order to use this version just extract the downloaded zip file and click mobaxterm.exe

MobaXterm的便携式版本不需要安装或任何管理员权限即可在计算机中进行更改。为了使用此版本，只需解压缩下载的zip文件，然后单击mobaxterm.exe

http://download.mobatek.net/10220170312132617/MobaXterm_Portable_v10.2.zip

MobaXterm安装程序版本 (MobaXterm Installer Version)

Installer version requires to download installer and run with administrator privileges for installation.

安装程序版本需要下载安装程序并以管理员权限运行才能进行安装。

http://download.mobatek.net/10220170312132617/MobaXterm_Installer_v10.2.zip

Alternatively the following link can be used to download the latest free version of the MobaXterm.

或者，可以使用以下链接下载MobaXterm的最新免费版本。

https://mobaxterm.mobatek.net/download.html

安装MobaTermX (Install MobaTermX)

We will install mobaxterm with the following steps

我们将通过以下步骤安装mobaxterm

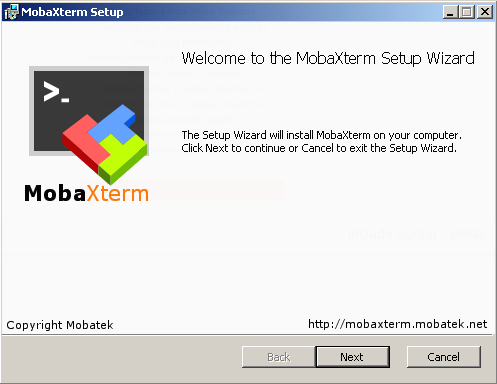

We will see the following MobaXterm installation start screen. Just click to the “Next” button for the next screen.

我们将看到以下MobaXterm安装开始屏幕。只需单击“下一步”按钮进入下一个屏幕。

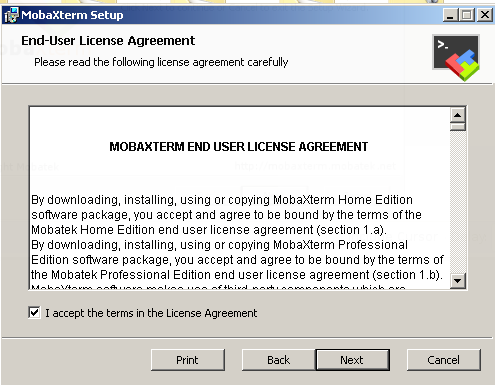

First we will accept the license agreement by checking “I accept the terms in the License Agreement” checkbox and click to the “Next”.

首先，我们将通过选中“我接受许可协议中的条款”复选框来接受许可协议，然后单击“下一步”。

MobaXterm Installation – Agree License Agreement

In this step we will select the installation folder where all executable files and libraries stored. The default path is good for us.

在此步骤中，我们将选择存储所有可执行文件和库的安装文件夹。默认路径对我们有利。

MobaXterm Installation – Installation Path

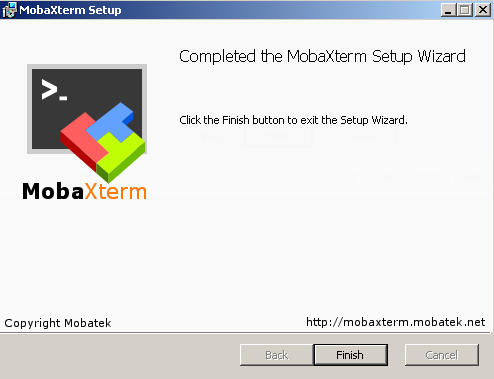

If the installation is complete succesfully we will see the following screen and click to the “Finish”.

如果安装成功完成，我们将看到以下屏幕，然后单击“完成”。

MobaXterm Installation – Installation Completed

创建本地外壳(Create Local Shell)

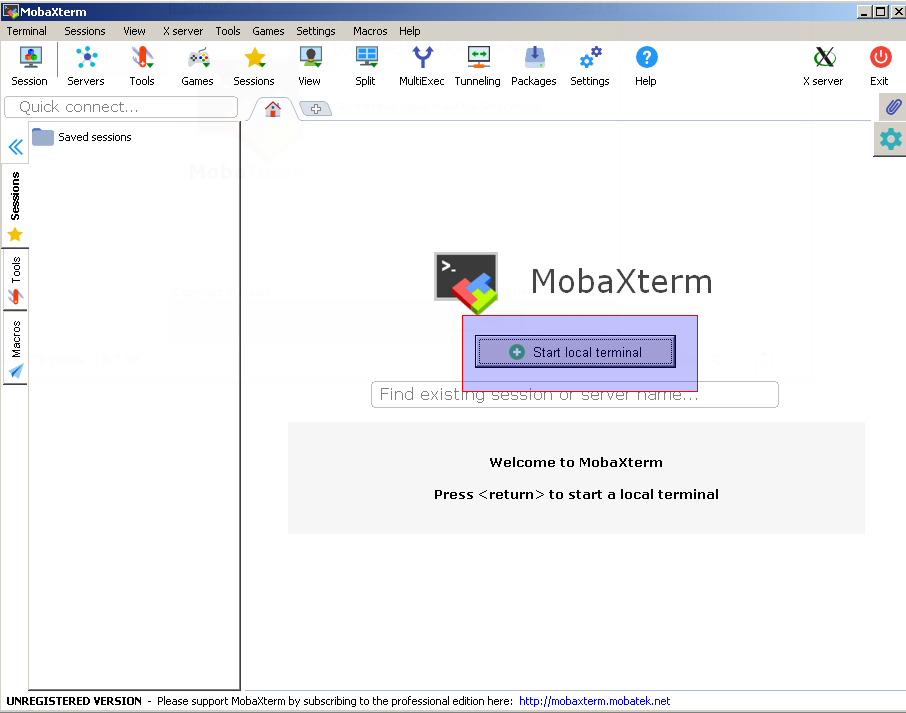

As we know Linux jargon uses shell for command-line interfaces. We can create a shell in the local Windows system. This shell is similar to the MS-DOS command-line interface but provides more features and some eye candy. In order to start the local command line click Start local terminal button.

众所周知，Linux行话使用Shell作为命令行界面。我们可以在本地Windows系统中创建一个Shell。该外壳程序类似于MS-DOS命令行界面，但是提供了更多功能和一些吸引人的地方。为了启动本地命令行，请单击“ Start local terminal按钮。

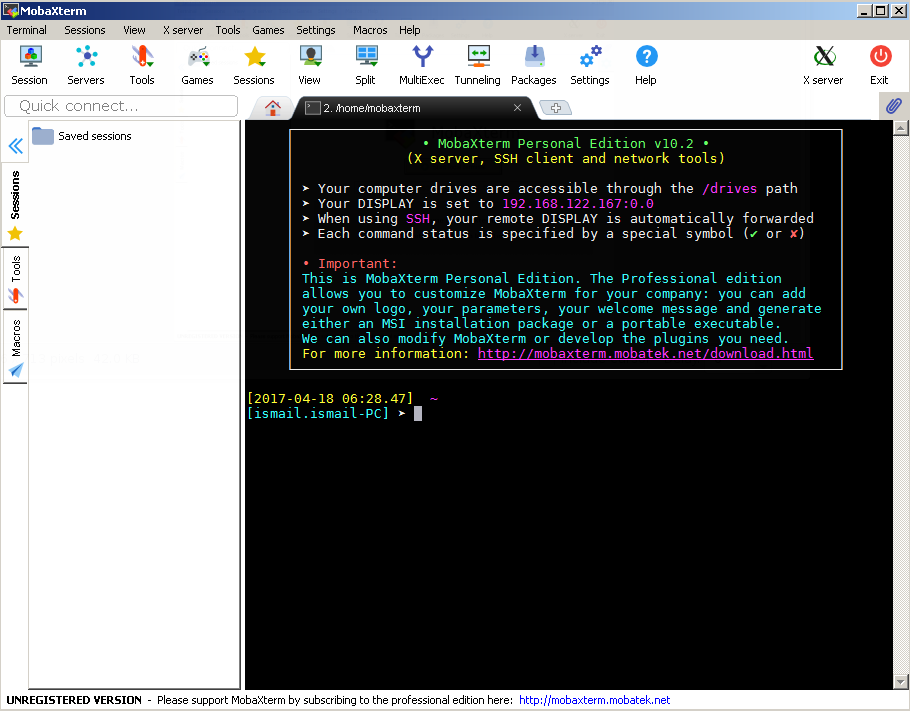

When the local shell is created we will see a screen like that. We can also create multiple local shells by using the + sign. Local shell provides information like current user, date and time information.

创建本地外壳程序后，我们将看到一个类似的屏幕。我们还可以使用+号创建多个本地shell。本地外壳程序提供诸如当前用户，日期和时间信息之类的信息。

Mobaxshell provides a smooth Linux desktop tools experience.

Mobaxshell提供了流畅Linux桌面工具体验。

启动本地服务器和服务 (Start Local Servers and Services)

Mobaxterm have a great feature. Normally in order to create VNC, SSH, FTP in local windows system we will download related tools separately. Mobaxterm provides more of them. Click Servers from toolbar.

Mobaxterm具有很大的功能。通常，为了在本地Windows系统中创建VNC，SSH，FTP，我们将单独下载相关工具。 Mobaxterm提供了更多此类服务。从工具栏中单击Servers 。

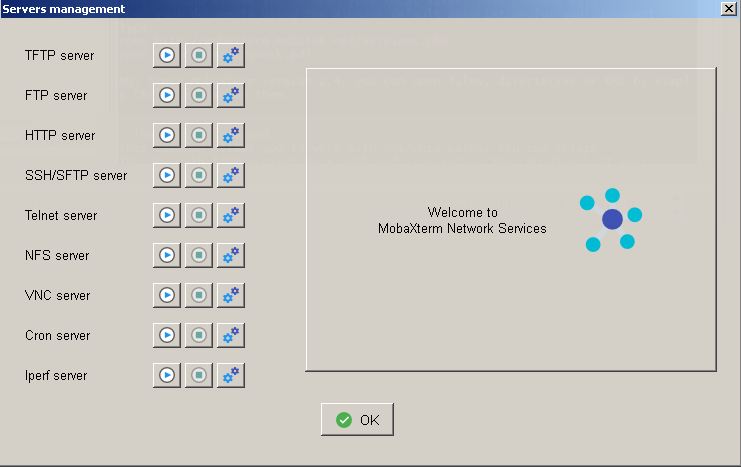

We will see the following servers management screen. Here we can start and stop services like TFTP, FTP, HTTP, SSH/SFTP, Telnet, NFS, VNC, Cron, Iperf without install any extra executable, library or Windows update.

我们将看到以下服务器管理屏幕。在这里，我们可以启动和停止TFTP，FTP，HTTP，SSH / SFTP，Telnet，NFS，VNC，Cron，Iperf等服务，而无需安装任何其他可执行文件，库或Windows更新。

We can use this screen in order to start, stop, restart and configure Mobaxterm services. The list of services Mobaxterm provide are

我们可以使用此屏幕来启动，停止，重新启动和配置Mobaxterm服务。 Mobaxterm提供的服务列表是

Tftp
ftp
Ftp
Ftp
Http
Http
Ssh
SSH
Sftp
SFTP
Telnet
远程登录
NFS
NFS
VNC
VNC
Cron
克朗

LEARN MORE Creating and Running Script File in Linux Bash

了解更多信息在Linux Bash中创建和运行脚本文件

创建会话新的SSH，Telnet，Rsh，VNC，RDP会话(Create Session New SSH, Telnet, Rsh, VNC, RDP Session)

We can create new sessions and save them for easy use. We will click Sessions from toolbar like below in order to open new session creation screen.

我们可以创建新的会话并将其保存以方便使用。我们将在下面的工具栏中单击“ Sessions ，以打开新的会话创建屏幕。

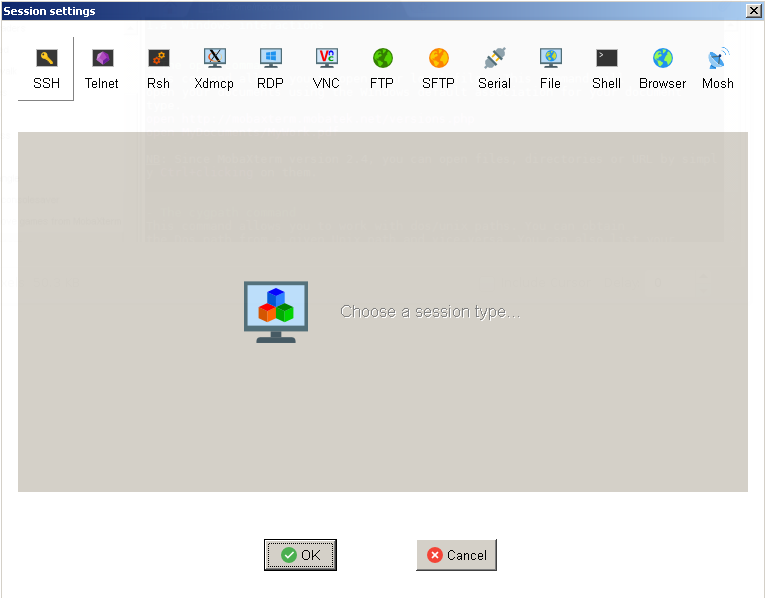

As stated in the begging the MobaXterm supports wide range of different protocols most of them are related with Linux and Unix. We will get a window which lists all supported connections types and protocols.

如乞stated所述，MobaXterm支持多种不同的协议，其中大多数与Linux和Unix有关。我们将获得一个窗口，其中列出了所有受支持的连接类型和协议。

Ssh
SSH
Telnet
远程登录
Rsh
Rsh
Xdmcp
Xdmcp
Rdp
p
Vnc
Vnc
Ftp
Ftp
Sftp
SFTP
Serial
序列号
File
文件
Shell
贝壳
Browser
浏览器
Mosh
莫什

As we can see this tool is like a swiss army knife. And we select Ssh in this case.

如我们所见，此工具就像瑞士军刀。在这种情况下，我们选择Ssh 。

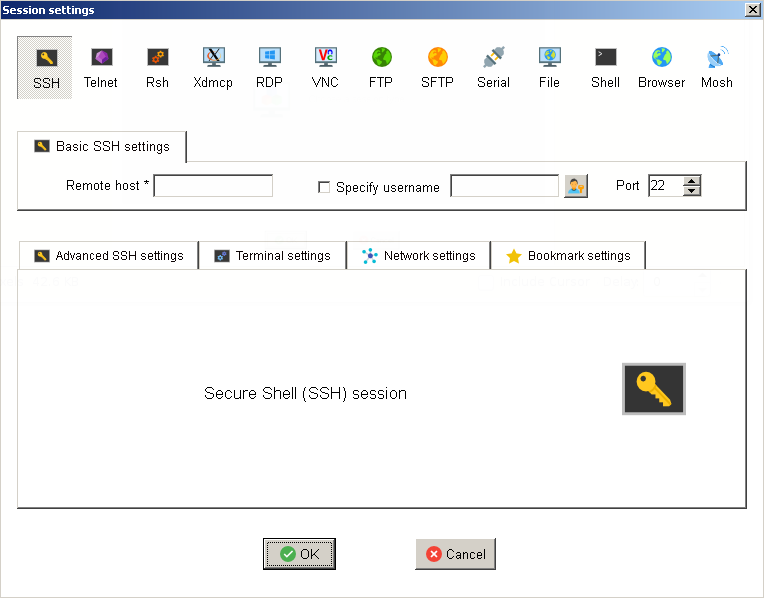

And we will provide parameters for SSH connection to the following configuration window. We can provide following parameter and configuration about the SSH connection or session.

我们将提供SSH连接到以下配置窗口的参数。我们可以提供有关SSH连接或会话的以下参数和配置。

Remote host is a must where the remote SSH server IP address or hostname can be provided. Both IPv4 and IPv6 can be provided but in order to use hostname the DNS server must be working properly.

Remote host是必须提供远程SSH服务器IP地址或主机名的位置。可以提供IPv4和IPv6，但是为了使用主机名，DNS服务器必须正常工作。

Specify username provide the remote session username.

Specify username提供远程会话用户名。

Port is the remote SSH server port number which is TCP 22 by default but can be change if i,ts required.

Port是远程SSH服务器端口号，默认情况下为TCP 22，但如果需要，可以更改。

There are also Advanced SSH Settings , Terminal Settings , Network settings and Bookmark settings about this SSH session and connection.

还有关于此SSH会话和连接的Advanced SSH Settings ， Terminal Settings ， Network settings和Bookmark settings 。

翻译自: https://www.poftut.com/mobaxterm-installation-and-usage-for-windows-personal-edition/
