在本文中，我们将向您展示如何使用JaCoCo Maven插件生成Java项目的代码覆盖率报告。

经过测试

Maven 3.5.3
JUnit 5.3.1
jacoco-maven-plugin 0.8.2

注意
JaCoCo是一个积极开发的行覆盖率工具，用于测量要测试的代码行数。

1. JaCoCo Maven插件

1.1在pom.xml文件中声明以下JaCoCo插件。

pom.xml

<plugin>
		<groupId>org.jacoco</groupId>
		<artifactId>jacoco-maven-plugin</artifactId>
		<version>0.8.2</version>
		<executions>
			<execution>
				<goals>
					<goal>prepare-agent</goal>
				</goals>
			</execution>
			<!-- attached to Maven test phase -->
			<execution>
				<id>report</id>
				<phase>test</phase>
				<goals>
					<goal>report</goal>
				</goals>
			</execution>
		</executions>
	</plugin>

它将在Maven测试阶段运行JaCoCo“报告”目标。

2.单元测试

2.1一个简单的Java代码返回一条消息，并检查一个空字符串。

MessageBuilder.java

package com.mkyong.examples;

public class MessageBuilder {

    public String getMessage(String name) {

        StringBuilder result = new StringBuilder();

        if (name == null || name.trim().length() == 0) {

            result.append("Please provide a name!");

        } else {

            result.append("Hello " + name);

        }
        return result.toString();
    }

}

2.2上等单元测试。

TestMessageBuilder.java

package com.mkyong.examples;

import org.junit.jupiter.api.Test;

import static org.junit.jupiter.api.Assertions.assertEquals;

public class TestMessageBuilder {

    @Test
    public void testNameMkyong() {

        MessageBuilder obj = new MessageBuilder();
        assertEquals("Hello mkyong", obj.getMessage("mkyong"));

    }

}

2.3运行mvn test ，将在target/site/jacoco/*处生成JaCoCo代码覆盖率报告

Terminal

$ mvn clean test

[INFO] -------------------------------------------------------
[INFO]  T E S T S
[INFO] -------------------------------------------------------
[INFO] Running com.mkyong.examples.TestMessageBuilder
[INFO] Tests run: 1, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 0.012 s - in com.mkyong.examples.TestMessageBuilder
[INFO]
[INFO] Results:
[INFO]
[INFO] Tests run: 1, Failures: 0, Errors: 0, Skipped: 0
[INFO]
[INFO]
[INFO] --- jacoco-maven-plugin:0.8.2:report (report) @ maven-code-coverage ---
[INFO] Loading execution data file D:\maven-examples\maven-code-coverage\target\jacoco.exec
[INFO] Analyzed bundle 'maven-code-coverage' with 1 classes
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 4.164 s
[INFO] Finished at: 2018-11-14T16:48:39+08:00
[INFO] ------------------------------------------------------------------------

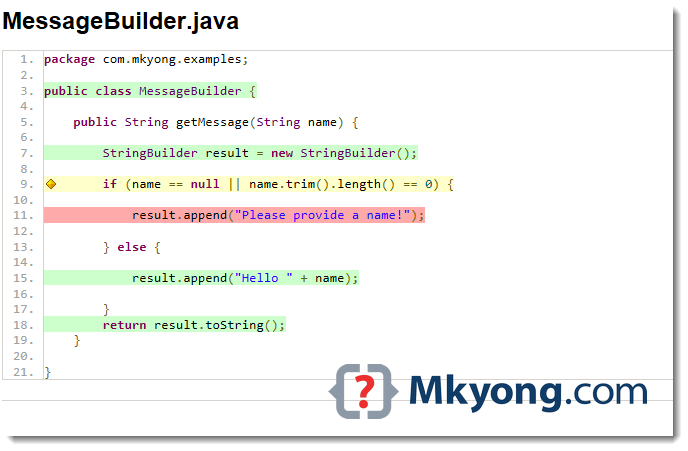

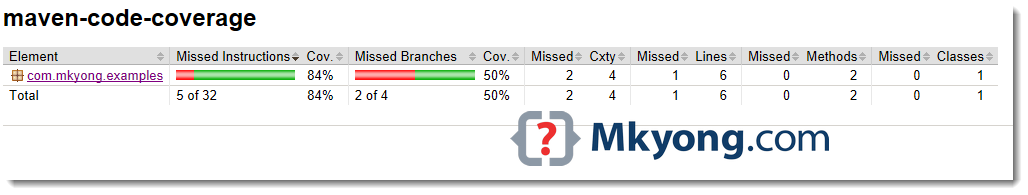

2.4打开target/site/jacoco/index.html文件，查看代码覆盖率报告：

绿色–测试或覆盖代码。
红色–未测试或覆盖代码。
黄色–代码已部分测试或覆盖。

3.改进单元测试

3.1为红线再添加一个测试。

TestMessageBuilder.java

package com.mkyong.examples;

import org.junit.jupiter.api.Test;

import static org.junit.jupiter.api.Assertions.assertEquals;

public class TestMessageBuilder {

    @Test
    public void testNameMkyong() {

        MessageBuilder obj = new MessageBuilder();
        assertEquals("Hello mkyong", obj.getMessage("mkyong"));

    }

	@Test
    public void testNameEmpty() {

        MessageBuilder obj = new MessageBuilder();
        assertEquals("Please provide a name!", obj.getMessage(" "));

    }
}

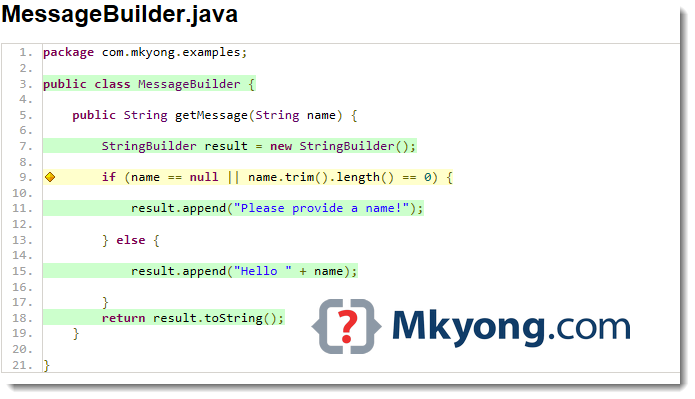

再次查看报告。

Terminal

$ mvn clean test

target/site/jacoco/index.html

3.2如果条件允许，再对黄线添加一项测试。

TestMessageBuilder.java

package com.mkyong.examples;

import org.junit.jupiter.api.Test;

import static org.junit.jupiter.api.Assertions.assertEquals;

public class TestMessageBuilder {

    @Test
    public void testNameMkyong() {

        MessageBuilder obj = new MessageBuilder();
        assertEquals("Hello mkyong", obj.getMessage("mkyong"));

    }

    @Test
    public void testNameEmpty() {

        MessageBuilder obj = new MessageBuilder();
        assertEquals("Please provide a name!", obj.getMessage(" "));

    }

    @Test
    public void testNameNull() {

        MessageBuilder obj = new MessageBuilder();
        assertEquals("Please provide a name!", obj.getMessage(null));

    }

}

再次查看报告。

Terminal

$ mvn clean test

target/site/jacoco/index.html

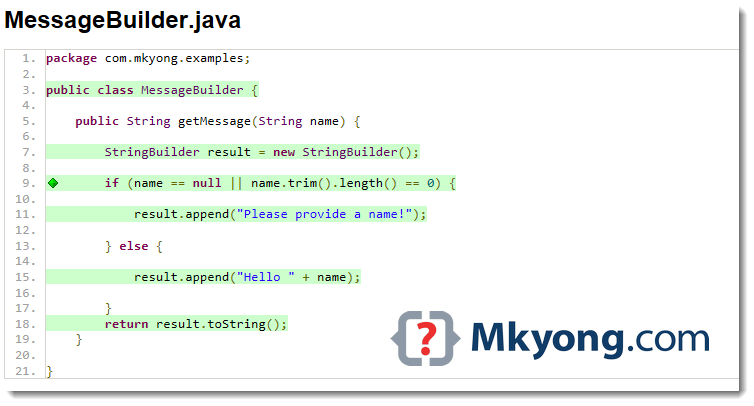

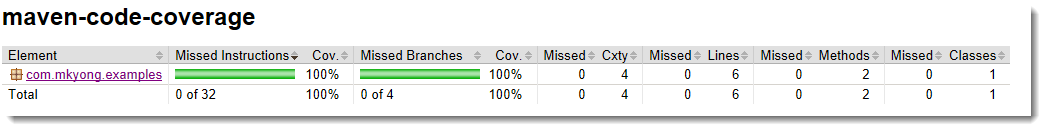

最后，所有线路均经过测试，覆盖率达到100％。

4.常见问题

4.1确保线路覆盖率必须至少达到90％。

pom.xml

<plugin>
		<groupId>org.jacoco</groupId>
		<artifactId>jacoco-maven-plugin</artifactId>
		<version>${jacoco.version}</version>
		<executions>
			<execution>
				<goals>
					<goal>prepare-agent</goal>
				</goals>
			</execution>
			<execution>
				<id>jacoco-report</id>
				<phase>test</phase>
				<goals>
					<goal>report</goal>
				</goals>
			</execution>
			<!-- Add this checking -->
			<execution>
				<id>jacoco-check</id>
				<goals>
					<goal>check</goal>
				</goals>
				<configuration>
					<rules>
						<rule>
							<element>PACKAGE</element>
							<limits>
								<limit>
									<counter>LINE</counter>
									<value>COVEREDRATIO</value>
									<minimum>0.9</minimum>
								</limit>
							</limits>
						</rule>
					</rules>
				</configuration>
			</execution>

		</executions>
	</plugin>

jacoco:check目标已附加到Maven验证阶段。

Terminal

$ mvn clean verify

[INFO] Analyzed bundle 'maven-code-coverage' with 1 classes
[WARNING] Rule violated for package com.mkyong.examples: lines covered ratio is 0.8, but expected minimum is 0.9

注意
更多JaCoCo检查示例：

4.2如何更新默认的JaCoCo输出文件夹？

pom.xml

<plugin>
		<groupId>org.jacoco</groupId>
		<artifactId>jacoco-maven-plugin</artifactId>
		<version>${jacoco.version}</version>
		<executions>
			<execution>
				<goals>
					<goal>prepare-agent</goal>
				</goals>
			</execution>
			<execution>
				<id>jacoco-report</id>
				<phase>test</phase>
				<goals>
					<goal>report</goal>
				</goals>
				<!-- default target/jscoco/site/* -->
				<configuration>
					<outputDirectory>target/jacoco-report</outputDirectory>
				</configuration>
			</execution>
		</executions>
	</plugin>
