本教程详细介绍了如何为Spring Boot MVC+Thymeleaf应用启用SSL支持，包括自签名证书的创建、Maven配置、application.properties设置以及如何处理浏览器警告。提供了一个完整的例子，指导读者从创建证书到运行安全的Spring Boot应用。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

在本教程中，我们将向您展示如何为Spring Boot Web应用程序（mvc + thymeleaf）启用SSL（HTTPS）支持。

经过测试

Maven 3
Java 8
Spring Boot 2.2.4。发布
Spring Boot默认嵌入式Tomcat 9
自签名证书（PKCS12）

要为Spring Boot Web应用程序启用SSL或HTTPS，请将证书文件.p12或.jks放在resources文件夹中，并在application.properties声明server.ssl.*值。

application.properties

# SSL
server.port=8443
server.ssl.key-store=classpath:cert.p12
server.ssl.key-store-password=123456

# JKS or PKCS12
server.ssl.keyStoreType=PKCS12

# Spring Security
# security.require-ssl=true

完成，启动Spring Boot，并访问https://localhost:8443

PEM文件
.pem是适用于Apache和Nginx的流行证书格式，但Java不支持。以下是使用OpenSSL将.pem转换为.p12格式的示例。

1.自签名证书

在此示例中，我们将使用JDK的keytool生成PKCS12格式的自签名证书。下面的命令将创建一个名为mkyong.p12的PKCS12证书，将该文件放入resources文件夹中。

Terminal

$ keytool -genkeypair -keyalg RSA -keysize 2048 -storetype PKCS12 -keystore mkyong.p12 -validity 365

Enter keystore password:
Re-enter new password:
What is your first and last name?
  [Unknown]:  yong
What is the name of your organizational unit?
  [Unknown]:  mkyong
What is the name of your organization?
  [Unknown]:  mkyong
What is the name of your City or Locality?
  [Unknown]:
What is the name of your State or Province?
  [Unknown]:
What is the two-letter country code for this unit?
  [Unknown]:
Is CN=yong, OU=mkyong, O=mkyong, L=Unknown, ST=Unknown, C=Unknown correct?
  [no]:  yes

注意
更多keytool用法

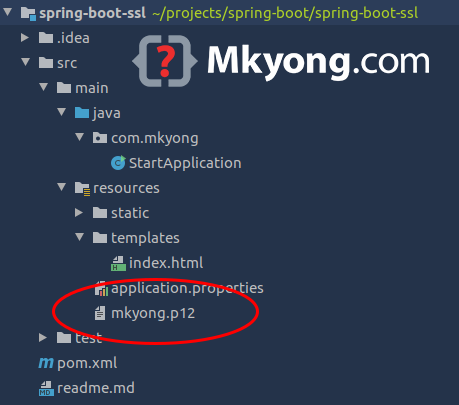

2.项目目录

2.1标准的Maven项目结构。

3. Maven

3.1标准的Spring Boot依赖关系。

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
         http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.mkyong</groupId>
    <artifactId>spring-boot-ssl</artifactId>
    <version>1.0</version>

    <name>spring-boot-ssl</name>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.4.RELEASE</version>
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!-- debugging -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>

    </dependencies>

    <build>

        <finalName>spring-boot-web</finalName>

        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.0</version>
                <configuration>
                    <source>${java.version}</source>
                    <target>${java.version}</target>
                </configuration>
            </plugin>

        </plugins>
    </build>

</project>

4.Spring启动

4.1启动@SpringBootApplication ，并返回一个控制器。

StartApplication.java

package com.mkyong;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;

@SpringBootApplication
@Controller
public class StartApplication {

    @GetMapping("/")
    public String index(final Model model) {
        model.addAttribute("title", "Spring Boot + SSL (HTTPS)");
        model.addAttribute("msg", "Welcome to the SSL!");
        return "index";
    }

    public static void main(String[] args) {
        SpringApplication.run(StartApplication.class, args);
    }

}

4.2百里香页。

index.html

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="utf-8">
    <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css"/>
    <link data-th-href="@{/css/main.css}" rel="stylesheet">
    <title>Spring Boot SSL Examples</title>
</head>
<body>

<nav class="navbar navbar-expand-md navbar-dark bg-dark fixed-top">
    <a class="navbar-brand" href="#">Mkyong.com</div></a>
</nav>

<main role="main" class="container">
    <div class="starter-template">
        <h1 th:text="${title}">Default title.</h1>
        <p th:text="${msg}">Default text.</p>
    </div>
</main>

<script data-th-src="@{/js/main.js}"></script>
</body>

</html>

5. application.properties

application.properties

# SSL
server.port=8443
server.ssl.key-store=classpath:mkyong.p12
server.ssl.key-store-password=123456

# PKCS12 or JKS
server.ssl.keyStoreType=PKCS12

# Spring Security
# security.require-ssl=true

6.运行Spring Boot + SSL

Terminal

$ cd project
$ mvn clean package
$ java -jar target/spring-boot-web.jar

...
com.mkyong.StartApplication              : No active profile set, falling back to default profiles: default
o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 8443 (https)
o.apache.catalina.core.StandardService   : Starting service [Tomcat]
org.apache.catalina.core.StandardEngine  : Starting Servlet engine: [Apache Tomcat/9.0.30]
o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring embedded WebApplicationContext
o.s.web.context.ContextLoader            : Root WebApplicationContext: initialization completed in 571 ms
o.s.s.concurrent.ThreadPoolTaskExecutor  : Initializing ExecutorService 'applicationTaskExecutor'
o.s.b.a.w.s.WelcomePageHandlerMapping    : Adding welcome page template: index
o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port(s): 8443 (https) with context path ''
com.mkyong.StartApplication              : Started StartApplication in 1.297 seconds (JVM running for 1.65)

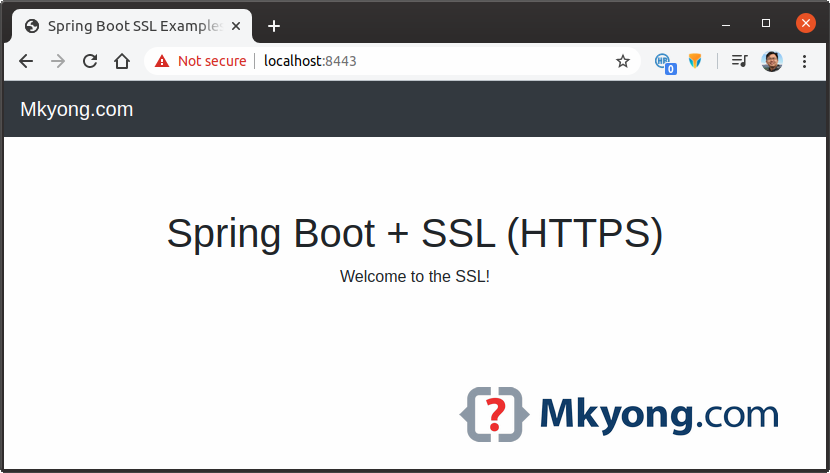

访问https://localhost:8443

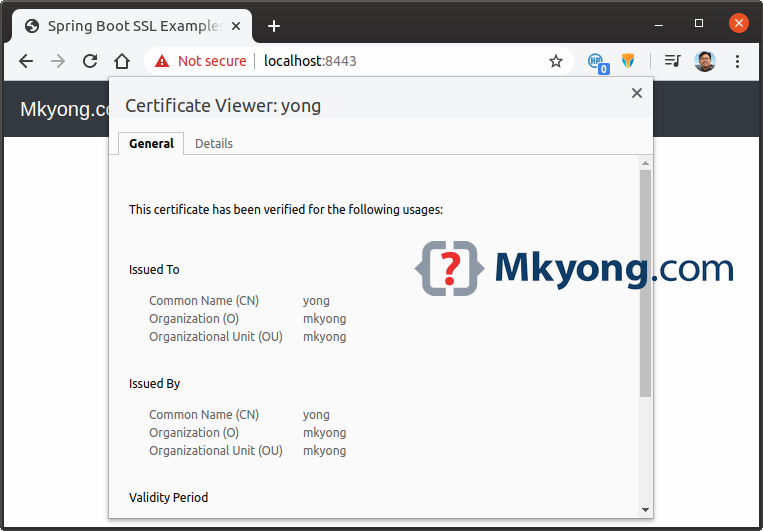

由于具有自签名证书，浏览器将显示警告，指出证书无效，将其忽略，然后单击“高级…继续”继续。

注意
要解决浏览器警告问题，请从Let's Encrypt获得免费证书，或从可信任的CA（例如Comodo或GeoTrust）购买证书。阅读有关SSL证书颁发机构的更多信息。

7.常见问题

将所有流量从端口8080重定向到8443。

StartApplication.java

package com.mkyong;

import org.apache.catalina.Context;
import org.apache.catalina.connector.Connector;
import org.apache.tomcat.util.descriptor.web.SecurityCollection;
import org.apache.tomcat.util.descriptor.web.SecurityConstraint;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.embedded.tomcat.TomcatServletWebServerFactory;
import org.springframework.boot.web.servlet.server.ServletWebServerFactory;
import org.springframework.context.annotation.Bean;

@SpringBootApplication
public class StartApplication {
    public static void main(String[] args) {
        SpringApplication.run(StartApplication.class, args);
    }

    // spring boot 2.x
    @Bean
    public ServletWebServerFactory servletContainer() {
        TomcatServletWebServerFactory tomcat = new TomcatServletWebServerFactory() {
            @Override
            protected void postProcessContext(Context context) {
                SecurityConstraint securityConstraint = new SecurityConstraint();
                securityConstraint.setUserConstraint("CONFIDENTIAL");
                SecurityCollection collection = new SecurityCollection();
                collection.addPattern("/*");
                securityConstraint.addCollection(collection);
                context.addConstraint(securityConstraint);
            }
        };
        tomcat.addAdditionalTomcatConnectors(redirectConnector());
        return tomcat;
    }

    private Connector redirectConnector() {
        Connector connector = new Connector("org.apache.coyote.http11.Http11NioProtocol");
        connector.setScheme("http");
        connector.setPort(8080);
        connector.setSecure(false);
        connector.setRedirectPort(8443);
        return connector;
    }

}
