在JSF中，“ h：dataTable ”标记用于以HTML表格格式显示数据。以下JSF 2.0示例向您展示了如何使用“ h：dataTable ”标记来循环遍历“ order”对象的数组，并以HTML表格格式显示它。

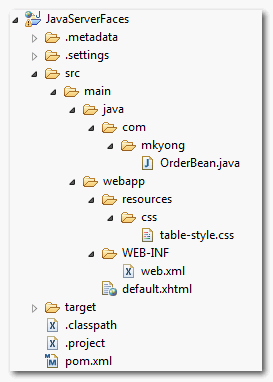

1.项目文件夹

本示例的项目文件夹结构。

2.托管豆

名为“ order”的托管Bean初始化了数组对象以供以后使用。

OrderBean.java

package com.mkyong;

import java.io.Serializable;
import java.math.BigDecimal;
import javax.faces.bean.ManagedBean;
import javax.faces.bean.SessionScoped;

@ManagedBean(name="order")
@SessionScoped
public class OrderBean implements Serializable{

	private static final long serialVersionUID = 1L;

	private static final Order[] orderList = new Order[] {

		new Order("A0001", "Intel CPU",
				new BigDecimal("700.00"), 1),
		new Order("A0002", "Harddisk 10TB",
				new BigDecimal("500.00"), 2),
		new Order("A0003", "Dell Laptop",
				new BigDecimal("11600.00"), 8),
		new Order("A0004", "Samsung LCD",
				new BigDecimal("5200.00"), 3),
		new Order("A0005", "A4Tech Mouse",
				new BigDecimal("100.00"), 10)
	};

	public Order[] getOrderList() {

		return orderList;

	}

	public static class Order{

		String orderNo;
		String productName;
		BigDecimal price;
		int qty;

		public Order(String orderNo, String productName,
                                BigDecimal price, int qty) {

			this.orderNo = orderNo;
			this.productName = productName;
			this.price = price;
			this.qty = qty;
		}

		//getter and setter methods
	}
}

3. CSS

创建一个CSS文件来设置表格布局的样式。

table-style.css

.order-table{
	border-collapse:collapse;
}

.order-table-header{
	text-align:center;
	background:none repeat scroll 0 0 #E5E5E5;
	border-bottom:1px solid #BBBBBB;
	padding:16px;
}

.order-table-odd-row{
	text-align:center;
	background:none repeat scroll 0 0 #FFFFFFF;
	border-top:1px solid #BBBBBB;
}

.order-table-even-row{
	text-align:center;
	background:none repeat scroll 0 0 #F9F9F9;
	border-top:1px solid #BBBBBB;
}

4. h：dataTable

一个JSF 2.0 xhtml页面，显示了使用“ h：dataTable ”标记来循环遍历“ order”对象的数组。这个例子应该是不言自明的。

default.xhtml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:h="http://java.sun.com/jsf/html"
      xmlns:f="http://java.sun.com/jsf/core"
      xmlns:ui="http://java.sun.com/jsf/facelets"
      >
    <h:head>
    	<h:outputStylesheet library="css" name="table-style.css"  />
    </h:head>
    <h:body>

    	<h1>JSF 2 dataTable example</h1>

    		<h:dataTable value="#{order.orderList}" var="o"
    			styleClass="order-table"
    			headerClass="order-table-header"
    			rowClasses="order-table-odd-row,order-table-even-row"
    		>

    			<h:column>
    				<!-- column header -->
    				<f:facet name="header">Order No</f:facet>
    				<!-- row record -->
    				#{o.orderNo}
    			</h:column>

    			<h:column>
    				<f:facet name="header">Product Name</f:facet>
    				#{o.productName}
    			</h:column>

    			<h:column>
    				<f:facet name="header">Price</f:facet>
    				#{o.price}
    			</h:column>

    			<h:column>
    				<f:facet name="header">Quantity</f:facet>
    				#{o.qty}
    			</h:column>

    		</h:dataTable>

    </h:body>
</html>

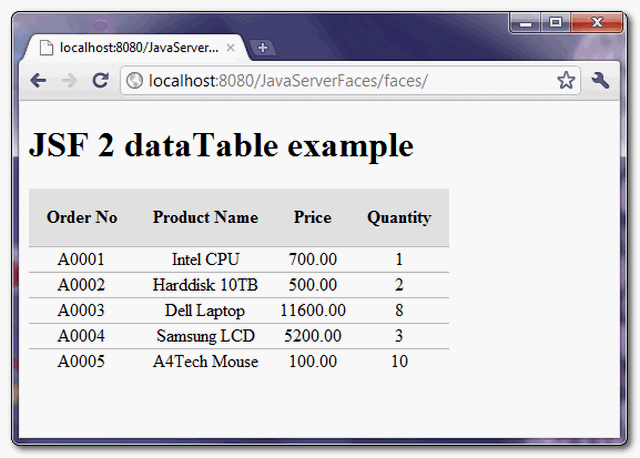

生成此HTML输出

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
	<head>
	   <link type="text/css" rel="stylesheet"
	      href="/JavaServerFaces/faces/javax.faces.resource/table-style.css?ln=css" />
	</head>
	<body>

	<h1>JSF 2 dataTable example</h1>

	<table class="order-table">

  	  <thead>
		<tr>
		<th class="order-table-header" scope="col">Order No</th>
		<th class="order-table-header" scope="col">Product Name</th>
		<th class="order-table-header" scope="col">Price</th>
		<th class="order-table-header" scope="col">Quantity</th>
		</tr>
	  </thead>

	  <tbody>
		<tr class="order-table-odd-row">
			<td>A0001</td>
			<td>Intel CPU</td>
			<td>700.00</td>
			<td>1</td>
		</tr>
		<tr class="order-table-even-row">
			<td>A0002</td>
			<td>Harddisk 10TB</td>
			<td>500.00</td>
			<td>2</td>
		</tr>
		<tr class="order-table-odd-row">
			<td>A0003</td>
			<td>Dell Laptop</td>
			<td>11600.00</td>
			<td>8</td>
		</tr>
		<tr class="order-table-even-row">
			<td>A0004</td>
			<td>Samsung LCD</td>
			<td>5200.00</td>
			<td>3</td>
		</tr>
		<tr class="order-table-odd-row">
			<td>A0005</td>
			<td>A4Tech Mouse</td>
			<td>100.00</td>
			<td>10</td>
		</tr>
	  </tbody>
	 </table>
      </body>
</html>
