国民技术获取UID和UCID

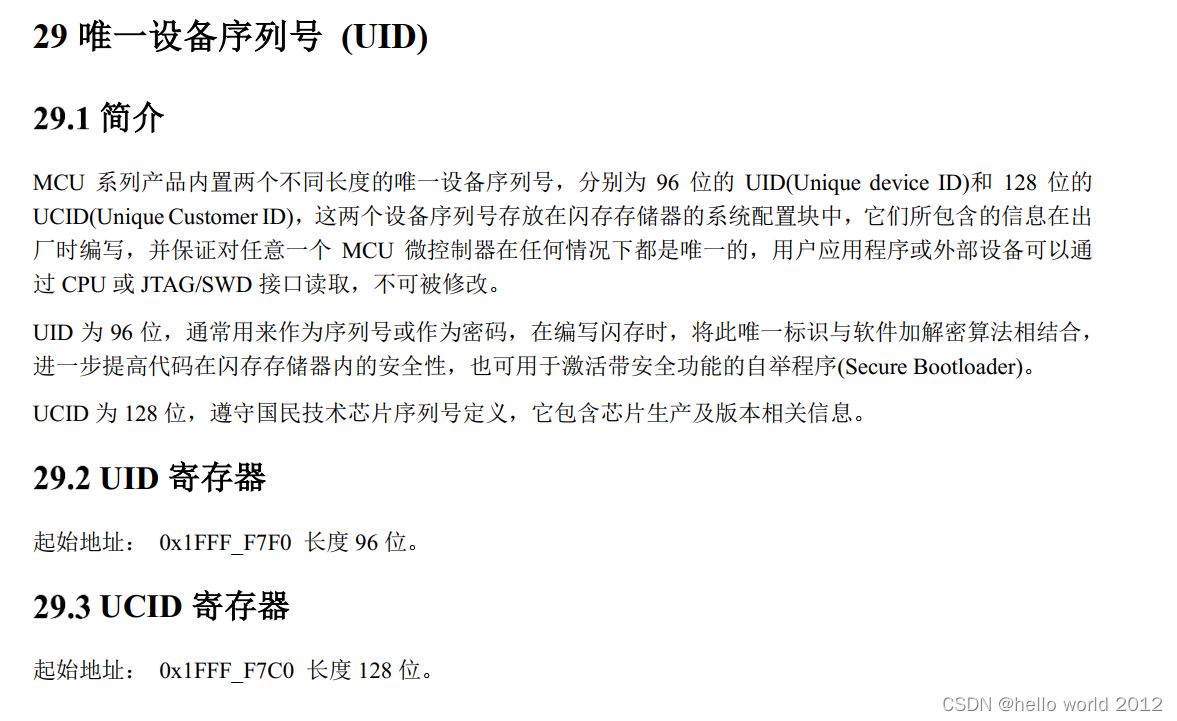

根据手册可知 UID和UCID 的地址

代码如下

#define UID_Addr                (0x1FFFF7F0)
#define UCID_Addr               (0x1FFFF7C0)

uint8_t UID[12] = {0};
uint8_t UCID[16] = {0};

void Read_Flash_Data(u8* pBuffer, u32 NumToRead, u32 ReadAddr)
{
    u32 i;
    for (i = 0; i < NumToRead; i++)
    {
        *((u8*)pBuffer + i) = *((u8*)ReadAddr + i);
    }
}

void USART2_Configuration(void)
{
	USART_InitType USART_InitStructure;
	GPIO_InitType GPIO_InitStructure;
	GPIO_InitStruct(&GPIO_InitStructure);

	RCC_EnableAPB2PeriphClk(RCC_APB2_PERIPH_GPIOB, ENABLE);
	RCC_EnableAPB1PeriphClk(RCC_APB1_PERIPH_USART2, ENABLE);

	GPIO_InitStructure.Pin            = GPIO_PIN_4;
	GPIO_InitStructure.GPIO_Mode      = GPIO_Mode_AF_PP;
	GPIO_InitStructure.GPIO_Alternate = GPIO_AF4_USART2;
	GPIO_InitPeripheral(GPIOB, &GPIO_InitStructure);

	GPIO_InitStructure.Pin            = GPIO_PIN_5;
	GPIO_InitStructure.GPIO_Pull      = GPIO_Pull_Up;
	GPIO_InitStructure.GPIO_Alternate = GPIO_AF4_USART2;
	GPIO_InitPeripheral(GPIOB, &GPIO_InitStructure);

	USART_StructInit(&USART_InitStructure);
	USART_InitStructure.BaudRate            = 115200;
	USART_InitStructure.WordLength          = USART_WL_8B;
	USART_InitStructure.StopBits            = USART_STPB_1;
	USART_InitStructure.Parity              = USART_PE_NO;
	USART_InitStructure.HardwareFlowControl = USART_HFCTRL_NONE;
	USART_InitStructure.Mode                = USART_MODE_RX | USART_MODE_TX;

	USART_Init(USART2, &USART_InitStructure);
	USART_Enable(USART2, ENABLE);
}

int fputc(int ch, FILE* f)
{
    USART_SendData(USART2, (uint8_t)ch);
    while (USART_GetFlagStatus(USART2, USART_FLAG_TXDE) == RESET);
    return (ch);
}

int main(void)
{
	int i = 0;

	USART2_Configuration();

	Read_Flash_Data(UID, 12, UID_Addr);
	Read_Flash_Data(UCID, 16, UCID_Addr);

	printf("UID:0x");
	for(i = 0; i < 12; i++)
	{
		printf("%02x", UID[i]);
	}
	printf("\r\n\r\n\r\n");

	printf("UCID:0x");
	for(i = 0; i < 16; i++)
	{
		printf("%02x", UCID[i]);
	}
	printf("\r\n\r\n\r\n");
}

串口打印如下

UID:0x360213503447373031058929

UCID:0x360213160e5034473730313030058929
