InfluxDB 入门详解-JAVA增删查

前天无事；所以花半天时间看了一下时序数据库；以下为自己学习所得；如有不对请指出；

1、了解InfluxDB

是一个开源分布式时序、事件和指标数据库。使用 Go 语言编写，无需外部依赖。其设计目标是实现分布式和水平伸缩扩展。

2、下载InfluxDB

https://cloud.influxdata.com/downloads  根据需要请自行下载需要的

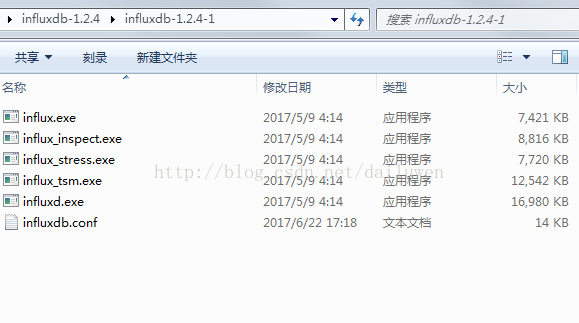

我的是 windows Binaries (64-bit) 解压之后如图：

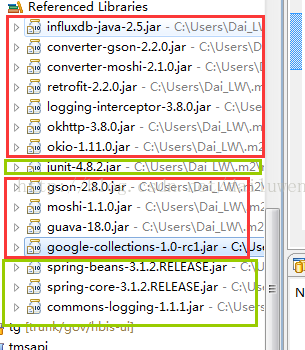

3、下载相关需要的 *.jar 包 (红色为必须字段；绿色为测试所需jar 包)；google-collections-1.0.jar 好似有问题；缺东缺西所以 我用的是google-collections-1.0-rc1.jar

4、InfluxDB 操作命令

不懂的可以查看这个文档  InfluxDB 基本命令操作文档

5、开始JAVA 相关操作

package com.influxdb.pojo;

import java.io.Serializable;

public class CodeInfo implements Serializable{

	private static final long serialVersionUID = 1L;

	private Long id;
	private String name;
	private String code;
	private String descr;
	private String descrE;
	private String createdBy;
	private Long createdAt;

	private String time;
	private String tagCode;
	private String tagName;

	public Long getId() {
		return id;
	}

	public void setId(Long id) {
		this.id = id;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public String getCode() {
		return code;
	}

	public void setCode(String code) {
		this.code = code;
	}

	public String getDescr() {
		return descr;
	}

	public void setDescr(String descr) {
		this.descr = descr;
	}

	public String getDescrE() {
		return descrE;
	}

	public void setDescrE(String descrE) {
		this.descrE = descrE;
	}

	public String getCreatedBy() {
		return createdBy;
	}

	public void setCreatedBy(String createdBy) {
		this.createdBy = createdBy;
	}

	public Long getCreatedAt() {
		return createdAt;
	}

	public void setCreatedAt(Long createdAt) {
		this.createdAt = createdAt;
	}

	public String getTime() {
		return time;
	}

	public void setTime(String time) {
		this.time = time;
	}

	public String getTagCode() {
		return tagCode;
	}

	public void setTagCode(String tagCode) {
		this.tagCode = tagCode;
	}

	public String getTagName() {
		return tagName;
	}

	public void setTagName(String tagName) {
		this.tagName = tagName;
	}

}

package com.influxdb.test;

import java.util.Map;

import org.influxdb.InfluxDB;
import org.influxdb.InfluxDBFactory;
import org.influxdb.dto.Point;
import org.influxdb.dto.Point.Builder;
import org.influxdb.dto.Query;
import org.influxdb.dto.QueryResult;
import org.springframework.util.StringUtils;

/**
 * 时序数据库 InfluxDB 连接
 * @author Dai_LW
 *
 */
public class InfluxDBConnect {

	private String username;//用户名
	private String password;//密码
	private String openurl;//连接地址
	private String database;//数据库

	private InfluxDB influxDB;


	public InfluxDBConnect(String username, String password, String openurl, String database){
		this.username = username;
		this.password = password;
		this.openurl = openurl;
		this.database = database;
	}

	/**连接时序数据库；获得InfluxDB**/
	public InfluxDB  influxDbBuild(){
		if(influxDB == null){
			influxDB = InfluxDBFactory.connect(openurl, username, password);
			influxDB.createDatabase(database);

		}
		return influxDB;
	}

	/**
	 * 设置数据保存策略
	 * defalut 策略名 /database 数据库名/ 30d 数据保存时限30天/ 1  副本个数为1/ 结尾DEFAULT 表示 设为默认的策略
	 */
	public void createRetentionPolicy(){
		String command = String.format("CREATE RETENTION POLICY \"%s\" ON \"%s\" DURATION %s REPLICATION %s DEFAULT",
                "defalut", database, "30d", 1);
		this.query(command);
	}

	/**
	 * 查询
	 * @param command 查询语句
	 * @return
	 */
	public QueryResult query(String command){
		return influxDB.query(new Query(command, database));
	}

	/**
	 * 插入
	 * @param measurement 表
	 * @param tags 标签
	 * @param fields 字段
	 */
	public void insert(String measurement, Map<String, String> tags, Map<String, Object> fields){
		Builder builder = Point.measurement(measurement);
		builder.tag(tags);
		builder.fields(fields);

		influxDB.write(database, "", builder.build());
	}

	/**
	 * 删除
	 * @param command 删除语句
	 * @return 返回错误信息
	 */
	public String deleteMeasurementData(String command){
		QueryResult result = influxDB.query(new Query(command, database));
		return result.getError();
	}

	/**
	 * 创建数据库
	 * @param dbName
	 */
	public void createDB(String dbName){
		influxDB.createDatabase(dbName);
	}

	/**
	 * 删除数据库
	 * @param dbName
	 */
	public void deleteDB(String dbName){
		influxDB.deleteDatabase(dbName);
	}

	public String getUsername() {
		return username;
	}

	public void setUsername(String username) {
		this.username = username;
	}

	public String getPassword() {
		return password;
	}

	public void setPassword(String password) {
		this.password = password;
	}

	public String getOpenurl() {
		return openurl;
	}

	public void setOpenurl(String openurl) {
		this.openurl = openurl;
	}

	public void setDatabase(String database) {
		this.database = database;
	}
}

package com.influxdb.test;

import java.util.ArrayList;
import java.util.Date;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import junit.framework.Assert;

import org.influxdb.dto.QueryResult;
import org.influxdb.dto.QueryResult.Result;
import org.influxdb.dto.QueryResult.Series;
import org.junit.Before;
import org.junit.Test;
import org.springframework.beans.BeanWrapperImpl;

import com.influxdb.pojo.CodeInfo;

public class InfluxDBTest {

	private InfluxDBConnect influxDB;
	private String username = "admin";//用户名
	private String password = "admin";//密码
	private String openurl = "http://127.0.0.1:8086";//连接地址
	private String database = "test_db";//数据库
	private String measurement = "sys_code";

	@Before
	public void setUp(){
		//创建 连接
		influxDB = new InfluxDBConnect(username, password, openurl, database);

		influxDB.influxDbBuild();

		influxDB.createRetentionPolicy();

//		influxDB.deleteDB(database);
//		influxDB.createDB(database);
	}

	@Test
	public void testInsert(){//测试数据插入
		Map<String, String> tags = new HashMap<String, String>();
		Map<String, Object> fields = new HashMap<String, Object>();
		List<CodeInfo> list = new ArrayList<CodeInfo>();

		CodeInfo info1 = new CodeInfo();
		info1.setId(1L);
		info1.setName("BANKS");
		info1.setCode("ABC");
		info1.setDescr("中国农业银行");
		info1.setDescrE("ABC");
		info1.setCreatedBy("system");
		info1.setCreatedAt(new Date().getTime());

		CodeInfo info2 = new CodeInfo();
		info2.setId(2L);
		info2.setName("BANKS");
		info2.setCode("CCB");
		info2.setDescr("中国建设银行");
		info2.setDescrE("CCB");
		info2.setCreatedBy("system");
		info2.setCreatedAt(new Date().getTime());

		list.add(info1);
		list.add(info2);

		for(CodeInfo info : list){

			tags.put("TAG_CODE", info.getCode());
			tags.put("TAG_NAME", info.getName());

			fields.put("ID", info.getId());
			fields.put("NAME", info.getName());
			fields.put("CODE", info.getCode());
			fields.put("DESCR", info.getDescr());
			fields.put("DESCR_E", info.getDescrE());
			fields.put("CREATED_BY", info.getCreatedBy());
			fields.put("CREATED_AT", info.getCreatedAt());

			influxDB.insert(measurement, tags, fields);
		}
	}

	@Test
	public void testQuery(){//测试数据查询
		String command = "select * from sys_code";
		QueryResult results = influxDB.query(command);

		if(results.getResults() == null){
			return;
		}
		List<CodeInfo> lists = new ArrayList<CodeInfo>();
		for (Result result : results.getResults()) {

			List<Series> series= result.getSeries();
			for (Series serie : series) {
//				Map<String, String> tags = serie.getTags();
				List<List<Object>>  values = serie.getValues();
				List<String> columns = serie.getColumns();

				lists.addAll(getQueryData(columns, values));
			}
		}

		Assert.assertTrue((!lists.isEmpty()));
		Assert.assertEquals(2, lists.size());
	}

	@Test
	public void testQueryWhere(){//tag 列名 区分大小写
		String command = "select * from sys_code where TAG_CODE='ABC'";
		QueryResult results = influxDB.query(command);

		if(results.getResults() == null){
			return;
		}
		List<CodeInfo> lists = new ArrayList<CodeInfo>();
		for (Result result : results.getResults()) {

			List<Series> series= result.getSeries();
			for (Series serie : series) {
				List<List<Object>>  values = serie.getValues();
				List<String> columns = serie.getColumns();

				lists.addAll(getQueryData(columns, values));
			}
		}

		Assert.assertTrue((!lists.isEmpty()));
		Assert.assertEquals(1, lists.size());

		CodeInfo info = lists.get(0);

		Assert.assertEquals(info.getCode(), "ABC");

	}

	@Test
	public void deletMeasurementData(){
		String command = "delete from sys_code where TAG_CODE='ABC'";
		String err = influxDB.deleteMeasurementData(command);
		Assert.assertNull(err);
	}

	/***整理列名、行数据***/
	private List<CodeInfo> getQueryData(List<String> columns, List<List<Object>>  values){
		List<CodeInfo> lists = new ArrayList<CodeInfo>();

		for (List<Object> list : values) {
			CodeInfo info = new CodeInfo();
			BeanWrapperImpl bean = new BeanWrapperImpl(info);
			for(int i=0; i< list.size(); i++){

				String propertyName = setColumns(columns.get(i));//字段名
				Object value = list.get(i);//相应字段值
				bean.setPropertyValue(propertyName, value);
			}

			lists.add(info);
		}

		return lists;
	}

	/***转义字段***/
	private String setColumns(String column){
		String[] cols = column.split("_");
		StringBuffer sb = new StringBuffer();
		for(int i=0; i< cols.length; i++){
			String col = cols[i].toLowerCase();
			if(i != 0){
				String start = col.substring(0, 1).toUpperCase();
				String end = col.substring(1).toLowerCase();
				col = start + end;
			}
			sb.append(col);
		}
		return sb.toString();
	}
}

各位看官如有不懂；可以一起学习探讨
