一，postgresql 数据的备份与恢复
（一）数据库备份与恢复
1，备份
windows环境
1> dump 逻辑备份

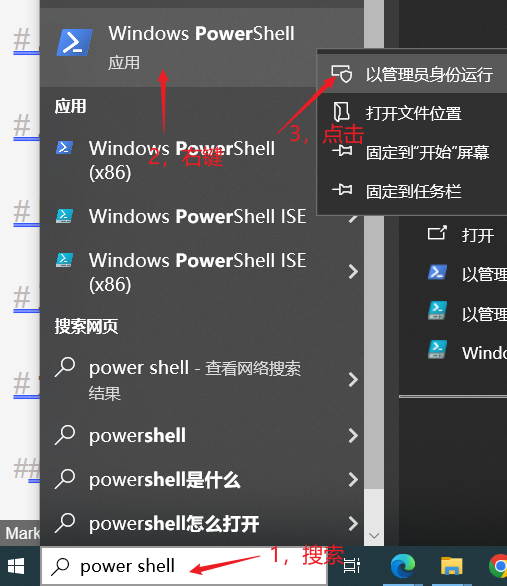

1，用管理员身份打开power shell
2，切换到本机 postgresql 安装目录下的 bin 目录：
PS C:\Users\DFL> cd D:\DFL\SOFTWARES\postgresql14\bin
PS D:\DFL\SOFTWARES\postgresql14\bin>
3，执行 dump ，将 test 数据库备份到桌面文件 appdb.bak ：
PS D:\DFL\SOFTWARES\postgresql14\bin> .\pg_dump -h localhost -p 5432 -U postgres -d test > C:\Users\DFL\Desktop\appdb.bak
口令:
2> COPY 逻辑备份
Linux（ubuntu）环境
（二）数据表备份与恢复
二，pgadmin4
（一）备份

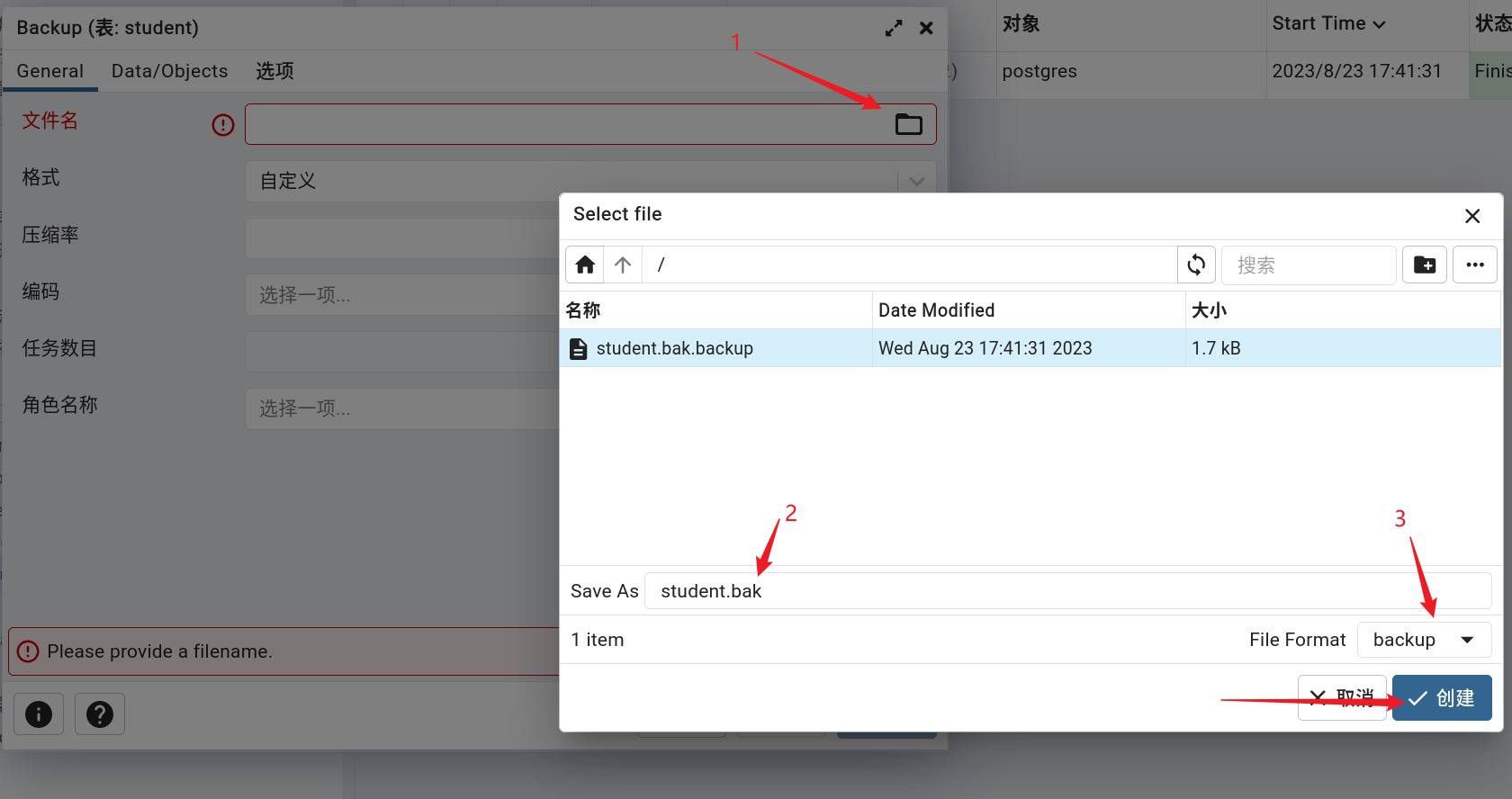

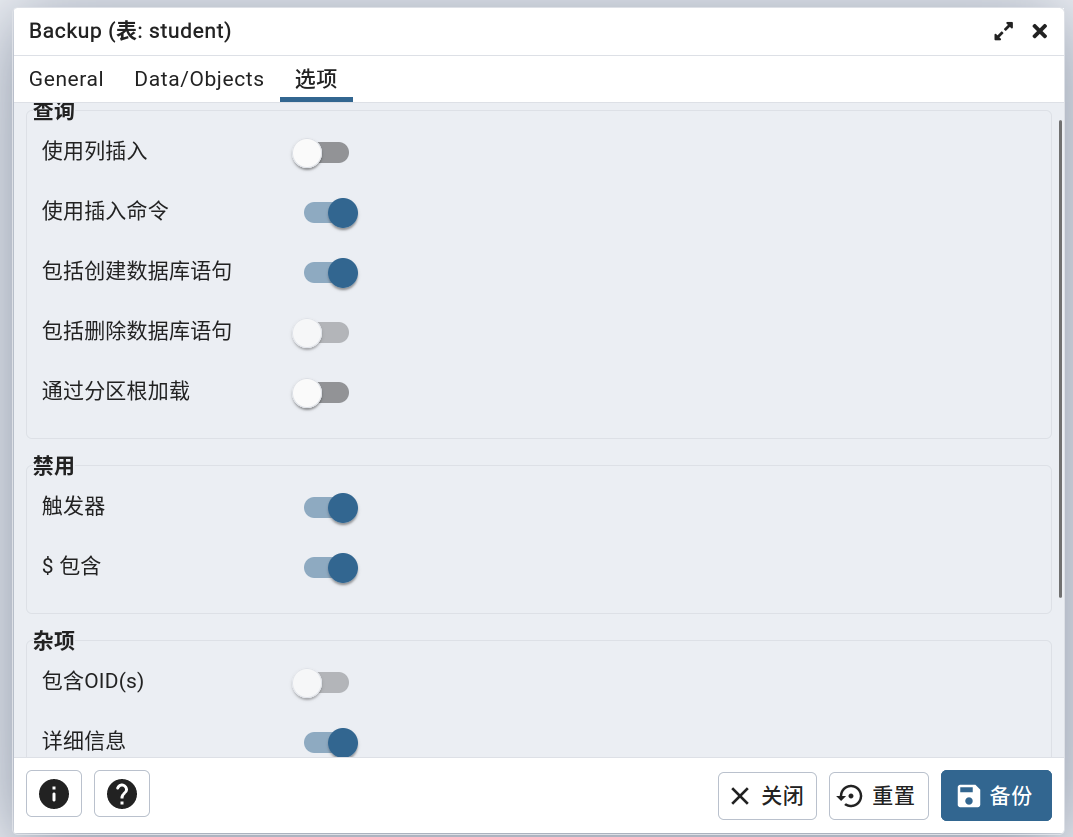

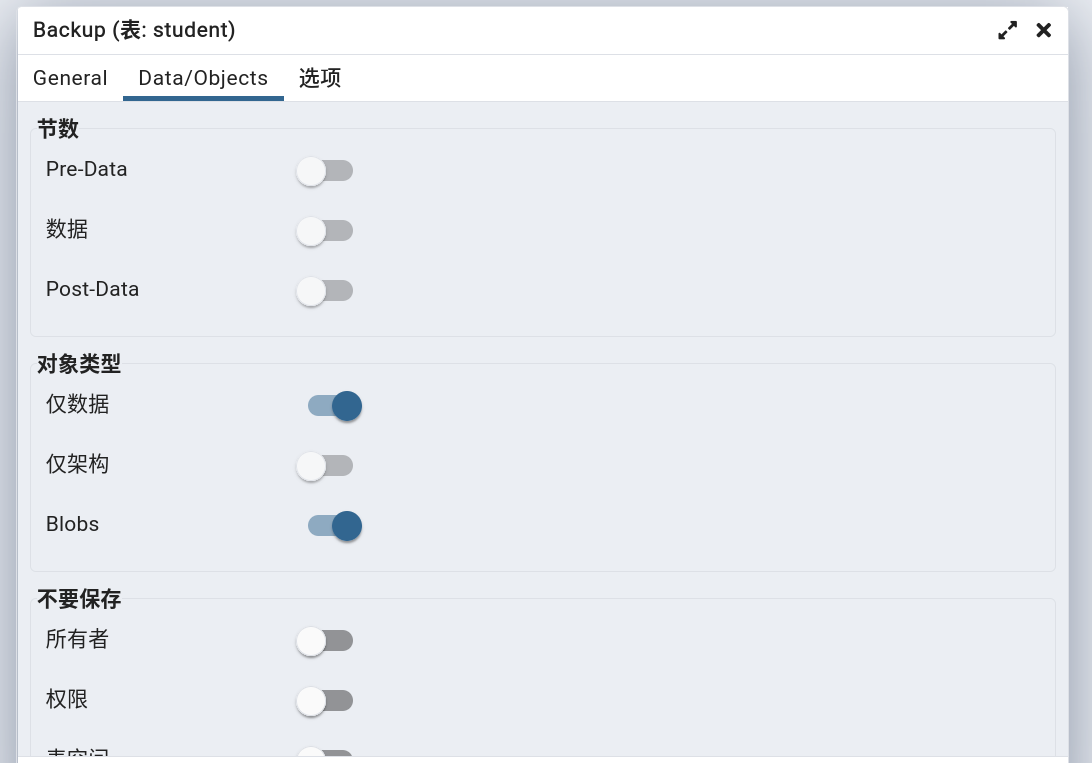

1，备份表
2，备份详情：
请求参数：
gid1
sid=1
data={'file': '/student.bak.backup', 'format': 'plain', 'id': None, 'blobs': True, 'verbose': True, 'encoding': 'UTF8', 'role': 'postgres', 'only_data': True, 'use_insert_commands': True, 'include_create_database': True, 'disable_trigger': True, 'disable_quoting': True, 'database': 'postgres', 'tables': [['public', 'student']]}
pgadmin4数据备份源码:
web/pgadmin/tools/backup/__init__.py：
@blueprint.route(
'/job/<int:sid>', methods=['POST'], endpoint='create_server_job'
)
@blueprint.route(
'/job/<int:sid>/object', methods=['POST'], endpoint='create_object_job'
)
@login_required
def create_backup_objects_job(sid):
"""
Args:
sid: Server ID
Creates a new job for backup task
(Backup Database(s)/Schema(s)/Table(s))
Returns:
None
"""
# 获取请求
data = json.loads(request.data, encoding='utf-8')
backup_obj_type = data.get('type', 'objects')
try:
# 获取文件路径
backup_file = filename_with_file_manager_path(
data['file'], (data.get('format', '') != 'directory'))
except Exception as e:
return bad_request(errormsg=str(e))
# 获取服务器信息
server = get_server(sid)
if server is None:
return make_json_response(
success=0,
errormsg=_("Could not find the specified server.")
)
# To fetch MetaData for the server
from pgadmin.utils.driver import get_driver
driver = get_driver(PG_DEFAULT_DRIVER)
manager = driver.connection_manager(server.id)
conn = manager.connection()
connected = conn.connected()
if not connected:
return make_json_response(
success=0,
errormsg=_("Please connect to the server first.")
)
# 获取备份工具，这里是 pg_dump
utility = manager.utility('backup') if backup_obj_type == 'objects' \
else manager.utility('backup_server')
ret_val = does_utility_exist(utility)
if ret_val:
return make_json_response(
success=0,
errormsg=ret_val
)
# 准备填充 dump 命令的参数
# ['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/student.bak.backup', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--verbose', '--role', 'postgres', '--format=p', '--data-only', '--disable-triggers', '--create', '--inserts', '--disable-dollar-quoting', '--encoding', 'UTF8', '--table', 'public.student']
args = _get_args_params_values(
data, conn, backup_obj_type, backup_file, server, manager)
# 这里将参数中的所有双引号转义，因为双引号在shell命令行中具有特殊含义，它们在没有双引号的情况下运行。添加额外的引号以保存我们的双引号。
escaped_args = [
escape_dquotes_process_arg(arg) for arg in args
]
try:
# 用 utf-8 编码文件名
bfile = data['file'].encode('utf-8') \
if hasattr(data['file'], 'encode') else data['file']
# 区分不同的备份类型
if backup_obj_type == 'objects': # 备份数据对象（数据库、模式、表）数据
args.append(data['database'])
escaped_args.append(data['database'])
p = BatchProcess(
desc=BackupMessage(
BACKUP.OBJECT, server.id, bfile,
*args,
database=data['database']
),
cmd=utility, args=escaped_args
)
else: # 备份服务器数据
p = BatchProcess(
desc=BackupMessage(
BACKUP.SERVER if backup_obj_type != 'globals'
else BACKUP.GLOBALS,
server.id, bfile,
*args
),
cmd=utility, args=escaped_args
)
manager.export_password_env(p.id)
# Check for connection timeout and if it is greater than 0 then
# set the environment variable PGCONNECT_TIMEOUT.
if manager.connect_timeout > 0:
env = dict()
env['PGCONNECT_TIMEOUT'] = str(manager.connect_timeout)
p.set_env_variables(server, env=env)
else:
p.set_env_variables(server)
# 创建子进程，执行 pg_dump 命令
p.start()
jid = p.id
except Exception as e:
current_app.logger.exception(e)
return make_json_response(
status=410,
success=0,
errormsg=str(e)
)
# Return response
return make_json_response(
data={'job_id': jid, 'desc': p.desc.message, 'Success': 1}
)

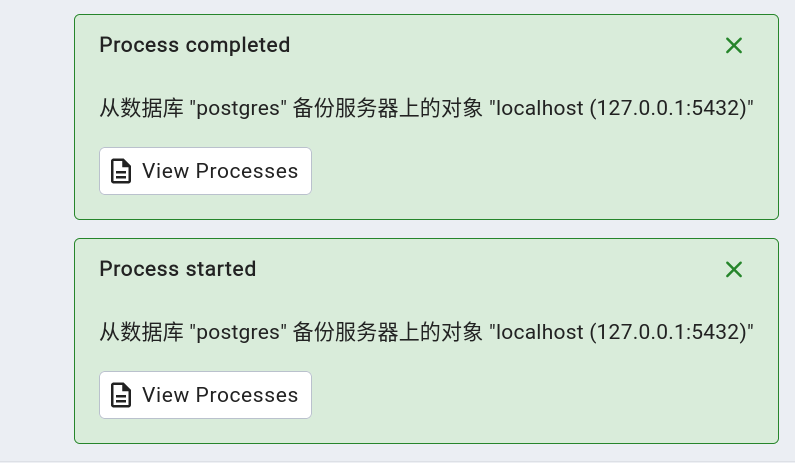

右下角显示进程任务执行信息：

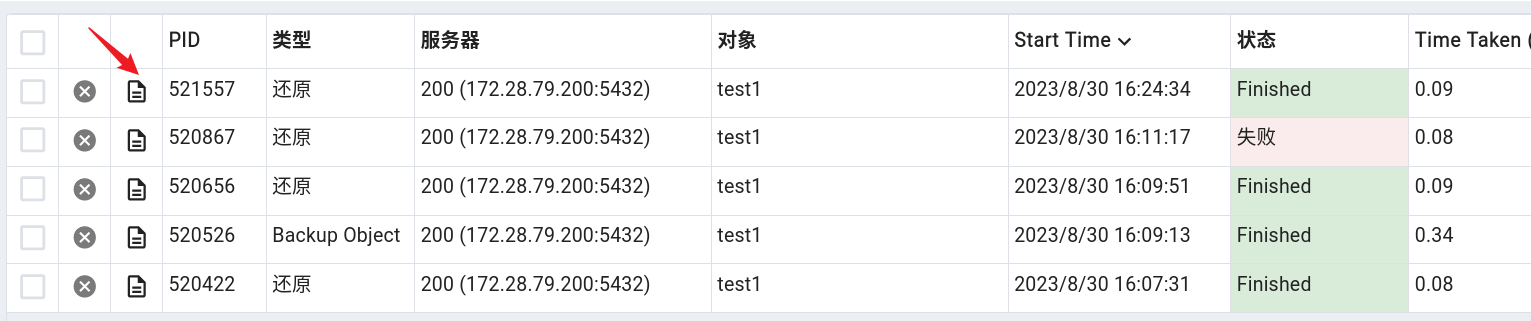

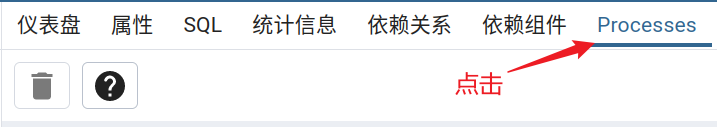

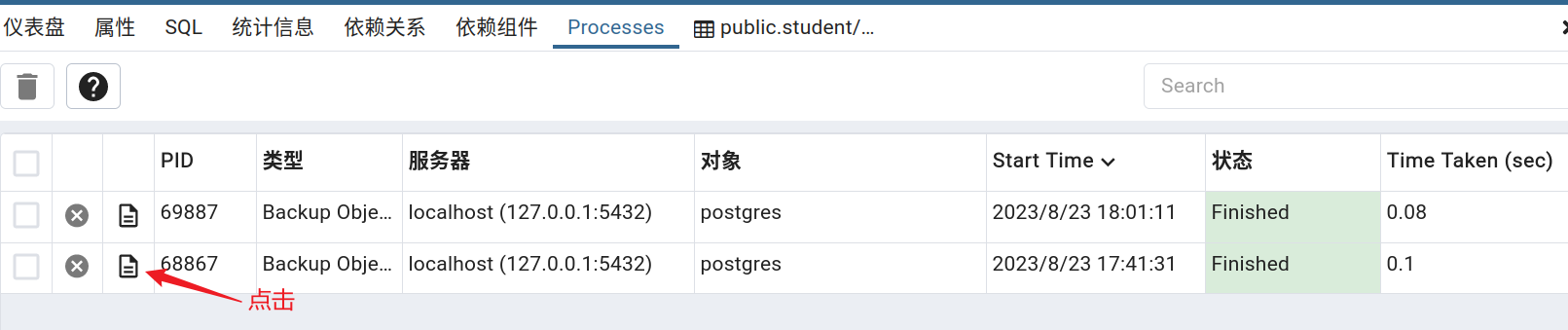

查看进程任务：
查看备份任务执行情况：

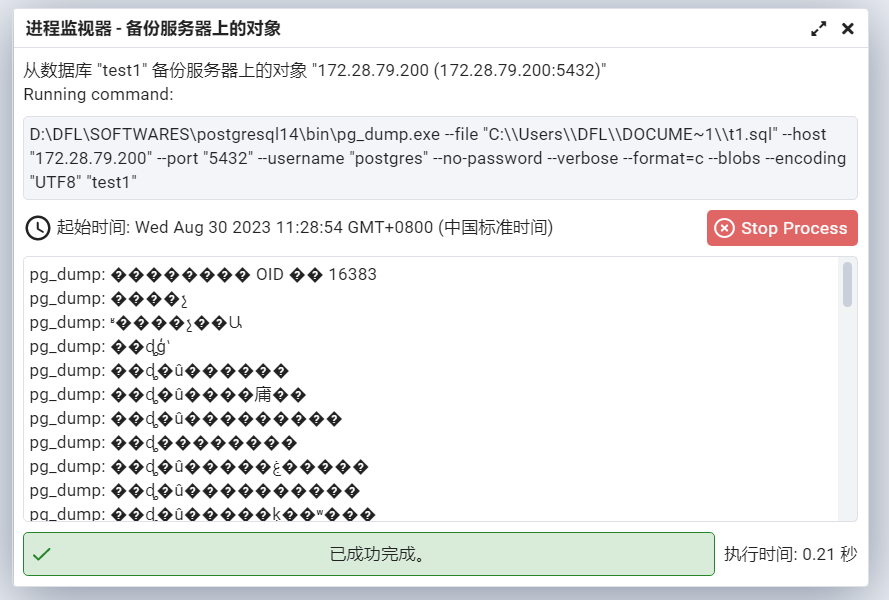

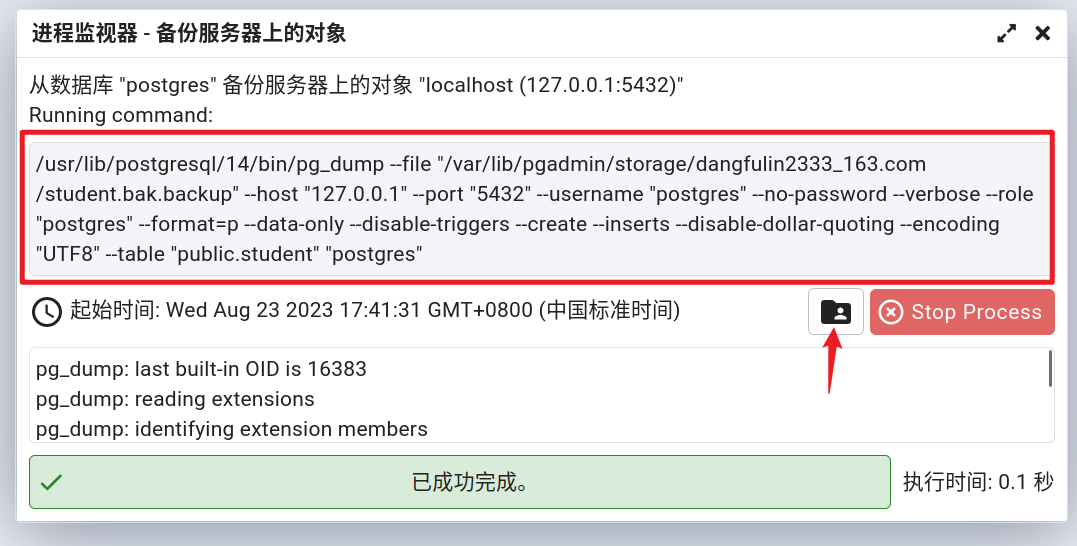

查看任务务行详情：
- 红框中就是备份数据表时执行的 dump 命令。

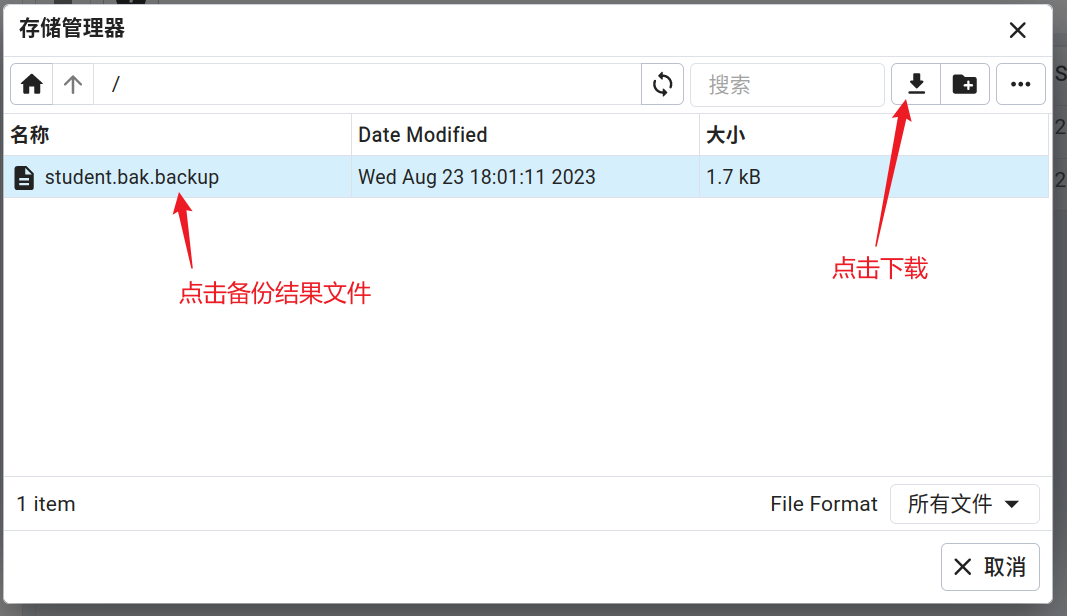

下载备份文件：
3，备份文件：
--
-- PostgreSQL database dump
--
-- Dumped from database version 14.9 (Ubuntu 14.9-0ubuntu0.22.04.1)
-- Dumped by pg_dump version 14.9 (Ubuntu 14.9-0ubuntu0.22.04.1)
-- Started on 2023-08-23 18:01:11 CST
SET statement_timeout = 0;
SET lock_timeout = 0;
SET idle_in_transaction_session_timeout = 0;
SET client_encoding = 'UTF8';
SET standard_conforming_strings = on;
SELECT pg_catalog.set_config('search_path', '', false);
SET check_function_bodies = false;
SET xmloption = content;
SET client_min_messages = warning;
SET row_security = off;
--
-- TOC entry 3640 (class 1262 OID 13799)
-- Name: postgres; Type: DATABASE; Schema: -; Owner: postgres
--
CREATE DATABASE postgres WITH TEMPLATE = template0 ENCODING = 'UTF8' LOCALE = 'zh_CN.UTF-8';
ALTER DATABASE postgres OWNER TO postgres;
\connect postgres
SET statement_timeout = 0;
SET lock_timeout = 0;
SET idle_in_transaction_session_timeout = 0;
SET client_encoding = 'UTF8';
SET standard_conforming_strings = on;
SELECT pg_catalog.set_config('search_path', '', false);
SET check_function_bodies = false;
SET xmloption = content;
SET client_min_messages = warning;
SET row_security = off;
--
-- TOC entry 3634 (class 0 OID 24580)
-- Dependencies: 213
-- Data for Name: student; Type: TABLE DATA; Schema: public; Owner: postgres
--
SET SESSION AUTHORIZATION DEFAULT;
ALTER TABLE public.student DISABLE TRIGGER ALL;
INSERT INTO public.student VALUES (1, 1, 'tname1');
INSERT INTO public.student VALUES (2, 1, 'tname1');
INSERT INTO public.student VALUES (3, 2, 'tname2');
INSERT INTO public.student VALUES (4, 3, 'tname3');
INSERT INTO public.student VALUES (5, 3, 'tname3');
ALTER TABLE public.student ENABLE TRIGGER ALL;
-- Completed on 2023-08-23 18:01:11 CST
--
-- PostgreSQL database dump complete
--
2，备份架构

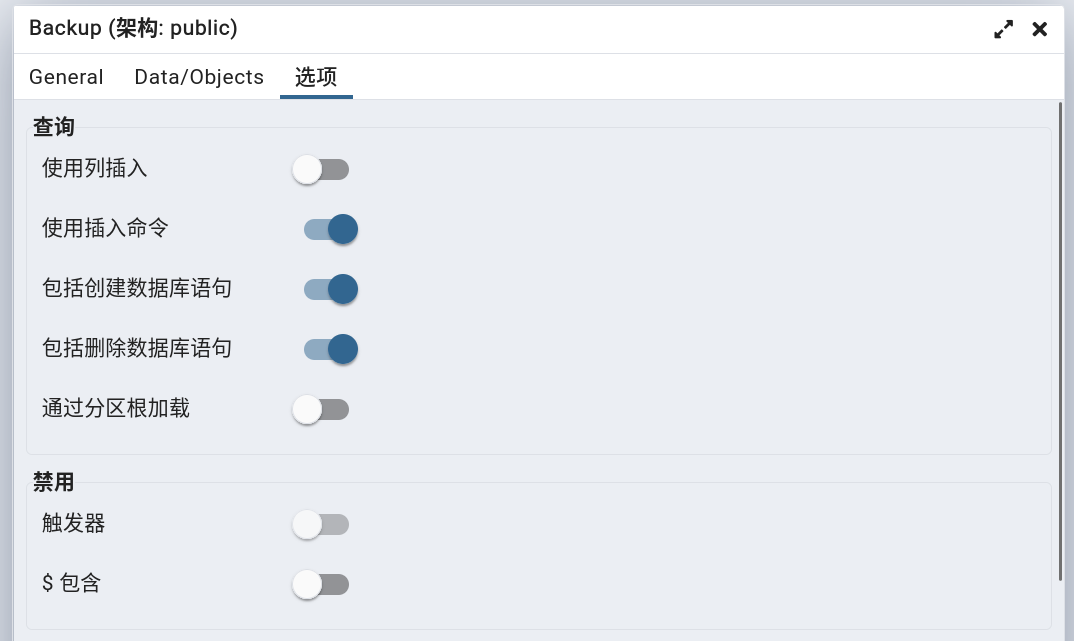

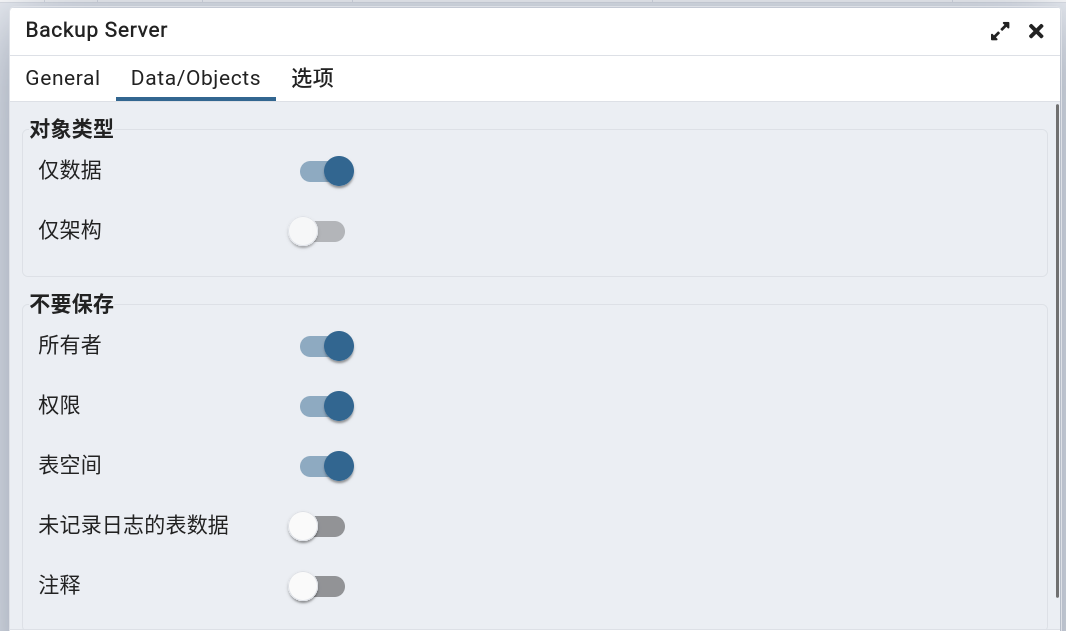

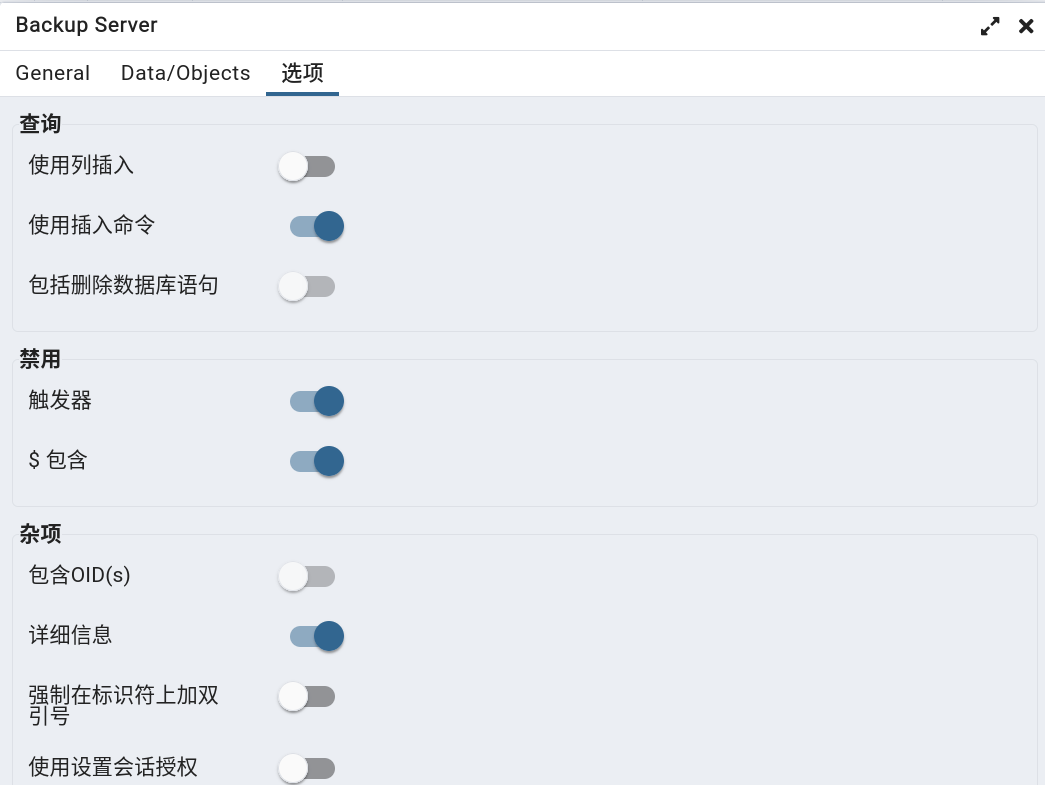

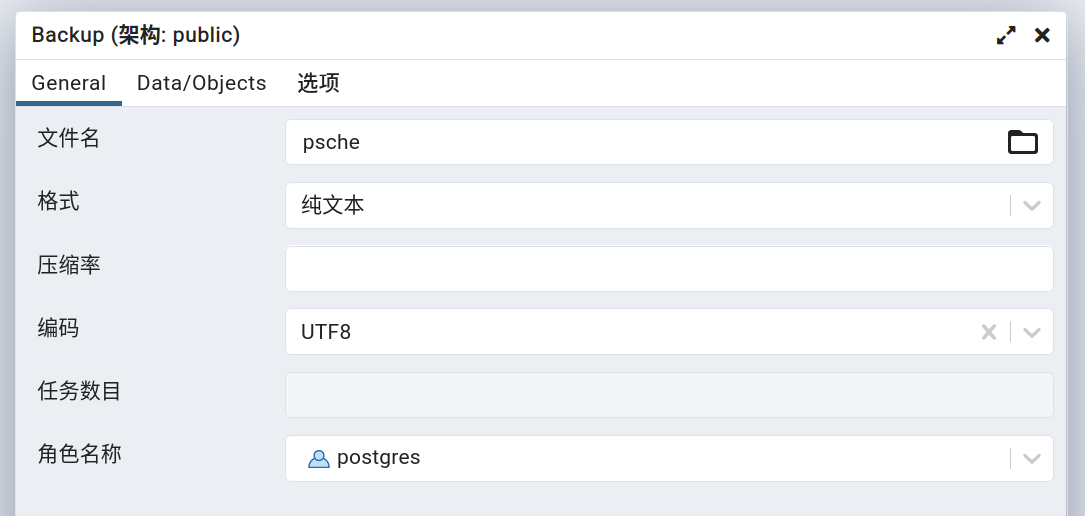

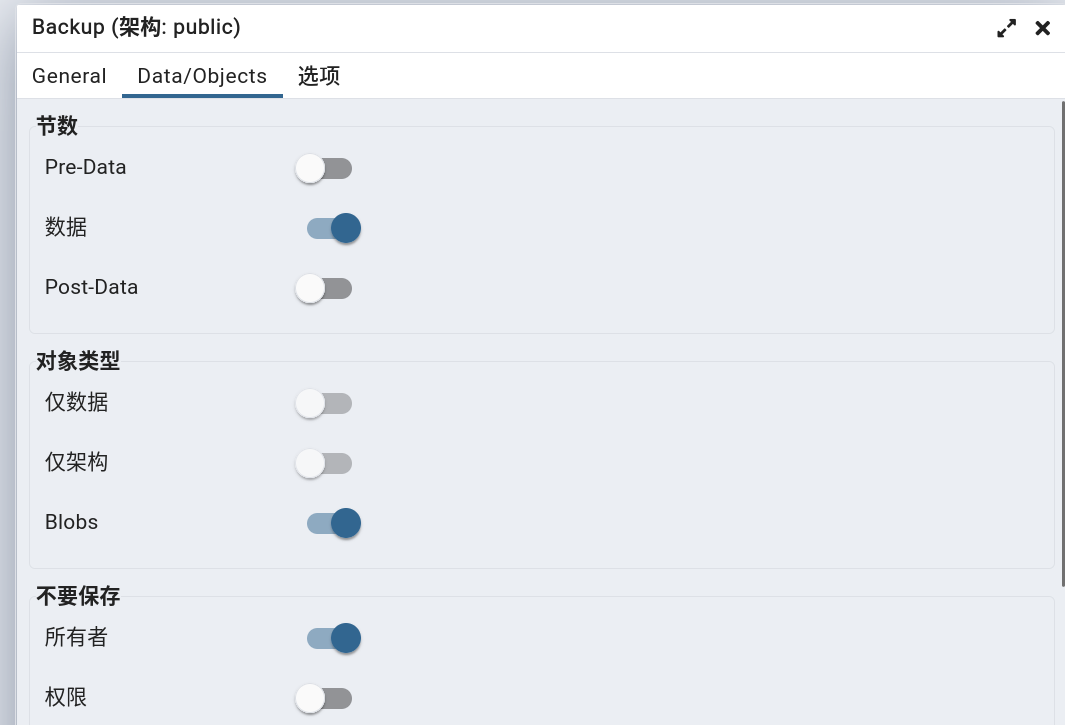

1，对话框
2，备份信息：
@blueprint.route(
'/job/<int:sid>', methods=['POST'], endpoint='create_server_job'
)
@blueprint.route(
'/job/<int:sid>/object', methods=['POST'], endpoint='create_object_job'
)
@login_required
def create_backup_objects_job(sid):
"""
Args:
sid: Server ID
Creates a new job for backup task
(Backup Database(s)/Schema(s)/Table(s))
Returns:
None
"""
# 获取请求
# {'file': 'psche', 'format': 'plain', 'id': None, 'blobs': True, 'verbose': True, 'encoding': 'UTF8', 'role': 'postgres', 'data': True, 'dns_owner': True, 'dns_tablespace': True, 'dns_unlogged_tbl_data': True, 'no_comments': True, 'use_insert_commands': True, 'include_create_database': True, 'include_drop_database': True, 'database': 'postgres', 'schemas': ['public']}
data = json.loads(request.data, encoding='utf-8')
# 'objects'
backup_obj_type = data.get('type', 'objects')
try:
# 获取文件路径
# '/var/lib/pgadmin/storage/dangfulin2333_163.com/psche'
backup_file = filename_with_file_manager_path(
data['file'], (data.get('format', '') != 'directory'))
except Exception as e:
return bad_request(errormsg=str(e))
# 获取服务器信息
# <Server 1>
server = get_server(sid)
if server is None:
return make_json_response(
success=0,
errormsg=_("Could not find the specified server.")
)
# To fetch MetaData for the server
from pgadmin.utils.driver import get_driver
driver = get_driver(PG_DEFAULT_DRIVER)
manager = driver.connection_manager(server.id)
conn = manager.connection()
connected = conn.connected()
if not connected:
return make_json_response(
success=0,
errormsg=_("Please connect to the server first.")
)
# 获取备份工具
# '/usr/lib/postgresql/14/bin/pg_dump'
utility = manager.utility('backup') if backup_obj_type == 'objects' \
else manager.utility('backup_server')
ret_val = does_utility_exist(utility)
if ret_val:
return make_json_response(
success=0,
errormsg=ret_val
)
# 工具参数
# ['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/psche', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--verbose', '--role', 'postgres', '--format=p', '--no-owner', '--create', '--clean', '--section=data', '--no-tablespaces', '--no-unlogged-table-data', '--inserts', '--no-comments', '--encoding', 'UTF8', '--schema', 'public', 'postgres']
args = _get_args_params_values(
data, conn, backup_obj_type, backup_file, server, manager)
# 这里将参数中的所有双引号转义，因为双引号在shell命令行中具有特殊含义，它们在没有双引号的情况下运行。添加额外的引号以保存我们的双引号。
# ['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/psche', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--verbose', '--role', 'postgres', '--format=p', '--no-owner', '--create', '--clean', '--section=data', '--no-tablespaces', '--no-unlogged-table-data', '--inserts', '--no-comments', '--encoding', 'UTF8', '--schema', 'public', 'postgres']
escaped_args = [
escape_dquotes_process_arg(arg) for arg in args
]
try:
# 用 utf-8 编码文件名
bfile = data['file'].encode('utf-8') \
if hasattr(data['file'], 'encode') else data['file']
# 区分不同的备份类型
if backup_obj_type == 'objects': # 备份数据对象（数据库、模式、表）数据
args.append(data['database'])
# ['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/psche', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--verbose', '--role', 'postgres', '--format=p', '--no-owner', '--create', '--clean', '--section=data', '--no-tablespaces', '--no-unlogged-table-data', '--inserts', '--no-comments', '--encoding', 'UTF8', '--schema', 'public', 'postgres']
escaped_args.append(data['database'])
# ['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/psche', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--verbose', '--role', 'postgres', '--format=p', '--no-owner', '--create', '--clean', '--section=data', '--no-tablespaces', '--no-unlogged-table-data', '--inserts', '--no-comments', '--encoding', 'UTF8', '--schema', 'public', 'postgres']
p = BatchProcess(
desc=BackupMessage(
BACKUP.OBJECT, server.id, bfile,
*args,
database=data['database']
),
cmd=utility, args=escaped_args
)
else: # 备份服务器数据
p = BatchProcess(
desc=BackupMessage(
BACKUP.SERVER if backup_obj_type != 'globals'
else BACKUP.GLOBALS,
server.id, bfile,
*args
),
cmd=utility, args=escaped_args
)
manager.export_password_env(p.id)
# Check for connection timeout and if it is greater than 0 then
# set the environment variable PGCONNECT_TIMEOUT.
if manager.connect_timeout > 0:
env = dict()
env['PGCONNECT_TIMEOUT'] = str(manager.connect_timeout)
p.set_env_variables(server, env=env)
else:
p.set_env_variables(server)
# 创建子进程，执行 pg_dump 命令
p.start()
jid = p.id
except Exception as e:
current_app.logger.exception(e)
return make_json_response(
status=410,
success=0,
errormsg=str(e)
)
# Return response
return make_json_response(
data={'job_id': jid, 'desc': p.desc.message, 'Success': 1}
)
3，备份文件：
--
-- PostgreSQL database dump
--
-- Dumped from database version 14.9 (Ubuntu 14.9-0ubuntu0.22.04.1)
-- Dumped by pg_dump version 14.9 (Ubuntu 14.9-0ubuntu0.22.04.1)
-- Started on 2023-08-24 08:52:15 CST
SET statement_timeout = 0;
SET lock_timeout = 0;
SET idle_in_transaction_session_timeout = 0;
SET client_encoding = 'UTF8';
SET standard_conforming_strings = on;
SELECT pg_catalog.set_config('search_path', '', false);
SET check_function_bodies = false;
SET xmloption = content;
SET client_min_messages = warning;
SET row_security = off;
DROP DATABASE postgres;
--
-- TOC entry 3671 (class 1262 OID 13799)
-- Name: postgres; Type: DATABASE; Schema: -; Owner: -
--
CREATE DATABASE postgres WITH TEMPLATE = template0 ENCODING = 'UTF8' LOCALE = 'zh_CN.UTF-8';
\connect postgres
SET statement_timeout = 0;
SET lock_timeout = 0;
SET idle_in_transaction_session_timeout = 0;
SET client_encoding = 'UTF8';
SET standard_conforming_strings = on;
SELECT pg_catalog.set_config('search_path', '', false);
SET check_function_bodies = false;
SET xmloption = content;
SET client_min_messages = warning;
SET row_security = off;
--
-- TOC entry 3662 (class 0 OID 24629)
-- Dependencies: 216
-- Data for Name: circles; Type: TABLE DATA; Schema: public; Owner: -
--
--
-- TOC entry 3664 (class 0 OID 25273)
-- Dependencies: 218
-- Data for Name: company6; Type: TABLE DATA; Schema: public; Owner: -
--
--
-- TOC entry 3665 (class 0 OID 25280)
-- Dependencies: 219
-- Data for Name: department1; Type: TABLE DATA; Schema: public; Owner: -
--
--
-- TOC entry 3661 (class 0 OID 24611)
-- Dependencies: 215
-- Data for Name: orders; Type: TABLE DATA; Schema: public; Owner: -
--
--
-- TOC entry 3660 (class 0 OID 24580)
-- Dependencies: 213
-- Data for Name: student; Type: TABLE DATA; Schema: public; Owner: -
--
INSERT INTO public.student VALUES (1, 1, 'tname1');
INSERT INTO public.student VALUES (2, 1, 'tname1');
INSERT INTO public.student VALUES (3, 2, 'tname2');
INSERT INTO public.student VALUES (4, 3, 'tname3');
INSERT INTO public.student VALUES (5, 3, 'tname3');
--
-- TOC entry 3663 (class 0 OID 25264)
-- Dependencies: 217
-- Data for Name: t2; Type: TABLE DATA; Schema: public; Owner: -
--
--
-- TOC entry 3659 (class 0 OID 24577)
-- Dependencies: 212
-- Data for Name: teacher; Type: TABLE DATA; Schema: public; Owner: -
--
INSERT INTO public.teacher VALUES (1, 'sname1');
INSERT INTO public.teacher VALUES (2, 'sname2');
INSERT INTO public.teacher VALUES (3, 'sname3');
-- Completed on 2023-08-24 08:52:15 CST
--
-- PostgreSQL database dump complete
--
3，备份数据库

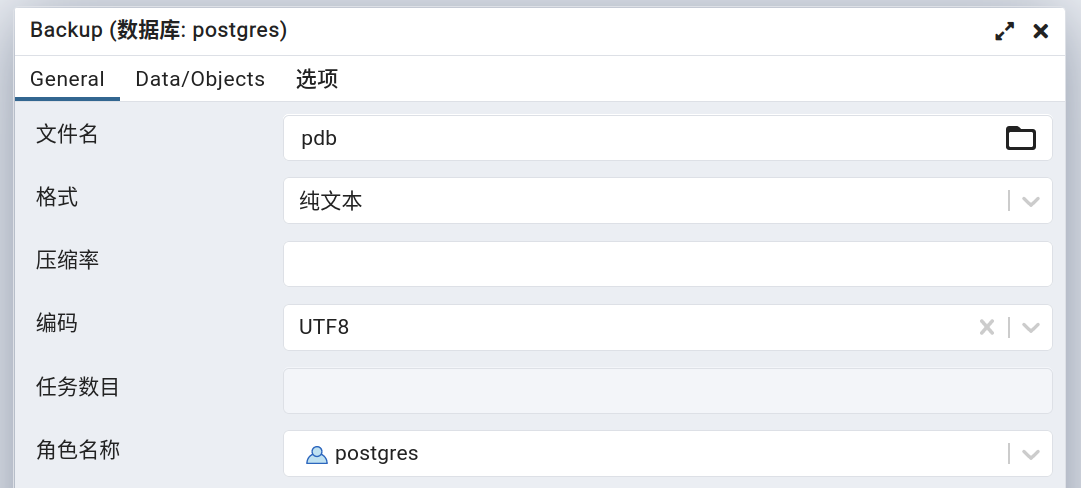

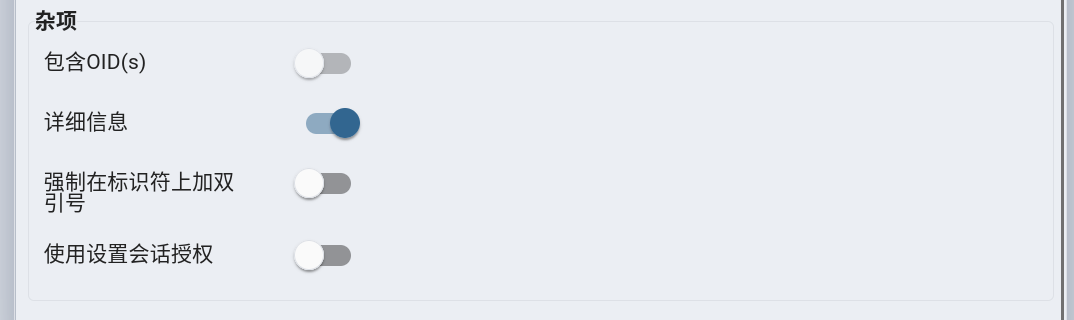

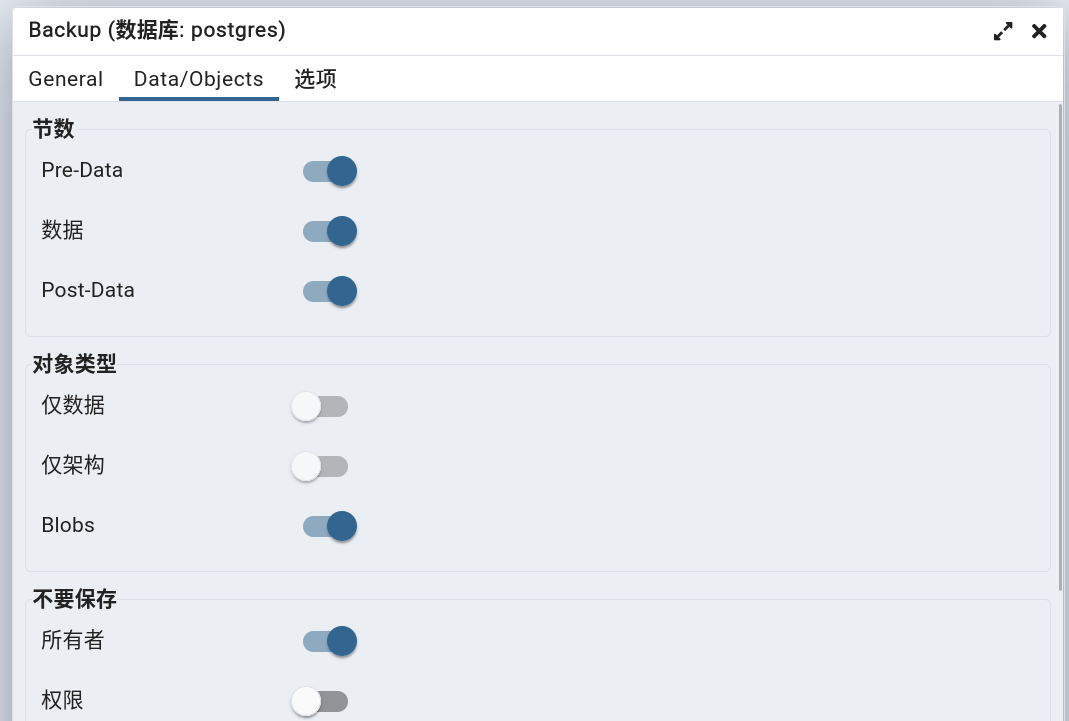

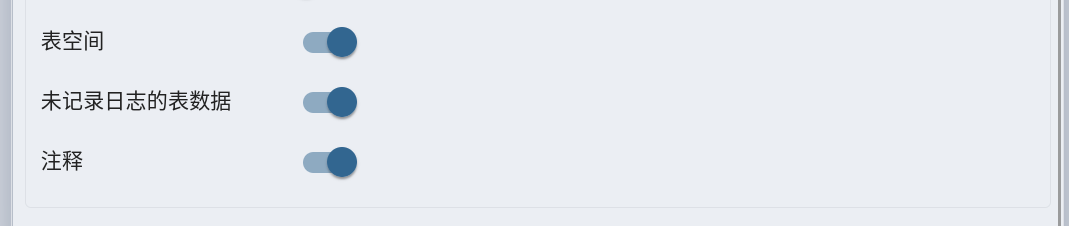

1，对话框：
2，备份信息：
@blueprint.route(
'/job/<int:sid>', methods=['POST'], endpoint='create_server_job'
)
@blueprint.route(
'/job/<int:sid>/object', methods=['POST'], endpoint='create_object_job'
)
@login_required
def create_backup_objects_job(sid):
"""
Args:
sid: Server ID
Creates a new job for backup task
(Backup Database(s)/Schema(s)/Table(s))
Returns:
None
"""
# 获取请求
# {'file': 'pdb', 'format': 'plain', 'id': None, 'blobs': True, 'verbose': True, 'encoding': 'UTF8', 'role': 'postgres', 'pre_data': True, 'data': True, 'post_data': True, 'dns_owner': True, 'dns_tablespace': True, 'use_insert_commands': True, 'include_create_database': True, 'include_drop_database': True, 'database': 'postgres'}
data = json.loads(request.data, encoding='utf-8')
# 'objects'
backup_obj_type = data.get('type', 'objects')
try:
# 获取文件路径
# '/var/lib/pgadmin/storage/dangfulin2333_163.com/pdb'
backup_file = filename_with_file_manager_path(
data['file'], (data.get('format', '') != 'directory'))
except Exception as e:
return bad_request(errormsg=str(e))
# 获取服务器信息
# <Server 1>
server = get_server(sid)
if server is None:
return make_json_response(
success=0,
errormsg=_("Could not find the specified server.")
)
# To fetch MetaData for the server
from pgadmin.utils.driver import get_driver
driver = get_driver(PG_DEFAULT_DRIVER)
manager = driver.connection_manager(server.id)
conn = manager.connection()
connected = conn.connected()
if not connected:
return make_json_response(
success=0,
errormsg=_("Please connect to the server first.")
)
# 获取备份工具
# '/usr/lib/postgresql/14/bin/pg_dump'
utility = manager.utility('backup') if backup_obj_type == 'objects' \
else manager.utility('backup_server')
ret_val = does_utility_exist(utility)
if ret_val:
return make_json_response(
success=0,
errormsg=ret_val
)
# 工具参数
# ['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/pdb', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--verbose', '--role', 'postgres', '--format=p', '--no-owner', '--create', '--clean', '--section=pre-data', '--section=data', '--section=post-data', '--no-tablespaces', '--inserts', '--encoding', 'UTF8', 'postgres']
args = _get_args_params_values(
data, conn, backup_obj_type, backup_file, server, manager)
# 这里将参数中的所有双引号转义，因为双引号在shell命令行中具有特殊含义，它们在没有双引号的情况下运行。添加额外的引号以保存我们的双引号。
# ['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/pdb', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--verbose', '--role', 'postgres', '--format=p', '--no-owner', '--create', '--clean', '--section=pre-data', '--section=data', '--section=post-data', '--no-tablespaces', '--inserts', '--encoding', 'UTF8', 'postgres']
escaped_args = [
escape_dquotes_process_arg(arg) for arg in args
]
try:
# 用 utf-8 编码文件名
bfile = data['file'].encode('utf-8') \
if hasattr(data['file'], 'encode') else data['file']
# 区分不同的备份类型
if backup_obj_type == 'objects': # 备份数据对象（数据库、模式、表）数据
args.append(data['database'])
# ['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/pdb', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--verbose', '--role', 'postgres', '--format=p', '--no-owner', '--create', '--clean', '--section=pre-data', '--section=data', '--section=post-data', '--no-tablespaces', '--inserts', '--encoding', 'UTF8', 'postgres']
escaped_args.append(data['database'])
# ['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/pdb', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--verbose', '--role', 'postgres', '--format=p', '--no-owner', '--create', '--clean', '--section=pre-data', '--section=data', '--section=post-data', '--no-tablespaces', '--inserts', '--encoding', 'UTF8', 'postgres']
p = BatchProcess(
desc=BackupMessage(
BACKUP.OBJECT, server.id, bfile,
*args,
database=data['database']
),
cmd=utility, args=escaped_args
)
else: # 备份服务器数据
p = BatchProcess(
desc=BackupMessage(
BACKUP.SERVER if backup_obj_type != 'globals'
else BACKUP.GLOBALS,
server.id, bfile,
*args
),
cmd=utility, args=escaped_args
)
manager.export_password_env(p.id)
# Check for connection timeout and if it is greater than 0 then
# set the environment variable PGCONNECT_TIMEOUT.
if manager.connect_timeout > 0:
env = dict()
env['PGCONNECT_TIMEOUT'] = str(manager.connect_timeout)
p.set_env_variables(server, env=env)
else:
p.set_env_variables(server)
# 创建子进程，执行 pg_dump 命令
p.start()
jid = p.id
except Exception as e:
current_app.logger.exception(e)
return make_json_response(
status=410,
success=0,
errormsg=str(e)
)
# Return response
return make_json_response(
data={'job_id': jid, 'desc': p.desc.message, 'Success': 1}
)
3，备份文件：
--
-- PostgreSQL database dump
--
-- Dumped from database version 14.9 (Ubuntu 14.9-0ubuntu0.22.04.1)
-- Dumped by pg_dump version 14.9 (Ubuntu 14.9-0ubuntu0.22.04.1)
-- Started on 2023-08-24 09:06:19 CST
SET statement_timeout = 0;
SET lock_timeout = 0;
SET idle_in_transaction_session_timeout = 0;
SET client_encoding = 'UTF8';
SET standard_conforming_strings = on;
SELECT pg_catalog.set_config('search_path', '', false);
SET check_function_bodies = false;
SET xmloption = content;
SET client_min_messages = warning;
SET row_security = off;
DROP DATABASE postgres;
--
-- TOC entry 3671 (class 1262 OID 13799)
-- Name: postgres; Type: DATABASE; Schema: -; Owner: -
--
CREATE DATABASE postgres WITH TEMPLATE = template0 ENCODING = 'UTF8' LOCALE = 'zh_CN.UTF-8';
\connect postgres
SET statement_timeout = 0;
SET lock_timeout = 0;
SET idle_in_transaction_session_timeout = 0;
SET client_encoding = 'UTF8';
SET standard_conforming_strings = on;
SELECT pg_catalog.set_config('search_path', '', false);
SET check_function_bodies = false;
SET xmloption = content;
SET client_min_messages = warning;
SET row_security = off;
--
-- TOC entry 3672 (class 0 OID 0)
-- Dependencies: 3671
-- Name: DATABASE postgres; Type: COMMENT; Schema: -; Owner: -
--
COMMENT ON DATABASE postgres IS 'default administrative connection database';
--
-- TOC entry 3 (class 3079 OID 24634)
-- Name: btree_gist; Type: EXTENSION; Schema: -; Owner: -
--
CREATE EXTENSION IF NOT EXISTS btree_gist WITH SCHEMA public;
--
-- TOC entry 3673 (class 0 OID 0)
-- Dependencies: 3
-- Name: EXTENSION btree_gist; Type: COMMENT; Schema: -; Owner: -
--
COMMENT ON EXTENSION btree_gist IS 'support for indexing common datatypes in GiST';
--
-- TOC entry 2 (class 3079 OID 16394)
-- Name: postgres_fdw; Type: EXTENSION; Schema: -; Owner: -
--
CREATE EXTENSION IF NOT EXISTS postgres_fdw WITH SCHEMA public;
--
-- TOC entry 3674 (class 0 OID 0)
-- Dependencies: 2
-- Name: EXTENSION postgres_fdw; Type: COMMENT; Schema: -; Owner: -
--
COMMENT ON EXTENSION postgres_fdw IS 'foreign-data wrapper for remote PostgreSQL servers';
--
-- TOC entry 225 (class 1255 OID 24616)
-- Name: update_order_status(); Type: FUNCTION; Schema: public; Owner: -
--
CREATE FUNCTION public.update_order_status() RETURNS trigger
LANGUAGE plpgsql
AS $$
BEGIN
IF NEW.total_amount > 1000 THEN
NEW.status := '已审核';
ELSE
NEW.status := '待审核';
END IF;
RETURN NEW;
END;
$$;
--
-- TOC entry 2321 (class 2328 OID 16403)
-- Name: test1; Type: FOREIGN DATA WRAPPER; Schema: -; Owner: -
--
CREATE FOREIGN DATA WRAPPER test1 HANDLER public.postgres_fdw_handler VALIDATOR public.postgres_fdw_validator;
--
-- TOC entry 2322 (class 1417 OID 16401)
-- Name: server1; Type: SERVER; Schema: -; Owner: -
--
CREATE SERVER server1 FOREIGN DATA WRAPPER postgres_fdw OPTIONS (
dbname 'test',
host '172.28.79.200',
port '5432'
);
--
-- TOC entry 3675 (class 0 OID 0)
-- Name: USER MAPPING postgres SERVER server1; Type: USER MAPPING; Schema: -; Owner: -
--
CREATE USER MAPPING FOR postgres SERVER server1 OPTIONS (
password 'postgres',
"user" 'postgres'
);
SET default_table_access_method = heap;
--
-- TOC entry 216 (class 1259 OID 24629)
-- Name: circles; Type: TABLE; Schema: public; Owner: -
--
CREATE TABLE public.circles (
c circle
);
--
-- TOC entry 218 (class 1259 OID 25273)
-- Name: company6; Type: TABLE; Schema: public; Owner: -
--
CREATE TABLE public.company6 (
id integer NOT NULL,
name text NOT NULL,
age integer NOT NULL,
address character(50),
salary real
);
--
-- TOC entry 219 (class 1259 OID 25280)
-- Name: department1; Type: TABLE; Schema: public; Owner: -
--
CREATE TABLE public.department1 (
id integer NOT NULL,
dept character(50) NOT NULL,
emp_id integer NOT NULL
);
--
-- TOC entry 211 (class 1259 OID 16405)
-- Name: ft1; Type: FOREIGN TABLE; Schema: public; Owner: -
--
CREATE FOREIGN TABLE public.ft1 (
port integer
)
SERVER server1;
--
-- TOC entry 215 (class 1259 OID 24611)
-- Name: orders; Type: TABLE; Schema: public; Owner: -
--
CREATE TABLE public.orders (
id integer NOT NULL,
order_date date,
total_amount numeric(10,2),
status character varying(20)
);
--
-- TOC entry 213 (class 1259 OID 24580)
-- Name: student; Type: TABLE; Schema: public; Owner: -
--
CREATE TABLE public.student (
sid integer NOT NULL,
teacher_id integer DEFAULT 0 NOT NULL,
tname character varying(100)
);
--
-- TOC entry 212 (class 1259 OID 24577)
-- Name: teacher; Type: TABLE; Schema: public; Owner: -
--
CREATE TABLE public.teacher (
id integer NOT NULL,
sname character varying(100)
);
--
-- TOC entry 214 (class 1259 OID 24584)
-- Name: student_view; Type: VIEW; Schema: public; Owner: -
--
CREATE VIEW public.student_view AS
SELECT student.sid,
student.teacher_id,
student.tname,
teacher.id,
teacher.sname
FROM (public.student
LEFT JOIN public.teacher ON ((student.teacher_id = teacher.id)));
--
-- TOC entry 217 (class 1259 OID 25264)
-- Name: t2; Type: TABLE; Schema: public; Owner: -
--
CREATE TABLE public.t2 (
c1 integer,
c2 text
);
--
-- TOC entry 3662 (class 0 OID 24629)
-- Dependencies: 216
-- Data for Name: circles; Type: TABLE DATA; Schema: public; Owner: -
--
--
-- TOC entry 3664 (class 0 OID 25273)
-- Dependencies: 218
-- Data for Name: company6; Type: TABLE DATA; Schema: public; Owner: -
--
--
-- TOC entry 3665 (class 0 OID 25280)
-- Dependencies: 219
-- Data for Name: department1; Type: TABLE DATA; Schema: public; Owner: -
--
--
-- TOC entry 3661 (class 0 OID 24611)
-- Dependencies: 215
-- Data for Name: orders; Type: TABLE DATA; Schema: public; Owner: -
--
--
-- TOC entry 3660 (class 0 OID 24580)
-- Dependencies: 213
-- Data for Name: student; Type: TABLE DATA; Schema: public; Owner: -
--
INSERT INTO public.student VALUES (1, 1, 'tname1');
INSERT INTO public.student VALUES (2, 1, 'tname1');
INSERT INTO public.student VALUES (3, 2, 'tname2');
INSERT INTO public.student VALUES (4, 3, 'tname3');
INSERT INTO public.student VALUES (5, 3, 'tname3');
--
-- TOC entry 3663 (class 0 OID 25264)
-- Dependencies: 217
-- Data for Name: t2; Type: TABLE DATA; Schema: public; Owner: -
--
--
-- TOC entry 3659 (class 0 OID 24577)
-- Dependencies: 212
-- Data for Name: teacher; Type: TABLE DATA; Schema: public; Owner: -
--
INSERT INTO public.teacher VALUES (1, 'sname1');
INSERT INTO public.teacher VALUES (2, 'sname2');
INSERT INTO public.teacher VALUES (3, 'sname3');
--
-- TOC entry 3513 (class 2606 OID 24633)
-- Name: circles circles_c_excl; Type: CONSTRAINT; Schema: public; Owner: -
--
ALTER TABLE ONLY public.circles
ADD CONSTRAINT circles_c_excl EXCLUDE USING gist (c WITH &&);
--
-- TOC entry 3515 (class 2606 OID 25279)
-- Name: company6 company6_pkey; Type: CONSTRAINT; Schema: public; Owner: -
--
ALTER TABLE ONLY public.company6
ADD CONSTRAINT company6_pkey PRIMARY KEY (id);
--
-- TOC entry 3517 (class 2606 OID 25284)
-- Name: department1 department1_pkey; Type: CONSTRAINT; Schema: public; Owner: -
--
ALTER TABLE ONLY public.department1
ADD CONSTRAINT department1_pkey PRIMARY KEY (id);
--
-- TOC entry 3511 (class 2606 OID 24615)
-- Name: orders orders_pkey; Type: CONSTRAINT; Schema: public; Owner: -
--
ALTER TABLE ONLY public.orders
ADD CONSTRAINT orders_pkey PRIMARY KEY (id);
--
-- TOC entry 3508 (class 2606 OID 25272)
-- Name: student student_ck; Type: CHECK CONSTRAINT; Schema: public; Owner: -
--
ALTER TABLE public.student
ADD CONSTRAINT student_ck CHECK ((sid > 0)) NOT VALID;
--
-- TOC entry 3676 (class 0 OID 0)
-- Dependencies: 3508
-- Name: CONSTRAINT student_ck ON student; Type: COMMENT; Schema: public; Owner: -
--
COMMENT ON CONSTRAINT student_ck ON public.student IS '检查约束';
--
-- TOC entry 3518 (class 1259 OID 25290)
-- Name: fki_C; Type: INDEX; Schema: public; Owner: -
--
CREATE INDEX "fki_C" ON public.department1 USING btree (emp_id);
--
-- TOC entry 3509 (class 1259 OID 24604)
-- Name: index_test; Type: INDEX; Schema: public; Owner: -
--
CREATE INDEX index_test ON public.student USING btree (tname COLLATE "C" bpchar_pattern_ops);
--
-- TOC entry 3677 (class 0 OID 0)
-- Dependencies: 3509
-- Name: INDEX index_test; Type: COMMENT; Schema: public; Owner: -
--
COMMENT ON INDEX public.index_test IS '测试';
-- Completed on 2023-08-24 09:06:20 CST
--
-- PostgreSQL database dump complete
--
4，备份服务器
1，对话框
2，备份信息
@blueprint.route(
'/job/<int:sid>', methods=['POST'], endpoint='create_server_job'
)
@blueprint.route(
'/job/<int:sid>/object', methods=['POST'], endpoint='create_object_job'
)
@login_required
def create_backup_objects_job(sid):
"""
Args:
sid: Server ID
Creates a new job for backup task
(Backup Database(s)/Schema(s)/Table(s))
Returns:
None
"""
# 获取请求
# {'file': 'localhostserver', 'format': 'plain', 'id': None, 'blobs': False, 'verbose': True, 'encoding': 'UTF8', 'role': 'postgres', 'only_data': True, 'dns_owner': True, 'dns_privilege': True, 'dns_tablespace': True, 'use_insert_commands': True, 'disable_trigger': True, 'disable_quoting': True, 'type': 'server'}
data = json.loads(request.data, encoding='utf-8')
# 'server'
backup_obj_type = data.get('type', 'objects')
try:
# 获取文件路径
# '/var/lib/pgadmin/storage/dangfulin2333_163.com/localhostserver'
backup_file = filename_with_file_manager_path(
data['file'], (data.get('format', '') != 'directory'))
except Exception as e:
return bad_request(errormsg=str(e))
# 获取服务器信息
# <Server 1>
server = get_server(sid)
if server is None:
return make_json_response(
success=0,
errormsg=_("Could not find the specified server.")
)
# To fetch MetaData for the server
from pgadmin.utils.driver import get_driver
driver = get_driver(PG_DEFAULT_DRIVER)
manager = driver.connection_manager(server.id)
conn = manager.connection()
connected = conn.connected()
if not connected:
return make_json_response(
success=0,
errormsg=_("Please connect to the server first.")
)
# 获取备份工具
# '/usr/lib/postgresql/14/bin/pg_dumpall'
utility = manager.utility('backup') if backup_obj_type == 'objects' \
else manager.utility('backup_server')
ret_val = does_utility_exist(utility)
if ret_val:
return make_json_response(
success=0,
errormsg=ret_val
)
# 工具参数
# ['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/localhostserver', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--database', 'postgres', '--verbose', '--role', 'postgres', '--data-only', '--disable-triggers', '--no-owner', '--no-privileges', '--no-tablespaces', '--inserts', '--disable-dollar-quoting', '--encoding', 'UTF8']
args = _get_args_params_values(
data, conn, backup_obj_type, backup_file, server, manager)
# 这里将参数中的所有双引号转义，因为双引号在shell命令行中具有特殊含义，它们在没有双引号的情况下运行。添加额外的引号以保存我们的双引号。
# ['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/localhostserver', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--database', 'postgres', '--verbose', '--role', 'postgres', '--data-only', '--disable-triggers', '--no-owner', '--no-privileges', '--no-tablespaces', '--inserts', '--disable-dollar-quoting', '--encoding', 'UTF8']
escaped_args = [
escape_dquotes_process_arg(arg) for arg in args
]
try:
# 用 utf-8 编码文件名
# '/var/lib/pgadmin/storage/dangfulin2333_163.com/localhostserver'
bfile = data['file'].encode('utf-8') \
if hasattr(data['file'], 'encode') else data['file']
# 区分不同的备份类型
if backup_obj_type == 'objects': # 备份数据对象（数据库、模式、表）数据
args.append(data['database'])
# ['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/pdb', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--verbose', '--role', 'postgres', '--format=p', '--no-owner', '--create', '--clean', '--section=pre-data', '--section=data', '--section=post-data', '--no-tablespaces', '--inserts', '--encoding', 'UTF8', 'postgres']
escaped_args.append(data['database'])
# ['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/pdb', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--verbose', '--role', 'postgres', '--format=p', '--no-owner', '--create', '--clean', '--section=pre-data', '--section=data', '--section=post-data', '--no-tablespaces', '--inserts', '--encoding', 'UTF8', 'postgres']
p = BatchProcess(
desc=BackupMessage(
BACKUP.OBJECT, server.id, bfile,
*args,
database=data['database']
),
cmd=utility, args=escaped_args
)
else: # 备份服务器数据
p = BatchProcess(
desc=BackupMessage(
BACKUP.SERVER if backup_obj_type != 'globals'
else BACKUP.GLOBALS,
server.id, bfile,
*args
),
cmd=utility, args=escaped_args
)
manager.export_password_env(p.id)
# Check for connection timeout and if it is greater than 0 then
# set the environment variable PGCONNECT_TIMEOUT.
if manager.connect_timeout > 0:
env = dict()
env['PGCONNECT_TIMEOUT'] = str(manager.connect_timeout)
p.set_env_variables(server, env=env)
else:
p.set_env_variables(server)
# 创建子进程，执行 pg_dump 命令
p.start()
jid = p.id
except Exception as e:
current_app.logger.exception(e)
return make_json_response(
status=410,
success=0,
errormsg=str(e)
)
# Return response
return make_json_response(
data={'job_id': jid, 'desc': p.desc.message, 'Success': 1}
)
- 与备份表、schema、database 时使用 dump 不同的是，备份 server 时使用 dumpall
3，备份文件
--
-- PostgreSQL database cluster dump
--
-- Started on 2023-08-24 09:15:36 CST
SET default_transaction_read_only = off;
SET client_encoding = 'UTF8';
SET standard_conforming_strings = on;
--
-- Databases
--
--
-- Database "template1" dump
--
\connect template1
--
-- PostgreSQL database dump
--
-- Dumped from database version 14.9 (Ubuntu 14.9-0ubuntu0.22.04.1)
-- Dumped by pg_dump version 14.9 (Ubuntu 14.9-0ubuntu0.22.04.1)
-- Started on 2023-08-24 09:15:36 CST
SET statement_timeout = 0;
SET lock_timeout = 0;
SET idle_in_transaction_session_timeout = 0;
SET client_encoding = 'UTF8';
SET standard_conforming_strings = on;
SELECT pg_catalog.set_config('search_path', '', false);
SET check_function_bodies = false;
SET xmloption = content;
SET client_min_messages = warning;
SET row_security = off;
-- Completed on 2023-08-24 09:15:36 CST
--
-- PostgreSQL database dump complete
--
--
-- Database "postgres" dump
--
\connect postgres
--
-- PostgreSQL database dump
--
-- Dumped from database version 14.9 (Ubuntu 14.9-0ubuntu0.22.04.1)
-- Dumped by pg_dump version 14.9 (Ubuntu 14.9-0ubuntu0.22.04.1)
-- Started on 2023-08-24 09:15:36 CST
SET statement_timeout = 0;
SET lock_timeout = 0;
SET idle_in_transaction_session_timeout = 0;
SET client_encoding = 'UTF8';
SET standard_conforming_strings = on;
SELECT pg_catalog.set_config('search_path', '', false);
SET check_function_bodies = false;
SET xmloption = content;
SET client_min_messages = warning;
SET row_security = off;
--
-- TOC entry 3660 (class 0 OID 24629)
-- Dependencies: 216
-- Data for Name: circles; Type: TABLE DATA; Schema: public; Owner: -
--
SET SESSION AUTHORIZATION DEFAULT;
ALTER TABLE public.circles DISABLE TRIGGER ALL;
ALTER TABLE public.circles ENABLE TRIGGER ALL;
--
-- TOC entry 3662 (class 0 OID 25273)
-- Dependencies: 218
-- Data for Name: company6; Type: TABLE DATA; Schema: public; Owner: -
--
ALTER TABLE public.company6 DISABLE TRIGGER ALL;
ALTER TABLE public.company6 ENABLE TRIGGER ALL;
--
-- TOC entry 3663 (class 0 OID 25280)
-- Dependencies: 219
-- Data for Name: department1; Type: TABLE DATA; Schema: public; Owner: -
--
ALTER TABLE public.department1 DISABLE TRIGGER ALL;
ALTER TABLE public.department1 ENABLE TRIGGER ALL;
--
-- TOC entry 3659 (class 0 OID 24611)
-- Dependencies: 215
-- Data for Name: orders; Type: TABLE DATA; Schema: public; Owner: -
--
ALTER TABLE public.orders DISABLE TRIGGER ALL;
ALTER TABLE public.orders ENABLE TRIGGER ALL;
--
-- TOC entry 3658 (class 0 OID 24580)
-- Dependencies: 213
-- Data for Name: student; Type: TABLE DATA; Schema: public; Owner: -
--
ALTER TABLE public.student DISABLE TRIGGER ALL;
INSERT INTO public.student VALUES (1, 1, 'tname1');
INSERT INTO public.student VALUES (2, 1, 'tname1');
INSERT INTO public.student VALUES (3, 2, 'tname2');
INSERT INTO public.student VALUES (4, 3, 'tname3');
INSERT INTO public.student VALUES (5, 3, 'tname3');
ALTER TABLE public.student ENABLE TRIGGER ALL;
--
-- TOC entry 3661 (class 0 OID 25264)
-- Dependencies: 217
-- Data for Name: t2; Type: TABLE DATA; Schema: public; Owner: -
--
ALTER TABLE public.t2 DISABLE TRIGGER ALL;
ALTER TABLE public.t2 ENABLE TRIGGER ALL;
--
-- TOC entry 3657 (class 0 OID 24577)
-- Dependencies: 212
-- Data for Name: teacher; Type: TABLE DATA; Schema: public; Owner: -
--
ALTER TABLE public.teacher DISABLE TRIGGER ALL;
INSERT INTO public.teacher VALUES (1, 'sname1');
INSERT INTO public.teacher VALUES (2, 'sname2');
INSERT INTO public.teacher VALUES (3, 'sname3');
ALTER TABLE public.teacher ENABLE TRIGGER ALL;
-- Completed on 2023-08-24 09:15:36 CST
--
-- PostgreSQL database dump complete
--
-- Completed on 2023-08-24 09:15:36 CST
--
-- PostgreSQL database cluster dump complete
--
5，pgadmin4备份对话框表单数据与 pg_dump 命令参数对应关系
# 请求参数示例
['--file', '/var/lib/pgadmin/storage/dangfulin2333_163.com/student.bak.backup', '--host', '127.0.0.1', '--port', '5432', '--username', 'postgres', '--no-password', '--verbose', '--role', 'postgres', '--format=p', '--data-only', '--disable-triggers', '--create', '--inserts', '--disable-dollar-quoting', '--encoding', 'UTF8', '--table', 'public.student']
# 备份数据表
D:\DFL\SOFTWARES\postgresql14\bin\pg_dump.exe --file "C:\\Users\\DFL\\Desktop\\order.sql" --host "172.28.79.200" --port "5432" --username "postgres" --no-password --verbose --role "postgres" --format=c --blobs --section=data --encoding "UTF8" --table "public.orders" "test"
# 备份schema
D:\DFL\SOFTWARES\postgresql14\bin\pg_dump.exe --file "C:\\Users\\DFL\\DOCUME~1\\t1.sql" --host "172.28.79.200" --port "5432" --username "postgres" --no-password --verbose --format=c --blobs --schema "public" "test1"
# 备份数据库
D:\DFL\SOFTWARES\postgresql14\bin\pg_dump.exe --file "C:\\Users\\DFL\\DOCUME~1\\t1.sql" --host "172.28.79.200" --port "5432" --username "postgres" --no-password --verbose --format=c --blobs --encoding "UTF8" "test1"
# 备份服务器
D:\DFL\SOFTWARES\postgresql14\bin\pg_dumpall.exe --file "C:\\Users\\DFL\\DOCUME~1\\t1.sql" --host "172.28.79.200" --port "5432" --username "postgres" --no-password --database "postgres" --verbose
| 表单项目 | 参数 | 参数使用实例 | 备注 |
|---|---|---|---|
| 文件名 | –file | –file ‘/var/lib/pgadmin/storage/dangfulin2333_163.com/student.backup’ | |
| 格式 | –format | –format=p | 格式项：p——纯文本 c——自定义 d——目录 t——Tar |
| 压缩率 | -Z | –Z 7 | 压缩率数量级整数范围：[0,9]。 |
| 编码 | –encoding | –encoding “UTF8” | |
| 任务数目 | –jobs | –jobs “3” | 仅 --format=d 时可输入 |
| 角色名称 | –role | –role “postgres” | |
| 节数 -Pre-Data | –section=pre-data | –section=pre-data | 与“对象-仅数据”和“对象-仅架构”互斥 |
| 节数 -数据 | –section=data | –section=data | 与“对象-仅数据”和“对象-仅架构”互斥 |
| 节数 -Post-Data | –section=post-data | –section=post-data | 与“对象-仅数据”和“对象-仅架构”互斥 |
| 对象-仅数据 | –data-only | –data-only | 与下一项互斥 |
| 对象-仅架构 | –schema-only | –schema-only | 与上一项互斥 |
| 对象-Blobs | –blobs | –blobs | 默认开启 |
| 不要保存-所有者 | –no-owner | –no-owner | |
| 不要保存-权限 | –no-privileges | –no-privileges | |
| 不要保存-未记录日志的表数据 | –no-unlogged-table-data | –no-unlogged-table-data | |
| 不要保存-表空间 | –no-tablespaces | –no-tablespaces | |
| 不要保存-注释 | –no-comments | –no-comments | |
| 查询-使用列插入 | –column-inserts | –column-inserts | |
| 查询-使用插入命令 | –insert | –insert | |
| 查询-包括创建数据库语句 | –create | –create | |
| 查询-包括删除数据库语句 | –clean | –clean | |
| 查询-通过分区根加载 | –load-via-partition-root | –load-via-partition-root | |
| 禁用-触发器 | –disable-triggers | –disable-triggers | 当开启“对象-仅数据”时可选 |
| 禁用-$包含 | –disable-dollar-quoting | –disable-dollar-quoting | |
| 杂项-包含OID(s) | |||
| 杂项-详细信息 | –verbose | –verbose | |
| 杂项-强制在标识符号上加双引号 | –quote-all-identifiers | –quote-all-identifiers | |
| 杂项-使用设置会话授权 | -use-set-session-authorization | -use-set-session-authorization |
（二）恢复
1，恢复表

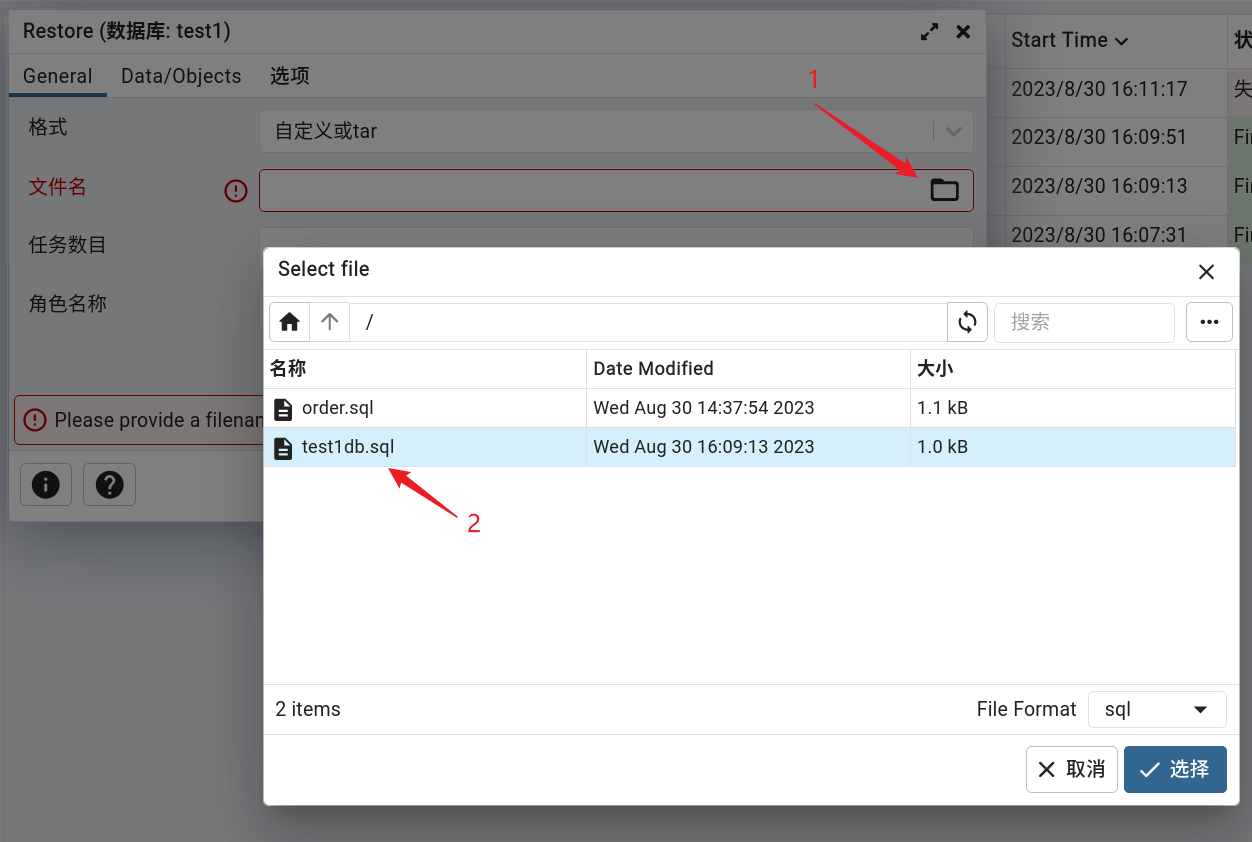

准备之前备份好的 .sql 格式的数据文件。
- 如果是 .backup 文件，则在恢复是会报错 “pg_restore: error: input file appears to be a text format dump. Please use psql.”。

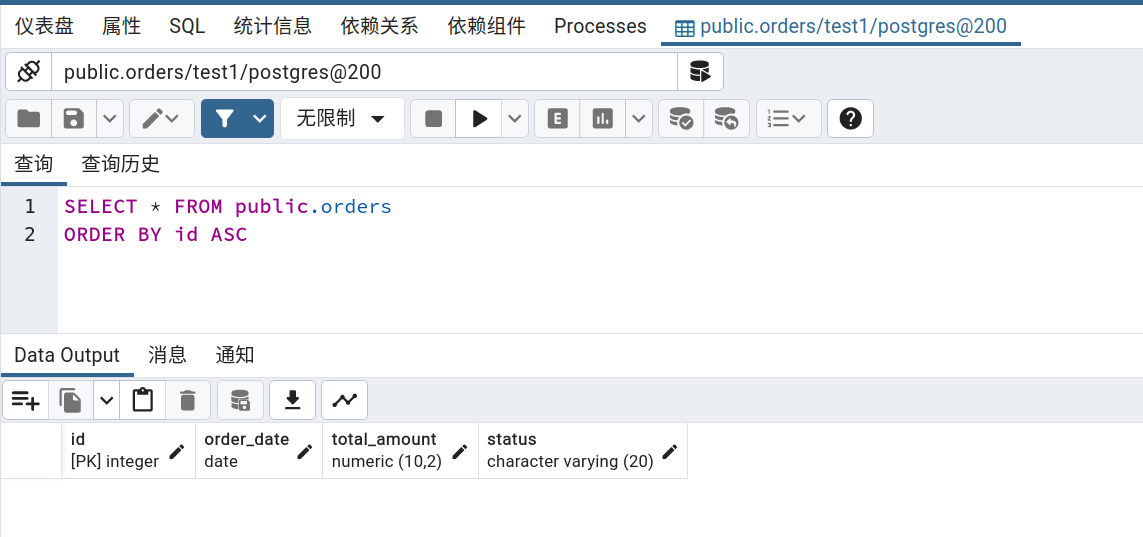

清空目标数据表数据：
- 如果不清空数据，则会报错 “pg_restore: implied data-only restore
pg_restore: processing data for table “public.orders”
pg_restore: while PROCESSING TOC:
pg_restore: from TOC entry 3305; 0 89224 TABLE DATA orders postgres
pg_restore: error: could not execute query: ERROR: duplicate key value violates unique constraint “orders_pkey”
DETAIL: Key (id)=(1) already exists.
Command was: INSERT INTO public.orders (id, order_date, total_amount, status) VALUES (1, ‘2022-01-01’, 1500.00, ‘已审核’);
”

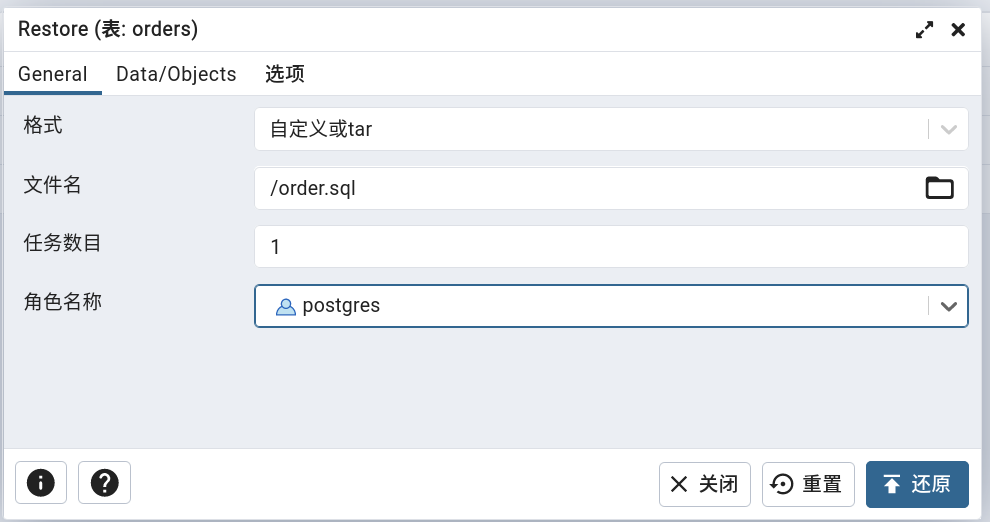

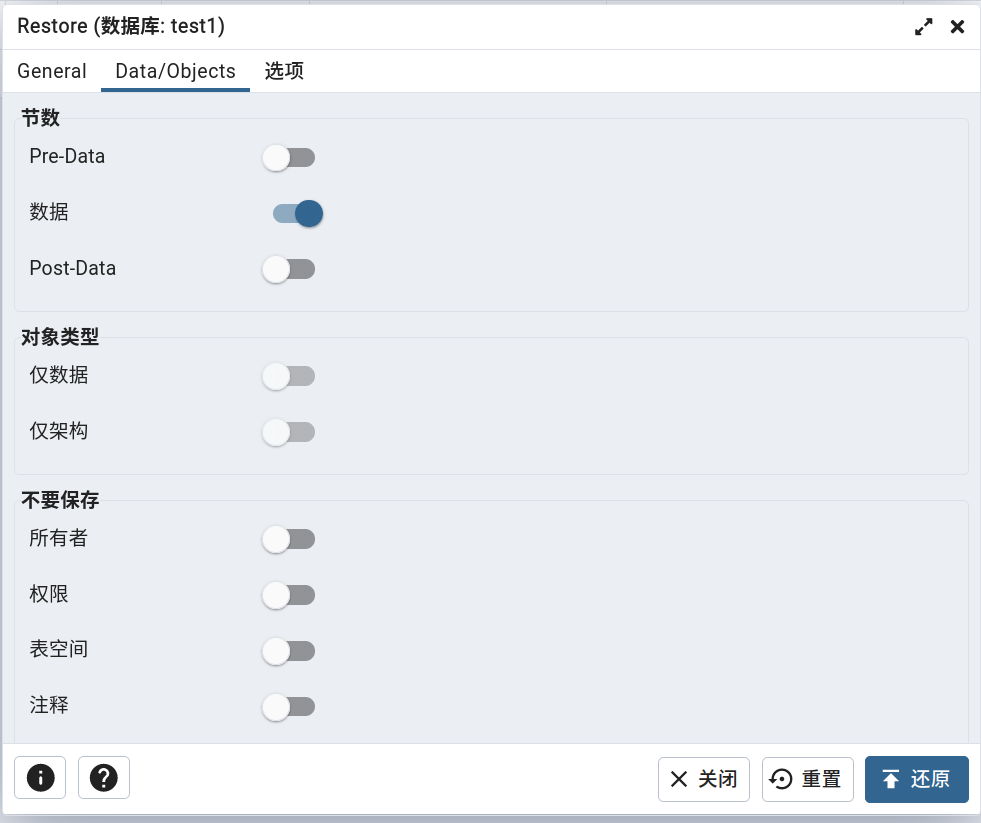

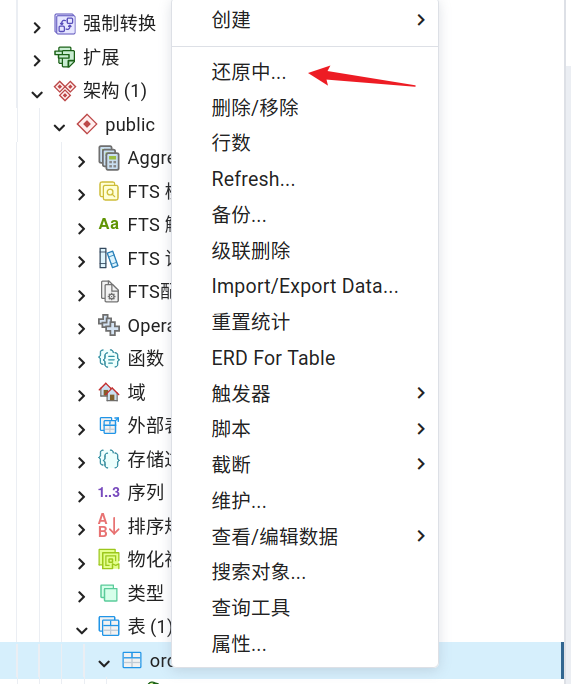

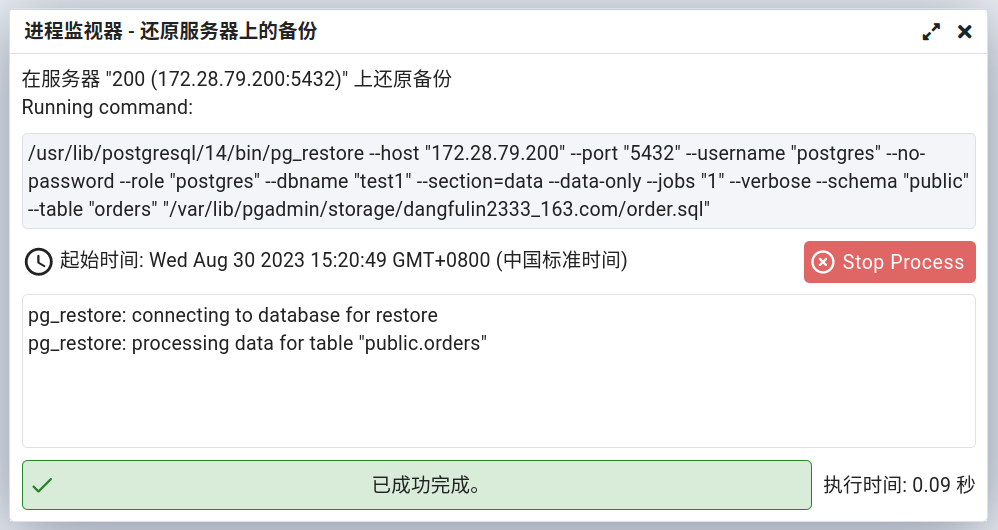

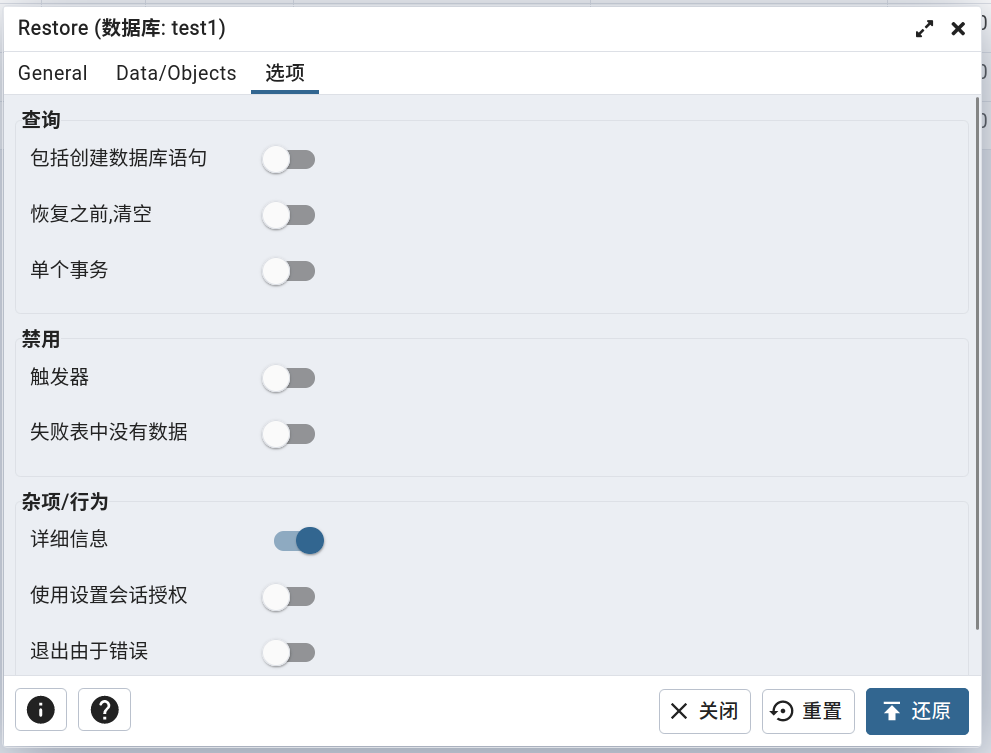

1，打开恢复功能的对话框：

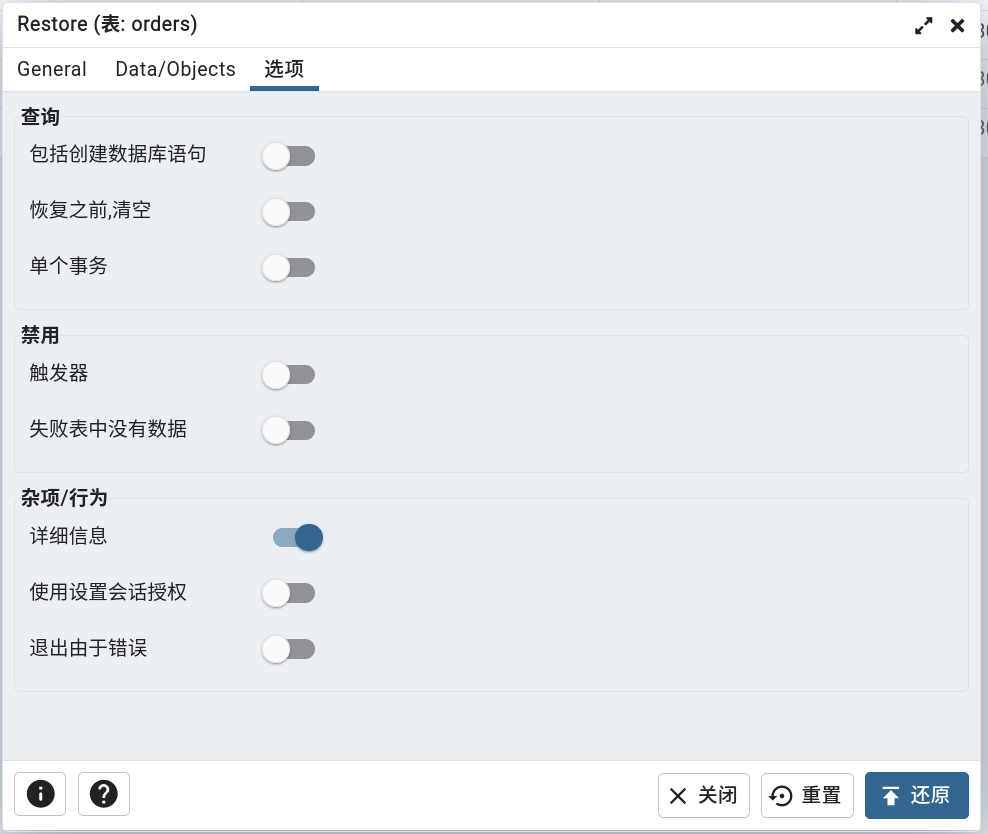

- 注意不能同时开启 “仅数据” 和 “恢复之前清空”，否则会因为 “pg_restore: error: options -c/–clean and -a/–data-only cannot be used together” 报错导致任务执行失败。
2，请求参数：
data={'blobs': True, 'custom': False, 'database': 'test1', 'file': '/order.sql', 'format': 'custom', 'no_of_jobs': '1', 'only_data': True, 'role': 'postgres', 'save_btn_icon': 'upload', 'schemas': ['public'], 'tables': ['orders'], 'verbose': True}
3，pgadmin4数据恢复源码：
@blueprint.route('/job/<int:sid>', methods=['POST'], endpoint='create_job')
@login_required
def create_restore_job(sid):
"""
Args:
sid: Server ID
Creates a new job for restore task
Returns:
None
"""
# 获取请求数据
# is_error=False
# errmsg=''
# data={'blobs': True, 'custom': False, 'database': 'test1', 'file': '/order.sql', 'format': 'custom', 'no_of_jobs': '1', 'only_data': True, 'role': 'postgres', 'save_btn_icon': 'upload', 'schemas': ['public'], 'tables': ['orders'], 'verbose': True}
# _file='/var/lib/pgadmin/storage/dangfulin2333_163.com/order.sql'
is_error, errmsg, data, _file = _get_create_req_data()
if is_error:
return errmsg
# 获取服务器对象并尝试连接
is_error, errmsg, driver, manager, conn, \
connected, server = _connect_server(sid)
if is_error:
return errmsg
# 检查是否存在恢复实用程序 pg_restore
utility = manager.utility('restore')
ret_val = does_utility_exist(utility)
if ret_val:
return make_json_response(
success=0,
errormsg=ret_val
)
# 设置参数
# ['--host', '172.28.79.200', '--port', '5432', '--username', 'postgres', '--no-password', '--role', 'postgres', '--dbname', 'test1', '--data-only', '--jobs', '1', '--verbose', '--schema', 'public', '--table', 'orders', '/var/lib/pgadmin/storage/dangfulin2333_163.com/order.sql']
args = _set_args_param_values(data, manager, server, driver, conn, _file)
try:
# 创建批处理进程
p = BatchProcess(
desc=RestoreMessage(
server.id,
data['file'].encode('utf-8') if hasattr(
data['file'], 'encode'
) else data['file'],
*args,
database=data['database']
),
cmd=utility, args=args
)
# 设置环境变量
manager.export_password_env(p.id)
# Check for connection timeout and if it is greater than 0 then
# set the environment variable PGCONNECT_TIMEOUT.
if manager.connect_timeout > 0:
env = dict()
env['PGCONNECT_TIMEOUT'] = str(manager.connect_timeout)
p.set_env_variables(server, env=env)
else:
p.set_env_variables(server)
# 启动进程
p.start()
# 获取作业ID
jid = p.id
except Exception as e:
current_app.logger.exception(e)
return make_json_response(
status=410,
success=0,
errormsg=str(e)
)
# Return response
return make_json_response(
data={'job_id': jid, 'desc': p.desc.message, 'Success': 1}
)
查看恢复任务执行情况：
查看恢复任务执行详情：
/usr/lib/postgresql/14/bin/pg_restore --host "172.28.79.200" --port "5432" --username "postgres" --no-password --role "postgres" --dbname "test1" --data-only --jobs "1" --verbose --schema "public" --table "orders" "/var/lib/pgadmin/storage/dangfulin2333_163.com/order.sql"
/usr/lib/postgresql/14/bin/pg_restore --host "172.28.79.200" --port "5432" --username "postgres" --no-password --role "postgres" --dbname "test1" --section=data --jobs "1" --verbose "/var/lib/pgadmin/storage/dangfulin2333_163.com/test1db.sql"
2，恢复架构
略
3，恢复数据库

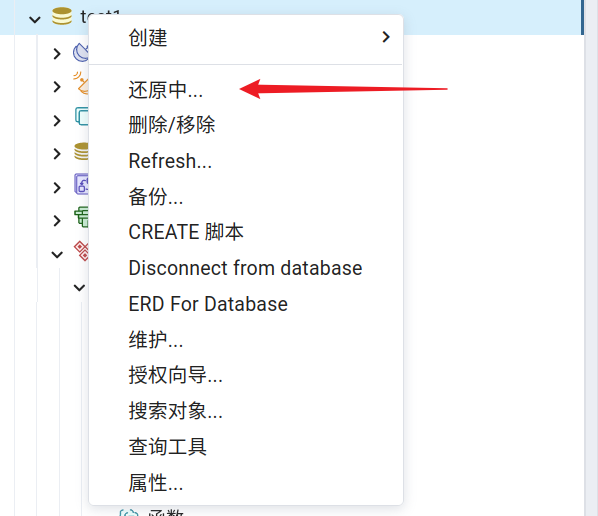

1，打开对话框：
2，请求参数：
data={'blobs': True, 'custom': False, 'data': True, 'database': 'test1', 'file': '/test1db.sql', 'format': 'custom', 'no_of_jobs': '1', 'role': 'postgres', 'save_btn_icon': 'upload', 'verbose': True}
3，pgadmin4数据恢复源码：
@blueprint.route('/job/<int:sid>', methods=['POST'], endpoint='create_job')
@login_required
def create_restore_job(sid):
"""
Args:
sid: Server ID
Creates a new job for restore task
Returns:
None
"""
# 获取请求数据
# is_error=False
# errmsg=''
# data={'blobs': True, 'custom': False, 'data': True, 'database': 'test1', 'file': '/test1db.sql', 'format': 'custom', 'no_of_jobs': '1', 'role': 'postgres', 'save_btn_icon': 'upload', 'verbose': True}
# _file='/var/lib/pgadmin/storage/dangfulin2333_163.com/test1db.sql'
is_error, errmsg, data, _file = _get_create_req_data()
if is_error:
return errmsg
# 获取服务器对象并尝试连接
is_error, errmsg, driver, manager, conn, \
connected, server = _connect_server(sid)
if is_error:
return errmsg
# 检查是否存在恢复实用程序 pg_restore
# '/usr/lib/postgresql/14/bin/pg_restore'
utility = manager.utility('restore')
ret_val = does_utility_exist(utility)
if ret_val:
return make_json_response(
success=0,
errormsg=ret_val
)
# 设置参数
# ['--host', '172.28.79.200', '--port', '5432', '--username', 'postgres', '--no-password', '--role', 'postgres', '--dbname', 'test1', '--section=data', '--jobs', '1', '--verbose', '/var/lib/pgadmin/storage/dangfulin2333_163.com/test1db.sql']
args = _set_args_param_values(data, manager, server, driver, conn, _file)
try:
# 创建批处理进程
p = BatchProcess(
desc=RestoreMessage(
server.id,
data['file'].encode('utf-8') if hasattr(
data['file'], 'encode'
) else data['file'],
*args,
database=data['database']
),
cmd=utility, args=args
)
# 设置环境变量
manager.export_password_env(p.id)
# Check for connection timeout and if it is greater than 0 then
# set the environment variable PGCONNECT_TIMEOUT.
if manager.connect_timeout > 0:
env = dict()
env['PGCONNECT_TIMEOUT'] = str(manager.connect_timeout)
p.set_env_variables(server, env=env)
else:
p.set_env_variables(server)
# 启动进程
p.start()
# 获取作业ID
jid = p.id
except Exception as e:
current_app.logger.exception(e)
return make_json_response(
status=410,
success=0,
errormsg=str(e)
)
# Return response
return make_json_response(
data={'job_id': jid, 'desc': p.desc.message, 'Success': 1}
)

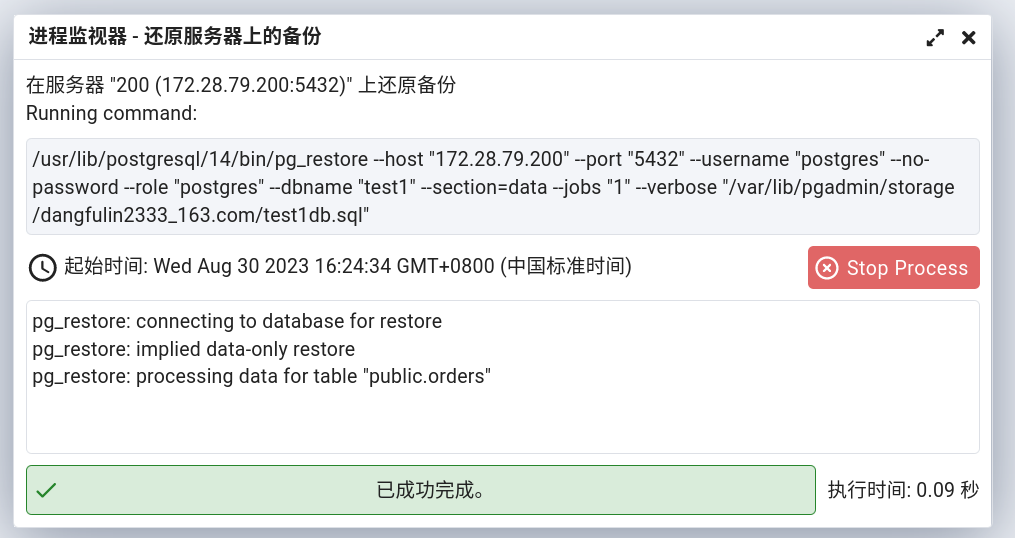

任务执行情况：
任务执行详情：
/usr/lib/postgresql/14/bin/pg_restore --host "172.28.79.200" --port "5432" --username "postgres" --no-password --role "postgres" --dbname "test1" --section=data --jobs "1" --verbose "/var/lib/pgadmin/storage/dangfulin2333_163.com/test1db.sql"
4，恢复服务器
略
5，pgadmin4恢复对话框表单数据与 pg_restore 命令参数对应关系
# 恢复数据表
D:\DFL\SOFTWARES\postgresql14\bin\pg_restore.exe --host "172.28.79.200" --port "5432" --username "postgres" --no-password --role "postgres" --dbname "test1" --data-only --create --clean --single-transaction --no-data-for-failed-tables --use-set-session-authorization --exit-on-error --jobs "1" --verbose --schema "public" --table "orders" "C:\\Users\\DFL\\DOCUME~1\\t1.sql"
| 表单项目 | 参数 | 参数使用实例 | 备注 |
|---|---|---|---|
| 文件名 | “C:\Users\DFL\DOCUME~1\t1.sql” | ||
| 格式 | –format | –format=p | 格式项： c——自定义 d——目录 t——Tar |
| 任务数目 | –jobs | –jobs “3” | |
| 角色名称 | –role | –role “postgres” | |
| 节数 -Pre-Data | –section=pre-data | –section=pre-data | 与“对象-仅数据”和“对象-仅架构”互斥 |
| 节数 -数据 | –section=data | –section=data | 与“对象-仅数据”和“对象-仅架构”互斥 |
| 节数 -Post-Data | –section=post-data | –section=post-data | 与“对象-仅数据”和“对象-仅架构”互斥 |
| 对象-仅数据 | –data-only | –data-only | 与下一项互斥 |
| 对象-仅架构 | –schema-only | –schema-only | 与上一项互斥 |
| 对象-Blobs | –blobs | –blobs | 默认开启 |
| 不要保存-所有者 | –no-owner | –no-owner | |
| 不要保存-权限 | –no-privileges | –no-privileges | |
| 不要保存-未记录日志的表数据 | –no-unlogged-table-data | –no-unlogged-table-data | |
| 不要保存-表空间 | –no-tablespaces | –no-tablespaces | |
| 不要保存-注释 | –no-comments | –no-comments | |
| 查询-包括创建数据库语句 | –create | –create | |
| 查询-恢复之前清空 | –clean | –clean | |
| 查询-单个事务 | –single-transaction | –single-transaction | |
| 禁用-触发器 | –disable-triggers | –disable-triggers | 当开启“对象-仅数据”时可选 |
| 禁用-失败表中没有数据 | –no-data-for-failed-tables | –no-data-for-failed-tables | |
| 杂项-详细信息 | –verbose | –verbose | |
| 杂项-使用设置会话授权 | -use-set-session-authorization | -use-set-session-authorization | |
| 杂项-碰到错误时退出 | –exit-on-error | –exit-on-error |
4万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
