NX二次开发(python)-边拔模(一)

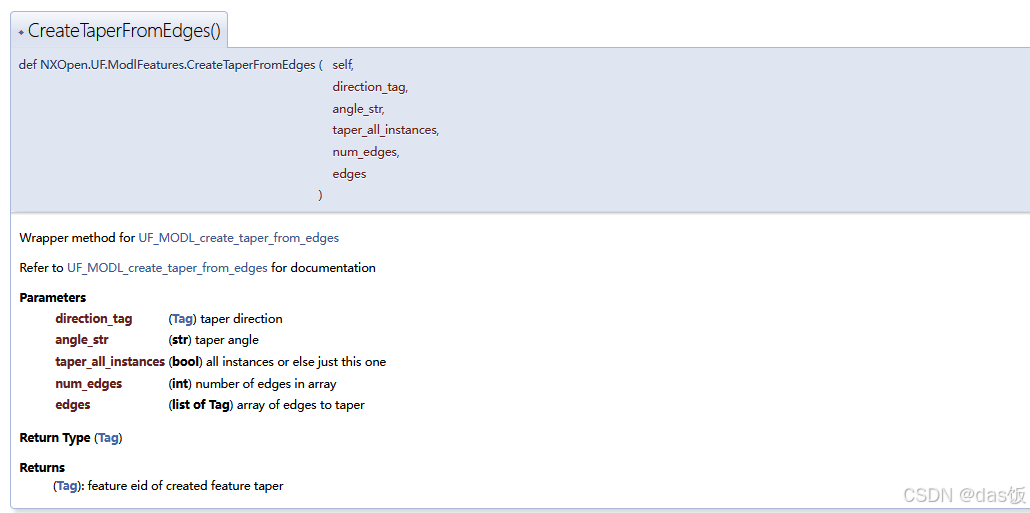

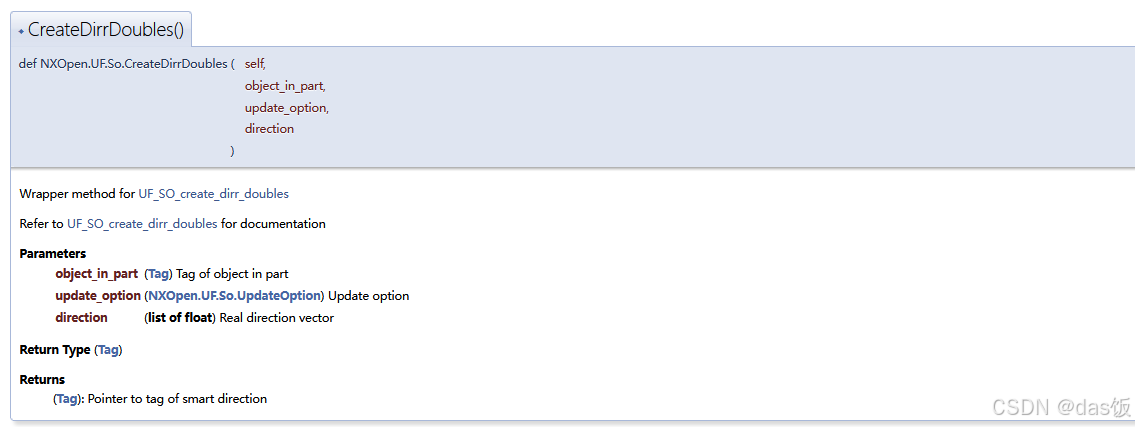

 下图为NXOpen Python的参考指南

 代码如下

import NXOpen.UF as UF

ufsession=UF.UFSession.GetUFSession()

t=ufsession.So.CreateDirrDoubles(51130,UF.So.UpdateOption.ValueOf(1),[0.0,1.0,0.0])



ufsession.ModlFeatures.CreateTaperFromEdges(t,'10',False,1,[51124])

效果如下
